AIO-PX30-101

Version 1.1

Product Overview

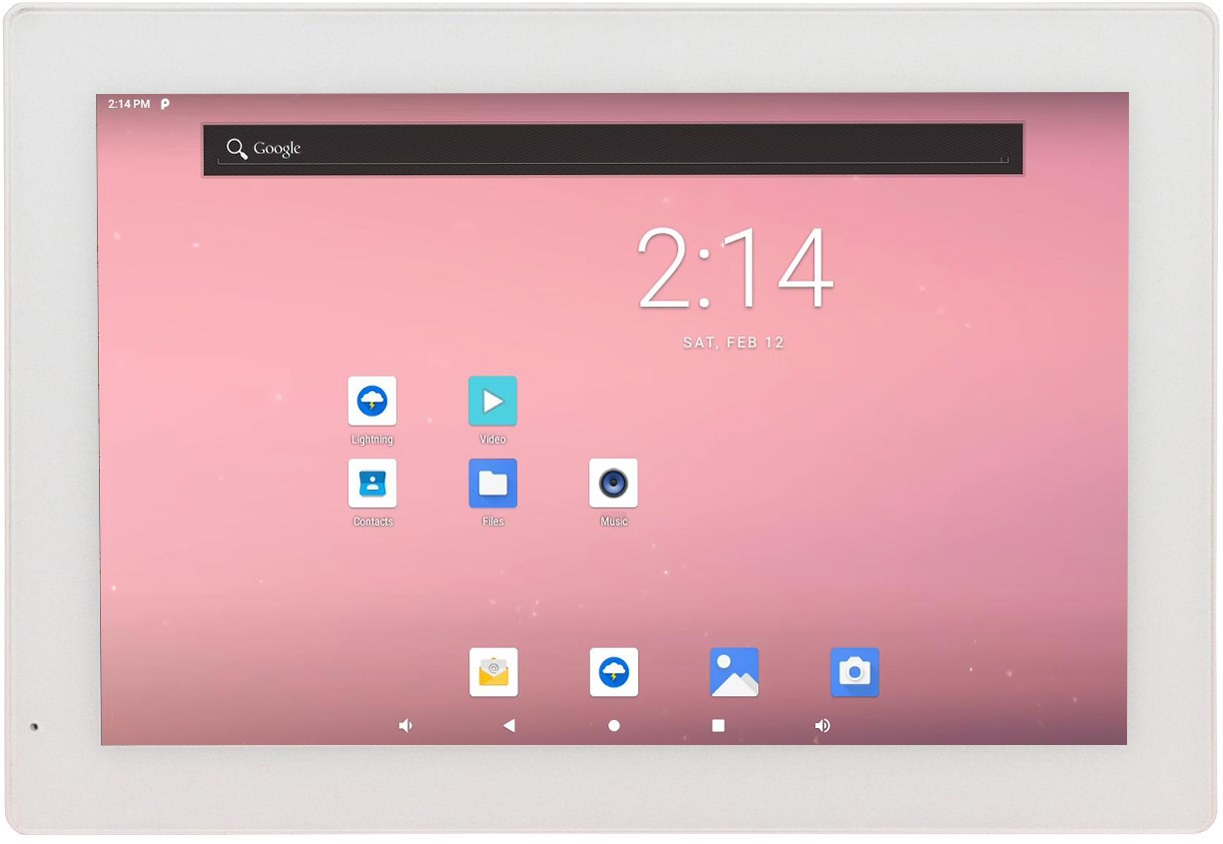

The AIO-PX30-101 Industrial PC (PN: CS12800PX101A) is an all-in-one desktop computer based on Rockchip PX30. It features a 10.1” IPS display with a maximum brightness of 350 cd/m2.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.

Note

You can order AIO-PX30-101 from the official Chipsee Store or from your nearest distributor.

Operating System

This product comes with a pre-installed Android OS or Debian OS. Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.

If your project requires a different OS, please Contact us, and we’ll make a customized version that suits your needs.

Optional Features

The AIO-PX30-101 Industrial PC does not include the 4G/LTE modules by default. These modules are optional and can be selected at the Chipsee store during the ordering process.

Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

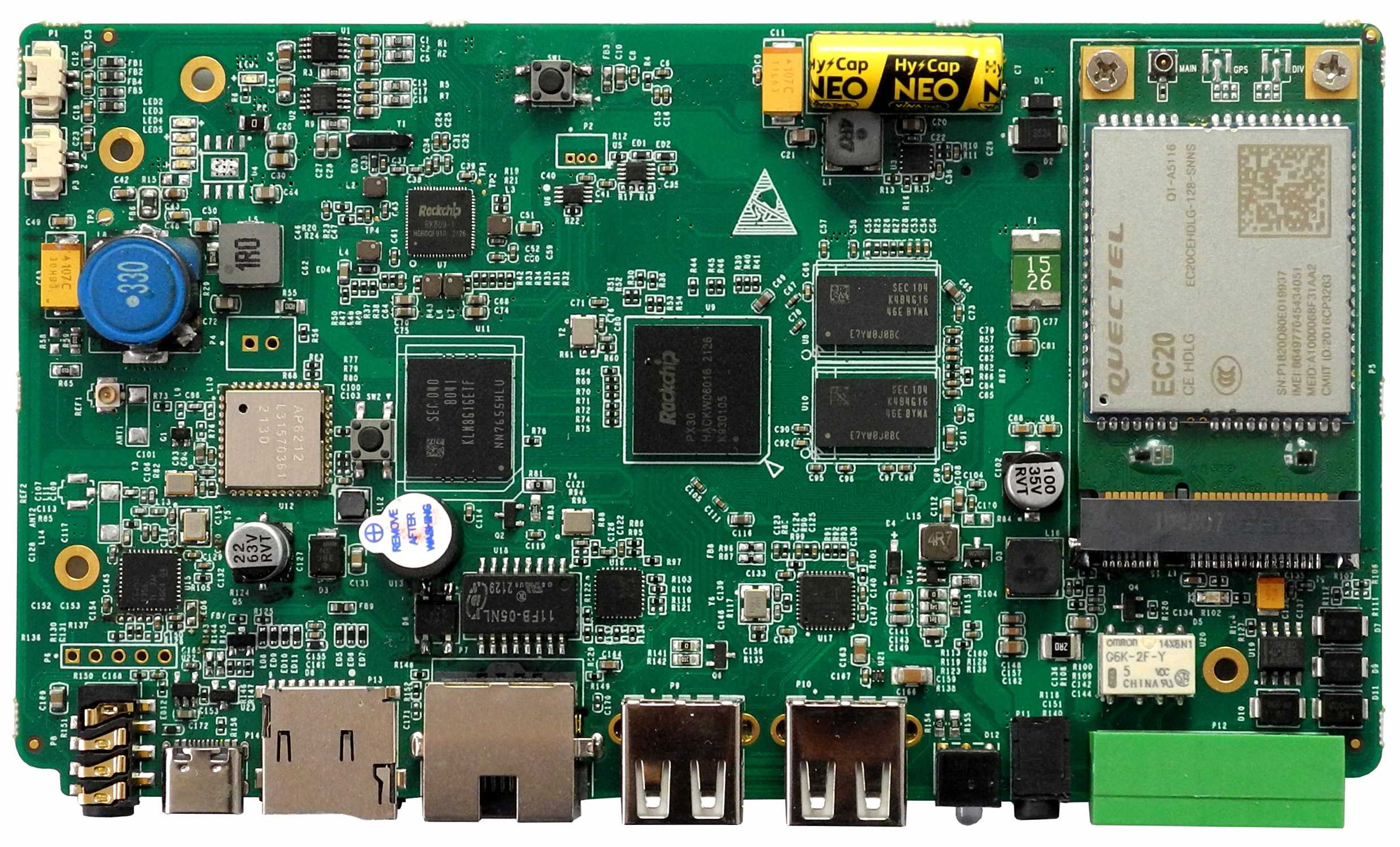

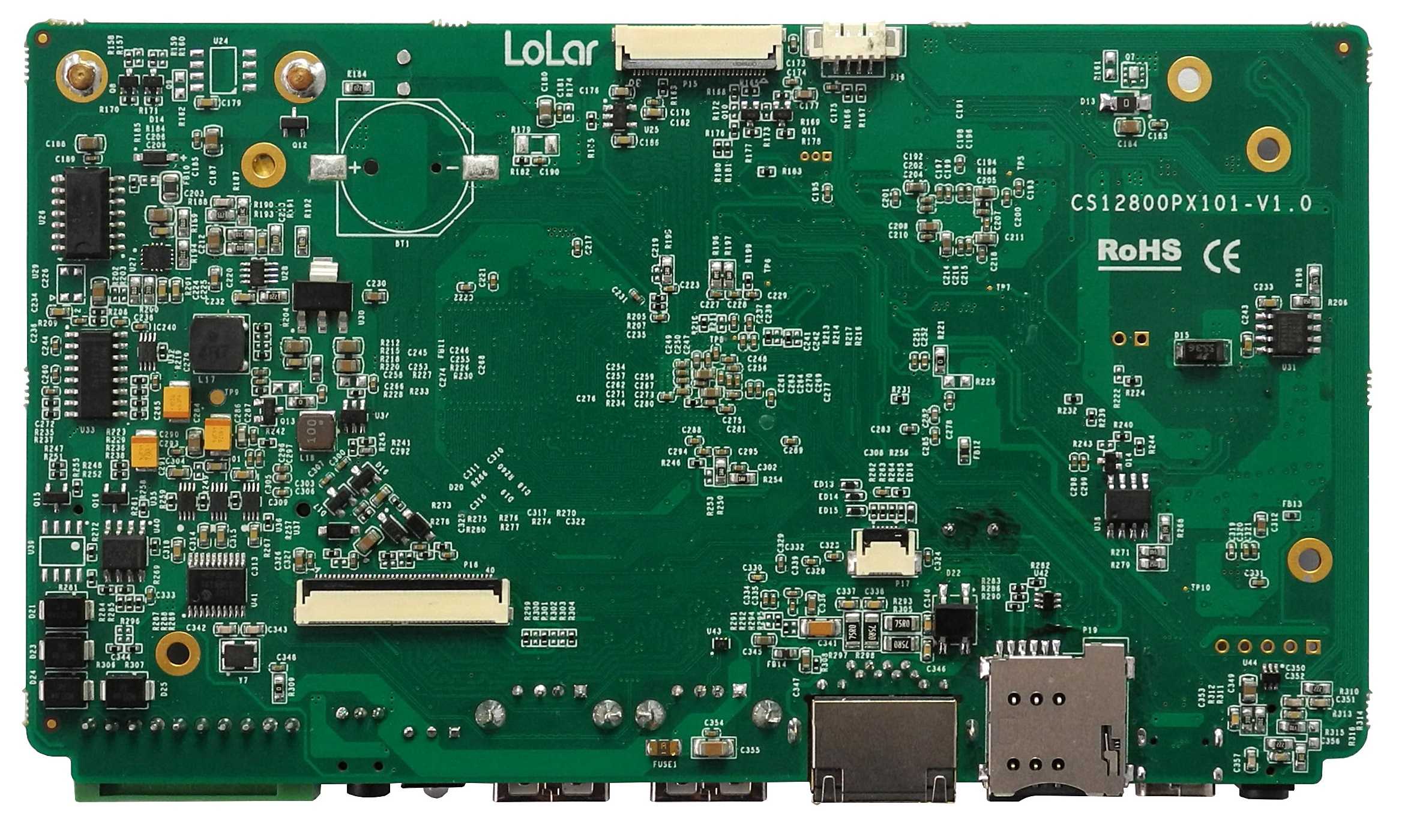

Hardware Features

The AIO-PX30-101 Industrial PC offers a board range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below.

Table 280 Key Features

AIO-PX30-101

CPU

Rockchip PX30, Quad Cortex-A35 at 1.5GHz

Storage

1 x TF card slot designed for storage expansion

RAM

1GB DDR

eMMC

8GB

Display

10.1” IPS LCD, 1280 x 800 resolution px, brightness 350 cd/m2

Touch

10-point capacitive touch with 1.0mm Armored Glass

USB

2 x USB 2.0 Host, 1 x mini USB OTG

LAN

1 x Channel 100Mbps LAN

Audio

Mic input on the front panel, 2W internal stereo speaker, 3.5mm audio In/Out connector

Buzzer

Internal Buzzer

RTC

Yes, High accuracy internal RTC (keep track of time one week after power off)

RS232

1 x RS232 default, 2 Channels at most.

RS485

1 x RS485 default, 2 Channels at most. The RS485 circuit automatically controls the Input and Output direction (no need for software control)

CAN

1 x CAN Bus.

Relay

1 x relay with “Normally Connected” and “Normally Open” output

WiFi/BT

WiFi/BT module

ZIGBEE

Internal Zigbee supported, not mounted by default

4G/LTE

Internal 4G/LTE module supported, not mounted by default

Power Input

12V DC

Current at 12V

500mA Max

Power Consumption

6W Typical

Working Temperature

From 0°C to +50°C

OS

Android, Debian

Dimensions

260.54 x 178.54 x 26.9mm

Weight

620g

Plastic Case Color

Black, White

Certification

CE, ROHS


Power Input

The AIO-PX30-101 Industrial PC can be powered by a wide range of input voltages: 12V DC. The total power consumption is typically about 6W. The power input connector is a 3.4/1.7mm DC connector. For a proper DC power adapter, refer to the figure below. We also provide a customzied power cable of 3.4/1.7mm to 5.5/2.1mm for customer.

../../../../../../_images/101-Power.jpeg

Figure 833: Power Adapter

Buttons and Status LED

Status LED

This product has an LED status indicator on the backside, as the figure below shows. The LED turns GREEN when the device is turned on and flashes YELLOW when the CPU is working.

../../../../../../_images/101-LED.jpeg

Figure 834: Status LED

Buttons

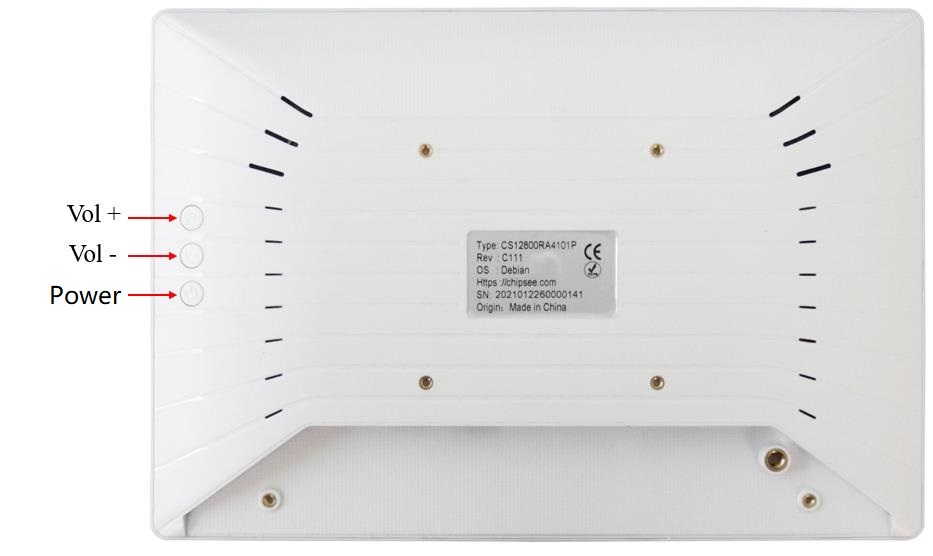

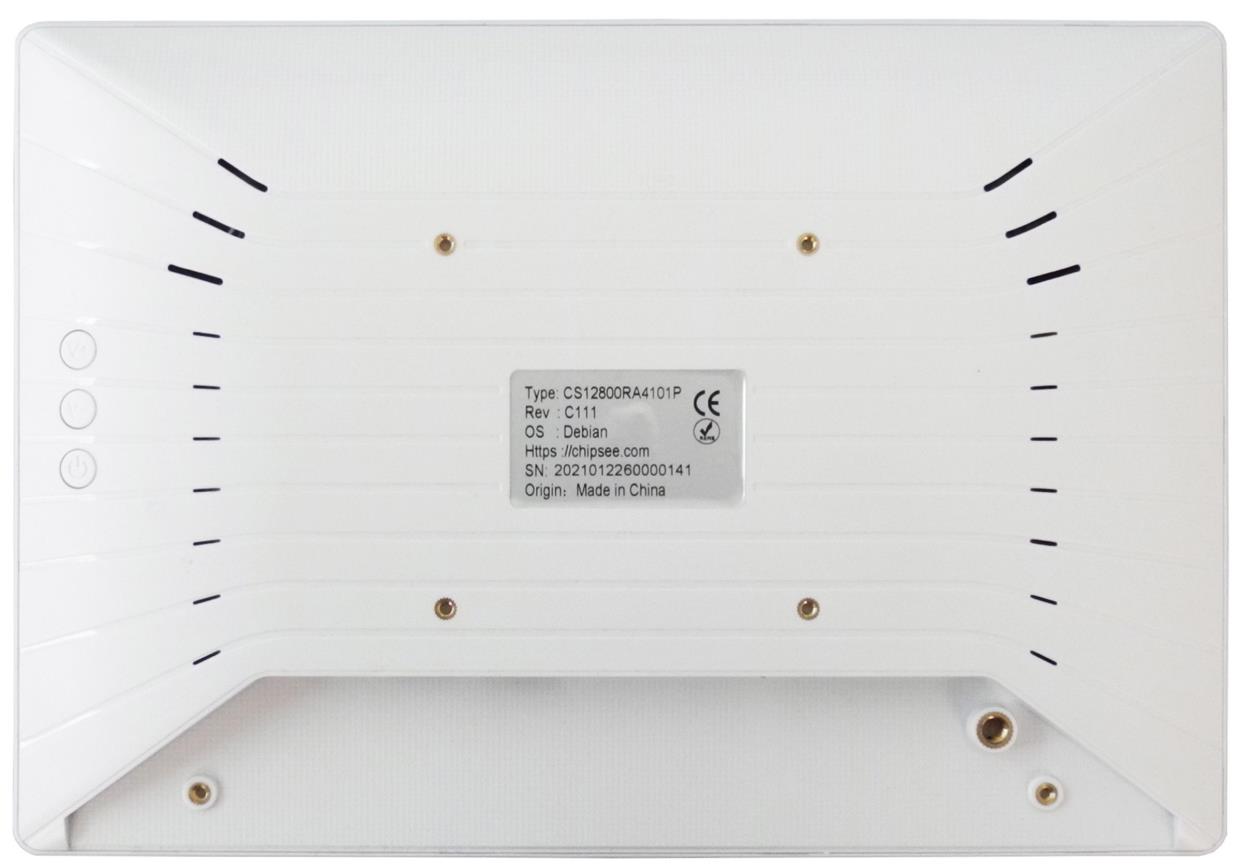

There are three (3) buttons on the backside of the case: Volume +, Volume -, and Power, as the figure below shows.

../../../../../../_images/101-Buttons.jpeg

Figure 835: Buttons

The AIO-PX30-101 Industrial PC will boot automaticlly after power on, don’t need to press Power button. After system booted, we can use Power button to sleep and awake system.

Connectivity

There are many connectivity options available on the AIO-PX30-101 industrial PC. It has 2 x USB 2.0 Host, 1 x mini USB OTG, 1 x Channel 100Mbps LAN (RJ45) Ethernet connector supporting up to 100Mbps, and RS232+RS485+CAN+Relay connector.

USB HOST and USB OTG

There are 2 x Type A USB HOST connectors and 1 x USB-OTG Connector onboard, as shown on the figures below.

../../../../../../_images/101-USB.jpeg
../../../../../../_images/101-OTG.jpeg

Figure 836: USB HOST and USB OTG Connectors

Note

  • External USB peripherals like a USB disk or USB mouse or keyboard can connect to the USB HOST.

  • You can download software to the eMMC using the USB OTG.

LAN Connectors

LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. The integrated Ethernet interface supports up to 100Mbps data throughput.

../../../../../../_images/101-LAN.jpeg

Figure 837: RJ45 LAN Connectors

Note

Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).

TF Card and SIM Card Slots

The AIO-PX30-101 Industrial PC features 1 x TF Card (micro SD) slot and 1 x SIM Card slot. You can use the SIM card slot when you mount the 4G/LTE module.

../../../../../../_images/101-TF_SIM_Cards.jpeg

Figure 838: TF Card Slot (upper) and SIM Card Slot (lower)

Note

  1. The product does not come shipped with the TF Card and the SIM Card by default.

Audio In/Out Connector

The product features audio In/Out connector as shown on the figure below.

../../../../../../_images/101-Audio.jpeg

Figure 839: Audio IO Connector

ZIGBEE Module

The AIO-PX30-101 Industrial PC supports an onboard Zigbee module. The Zigbee controller is TI CC2531, and the Raspberry Pi forum supports it.

Attention

The product does not come with the Zigbee module by default.

RS232/RS485/CAN/Relay Connector

The serial communication interfaces (RS485, RS232, CAN and Relay) are routed to a 10-pin 2.5mm connector, as illustrated on the figure below.

../../../../../../_images/101-RS232_CON.jpeg

Figure 840: RS232/RS485/CAN/Relay Connector

The table below offers more detailed description of every pin and its definition:

Table 281 RS232/RS485/CAN/Relay Connector

RS232 / RS485 / CAN / Relay Pin Definition:

Pin Number

Definition

Description

Pin 1

GND

System Ground

Pin 2

RS232_1_RXD

CPU UART3, RS232 RXD signal

Pin 3

RS232_1_TXD

CPU UART3, RS232 TXD signal

Pin 4

RS485_1+

CPU UART5, RS485 +(A) signal

Pin 5

RS485_1-

CPU UART5, RS485 –(B) signal

Pin 6

CAN1_H

CPU CAN Channel 1 H signal

Pin 7

CAN1_L

CPU CAN Channel 1 L signal

Pin 8

Relay NO

Relay Normally Open

Pin 9

Relay COM

Relay Common

Pin 10

Relay NC

Relay Normally Connected

Attention

  1. The RS232_1 can be set as the RS485 signal. If you need it to work as RS485, please Contact us before shipping.

  2. The RS485_1 can be set as the RS232 signal. If you need it to work as RS232, please Contact us before shipping.

  3. RS485 automatically controls input/output direction. It does not need software control.

  4. The 120Ω match resistor for the RS485 is mounted by default.

  5. The Relay Max switching voltage is 125VAC or 60VDC. The maximum switching current is 1A. Rated load is 0.3A at 125VAC and 1A at 30VDC.

Mic Input

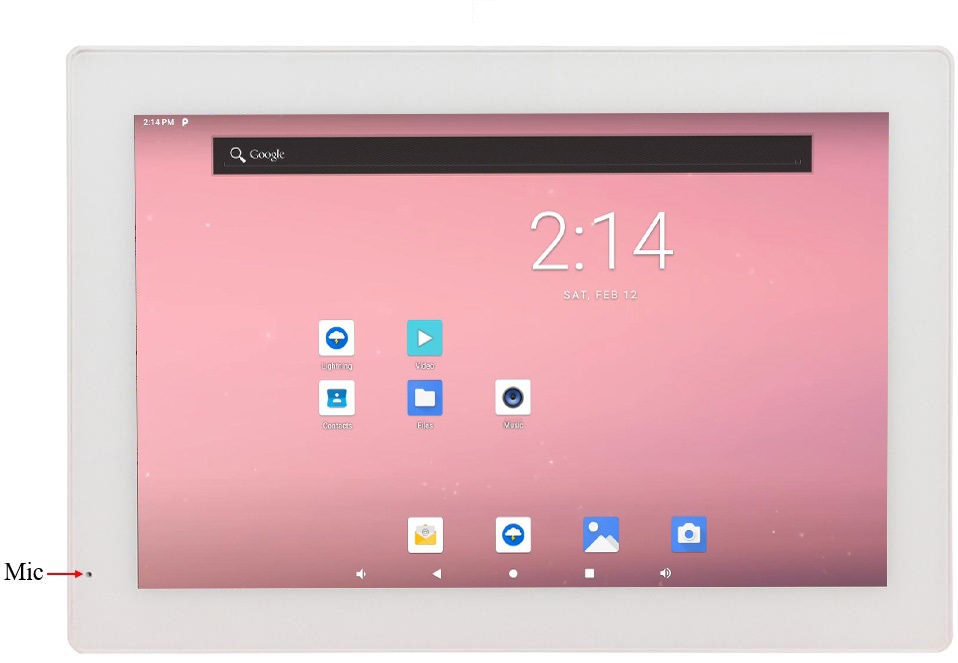

The AIO-PX30-101 Industrial PC has an integrated microphone on the front panel, as shown on the figure below.

../../../../../../_images/101-Cam_Mic.jpeg

Figure 841: Microphone Input

Mounting Procedure

You can mount AIO-PX30-101 with the Vesa (75 x 75mm) and Stand mounting methods, as shown in the figures below.

../../../../../../_images/101-VMount.jpeg

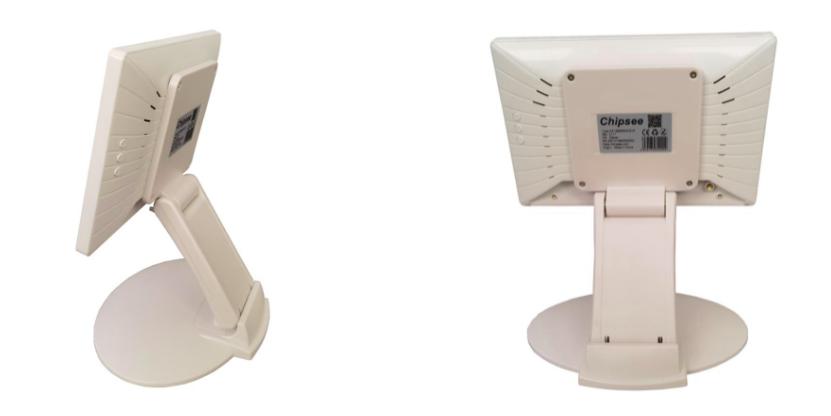

Figure 842: VESA mounting

../../../../../../_images/101-SMount.jpeg

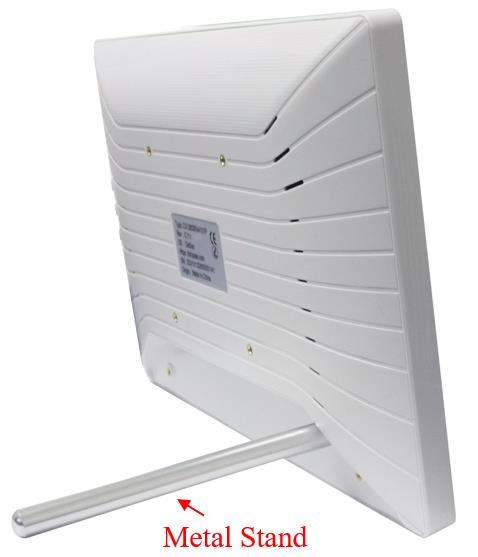

Figure 843: Stand mounting

Attention

Please make sure the display is not exposed to high pressure when mounting into an enclosure.

You can find detailed information about mounting in the Mount IPC Guide.

Mechanical Specifications

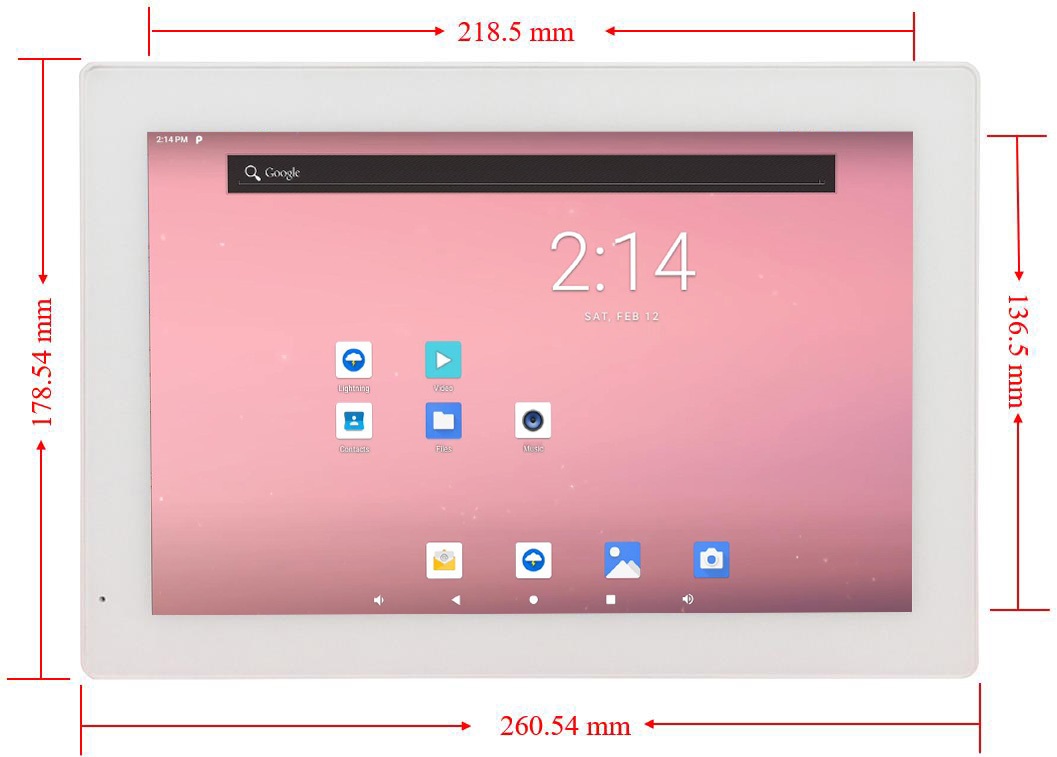

The outer mechanical dimensions of AIO-PX30-101 are 260.54 x 178.54 x 26.9mm (W x L x H). Please refer to the technical drawing in the figures below for details related to the specific product measurements.

../../../../../../_images/CS12800PX101A-TD-Front.jpeg

Figure 844: Front Panel Dimension Technical Drawing

../../../../../../_images/CS12800PX101A-TD-Back.jpeg

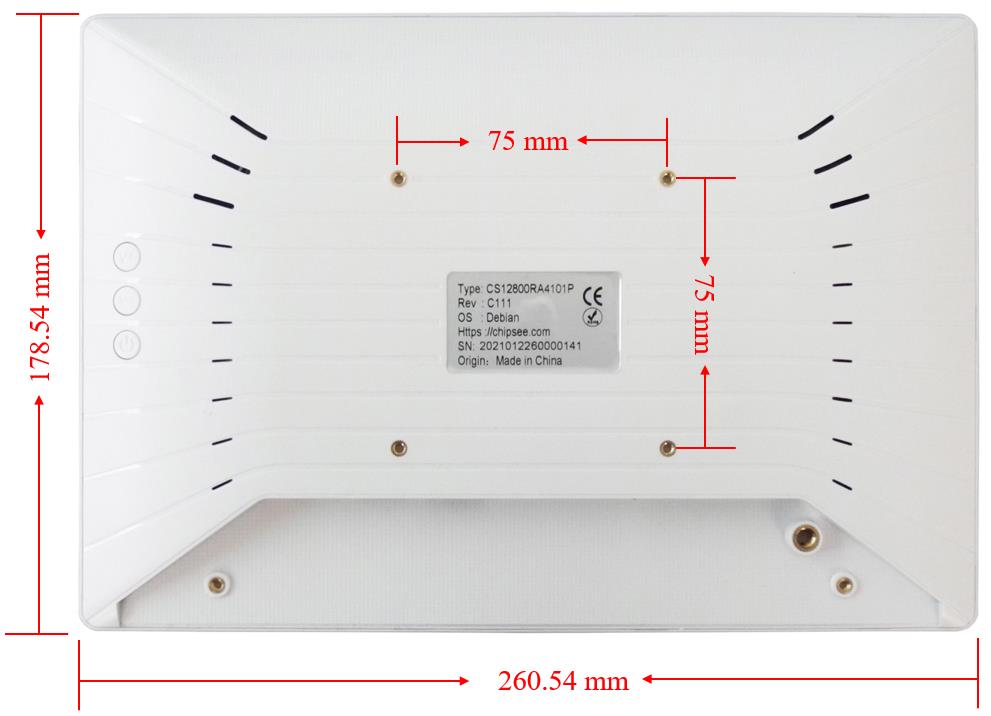

Figure 845: Backside Dimension Technical Drawing

../../../../../../_images/CS12800PX101A-TD-Side.jpeg

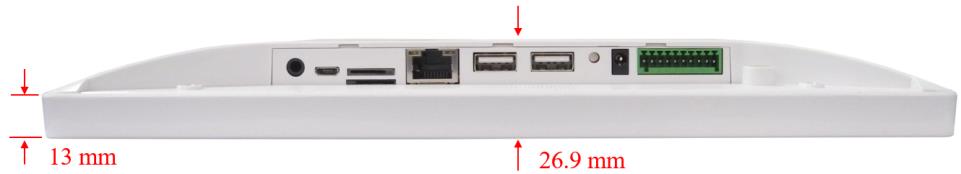

Figure 846: Side Dimension Technical Drawing
