EPC/PPC-A72-070-C

Version 1.1

Product Overview

The Cortex®-A72/53 series EPC/PPC-A72-070-C (PN: CS10600R070) is a high-quality industrial panel PC. It features a 7.0” five-point capacitive touch screen with a resolution of 1024 x 600 pixels and brightness of 500 cd/m2.

It is available both as an embedded solution and as a device hosed in an aluminum casing with bezels, thus facilitating different installation options:

  • Installation on an industrial cabinet

  • Integration with the existing equipment

The EPC/PPC-A72-070-C Industrial Panel PC is based around the powerful CS-SOM-RK3399 System on Module (SoM), powered by the Rockchip RK3399 low-power processor which integrates a dual-core Cortex®-A72 and a quad-core Cortex®-A53 with a separate NEON coprocessor.

The RK3399 supports multi-format video decoders and has a high-performance dual-channel external memory interface (DDR3/DDR3L/LPDDR3/LPDDR4) capable of sustaining demanding memory bandwidths. It also provides a complete set of peripheral interfaces.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.

Note

You can order EPC/PPC-A72-070-C from the official Chipsee Store or from your nearest distributor.

Operating System

This product comes with a pre-installed OS of your choice. Please see the list below for the supported OSes, which can be also obtained from the Software Documentation section, along with the detailed installation instructions.

  • Buildroot Linux Qt5.14*

  • Android 7.1

  • Android 11

  • Debian 10


*

(Formerly Chipsee Linux) Based on buildroot that has been integrated with:

  1. Chipsee Hardware Test Application

  2. An initialization script for GPIO/Buzzer/Audio

  3. Multiple libraries, such as the libQt5Sql to develop Qt application with SQL

  4. Various packages, such as the ntfs-3g to use NTFS file system

Warning

The Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com for further assistance

Optional Features

The EPC/PPC-A72-070-C Industrial Panel PC does not include 4G/LTE module by default. The module is optional and can be selected at the Chipsee store during the ordering process.

Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

Hardware Features

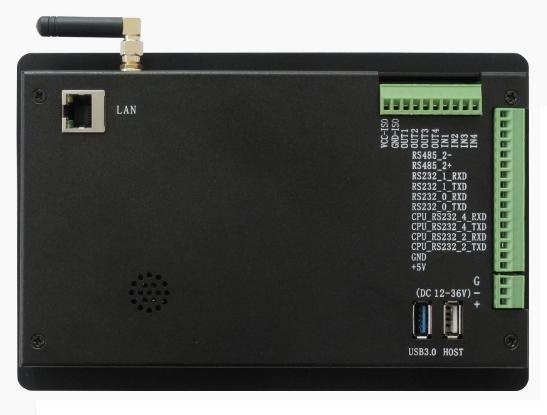

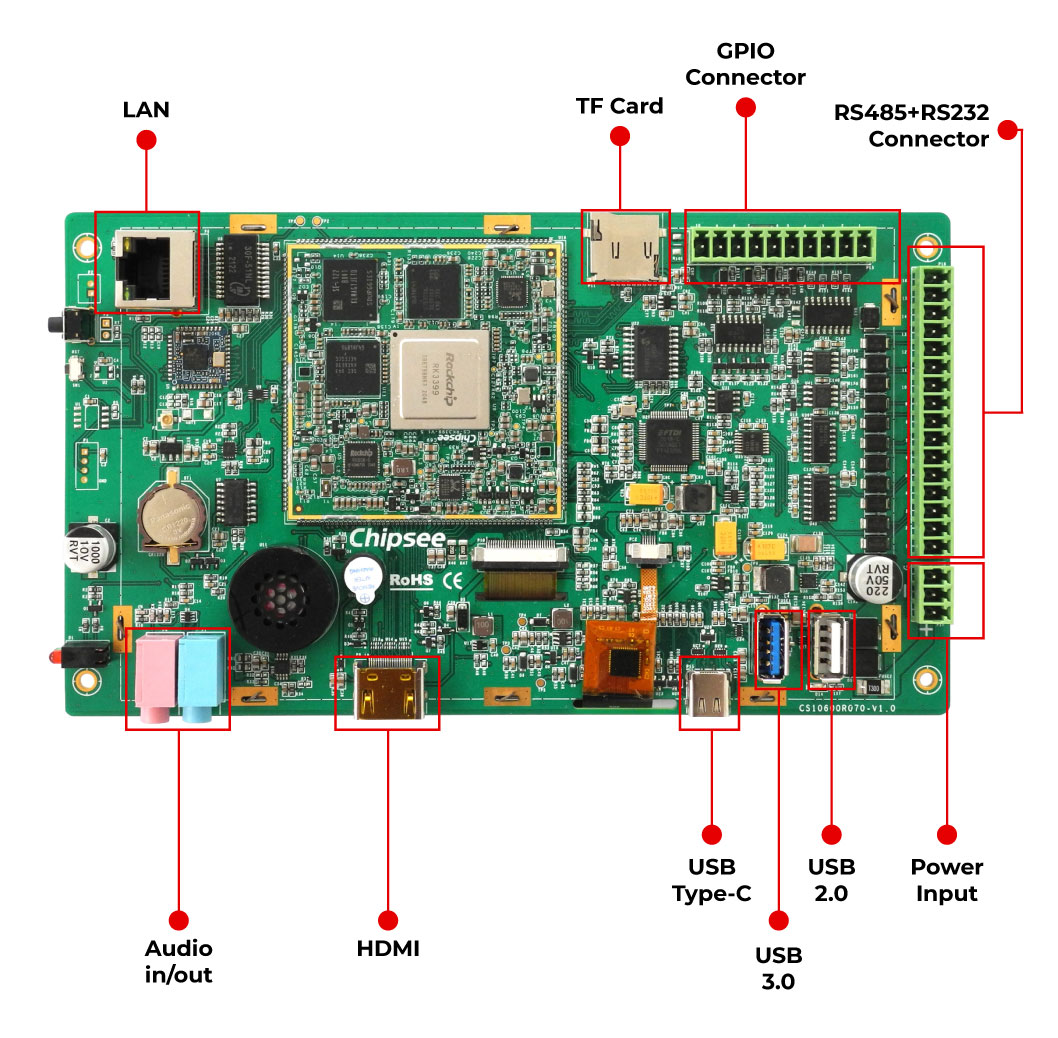

The EPC/PPC-A72-070-C Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability to meet future needs. Some of the key features are listed in the table below.

Table 128 Key Features

EPC/PPC-A72-070-C

CPU

Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz)

RAM

4GB DDR3

eMMC

16GB

Storage

TF Card, Supports up to 32GB SDHC

Display

7.0” LCD, 1024 x 600, High Brightness: 500 cd/m2

Touch

5-point capacitive touch screen

USB

1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C

LAN

1 x RJ45, GbE

Audio

3.5mm Audio In/Out Connector, 2W Internal Speaker

Buzzer

Yes

RTC

Yes

RS232

4 x RS2321

RS485

2 x RS485 (1 debug port)1

GPIO

8 Channels

WiFi/BT

Integrated WiFi/BT Module

HDMI

1 x HDMI

4G/LTE

Not supported

Power Input

From 12V to 36V

Current at 15V

800mA Max

Power Consumption

8W Typical

Working Temperature

From 0°C to +60°C

OS

Android 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10

Dimensions

EPC-A72-070-C (PN: CS10600R070E): 190 x 107 x 27.7mm

PPC-A72-070-C (PN: CS10600R070P): 205.5 x 135.5 x 27.5mm

Weight

EPC-A72-070-C (PN: CS10600R070E): 345g

PPC-A72-070-C (PN: CS10600R070P): 580g

Mounting

EPC-A72-070-C (PN: CS10600R070E): Embedded

PPC-A72-070-C (PN: CS10600R070P): Panel


1(1,2)

This product has 7 x UART channels in total. The default configuration is 5 x RS232 and 2 x RS485. UART can be swapped between RS232 and RS485 modes easily, so if you need different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com

Power Input

The EPC/PPC-A72-070-C Industrial Panel PC can be powered by a wide range of input voltages: From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown on the figure below.

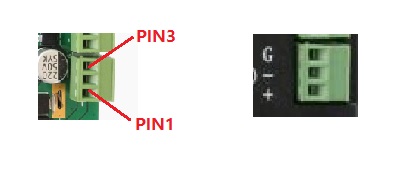

../../../../../_images/Power.jpg

Figure 403: Power Input

Note that the “+” sign represents the positive power input, and it is printed both at the casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to the ground.

Table 129 Power Connector

Power Input Definition

Pin Number

Definition

Description

Pin 1

Positive Input

DC Power Positive Terminal

Pin 2

Negative Input

DC Power Negative Terminal

Pin 3

Ground

Power System Ground

Note

The system ground “G” is connected to power negative “-” on board.

Touch Screen

The EPC/PPC-A72-070-C Industrial Panel PC uses a 5-point capacitive touch screen.

../../../../../_images/TS_CON1.jpeg

Figure 404: Capacitive Touch Screen Connector

Attention

A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch points float erratically across the display. There are several solutions to this problem:

  1. Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.

  2. Make sure that the EPC/PPC-A72-070-C Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely.

  3. Bad GND problem can also be confirmed by touching pin 3 of the Power Input connector with one hand while operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power System Ground.

Connectivity

There are many connectivity options available on the EPC/PPC-A72-070-C industrial PC. It has 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x network connector (RJ45) supporting up to 1 Gbps, and 7 x UART terminals (RS232/485).

RS232+RS485 Connector

The serial communication interfaces (RS485 and RS232) are routed to a 16-pin 3.81mm terminal, as illustrated in the figure below. Serial communication on both RS485 and RS232 interfaces can reach up to 115200 kbps.

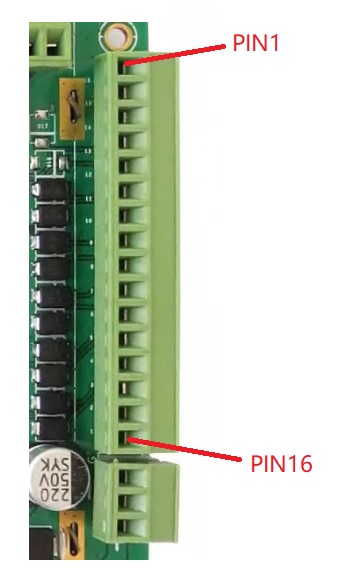

../../../../../_images/Serial.jpg

Figure 405: Relation between serial pins on embedded vs. enclosed version

The table below offers more detailed description of every pin and its definition:

Table 130 Connectivity Section

RS232 / RS485 / CAN Pin Definition:

Pin Number

Definition

Description

Pin 1

NULL

NULL

Pin 2

NULL

NULL

Pin 3

RS485_3-

USB UART3, RS485 -(B) signal

Pin 4

RS485_3+

USB UART3, RS485 +(A) signal

Pin 5

RS485_2-

USB UART2, RS485 -(B) signal

Pin 6

RS485_2+

USB UART2, RS485 +(A) signal

Pin 7

RS232_1_RXD

USB UART1, RS232 RXD signal

Pin 8

RS232_1_TXD

USB UART1, RS232 TXD signal

Pin 9

RS232_0_RXD

USB UART0, RS232 RXD signal

Pin 10

RS232_0_TXD

USB UART0, RS232 TXD signal

Pin 11

CPU_RS232_4_RXD

CPU UART4, CPU RS232 RXD signal

Pin 12

CPU_RS232_4_TXD

CPU UART4, CPU RS232 TXD signal

Pin 13

CPU_RS232_2_RXD

CPU UART2, CPU RS232 RXD signal

Pin 14

CPU_RS232_2_TXD

CPU UART2, CPU RS232 TXD signal

Pin 15

GND

System Ground

Pin 16

+5V

System 5V output, up to 1A

USB Connectors

There are 3 x USB HOST connectors onboard which includes 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, and 1 x USB Type-C, as shown in the figures below.

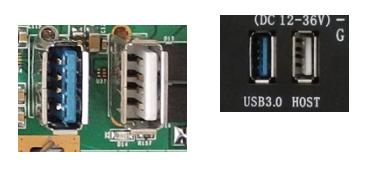

../../../../../_images/USB.jpeg

Figure 406: USB 2.0 HOST and USB 3.0 HOST Connectors (embedded/enclosed PC version)

../../../../../_images/USB-C.jpeg

Figure 407: USB Type-C Connector (embedded/enclosed PC version)

Warning

Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the embedded IPC version.

LAN Connectors

LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput.

../../../../../_images/LAN1.jpeg

Figure 408: RJ45 LAN Connector

Note

Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).

WiFi & BT Module

The EPC/PPC-A72-070-C Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN).

../../../../../_images/WiFi_BT1.jpeg

Figure 409: RTL8273 WiFi/BT Module

The product includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below.

../../../../../_images/Antenna1.jpeg

Figure 410: WiFi+BT Antenna

4G/LTE Module

The EPC/PPC-A72-070-C Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the EPC/PPC-A72-070-C. SIM card does NOT support hot plug. Power off before inserting or removing SIM card.

../../../../../_images/4G_module1.jpeg

Figure 411: mini-PCIe Connector & 4G Module

../../../../../_images/4G_com1.jpeg

Figure 412: SIM Card Holder & 4G Antenna

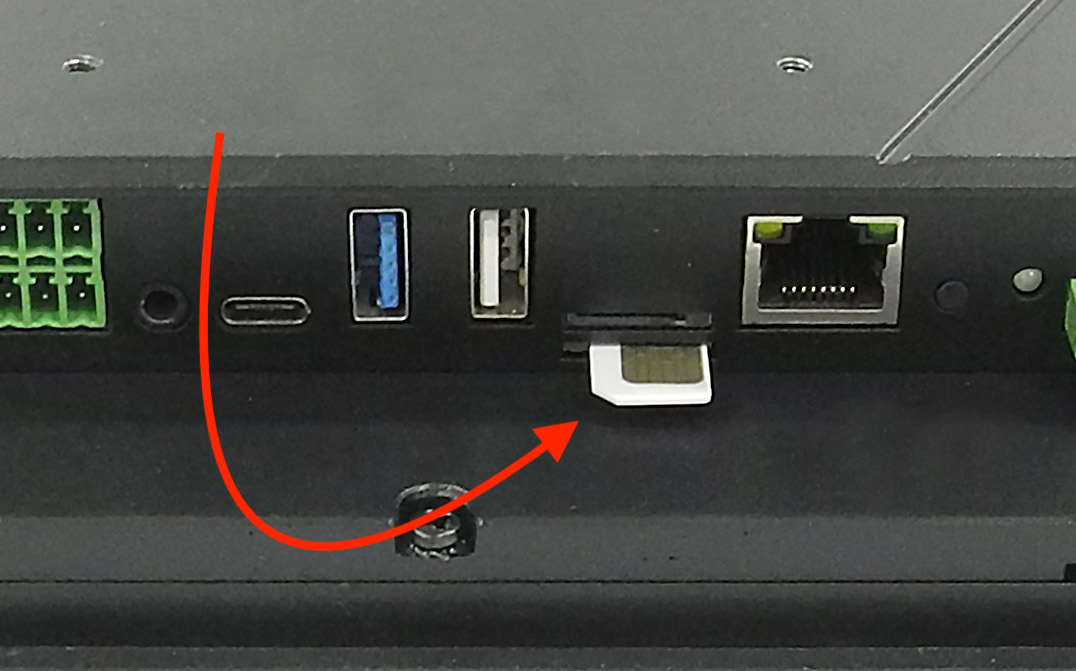

sim-card-direction

SIM Card Direction

Attention

The product does not come shipped with the 4G/LTE module by default.

GPIO Port

The EPC/PPC-A72-070-C Industrial Panel PC has a 10 Pin 3.81mm GPIO Connector, as shown on the figure below, that is labeled as P18 on the PCB. The table below gives details about the definition of every Pin.

../../../../../_images/GP_IO1.jpeg

Figure 413: GPIO Connector

../../../../../_images/GPIO_Schema.png

Isolated GPIO reduced schematic

Table 131 GPIO Connector Pin-out

GPIO Connector Pin Definition:

Pin Number

Definition

Description

Pin 10

VCC_ISO

Isolated Power +5V Output

Pin 9

GND_ISO

Isolated Ground

Pin 8

OUT1

Isolated Output 1

Pin 7

OUT2

Isolated Output 2

Pin 6

OUT3

Isolated Output 3

Pin 5

OUT4

Isolated Output 4

Pin 4

IN1

Isolated Input 1

Pin 3

IN2

Isolated Input 2

Pin 2

IN3

Isolated Input 3

Pin 1

IN4

Isolated Input 4

Attention

  • The GPIO Connector is optional.You can Contact us if you need it.

  • The GPIO has been Opt-Isolated and it uses the 5V Logic by default. You can use an external isolated power input but the power input range should be from 5V to 24V DC.

  • The 4 output channels can drive at most 500mA current on each channel.

TF Card Slot

The EPC/PPC-A72-070-C Industrial Panel PC features 1 x TF Card (micro SD) slot. It can address up to 128GB of memory.

../../../../../_images/TF_Card1.jpeg

Figure 414: TF (micro SD) Card Slot

Note

The product does not come shipped with the TF Card by default.

Audio Connectors

The EPC/PPC-A72-070-C Industrial Panel PC features some audio peripherals, as well. It has 1 x 3.5mm audio input jack and 1 x 3.5mm audio output jack.

The pink connector is the audio input jack (line-in) and the blue connector is the audio output jack (line-out, typically around -10 dBV) as shown on the figure below.

../../../../../_images/Audio1.jpeg

Figure 415: Audio I/O (embedded/enclosed PC version)

In addition, EPC/PPC-A72-070-C features a miniature 2W embedded speaker for audio reproduction, as well as a small buzzer for alarm/notification sounds.

../../../../../_images/Speaker_Buzzer.jpeg

Figure 416: 2W Micro Speaker and Buzzer

HDMI Connector

The EPC/PPC-A72-070-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software.

../../../../../_images/HDMI.jpeg

Figure 417: HDMI Connector

Power Button

The EPC/PPC-A72-070-C Industrial Panel PC has a power button, as shown on the figure below. You can use the button to power ON or OFF the industrial PC.

../../../../../_images/Power_Btn.jpeg

Figure 418: Power Button

Mounting Procedure

The EPC/PPC-A72-070-C Industrial Panel PC can be mounted with 4 x M4 screws, enabling simplified installation onto any standard mounting fixture. Other mounting options might also be supported according to the table in the Hardware Features section.

EPC-A72-070-C

You can mount EPC-A72-070-C with the Embedded mounting method, as shown on the figure below.

../../../../../_images/mountE.jpeg

Figure 419: Embedded mounting

PPC-A72-070-C

You can mount PPC-A72-070-C with the Panel mounting methods, as shown on the figure below.

../../../../../_images/mountP.jpeg

Figure 420: Panel mounting

Attention

Please make sure the display is not exposed to high pressure when mounting into an enclosure.

You can find detailed information about mounting in the Mount IPC Guide.

Mechanical Specifications

EPC-A72-070-C

The outer mechanical dimensions of EPC-A72-070-C are 190 x 107 x 27.7mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements.

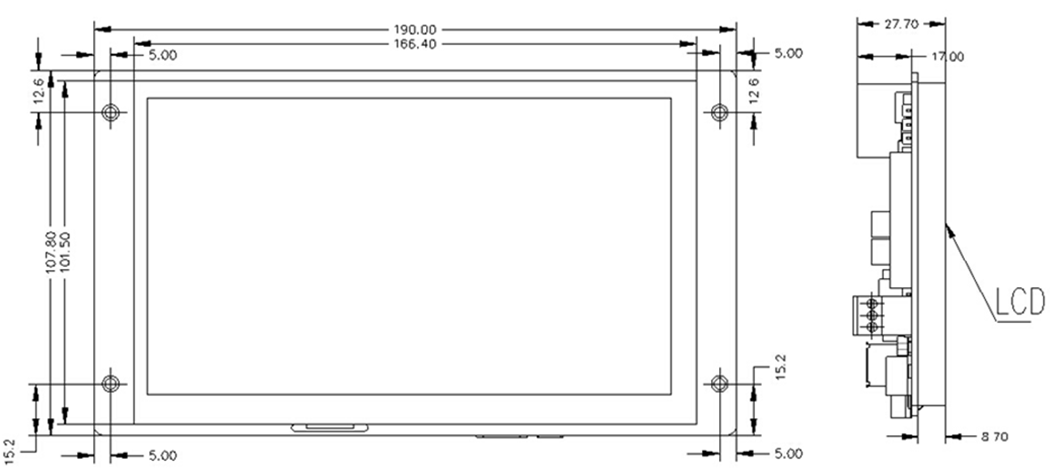

../../../../../_images/EPC-A72-070-C-TD.png

Figure 421: EPC-A72-070-C Technical Drawing

PPC-A72-070-C

For PPC-A72-070-C, the outer mechanical dimensions are 205.5 x 135.5 x 27.5mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements.

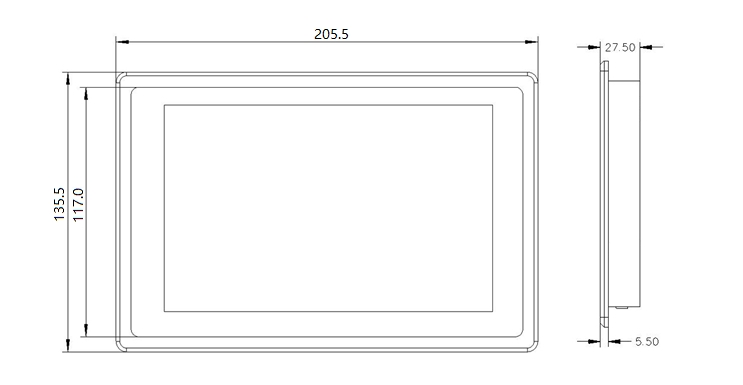

../../../../../_images/PPC-A72-070-C-TD.png

Figure 422: PPC-A72-070-C Technical Drawing

Caution

  • When you use product EPC-A72-070-C, you should not touch the circuit board on the back of the product if the product is powered ON.

  • Also, when the product is powered OFF, please take anti-static measures before touching the circuit board.

3D Model

EPC/PPC-A72-070-C 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc EPC/PPC-A72-070-C, select hardware documentation, drag the navigation bar to the 3D Model section.
