PPC-A72-125-C¶
Version 1.1
Product Overview¶

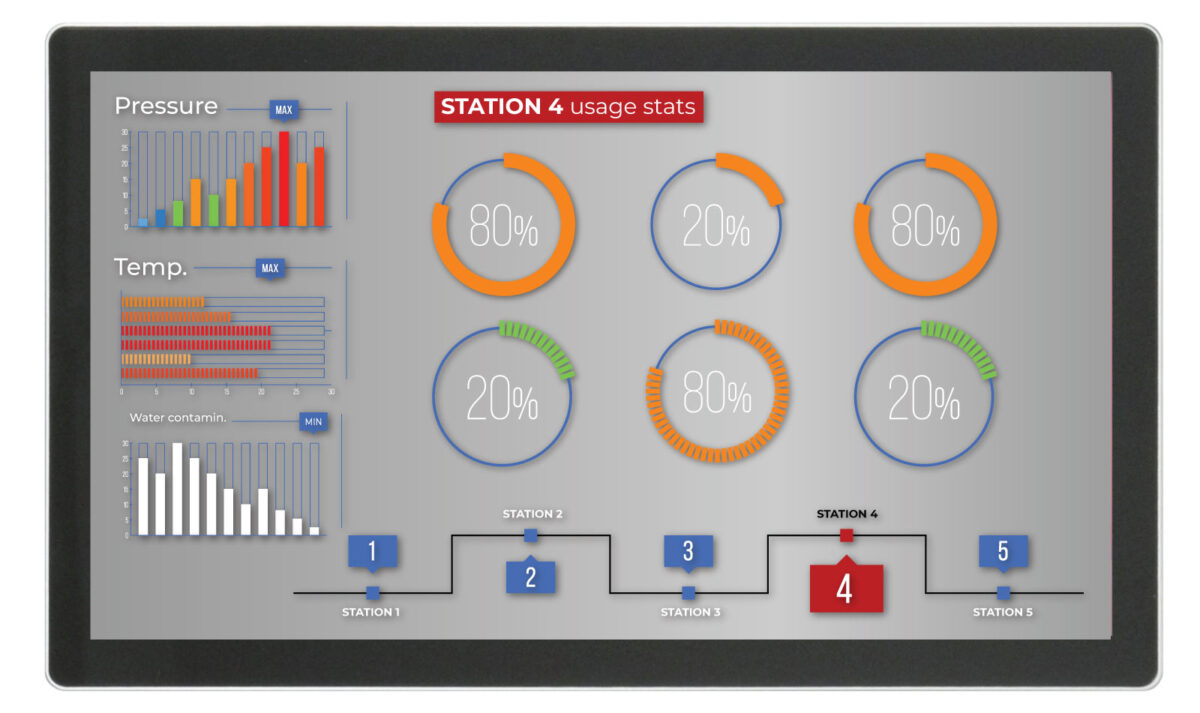

The Cortex®-A72/53 series PPC-A72-125-C (PN: CS19108R125) is a high-quality industrial panel PC. It features a 12.5” ten-point capacitive touch screen with a resolution of 1920 x 1080 pixels and brightness of 250 cd/m2.
It is available both as an embedded solution and as a device hosed in an aluminum casing with bezels, thus facilitating different installation options:
Installation on an industrial cabinet
Integration with the existing equipment
The PPC-A72-125-C Industrial Panel PC is based around the powerful CS-SOM-RK3399 System on Module (SoM), powered by the Rockchip RK3399 low-power processor which integrates a dual-core Cortex®-A72 and a quad-core Cortex®-A53 with a separate NEON coprocessor.
The RK3399 supports multi-format video decoders and has a high-performance dual-channel external memory interface (DDR3/DDR3L/LPDDR3/LPDDR4) capable of sustaining demanding memory bandwidths. It also provides a complete set of peripheral interfaces.
Ordering Options¶
Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.
Note
You can order PPC-A72-125-C from the official Chipsee Store or from your nearest distributor.
Operating System¶
This product comes with a pre-installed OS of your choice. Please see the list below for the supported OSes, which can be also obtained from the Software Documentation section, along with the detailed installation instructions.
Buildroot Linux Qt5.14*
Android 7.1
Android 11
Debian 10
- *
(Formerly Chipsee Linux) Based on buildroot that has been integrated with:
Chipsee Hardware Test Application
An initialization script for GPIO/Buzzer/Audio
Multiple libraries, such as the
libQt5Sql
to develop Qt application with SQLVarious packages, such as the
ntfs-3g
to use NTFS file system
Warning
The Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com for further assistance
Optional Features¶
The PPC-A72-125-C Industrial Panel PC does not include 4G/LTE module by default. The module is optional and can be selected at the Chipsee store during the ordering process.
Warning
Hardware Features¶
The PPC-A72-125-C Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability to meet future needs. Some of the key features are listed in the table below.
PPC-A72-125-C |
|
---|---|
CPU |
Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz) |
RAM |
4GB DDR3 |
eMMC |
16GB |
Storage |
TF Card, Supports up to 32GB SDHC |
Display |
12.5” LCD, 1920 x 1080, High Brightness: 250 cd/m2 |
Touch |
10-point capacitive touch screen |
USB |
4 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C |
LAN |
1 x RJ45, GbE |
Audio |
3.5mm Audio Out Connector, 2W Internal Speaker |
Buzzer |
Yes |
RTC |
Yes |
RS232 |
5 x RS2321 |
RS485 |
2 x RS485 ( 4 at most, 1 debug port)1 |
GPIO |
8 Channels |
WiFi/BT |
Integrated WiFi/BT Module |
HDMI |
1 x HDMI |
4G/LTE |
Supported, Optional |
Power Input |
From 15V to 36V |
Current at 15V |
800mA Max |
Power Consumption |
12W Typical |
Working Temperature |
From 0°C to +70°C |
OS |
Android 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10 |
Dimensions |
306 x 187 x 37mm |
Weight |
1700g |
Mounting |
VESA & Panel methods |
- 1(1,2)
This product has 7 x UART channels in total. The default configuration is 5 x RS232 and 2 x RS485. UART can be swapped between RS232 and RS485 modes easily, so if you need different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com
Power Input¶

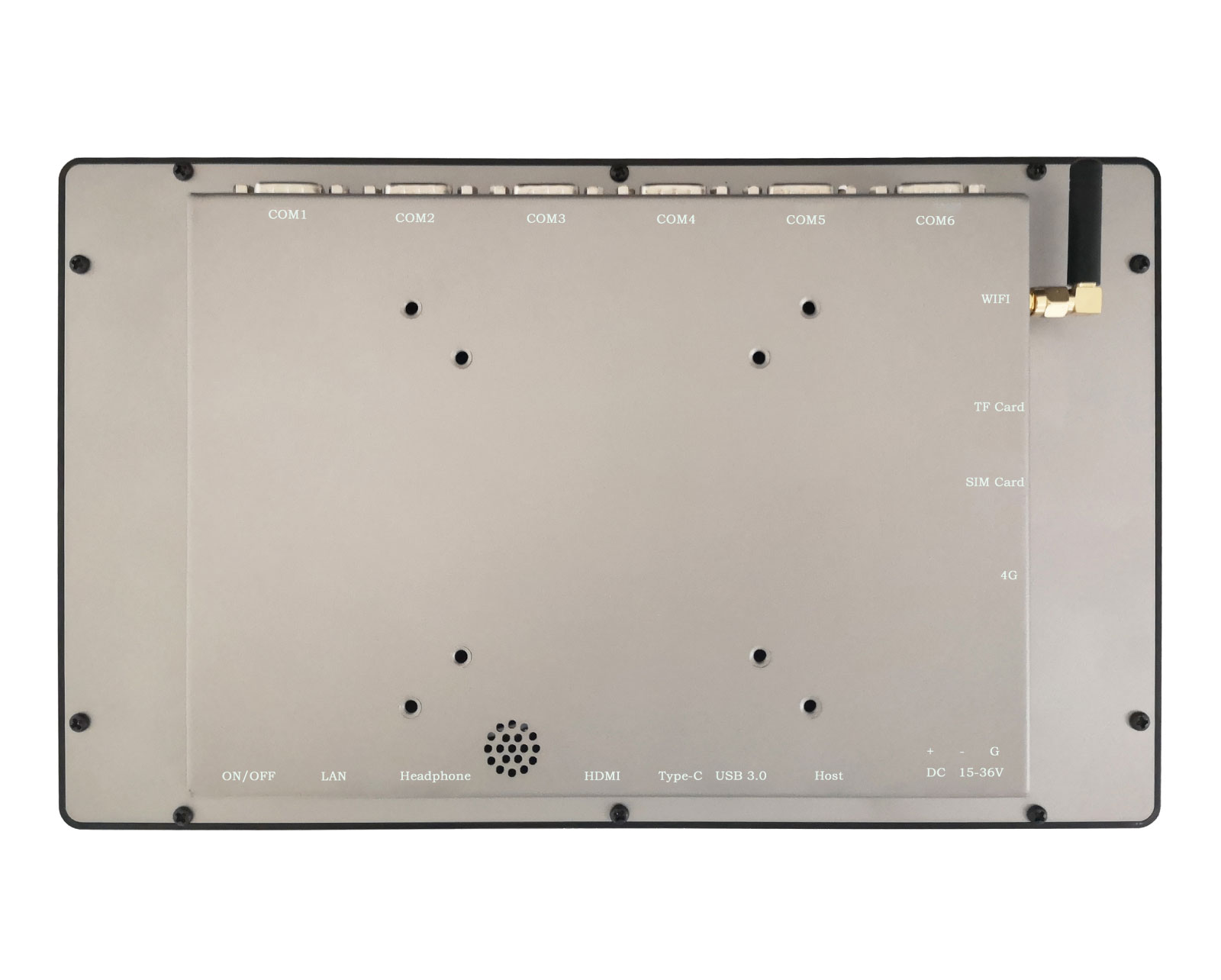

The PPC-A72-125-C Industrial Panel PC can be powered by a wide range of input voltages: From 15V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown on the figure below.
Note that the “+” sign represents the positive power input, and it is printed both at the casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to the ground.
Power Input Definition |
||
---|---|---|
Pin Number |
Definition |
Description |
Pin 1 |
Positive Input |
DC Power Positive Terminal |
Pin 2 |
Negative Input |
DC Power Negative Terminal |
Pin 3 |
Ground |
Power System Ground |
Note
The system ground “G” is connected to power negative “-” on board.
Touch Screen¶
The PPC-A72-125-C Industrial Panel PC uses a 10-point capacitive touch screen.
Attention
A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch points float erratically across the display. There are several solutions to this problem:
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.
Make sure that the PPC-A72-125-C Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely.
Bad GND problem can also be confirmed by touching pin 3 of the Power Input connector with one hand while operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power System Ground.
Connectivity¶
There are many connectivity options available on the PPC-A72-125-C industrial PC. It has 4 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x RJ45, GbE Ethernet connector, and 6 x DB9 connectors.
DB9 Connectors¶

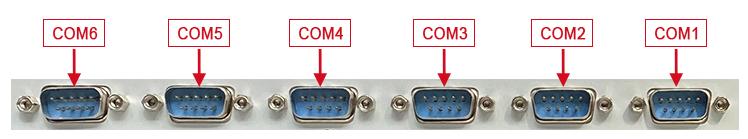

The PPC-A72-125-C Industrial Panel PC has 6 x DB9 connectors that are configured as RS232 by default as shown on the figure below. You can configure COM3/COM4/COM5/COM6 as RS485. If you need different RS232/RS485 configuration, contact the Chipsee Technical Support at support@chipsee.com.
USB Connectors¶
There are 4 x dual USB 2.0 HOST connectors onboard, as shown on the figure below.
There is also 1 x USB 3.0 HOST connector and 1 x USB Type-C connector, as shown below.
LAN Connectors¶
LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput.
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).
WiFi & BT Module¶
The PPC-A72-125-C Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN).
The product includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below.
4G/LTE Module¶
The PPC-A72-125-C Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A72-125-C.
Attention
The product does not come shipped with the 4G/LTE module by default.
Expansion Connector¶
The PPC-A72-125-C Industrial Panel PC has 1 x Expansion Connector (closed by default), as shown on the figure below. This connector has connected to isolated GPIO signals.
The table below gives details about the definition of every Pin.
Isolated GPIO reduced schematic
Expansion Connector Pinout |
|||
---|---|---|---|
PIN |
Function |
PIN |
Function |
1 |
VDD, Isolated Power Input (+5V – +24V) |
2 |
GND_ISO |
3 |
OUT1 |
4 |
OUT2 |
5 |
OUT3 |
6 |
OUT4 |
7 |
IN1 |
8 |
IN2 |
9 |
IN3 |
10 |
IN4 |
Warning
Since the PCB traces of the port are connected to the processor directly, be careful not to cause electrostatic discharge or over voltage on the pins, as it may damage the processor. Take all the necessary precautions while working with electrostatic-sensitive equipment.
TF Card Slot¶
The PPC-A72-125-C Industrial Panel PC features 1 x TF Card (micro SD) slot. It can address up to 32GB of memory.
Note
The product does not come shipped with the TF Card by default.
Audio Connectors¶
The PPC-A72-125-C Industrial Panel PC features some audio peripherals, as well. It has 1 x 3.5mm audio output jack.
HDMI Connector¶
The PPC-A72-125-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software.
Measurements and Mounting Procedure¶
The outer mechanical dimensions of PPC-A72-125-C are 306 x 187 x 37mm (W x L x H).

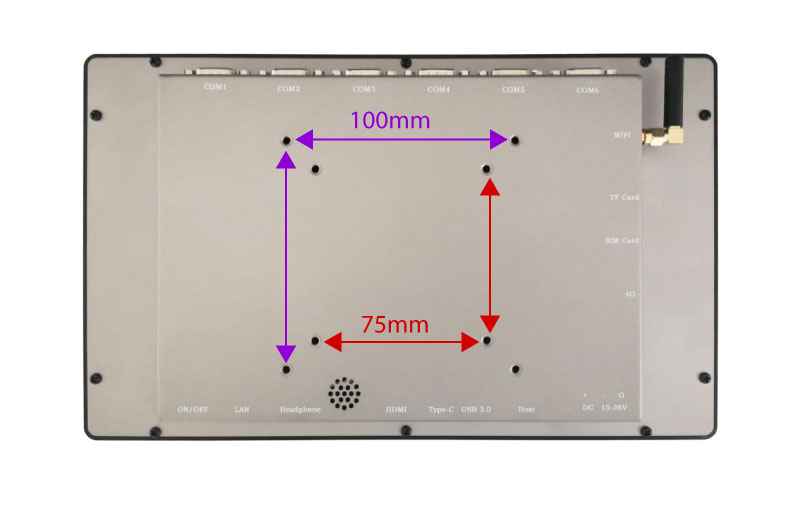

The PPC-A72-125-C Industrial Panel PC can be mounted with 8 x M4 screws or 4 x M4 screws using the VESA (100x100cm or 75x75cm) and Panel mounting methods, enabling simplified installation onto any standard mounting fixture.
Note
Please make sure the display is not exposed to high pressure when mounting into an enclosure.
You can find detailed information about mounting in the Mount IPC Guide.
3D Model¶
PPC-A72-125-C 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc PPC-A72-125-C, select hardware documentation, drag the navigation bar to the 3D Model section.
