PPC-A76-070

Version 1.0

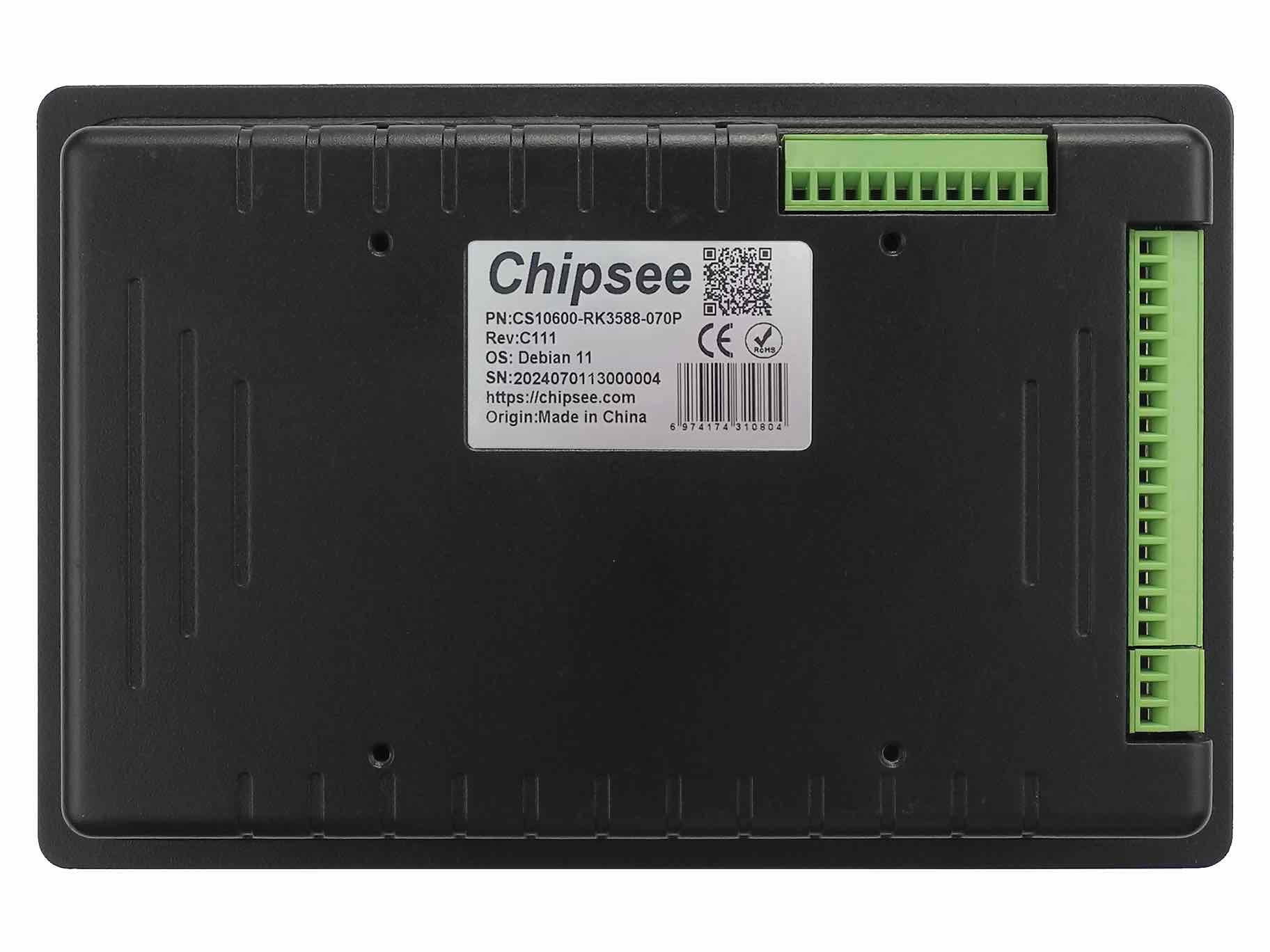

Product Overview

The Cortex®-A76 series PPC-A76-070 (PN: CS10600-RK3588-070P) is a high-quality IP65-compliant industrial panel PC. It features a 7” 5-point capacitive touch screen with a resolution of 1024 x 600 pixels and brightness of 400 cd/m2.

It is available both as an embedded solution and as a device hosed in an aluminum casing with bezels, thus facilitating different installation options:

  • Installation on an industrial cabinet

  • Integration with the existing equipment

The PPC-A76-070 Industrial Panel PC is based around the powerful RK3588 System on Chip (SoC), powered by the Rockchip RK3588 low-power processor which integrates a Quad(4)-core Cortex®-A76 (2.4GHz) and Quad(4)-core Cortex®-A55 (1.8GHz) processor.

The RK3588 supports multi-format video decoders and has a high-performance 8GB LPDDR4 RAM capable of sustaining demanding memory bandwidths. It also provides a complete set of peripheral interfaces.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.

Note

You can order the PPC-A76-070 from the official Chipsee Store or from your nearest distributor.

Operating System

This product comes with a pre-installed OS of your choice. Please see the list below for the supported OSes, which can also be obtained from the Software Documentation section, along with the detailed installation instructions.

  • Debian 11

  • Buildroot Linux Qt 5.15

Warning

The Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com for further assistance

Optional Features

The PPC-A76-070 Industrial Panel PC does not include 4G/LTE module by default. The module is optional and can be selected at the Chipsee store during the ordering process.

Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

Hardware Features

The PPC-A76-070 Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below.

Key Features

PPC-A76-070

CPU

Rockchip RK3588, Quad(4)-core Cortex-A76 (2.4GHz) and Quad(4)-core Cortex-A55 (1.8GHz)

GPU

ARM Mali-G610 MC4. Up to 8K60 FPS video decoding, up to 8K30 FPS video encoding.

NPU

Neural network acceleration engine with 6Tops int8, support Int4/8/16/FP16/BF16/TF32.

RAM

8GB LPDDR4

eMMC

64GB

SSD

N/A

Storage

TF Card, Supports up to 128GB SDHC

Display

7” LCD, 1024 x 600, High Brightness: 400 cd/m2

HDMI

1 x HDMI-D (Micro-HDMI) Out

Touch

5-point capacitive touch screen

USB

2 x USB 3.0 HOST, 1 x USB Type-C1

LAN

2 x RJ45, GbE

POE

N/A

Audio

3.5mm Audio In/Out Connector, 2W Internal Speaker

Buzzer

Yes

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

RS232

default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port)2

RS485

default 3 x RS485 at most2

CAN

default 2 x CAN

GPIO

8 Channels Isolated IO, 4 x Input and 4 x Output

WiFi/BT

Integrated WiFi/BT Module

4G/LTE

Supported, Optional

Power Input

From 6V to 36V (supports optional 24V ignition signal)

Current

533mA (max) at 15V

Power Consumption

8W (max)

Working Temperature

From 0°C to +60°C

OS

Debian11, Buildroot Linux Qt 5.15

Dimensions

PPC-A76-070 (PN: CS10600-RK3588-070P): 188.05 x 123.11 x 33.20mm

Weight

PPC-A76-070 (PN: CS10600-RK3588-070P): 700g

Mounting

PPC-A76-070 (PN: CS10600-RK3588-070P): Panel, VESA


1

The USB-A host (near RJ45) and USB-C can’t be used at the same time. Before boot into OS, USB-C is enabled for install OS image; after boot into OS, USB-A is enabled but USB-C is disabled. In Android, these can be configured; in Linux, these can’t be configured.

2(1,2)

This product has 6 x UART channels in total. The default configuration is 2 x RS232 and 3 x RS485, including 1 debug port. CAN0 can be configured to RS232. UART can be swapped between RS232 and RS485 modes easily, if you need a different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com

Power Input

The PPC-A76-070 Industrial Panel PC can be powered by a wide range of input voltages: From 6V to 36V (supports optional 24V ignition signal) DC.

There are two DC input interfaces on this device: a 3-pin, 3.81mm terminal, and a 2.1mm I.D x 5.5mm O.D x 9.5mm DC connector.

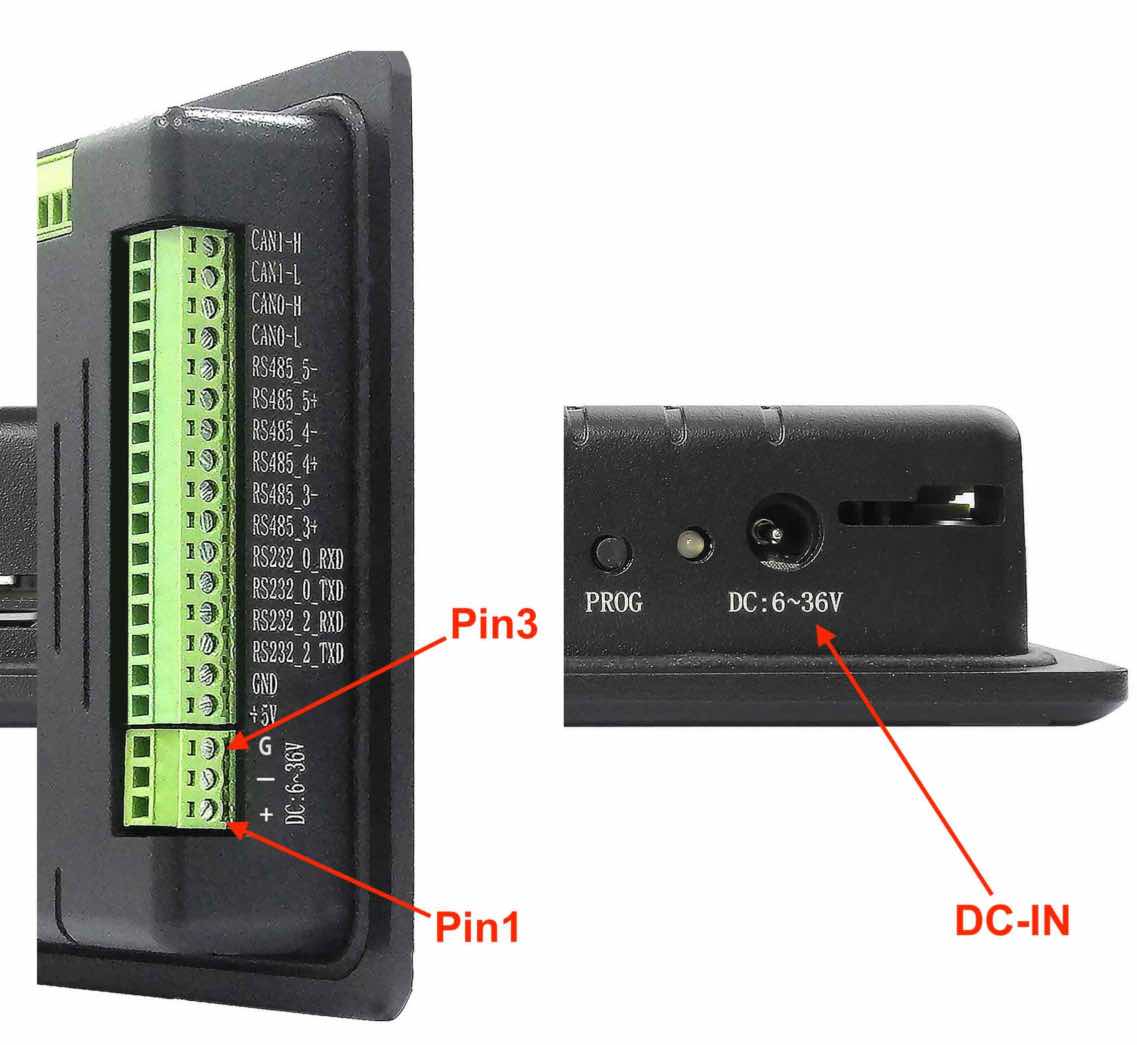

power_img

Power Input

Note that the “+” sign represents the positive power input. The “-” terminal is shorted to the ground.

Default Connector

By default, the 3 pins are +, - and ground.

Power Connector

Power Input Definition

Pin Number

Definition

Description

Pin 1

Positive Input

DC Power Positive Terminal

Pin 2

Negative Input

DC Power Negative Terminal

Pin 3

Ground

Power System Ground

Note

The system ground “G” is connected to power negative “-” on board.

DC Jack

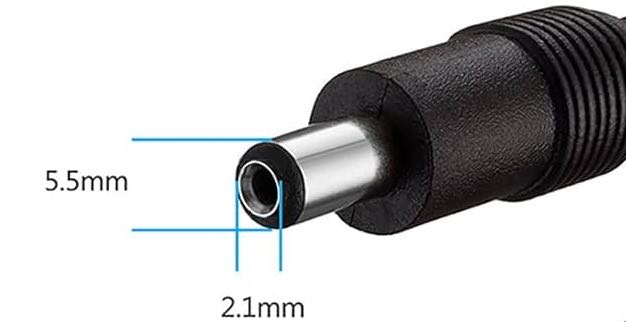

For a proper 2.1mm x 5.5mm x 9.5mm DC power connector, refer to the figure below:.

dc_jack_img

DC Jack

Ignition Signal

The product has a “ignition signal” optional feature. By default the ignition signal is not installed. If you need this feature you can contact us when placing an order. In this setup, Pin 3 is the ignition signal pin.

The DC jack doesn’t support ignition signal.

To use this feature, apply a 24V DC input (relative to -) to Pin 3. If Pin 3 detects a low input voltage, the product will be shutdown. If Pin 3 detects a high input voltage, the product will be boot and running.

power_img_ignition

Power Input (with Ignition Signal)

Power Connector with Ignition Signal

Power Input Definition

Pin Number

Definition

Description

Pin 1

Positive Input

DC Power Positive Terminal

Pin 2

Negative Input

DC Power Negative Terminal

Pin 3

Ignition

Ignition Signal

Touch Screen

The PPC-A76-070 Industrial Panel PC uses a 5-point capacitive touch screen.

../../../../../_images/TS_CON2.jpeg

Capacitive Touch Screen Connector

Attention

A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch points float erratically across the display. There are several solutions to this problem:

  1. Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.

  2. Make sure that the PPC-A76-070 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely.

  3. Bad GND problems can also be confirmed by touching pin 3 of the Power Input connector with one hand while operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power System Ground.

Connectivity

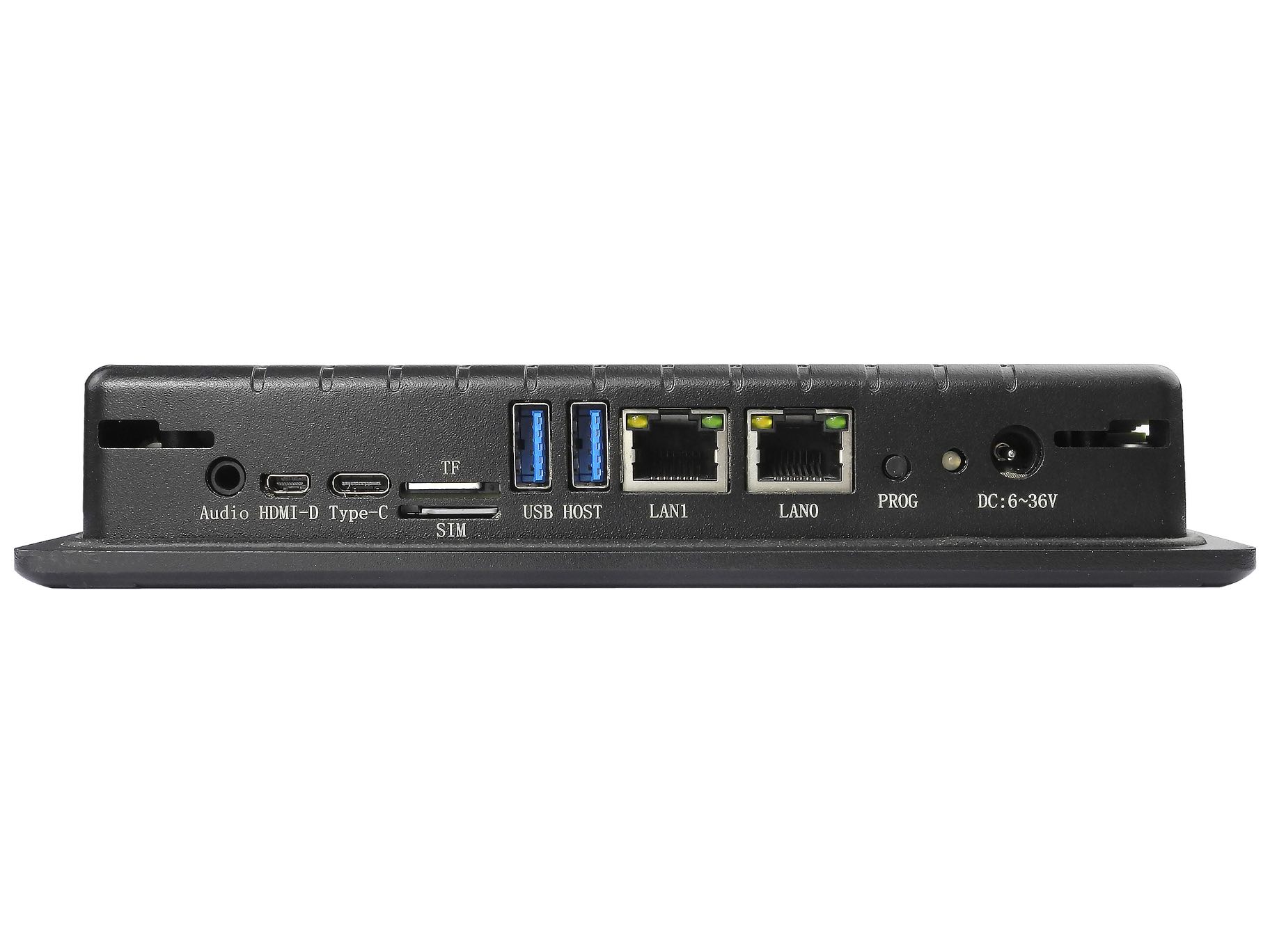

There are many connectivity options available on the PPC-A76-070 industrial PC. It has 2 x USB 3.0 HOST, 1 x USB Type-C, 2 x RJ45, GbE (RJ45) Ethernet connector supporting up to 1 Gbps, and 5 x UART terminals (RS232/RS485), 2 x CAN.

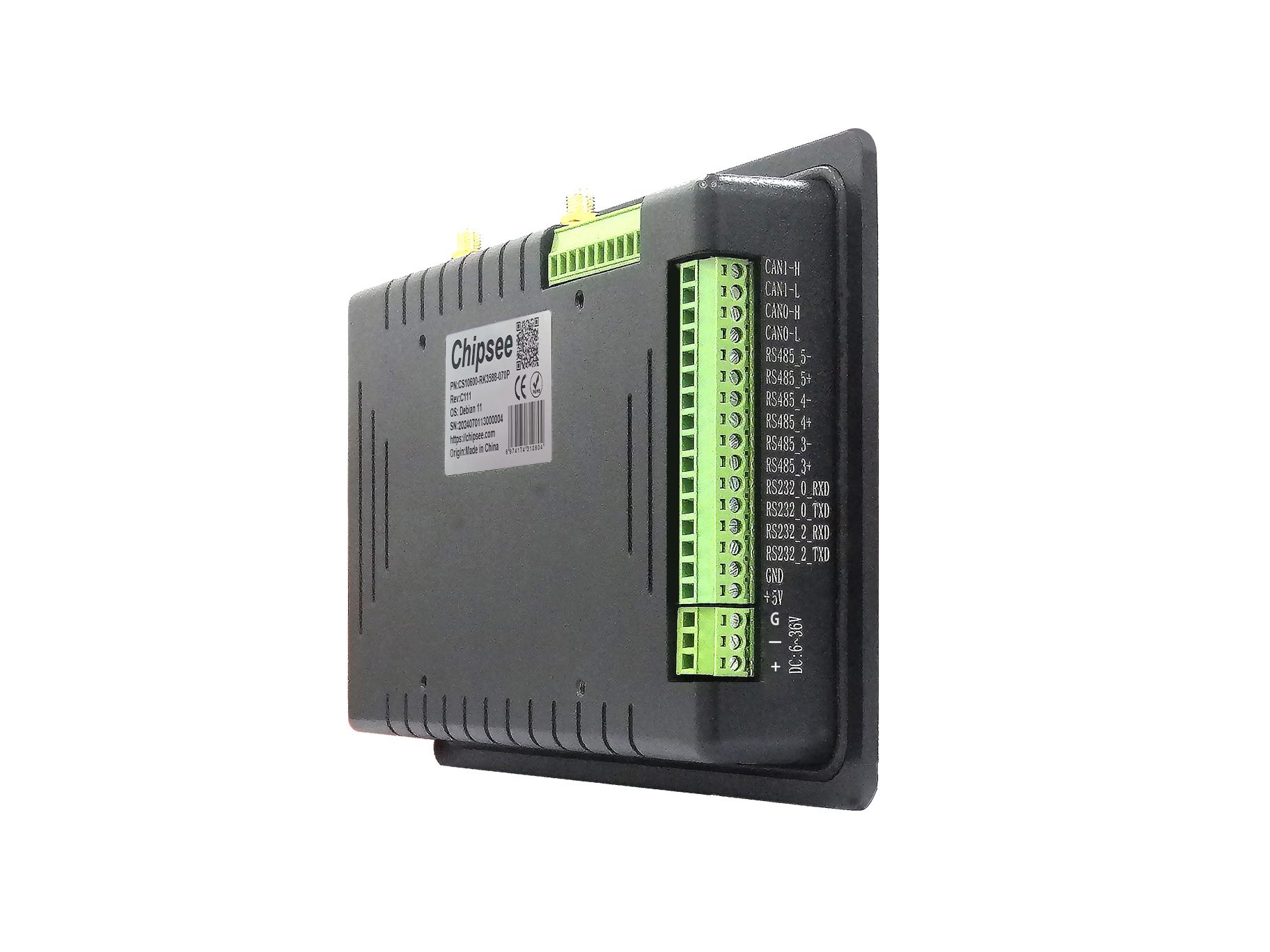

RS232/RS485/CAN

The serial communication interfaces (RS485, RS232, and CAN) are routed to a 16-pin 3.81mm terminal, as illustrated on the figure below.

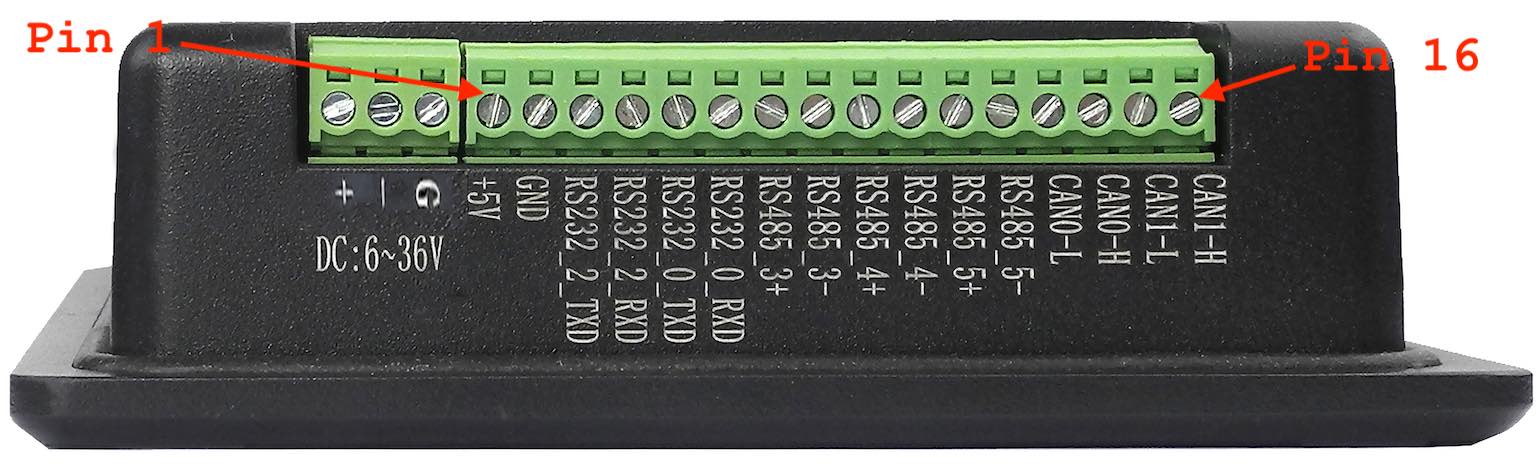

can_232_485_img

RS232 RS485 CAN Pins

The table below offers more detailed description of every pin and its definition:

RS232 / RS485 / CAN Pin Definition

Pin Number

Definition

Description

OS Node

Pin 16

CAN1_H

CPU CAN2_M1, CAN H signal

Pin 15

CAN1_L

CPU CAN2_M1, CAN L signal

CAN1

Pin 14

CAN0_H

CPU CAN1_M1, CAN H signal

Pin 13

CAN0_L

CPU CAN1_M1, CAN L signal

CAN0

Pin 12

RS485_5-

CPU UART1, RS485 –(B) signal

Pin 11

RS485_5+

CPU UART1, RS485 +(A) signal

/dev/ttyS1

Pin 10

RS485_4-

CPU UART0, RS485 –(B) signal

Pin 9

RS485_4+

CPU UART0, RS485 +(A) signal

/dev/ttyS0

Pin 8

RS485_3-

CPU UART4, RS485 –(B) signal

Pin 7

RS485_3+

CPU UART4, RS485 +(A) signal

/dev/ttyS4

Pin 6

RS232_0_RXD

CPU UART6, RS232 RXD signal

Pin 5

RS232_0_TXD

CPU UART6, RS232 TXD signal

/dev/ttyS6

Pin 4

RS232_2_RXD

CPU UART2, RS232 RXD signal, Debug Port

Pin 3

RS232_2_TXD

CPU UART2, RS232 TXD signal, Debug Port

/dev/ttyFIQ

Pin 2

GND

System Ground

Pin 1

+5V

System +5V Power Output, No more than 1A Current output

Attention

  1. RS485_3,RS485_4 and RS485_5 can control the input and output direction automatically. There’s no need to control it from within the software.

  2. The 120Ω match resistor for the RS485 is mounted by default.

  3. The 120Ω match resistor for the CAN bus is NOT mounted by default.

USB Connectors

There are 2 x USB HOST and 1 x USB DEVICE (for flashing OS) ports onboard: 2 x USB 3.0 HOST, 1 x USB Type-C, as shown in the figures below.

The USB-A host (near RJ45) and USB-C can’t be used at the same time. Before boot into OS, USB-C is enabled for install OS image; after boot into OS, USB-A is enabled but USB-C is disabled. In Android, these can be configured; in Linux, these can’t be configured.

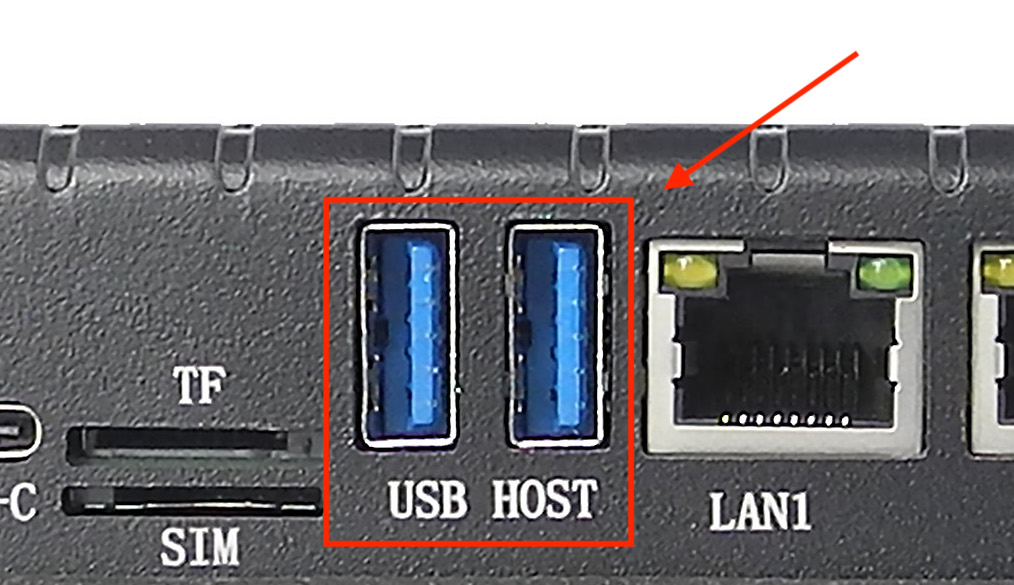

USB3_img

USB 3.0 HOST Port

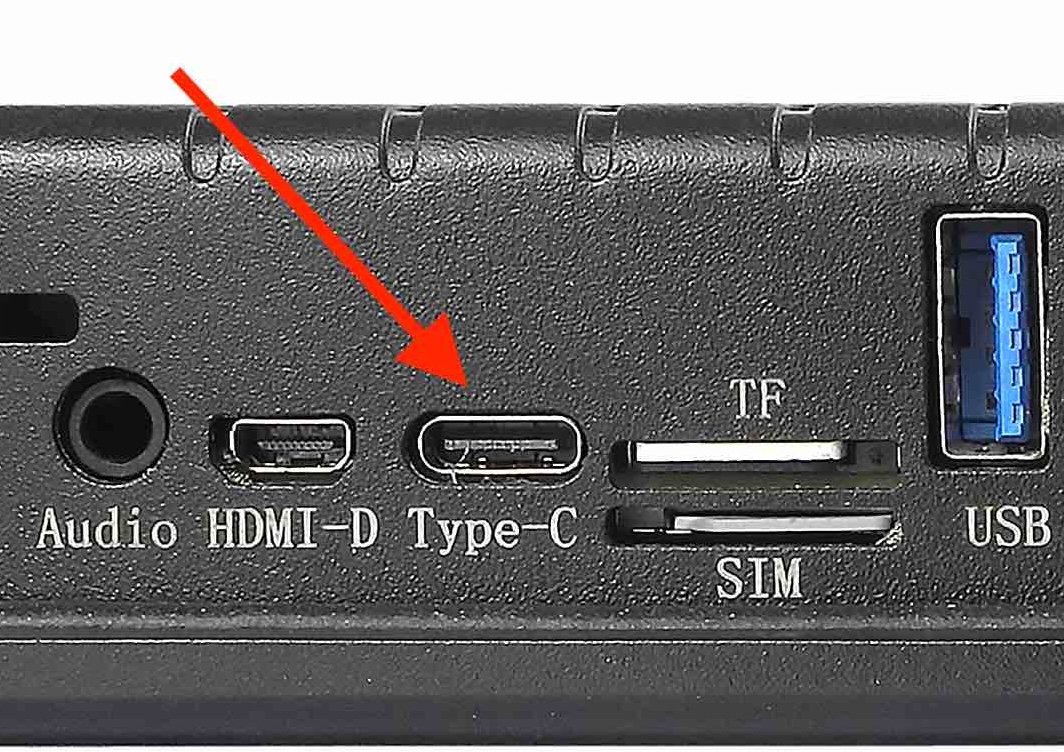

USBC_img

USB Type-C Port

Warning

Be careful not to touch surrounding electronic components accidentally while plugging USB devices into the embedded IPC version.

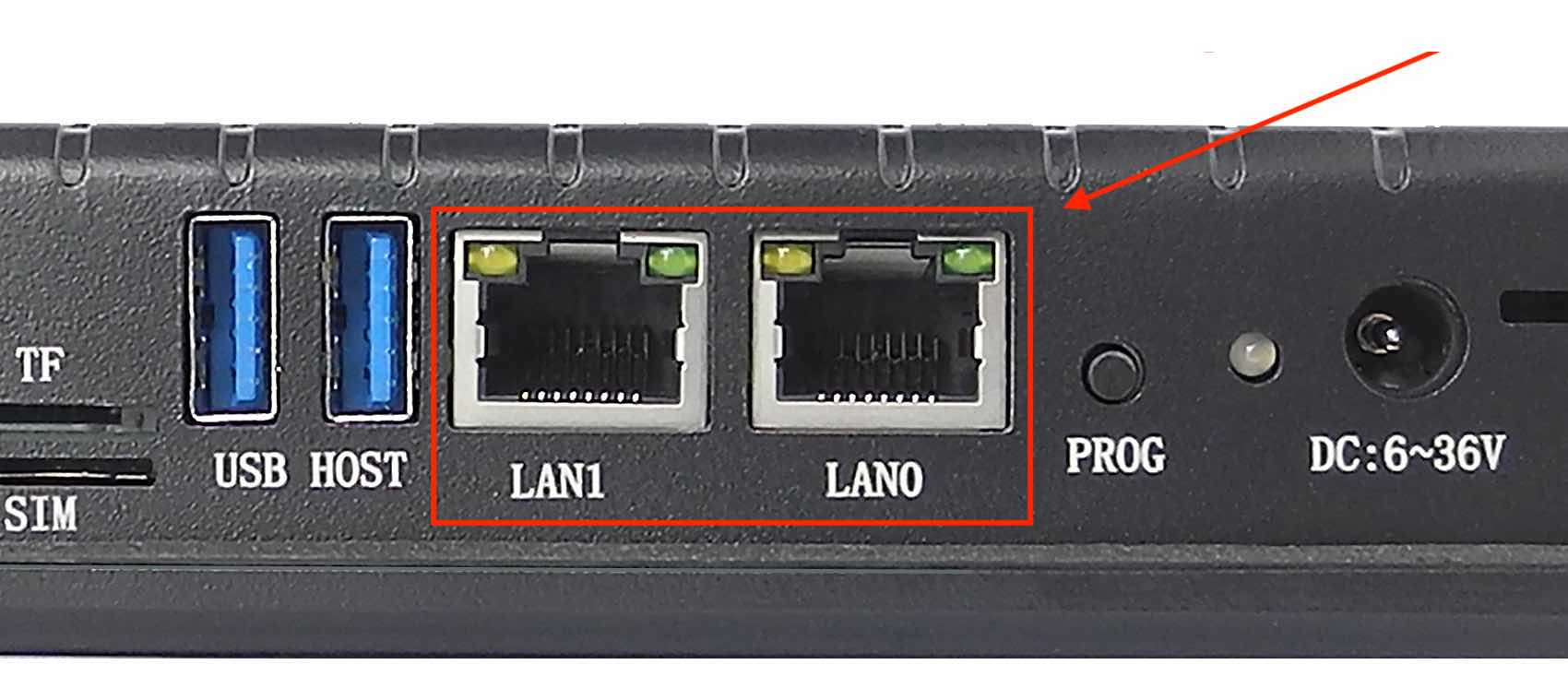

LAN Connectors

LAN (RJ45) connector provides 2 x RJ45 Ethernet connectivity over standardized Ethernet cables as shown in the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput.

LAN_img

RJ45 LAN Connector

Note

Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).

WiFi & BT Module

The PPC-A76-070 Industrial Panel PC is equipped with the WiFi-6 Realtek RTL8852BE WiFi/BT chip (through CPU PCIe lane) which supports Bluetooth V2.1+EDR/4.2/5.2, as well as IEEE802.11a/b/g/n/ac/ax 2.4/5 GHz Wireless LAN (WLAN).

wifi_bt_chip

Realtek RTL8852BE Chip

The PPC-A76-070 includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below.

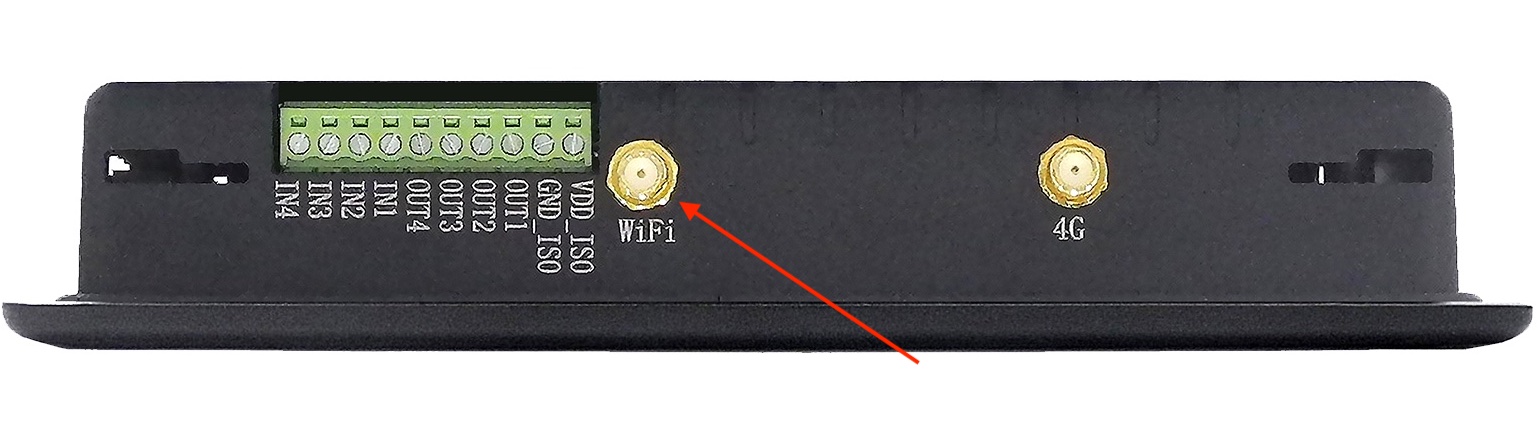

wifi_bt_img

WiFi+BT Antenna SMA

4G/LTE Module

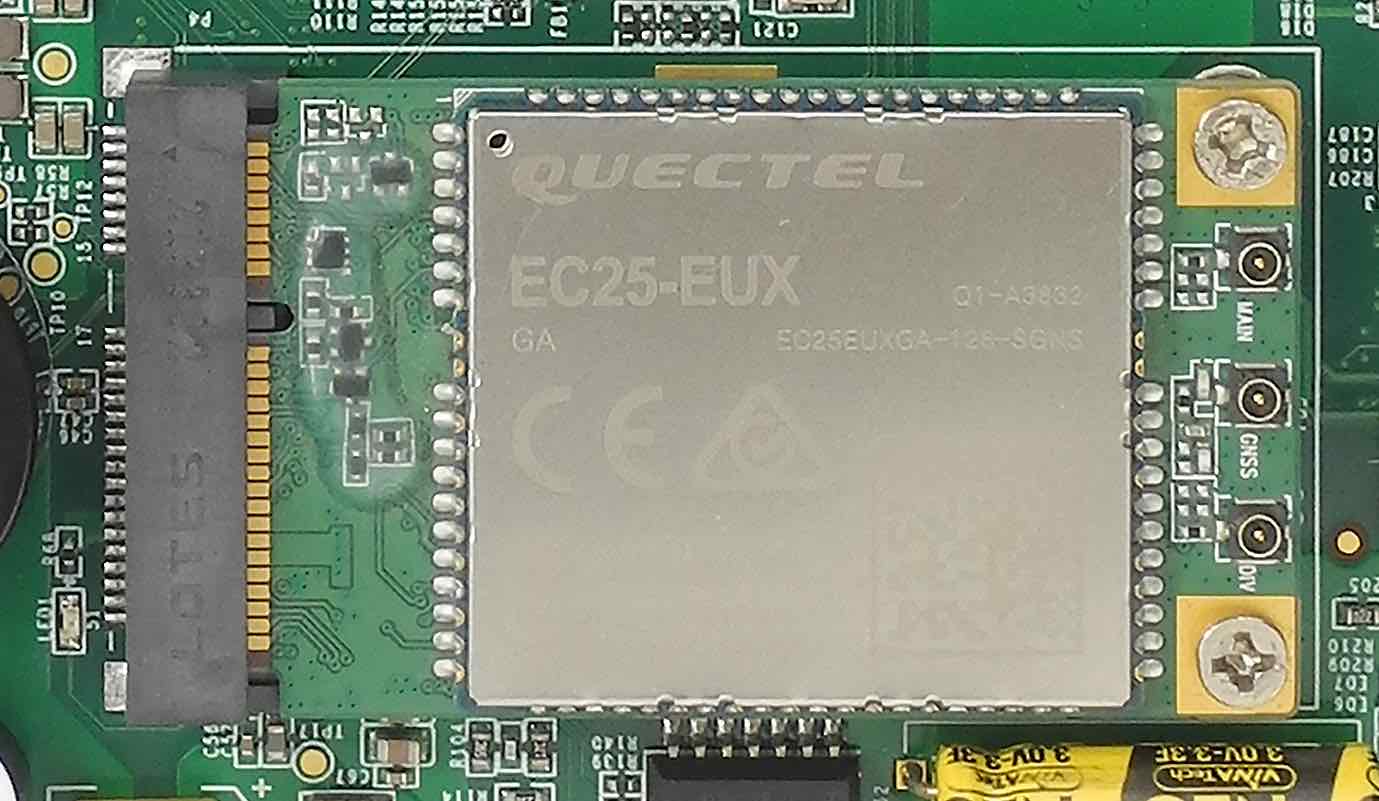

The PPC-A76-070 Industrial Panel PC is equipped with a mini-PCIe connector (through USB CPU lane) that can connect an optional 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE antenna connector to ensure 4G/LTE works on the PPC-A76-070. SIM card does NOT support hot plug. Power off before inserting or removing SIM card.

4g_chip_img

Mini PCI-e and 4G/LTE Module

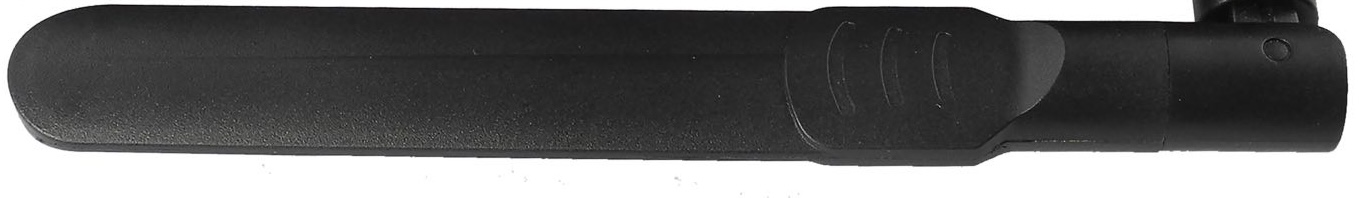

4g_antenna_img

4G/LTE Antenna

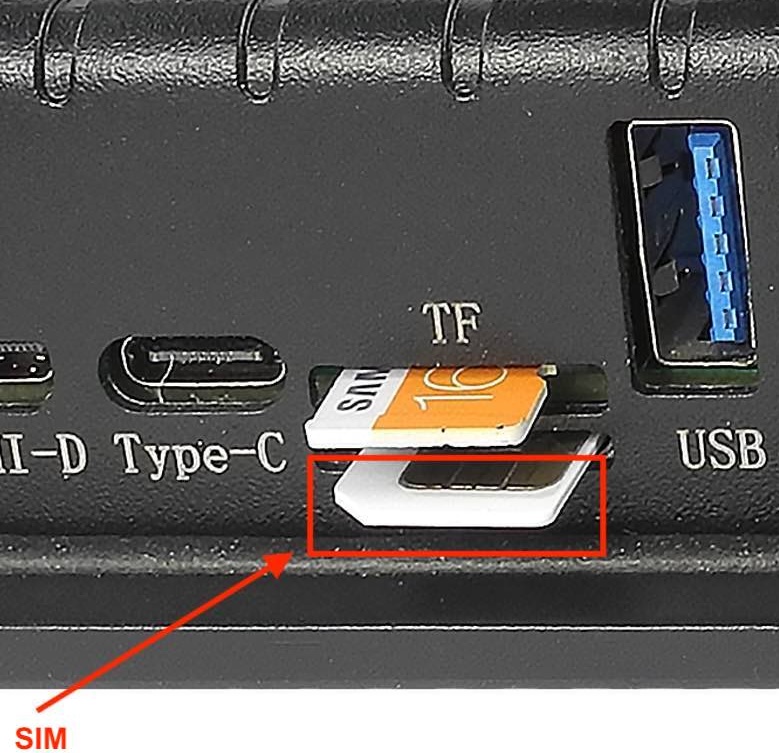

sim_img

SIM Card Direction

Attention

The product does not come shipped with the 4G/LTE module by default. The customer can choose the 4G/LTE module option when placing an order, we will install all the necessary components.

GPIO

The PPC-A76-070 Industrial Panel PC features a 10-pin 3.81 mm terminal that provides 8 x opto-isolated GPIO pins, of which 4 x are output, and 4 x are input pins. The 10-pin terminal also includes an isolated PSU input in the range of 5 to 24 VDC. The exact pinout is given in follow table.

The GPIO HIGH output level corresponds to the voltage connected at the isolated Power Input, while the GPIO LOW output level corresponds to the isolated Ground Input. Each GPIO output can drive loads up to 500mA, enough to drive various applications directly, such as relays or solenoid valves.

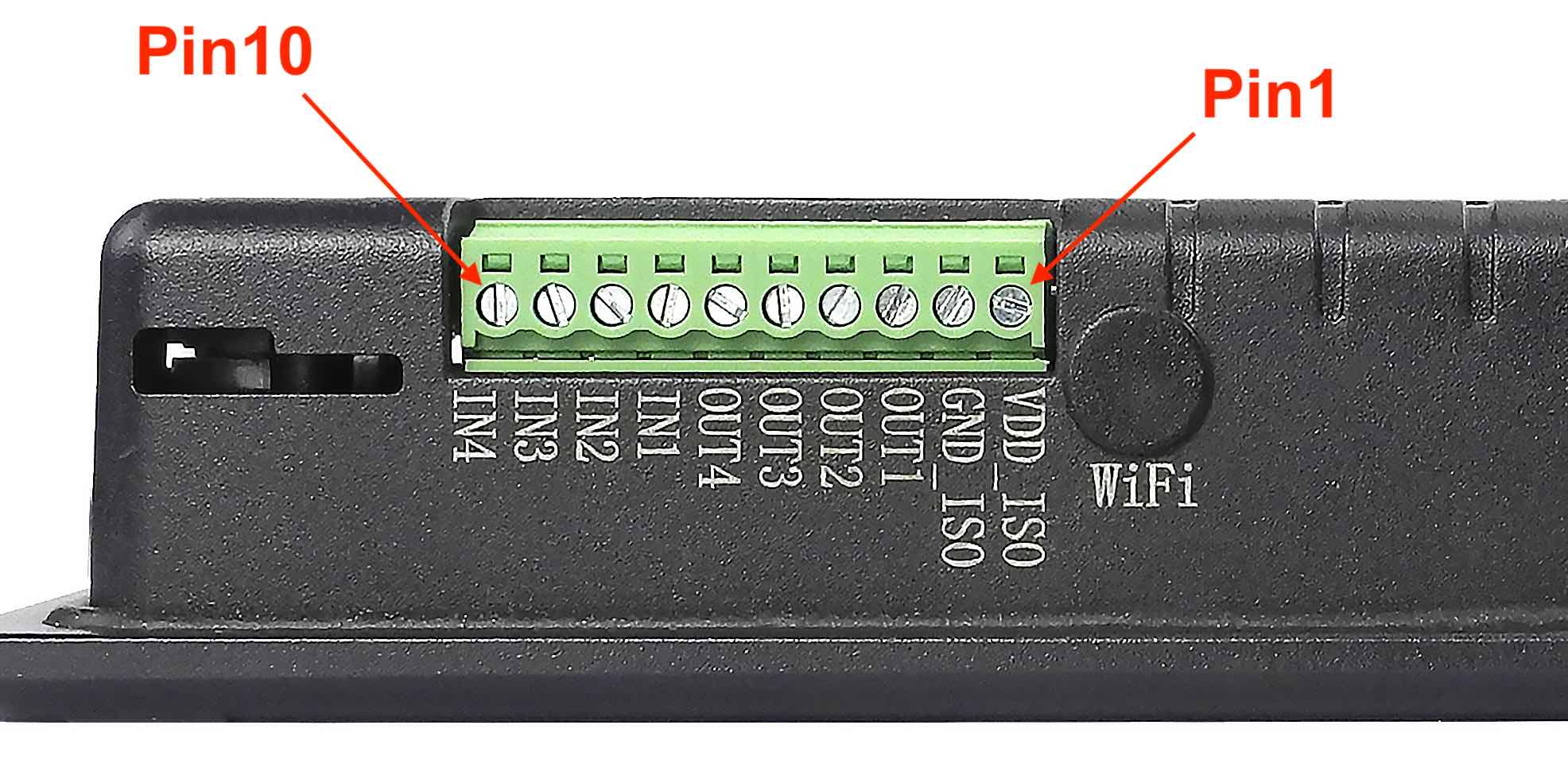

gpio_img

GPIO Terminal

../../../../../_images/GPIO_Schema.png

Isolated GPIO reduced schematic

GPIO Pinout

Pin Number

Definition

GPIOD Chip

GPIOD Line

Pin 1

Isolated Power Input3

Pin 2

Isolated Ground Input

Pin 3

OUT1

4

14

Pin 4

OUT2

4

13

Pin 5

OUT3

4

8

Pin 6

OUT4

4

7

Pin 7

IN1

4

6

Pin 8

IN2

1

9

Pin 9

IN3

1

8

Pin 10

IN4

1

6


3
If the isolation is not a requirement, it is possible to use a non-isolated PSU instead.
It is also possible to use the onboard 5V power supply: it can be re-routed to the Isolated Power Input pin by populating two PCB resistor footprints with 0Ω resistors.
Note that in this case, the Isolated Power Input pin will become an output for the onboard 5V power supply.

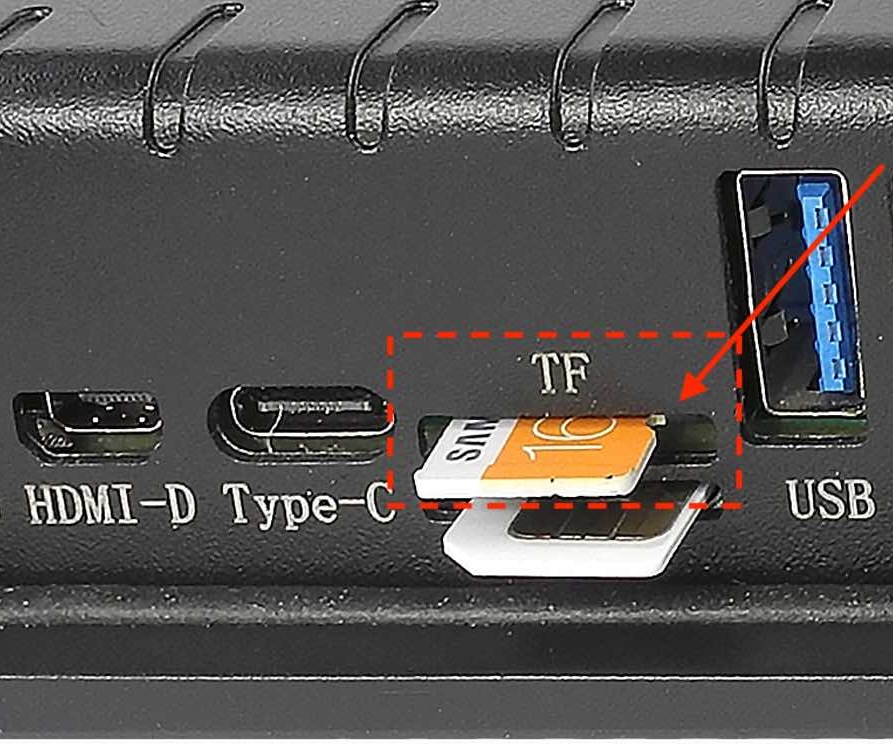

TF Card Slot

The PPC-A76-070 Industrial Panel PC features 1 x TF Card (micro SD) slot. TF Card can address up to 128GB of storage.

TF_img

TF (micro SD) Card Slot

Note

The product does not come shipped with the TF Card by default.

Audio Connectors

The PPC-A76-070 Industrial Panel PC features some audio peripherals. It has a 3.5mm audio input/output jack, an internal speaker, as well as a small buzzer.

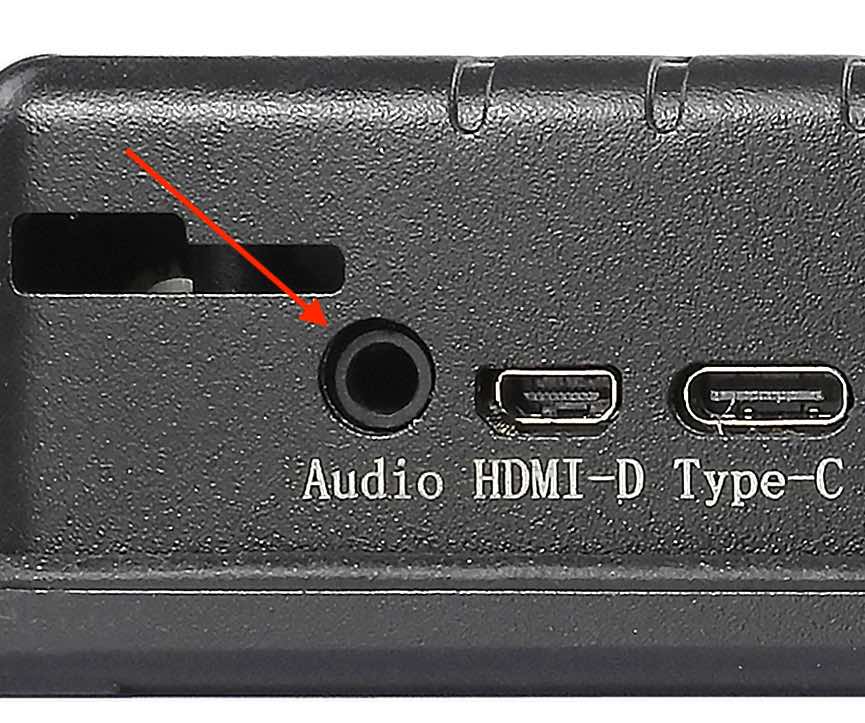

audio_img

Audio Connector (enclosed PC version)

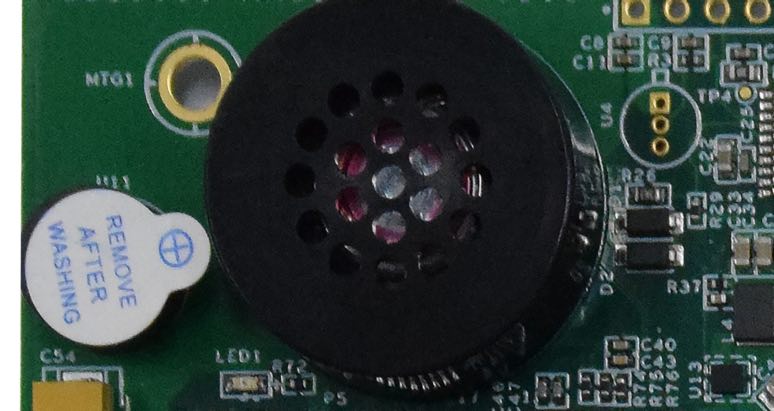

The miniature 2W embedded speaker is handy for audio reproduction, the small buzzer can play alarm/notification sounds.

speaker_buzzer_img

2W Micro Speaker and Buzzer

Attention

By plugging in the headphone cable, the internal speaker will be disabled automatically.

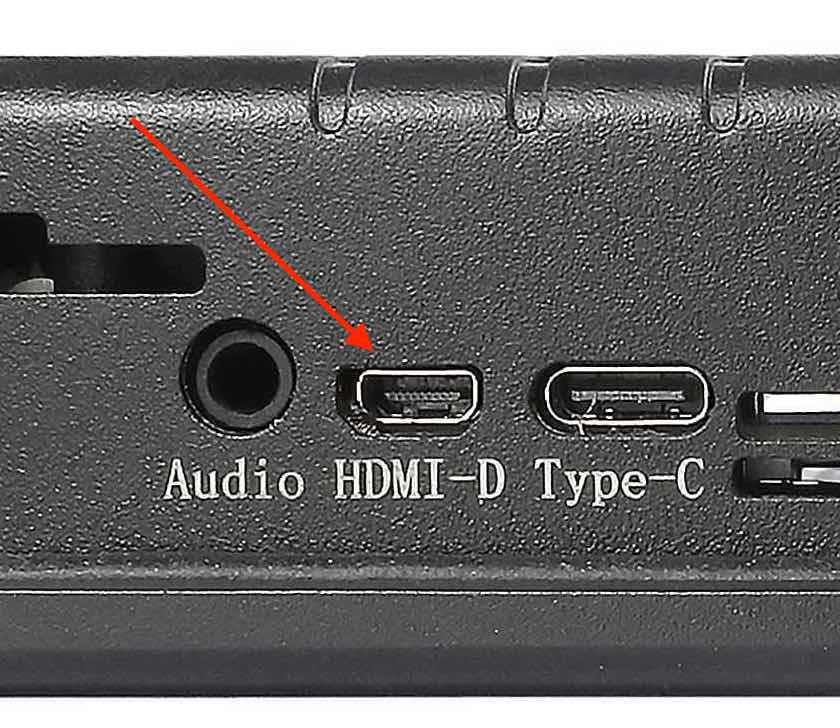

HDMI Connector

The PPC-A76-070 Industrial Panel PC is equipped with 1 x HDMI-D (Micro-HDMI) Out port. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software.

HDMI_img

HDMI Connector

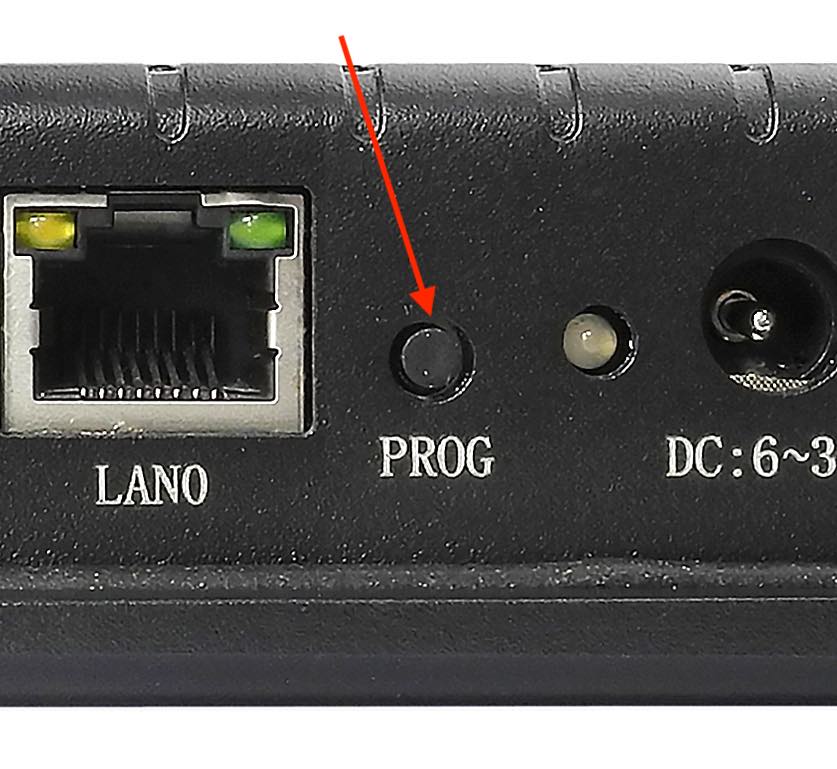

PROG Button

The PPC-A76-070 Industrial Panel PC has one button on the board marked as PROG, as shown in the figure below.
When the button is pressed before powering up, the PPC-A76-070 will enter MASKROM mode. In this mode you can use a USB Type-C cable to upgrade its operating system. You can use this feature to flash another OS to the internal eMMC.

When the button is not pressed before and during power up, the PPC-A76-070 will boot normally.

There is no need to press the button during regular operation. However, if you need to flash the OS in MASKROM mode, the button will be used. Please refer to the software documents for more information.

PROG_btn_img

PROG Button

Mounting Procedure

You can mount PPC-A76-070 with VESA mounting (guide): 75 x 75 mm, 4 x M4 (6mm) screws.

You can also mount PPC-A76-070 with panel mounting method (guide).

Attention

Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Mechanical Specifications

For PPC-A76-070, the outer mechanical dimensions are 188.05 x 123.11 x 33.20mm (W x L x H).

Please refer to the technical drawing in the figure below for details related to the specific product measurements.

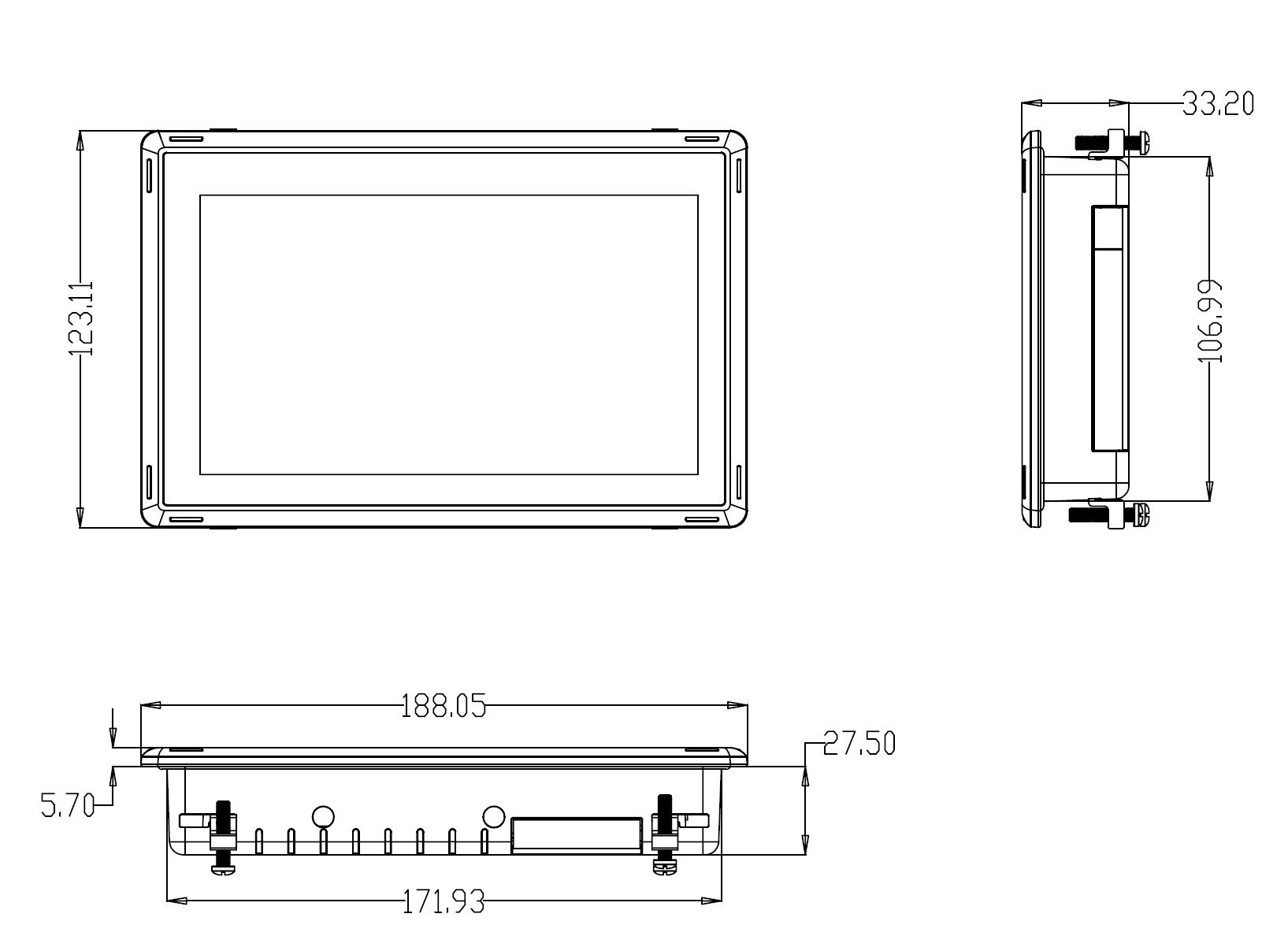

../../../../../_images/SIZE_RK3588_070.jpg

PPC-A76-070 Technical Drawing

3D Model

PPC-A76-070 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc PPC-A76-070, select hardware documentation, drag the navigation bar to the 3D Model section.

Disclaimer

This document is provided strictly for informational purposes. Its contents are subject to change without notice. Chipsee assumes no responsibility for any errors that may occur in this document. Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications set forth herein at any time without prior notice and undertakes no obligation to update the information contained in this document.

While every effort has been made to ensure the accuracy of the information contained herein, this document is not guaranteed to be error-free. Further, it does not offer any warranties or conditions, whether expressed orally or implied in law, including implied warranties and conditions of merchantability or fitness for a particular purpose. We specifically disclaim any liability with respect to this document, and no contractual obligations are formed either directly or indirectly by this document.

Despite our best efforts to maintain the accuracy of the information in this document, we assume no responsibility for errors or omissions, nor for damages resulting from the use of the information herein. Please note that Chipsee products are not authorized for use as critical components in life support devices or systems.

Technical Support

If you encounter any difficulties or have questions related to this document, we encourage you to refer to our other documentation for potential solutions. If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
