CS-A53-BOX

Version 1.0

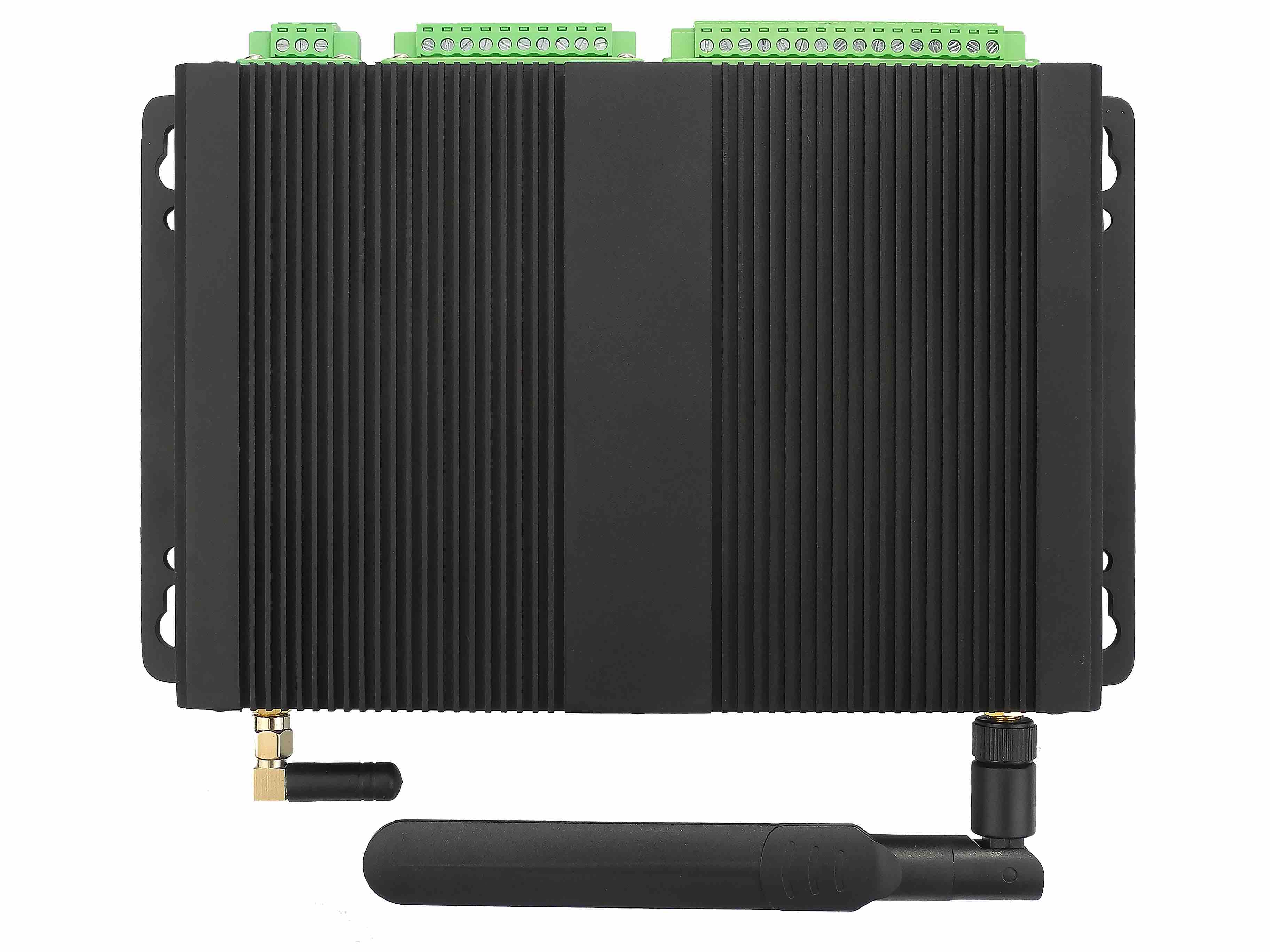

Product Overview

The fanless embedded PC CS-A53-BOX (PN: CS-IMX8MP-BOX) is a Cortex®-A53 series high-quality industrial PC. Thanks to the fanless design, it is stable and reliable in client terminal, multimedia and other industry applications.

The offered CPU consumes very little power, around 5.25W (max). From the ground-up, the CPU is built for low power consumption. As such, it is best suited for mobile and power-constrained industrial or field applications. A specially designed aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fanless design reduces noise, as well as the maintenance costs and efforts, leading to increased reliability at the same time.

The CS-A53-BOX Industrial PC is based around the powerful i.MX8MP System on Chip (SoC), powered by the NXP i.MX8MP low-power processor which integrates a quad-core Cortex®-A53 1.6GHz processor.

The i.MX8MP supports multi-format video decoders and has a high-performance LPDDR4 4GB RAM capable of sustaining demanding memory bandwidths. It also provides a complete set of peripheral interfaces.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.

Note

You can order the CS-A53-BOX from the official Chipsee Store or from your nearest distributor.

Operating System

This product comes with a pre-installed OS of your choice. Please see the list below for the supported OSes, which can also be obtained from the Software Documentation section, along with the detailed installation instructions.

  • Android 12

  • Yocto Linux Qt 6.3

Warning

The Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com for further assistance.

Optional Features

The CS-A53-BOX Industrial PC does not include the 4G/LTE module by default. The module is optional and can be selected at the Chipsee store during the ordering process.

Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

Hardware Features

The CS-A53-BOX Industrial PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below.

Table 84 Key Features

CS-A53-BOX

CPU

NXP i.MX8MP, Quad(4)-core Cortex-A53 (1.6GHz)

RAM

LPDDR4 4GB

eMMC

32GB

SSD

Not supported

Storage

TF Card, Supports up to 128GB SDHC

HDMI

1 x HDMI-D(Micro HDMI) OUT

Display

N/A

Touch

N/A

USB

1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C1

LAN

2 x RJ45, GbE, including 1 x optional Power over Ethernet (PoE) port

Audio

3.5mm Audio In/Out Connector, 2W Internal Speaker

Buzzer

Yes

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

RS232

default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port)2

RS485

default 3 x RS485 at most2

CAN

default 2 x CAN (1 x CAN can be configured to RS232 optionally)

GPIO

8 Channels Isolated IO, 4 x Input and 4 x Output

WiFi/BT

Integrated WiFi/BT Module

4G/LTE

Supported, Optional

Power Input

From 6V to 36V

Current

350mA (max) at 15V

Power Consumption

5.25W (max)

Working Temperature

From 0°C to +60°C

OS

Android 12, Yocto Linux Qt 6.3

Dimensions

CS-A53-BOX (PN: CS-IMX8MP-BOX): 209 x 125 x 37.3mm

Weight

CS-A53-BOX (PN: CS-IMX8MP-BOX): 900g

Mounting

CS-A53-BOX (PN: CS-IMX8MP-BOX): Rear, VESA


1

USB3.0 port and USB-C port share one node and cannot be used together. In Linux USB3.0 HOST is enabled by default; in Android USB-C OTG is enabled by default. You can change this config by software in the operating systems, e.g.: disable USB3.0 HOST then enable USB-C OTG in Linux, or vice versa in Android.

2(1,2)

This product has 3 x CPU UART, 2 x USB UART by default, 6 x UART channels at most. The default configuration is 2 x RS232 and 3 x RS485, including 1 RS232 debug port. There is 1 x CAN that can be configured to RS232 (USB UART). UART can be swapped between RS232 and RS485 modes easily, if you need a different RS232/RS485/CAN configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com when placing an order.

Power Input

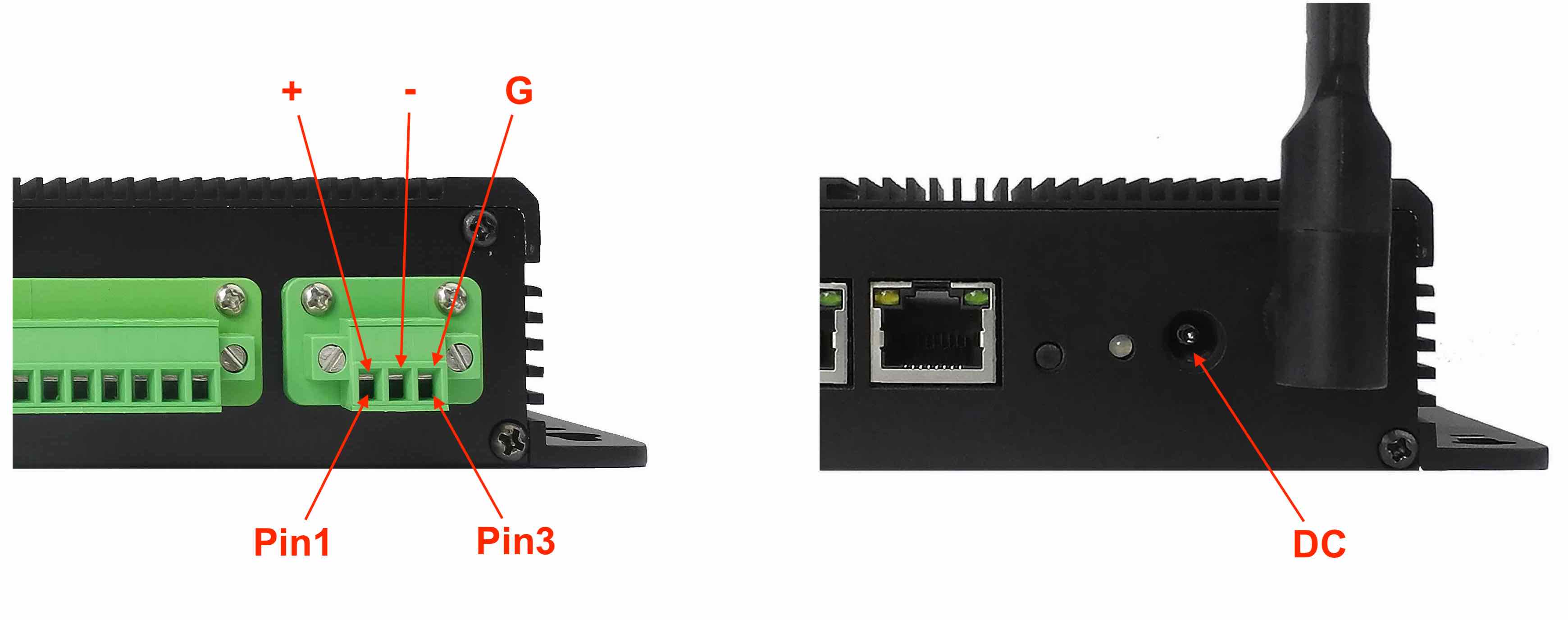

The CS-A53-BOX Industrial PC can be powered by a wide range of input voltages: From 6V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is shown in the figure below.

power_img

Power Input

Note that the “+” sign represents the positive power input, it is printed at the casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to the ground.

Table 85 Power Connector

Power Input Definition

Pin Number

Definition

Description

Pin 1

Positive Input

DC Power Positive Terminal

Pin 2

Negative Input

DC Power Negative Terminal

Pin 3

Ground

Power System Ground

Note

The system ground “G” is connected to power negative “-” on board.

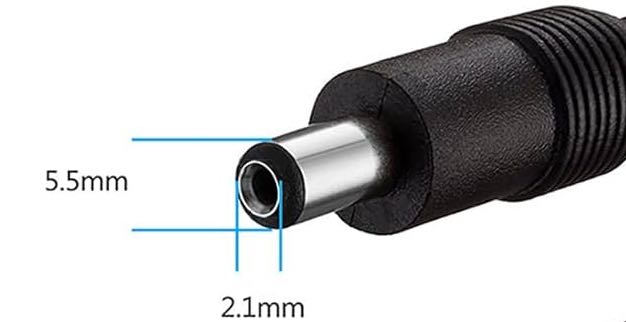

There is another power input port, it is a 2.1mm x 5.5mm x 9.5mm DC jack. For a proper DC power connector, refer to the figure below.

dc_jack_img

DC Jack

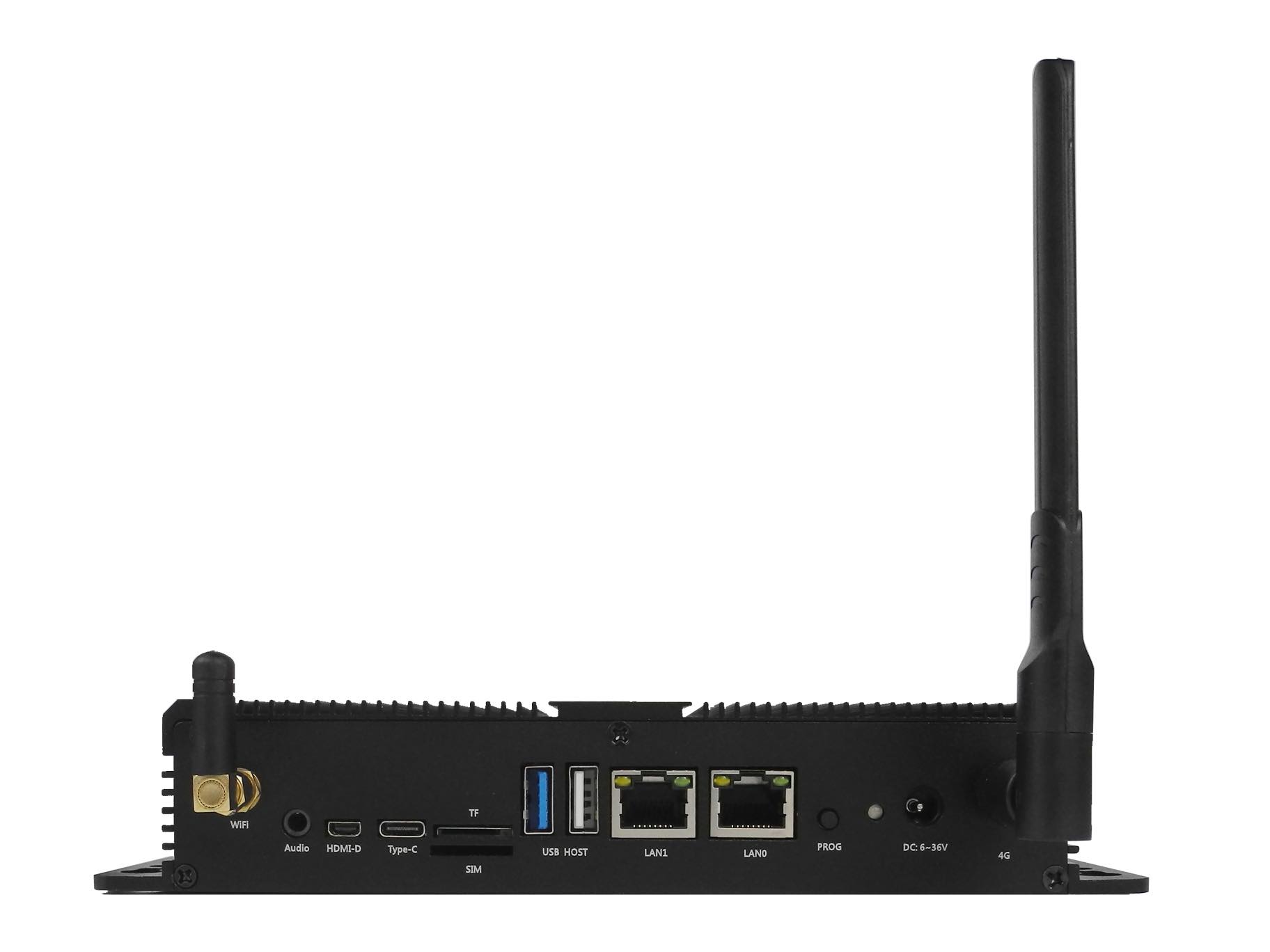

Connectivity

There are many connectivity options available on the CS-A53-BOX industrial PC. It has 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C (USB3.0 and USB-C share one node); 2 x RJ45, GbE, including 1 x optional Power over Ethernet (PoE) port; up to 6 x UART terminals (RS232/RS485), up to 2 x CAN.

RS232/RS485/CAN

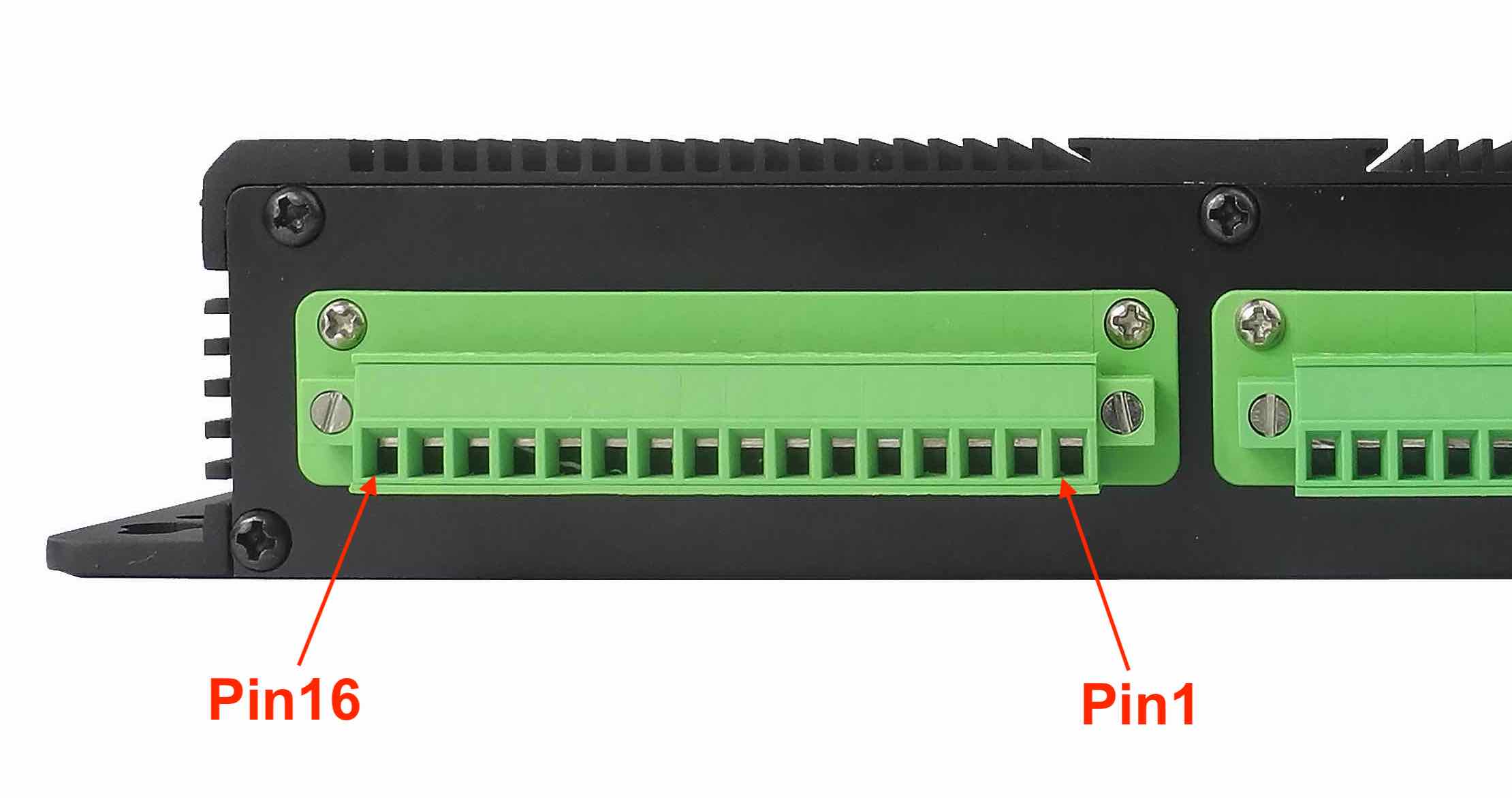

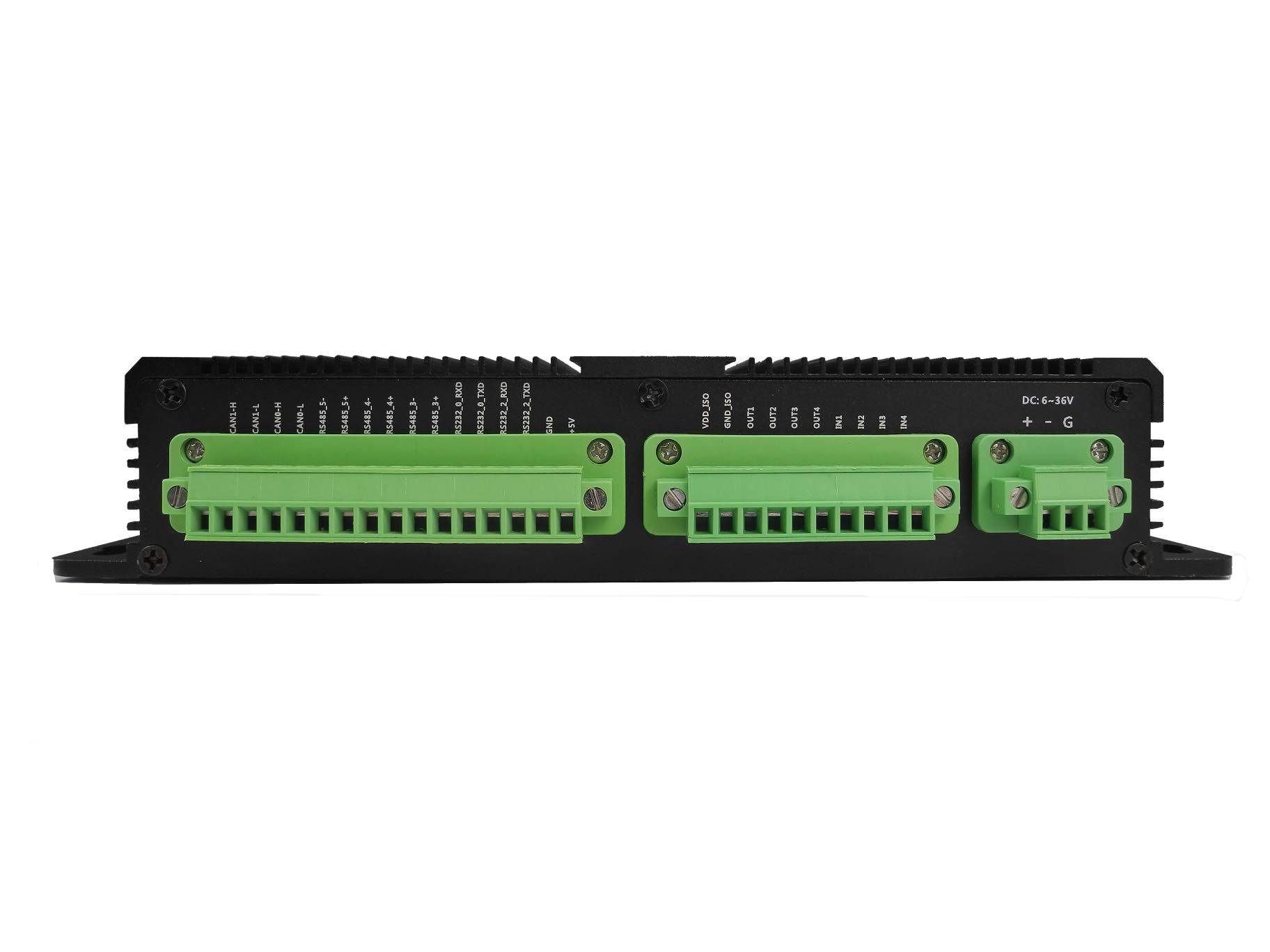

The serial communication interfaces (RS485, RS232, and CAN) are routed to a 16-pin 3.81mm terminal, as illustrated on the figure below.

rs232_485_can_img

RS232, RS485 and CAN

This product has 3 x CPU UART, 2 x USB UART by default, 6 x UART channels at most. The default configuration is 2 x RS232 and 3 x RS485, including 1 RS232 debug port. There is 1 x CAN that can be configured to RS232 (USB UART).

The table below offers more detailed description of every pin and its definition:

Table 86 Connectivity Section

RS232 / RS485 / CAN Pin Definition:

Pin Number

Definition

Description

Pin 16

CAN1_H

CAN H signal

Pin 15

CAN1_L

CAN L signal

Pin 14

CAN0_H

CAN H signal, Can be configured to USB UART RS232

Pin 13

CAN0_L

CAN L signal, Can be configured to USB UART RS232

Pin 12

RS485_5-

USB UART2, RS485 –(B) signal

Pin 11

RS485_5+

USB UART2, RS485 +(A) signal

Pin 10

RS485_4-

USB UART1, RS485 –(B) signal

Pin 9

RS485_4+

USB UART1, RS485 +(A) signal

Pin 8

RS485_3-

CPU UART3, RS485 –(B) signal

Pin 7

RS485_3+

CPU UART3, RS485 +(A) signal

Pin 6

RS232_0_RXD

CPU UART4, RS232 RXD signal

Pin 5

RS232_0_TXD

CPU UART4, RS232 TXD signal

Pin 4

RS232_2_RXD

CPU UART2, RS232 RXD signal, Debug Port

Pin 3

RS232_2_TXD

CPU UART2, RS232 TXD signal Debug Port

Pin 2

GND

System Ground

Pin 1

+5V

System +5V Power Output, No more than 1A Current output

Attention

  1. RS485_3,RS485_4 and RS485_5 can control the input and output direction automatically. There’s no need to control it from within the software.

  2. The 120Ω match resistor for the RS485 is already mounted by default.

  3. The 120Ω match resistor for the CAN bus is NOT mounted by default.

GPIO Port

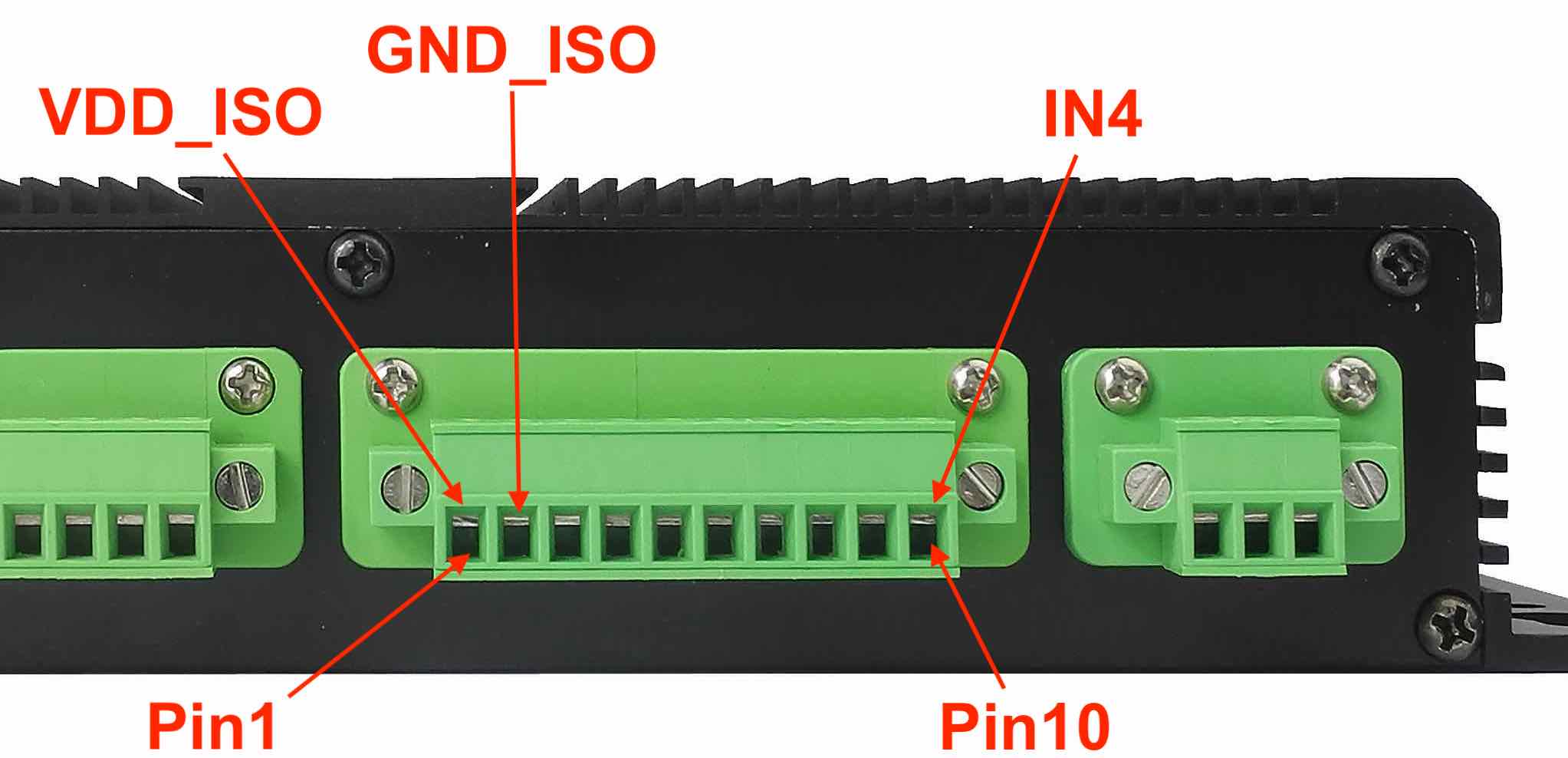

The CS-A53-BOX Industrial PC has a 10 Pin 3.81mm GPIO Connector, as shown in the figure below. The table below gives details about the definition of every Pin.

The VDD_ISO is an isolated power input pin, you should attach a 5~24V DC power input to this pin.

It is also possible to use the onboard 5V power supply. The 5V on board power supply can be re-routed to the Isolated Power Input pin by populating R236 and R239 PCB footprints with 0Ω resistors in the factory. In this case you don’t need to provide a DC power supply unit to use the GPIO, and the VDD_ISO input will become a 5V OUTPUT powered by the on board 5V.

gpio_img

GPIO

Table 87 GPIO Connector Pin-out

GPIO Pin Definition:

Pin Number

Definition

Pin 1

Isolated Power Input3

Pin 2

Isolated Ground Input

Pin 3

OUT1

Pin 4

OUT2

Pin 5

OUT3

Pin 6

OUT4

Pin 7

IN1

Pin 8

IN2

Pin 9

IN3

Pin 10

IN4


3
If the isolation is not a requirement, it is possible to use a non-isolated PSU instead.
../../../../../_images/GPIO_Schema.png

Isolated GPIO reduced schematic

Attention

  • The GPIO has been Opt-Isolated and it uses the 24V Logic by default.

  • The 4 output channels can drive at most 500mA current on each channel.

USB Connectors

There are 2 x USB HOST and 1 x USB DEVICE (for flashing OS) ports onboard: 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C , as shown in the figures below.

USB3.0 port and USB-C port share one node and cannot be used together. In Linux USB3.0 HOST is enabled by default; in Android USB-C OTG is enabled by default. You can change this config by software in the operating systems, e.g.: disable USB3.0 HOST then enable USB-C OTG in Linux, or vice versa in Android.

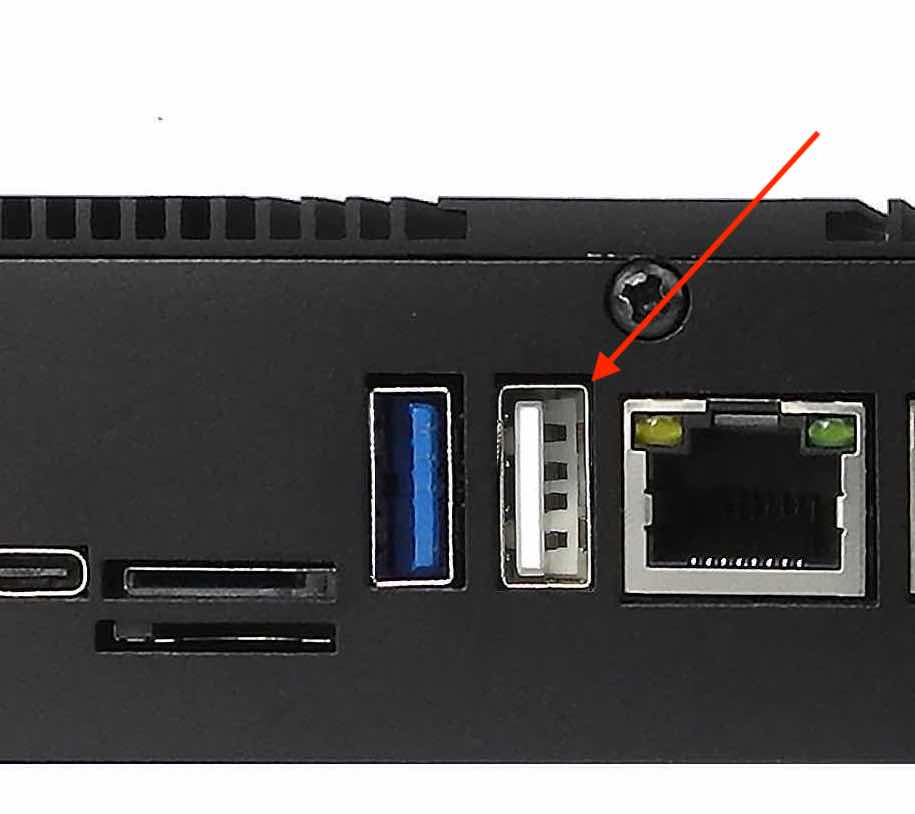

USB2_img

USB 2.0 HOST Port (embedded / enclosed PC version)

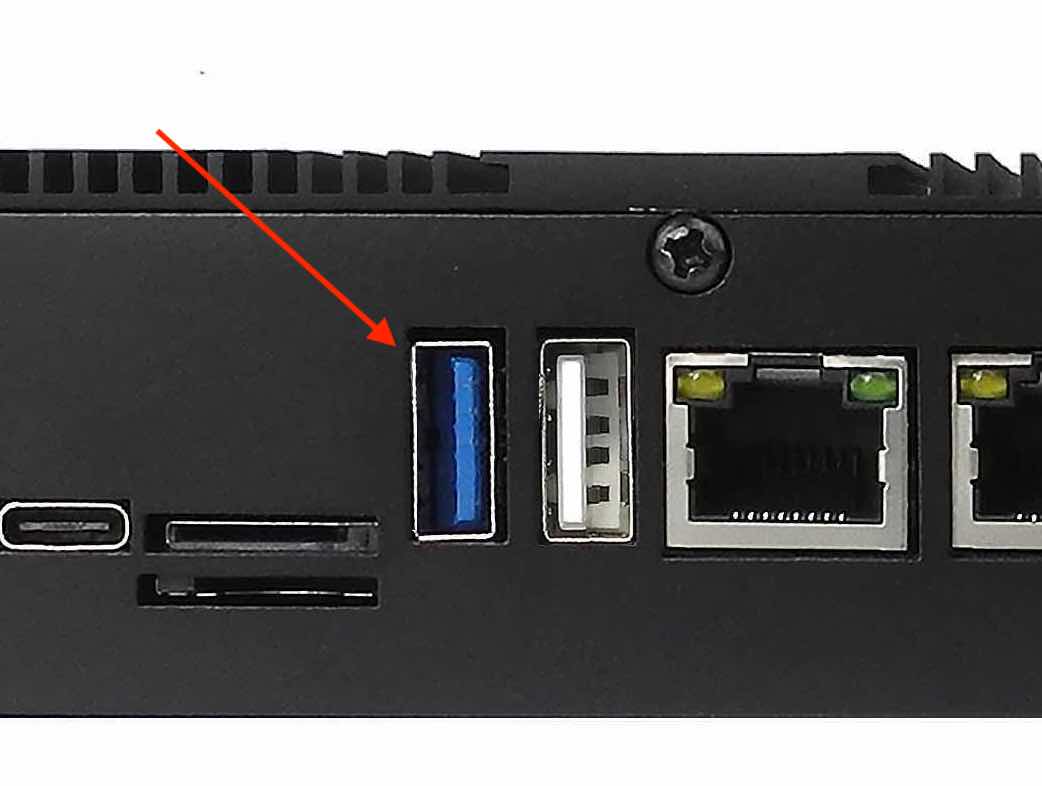

USB3_img

USB 3.0 HOST Port (embedded / enclosed PC version)

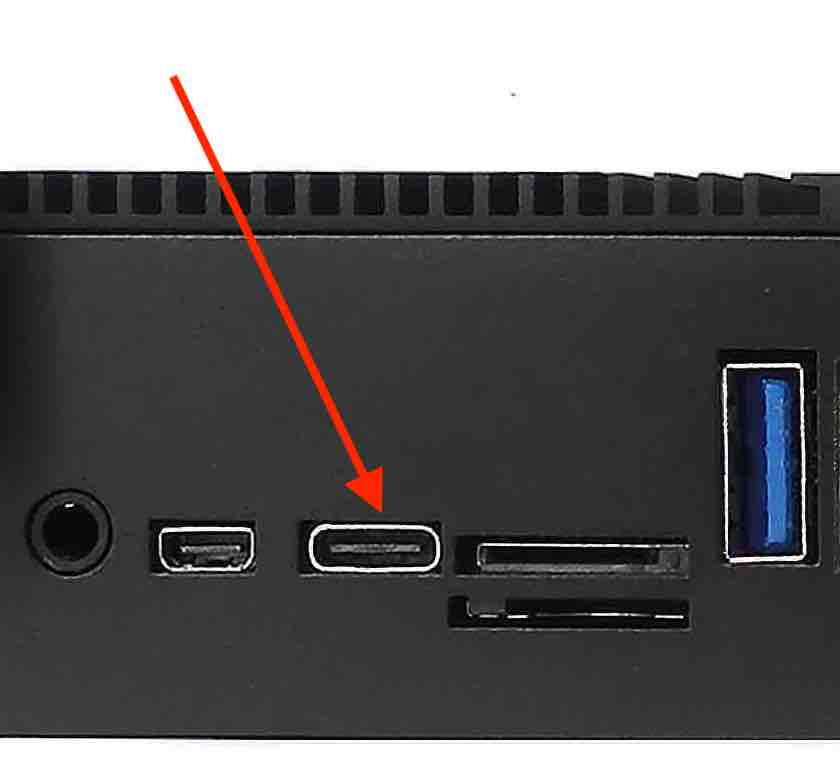

USBC_img

USB Type-C Port (embedded / enclosed PC version)

Warning

Be careful not to touch surrounding electronic components accidentally while plugging USB devices into the embedded IPC version.

LAN Connectors

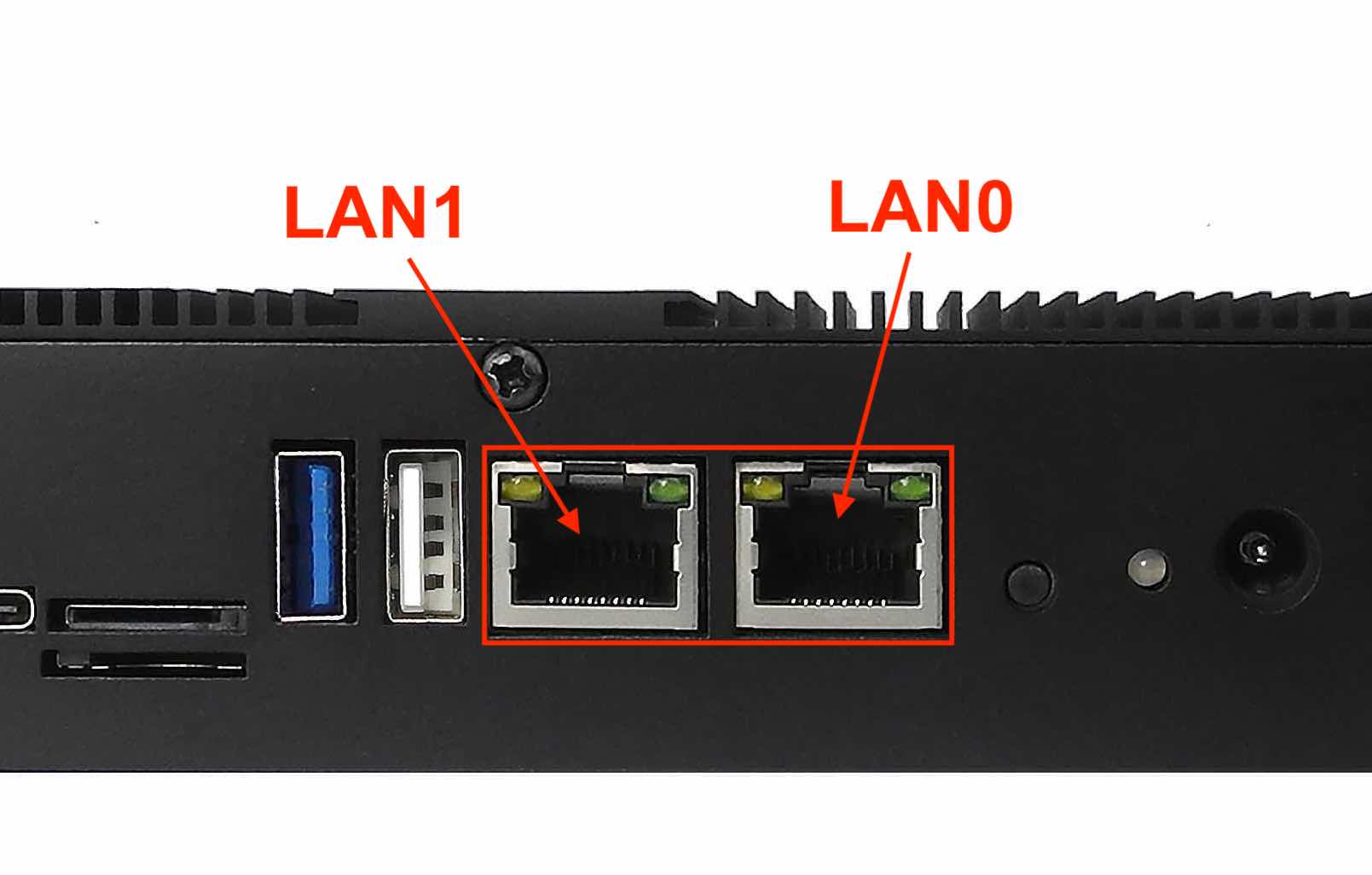

LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown in the figure below. The integrated 2 x RJ45, GbE, including 1 x optional Power over Ethernet (PoE) port interface supports up to 1 Gbps data throughput.

The LAN0 port supports optional Power over Ethernet (PoE) feature.

LAN_img

RJ45 LAN Connector

Note

Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).

WiFi & BT Module

The CS-A53-BOX Industrial PC is equipped with the popular Realtek RTL8821CS WiFi/BT module which supports BT/BLE 2.1/3.0/4.2, as well as 802.11ac/abgn 433Mbps 2.4/5.8 GHz Wireless LAN (WLAN).

../../../../../_images/WiFi_BT2.jpeg

Figure 389: RTL8821CS WiFi/BT Module

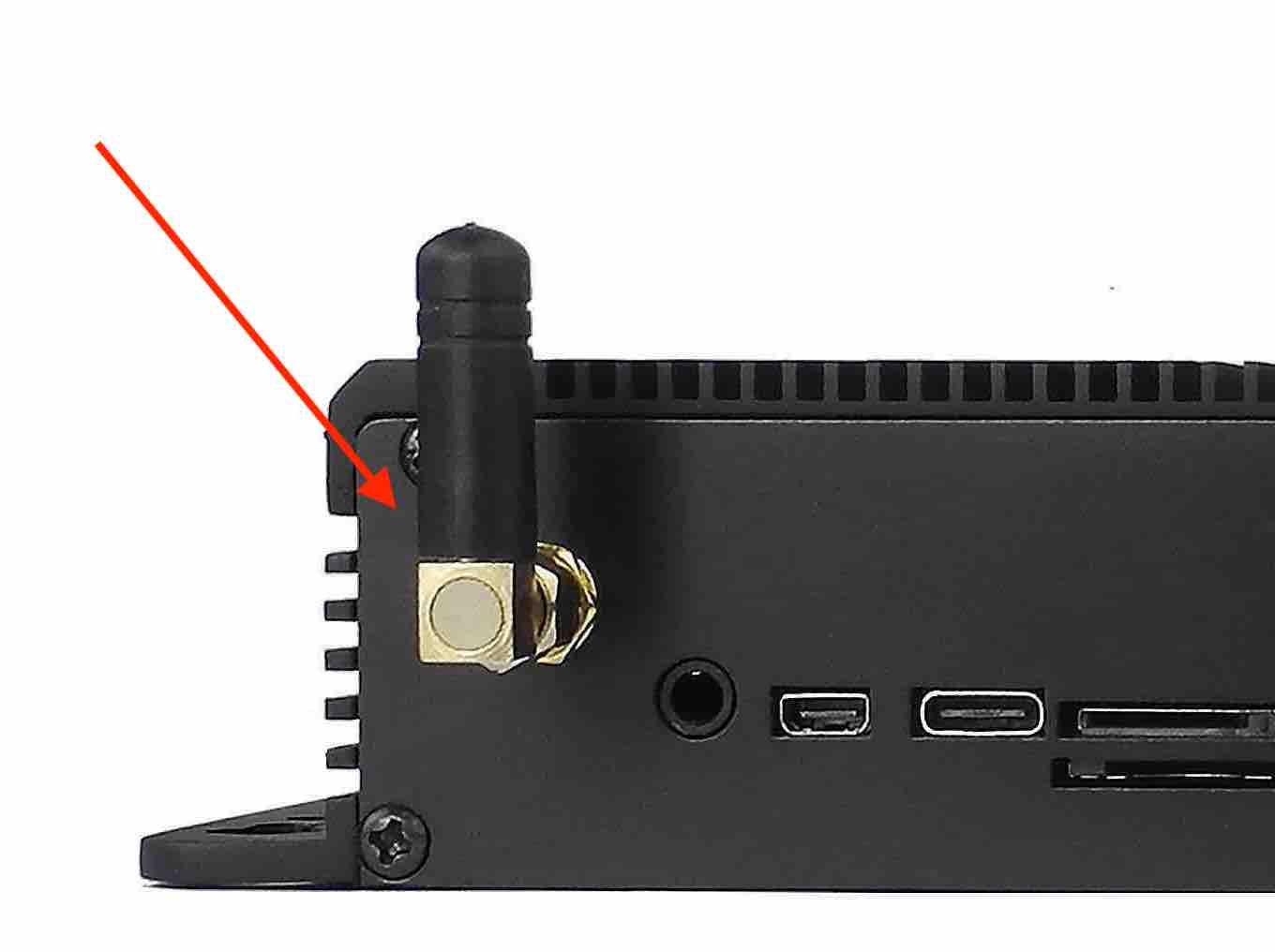

The CS-A53-BOX includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below.

wifi_bt_img

WiFi+BT Antenna SMA

4G/LTE Module

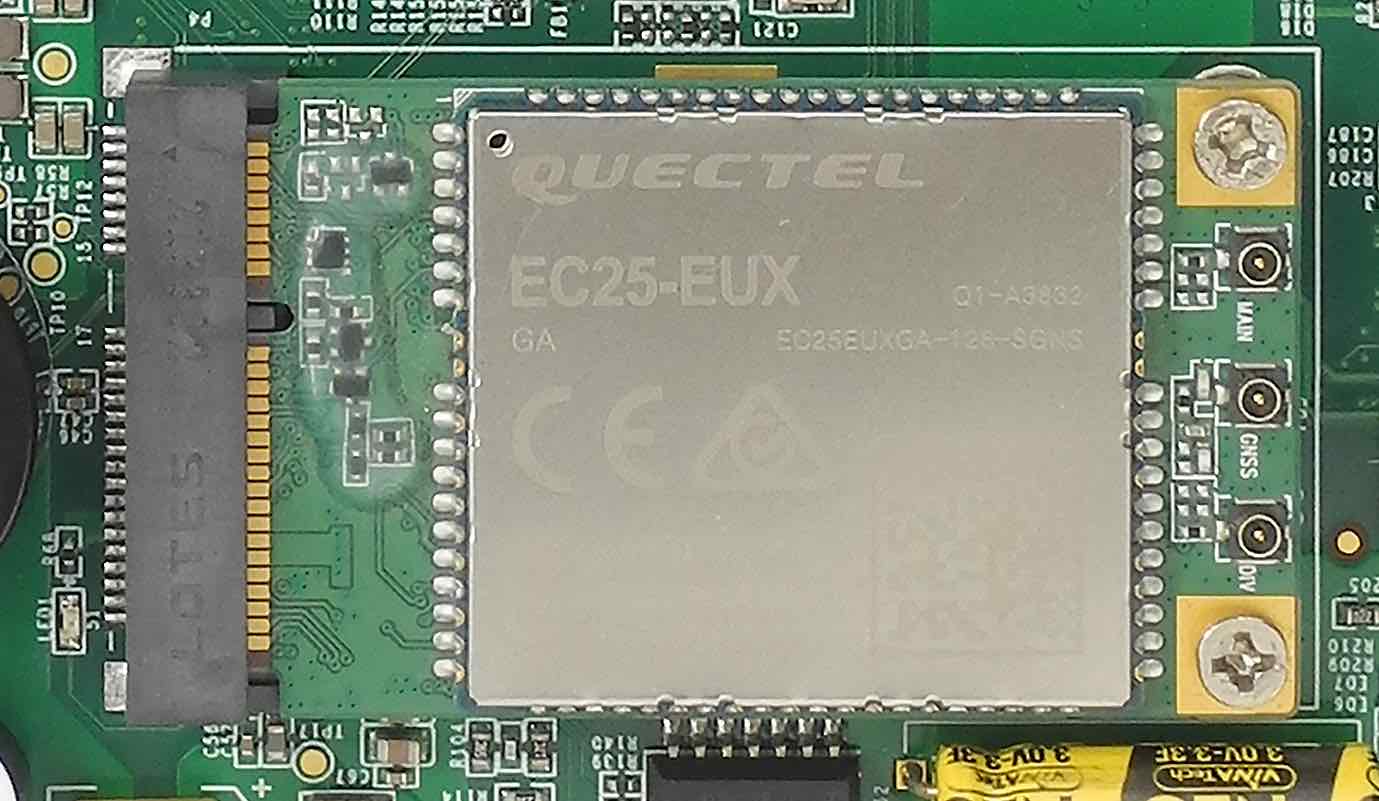

The CS-A53-BOX Industrial PC is equipped with a mini-PCIe connector that can connect a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the CS-A53-BOX. SIM card does NOT support hot plug. Power off before inserting or removing SIM card.

4g_chip_img

mini-PCIe Connector & 4G/LTE Module

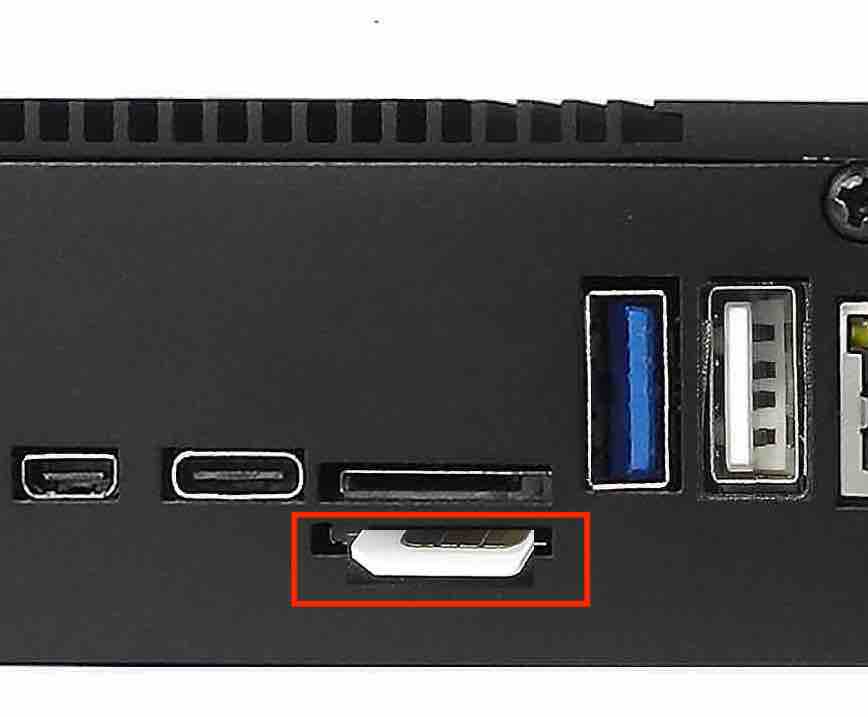

sim_img

SIM Card Direction

Attention

The product does not come shipped with the 4G/LTE module by default. The customer can choose the 4G/LTE module option when placing an order, we will install all the necessary components.

TF Card Slot

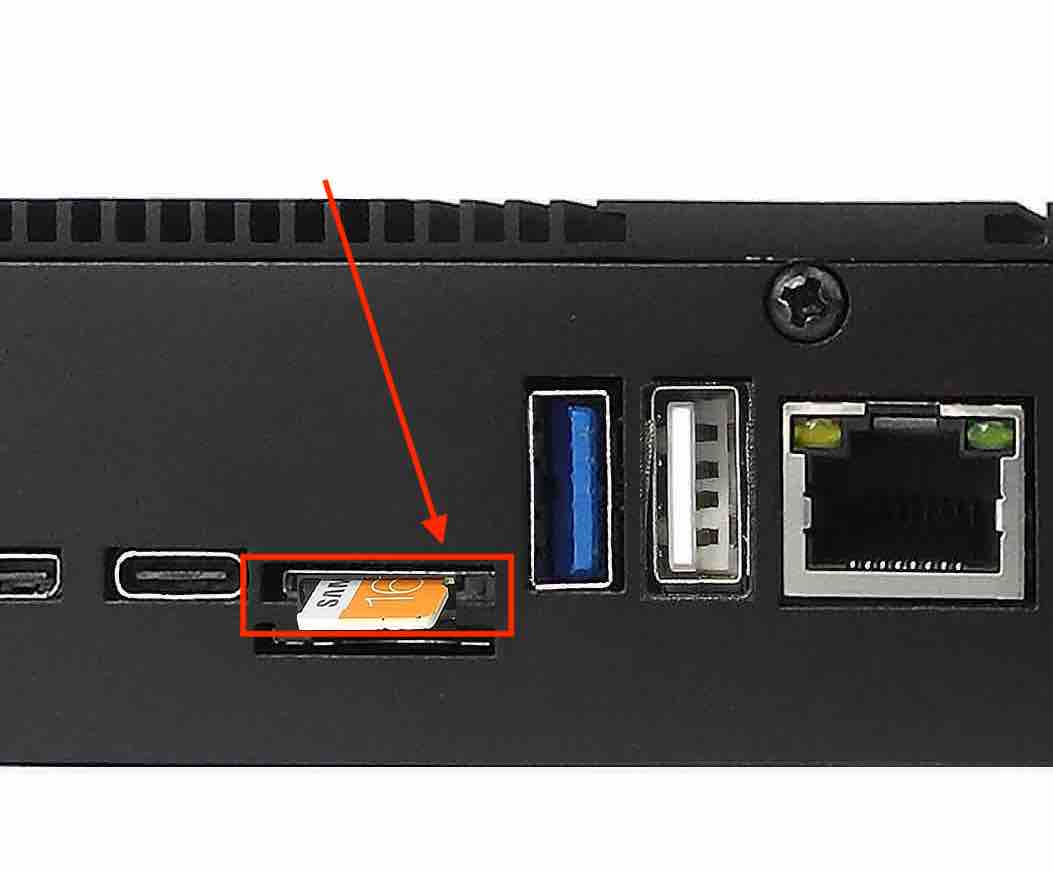

The CS-A53-BOX Industrial PC features 1 x TF Card (micro SD) slot. TF Card can address up to 128GB of storage.

TF_img

TF (micro SD) Card Slot

Note

The product does not come shipped with the TF Card by default.

Audio Connectors

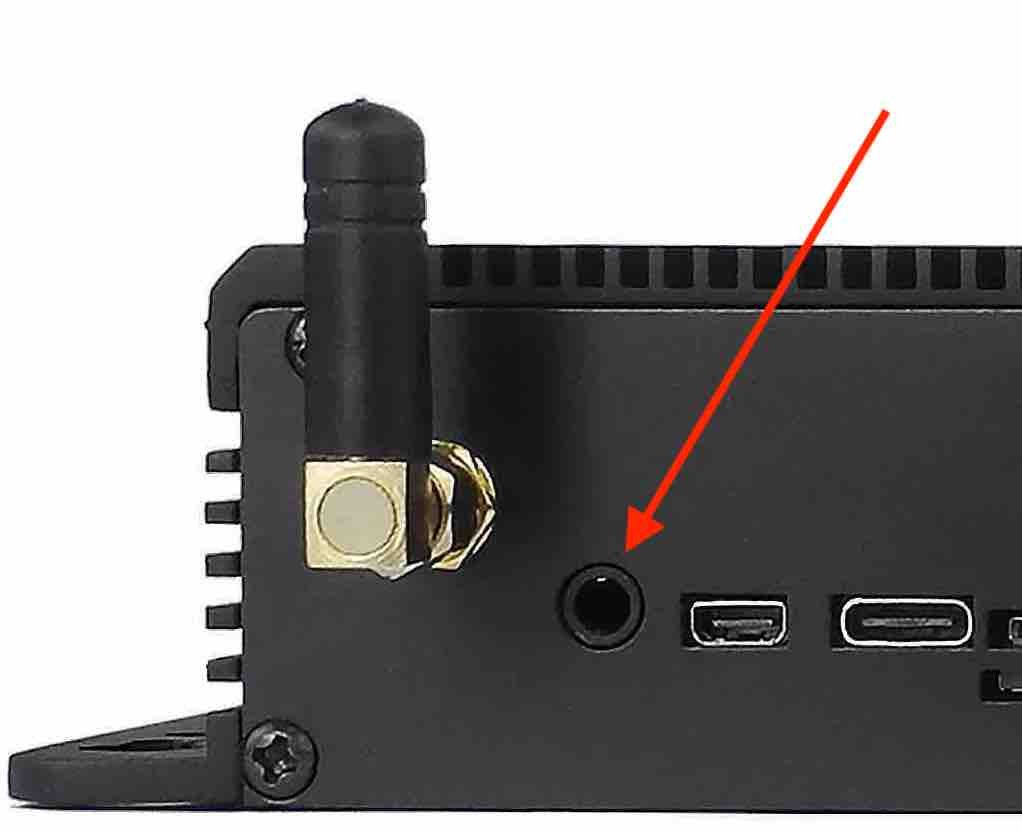

The CS-A53-BOX Industrial PC features some audio peripherals. It has a 3.5mm audio input/output jack, an internal speaker, as well as a small buzzer.

audio_img

Audio Connector (enclosed PC version)

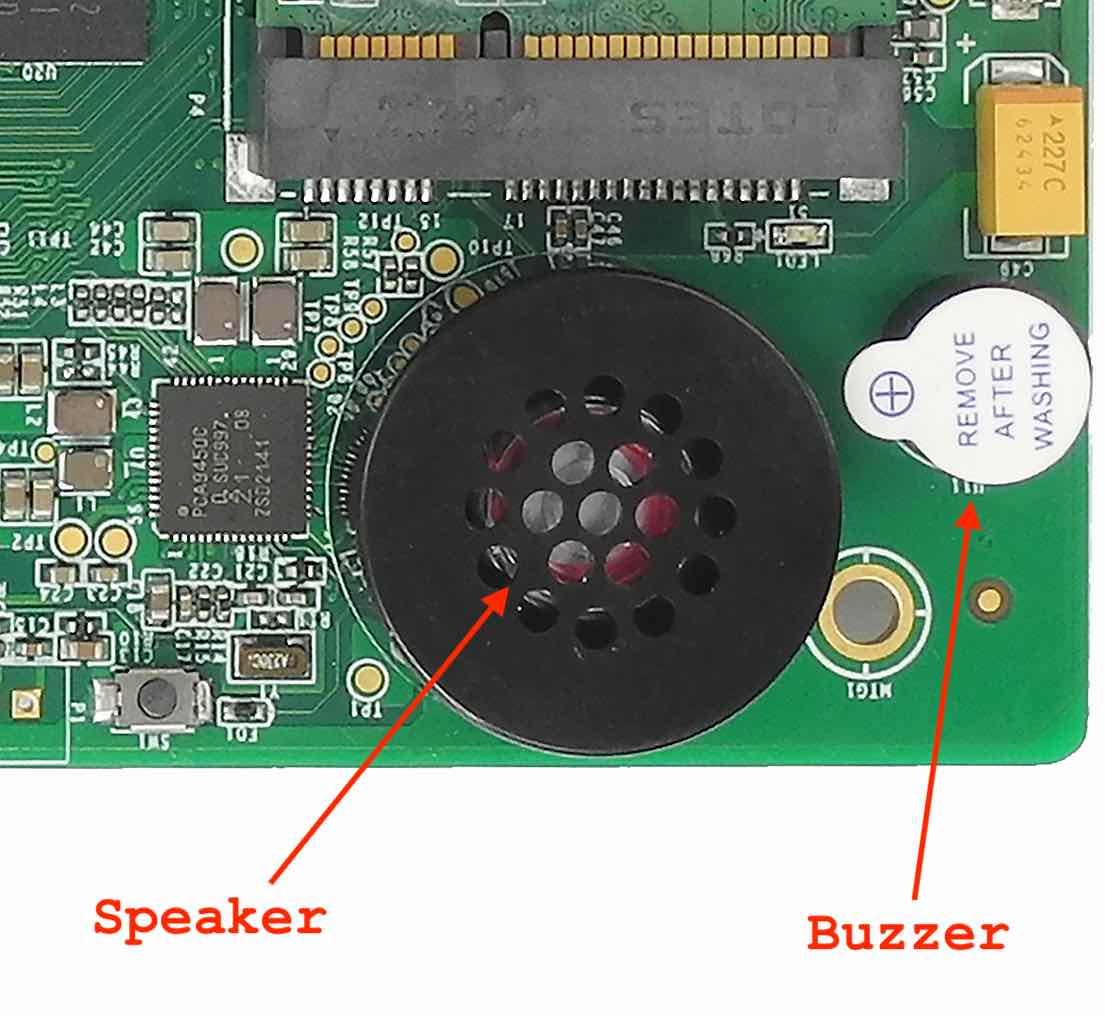

The miniature 2W embedded speaker is handy for audio reproduction, the small buzzer can play alarm/notification sounds.

buzzer_img

2W Micro Speaker and Buzzer

Attention

By plugging in the headphone cable, the internal speaker will be disabled automatically.

HDMI Connector

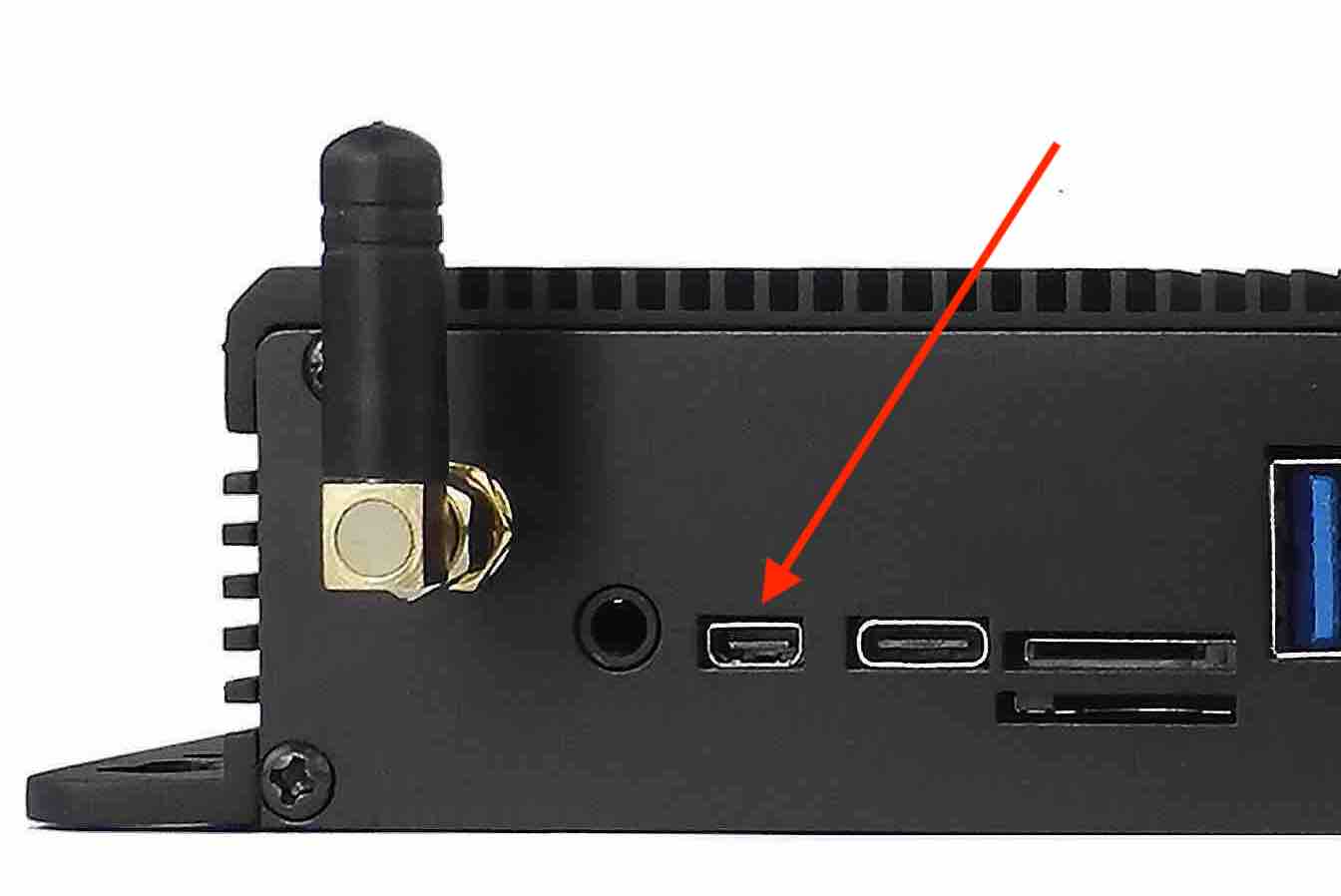

The CS-A53-BOX Industrial PC is equipped with 1 x HDMI-D(Micro HDMI) OUT connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software.

HDMI_img

HDMI Connector

PROG Button

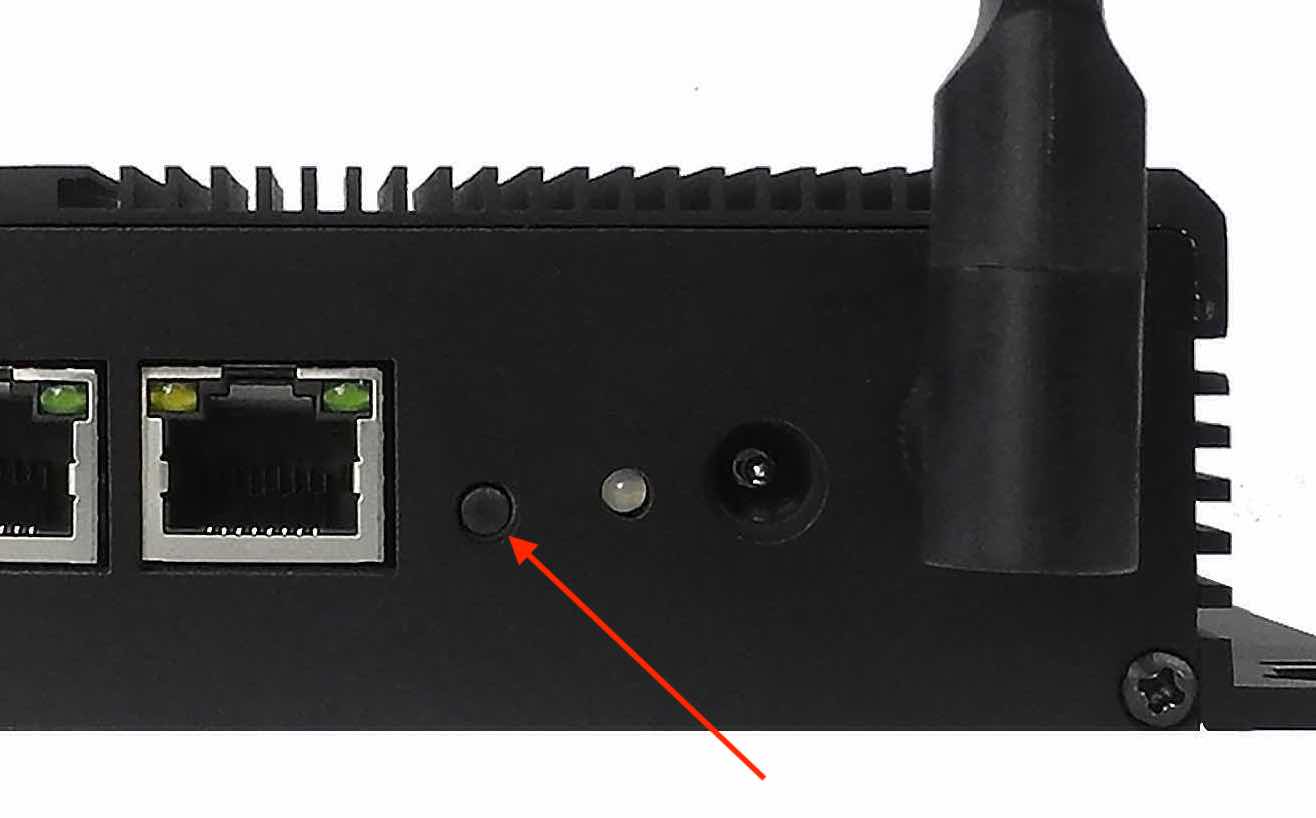

The CS-A53-BOX Industrial PC has one button on the board marked as PROG, as shown in the figure below. It controls how the device will be booted.

To boot from SD card, press and hold the PROG button, then connect the power supply, after a few seconds, you can see the system boot from SD card, then you may release the button.

When the button is not pressed while powering up, the CS-A53-BOX will boot normally from eMMC.

PROG_btn_img

PROG Button

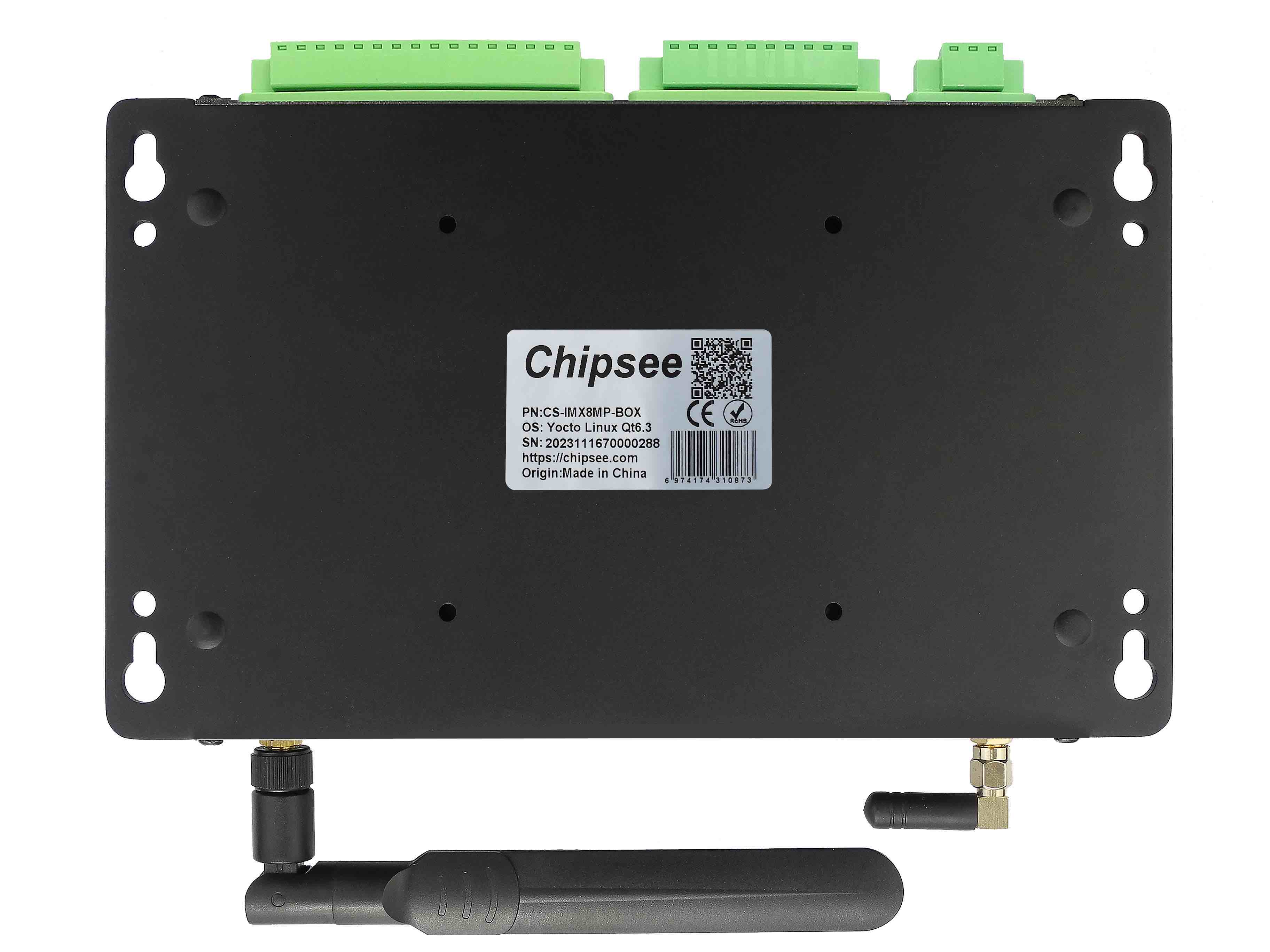

Mounting Procedure

You can mount CS-A53-BOX with VESA mounting (guide): 75 x 75 mm, 4 x M4 (6mm) screws.

You can also mount CS-A53-BOX with rear mounting method (guide).

Attention

Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Mechanical Specifications

For CS-A53-BOX, the outer mechanical dimensions are 209 x 125 x 37.3mm (W x L x H).

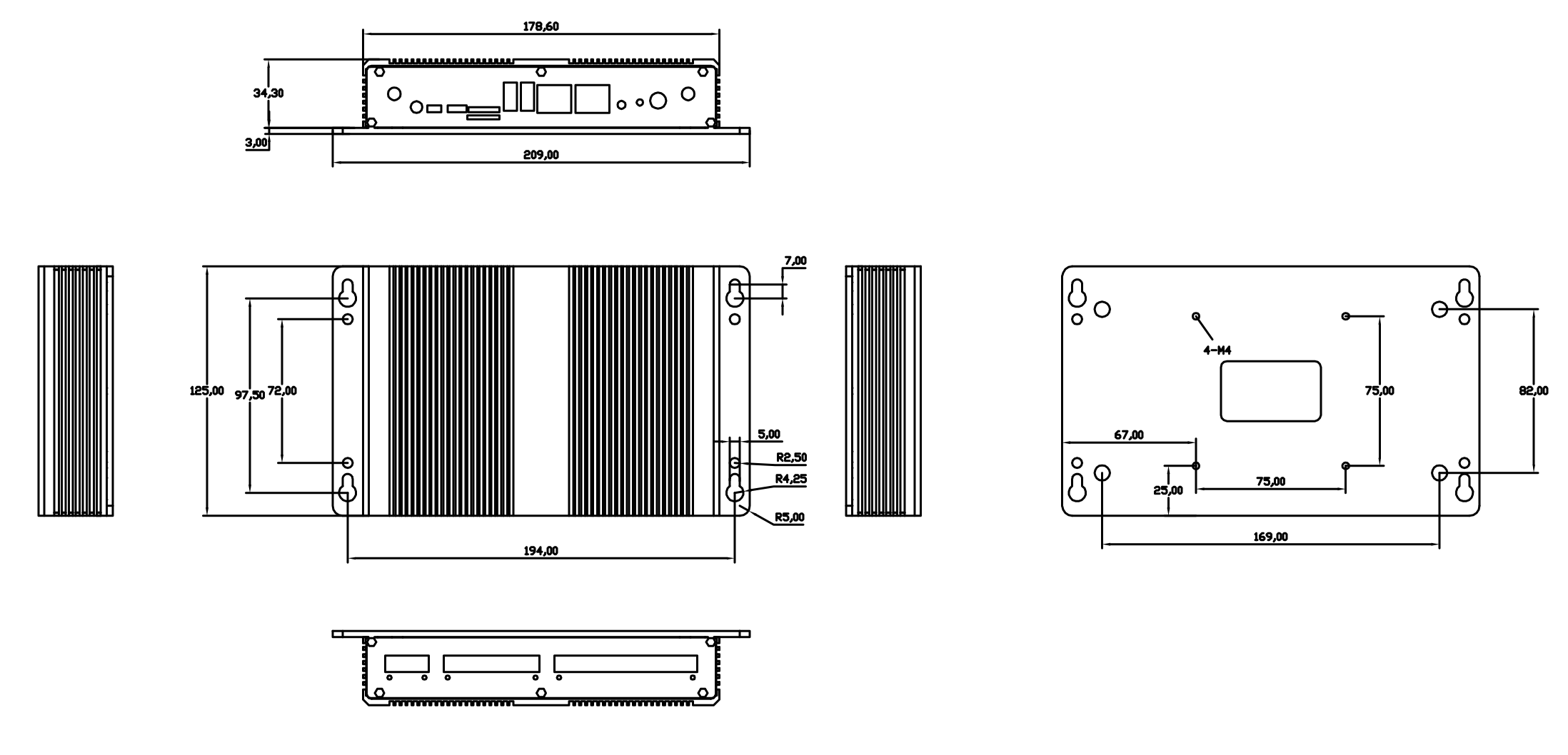

Please refer to the technical drawing in the figure below for details related to the specific product measurements.

../../../../../_images/CS-IMX8MP-BOX-TD.png

Figure 390: CS-A53-BOX Technical Drawing
