PPC-J6412-156-C

Version 1.2

Product Overview

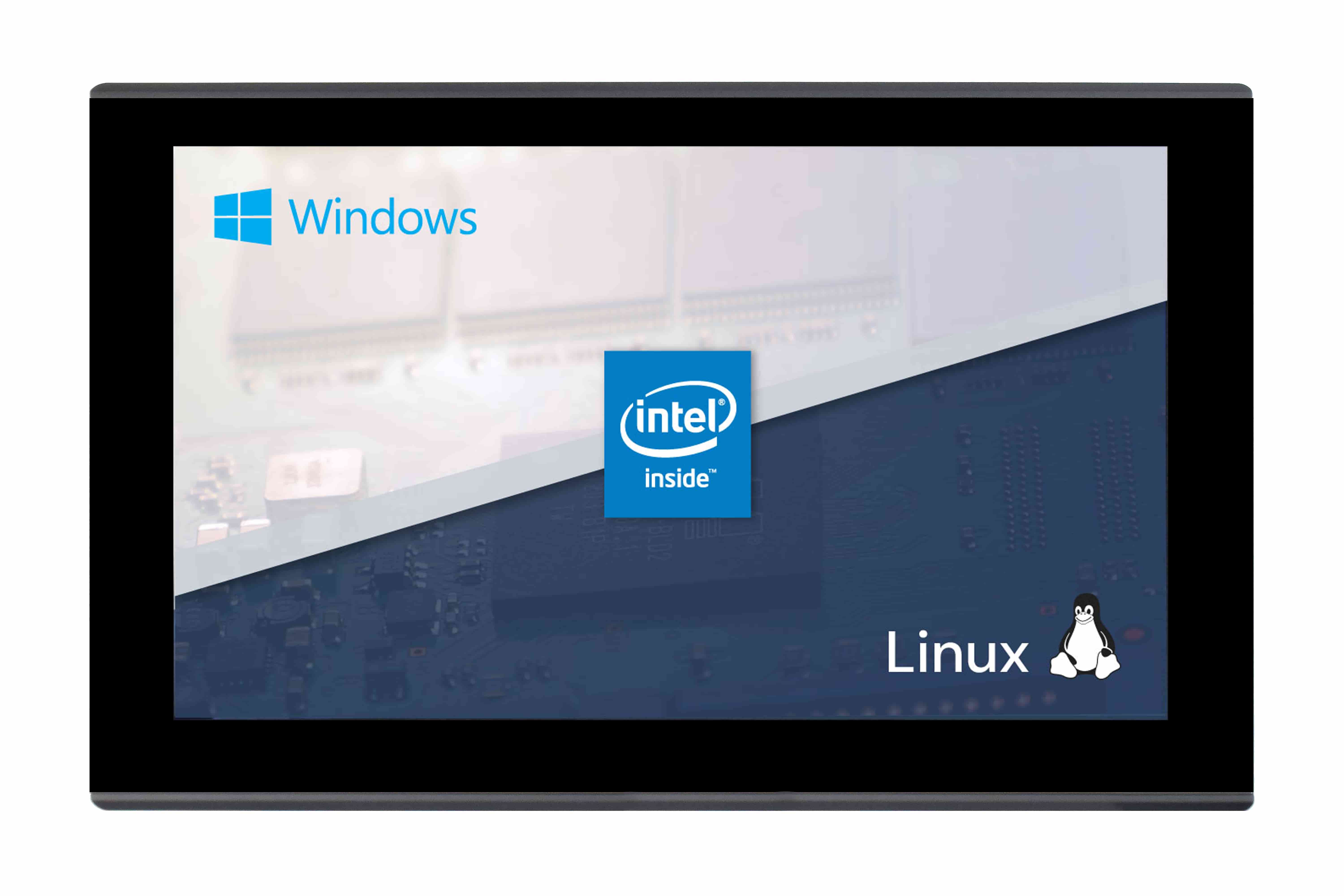

The PPC-J6412 series PPC-J6412-156-C is a rugged, high-quality NEMA 4X/IP65-compliant industrial panel PC. It features a 15.6” multi-point capacitive touch screen with a resolution of 1920 x 1080 pixels.

The PPC-J6412-156-C Industrial Panel PC is powered by Intel® Celeron® J6412 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

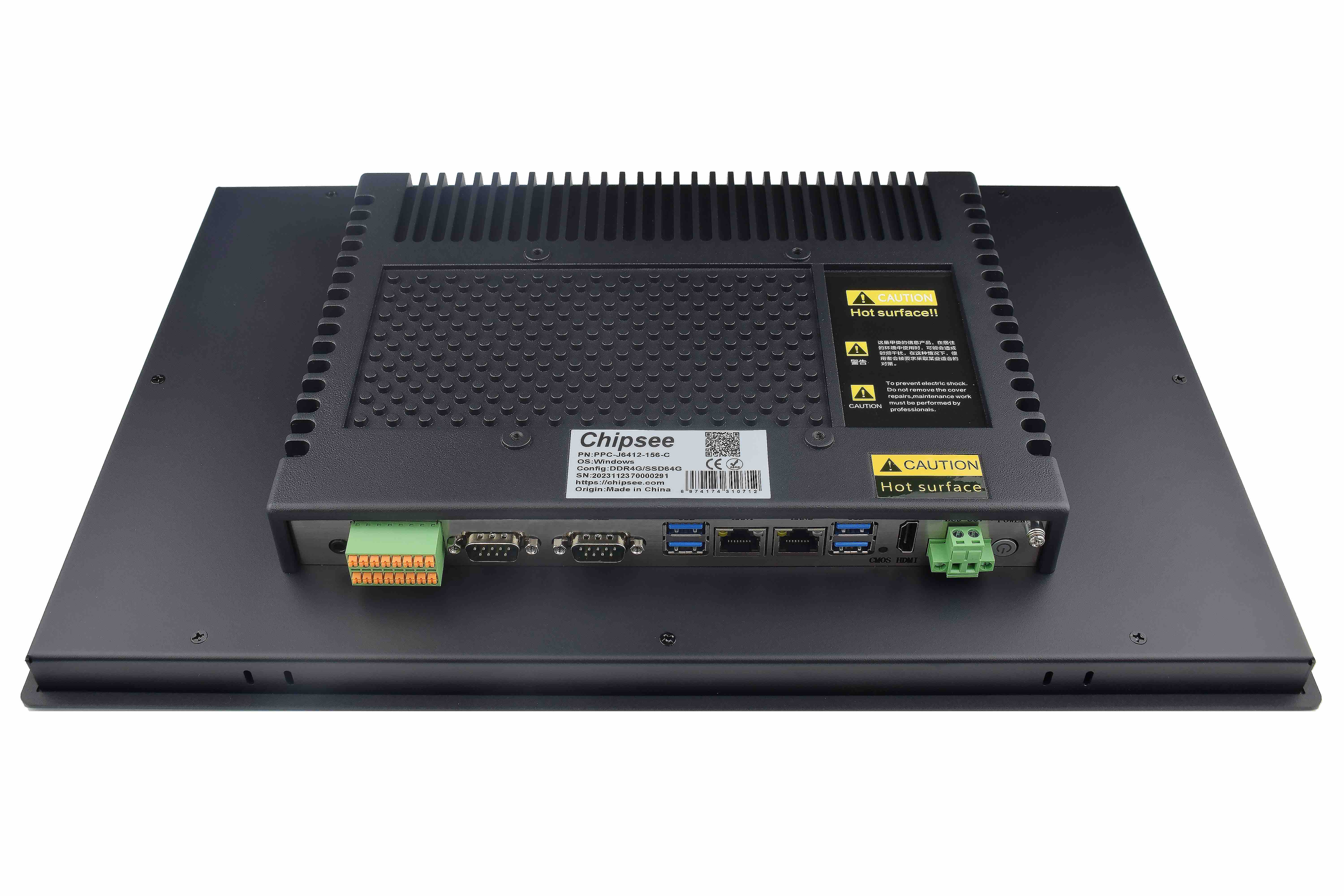

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fan-less design reduces noise, as well as the maintenance costs and efforts, increasing reliability at the same time.

Caution

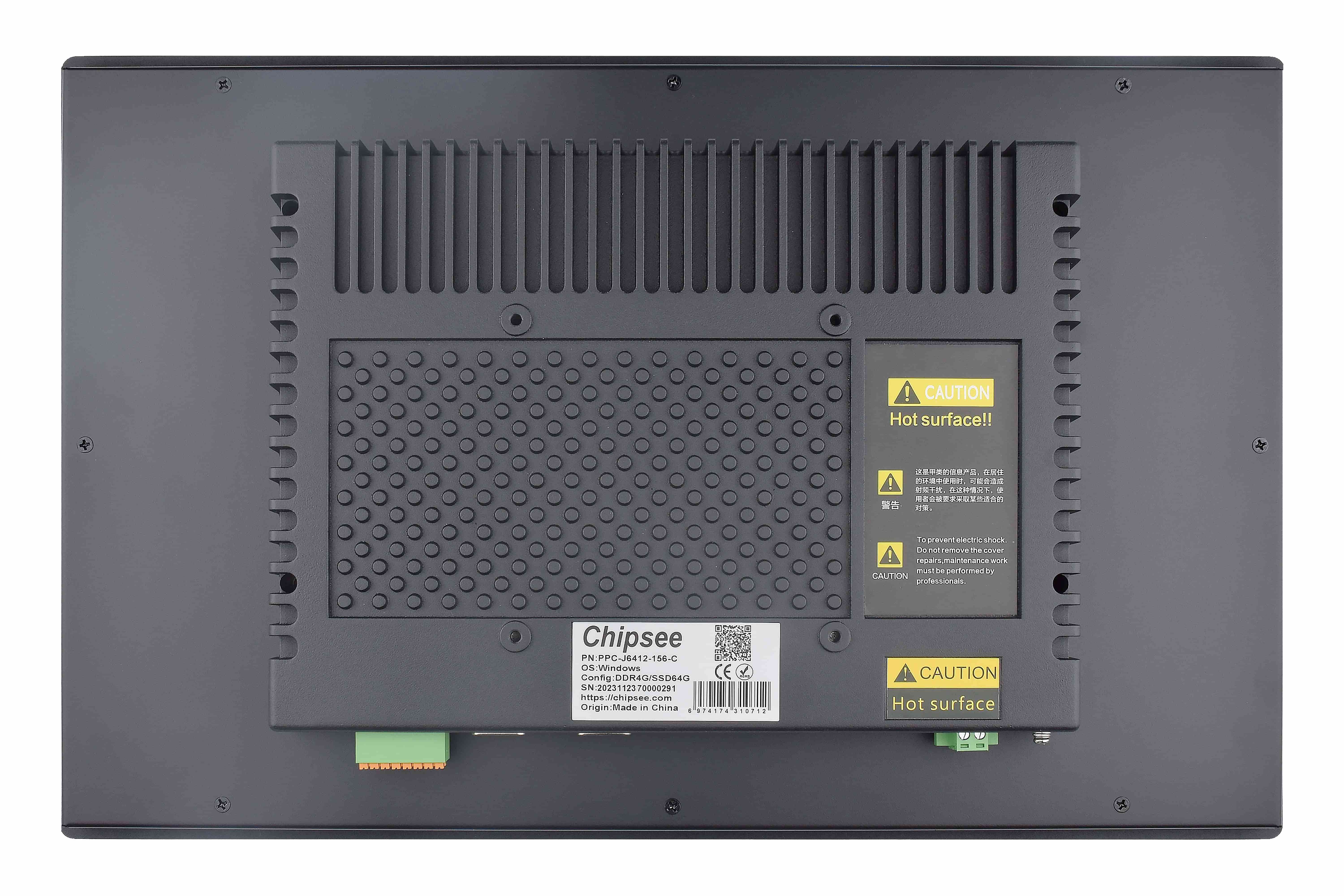

Be careful when handling the product while it is operating: the back panel might become hot under heavy CPU load.

Product Changes

Ver 1.2

  • Released on Jul 26, 2024

  • Changes on the RS232 and RS485

    Note

    Old: Default to 6 x RS232

    New: Default to 4 x RS232 and 2 x RS485(COM5/6)

Ver 1.1

  • Released on Jun 20th, 2024

  • Changes on 16 pins

    Note

    Old: 16 pins = GPIO + COM3 + COM4

    New: 16 pins = COM3 + COM4 + COM5 + COM6

    Details:

    • Added COM5 and COM6 on the 16pins 3.81mm connector.

    • Removed GPIOs.

    • The COM5 and COM6 can be configured to RS232 and RS485.

    • There are no 120 Ohm match resistor when the COM5 and COM6 are RS485.

  • Changes on COM1 and COM2

    Note

    Old: COM1 and COM2 can be configured either as RS232 or RS485

    New: COM1 and COM2 can only be configured to RS232.

  • Changes on Ethernet

    Note

    Old: 2 X LAN with Realtek Chip

    New: 2 x LAN with Intel Chip

Ver 1.0

Ordering Options

Most of the Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.

Note

You can order PPC-J6412-156-C from the official Chipsee Store or from your nearest distributor.

Operating System

By default, PPC-J6412-156-C comes with Linux(Ubuntu 20.04) pre-installed. A different OS can be selected during the ordering process. In addition to Linux, PPC-J6412-156-C also supports Windows 7, Windows 10.

Optional Features

The PPC-J6412-156-C Industrial Panel PC does not include WiFi/BT and/or 3G/4G/LTE/5G modules by default. The Wi-Fi/BT module is optional and can be selected during the ordering process.

A 3G/4G/LTE/5G module is not available at the Chipsee store for this product. However, it can be obtained from specialized third-party suppliers.

The 5G module only supports USB2.0 speed.

Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

Hardware Features

The PPC-J6412-156-C Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability to fit future requirements. Some of the key features are listed in the table below.

Table 301 Key Features

PPC-J6412-156-C

CPU

Intel® Celeron® J6412, 2GHz, Quad-Core, 1.5M Cache, TDP=10W

GPU

Intel® HD integrated GPU, 512MB shared memory

RAM

Default 4GB, maximum 32GB, 1 x DDR4 3200 SO-DIMM

Display

15.6” LCD, resolution 1920 x 1080 px, brightness 500 cd/m2

Storage

Default mSATA 64GB SSD; 1 x SATA2.5 HDD 1T; 1 x M.2 2280 NVMe PCI-E 3.0 x 2 Slot

Touch

Multi-point capacitive touch screen

Audio

Realtek High Definition Audio Codec, MIC/Line-Out, Amplifier

USB

4 x USB 3.0 Type A HOST

LAN

2 x RJ45, 1Gbps (Intel)

UART

Default 4 x RS232 and 2 x RS485. The 2 x RS485: COM5/6 can be configured to RS232(optional)

GPIO

N/A

3G/4G/LTE/5G

Optional, module available from other manufacturers/stores

WiFi/BT

Optional, module available from the Chipsee store

Expandability

2 x Mini-PCIe (One for optional WiFi/BT/3G/4G/5G, one for mSATA)

HDMI

1 x HDMI out

Power IN

From 9V to 30V DC

Power Consumption

28W

OS

Ubuntu 20.04(default), Windows 7, Windows 10

Operating Temp.

From -20°C to +60°C (with SSD)

Storage Temp.

From -30°C to +80°C

Humidity

From 5% to 95% relative humidity (no condensation)

Dimensions

422 × 271 × 52.5mm

EMC

CE/FCC/ROHS/ISO-9001

Mounting

VESA 100mm, Panel mounting with fixtures, Wall, Desktop

Weight

4200g
../../../../../_images/j6412_pcb.jpg

PCB of the product

Power Input

The PPC-J6412-156-C Industrial Panel PC can be powered by a wide range of input voltages: from 9V to 30V DC. The power input connector is a 2-pin, 3.81mm screw terminal. The polarity of the power connector is clearly labelled on the housing itself: the ‘+’ sign is the positive, while the ‘-’ sign is the negative power supply input.

The POWER button is located next to the power input connector and can be used to switch the power ON or OFF.

The power input section of PPC-J6412-156-C features a range of protection features, including over-current, over-voltage, power surge, and reverse polarity protection, allowing it to meet stringent industrial safety regulations.

../../../../../_images/j6412_power.jpg

Power Input

Note

If the product is used to control some key processes, it is highly recommended to use an Uninterruptible Power Supply (UPS) to prevent critical data loss.

Touch Screen

PPC-J6412-156-C is equipped with a multi-point capacitive touch screen. Its multitouch detection capability enables implementation of some advanced GUI operations, such as two-finger zoom or rotation.

The capacitive touch screen can be operated by fingers, gloves with a special coating, or a conductive stylus.

Size/Type: 15.6” multi-point capacitive touch screen
Touch screen structure: G+F+F
Surface Strength: 7H
Surface Hardness: 50G steel ball 70cm impact drop 3 times not broken
Service Life (MTBF): 50 million touch events
Light Transmittance: > 92%

Connectivity

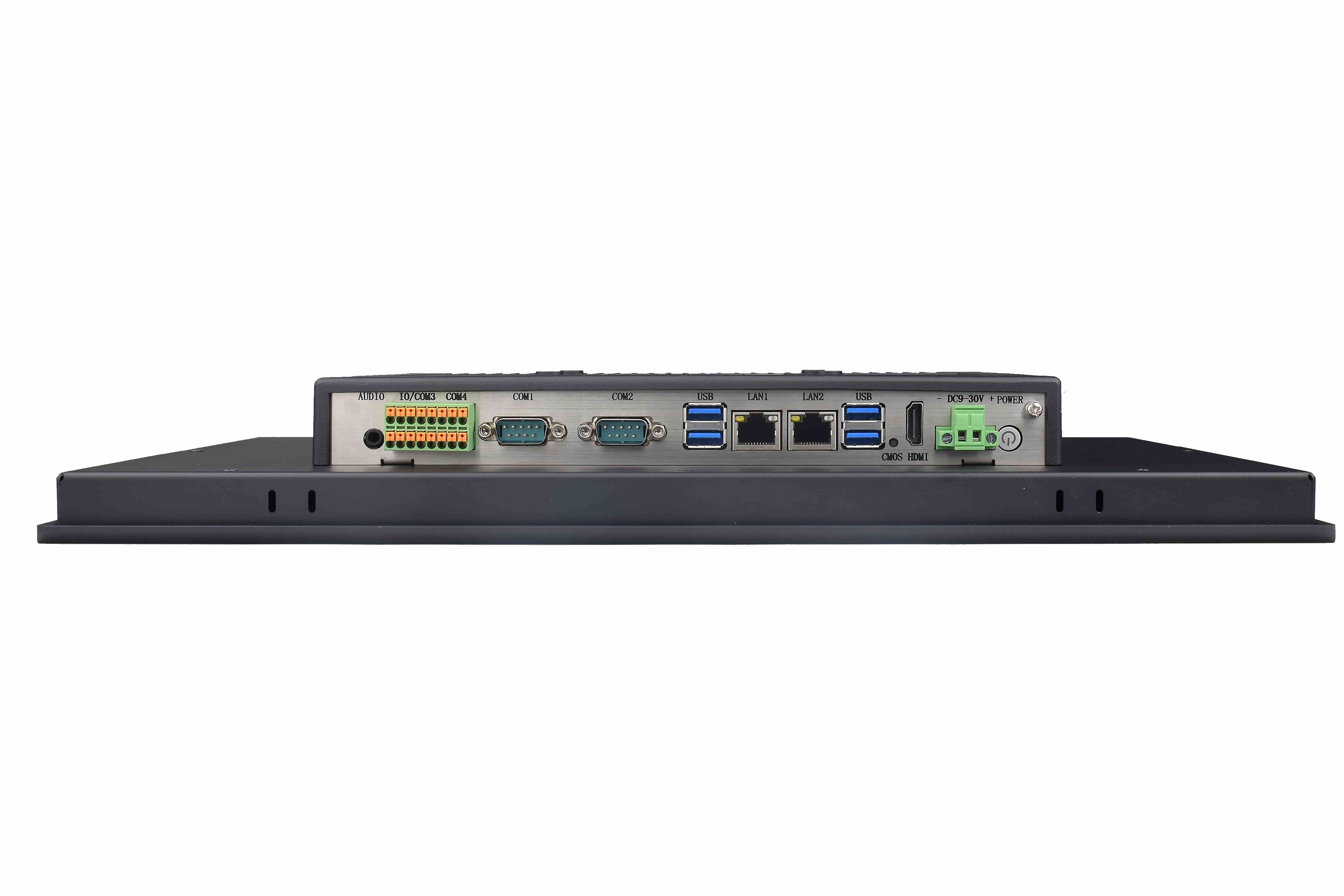

There are many connectivity options available on the PPC-J6412-156-C industrial PC. It has 4 x USB Type A connectors configured as HOSTS, 1 x HDMI port, 2 x RJ45 connectors supporting Gigabit Ethernet (GbE), and up to 6 x RS232 connectors(default is 4 x RS232 and 2 x RS485), the 2 x RS485(default) can be configured to 2 x RS232.

RS232/485 Connectors

The PPC-J6412-156-C Industrial Panel PC has 2 x 9-pin D-sub connectors and 1 x 16-pin 3.81mm connector with pluggable terminal block. Two 9-pin D-sub connectors labelled as COM1 and COM2 are RS232 communication interfaces.

The top row of terminals on the terminal block is labelled as COM3/4. These terminals are configured as two additional RS232 interfaces by default. The bottom row of terminals on the terminal block are COM6/5, these two COM can be configured to either RS232 or RS485. If they are configured to RS485, the 120 Ohm match resistors are not mounted.

../../../../../_images/j6412_rs232_rs485.jpg

RS232, RS485

Table 302 COM3/COM4/COM5/COM6 Pin Definition

Pin

Definition

1

COM3-RXD

2

COM3-TXD

3

GND

4

COM4-RXD

5

COM4-TXD

6

GND

7

GND

8

PANSW#

9

COM6-RXD/RS485+

10

COM6-TXD/RS485-

11

GND

12

COM5-RXD/RS485+

13

COM5-TXD/RS485-

14

GND

15

+5V

16

+5V

Note

  • Pin 8 PANSW#: Connect PANSW and GND can boot the PC.

  • The default configuration of the PPC-J6412-156-C industrial PC is 4 x RS232 and 2 x RS485 interfaces. If you need different configuration, please contact Chipsee Technical Support at support@chipsee.com

USB HOST Connectors

PPC-J6412-156-C is equipped with 4 x USB 3.0 connectors. The data throughput of the USB 3.0 interface can reach up to 4.8 Gbps.

Although fully compatible with USB 2.0 devices, the USB 3.0 interface provides 10 times more data transfer bandwidth than USB 2.0, making it best suited for fast peripherals that can utilize its full potential.

../../../../../_images/j6412_usb.jpg

4 x USB3.0 HOST Connectors

LAN Connectors

2 x LAN (RJ45) connectors provide Ethernet connectivity over standardized Ethernet cables. The integrated two-port Ethernet interface supports 10/100/1000BASE-T/TX specifications with automatic speed negotiation and Wake on LAN (WoL) feature. Power over Ethernet (PoE) is not supported.

../../../../../_images/j6412_lan.jpg

2 x RJ45 GbE LAN Connectors

Note

Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).

HDMI Connector

The PPC-J6412-156-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software.

../../../../../_images/j6412_hdmi.jpg

HDMI Connector

Audio

The product has an audio jack to support microphone and line out, amplifier.

../../../../../_images/j6412_audio.jpg

Audio Jack

CMOS Button

There is a CMOS button you can use to reset the BIOS settings. While the PC is powered off, detach the power cable, you can press and hold the button for a few seconds to reset the BIOS settings.

../../../../../_images/cmos_btn.jpg

CMOS Button

Mounting Procedure

The PPC-J6412-156-C Industrial Panel PC supports VESA 100 x 100 mounting pattern with 4 x M4 screws, enabling simplified installation onto any standard VESA mounting rack.

The PPC-J6412-156-C Industrial Panel PC supports panel mount, wall mount and desktop.

You can find detailed information about mounting in the Mount IPC Guide.

Mechanical Specifications

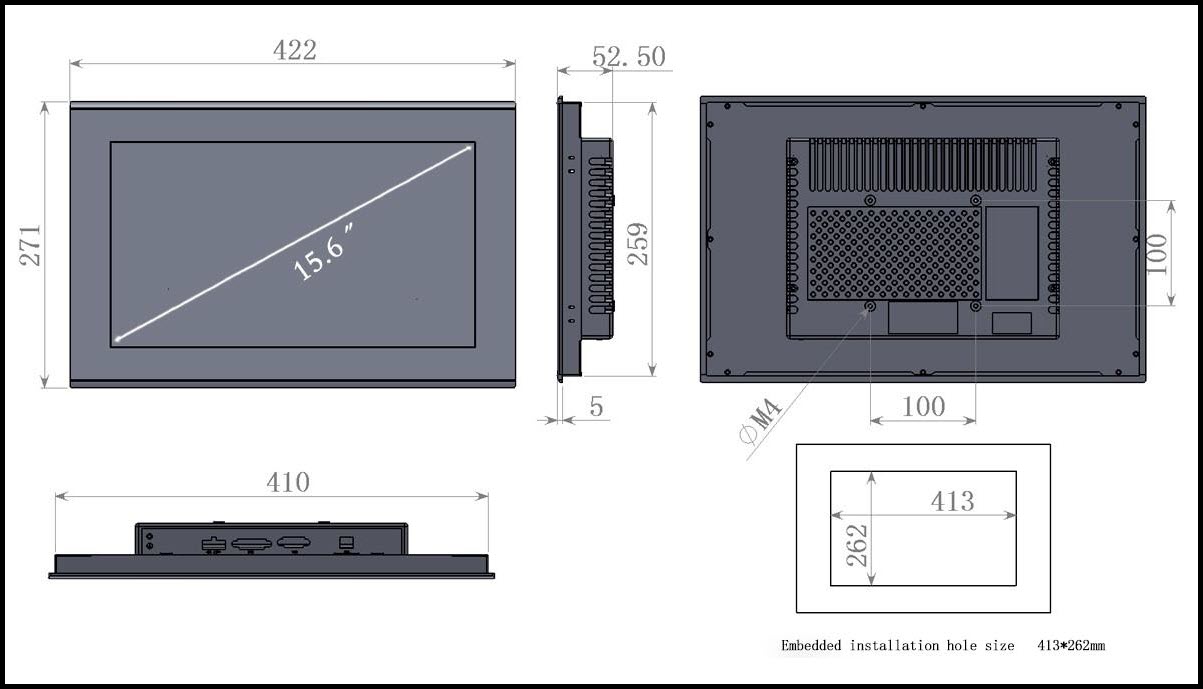

The outer mechanical dimensions of The PPC-J6412-156-C Industrial Panel PC are 422 × 271 × 52.5mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements.

../../../../../_images/PPC-J6412-156-C-TD.jpg

Figure 918: PPC-J6412-156-C Technical Drawing
