AIO-CM4-101¶
Version 1.1
Product Overview¶
The AIO-CM4-101 industrial Pi PC (PN: CS12800RA4101A) is an all-in-one desktop computer based on Raspberry Pi® CM4. It features a 10.1” IPS display with a maximum brightness of 350 cd/m2.
The product is easy to use, perfect for developers and makers accustomed to the Raspberry Pi and is looking for a computer they can use daily. It is fully compatible with the Raspberry Pi 4 Linux distribution.
Ordering Options¶
Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.
Note
You can order AIO-CM4-101 from the official Chipsee Store or from your nearest distributor.
Pi® CM4 Module¶
The Pi® Compute Module 4 appears in different versions depending on the size of the DDR4 and eMMC.
The AIO-CM4-101 industrial Pi PC does not include the CM4 Raspberry Pi® module by default. If you would like to purchase it with a CM4, you can select it at the Chipsee store during the ordering process.
Operating System¶
This product comes with a pre-installed Raspberry Pi OS or Ubuntu OS. Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.
If your project requires a different OS, please Contact us, and we’ll make a customized version that suits your needs.
Optional Features¶
The AIO-CM4-101 industrial Pi PC does not include the 4G/LTE modules by default. These modules are optional and can be selected at the Chipsee store during the ordering process.
Warning
Hardware Features¶
The AIO-CM4-101 industrial Pi PC offers a board range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below.
AIO-CM4-101 |
|
---|---|
CPU |
Raspberry Pi® CM4; Quad Cortex-A72 at 1.5GHz |
Storage |
1 x TF card slot designed for storage expansion |
RAM |
2GB DDR1 |
eMMC |
16GB |
Display |
10.1” IPS LCD, 1280 x 800 resolution px, brightness 350 cd/m2 |
Touch |
10-point capacitive touch with 1.0mm Armored Glass |
USB |
2 x USB 2.0 Host, 1 x USB TYPE-C |
LAN |
1 x Giga LAN, PoE(Power over Ethernet) is optional |
Audio |
Mic input on the front panel, 2W internal stereo speaker, 3.5mm audio In/Out connector |
Buzzer |
Internal Buzzer |
RTC |
Yes, High accuracy internal RTC (keep track of time one week after power off) |
RS232 |
2 x RS232 |
RS485 |
1 x RS485, 2 Channels at most. The RS485 circuit automatically controls the Input and Output direction (no need for software control) |
Relay |
1 x relay with “Normally Connected” and “Normally Open” output |
GPIO/Wiegand |
Two 5V Logic GPIO Outputs, can be used as Wiegand signal |
WiFi/BT |
WiFi/BT module comes with the CM4 |
HAT Connector |
N/A |
Micro SD card socket |
N/A |
ZIGBEE |
Internal Zigbee supported, not mounted by default |
HDMI |
N/A |
4G/LTE |
Internal 4G/LTE module supported, not mounted by default |
Power Input |
From 9V to 36V |
Current at 12V |
500mA Max |
Power Consumption |
8W Typical |
Working Temperature |
From 0°C to +50°C |
OS |
Raspberry Pi OS, Ubuntu |
Dimensions |
260.54 x 178.54 x 26.9mm |
Weight |
620g |
Plastic Case Color |
Black, White |
Certification |
CE, ROHS |
- 1
RAM can be 1/2/4/8GB based on CM4 Lite onboard.
Power Input¶
The AIO-CM4-101 industrial Pi PC can be powered by a wide range of input voltages: From 9V to 36V DC. The total power consumption is typically about 6W. For the power input connector, it’s different from CS12800RA4101A_C111 and CS12800RA4101A_C121.

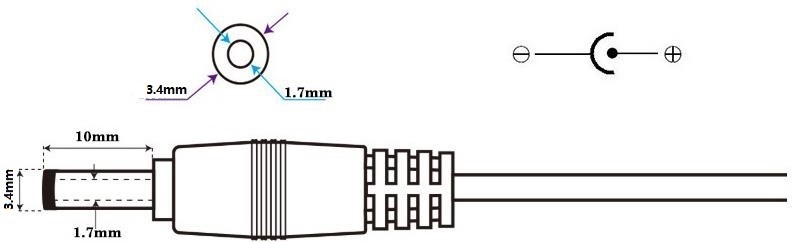

The power input connector is a 4.0-1.7mm DC connector for CS12800RA4101A_C111, it’s 3.4-1.7mm for CS12800RA4101A_C121. For a proper DC power adapter, refer to the figure below.
We also provide a customized power cable of 3.4-1.7mm to 5.5-2.1mm for customers.
Connectivity¶
There are many connectivity options available on the AIO-CM4-101 industrial Pi PC. It has 2 x USB 2.0 Host, 1 x USB TYPE-C, 1 x Giga LAN, PoE(Power over Ethernet) is optional (RJ45) Ethernet connector supporting up to 1 Gbps, and RS232+RS485+Relay connector.
USB HOST and USB TYPE-C¶

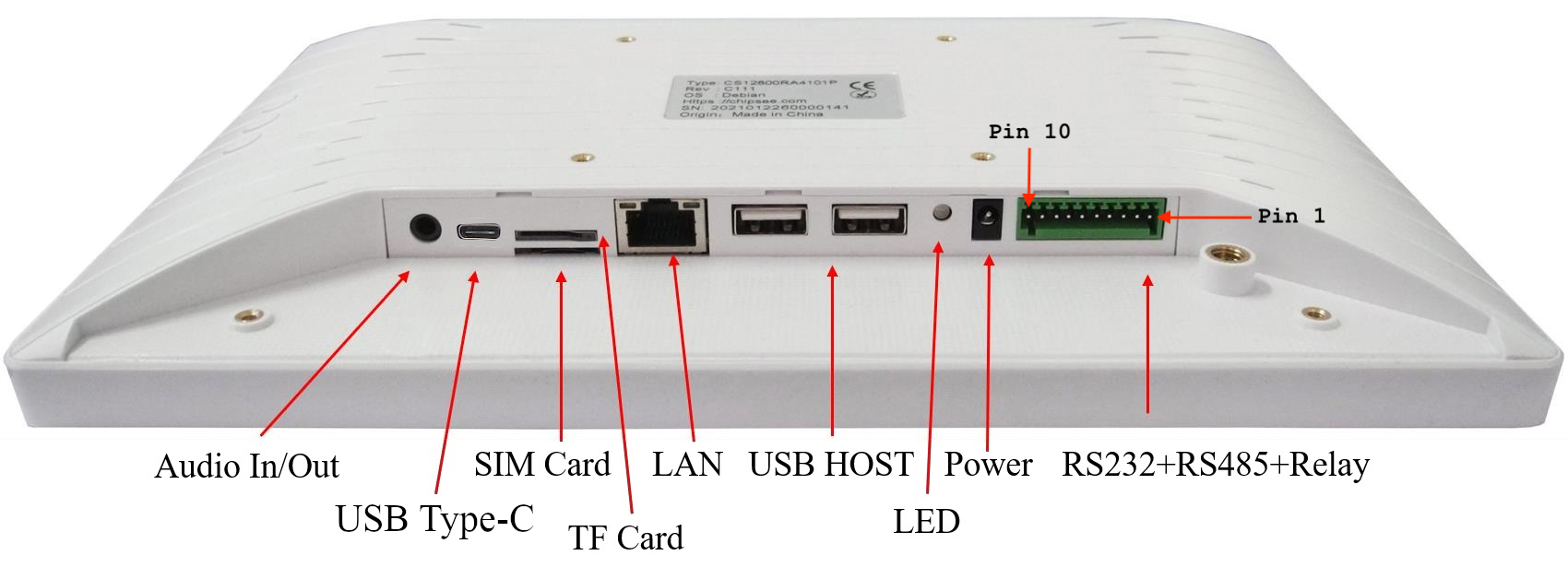

There are 2 x Type A USB HOST connectors and 1 x USB TYPE-C Connector onboard, as shown on the figures below.
Note
External USB peripherals like a USB disk or USB mouse or keyboard can connect to the USB HOST.
You can download software to the Raspberry Pi CM4 eMMC using the USB TYPE-C.
When you connect the USB TYPE-C to a device, it will disable the USB HOST.
LAN Connectors¶
LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput. These Giga LAN signals come from the CM4 module directly.
The LAN can be customized to support PoE (Power over Ethernet), optional.
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).
TF Card and SIM Card Slots¶
The AIO-CM4-101 industrial Pi PC features 1 x TF Card (micro SD) slot and 1 x SIM Card slot. You can use the SIM card slot when you mount the 4G/LTE module.
Warning
The product does not come shipped with the TF Card and the SIM Card by default. The TF card slot use same pins with WiFi/Bt, if you enable WiFi/Bt, the TF card function will be disabled, if you want to enable the TF card feature, you can use follow config in /boot/config.txt to enable it, but the WiFi/Bt will be disabled after reboot:
dtoverlay=sdio,poll_once=off
#dtparam=ant2
Audio In/Out Connector¶
The product features audio In/Out connector as shown on the figure below.
ZIGBEE Module¶
The AIO-CM4-101 industrial Pi PC supports an onboard Zigbee module. The Zigbee controller is TI CC2531, and the Raspberry Pi forum supports it.
Attention
The product does not come with the Zigbee module by default.
RS232/RS485/Relay Connector¶

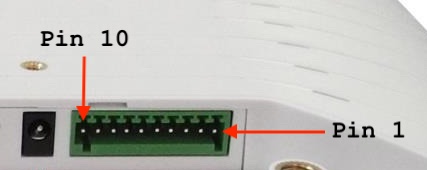

The serial communication interfaces (RS485, RS232, and Relay) are routed to a 10-pin 2.5mm connector, as illustrated on the figure below.
The table below offers more detailed description of every pin and its definition:
RS232 / RS485 / Relay Pin Definition: |
||
---|---|---|
Pin Number |
Definition |
Description |
Pin 1 |
GND |
System Ground |
Pin 2 |
RS232_0_RXD |
CPU UART0, RS232 RXD signal |
Pin 3 |
RS232_0_TXD |
CPU UART0, RS232 TXD signal |
Pin 4 |
RS232_2_RXD |
CPU UART2, RS232 RXD signal |
Pin 5 |
RS232_2_TXD |
CPU UART2, RS232 TXD signal |
Pin 6 |
RS485_3+ |
CPU UART3, RS485 +(A) signal |
Pin 7 |
RS485_3- |
CPU UART3, RS485 –(B) signal |
Pin 8 |
Relay NO |
Relay Normally Open |
Pin 9 |
Relay COM |
Relay Common |
Pin 10 |
Relay NC |
Relay Normally Connected |
Attention
The RS232_2 can be set as the RS485 signal. If you need it to work as RS485, please Contact us before shipping.
The RS485_3 can be set as Two 5V logic GPIO Output, these two GPIO can be used as Wiegand signal. If you need them to work as GPIO, please Contact us before shipping.
RS485_3 automatically controls input/output direction. It does not need software control.
The 120Ω match resistor for the RS485 is already mounted by default.
The Relay Max switching voltage is 125VAC or 60VDC. The maximum switching current is 1A. Rated load is 0.3A at 125VAC and 1A at 30VDC.
Mic Input¶

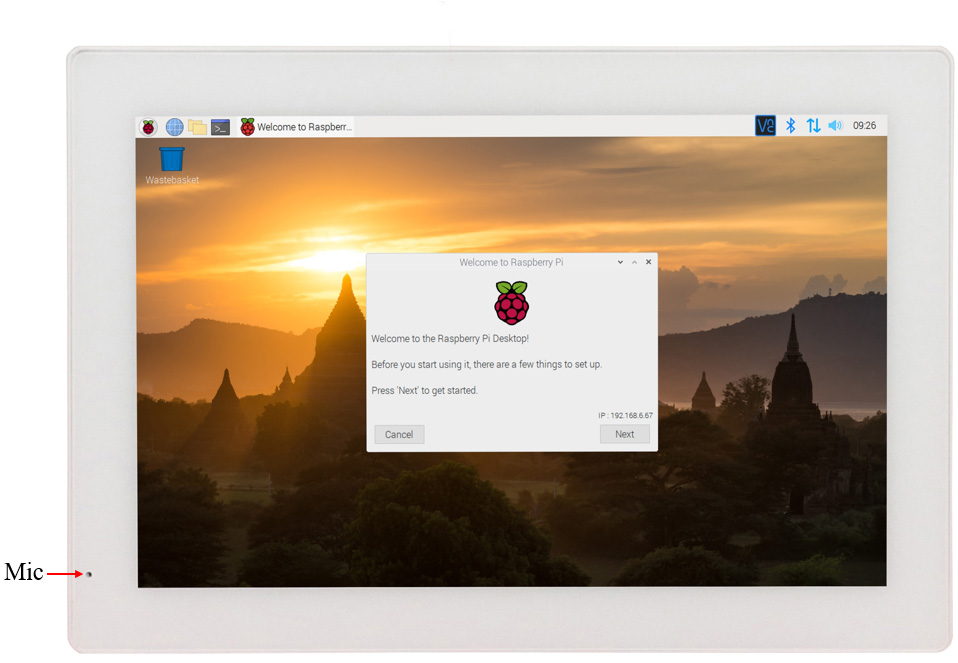

The product The AIO-CM4-101 industrial Pi PC has an integrated microphone on the front panel, as shown on the figure below.
Attention
The product does not come with the integrated microphone mounted by default.
Mounting Procedure¶

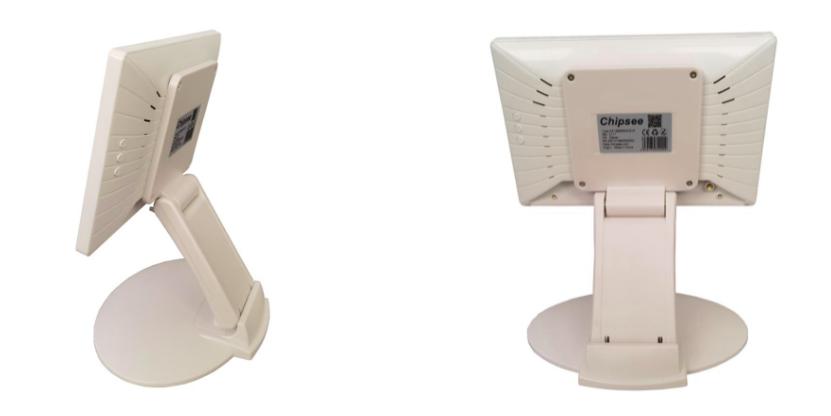

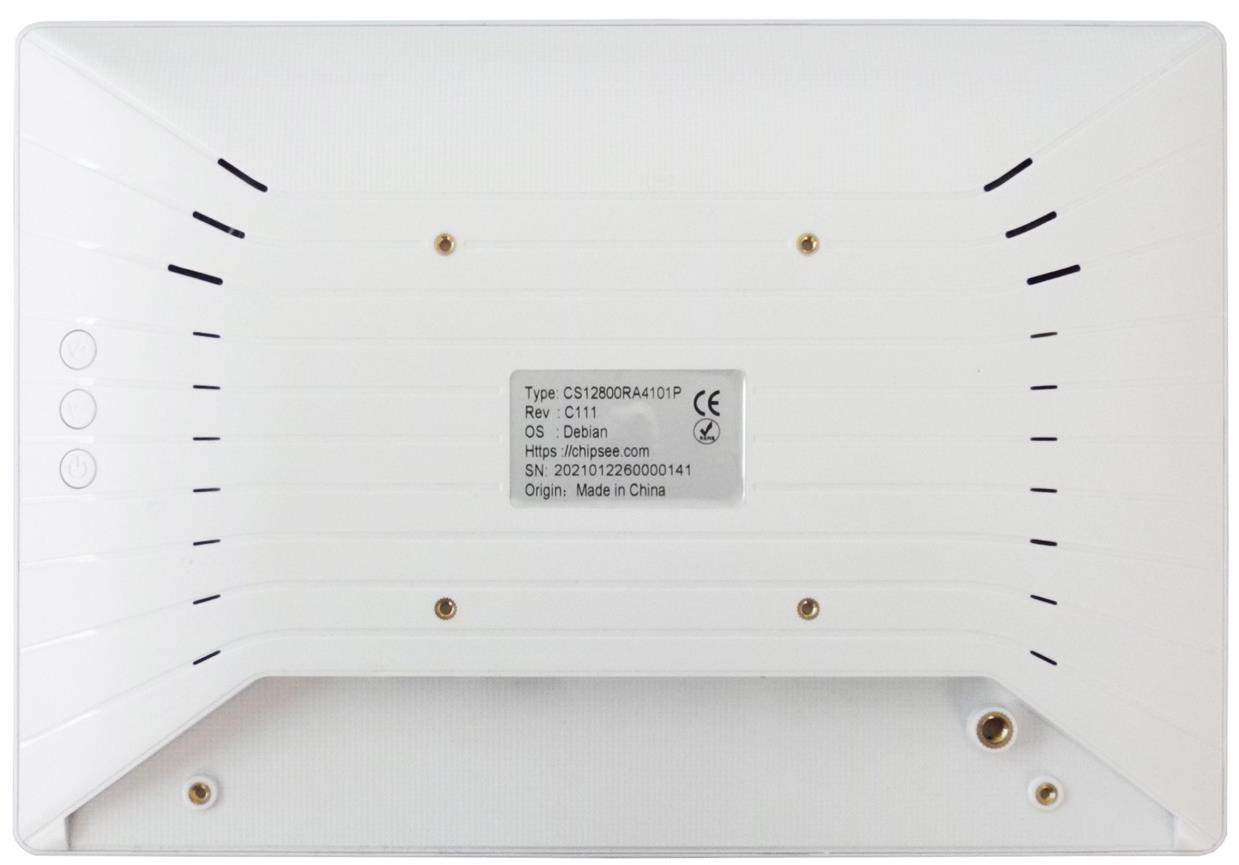

You can mount AIO-CM4-101 with the Vesa (75 x 75mm) and Stand mounting methods, as shown in the figures below.
Attention
Please make sure the display is not exposed to high pressure when mounting into an enclosure.
You can find detailed information about mounting in the Mount IPC Guide.
Mechanical Specifications¶

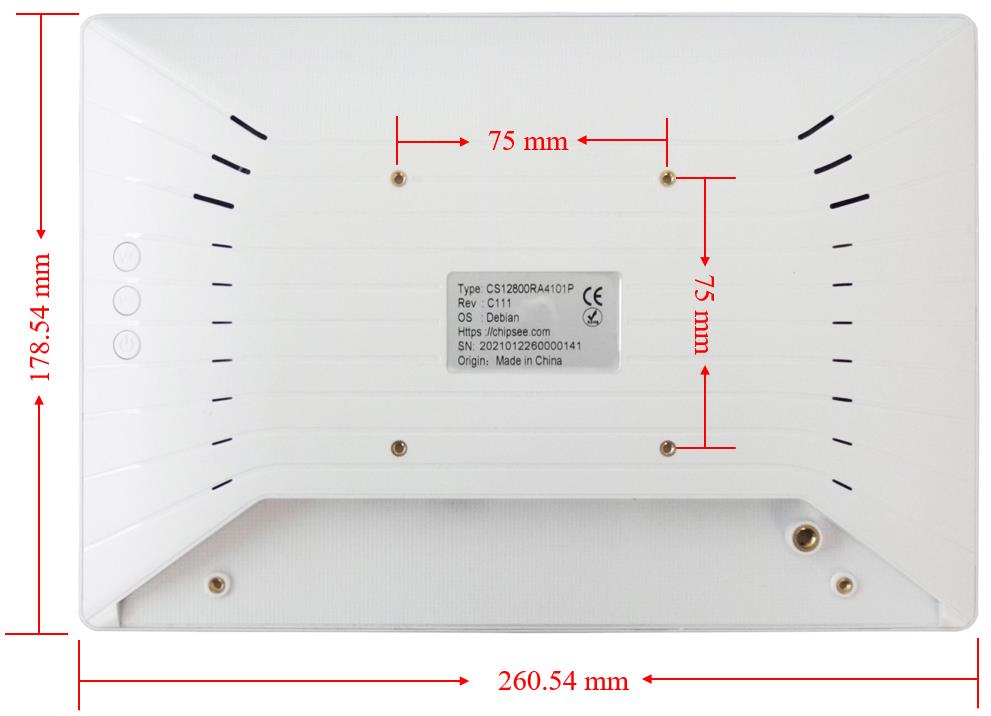

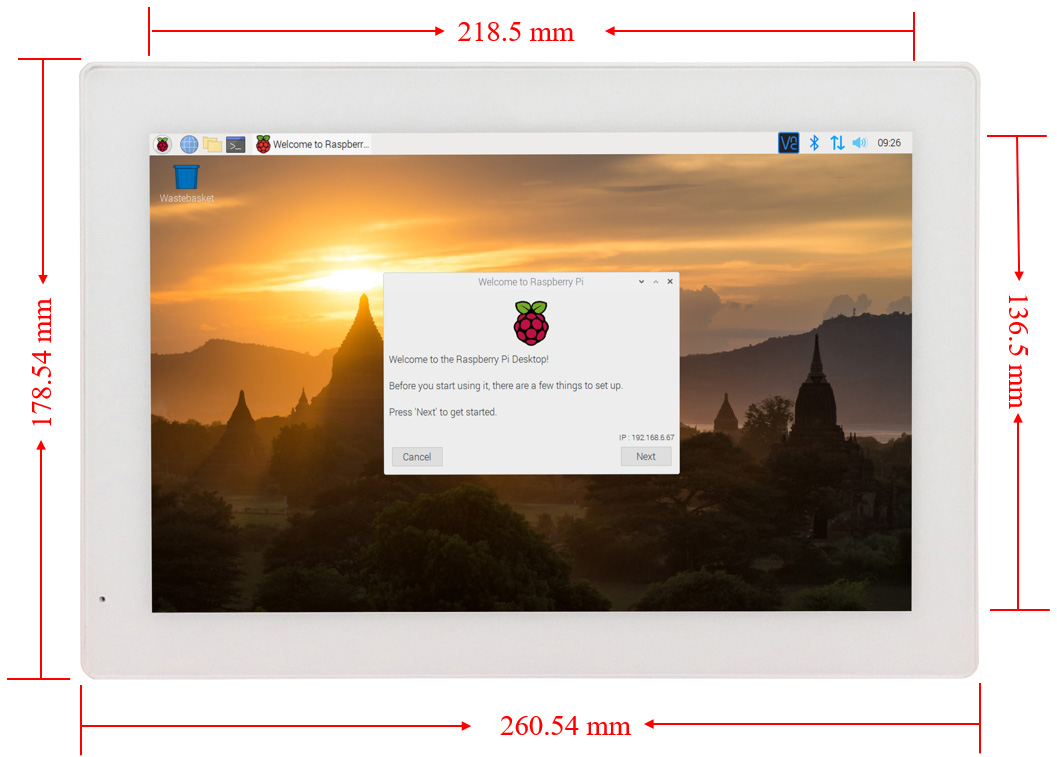

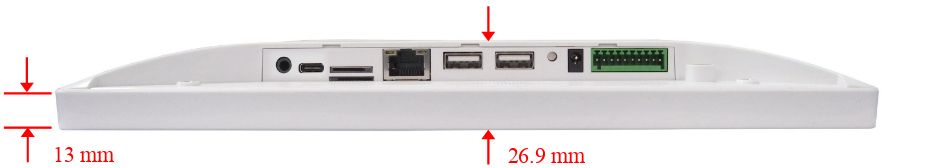

The outer mechanical dimensions of AIO-CM4-101 are 260.54 x 178.54 x 26.9mm (W x L x H). Please refer to the technical drawing in the figures below for details related to the specific product measurements.
3D Model¶
AIO-CM4-101 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc AIO-CM4-101, select hardware documentation, drag the navigation bar to the 3D Model section.
