User Manual

This product uses vivid color, high-definition display screen, and smooth operation touch screen, with wireless design.

This manual offers technical information about the product.


Backlight Led
Brightness 300 cd/m2
Contrast Ratio 1500:1
Viewing Angle Horizontal:170°/ Vertical: 170°
Response Time 35ms(GTG)
Display Color 16.2M Colors
Display Resolution 1024 x 768 (4:3)
Refresh Frequency 60Hz
Input Resolution 1024 x768 @ 60Hz
Connector VGA / DVI / HDMI
  • OSD
OSD Control Button
OSD Language English, Chinese
  • Touch Screen Parameters
Glass 3mm Tempered Glass with Black Silk-screen
Touch Point 10
Touch Technology Projecting Capacitance (G+G)
Type of Pen Fingers, Hands with Gloves, Conductive Stylus
Waterproof Touch surfaces will not be affected by water droplets or steam
Calibration No Calibration Tool
Response Time 7ms-12ms
Connect USB2.0(Type-B)
Multi Touch Protocol Support Windows
Operating System Win 7/8,Android,Linux
  • Mechanical Parameters
Size 352 x 276 x 47 mm
Packaging Size 440 x 325 x 90 mm
Weight(about) 3.5kg/4.5kg
Hanging Method VESA,MIS-D,100,C
  • Electrical Parameters
Power Input  DC in: DC 12V3A (50/60 Hz)
Power Supply ≤ 14W (typ.)
Standby Power ≤ 2W (typ.)
Built in Speaker None
  • Environmental Parameters
Work Environment 0 °C ~ 40 °C, 90% RH
Storage Environment -20 °C ~ 60 °C, 90% RH
  • Accessories
Others Bracket /Power Line /VGA Line/USB Line/Power Adapter

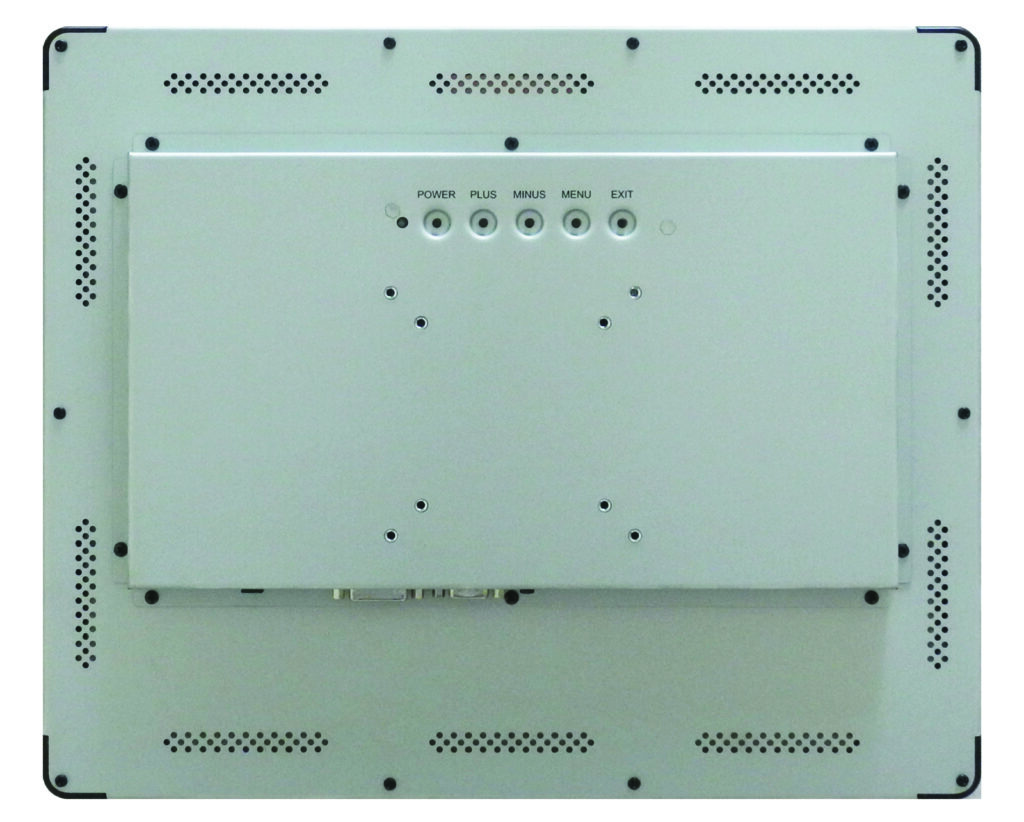

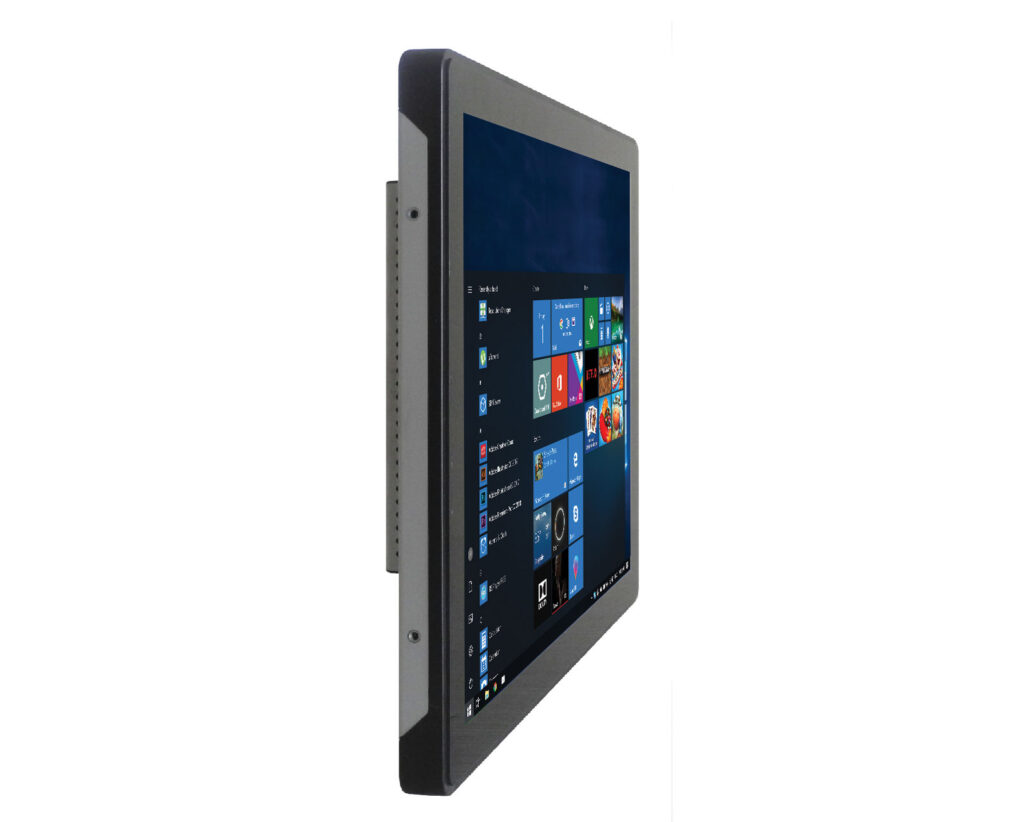

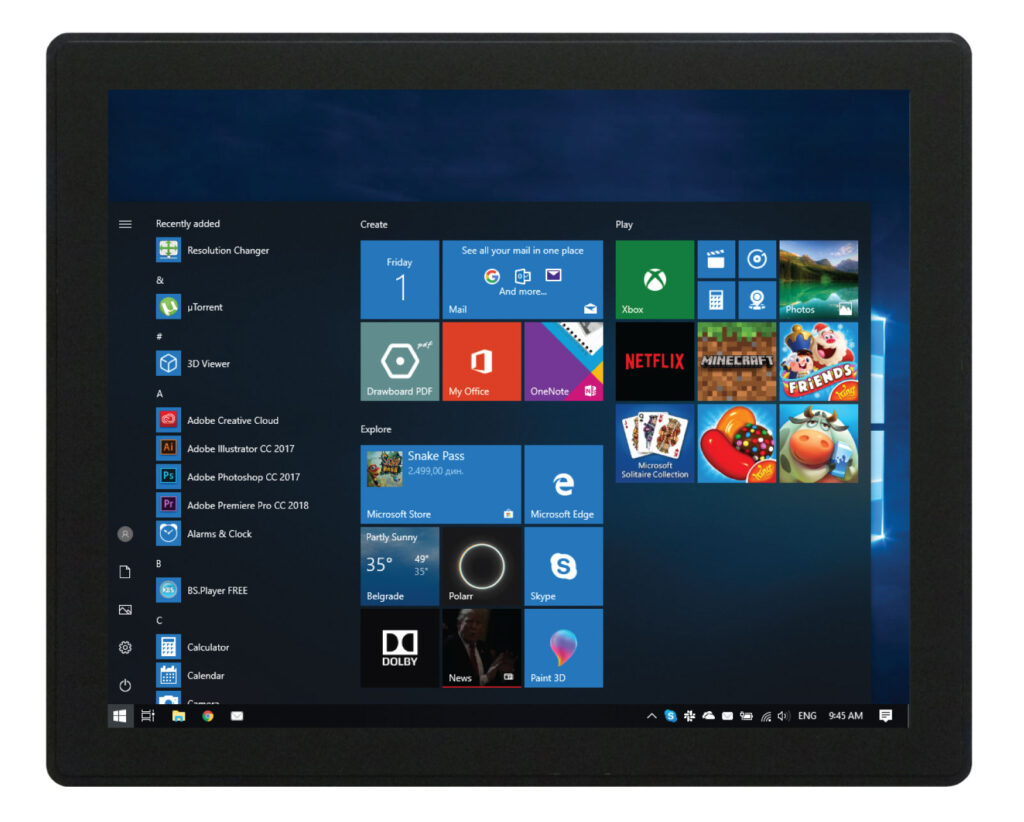

Product structure diagram
