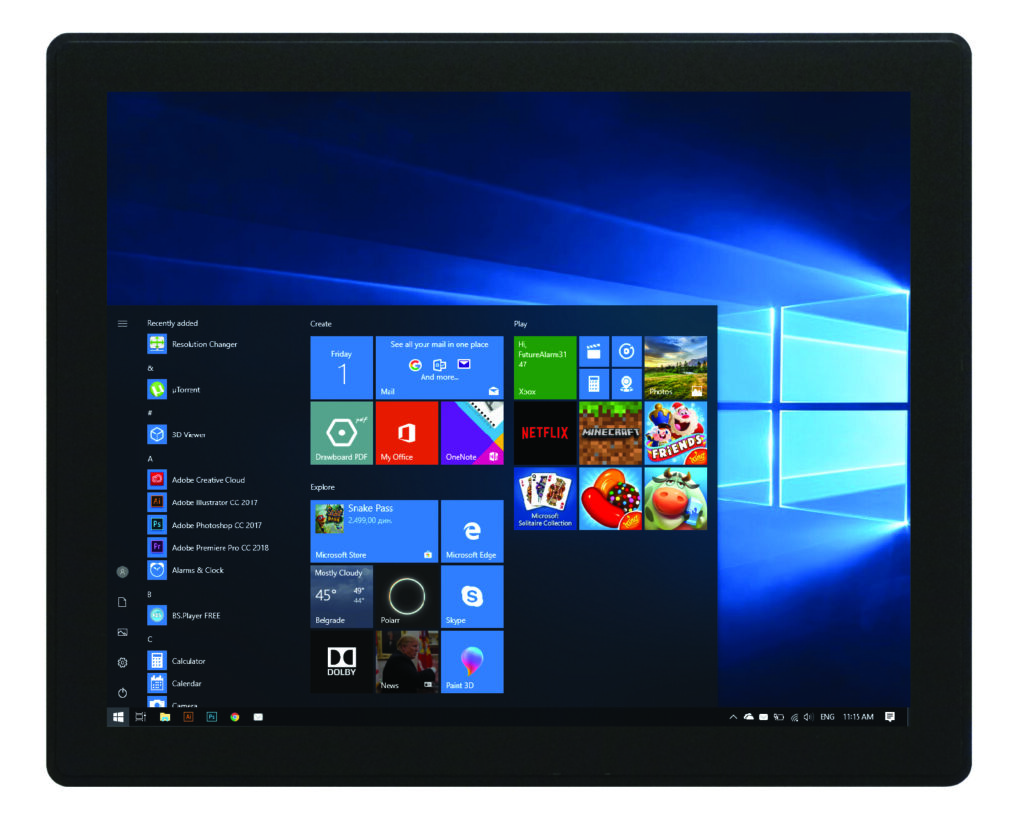

PIM-170-C

User Manual

This product uses vivid color, high-definition display screen, and smooth operation touch screen, with wireless design.

This manual offers technical information about the product.

Specification

Backlight Led
Brightness 250 cd/m2
Contrast Ratio 1000:1
Viewing Angle Horizontal:170°/ Vertical: 160°
Response Time 5ms(GTG)
Display Color 16.7M Colors
Display Resolution 1280 x 1024 (4:3)
Refresh Frequency 60Hz
Input Resolution 1280 x 1024 @ 60Hz
Connector VGA / DVI / HDMI
  • OSD
OSD Control Button
OSD Language English, Chinese
  • Touch Screen Parameters
Glass 3mm Tempered Glass with Black Silk-screen
Touch Point 10
Touch Technology Projecting Capacitance (G+G)
Type of Pen Fingers, Hands with Gloves, Conductive Stylus
Waterproof Touch surfaces will not be affected by water droplets or steam
Calibration No Calibration Tool
Response Time 7ms-12ms
Connect USB2.0(Type-B)
Multi Touch Protocol Support Windows
Operating System Win 7/8,Android,Linux
  • Mechanical Parameters
Size 385.3 x 317.8 x 47.1 mm
Packaging Size 493 x 155 x 443.5 mm
Weight(about) 5 kg / 7 kg
Hanging Method VESA,MIS-D,100,C
  • Electrical Parameters
Power Input  DC in: DC 12V3A (50/60 Hz)
Power Supply ≤ 15W (typ.)
Standby Power ≤ 2W (typ.)
Built in Speaker None
  • Environmental Parameters
Work Environment 0 °C ~ 40 °C, 90% RH
Storage Environment -20 °C ~ 60 °C, 90% RH
  • Accessories
Others Bracket /Power Line /VGA Line/USB Line/Power Adapter

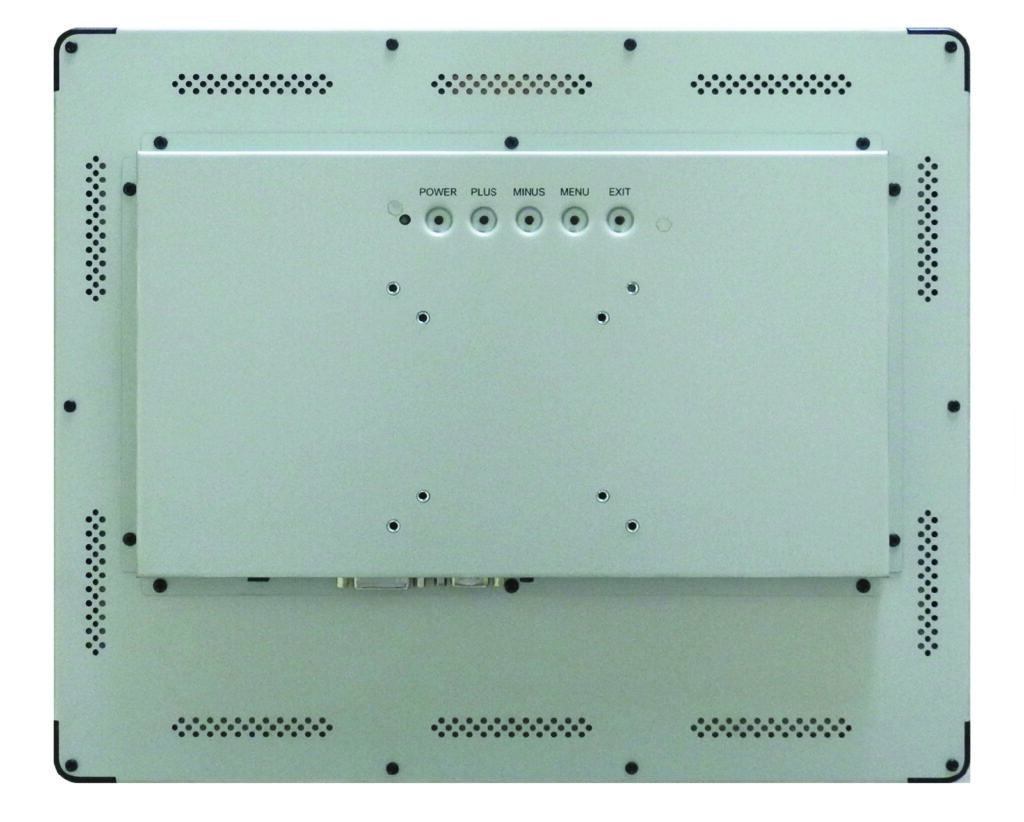

Product structure diagram
