Industrial Pi CM3-EM-PA

User Manual

Release 1.0

Chipsee Products Naming Rules

CS10600RA070E-C111

CS10600RA070P-C111

CS Chipsee Product Abbreviate
10 Horizontal Resolution

80 Means 800 Pixel

10 Means 1024 Pixel

12 Means 1280 Pixel

14 Means 1440 Pixel

19 Means 1920 Pixel

600 Vertical Resolution

480 Means 480 Pixel

600 Means 600 Pixel

768 Means 768 Pixel

800 Means 800 Pixel

900 Means 900 Pixel

102 Means 1024 Pixel

108 Means 1080 Pixel

RA Raspberry
070 LCD Dimension

050 Means 5.0 Inch

070 Means 7.0 Inch

080 Means 8.0 Inch

097 Means 9.7 Inch

101 Means 10.1 Inch

104 Means 10.4 Inch

120 Means 12.0 Inch

150 Means 15.0 Inch

170 Means 17.0 Inch

190 Means 19.0 Inch

215 Means 21.5 Inch

E Means Embedded PC or Panel PC

E  Means Embedded PC without Case

P  Means Panel PC with Case

C Means Touch Type

R  Means Resistive Touch

C  Means Capacitive Touch

1 Means LCD Brightness

1  Means Common Brightness

2  Means High Brightness

2 PCB Version

Baseboard PCB Version Number

1 PCB Version

SOM Module PCB Version Number

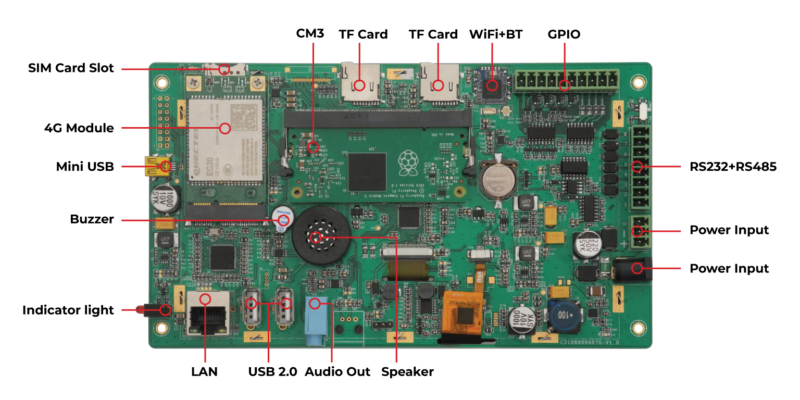

Hardware Features

Key Features:
CPU Raspberry Pi® CM3, CM3 Lite ;

Raspberry Pi® CM3+, CM3+ Lite; 1.2GHZ

Storage TF card slotsOne TF Card slot design for Lite version that has no eMMC.The other one TF Card slot design for storage expansion
Display 7.0 Inch IPS LCD,1024*600 Pixel Resolution

High Brightness: 500nit

Touch Capacitive Touch (Five-Point)
USB 2 x USB 2.0 Host
LAN 1 Channel 100M LAN
Audio 3.5mm Audio Out Connector, 2W Speaker Internal
Buzzer 1
RTC Yes, High Accuracy RTC with Lithium Button Coin battery
RS232 2 Channels
RS485 1 Channel ,The RS485 multiplex with the RS232_1.That means customer can’t use RS232_1 and the RS485 as the same time.
GPIO Opto-Isolated GPIO, 4Input,4 Output, Can drive up 500mA current every Channel at most (external power source)
WiFi/BT On Board WiFi/BT
HDMI 1 Channel
SATA II 1 Channel
3G/4G Yes, Not mount by default
Camera Yes, Not mount by default
Power Input 6~36V DC
Current @ 12V 700 mA max
Power Consumption 8.4W Typical
Working Temperature -20°C to +70°C
OS Debian
Dimension Without Metal Case190*107.8*27.7mm

With Metal Case206*135*30.1mm

Weight Without Metal Case400g

With Metal Case700g

CS10600RA070E-C111

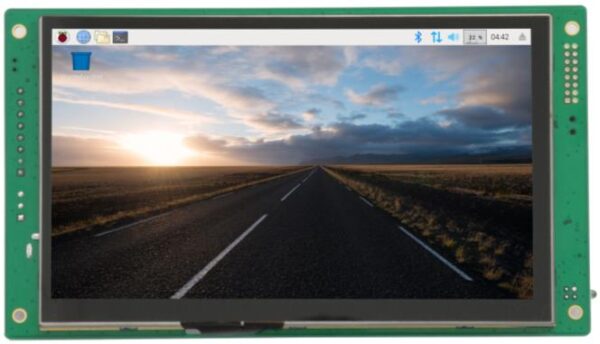

Figure 1 Top View (Debian)

Figure 2 Back View (Debian)

CS10600RA070P-C111

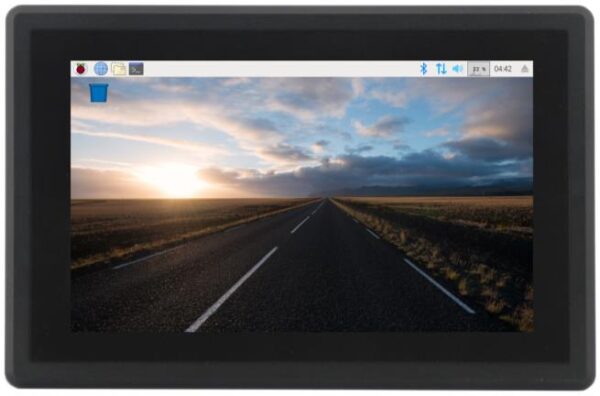

Figure 3 Top View (Debian)

Figure 4 Back View (Debian)

Power Input Connector

The product CS10600RA070E/CS10600RA070P uses wide range power input: DC 6~36VThe total power consumption is normally about 6.6W.  There are two types of power input interface.

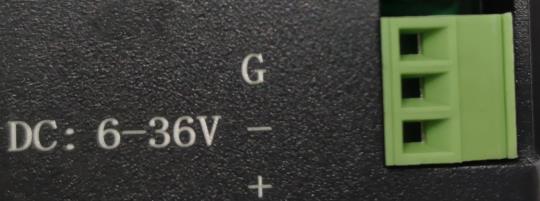

The Power Input connector is a 3 Pin 3.81mm screw terminal connector, as can be seen on Figure 5. The “+” character stands for positive power input, the “-” character stands for negative power input. The “G” character stands for system Ground.

For more information take a look at Table 1 – it has detailed descriptions about the connector definition.

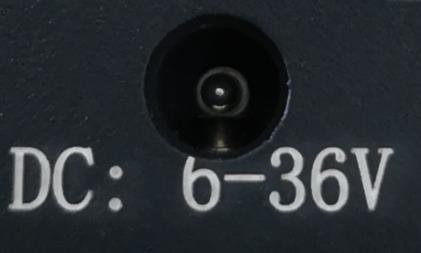

The other power input interface is the 2.1mm DC input head, as shown in Figure 6.

Figure 5 Power Input Connector

Table 1

Power Input Pin Definition:
Pin Number Definition Description
Pin 1 Positive Input Connect to DC Power Positive Terminal
Pin 2 Negative Input Connect to DC Power Negative Terminal
Pin 3 Ground Connect to Power System Ground

Figure 6 Power Input Connector

ATTENTION:

The system ground “G” has been connected to power negative “-” on board.

CAN+RS485+RS232 Connector

The RS485+RS232 connector is a 8 Pin 3.81mm screw terminal connector, as seen in Figure 7. As for the definition of every pin, please refer to Table 2.

This product has 2 channels of UART in total.

Figure 7 RS485+RS232 Connector

Table 2

RS232 / RS485 Pin Definition:
Pin Number Definition Description
Pin 8 RS485_1- CPU UART1, RS485 –(B) signal
Pin 7 RS485_1+ CPU UART1, RS485 +(A) signal
Pin 6 RS232_1_RXD CPU UART1, RS232 RXD signal
Pin 5 RS232_1_TXD CPU UART1, RS232 TXD signal
Pin 4 RS232_0_RXD CPU UART0, RS232 RXD signal
Pin 3 RS232_0_TXD CPU UART0, RS232 TXD signal
Pin 2 GND System Ground
Pin 1 +5V System +5V Power Output, No more than 1A Current output.

ATTENTION:
RS485_1 and RS232_1 share the same channel UART1. You cannot use RS485_1 and RS232_1 at the same time.

GPIO Connector

This product CS10768RA070E/CS10768RA070P has a GPIO interface, as shown in Figure 8. For the interface definition refer to table 3.

Figure 8 GPIO Connector

Capacitive Touch

The product CS10600RA070E/CS10600RA070P uses a Single Point capacitive touch, as seen in Figure 9.

Figure 9 Capacitive Touch Connector

USB HOST Connector

As can be seen in Figure 10, the product CS10600RA070E/CS10600RA070P has two USB2.0 connectors.

Figure 10 USB HOST Connector

LAN Connector

The product CS10600RA070E/CS10600RA070P has one channel 100Mbit Ethernet connector, as Figure 11 shows.

Figure 11 LAN Connector

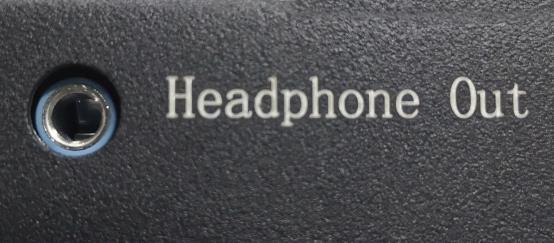

Audio Connector

The product has one audio output, as shown in Figure 12. It also has an internal 2W speaker.

Figure 12 Audio Connector

TF Card

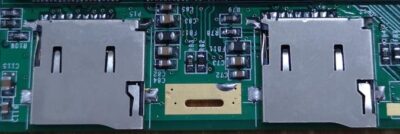

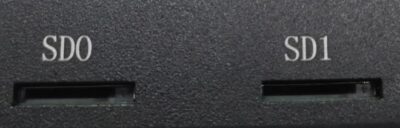

The product CS10600RA070E/CS10600RA070P has two TF (uSD) card connectors, as shown in Figure 13. It supports TF (uSD) cards up to 32GB.

Figure 13 TF Card Connector

ATTENTION:

The TF card slot is NOT mounted with any TF card by default.

Mini USB

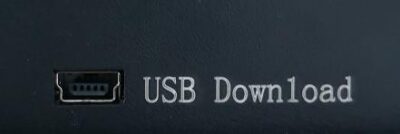

The product CS10600RA070E/CS10600RA070P has one Mini USB port which is used for downloading the system to the eMMC of CM3/CM3+.

Figure 14 Mini USB Connector

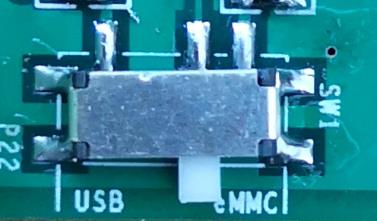

Start switch

The start switch turns the product on or off. The toggle switch can change the startup sequence. You can choose a start position with SD or eMMC. This switch is labeled SW1 on the PCB, as shown in Figure 15.

Figure 15 Boot Switch

SIM Card Holder

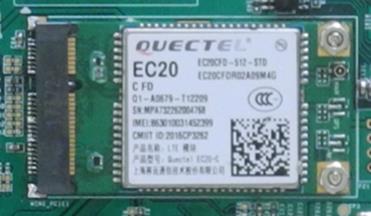

The product CS10768RA070E/CS10768RA070P has a mini-PCIe connector inside. The customer can mount on a 4G module to it.

If the customer chooses to add the 4G module, they will need the SIM card holder, as shown in Figure 17. There is a connector on the backside of the case which can connect an external 4G Antenna, as shown in Figure 18.

Figure 16 mini-PCIe Connector&4G Module

Figure 17 SIM Card

Figure 18 4g antenna

ATTENTION:

This product is not mounted on with any 4G module by default.

WiFi+BT

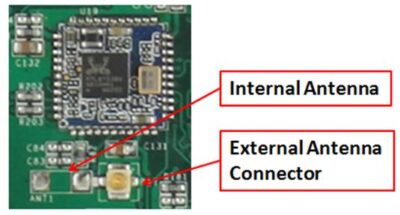

The product CS10600RA070E/CS10600RA070P has one WiFi+BT. It uses the Realtech RTL8723, which integrates WiFi and BT, as shown in Figure 19. For CS10600RA070P, there is a connector on the backside of the case which can connect an external WiFi/BT antenna, as shown in Figure 20.

Figure 19 WiFi+BT Module

Figure 20 WiFi+BT Antenna

Measurements and Mounting

Measurements of CS10600RA070E

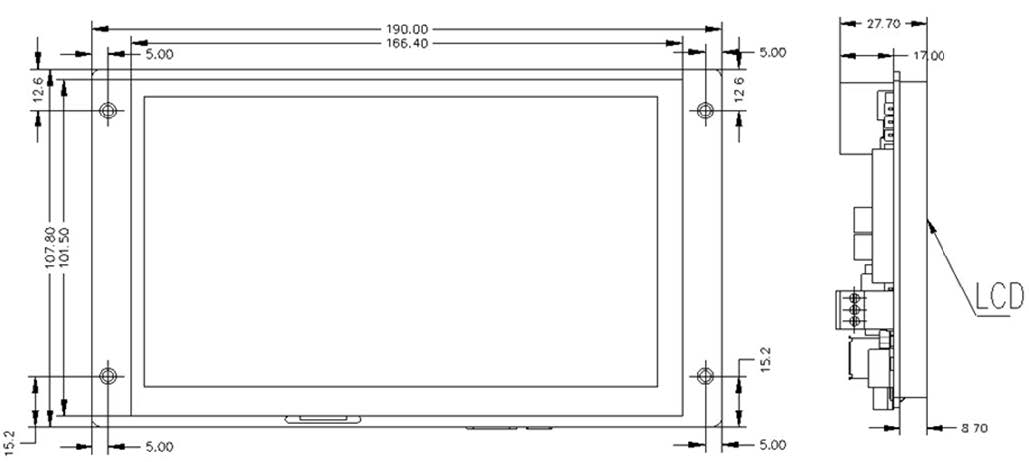

The measurement of CS10600RA070E -C111 is 190*107.8*27.7mm, as Figure 21 shows.

Mounting of CS10600RA070E

The product CS10600RA070E can be mounted using the 4 screw holes on the PCB as shown in Figure 14. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Figure 21 Dimension

Measurements of CS10600RA070P

The measurement of CS10600RA070P -C111 is 206*135*30.1mm.

Mounting of CS10600RA070P

This product CS10600RA070P can be mounted using the mounting set, as Figure 22 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Figure 22 Mounting Method
