PPC/EPC-A7-70HB-C

User Manual

Release 1.0

Chipsee Products Naming Rules

CS10600U070E-C111

CS10600U070P-C111

CS Chipsee Product Abbreviate
10 Horizontal Resolution

80 Means 800 Pixel

10 Means 1024 Pixel

12 Means 1280 Pixel

14 Means 1440 Pixel

19 Means 1920 Pixel

600 Vertical Resolution

480 Means 480 Pixel

600 Means 600 Pixel

768 Means 768 Pixel

800 Means 800 Pixel

900 Means 900 Pixel

102 Means 1024 Pixel

108 Means 1080 Pixel

U(T/F) Product based on Freescale iMX6UL (TI/ Freescale iMX6Q) CPU
070 LCD Dimension

050 Means 5.0 Inch

070 Means 7.0 Inch

080 Means 8.0 Inch

097 Means 9.7 Inch

101 Means 10.1 Inch

104 Means 10.4 Inch

120 Means 12.0 Inch

150 Means 15.0 Inch

170 Means 17.0 Inch

190 Means 19.0 Inch

215 Means 21.5 Inch

E Means Embedded PC or Panel PC

E  Means Embedded PC without Case

P  Means Panel PC with Case

C Means Touch Type

R  Means Resistive Touch

C  Means Capacitive Touch

1 Means LCD Brightness

1  Means Common Brightness

2  Means High Brightness

1 PCB Version

Baseboard PCB Version Number

1 PCB Version

SOM Module PCB Version Number

Hardware Features

Key Features:
CPU iMX6UL,Cortex-A7,528MHz
RAM 512MB DDR3
eMMC 4GB
Storage TF card, supports up to 32GB SDHC
Display 7.0 Inch LCD,1024*600 Pixel Resolution

High Brightness:500nit

Touch Capacitive Touch (Five-Point)
USB 2 x USB 2.0 Host
LAN 1 Channel 100M LAN
Audio 3.5mm Audio In/Out Connector, 2W Speaker Internal
Buzzer 1
RTC Yes
RS232 2 Channels
RS485 3 Channels *
CAN 2 Channels
GPIO Isolated,4Input,4 Output
WiFi/BT On Board WiFi/BT. Optional. Not Mount on by Default
Power Input 6~36V DC
Current @ 12V 500 mA max
Power Consumption 5W Typical
Working Temperature -20°C to +70°C
OS Linux,Debian
Dimension CS10600U070E:190*112*28mm

CS10600U070P:205*135*28mm

Weight CS10600U070E:340g

CS10600U070P:730g

EPC-A7-70HB-C

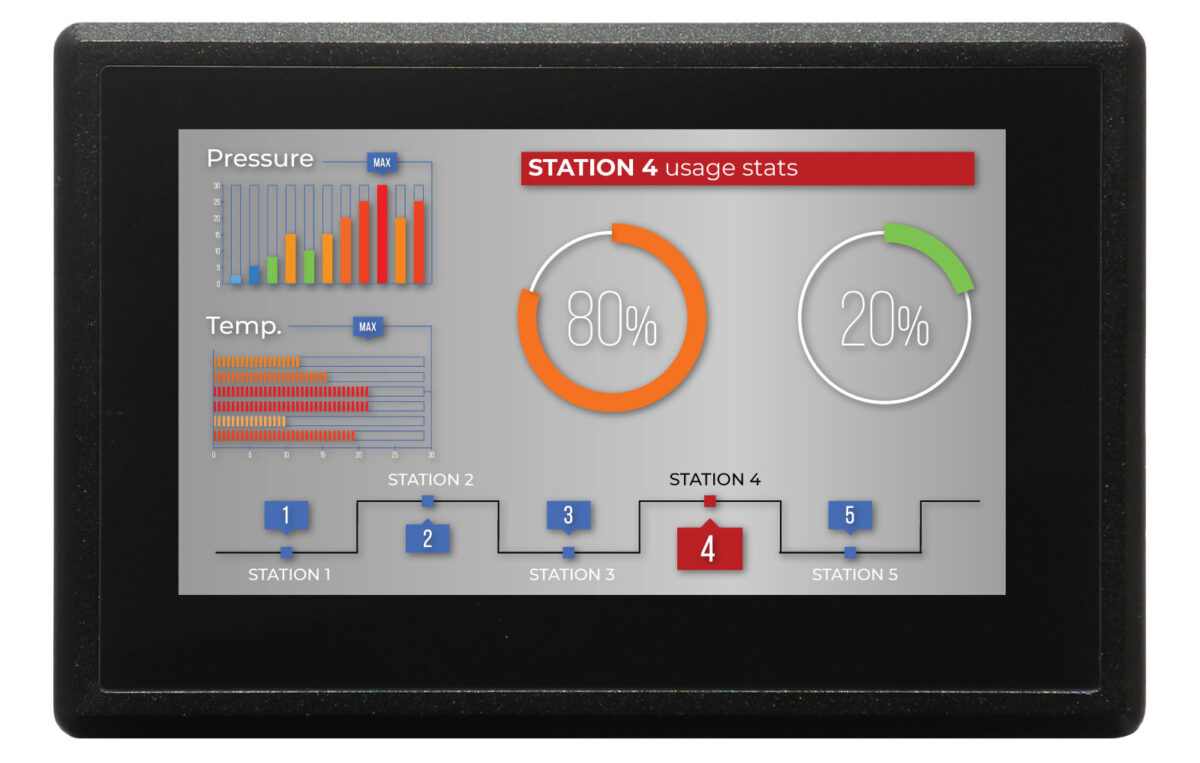

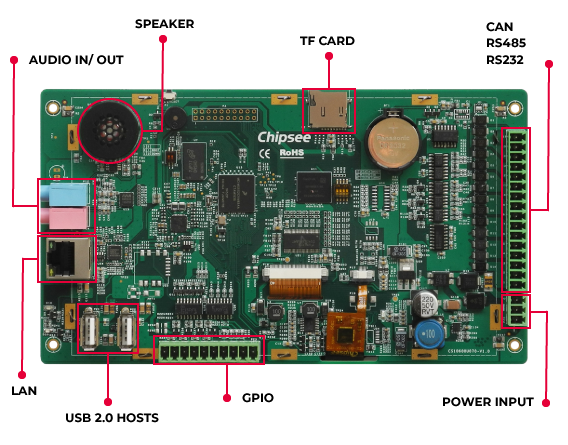

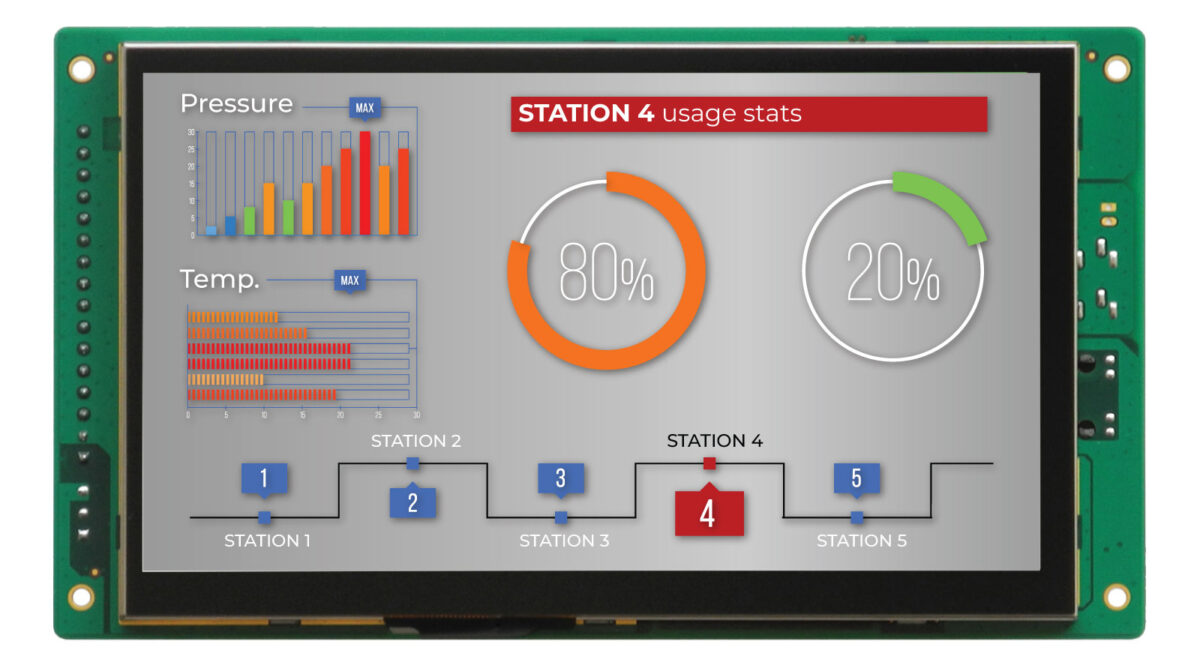

Figure 1 Top View (Linux)

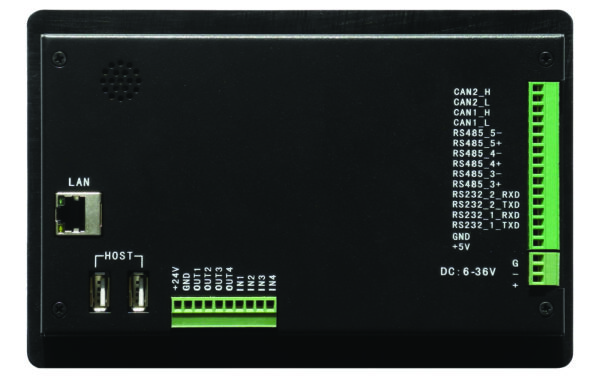

Figure 2 Back View

PPC-A7-70HB-C

Figure 1 Top View (Linux)

Figure 2 Back View

Power Input Connector

The product CS10600U070E/CS10600U070P uses a wide range power input: DC 6~36V. The total power consumption is normally about 5W. The Power Input Connector is a 3 Pin 3.81mm Screw Terminal Connector, as Figure 5 shows. The Character “+” means power Positive input, The Character “” means power Negative input. The Character “G” means system Ground. Table 1 has detailed descriptions about the connector definition.

Figure 2 Back View

Table 1

Power Input Pin Definition:
Pin Number Definition Description
Pin 1 Positive Input Connect to DC Power Positive Terminal
Pin 2 Negative Input Connect to DC Power Negative Terminal
Pin 3 Ground Connect to Power System Ground

ATTENTION:

The system ground “G” has been connected to power negative “-” on board.

Capacitive Touch

The product CS10600U070E/CS10600U070P uses a five-point capacitive touch screen, as Figure 6 shows.

Figure 6 Capacitive Touch Connector

ATTENTION:

Capacitive touch screens are very sensitive to power noise. Ripple voltage/current from the power adapter will cause the LCD ripples, and will also cause the capacitive touch malfunction: If you use the APK Multi-Touch under Android to test, you can find the touch point float. There are several ways to solve this problem:

1)  Use a high quality power adapter. Or use a battery to provide the power like to a cell phone or tablet PC.

2)  If the user power adapter isn’t good enough, there’s another effective method to solve this problem: Make sure the CS12800F101P-C111 power input connector Pin 3 is connected to user “Power System Ground”. This method can eliminate the problem totally. The user can also use another method to test this problem: touch the GND of CS12800F101P-C111 by one hand, while the other hand operates on the capacitive touch screen. In this case, the user’s body acts as the Power System Ground.

CAN+RS485+RS232 Connector

The CAN+RS485+RS232 connector is a 16 Pin 3.81mm Screw Terminal Connector, as Figure 7 shows. As for the definition of every pin, please refer to Table 2.

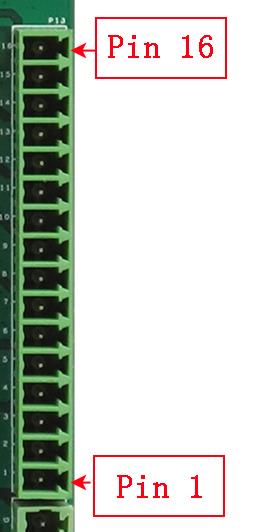

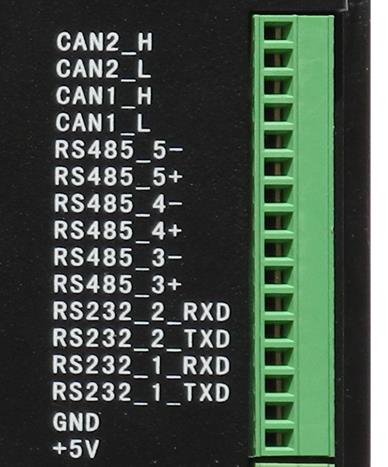

Figure 7 CAN+RS485+RS232 Connector

Table 2

RS232 / RS485 / CAN Pin Definition:
Pin Number Definition Description
Pin 16 CAN2_H CPU CAN Channel 2 H signal
Pin 15 CAN2_L CPU CAN Channel 2 L signal
Pin 14 CAN1_H CPU CAN Channel 1 H signal
Pin 13 CAN1_L CPU CAN Channel 1 L signal
Pin 12 RS485_5- CPU UART5, RS485 –(B) signal
Pin 11 RS485_5+ CPU UART5, RS485 +(A) signal
Pin 10 RS485_4- CPU UART4, RS485 –(B) signal
Pin 9 RS485_4+ CPU UART4, RS485 +(A) signal
Pin 8 RS485_3- CPU UART3, RS485 –(B) signal
Pin 7 RS485_3+ CPU UART3, RS485 +(A) signal
Pin 6 RS232_2_RXD CPU UART2, RS232 RXD signal
Pin 5 RS232_2_TXD CPU UART2, RS232 TXD signal
Pin 4 RS232_1_RXD CPU UART1, RS232 RXD signal
Pin 3 RS232_1_TXD CPU UART1, RS232 TXD signal
Pin 2 GND System Ground
Pin 1 +5V System +5V Power Output, No more than 1A Current output.

ATTENTION:

  1. The UART2 signal has been used by the Bluetooth signal on board. The RS485_2 function has been disabled by default. If the customer needs to use RS485_2 function, please contact us, we will disable the Bluetooth function.
  2. All the CAN signals and RS485 signals are not mounted on the 120Ohm Matched Resistance.

USB HOST Connector

The product CS10600U070E/CS10600U070P has two USB connectors, as Figure 8 shows.

Figure 8 USB HOST Connector

LAN Connector

The product CS10600U070E/CS10600U070P has one channel 100Mbit Ethernet Connector, as Figure 9 shows.

Figure 9 LAN Connector

TF Card

The product CS10600U070E/CS10600U070P has one TF (uSD) card connector as Figure 10 shows. This device supports a TF (uSD) card up to 32GB.

Figure 10 TF Card Connector

ATTENTION:

The TF card slot is NOT mounted with any TF card by default.

WiFi+BT

The product CS10600U070E/CS10600U070P has one WiFi+BT. It uses Realtech RTL8723 which integrates WiFi and BT, as Figure 12 shows. For CS10600U070P, there is a connector on the backside case which can connect external WiFi/BT Antenna, as Figure 13 shows.

Figure 12 WiFi+BT Module

Figure 12 WiFi+BT Module

ATTENTION:

WiFi/BT module is optional, the module is NOT mounted by default.

GPIO

The GPIO connector is a 10 Pin 3.81mm Screw Terminal Connector, as Figure 14 shows. As for the definition of every pin, please refer to Table 3.

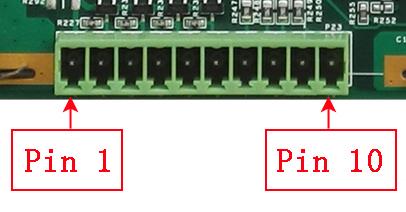

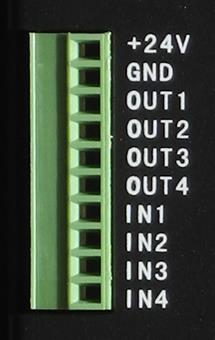

Figure 14 GPIO Connector

ATTENTION:

The GPIO has been Opto-Isolated. If you try to use the GPIO, you should provide isolated power input. The Power Input range is 5~24V DC. The output high Level is your Power Positive input, Low Level is your Ground Input. And the Output can drive 500mA current every Channel at most. This voltage and current are enough for most Relay.

If you don’t need Isolation, you can just use the power which input to the Power Input Connector, you can also use the 5V voltage onboard: Just solder on R292, R293 by 0ohm Resistor. Then the 5V voltage on-board was connected to the “Isolated Power Input” Pin.

Table 3

GPIO Pin Definition:
Pin Number Definition
Pin 1 Isolated Power Input
Pin 2 Isolated Ground Input
Pin 3 OUT1
Pin 4 OUT2
Pin 5 OUT3
Pin 6 OUT4
Pin 7 IN1
Pin 8 IN2
Pin 9 IN3
Pin 10 IN4

Measurements and Mounting

Measurements of CS10600U070E

The measurement of CS10600U070E-C111 is 190*112*28mm.

Mounting of CS10600U070E

The product CS10600U070E can be mounted using the 4 screw holes on the PCB .Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Measurements of CS10600U070P

The measurement of CS10600U070P-C111 is 205*135*28mm.

Mounting of CS10600U070P

The product CS10600U070P can be mounted using the mounting set, as Figure 15 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

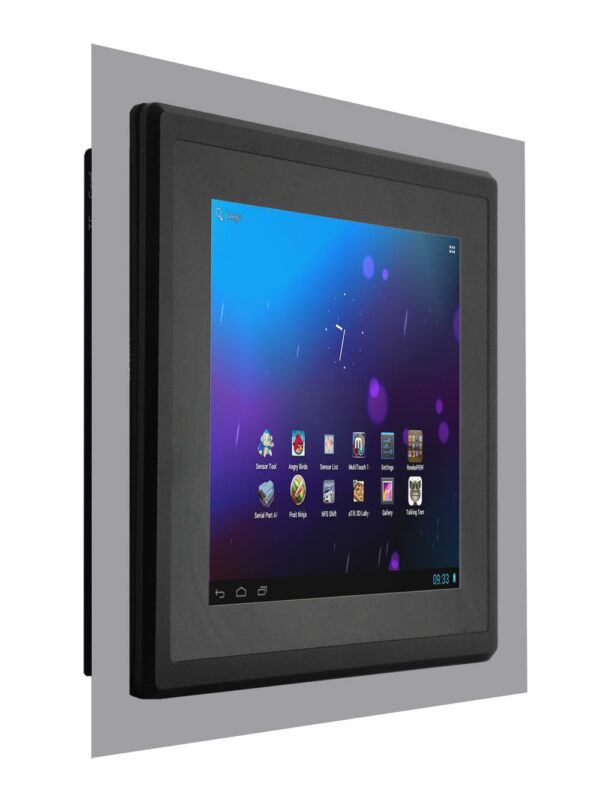

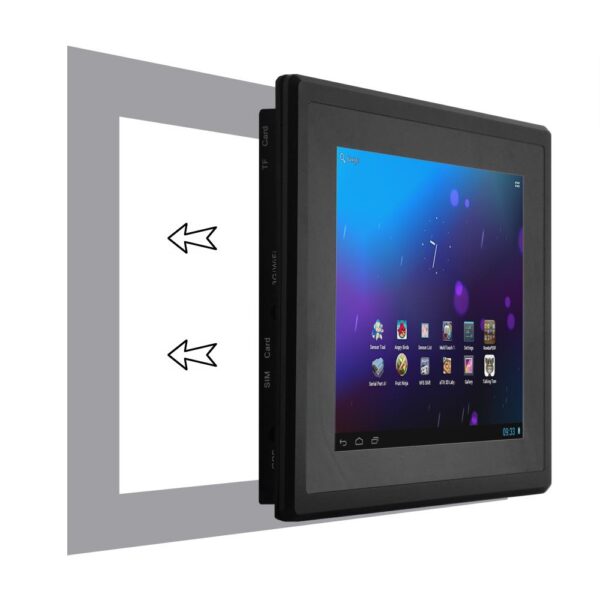

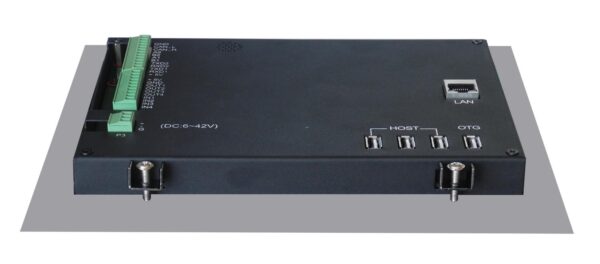

Figure 15 Mounting Method
