User Manual
Release 1.0
Chipsee Products Naming Rules
| CS19108R173P-C111 | |
| CS | Chipsee Product Abbreviate |
| 19 |
Horizontal Resolution 80 Means 800 Pixel 10 Means 1024 Pixel 12 Means 1280 Pixel 14 Means 1440 Pixel 19 Means 1920 Pixel |
| 108 |
Vertical Resolution 480 Means 480 Pixel 600 Means 600 Pixel 768 Means 768 Pixel 800 Means 800 Pixel 900 Means 900 Pixel 102 Means 1024 Pixel 108 Means 1080 Pixel |
| R(T/F) | Product based on Rockchip (TI/Freescale) CPU |
| 173 |
LCD Dimension 050 Means 5.0 Inch 070 Means 7.0 Inch 080 Means 8.0 Inch 097 Means 9.7 Inch 101 Means 10.1 Inch 104 Means 10.4 Inch 120 Means 12.0 Inch 125 Means 12.5 Inch 150 Means 15.0 Inch 156 Means 15.6 Inch 170 Means 17.0 Inch 190 Means 19.0 Inch 215 Means 21.5 Inch |
| P |
Means Embedded PC or Panel PC E Means Embedded PC without Case P Means Panel PC with Case |
| C |
Means Touch Type R Means Resistive Touch C Means Capacitive Touch |
| 1 |
Means LCD Brightness
|
| 1 |
PCB Version Baseboard PCB Version Number |
| 1 |
PCB Version SOM Module PCB Version Number |
Hardware Features
| Key Features: | |
| CPU | Rokchip RK3399, Dual-core Cortex-A72(1.8GHz), Quad-core Cortex-A53(1.4GHz) |
| RAM | 4GB DDR3 |
| eMMC | 16GB |
| Storage | TF card, supports up to 32GB SDHC |
| Display | 17.3 Inch LCD,1920*1080 Pixel Resolution |
| Touch | Ten-Point Capacitive Touch |
| USB | 4 x USB 2.0 Host, 1x USB 3.0 Host,1x Type-C |
| LAN | 1 Channel 1000M LAN |
| Audio | 3.5mm Audio In/Out Connector,2W Speaker Internal |
| Buzzer | 1 |
| RTC | Yes |
| RS232+RS485 | 7 Channels(4 x RS485 at most, 1 debug port) |
| GPIO | 8 Channels |
| WiFi/BT | On Board WIFI/BT |
| HDMI | 1 Channel |
| 3G/4G | Optional |
| Power Input | 15~36V DC |
| Current @ 15V | 1A max |
| Power Consumption | 15W Typical |
| Working Temperature | 0°C to +70°C |
| OS | Android 7.1 |
| Dimension | 435*275*40mm |
| Weight | 3580g |
CS19108R173P-C111
Figure 1 Top View (Android)

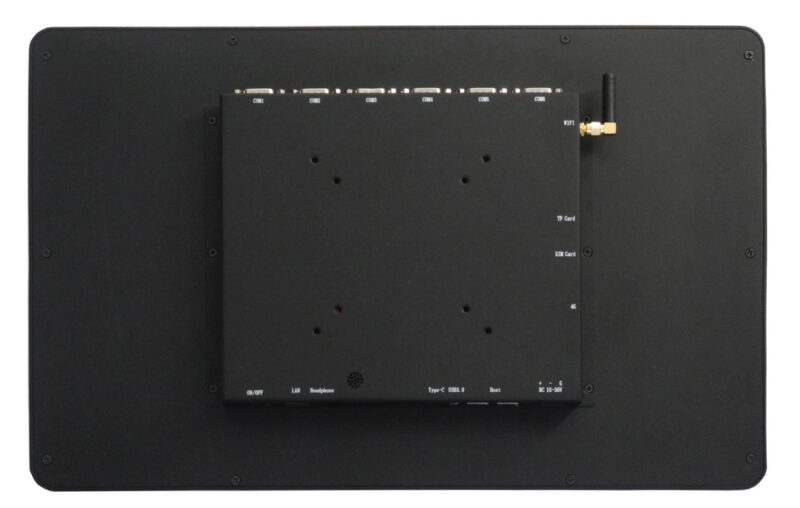

Figure 2 Back View
Power Input Connector

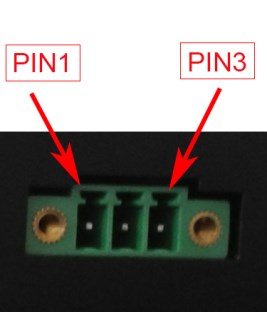

The product CS19108R173P-C111 uses a wide range power input: DC 15~36V. The total power consumption is normally about 15W. The Power Input Connector is 3 Pin 3.81mm Screw Terminal Connector as Figure 3 shows. The Character “+” means power Positive input, The Character “-” means power Negative input. The Character “G” means system Ground. Table 1 has detailed descriptions about the connector definition.
Figure 3 Power Input Connector
Table 1
| Power Input Pin Definition: | ||
| Pin Number | Definition | Description |
| Pin 1 | Positive Input | Connect to DC Power Positive Terminal |
| Pin 2 | Negative Input | Connect to DC Power Negative Terminal |
| Pin 3 | Ground | Connect to Power System Ground |
ATTENTION:
The system ground “G” has been connected to power negative “-” on board.
Capacitive Touch
The product CS19108R173P-C111 uses ten-point capacitive touch.
ATTENTION: Capacitive touch is very sensitive to power noise. Ripple voltage/current from the power adapter will cause the LCD ripples, and will also cause the capacitive touch malfunction. If you use the APK Multi-Touch under Android to test, you can find the touch point float. There are several ways to solve this problem:
1) Use a high-quality power adapter. Or use battery to provide the power like to a cell phone or tablet PC.
2) If the user power adapter isn’t good enough, there’s another effective method to solve this problem: Make sure the CS19108R173P-C111 power input connector Pin 3 is really connected to the user “Power System Ground”. This method can eliminate the problem totally. The user can also use another method to solve this problem: touch the GND of CS19108R156P-C111 by one hand, while the other hand operates on the capacitive touch screen. In this case, the user’s body acts as the Power System Ground.
DB9 Connector

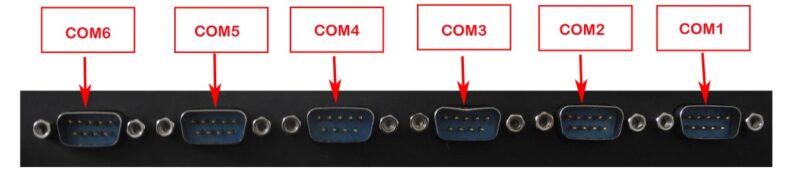

The product CS19108R173P-C111 has 6*DB9 connectors configured as RS232 by default. COM3/COM4/COM5/COM6 can be customized to RS485. If you need any other setting different to the default setting, please contact us.
Figure 4 DB9 Connector
USB 2.0 Connector

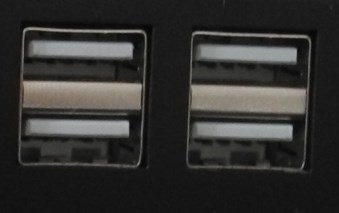

The product CS19108R173P-C111 has four USB 2.0 connectors as Figure 5 shows. These four USB can provide 500mA current each.
Figure 5 USB 2.0 Connector
USB 3.0 Connector
The product CS19108R173P-C111 has one USB 3.0 connector as Figure 6 shows.
Figure 6 USB 3.0 Connector
USB Type-C
The product CS19108R173P-C111 has one USB Type-C connector as Figure 7 shows.
Figure 7 USB Type-C Connector
LAN Connector
The product CS19108R173P-C111 has one channel 1000Mbit Ethernet Connector, as Figure 8 shows.
Figure 8 LAN Connector
TF Card
The product CS19108R173P-C111 has one TF (uSD) card connector as Figure 9 shows. This device supports a TF (uSD) card up to 32GB.
Figure 9 TF Card Connector
ATTENTION:
The TF card slot is NOT mounted with any TF card by default.
SIM Card Holder
The product CS19108R173P-C111 has a mini-PCIe connector inside, and the customer can mount on a 3G/4G module to it. Then it will need the SIM Card Holder, as Figure 10 shows.
Figure 10 SIM Card Holder
ATTENTION:
This product is not mounted with any 3G/4G module by default.
Audio Connector
The product CS19108R173P-C111 has one headphone, as Figure 11 shows. The product also has an internal 2W speaker.
Figure 11 Audio Connector
WiFi+BT
The product CS19108R173P-C111 has one WiFi+BT. It uses Realtech RTL8723BU which integrates WiFi and BT. There is a connector on the backside case which can connect external WiFi/BT Antenna, as Figure 12 shows.
Figure 12 WiFi+BT Antenna Connector
HDMI Connector
The product CS19108R173P-C111 has one HDMI connector as Figure 13 shows. The HDMI output resolution can be configured by software.
Figure 13 HDMI Connector
Power Button
The product CS19108R173P-C111 has one power button, as Figure 14 shows.
Figure 14 Power Button
Measurements and Mounting
Measurements
The measurement of CS19108R173P-C111 is 435*275*40mm
Mounting Method

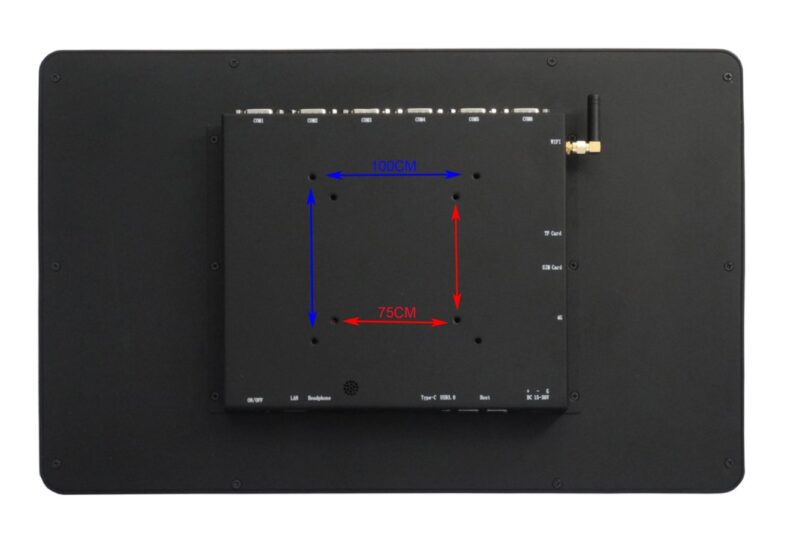

This product CS19108R173P-C111 can be mounted by screw holes on the back or side. It can also be mounted with attached installation fittings, as Figure 15 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure.
Figure 15 Mounting Method
How to Get Support
Please feel free to contact us with any questions, queries or suggestions.
If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution.
If you cannot find the solution you are looking for then please write to service@chipsee.com providing all possible details.
