User Manual
Release 1.0
Chipsee Products Naming Rules
| CS19108R215P-C111 | |
| CS | Chipsee Product Abbreviations |
| 19 | Horizontal Resolution
80 Means 800 Pixel 10 Means 1024 Pixel 12 Means 1280 Pixel 14 Means 1440 Pixel 19 Means 1920 Pixel |
| 108 | Vertical Resolution
480 Means 480 Pixel 600 Means 600 Pixel 768 Means 768 Pixel 800 Means 800 Pixel 900 Means 900 Pixel 102 Means 1024 Pixel 108 Means 1080 Pixel |
| R(T/F) | Product based on Rockchip (TI/Freescale) CPU |
| 215 | LCD Dimension
050 Means 5.0 Inch 070 Means 7.0 Inch 080 Means 8.0 Inch 097 Means 9.7 Inch 101 Means 10.1 Inch 104 Means 10.4 Inch 120 Means 12.0 Inch 125 Means 12.5 Inch 150 Means 15.0 Inch 156 Means 15.6 Inch 170 Means 17.0 Inch 190 Means 19.0 Inch 215 Means 21.5 Inch |
| P | Means Embedded PC or Panel PC
E Means Embedded PC without Case P Means Panel PC with Case |
| C | Means Touch Type
R Means Resistive Touch C Means Capacitive Touch |
| 1 | Means LCD Brightness
|
| 1 | PCB Version
Baseboard PCB Version Number |
| 1 | PCB Version
SOM Module PCB Version Number |
Hardware Features
| Key Features: | |
| CPU | Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz) |
| RAM | 4GB DDR3 |
| eMMC | 16GB |
| Storage | TF card supports up to 32GB SDHC |
| Display | 21.5 Inch LCD, 1920*1080 Pixel Resolution |
| Touch | Ten-Point Capacitive Touch |
| USB | 4 x USB 2.0 Host, 1x USB 3.0 Host, 1x Type-C |
| LAN | 1 Channel 1000M LAN |
| Audio | 3.5mm Audio In/Out Connector, 2W Speaker Internal |
| Buzzer | 1 |
| RTC | Yes |
| RS232+RS485 | 7 Channels (4 x RS485 at most, 1 debug port) |
| GPIO | Optional |
| WiFi/BT | On-Board WIFI/BT |
| HDMI | 1 Channel |
| 4G/LTE | Optional |
| Power Input | 15~36V DC |
| Current @ 15V | 1A max |
| Power Consumption | 15W Typical |
| Working Temperature | 0°C to +70°C |
| OS | Android 7.1, Android 9.0 |
| Dimension | 530*322*45mm |
| Weight | 6000g |
CS19108R215P-C111
Figure 1: Front View

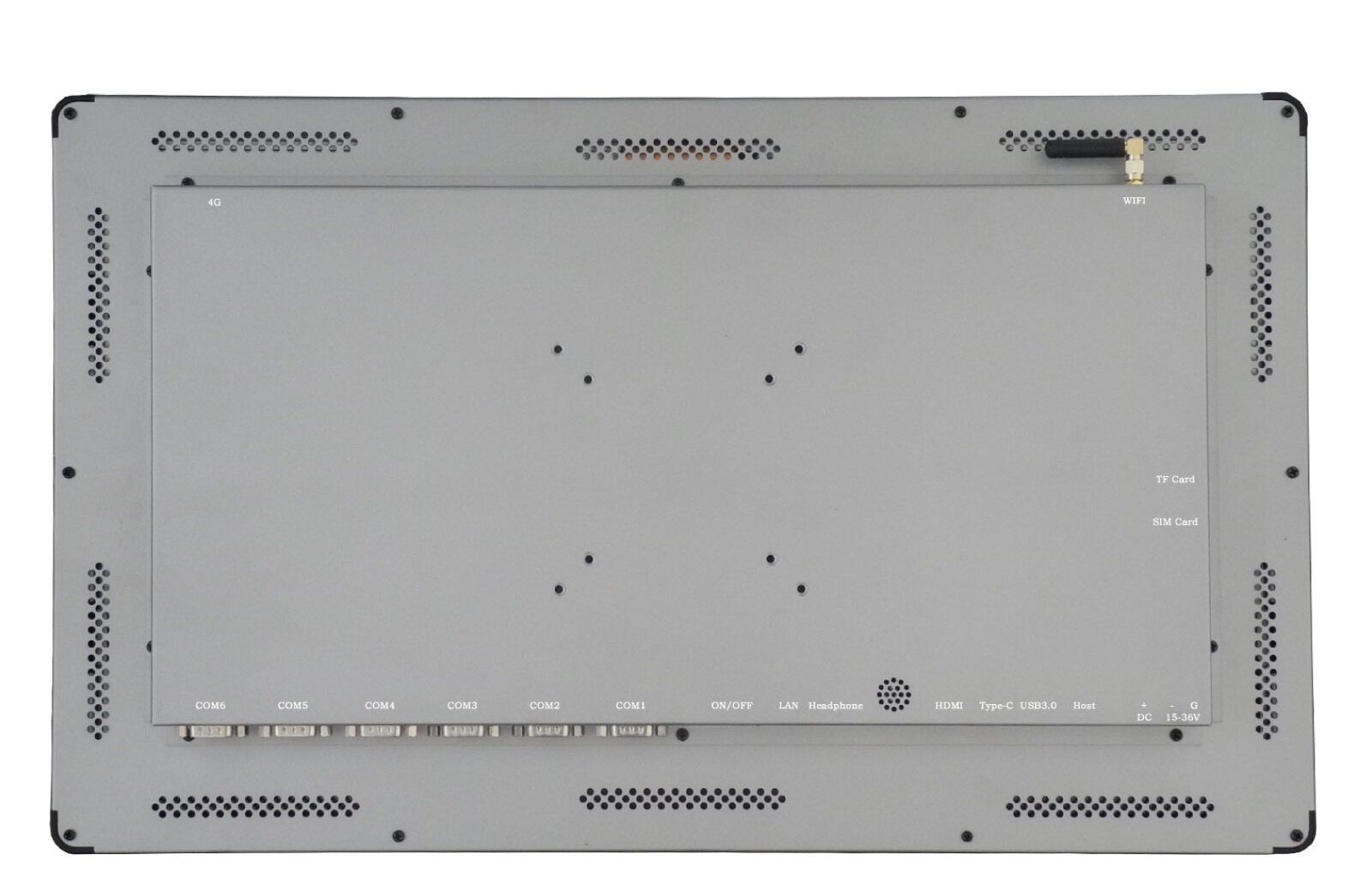

Figure 2: Back View
Power Input Connector
The product CS19108R215P uses a wide-range power input DC 15~36V. The total power consumption is normally about 15W. The power input connector is a 3 pin 3.81mm screw terminal connector, as shown in Figure 3.
A detailed description of the power input connector pins is provided in Table 1.
Figure 3: Power Input Connector
Table 1
| Power Input Pin Definition: | ||
| Pin Number | Definition | Description |
| Pin 1 | Positive Input | Connect to DC Power Positive Terminal |
| Pin 2 | Negative Input | Connect to DC Power Negative Terminal |
| Pin 3 | Ground | Connect to Power System Ground |
ATTENTION:
The system ground “G” has been connected to power negative “-” on board.
Capacitive Touch
The product uses a ten-point capacitive touch screen.
ATTENTION:
Capacitive touch screens are very sensitive to power noise. Ripple voltage/current from the power adapter can cause the LCD ripples, as well as the capacitive touch malfunction. If you use the APK Multi-Touch under Android to test it, you can find the touchpoint float. There are several ways to solve this problem:
1) Use a high-quality power adapter. Or a battery to provide power like a cell phone or tablet PC.
2) If the power adapter isn’t good enough, make sure the power input connector Pin 3 is connected to the Ground. This method can eliminate the problem totally. You can test it by touching the GND with one hand, while the other hand operates on the capacitive touch screen. In this case, the user’s body acts as the Power System Ground.
DB9 Connector
There are six serial ports available with DB9 connector, all configured in RS232 mode by default (COM1 to COM6). You can set COM3 to COM6 in RS485 mode. If you need a different configuration, please contact us.

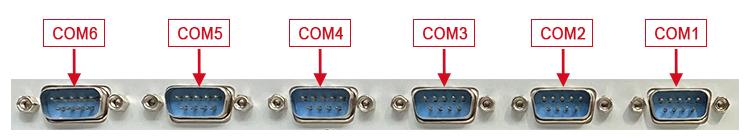

Figure 4: DB9 Connector
USB 2.0 Connector
There are four USB 2.0 connectors, as Figure 5 shows. Each can provide 500mA of current.
Figure 5: USB 2.0 Connector
USB 3.0 Connector
And one USB 3.0 connector, as shown in Figure.
Figure 6: USB 3.0 Connector
USB Type-C
As well as one USB Type-C connector, as shown in Figure 7.
Figure 7: USB Type-C Connector
LAN Connector
The product has one channel 1000Mbit Ethernet connector, as shown in Figure 8.
Figure 8: LAN Connector
TF Card
The product has one TF (uSD) card connector, as shown in Figure 9, that supports a TF (uSD) card up to 32GB.
Figure 9 TF Card Connector
ATTENTION:
A TF card does not come with the product.
SIM Card Holder
There is one SIM card holder, as shown in Figure 10. To read the SIM card data, you need a 4G/LTE module. The product has a mini-PCIe connector inside that enables a 4G/LTE module to be mounted. Otherwise, the holder has no usage.
Figure 10: SIM Card Holder
ATTENTION:
The 4G/LTE module is not provided by default, but can be ordered along with the product.
Audio Connector
The CS19108R215P-C111 has one audio connector, as Figure 11 shows, as well as an internal 2W speaker.
Figure 11: Audio Connector
WiFi+BT
There is one WiFi+BT module, based on the Realtech RTL8723BU, which integrates WiFi and BT. There is a connector on the backside of the case that is used to connect an external WiFi and BT antenna, as shown in Figure 12.

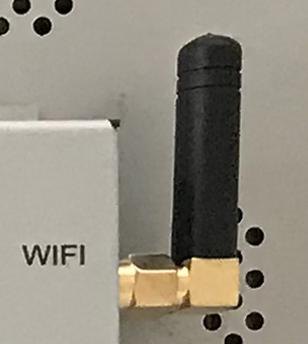

Figure 12: WiFi+BT Antenna Connector
HDMI Connector
The product has one HDMI connector, as shown in Figure 13. The HDMI output resolution can be configured by software.
Figure 13: HDMI Connector
Power Button
You can see the power button in Figure 14.
Figure 14: Power Button
Dimensions and Mounting
The dimensions of CS19108R215P-C111 are 530*322*45mm.

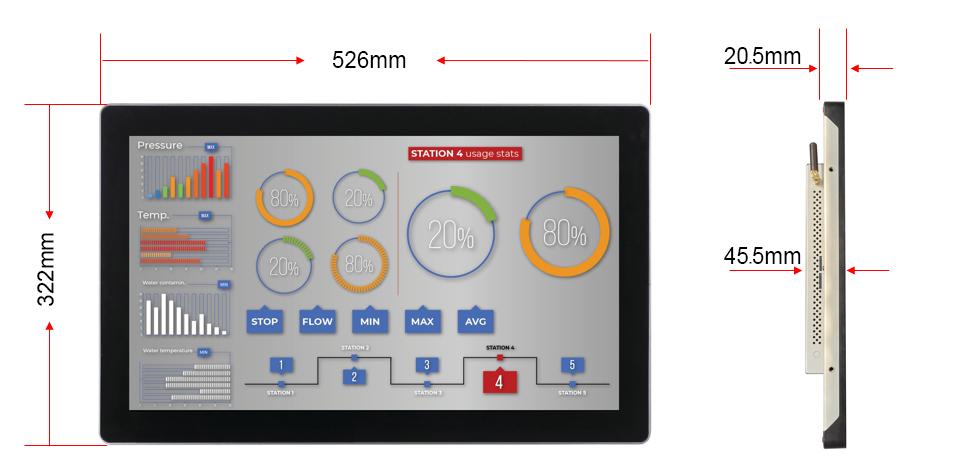

Figure 15: Dimensions
Mounting Method
This product CS19108R215P-C111 can be mounted by screw holes (Vesa mount) on the back or the side (rear mount). Please make sure the display is not exposed to high pressure when mounting into an enclosure.

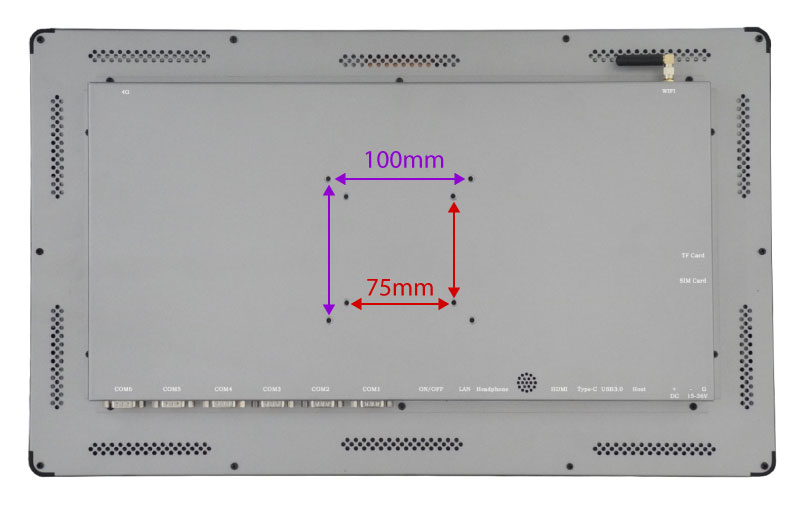

Figure 16: Vesa Mounting
How to Get Support
Please feel free to contact us with any questions, queries or suggestions.
If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution.
If you cannot find the solution you are looking for then please write to service@chipsee.com providing all possible details.
