EPC/PPC-A8-101-R

User Manual

Release 1.0

Chipsee Products Naming Rules

CS10600T101E-C111/R111

CS10600T101P-C111/R111

CS Chipsee Product Abbreviate
10 Horizontal Resolution

80 Means 800 Pixel

10 Means 1024 Pixel

12 Means 1280 Pixel

14 Means 1440 Pixel

19 Means 1920 Pixel

600 Vertical Resolution

480 Means 480 Pixel

600 Means 600 Pixel

768 Means 768 Pixel

800 Means 800 Pixel

900 Means 900 Pixel

102 Means 1024 Pixel

108 Means 1080 Pixel

T(F/U) Product based on TI(Freescale iMX6Q/ Freescale iMX6UL) CPU
101 LCD Dimension

050 Means 5.0 Inch

070 Means 7.0 Inch

080 Means 8.0 Inch

097 Means 9.7 Inch

101 Means 10.1 Inch

104 Means 10.4 Inch

120 Means 12.0 Inch

150 Means 15.0 Inch

170 Means 17.0 Inch

190 Means 19.0 Inch

215 Means 21.5 Inch

E Means Embedded PC or Panel PC

E  Means Embedded PC without Case

P  Means Panel PC with Case

C Means Touch Type

R  Means Resistive Touch

C  Means Capacitive Touch

1 Means LCD Brightness

1  Means Common Brightness

2  Means High Brightness

1 PCB Version

Baseboard PCB Version Number

1 PCB Version

SOM Module PCB Version Number

Hardware Features

Key features:

Key Features:
CPU AM3354ZCZ100,ARM Cortex A8, 1GHz
RAM 512MB DDR3
eMMC 4GB
Storage TF card, supports up to 32GB SDHC
Display 10.1 Inch LCD,1024*600 Pixel Resolution
Touch Capacitive Touch (10-Point) or Resistive Touch
USB 2 x USB 2.0 Host, 1x USB 2.0 OTG

(can be customized to HOST or OTG)

LAN 1 Channel 100M LAN
Audio 3.5mm Audio In/Out Connector, 2W Speaker Internal
Buzzer 1
RTC Yes
RS232 2 Channels
RS485 2 Channels
CAN 1 Channels (Can change to 2 channels)
GPIO 8 Channels,4 Input,4 Output
WiFi/BT On Board WiFi/BT. Optional. Not Mount on by Default
4G On Board 4G. Optional. Not Mount on by Default
Power Input 6~42V DC
Current @ 12V 500 mA max
Power Consumption 10W Typical
Working Temperature -20°C to +70°C
OS Android, Linux, Debian, Angstrom
Dimension CS10600T101E: 252*150*26mm

CS10600T101P: 280*187*29.5mm

Weight CS10600T101E:530g

CS10600T101P:1240g

CS10600T101E

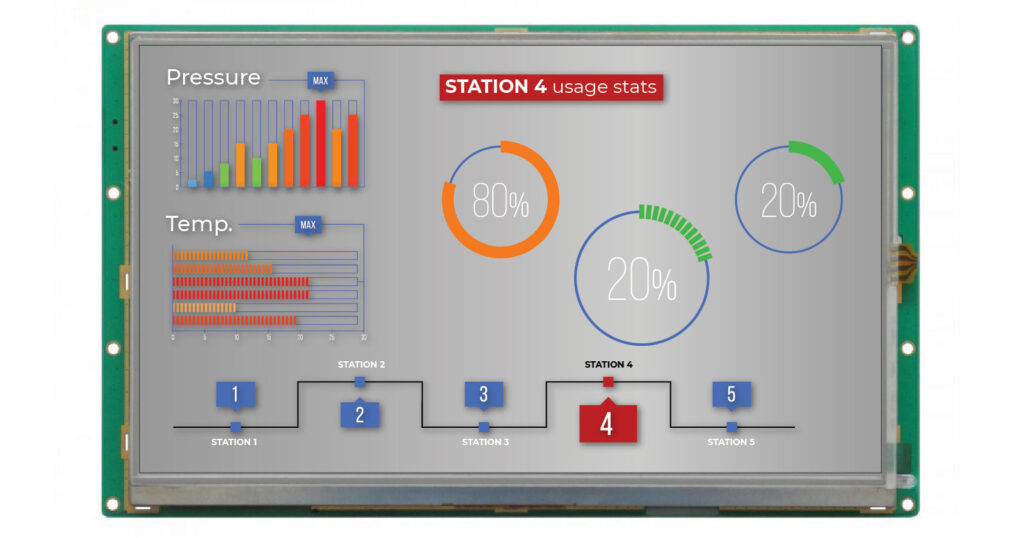

Figure 1 Top View

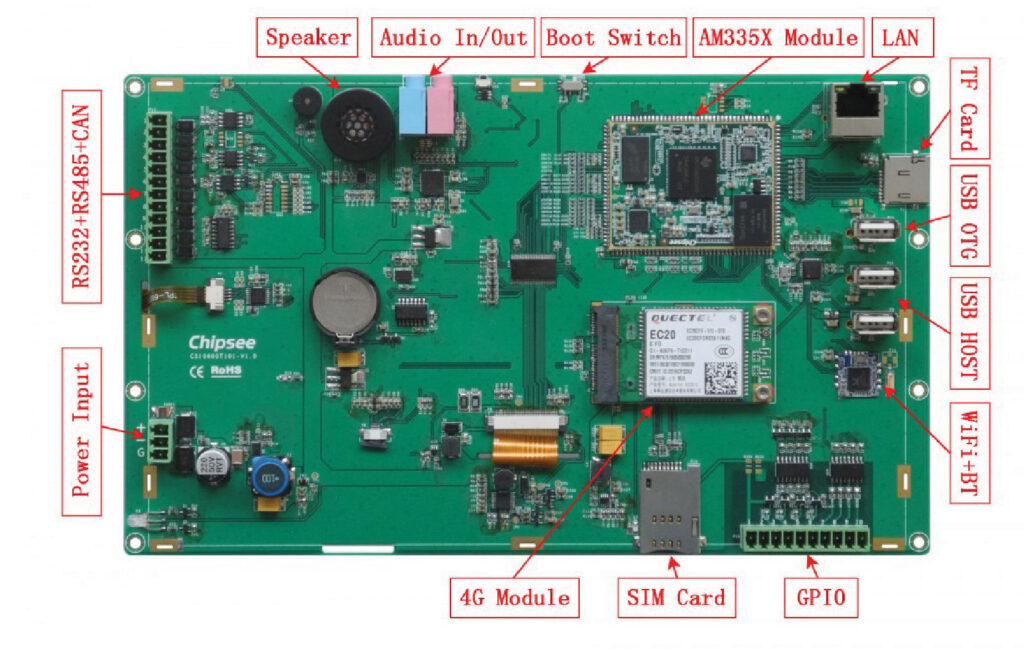

Figure 2 Back View

CS10600T101P

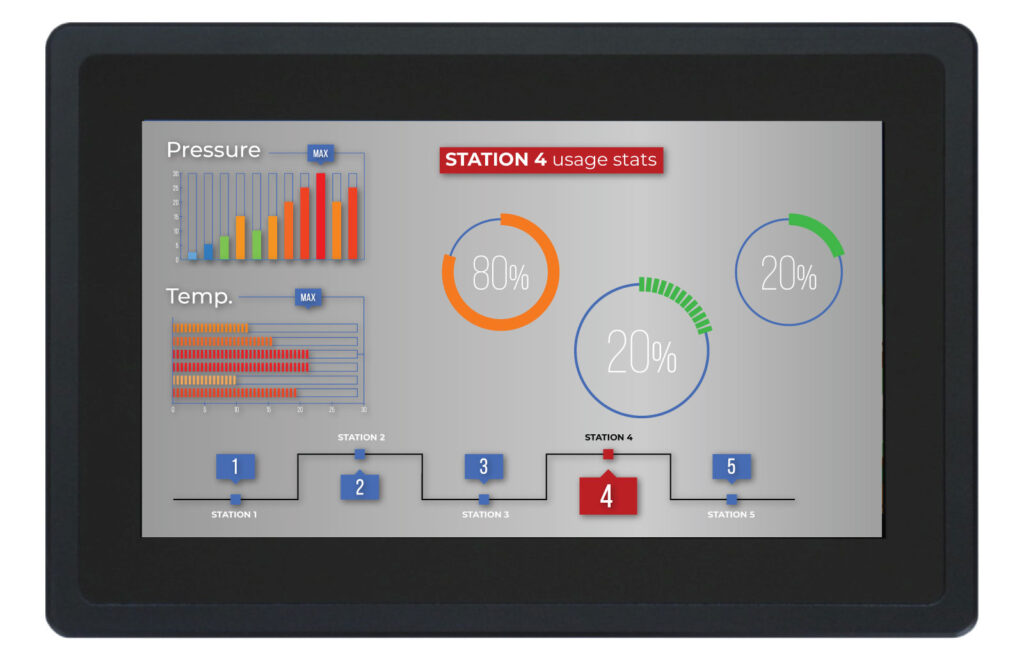

Figure 3 Top View

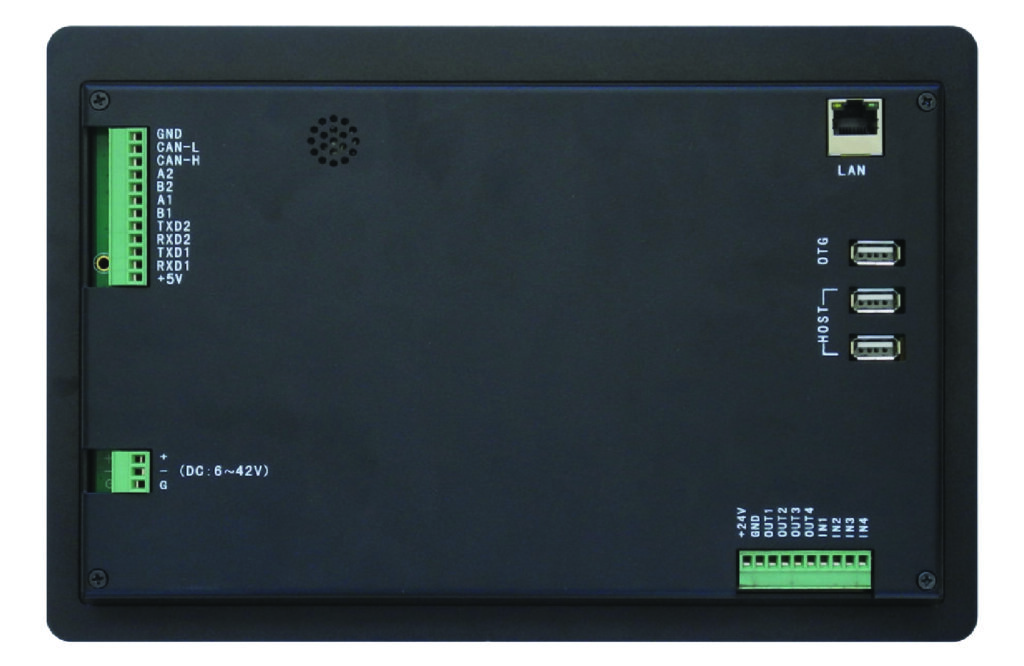

Figure 4 Back View

Power Input Connector

The product CS10600T101E/CS10600T101P uses a wide range power input: DC 6~42V. The total power consumption is normally about 10W. The Power Input Connector is 3 Pin 3.81mm Screw Terminal Connector as Figure 5 shows. The Character “+” means power Positive input, The Character “” means power Negative input. The Character “G” means system Ground. Table 1 has detailed descriptions about the connector definition.

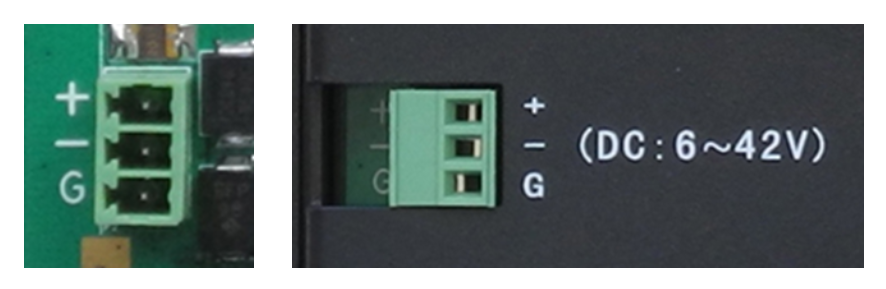

Figure 5 Power Input Connector

Table 1

Power Input Pin Definition:
Pin Number Definition Description
Pin 1 Positive Input Connect to DC Power Positive Terminal
Pin 2 Negative Input Connect to DC Power Negative Terminal
Pin 3 Ground Connect to Power System Ground

Please note:

The system ground “G” has been connected to power Negative “” on board.

Capacitive Touch or Resistive Touch

The product CS10600T101E/CS10600T101P uses 10-point capacitive touch or resistive touch, as Figure 6 shows.

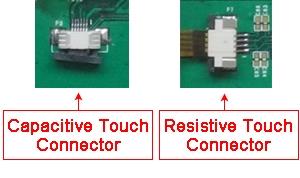

Figure 6 Resistive Touch Connector

ATTENTION:

Capacitive touch is very sensitive to power noise. Ripple voltage/current from the power adapter will cause the LCD ripples, and will also cause the capacitive touch malfunction: If you use the APK Multi-Touch under Android to test, you can find the touch point float. There are several ways to solve this problem:

1)  Use a high quality power adapter. Or use battery to provide the power like cell phone or tablet PC.

2)  If user power adapter isn’t good enough, there’s another effective method to solve this problem: Make sure the power input connector Pin 3 really connect to user “Power System Ground”. This method can eliminate the problem totally. User can also use another method to test this problem: touch the GND of the product by one hand, the other hand operates on the capacitive touch screen. In this case, user’s body acts as the Power System Ground.

CAN+RS485+RS232 Connector

The CAN+RS485+RS232 connector is a 12 Pin 3.1mm Screw Terminal Connector, as Figure 7 shows. As for the definition of every pin, please refer to Table 2.

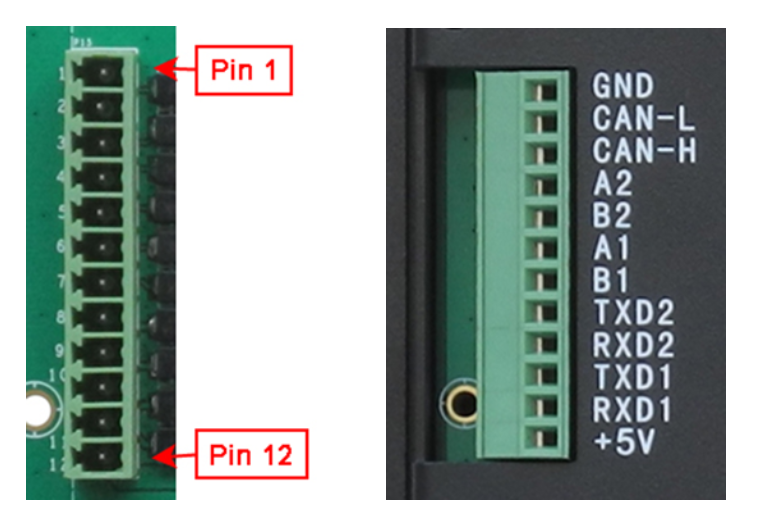

Figure 7 RS232 / RS485 / CAN Connector

Table 2

RS232 / RS485 / CAN Pin Definition:
Pin Number Definition Description
Pin 1 GND Isolated Ground Output
Pin 2 CAN_L DCAN0 of CPU,CAN L Signal
Pin 3 CAN_H DCAN0 of CPU,CAN H Signal
Pin 4 A2 UART4 of CPU, RS485 A Signal
Pin 5 B2 UART4 of CPU, RS485 B Signal
Pin 6 A1 UART2 of CPU, RS485 A Signal
Pin 7 B1 UART2 of CPU, RS485 B Signal
Pin 8 TXD2 UART1 of CPU,RS232 TXD Signal
Pin 9 RXD2 UART1 of CPU,RS232 RXD Signal
Pin 10 TXD1 UART0 of CPU, RS232 TXD Signal
Pin 11 RXD1 UART0 of CPU,RS232 RXD Signal
Pin 12 +5V System +5V Power Output, No more than 1A Current output

ATTENTION:

All the CAN signal and RS485 signal have not mount on the 120Ohm Matched Resistance.

USB Connector

The product CS10600T101E/CS10600T101P has two USB HOST connectors as Figure 8 shows.

Figure 8 USB HOST Connector

USB OTG Connector

The product CS10600T101E/CS10600T101P has one USB OTG connectors as Figure 9 shows.

Figure 9 USB OTG Connector

LAN Connector

The product CS10600T101E/CS10600T101P has one channel 100Mbit Ethernet Connector, as Figure 10 shows.

Figure 10 LAN Connector

uSD Card

As in Figure 11 uSD card connector labelled as P5 on the PCB.The device supports uSD cards up to 32GB.

Figure 11 TF Card (uSD) Connector

Please note: The uSD card Slot is NOT Mounted with any uSD card by default.

TF Card

The product CS10600T101E/CS10600T101P has one TF (uSD) card connector as Figure 11 shows. This device supports a TF (uSD) card up to 32GB.

Figure 11 TF Card Connector

ATTENTION:

The TF card slot is NOT mounted with any TF card by default.

Audio Connector

The product CS10600T101E/CS10600T101P has one Audio Input (“Line-in”) and one Audio (“Line-out”) output, as Figure 12 shows. And the product has an internal 2W speaker.

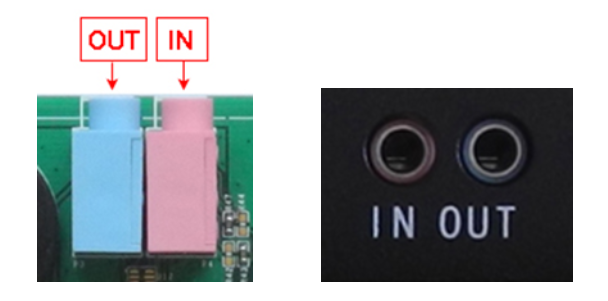

Figure 12 Audio Connector

WiFi+BT

The product CS10600T101E/CS10600T101P has one WiFi+BT. It uses Realtech RTL8723 which integrates WiFi and BT, as Figure 13 shows. For CS10600T101P, there is a connector on the backside case which can connect external WiFi/BT Antenna, as Figure 14 shows.

Figure 13 WiFi+BT Module

Figure 14 WiFi+BT Antenna

ATTENTION:

WiFi/BT module is optional, the module is NOT mounted by default.

4G Communication

The product CS10600T101E/CS10600T101P has a mini-PCIe connector inside, customer can mount on 4G module to it, as Figure 15 shows. Then it will need the SIM Card Holder and 4G Antenna Connector, as Figure 16 shows.

Figure 15 4G Module

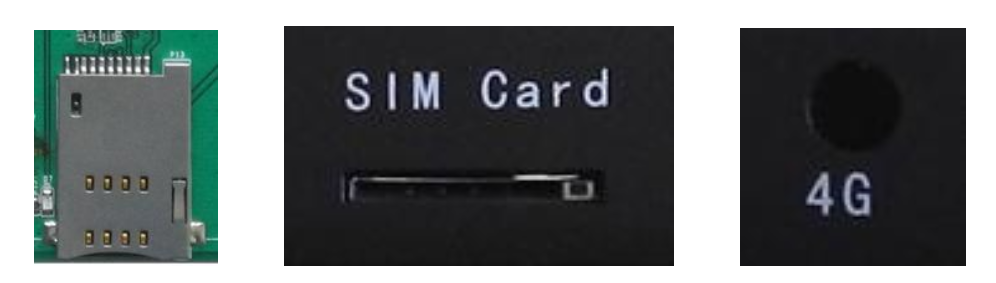

Figure 16 SIM Card Holder and 4G Antenna Connector

ATTENTION:

This product is Not Mounted on any 4G module by default. And only Android 4.1 driver for 4G module is available at present.

GPIO

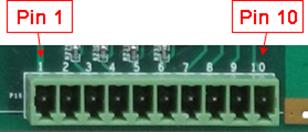

The GPIO connector is a 10 Pin 3.81mm Screw Terminal Connector, as Figure 17 shows. As for the definition of every pin, please refer to Table 3.

Figure 17 GPIO Connector

ATTENTION:

The GPIO has been Opto-Isolated. If you try to use the GPIO, you should provide isolated power input. The Power Input range is 5~24V DC. The output high Level is your Power Positive input, Low Level is your Ground Input. And the Output it can drive 500mA current on every channel, at most. This voltage and current are enough for most relays.

If you don’t need isolation, you can just use the power which inputs to the Power Input Connector, you can also use the 5V voltage onboard: Just solder on R292, R293 by 0ohm Resistor. Then the 5V voltage on-board was connected to the “Isolated Power Input” Pin.

Table 3

GPIO Pin Definition:
Pin Number Definition
Pin 1 Isolated Power Input
Pin 2 Isolated Ground Input
Pin 3 OUT1
Pin 4 OUT2
Pin 5 OUT3
Pin 6 OUT4
Pin 7 IN1
Pin 8 IN2
Pin 9 IN3
Pin 10 IN4

Boot Switch

The product CS10600T101E/CS10600T101P has a boot switch which can be used to change boot sequence, as Figure 18 shows. It is defined as SW2 on the PCB. The position can either be eMMC or uSD. The device will boot from the location that’s selected.

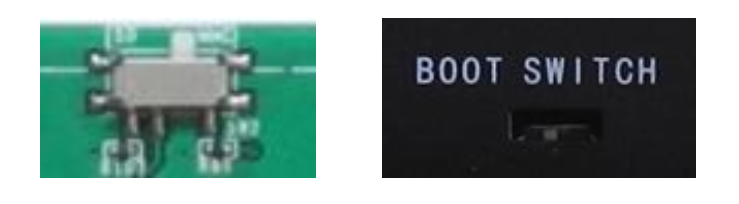

Figure 18 Boot Switch

Measurements and Mounting

Measurements of CS10600T101E

The measurement of CS10600T101E is 252*150*26mm.

Mounting of CS10600T101E

The product CS10600T101E can be mounted using the 4 screw holes on the PCB .Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Measurements of CS10600T101P

The measurement of CS10600T101P is 280*187*29.5mm.

Mounting of CS10600T101P

The product CS10600T101P can be mounted using the mounting set, as Figure 19 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Figure 19 Mounting Method

How to Get Support

Chipsee assumes no responsibility for any errors, which may appear in this manual. Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein. Chipsee products are not authorized for use as critical components in life support devices or systems.
