User Manual

Release 3.0

Chipsee Products Naming Rules



CS Chipsee Product Abbreviate
80 Horizontal Resolution

80 Means 800 Pixel

10 Means 1024 Pixel

12 Means 1280 Pixel

14 Means 1440 Pixel

19 Means 1920 Pixel

480 Vertical Resolution

480 Means 480 Pixel

600 Means 600 Pixel

768 Means 768 Pixel

800 Means 800 Pixel

900 Means 900 Pixel

102 Means 1024 Pixel

108 Means 1080 Pixel

T(F) Product based on TI (Freescale) CPU
050 LCD Dimension

050 Means 5.0 Inch

070 Means 7.0 Inch

080 Means 8.0 Inch

097 Means 9.7 Inch

101 Means 10.1 Inch

104 Means 10.4 Inch

120 Means 12.0 Inch

150 Means 15.0 Inch

170 Means 17.0 Inch

190 Means 19.0 Inch

215 Means 21.5 Inch

E Means Embedded PC or Panel PC

E  Means Embedded PC without Case

P  Means Panel PC with Case

C Means Touch Type

R  Means Resistive Touch

C  Means Capacitive Touch

1 Means LCD Brightness

1  Means Common Brightness

2  Means High Brightness

5 PCB Version

Baseboard PCB Version Number

1 PCB Version

SOM Module PCB Version Number

Hardware Features

Key Features:
CPU AM3354ZCZ100,ARM Cortex A8, 1GHz
RAM 512MB DDR3 (Industrial)
Storage TF card, supports up to 32GB SDHC
Display Dimension: 5Inch;

Resolution:800 x 480Pixel;

Touch Capacitive or Resistive Touch
USB 1 x USB 2.0 Host,1 USB OTG

(can be customized to 2 x Host)

LAN 1 Channel 100M LAN
Audio 3.5mm Audio In/Out Connector
Buzzer 1
RS232 2 Channels
RS485 2 Channels *
CAN 1 Channels *
GPIO 8 Channels
WiFi/BT USB WiFi, Optional
4G/LTE None
Power Input 6~36V DC
Current @ 12V 400 mA max
Power Consumption 3.5W Typical
Working Temperature -20°C to +70°C
OS Android, Linux, Debian, Angstrom
Dimension CS80480T050E: 134.2*86.82*28mm mm

CS80480T050P: 150*110*26.5 mm

Weight CS80480T050E: 210g

CS80480T050P: 440g

* The RS485 and CAN channels may be customized to the following arrangement:

2 x RS485, 1 x CAN (Default)

1 x RS485, 2 x CAN

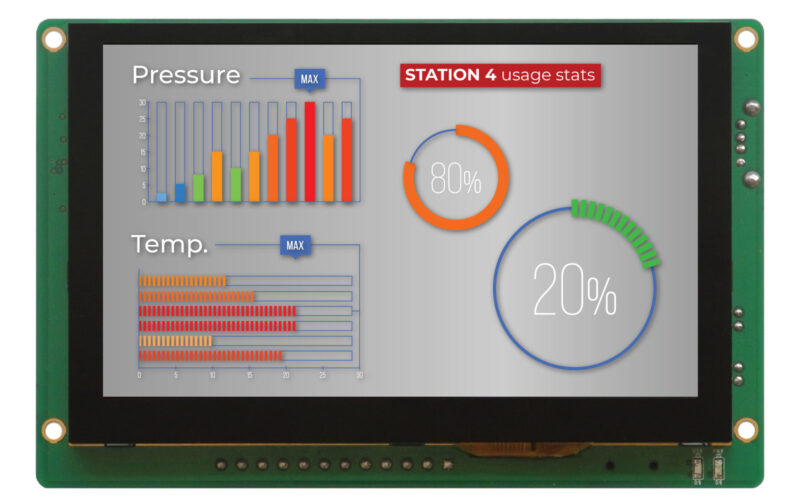

Figure 1 Top View (Android)

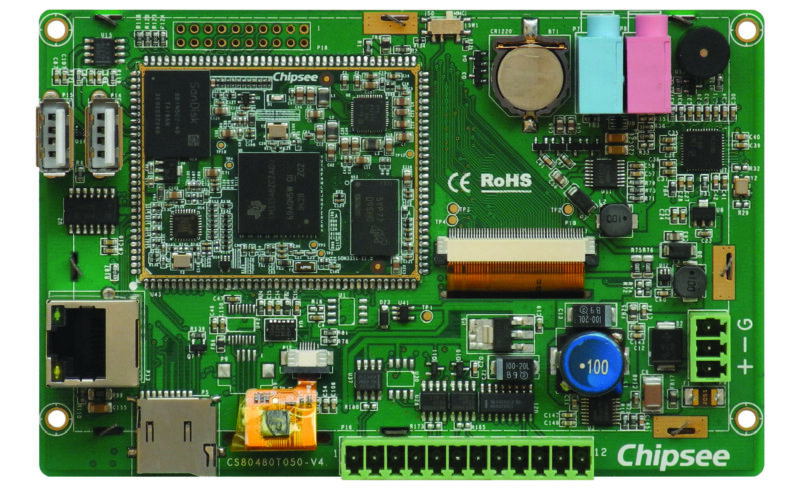

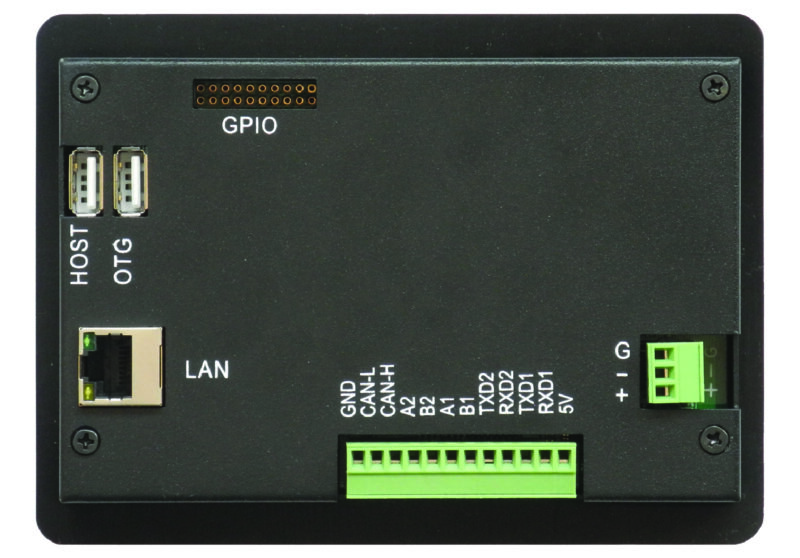

Figure 2 Back View

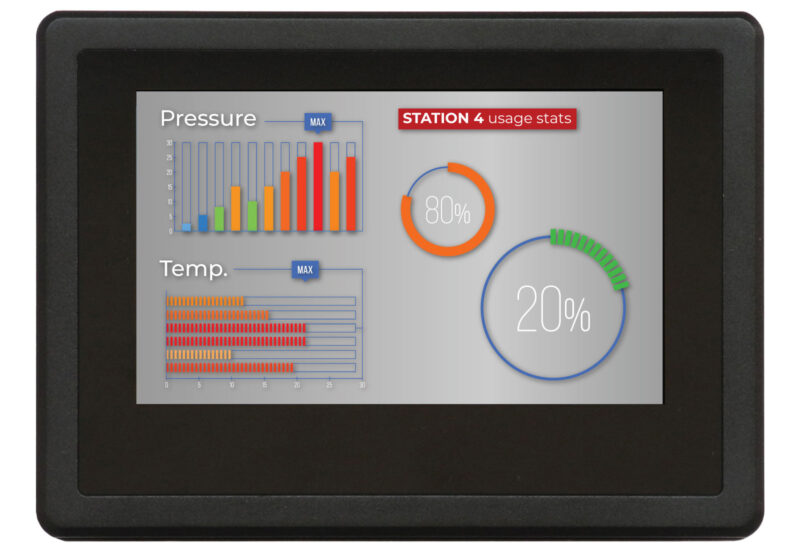

Figure 3 Top View (Android)

Figure 4 Back View

Power Input Connector

The product CS80480T050E/CS80480T050P uses a wide range power input: DC6~36V. The total power consumption is normally about 3.5W. The Power Input Connector is 3 Pin 3.81mm Screw Terminal Connector as Figure 5 shows. It is labelled as P6 on PCB, and labelled as P3 on the metal case. The Character “+” means power Positive input, The Character “” means power Negative input. The Character “G” means system Ground. Table 1 has detailed descriptions about the connector definition.

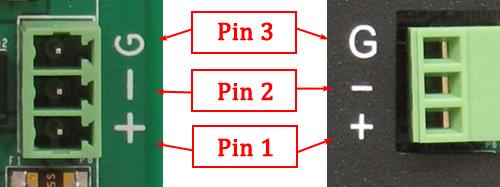

Figure 5 Power Input Connector

Table 1

Power Input Pin Definition:
Pin Number Definition Description
Pin 1 Positive Input Connect to DC Power Positive Terminal
Pin 2 Negative Input Connect to DC Power Negative Terminal
Pin 3 Ground Connect to Power System Ground


The system ground “G” has been connected to power negative “-” on board.

Capacitive Touch

The product CS80480T050E/CS80480T050P uses ten-point capacitive touch, as Figure 6 shows.

Figure 6 Capacitive Touch Connector


Capacitive touch is very sensitive to power noise. Ripple voltage/current from the power adapter will cause the LCD ripples, and will also cause the capacitive touch malfunction: If you use the APK Multi-Touch under Android to test, you can find the touch point float. There are several ways to solve this problem:

1)  Use a high quality power adapter. Or use battery to provide the power like cell phone or tablet PC.

2)  If user power adapter isn’t be good enough, there’s another effective method to solve this problem: Make sure the CS80480T050E/CS80480T050P power input connector Pin 3 really connect to user “Power System Ground”. This method can eliminate the problem totally. User can also use another method to test this problem: touch the GND of CS80480T050E, CS80480T050P by one hand, the other hand operates on the capacitive touch screen. In this case, user’s body acts as the Power System Ground.

Resistive Touch

The product CS80480T050E/CS80480T050P can also use resistive touch, as Figure 7 shows.

Figure 7 Resistive Touch Connector

CAN+RS485+RS232 Connector

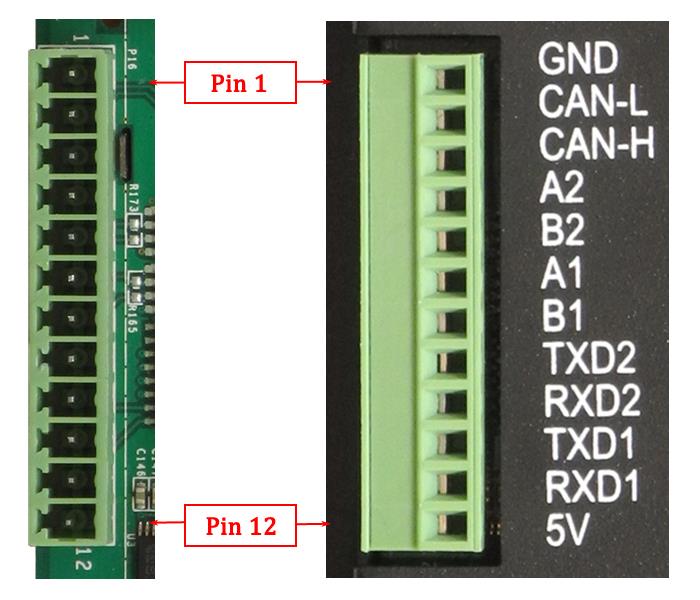

The CAN+RS485+RS232 connector is a 12 Pin 3.81mm Screw Terminal Connector, as Figure 8 shows. It is labelled as P16 on PCB. As for the definition of every pin, please refer to Table 2. The RS485 and CAN channels may be customized to the following arrangements. If you need any other setting different to the default setting, please contact us.

CAN+RS485+RS232 Settings:

2 x RS485, 1 x CAN (Default)

1 x RS485, 2 x CAN

Figure 6 CAN+RS485+RS232 Connector

Table 2

RS232 / RS485 / CAN Pin Definition:
Pin Number Definition Description
Pin 1 GND Isolated Ground Output
Pin 2 CAN_L DCAN0 of CPU,CAN L Signal
Pin 3 CAN_H DCAN0 of CPU,CAN H Signal
Pin 4 A2 UART4 of CPU, RS485 A Signal
Pin 5 B2 UART4 of CPU, RS485 B Signal
Pin 6 A1 UART2 of CPU, RS485 A Signal
Pin 7 B1 UART2 of CPU, RS485 B Signal
Pin 8 TXD2 UART1 of CPU,RS232 TXD Signal
Pin 9 RXD2 UART1 of CPU,RS232 RXD Signal
Pin 10 TXD1 UART0 of CPU, RS232 TXD Signal
Pin 11 RXD1 UART0 of CPU,RS232 RXD Signal
Pin 12 +5V Isolated +5V Power Output, No more than 200mA Current output.

USB HOST Connector

The product CS80480T050E/CS80480T050P has two USB connectors as Figure 9 shows. USB Host comes from the CPU USB1, labelled as P15 on the PCB. USB OTG comes from the CPU USB0, labelled as P14 on the PCB.

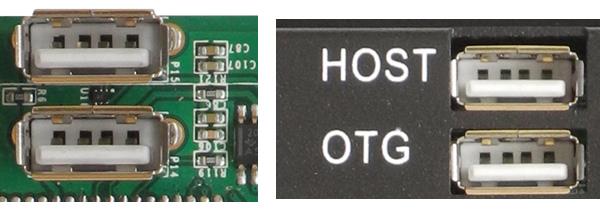

Figure 9 USB HOST Connector


The OTG Connector is defined as HOST by default (If the customer uses Android OS, it is defined as OTG by default). If customer needs it work as OTG, please remove 0 Ohm Resistor R119 and R121 as Figure 9 shows.

LAN Connector

The product CS80480T050E/CS80480T050P has one channel 100Mbit Ethernet Connector, as Figure 10 shows. It is labelled as P13 on PCB.

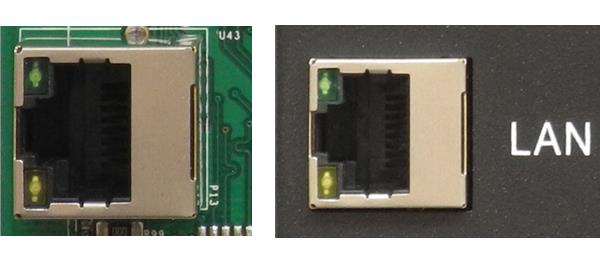

Figure 10 LAN Connector

TF Card

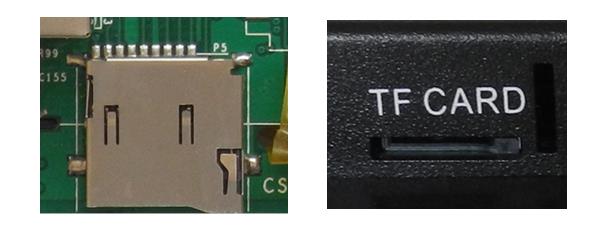

The product CS80480T050E/CS80480T050P has one TF (uSD) card connector as Figure 11 shows. It is labelled as P5 on PCB. This device supports TF (uSD) card up to 32GB.

Figure 11 TF Card Connector


The TF card slot is NOT mounted with any TF card by default.

Audio Connector

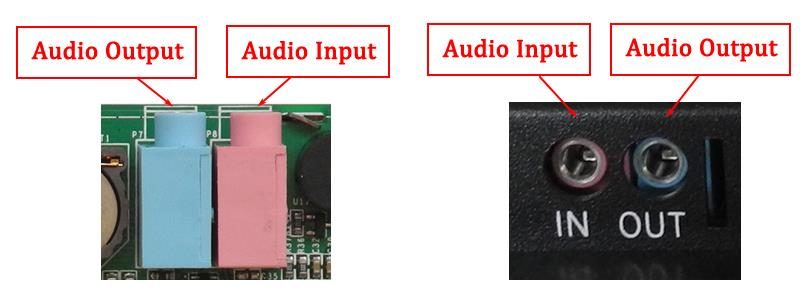

The product CS80480T050E/CS80480T050P has one Audio Input (“Line-in”) and one Audio (“Line-out”) output, as Figure 12 shows.

Figure 12 Audio Connector

Boot Switch

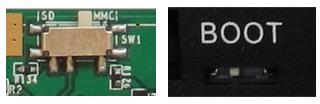

The product CS80480T050E/CS80480T050P has a boot switch which can be used to change the boot sequence, as Figure 13 shows. It is defined as SW1 on the PCB. The position can either be SD or eMMC. The device will boot from the location selected.

Figure 13 Boot Switch

Expansion Connector

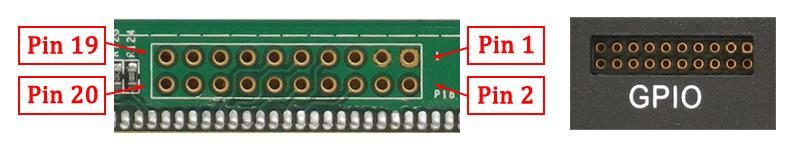

The product CS80480T050E/CS80480T050P has one Expansion Connector, as Figure 14 shows. This connector is labelled as P1 on the PCB, and it has connected to CPU GPIO/ADC/SPI/I2C signals. As for the definition of every Pin, please refer to Table 3.

Figure 14 Expansion Connector

Table 3

Expansion Connector Definition:
PIN  Function CPU PIN PIN Function CPU PIN
1 GND Power Ground 2 VDD_5V0 +5V  Power
3 GND Power Ground 4 VDD_3V3 +3.3V Power
5 GPMC_A1 V14 6 GPMC_A3 T14
7 GPMC_A2 U14 8 GPMC_A5 V15
9 GPMC_A4 R14 10 GPMC_A7 T15
11 GPMC_A6 U15 12 GPMC_A8 V16
13 SPI0_D1 B16 14 SPI0_D0 B17
15 SPI0_CS0 A16 16 SPI0_CLK A17
17 AIN4 C8 18 AIN5 B8
19 AIN6 A8 20 AIN7 C9


All these signals connect to CPU directly. Please use it carefully, or the CPU will be damaged easily.

Measurements and Mounting

Measurements and Mounting Method of CS80480T050E

The measurement of CS80480T050E is 134.2*86.82*28mm, as Figure 15 shows.

The product CS80480T050E can be mounted using the 4 screw holes on the PCB. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

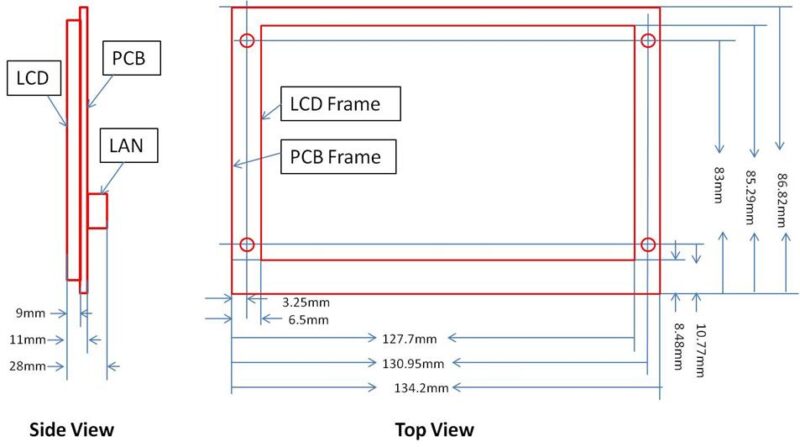

Figure 15 Dimension

Measurements and Mounting Method of CS80480T050P

The measurement of CS80480T050P is 150*110*26.5 mm. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Figure 16 Mounting Method

How to Get Support

Chipsee assumes no responsibility for any errors, which may appear in this manual. Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein. Chipsee products are not authorized for use as critical components in life support devices or systems.
