User Manual
Release 1.0


Chipsee Products Naming Rules
CS80600T080E-R133CS80600T080P-R133 |
|
CS | Chipsee Product Abbreviate |
80 | Horizontal Resolution
80 Means 800 Pixel 10 Means 1024 Pixel 12 Means 1280 Pixel |
600 | Vertical Resolution
480 Means 480 Pixel 600 Means 600 Pixel 768 Means 768 Pixel 800 Means 800 Pixel |
T(F) | Product based on TI(FreeScale) CPU |
080 | LCD dimension
050 Means 5.0 Inch 070 Means 7.0 Inch 080 Means 8.0 Inch 097 Means 9.7 Inch 101 Means 10.1 Inch 104 Means 10.4 Inch |
E | Means Embedded PC or Panel PC E Means Embedded PC without Case P Means Panel PC with Case |
R | Means Touch type R Means Resistive Touch C Means Capacitive Touch |
1 | Means LCD Brightness 1 Common brightness 2 High Brightness |
3 | Means PCB Version Version Number, Will change with PCB version |
3 | Means SOM Version Version Number, Will change with SOM module version |
Hardware Features
Key features:
Sitara Core | AM3354ZCZ100 |
CPU | ARM Cortex A8, 1GHz |
RAM | 512MB DDR3 (Industrial) |
eMMC | 4GB (Industrial) |
Storage | uSD card, supports up to 32GB SDHC |
5.0 Inch Display | 8.0Inch LCD,800 x 600 Pixel Resolution |
Touch | Resistive Touch |
USB | 4 x USB 2.0 Host
(can be customized to HOST or OTG) |
LAN | 1 Channel 100M LAN |
Audio | 3.5mm Audio In/Out Connector |
Buzzer | 1 |
RTC | Yes |
RS232 | 2 Channels |
RS485 | 2 Channels * |
CAN | 1 Channel *
(drivers available for Linux only) |
GPIO | 4 Input, 4 Output, 1000V DC Isolated |
WiFi/WCDMA+GPS | Optional |
Power Input | 6~42V DC |
Current @ 12V | 400 mA max |
Power Consumption | 6W |
Working Temperature | -20°C to +70°C |
OS | Android,LinuxDebian,Angstrom |
Dimension | CS80600T080E: 199*149*29mm
CS80600T080P: 226*175*31mm |
Weight | CS80600T080E: 580g
CS80600T080P: 1070g |
* The RS485 and CAN channels may be customized to the following arrangements:
- 2 x RS485, 1 x CAN(Default)
- 1 x RS485, 2 x CAN
CS80600T080E-R133

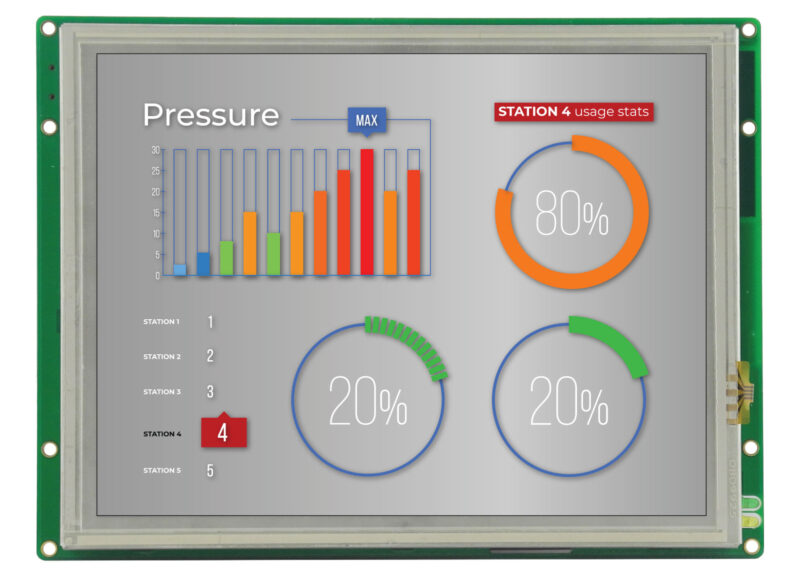

Figure 1 Top View

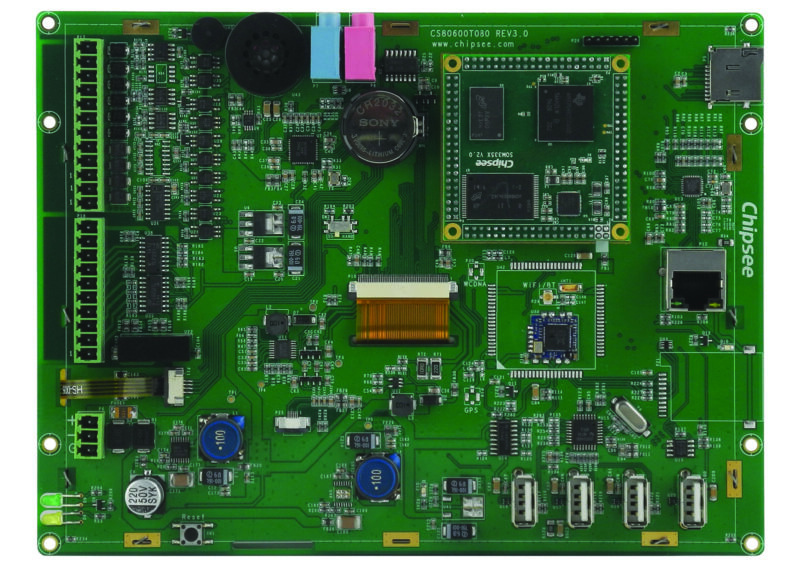

Figure 2 Back View
CS80600T080P-R133

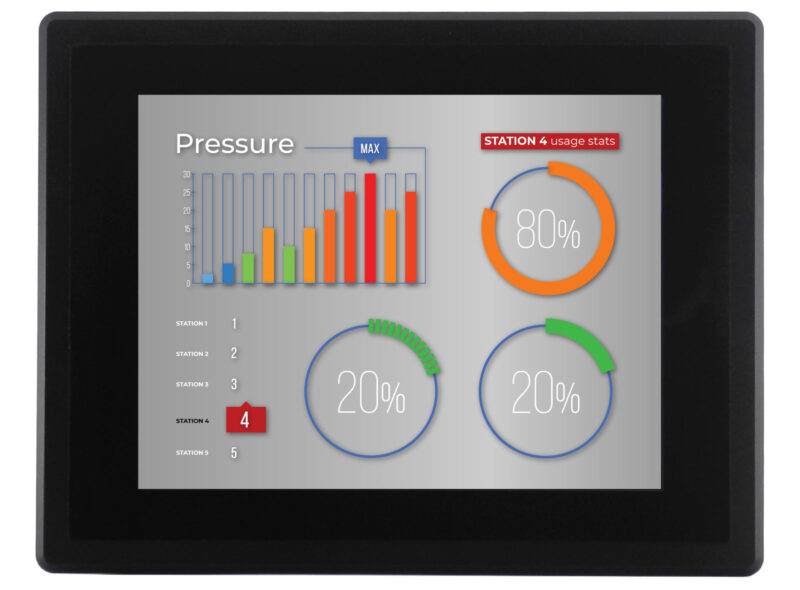

Figure 3 Top View

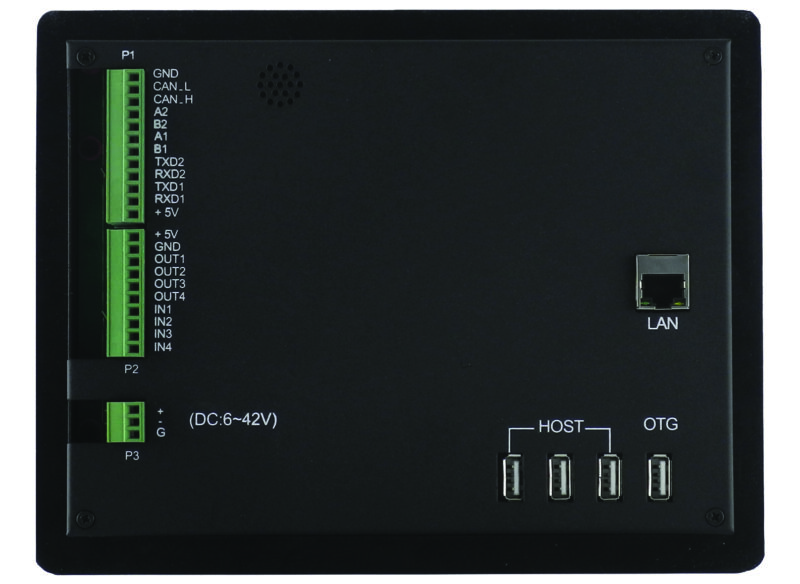

Figure 4 Back View
Power Input Connector
The product CS80600T080E/CS80600T080P use a wide range of power Input: DC 6~42V. And the total power Consumption is normally about 6W. The Power Input Connector is 3 Pin 3.81mm Screw Terminal connector as Figure 5 Power Input Connector and Figure 4 Back View. It is labelled as P6 on the PCB. The Character “+” means power Positive input, The Character “–” means power Negative input. The Character “G” means system Ground. Table 2 have detailed description about the connector definition.

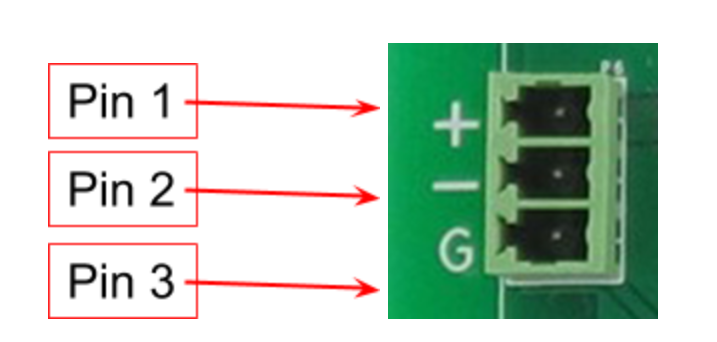

Figure 5 Power Input Connector
Table 1
Power Input Pin Definition: | ||
Pin Number | Definition | Description |
Pin 1 | Positive Input | Connect to DC Power Positive Terminal |
Pin 2 | Negative Input | Connect to DC Power Negative Terminal |
Pin 3 | Ground | Connect to Power System Ground |
Please note:
The system ground “G” has been connected to power Negative “–” on board.
Resistive Touch
Product CS80600T080E/CS80600T080P use resistive touch, As Figure 6 shows.

Figure 6 Resistive Touch Connector
CAN+RS485+RS232 Connector
The RS232 / RS485 / CAN connector is a 12 Pin 3.81mm Screw Terminal connector.
It is defined as P17 on the PCB as shown in Figure 4 Back View and Figure 7 RS232 / RS485 / CAN Connector.

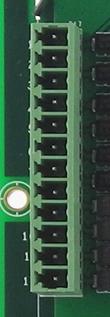

Figure 7 RS232 / RS485 / CAN Connector
As for the definition of every Pin, please refer to Table 3. This product can customized to inherit two CAN channels. If two CAN channels are needed, please contact us.
RS232 / RS485 / CAN Pin Definition
Table 3
RS232 / RS485 / CAN Pin Definition: | ||
Pin Number | Definition | Description |
Pin 1 | GND | Isolated Ground Output |
Pin 2 | CAN_L | DCAN0 of CPU,CAN L Signal |
Pin 3 | CAN_H | DCAN0 of CPU,CAN H Signal |
Pin 4 | A2 | UART4 of CPU, RS485 A Signal |
Pin 5 | B2 | UART4 of CPU, RS485 B Signal |
Pin 6 | A1 | UART2 of CPU, RS485 A Signal |
Pin 7 | B1 | UART2 of CPU, RS485 B Signal |
Pin 8 | TXD2 | UART1 of CPU,RS232 TXD Signal |
Pin 9 | RXD2 | UART1 of CPU,RS232 RXD Signal |
Pin 10 | TXD1 | UART0 of CPU, RS232 TXD Signal |
Pin 11 | RXD1 | UART0 of CPU,RS232 RXD Signal |
Pin 12 | +5V | System +5V Power Output, No more than 1A Current output |
TheRS485 and CAN channels may be customized by Chipsee to the following arrangements:
- 2 x RS485, 1 x CAN(Default)
- 1 x RS485, 2 x CAN
GPIO Connector Definition
GPIO Connector use 10 PIN 3.81mm Connector,It defined as P18 on the PCB board, As figure 8。

Figure 8 GPIO Connector
At the upside of the Connector,There are numbers from” 1” to “10”,it means the Pin number of the connector. As for the definition of every Pin, please refer to Table 4。
Attention: all the isolated GPIO use 5V Logic by default. If the customer provides external isolated power, the GPIO logic can be changed according to customer power (the “FB15” and “FB16” need to be removed on the PCB).
Table 4
PIN number | Definition | Description |
1 | VCC | Isolated Power +5V Output |
2 | GND | Isolated Ground |
3 | OutPut_1 | Isolated Output 1 |
4 | OutPut_2 | Isolated Output 2 |
5 | OutPut_3 | Isolated Output 3 |
6 | OutPut_4 | Isolated Output 4 |
7 | InPut_1 | Isolated Input 1 |
8 | InPut_2 | Isolated Input 2 |
9 | InPut_3 | Isolated Input 3 |
10 | InPut_4 | Isolated Input 4 |
USB Connector
The product CS80600T080E/CS80600T080P have 4 USB connector, as Figure 9 shows. These USB connectors can customize to Host or Slave. All these connectors have been defined as HOST by default.

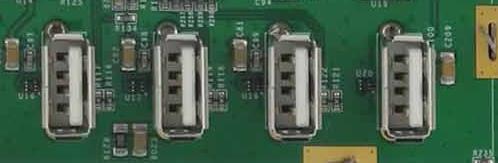

Figure 9 USB connector
Please note:
The OTG Connector P16 (USB0) is defined as HOST by default. If needed defined as Slave (OTG), please Remove two 0603 Package 0 Ohm Resistors R1339 and R121 as Figure 9 shows.
LAN Connector
The product CS80600T080E/CS80600T080P feature one channel 100Mbit Ethernet. The connector can be found on the PCB labelled as P12 as Figure 10 LAN Connector shows.

Figure 10 LAN Connector
uSD Card
As in Figure 11 uSD card connector labelled as P5 on the PCB.The device supports uSD cards up to 32GB.

Figure 11 TF Card (uSD) Connector
Please note: The uSD card Slot is NOT Mounted with any uSD card by default.
Boot Switch
The Device features a boot switch which can be used to change boot sequence. It is defined as SW1 on the PCB as shown in Figure 4 Back View and Figure 12 Boot Switch. The position can either be NAND or uSD. The device will boot from the location selected.

Figure 12 Boot Switch
Audio Connector
As Figure 13 Audio Connector shows, the unit has got one Audio Input (“Line-in”) and one Audio (“Line-out”) output.

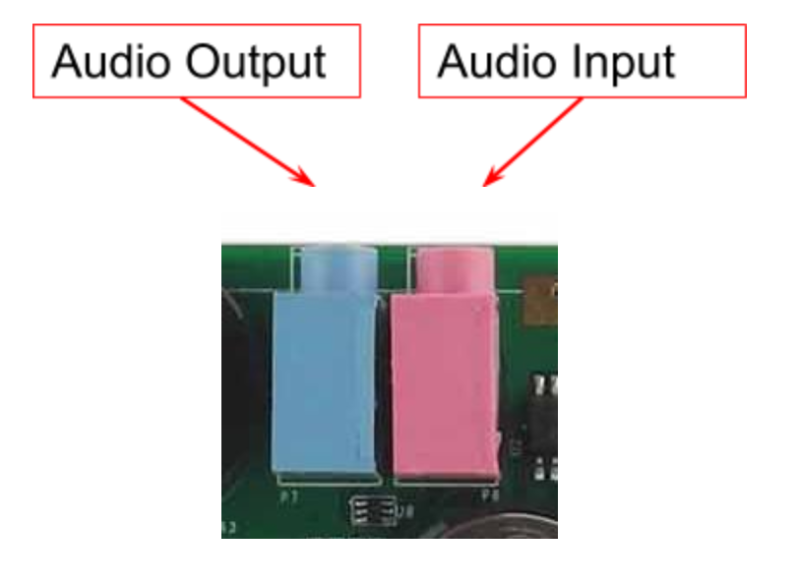

Figure 13 Audio Connector
Measurements and Mounting
How to Mount the Embedded PC
The product CS80600T080E/CS80600T080P can be mounted using the 8 screw holes on the PCB as shown in Figure 14. Please make sure the display is not exposed to high pressure when mounting into an enclosure.
How to Mount the Panel PC

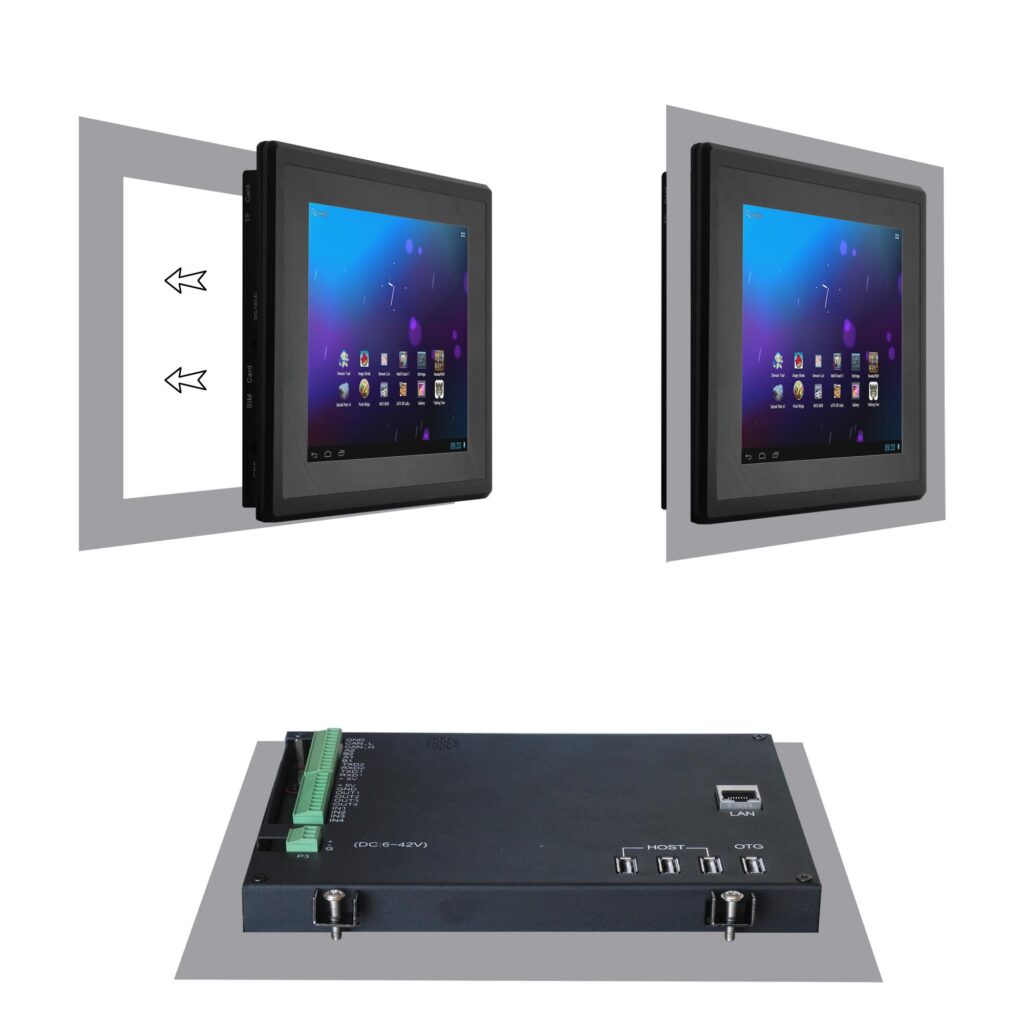

Figure 14 Mounting Method
How to Get Support
Chipsee assumes no responsibility for any errors, which may appear in this manual. Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein. Chipsee products are not authorized for use as critical components in life support devices or systems.
