PPC/EPC-A9-101-C

User Manual

Release 1.0

Chipsee Products Naming Rules

CS12800F101E-C141
CS12800F101P-C141
CS Chipsee Product Abbreviations
12 Horizontal Resolution

80 Means 800 Pixel

10 Means 1024 Pixel

12 Means 1280 Pixel

14 Means 1440 Pixel

19 Means 1920 Pixel

800 Vertical Resolution

480 Means 480 Pixel

600 Means 600 Pixel

768 Means 768 Pixel

800 Means 800 Pixel

900 Means 900 Pixel

102 Means 1024 Pixel

108 Means 1080 Pixel

F(T) Product based on Freescale (TI) CPU
101 LCD Dimension

050 Means 5.0 Inch

070 Means 7.0 Inch

080 Means 8.0 Inch

097 Means 9.7 Inch

101 Means 10.1 Inch

104 Means 10.4 Inch

120 Means 12.0 Inch

150 Means 15.0 Inch

170 Means 17.0 Inch

190 Means 19.0 Inch

215 Means 21.5 Inch

P Means Embedded PC or Panel PC

E  Means Embedded PC without Case

P  Means Panel PC with Case

C Means Touch Type

R  Means Resistive Touch

C  Means Capacitive Touch

1 Means LCD Brightness

1  Means Common Brightness

2  Means High Brightness

4 PCB Version

Baseboard PCB Version Number

1 PCB Version

SOM Module PCB Version Number

Hardware Features

Key Features:
CPU iMX6Q, Quad-A9,1GHz
RAM 2GB DDR3
eMMC 8GB
Storage TF card, supports up to 32GB SDHC
Display 10.1 inch IPS LCD, 1280*800 Pixel Resolution, 16:9
Brightness: 250nit
Touch Ten-Point Capacitive Touch
USB 2 x USB 2.0 Host, 1 x USB OTG
LAN 1 x 1000M LAN, supports POE
1 x 100M LAN optional
Audio 3.5mm Audio In/Out Connector, 2W Speaker Internal
Buzzer 1
RTC Yes
RS232 2 Channels
RS485 3 Channels *
CAN 2 Channels
GPIO 8 Channels
WiFi/BT On-Board WIFI/BT
HDMI 1 Channel
SATA II 1 Channel
4G/LTE Optional, not mounted by default.
Power Input 12~36V DC
Current @ 15V 600 mA max (without 4G module)
Power Consumption 7W Typical
Working Temperature -20°C to +70°C
OS Android, Ubuntu, Linux
Dimension CS12800F101E: 245 x 155 x 11 mm
CS12800F101P: 280 x 185.5 x 27.5 mm
Weight CS12800F101E: 600g
CS12800F101P: 1410g

* This product has 5 channels of UART in total. One UART channel is used for the Bluetooth by default, so the default setting is 2*RS232+2*RS485+Bluetooth. The UART can be changed between RS232 and RS485 easily. If you want different RS232 and RS485 setting, please contact us.

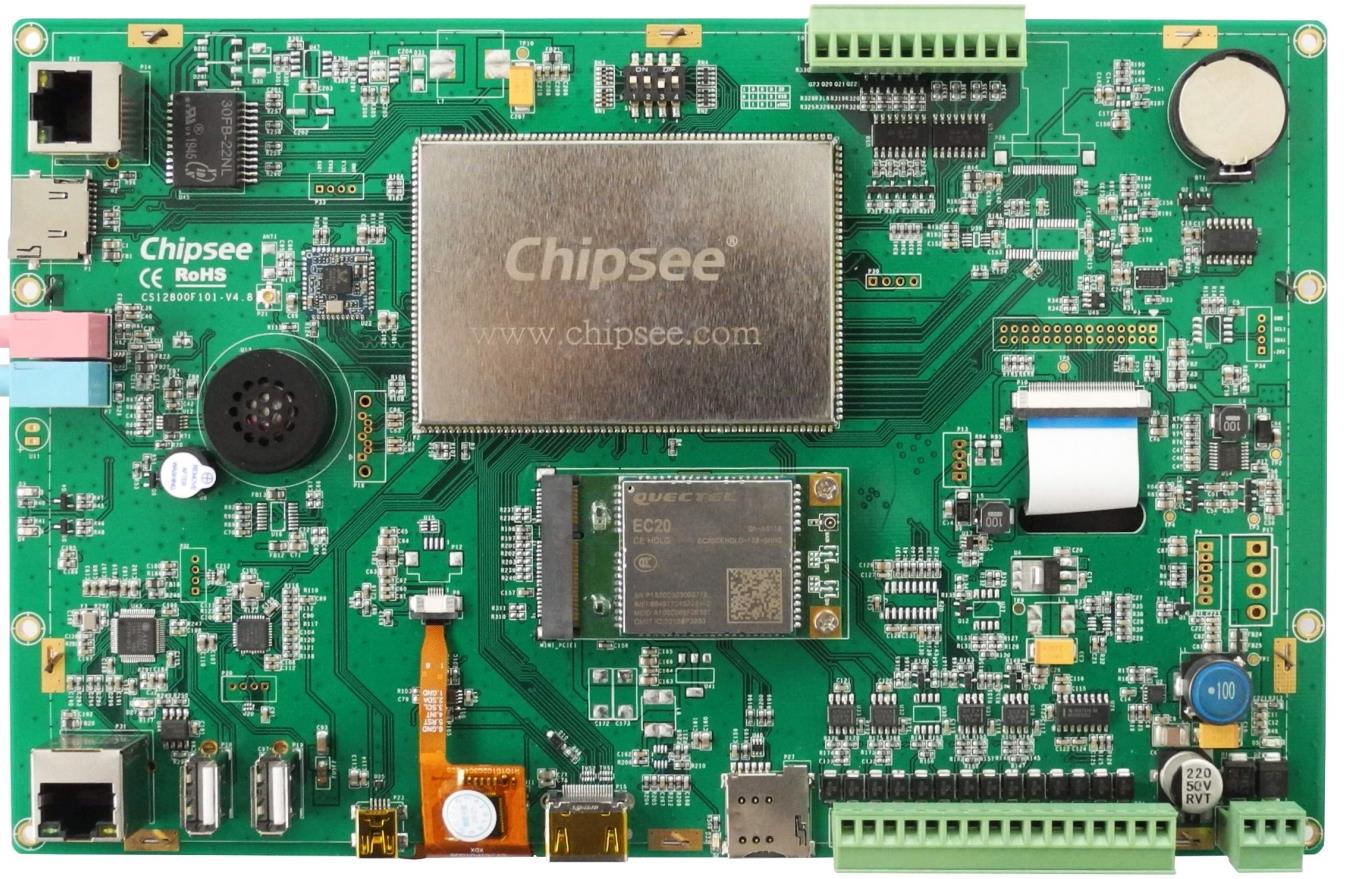

CS12800F101E-C141

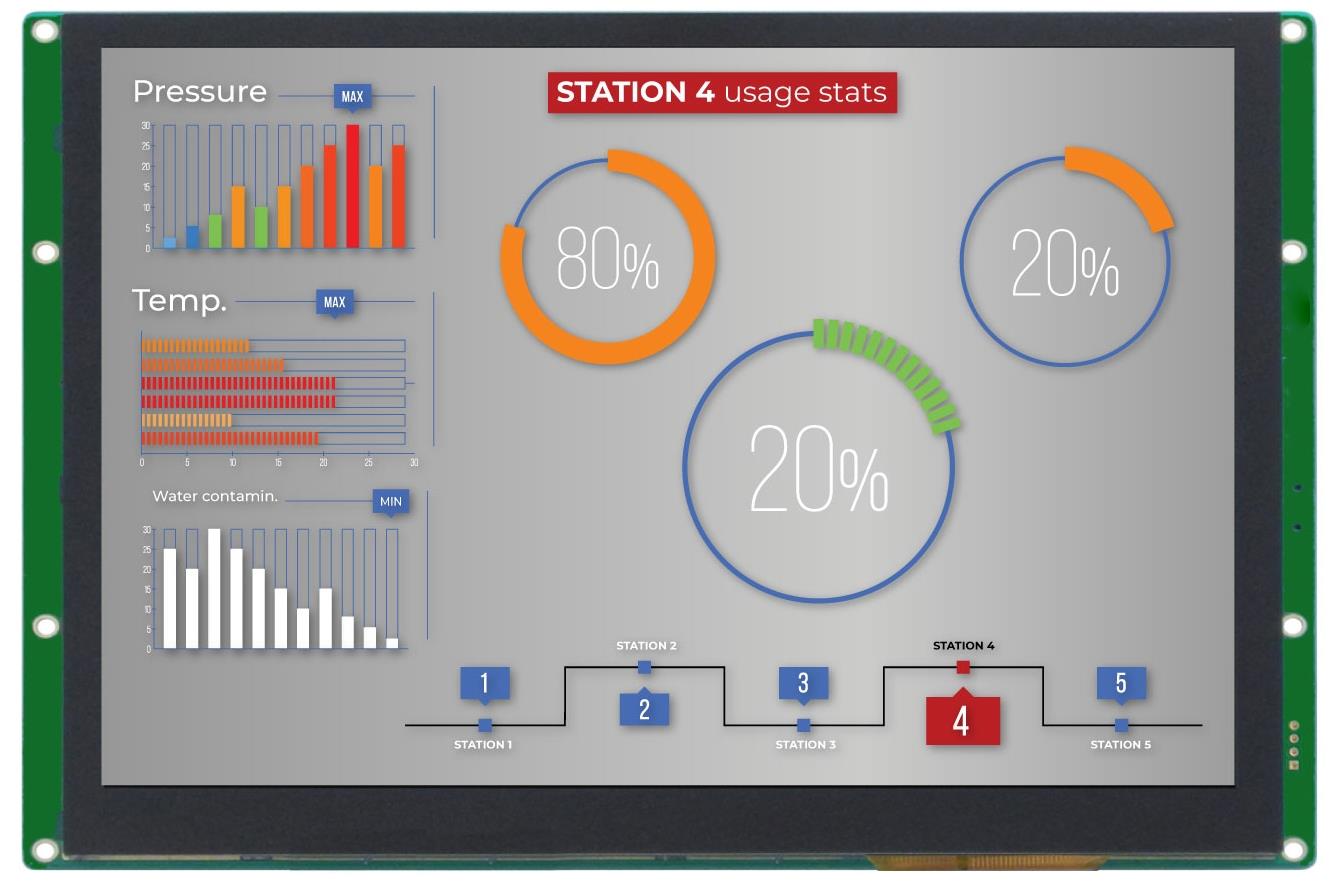

Figure 1: Front View (Android)

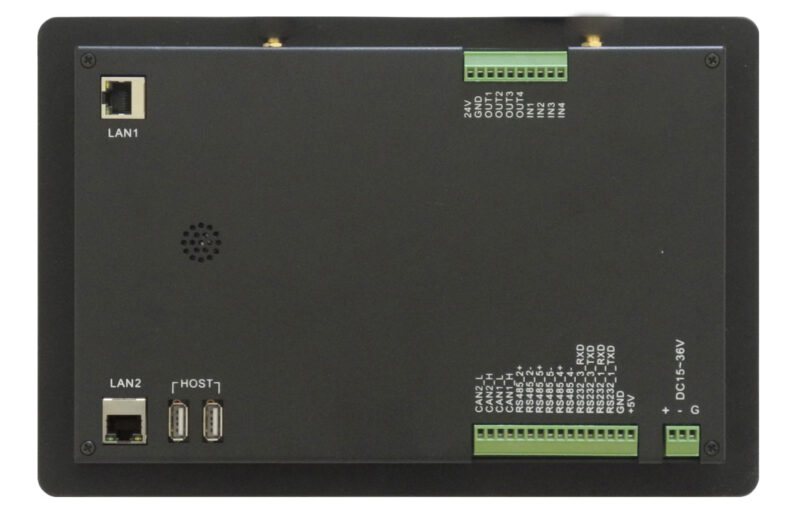

Figure 2: Back View

CS12800F101P-C141

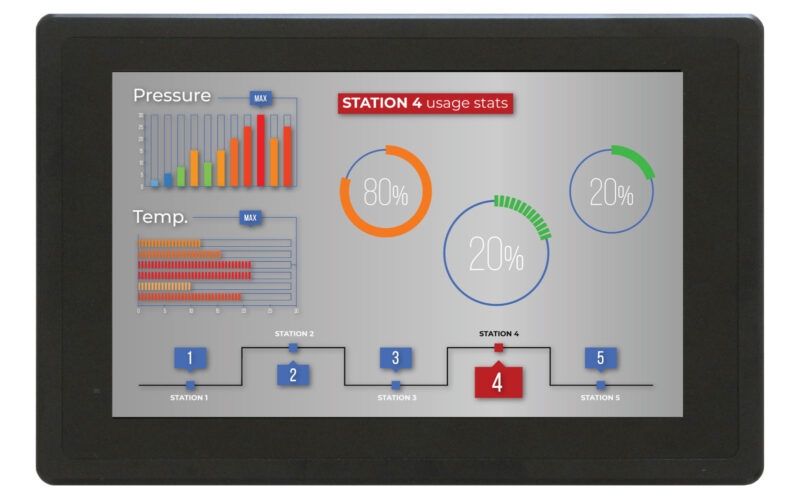

Figure 3: Front View

Figure 4: Back View

Power Input Connector

The product CS12800F101E/CS12800F101P uses a wide-range power input DC 12~36V. The total power consumption is normally about 7W. The Power Input Connector is a 3 Pin 3.81mm Screw Terminal Connector, as Figure 5 shows. A detailed description of the power input connector pins is provided in Table 1

Figure 5: Power Input Connector

Table 1

Power Input Pin Definition:
Pin Number Definition Description
Pin 1 Positive Input Connect to DC Power Positive Terminal
Pin 2 Negative Input Connect to DC Power Negative Terminal
Pin 3 Ground Connect to Power System Ground

ATTENTION:

The system ground “GND” has been connected to power negative “-” on board.

Capacitive Touch

The product CS12800F101E/CS12800F101P uses ten-point capacitive touch.

ATTENTION:

Capacitive touch is very sensitive to power noise. Ripple voltage/current from the power adapter will cause the LCD ripples, and will also cause the capacitive touch malfunction. If you use the APK Multi-Touch under Android to test, you can find the touchpoint float. There are several ways to solve this problem:

1)  Use a high-quality power adapter. Or a battery to provide power like a cell phone or tablet PC.

2)  If the power adapter isn’t good enough, make sure the CS10600U070E/CS10600U070P power input connector Pin 3 is connected to the Ground. This method can eliminate the problem totally. You can test it by touching the GND of CS10600U070E/CS10600U070P with one hand, while the other hand operates on the capacitive touch screen. In this case, the user’s body acts as the Power System Ground.

CAN+RS485+RS232 Connector

The CAN+RS485+RS232 connector is a 16 Pin 3.81mm Screw Terminal Connector, as Figure 6 shows. As for the definition of every pin, please refer to Table 2. This product has 5 channels of UART in total that can be freely configured as RS232 or RS485. If you need any other setting different from the default one, please contact us.

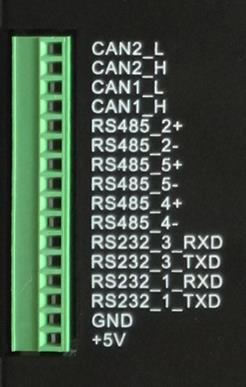

Figure 6: CAN+RS485+RS232 Connector

Table 2

RS232 / RS485 / CAN Pin Definition:
Pin Number Definition Description
Pin 1 CAN2_L CPU CAN Channel 2 L signal
Pin 2 CAN2_H CPU CAN Channel 2 H signal
Pin 3 CAN1_L CPU CAN Channel 1 L signal
Pin 4 CAN1_H CPU CAN Channel 1 H signal
Pin 5 RS485_2+ CPU UART2, RS485 +(B) signal
Pin 6 RS485_2- CPU UART2, RS485 -(A) signal
Pin 7 RS485_5+ CPU UART5, RS485 +(B) signal
Pin 8 RS485_5- CPU UART5, RS485 -(A) signal
Pin 9 RS485_4+ CPU UART4, RS485 +(B) signal
Pin 10 RS485_4- CPU UART4, RS485 -(A) signal
Pin 11 RS232_3_RXD CPU UART3, RS232 RXD signal
Pin 12 RS232_3_TXD CPU UART3, RS232 TXD signal
Pin 13 RS232_1_RXD CPU UART1, RS232 RXD signal
Pin 14 RS232_1_TXD CPU UART1, RS232 TXD signal
Pin 15 GND System Ground
Pin 16 +5V System +5V Power Output, No more than 1A Current output.

ATTENTION:

  1. UART2 signal has been used by Bluetooth signal onboard. The RS485_2 function has been disabled by default. If you need the RS485_2 function, please contact us to disable the Bluetooth function.
  2. A 120Ohm resistor doesn’t come mounted by default with the product.

USB HOST Connector

There are two USB connectors, as shown in Figure 7, that can provide 500mA current each.

Figure 7: USB HOST Connector

USB OTG Connector

And one USB OTG connector as Figure 8 shows. It works as a slave by default and can be used to connect the host PC.

Figure 8: USB OTG Connector

LAN Connector

The product has one channel 1000Mbit Ethernet Connector(LAN1), as Figure 9 shows. And this port support POE (Power-On-Ethernet). The other channel 100Mbit Ethernet Connector is optional.

Figure 9: LAN Connector

TF Card

The product CS12800F101E/CS12800F101P has one TF(uSD) card connector as Figure 10 shows. This device supports TF(uSD) card up to 32GB.

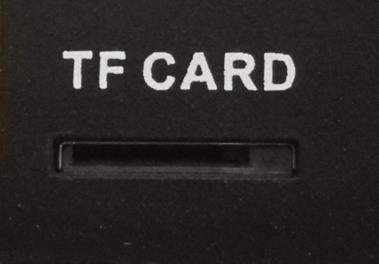

Figure 10: TF Card Connector

ATTENTION:

The TF card doesn’t come with the product by default.

SIM Card Holder

The SIM card holder is shown in Figure 11. To read the SIM card data, you need a 4G/LTE module. There is a mini-PCIe connector inside the CS12800F101E/CS12800F101P that enables a 4G/LTE module to be mounted. To connect the external 4G Antenna, shown in Figure 12, use a connector on the backside of the case.

Figure 11: SIM Card Holder

Figure 12: 4G Antenna

ATTENTION:

4G module is optional, it doesn’t come with the product by default. Only the Android 4.3 driver for 4G module is available at present.

Audio Connector

There is one Audio Input (“Line-in”) and one Audio (“Line-out”) output, as Figure 13 shows, as well as an internal 2W speaker.

Figure 13: Audio Connector

WiFi+BT

The product CS12800F101E/CS12800F101P has one WiFi+BT. It uses Realtech RTL8723 which integrates WiFi and BT. For CS12800F101P, there is a connector on the backside of the case that is used to connect an external WiFi/BT antenna, as Figure 14 shows.

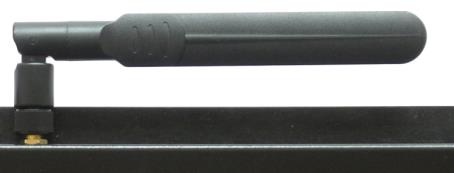

Figure 14: WiFi+BT Antenna

HDMI Connector

The product CS12800F101E/CS12800F101P has one HDMI connector as Figure 15 shows. The HDMI output resolution can be configured by software.

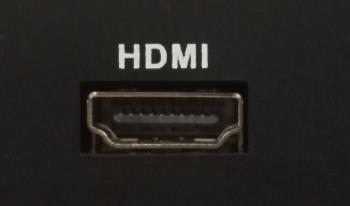

Figure 15: HDMI Connector

Boot Switch

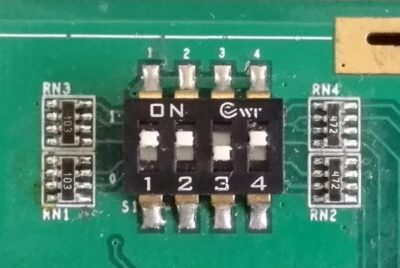

The product CS12800F101P has a boot switch that can be used to change the boot sequence, as Figure 16 shows. It is marked as SW2 on the PCB. As for the details on the boot switch functions, please refer to Table 3.

Figure 16: Boot Switch

Table 3

Boot Config Select:
Mode 1 2 3 4
TF Card 1 0 0 0
eMMC 1 1 0 1
Download 0 1 1 0

GPIO Connector

There is one GPIO Connector, as Figure 15 shows, marked as P28 on the PCB. As for the definition of every Pin, please refer to Table 4.

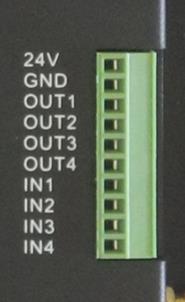

Figure 17: GPIO Connector

Table 4

GPIO Connector Definition
Pin Number Definition
Pin 1 VCC, Isolated Power +5-24V Input
Pin 2 GND
Pin 3 OUT1
Pin 4 OUT2
Pin 5 OUT3
Pin 6 OUT4
Pin 7 IN1
Pin 8 IN2
Pin 9 IN3
Pin 10 IN4

ATTENTION:

All these signals are connected to the CPU directly. Please use it carefully, otherwise, the CPU can be easily damaged.

Camera

The product CS12800F101E/CS12800F101P supports one channel CMOS camera. You should open the product’s backside of the case to find the camera connector, shown in Figure 18. It is marked as P26 on the PCB and supports camera OV2659, OV5640.

Figure 18: Camera Connector

Dimensions and Mounting

CS12800F101E

The dimensions of CS12800F101E are 245*155*11 mm, as Figure 19 shows.

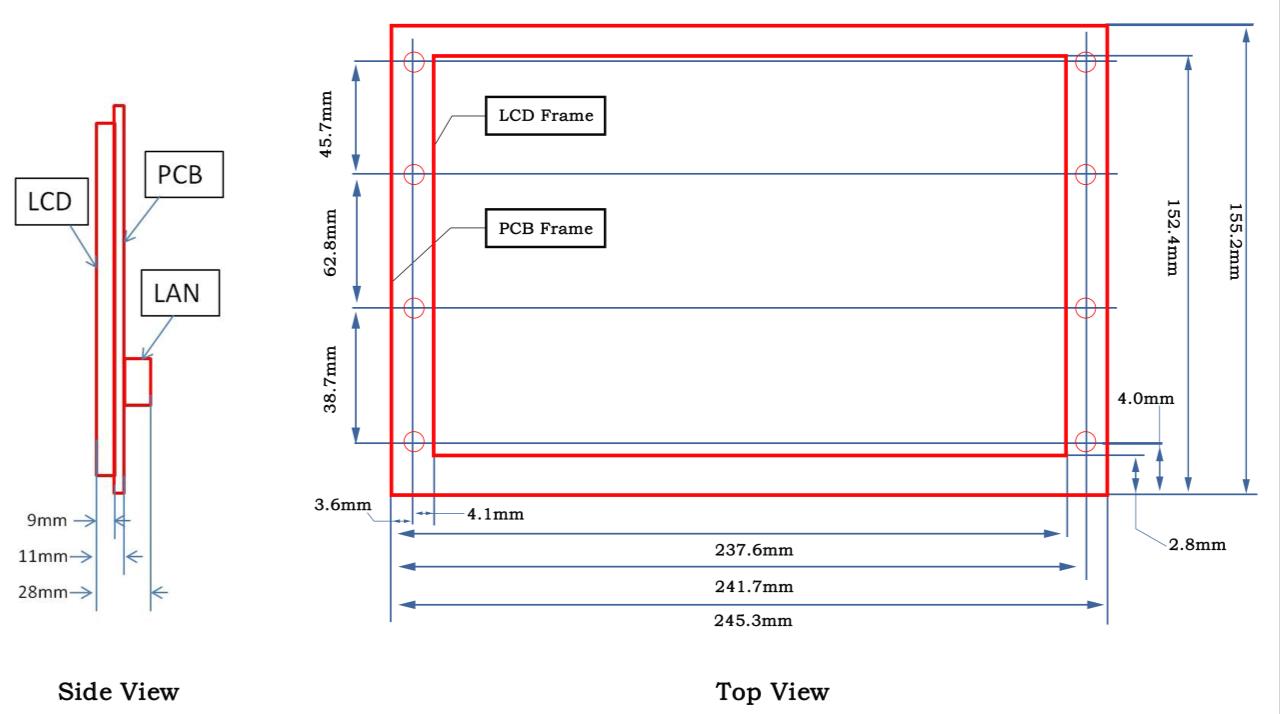

Figure 19: Dimensions

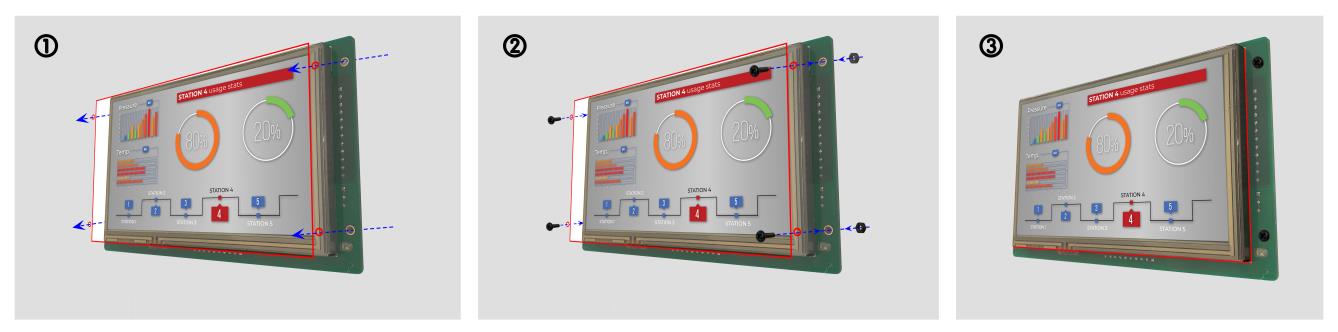

The product CS12800F101E can be mounted using the 4 screw holes on the PCB as shown in Figure 20. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Figure 20: Mounting Method

CS12800F101P

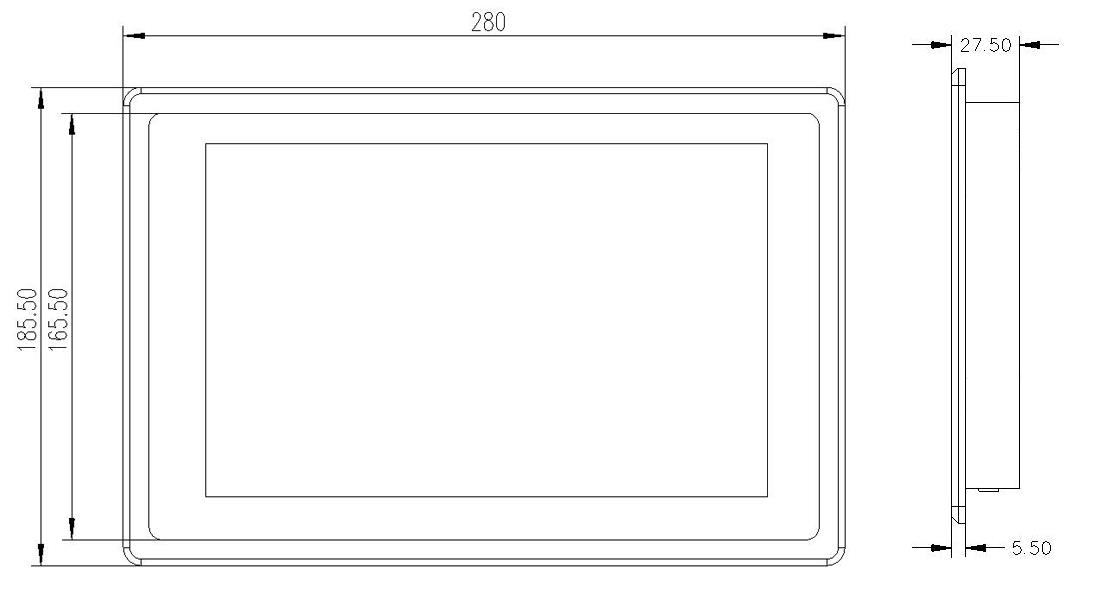

The dimensions of CS12800F101P are 280*185.5*27.5 mm, as Figure 21 shows.

Figure 21: Dimensions

This product CS12800F101P can be mounted using the panel mounting method, as Figure 22 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

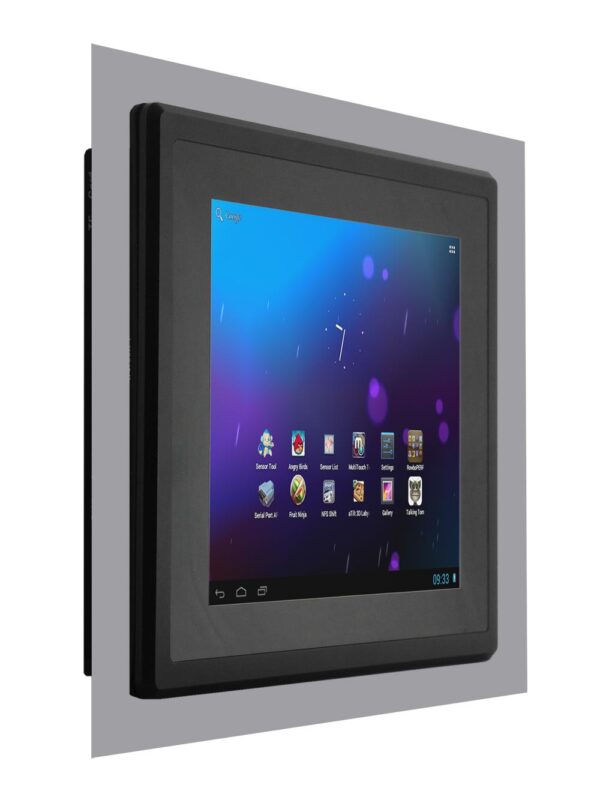

Figure 22: Mounting Method

How to Get Support

Please feel free to contact us with any questions, queries or suggestions.

If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution.

If you cannot find the solution you are looking for then please write to contact@chipsee.com providing all possible details.

Was this article helpful to you? Yes 1 No
