User Manual
Release 1.0
Chipsee Products Naming Rules
| CS10768F121P-U-C111 | |
| CS | Chipsee Product Abbreviate |
| 10 | Horizontal Resolution
80 Means 800 Pixel 10 Means 1024 Pixel 12 Means 1280 Pixel 14 Means 1440 Pixel 19 Means 1920 Pixel |
| 768 | Vertical Resolution
480 Means 480 Pixel 600 Means 600 Pixel 768 Means 768 Pixel 800 Means 800 Pixel 900 Means 900 Pixel 102 Means 1024 Pixel 108 Means 1080 Pixel |
| F(T) | Product based on Freescale (TI) CPU |
| 121 | LCD Dimension
050 Means 5.0 Inch 070 Means 7.0 Inch 080 Means 8.0 Inch 097 Means 9.7 Inch 101 Means 10.1 Inch 104 Means 10.4 Inch 120 Means 12.0 Inch 121 Means 12.1 Inch 150 Means 15.0 Inch 170 Means 17.0 Inch 190 Means 19.0 Inch 215 Means 21.5 Inch |
| P | Means Embedded PC or Panel PC
E Means Embedded PC without Case P Means Panel PC with Case |
| C | Means Touch Type
R Means Resistive Touch C Means Capacitive Touch |
| 1 | Means LCD Brightness
1 Means Common Brightness 2 Means High Brightness |
| 2 | PCB Version
Baseboard PCB Version Number |
| 1 | PCB Version
SOM Module PCB Version Number |
Hardware Features
| Key Features: | |
| CPU | iMX6Q,Quad-A9, Dual-core 1GHz, brightness 350cd |
| RAM | 2GB DDR3 |
| eMMC | 8GB |
| Storage | TF card, supports up to 32GB SDHC |
| Display | 12.1 Inch LCD,1024*768 Pixel Resolution,4:3 |
| Touch | Ten-Point Capacitive Touch |
| USB | 2 x USB 2.0 Host,1 USB OTG |
| LAN | 1 Channel 1000M LAN |
| Audio | MIC audio input ，3.5mm Audio Out Connector,2W Speaker Internal |
| Buzzer | 1 |
| Camera | 1，Front USB -500 ten thousand pixel |
| Fingerprint module | Zaz-070S |
| RTC | Yes |
| RS232 | 4 RS232 connectors by default (can be customized to 2*RS232+2*RS485) |
| RS485 | 2 Channels (Optional） |
| CAN | 2 Channels (Optional） |
| GPIO | 8 Channels (Optional） |
| WiFi/BT | On Board WIFI/BT |
| HDMI | 1 Channel |
| SATA II | 1 Channel |
| 4G/LTE | Optional |
| Power Input | 12~36V DC |
| Current @ 15V | 2000 mA max |
| Power Consumption | 10W Typical |
| Working Temperature | -20°C to +70°C |
| OS | Android, Ubuntu, Linux |
| Dimension | 359*274*23mm |
| Weight | 4000g |
* This product has 5 channels of UART in total. The Bluetooth used one channel UART by default, the default setting is 2*RS232+2*RS485+Bluetooth.The UART can be changed between RS232 and RS485 easily. If you want different RS232 and RS485 setting, please contact us.
CS10768F121P-U-C111
Figure 1 Front View

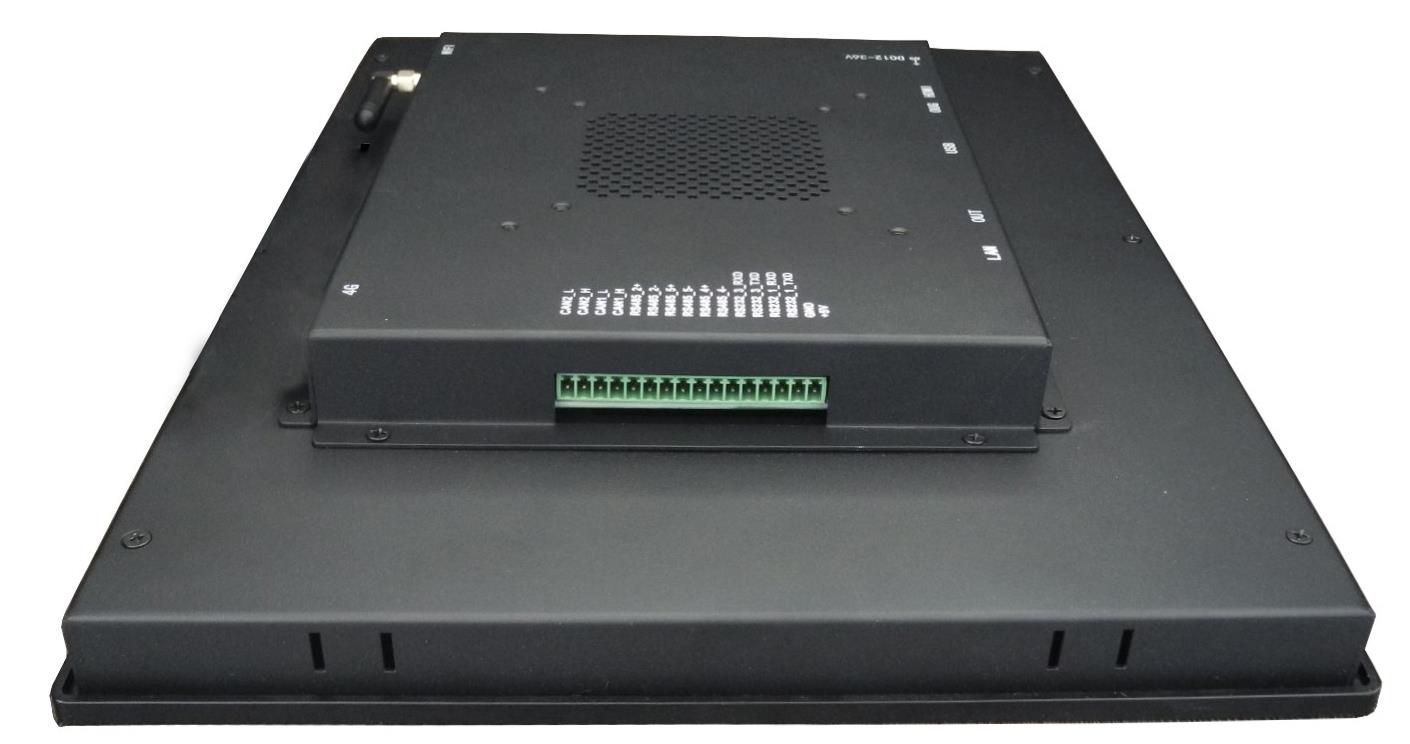

Figure 2 Back View

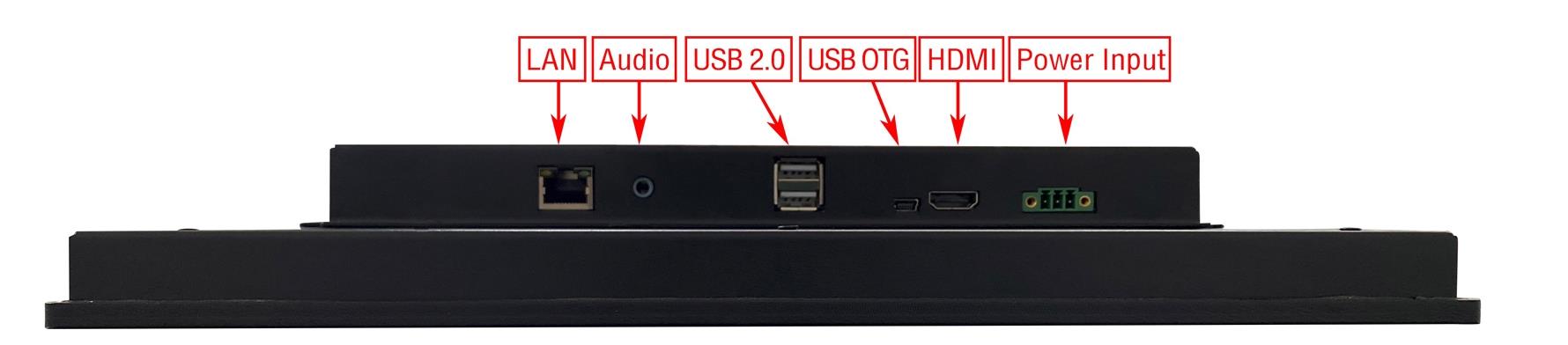

Figure 3 Side View
Figure 4 Side View
Measurements and Mounting
Measurements

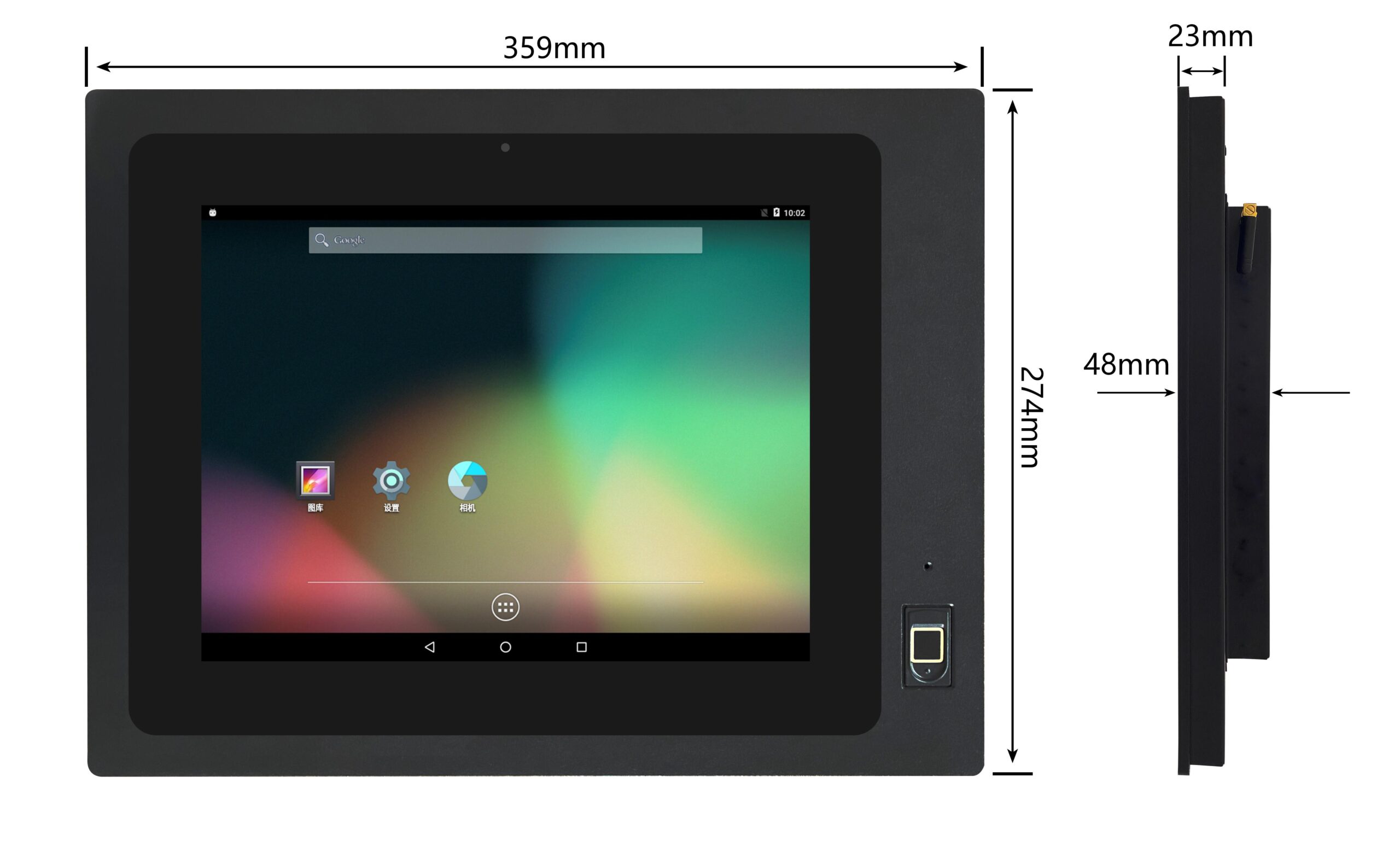

The measurement of CS10768F121P-U-C111 is 359*274*23mm.
Mounting Method
This product CS10768F121P-U-C111 can be mounted using the mounting set, as Figure 5 shows. Or it can be mounted using Panel set, as Figure 6 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

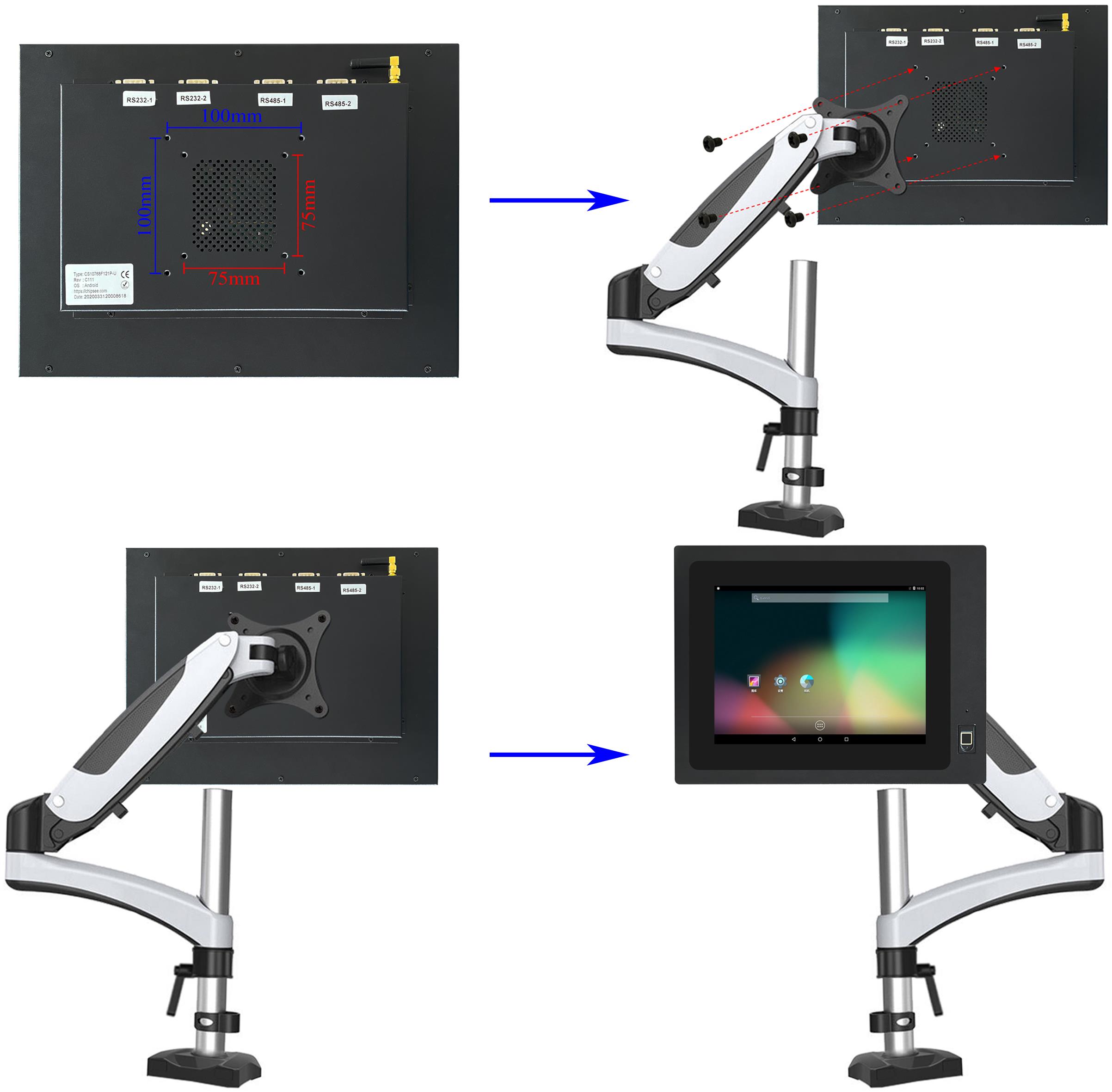

Figure 5 VESA Mounting Method

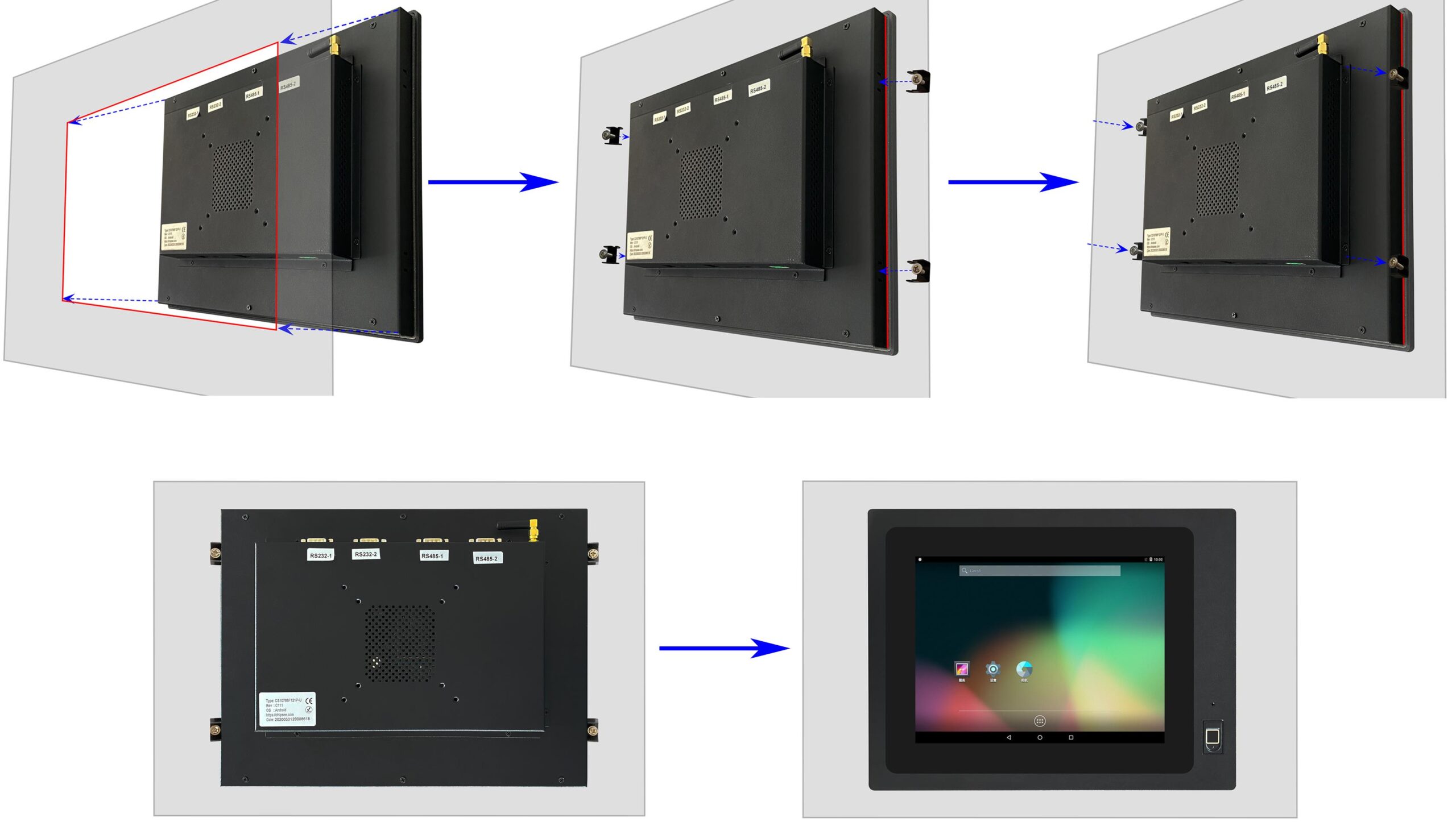

Figure 6 Panel Mounting Method
How to Get Support
Please feel free to contact us with any questions, queries or suggestions.
If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution.
If you cannot find the solution you are looking for then please write to contact@chipsee.com providing all possible details.
