User Manual
Release 1.0


Chipsee Products Naming Rules
CS10600F070E-C131
CS10600F070P-C131 |
|
CS | Chipsee Product Abbreviate |
10 | Horizontal Resolution
80 Means 800 Pixel 10 Means 1024 Pixel 12 Means 1280 Pixel 14 Means 1440 Pixel 19 Means 1920 Pixel |
600 | Vertical Resolution
480 Means 480 Pixel 600 Means 600 Pixel 768 Means 768 Pixel 800 Means 800 Pixel 900 Means 900 Pixel 102 Means 1024 Pixel 108 Means 1080 Pixel |
F(T) | Product based on Freescale (TI) CPU |
070 | LCD Dimension
050 Means 5.0 Inch 070 Means 7.0 Inch 080 Means 8.0 Inch 097 Means 9.7 Inch 101 Means 10.1 Inch 104 Means 10.4 Inch 120 Means 12.0 Inch 150 Means 15.0 Inch 170 Means 17.0 Inch 190 Means 19.0 Inch 215 Means 21.5 Inch |
E | Means Embedded PC or Panel PC
E Means Embedded PC without Case P Means Panel PC with Case |
C | Means Touch Type
R Means Resistive Touch C Means Capacitive Touch |
1 | Means LCD Brightness
1 Means Common Brightness 2 Means High Brightness |
2 | PCB Version
Baseboard PCB Version Number |
1 | PCB Version
SOM Module PCB Version Number |
Hardware Features
Key Features: | |
CPU | iMX6Q,Quad-A9,1GHz |
RAM | 2GB DDR3 |
eMMC | 8GB |
Storage | TF card, supports up to 32GB SDHC |
Display | 7.0 Inch LCD,1024*600 Pixel Resolution
High Brightness:500nit |
Touch | Capacitive Touch (Five-Point) |
USB | 3 x USB 2.0 Host,1 USB OTG |
LAN | 1 Channel 1000M LAN |
Audio | 3.5mm Audio In/Out Connector, 2W Speaker Internal |
Buzzer | 1 |
RTC | Yes |
RS232 | 2 Channels |
RS485 | 2 Channels * |
CAN | 2 Channels |
GPIO | None |
WiFi/BT | On Board WiFi/BT |
HDMI | 1 Channel |
SATA II | 1 Channel |
3G/4G | None |
Power Input | 6~36V DC |
Current @ 15V | 600 mA max |
Power Consumption | 6W Typical |
Working Temperature | -20°C to +70°C |
OS | Android, Ubuntu, Linux |
Dimension | CS10600F070E: 190*107.8*27.7mm
CS10600F070P: 206*135*30.1mm |
Weight | CS10600F070E: 380g
CS10600F070P: 680g |
* This product has 5 channels of UART in total. The Bluetooth used one channel UART by default, the default setting is 2*RS232+2*RS485+Bluetooth. The UART can be changed between RS232 and RS485 easily. If you want different RS232 and RS485 setting, please contact us.
CS10600F070E-C131

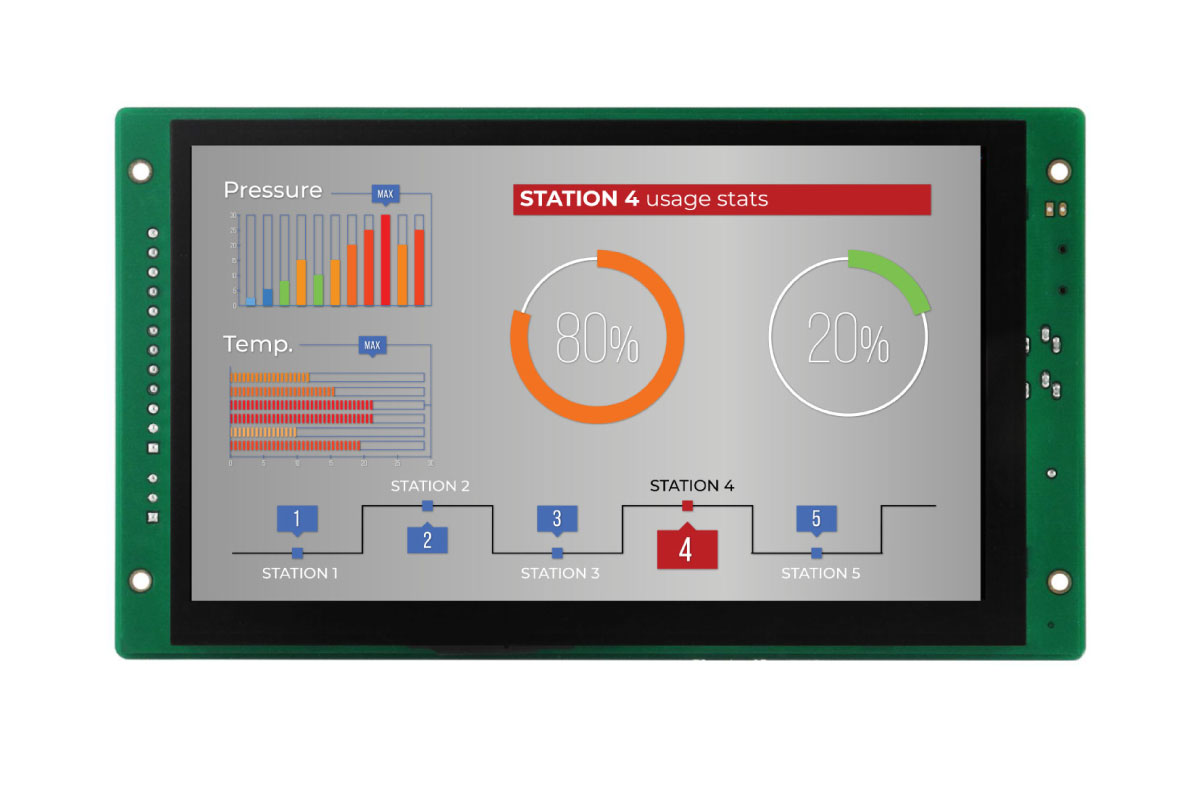

Figure 1 Top View (Android)

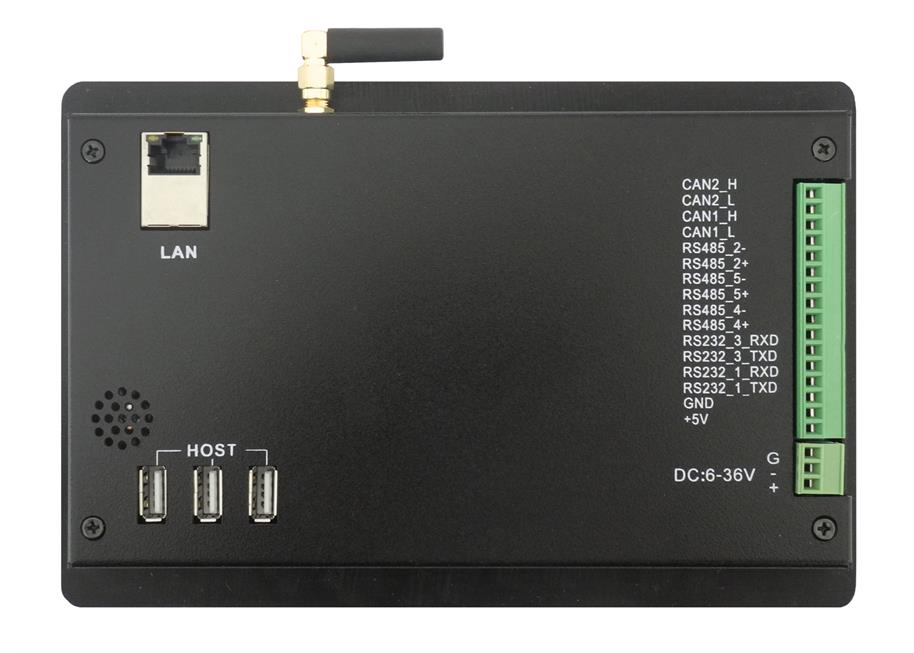

Figure 2 Back View
Power Input Connector

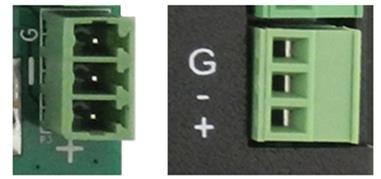

The product CS10600F070E/CS10600F070P uses a wide range power input: DC 6~36V. The total power consumption is about 6W normally. The Power Input Connector is 3 Pin 3.81mm Screw Terminal Connector as Figure 5 shows. The Character “+” means power Positive input, The Character “–” means power Negative input. The Character “G” means system Ground. Table 1 has detailed descriptions about the connector definition.

Figure 3 Power Input Connector
Table 1
Power Input Pin Definition: | ||
Pin Number | Definition | Description |
Pin 1 | Positive Input | Connect to DC Power Positive Terminal |
Pin 2 | Negative Input | Connect to DC Power Negative Terminal |
Pin 3 | Ground | Connect to Power System Ground |
ATTENTION:
The system ground “G” has been connected to power negative “-” on board.
CAN+RS485+RS232 Connector

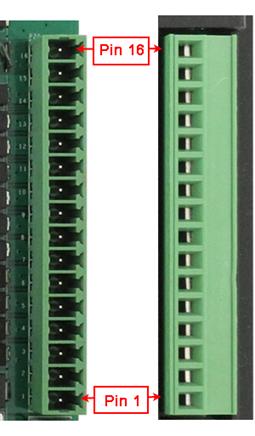

The CAN+RS485+RS232 connector is a 16 Pin 3.81mm Screw Terminal Connector, as Figure 6 shows. As for the definition of every pin, please refer to Table 2.
This product has 5 channels of UART in total, they can be configured as RS232 or RS485 freely. If you need any other setting different to the default setting, please contact us.

Figure 6 CAN+RS485+RS232 Connector
Table 2
RS232 / RS485 / CAN Pin Definition: | ||
Pin Number | Definition | Description |
Pin 16 | CAN2_H | CPU CAN Channel 2 H signal |
Pin 15 | CAN2_L | CPU CAN Channel 2 L signal |
Pin 14 | CAN1_H | CPU CAN Channel 1 H signal |
Pin 13 | CAN1_L | CPU CAN Channel 1 L signal |
Pin 12 | RS485_2- | CPU UART2, RS485 –(B) signal |
Pin 11 | RS485_2+ | CPU UART2, RS485 +(A) signal |
Pin 10 | RS485_5- | CPU UART5, RS485 –(B) signal |
Pin 9 | RS485_5+ | CPU UART5, RS485 +(A) signal |
Pin 8 | RS485_4- | CPU UART4, RS485 –(B) signal |
Pin 7 | RS485_4+ | CPU UART4, RS485 +(A) signal |
Pin 6 | RS232_3_RXD | CPU UART3, RS232 RXD signal |
Pin 5 | RS232_3_TXD | CPU UART3, RS232 TXD signal |
Pin 4 | RS232_1_RXD | CPU UART1, RS232 RXD signal |
Pin 3 | RS232_1_TXD | CPU UART1, RS232 TXD signal |
Pin 2 | GND | System Ground |
Pin 1 | +5V | System +5V Power Output, No more than 1A Current output. |
ATTENTION:
- UART2 signal has been used by Bluetooth signal on board. The RS485_2 function has been disabled by default. If customer needs to use RS485_2 function, please contact us, we will disable the Bluetooth function.
- All the CAN signal and RS485 signal have not mount on the 120Ohm Matched Resistance.
Capacitive Touch
The product CS10600F070E/CS10600F070P uses ten-point capacitive touch, as Figure 7 shows.

Figure 7 Capacitive Touch Connector
ATTENTION:
Capacitive touch panels are very sensitive to power noise. Ripple voltage/current from the power adapter will cause the LCD ripples, and will also cause the capacitive touch malfunction: If you use the APK Multi-Touch under Android to test, you can find the touch point float. There are several ways to solve this problem:
1) Use a high quality power adapter. Or use battery to provide the power like cell phone or tablet PC.
2) If user power adapter can’t be good enough, there’s another effective method to solve this problem: Make sure the CS12800F101P-C111 power input connector Pin 3 really connect to user “Power System Ground”. This method can eliminate the problem totally. User can also use another method to test this problem: touch the GND of CS12800F101P-C111 by one hand, the other hand operates on the capacitive touch screen. In this case, user’s body acts as the Power System Ground.
USB HOST Connector

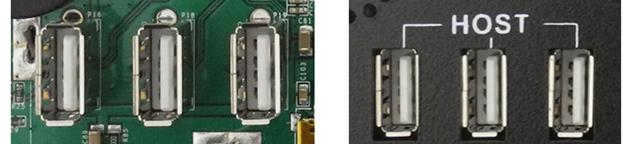

The product CS10600F070E/CS10600F070P has three USB connectors as Figure 8 shows.

Figure 8 USB HOST Connector
USB OTG Connector
The product CS10600F070E/CS10600F070P has one USB OTG connector as Figure 9 shows. It works as slave by default. User can connect it to host PC by this connector.


Figure 9 USB OTG Connector
LAN Connector
The product CS10600F070E/CS10600F070P has one channel 1000Mbit Ethernet Connector, as Figure 10 shows.


Figure 10 LAN Connector
TF Card
The product CS10600F070E/CS10600F070P has one TF (uSD) card connector as Figure 11 shows. This device supports TF (uSD) card up to 32GB.


Figure 11 TF Card Connector
ATTENTION:
The TF card slot is NOT mounted with any TF card by default.
Audio Connector
The product CS10600F070E/CS10600F070P has one Audio Input (“Line-in”) and one Audio (“Line-out”) output, as Figure 12 shows. And the product has an internal 2W speaker.


Figure 12 Audio Connector
HDMI Connector
The product CS10600F070E/CS10600F070P has one HDMI connector as Figure 13 shows. The HDMI output resolution can be configured by software.


Figure 13 HDMI Connector
WiFi+BT
The product CS10600F070E/CS10600F070P has one WiFi+BT. It uses Realtech RTL8723 which integrates WiFi and BT, as Figure 14 shows. For CS10600F070P, there is a connector on the backside case which can connect external WiFi/BT Antenna, as Figure 15 shows.

Figure 15 WiFi+BT Antenna
Boot Switch
The product CS10600F070E/CS10600F070P has a boot switch which can be used to change boot sequence, as Figure 16 shows. As for the details of the boot switch, please refer to Table 3.

Figure 16 Boot Switch
Table 3
Boot Config Select: | ||||
Mode | 1 | 2 | 3 | 4 |
TF Card | 1 | 0 | 0 | 0 |
eMMC | 1 | 1 | 0 | 1 |
Download | 0 | 1 | 1 | 0 |
Expansion Connector
The product CS10600F070E/CS10600F070P has one Expansion Connector, as Figure 17 shows. This connector is labelled as P21 on the PCB, and it has connected to CPU GPIO/Camera/I2C signals. As for the definition of every Pin, please refer to Table 4.

Figure 17 Expansion Connector
Table 3
Boot Config Select: | ||||
Mode | 1 | 2 | 3 | 4 |
TF Card | 1 | 0 | 0 | 0 |
eMMC | 1 | 1 | 0 | 1 |
Download | 0 | 1 | 1 | 0 |
Table 4
Expansion Connector Definition: | |||||
PIN | Function | CPU PIN | PIN | Function | CPU PIN |
1 | I2C2_SDA | T7 | 2 | I2C2_SCL | U5 |
3 | GPIO7_13 | P6 | 4 | GPIO7_12 | R1 |
5 | CSI0_PIXCLK | P1 | 6 | CSI0_HSYNCH | P4 |
7 | CSI0_VSYNCH | N2 | 8 | CLKO | T5 |
9 | CSI0_DAT19 | L6 | 10 | CSI0_DAT18 | M6 |
11 | CSI0_DAT17 | L3 | 12 | CSI0_DAT16 | L4 |
13 | CSI0_DAT15 | M5 | 14 | CSI0_DAT14 | M4 |
15 | CSI0_DAT13 | L1 | 16 | CSI0_DAT12 | M2 |
17 | VDD_5V0 | 5.0V电源输出 | 18 | VDD_3V3 | 3.3V电源输出 |
19 | GND | 接地 | 20 | GND | 接地 |
21 | GPIO1_29 | W20 | 22 | GPIO4_10 | W4 |
23 | GPIO1_28 | V21 | 24 | GPIO1_30 | U20 |
25 | I2C3_SDA | D24 | 26 | I2C3_SCL | F21 |
27 | GPIO5_2 | H19 | 28 | GPIO3_23 | D25 |
29 | GPIO3_30 | J20 | 30 | GPIO3_31 | H21 |
ATTENTION:
All these signals connect to CPU directly. Please use it carefully, or the CPU will be damaged easily.
Measurements and Mounting
Measurements of CS10600F070E

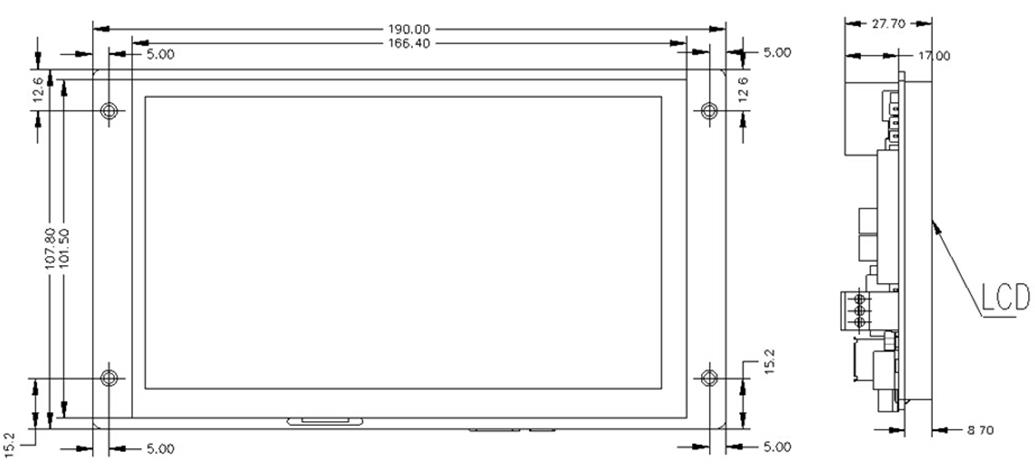

The measurement of CS10600F070E -C131 is 190*107.8*27.7mm, as Figure 18 shows.
Mounting of CS10600F070E
The product CS10600F070E can be mounted using the 4 screw holes on the PCB as shown in Figure 14.Please make sure the display is not exposed to high pressure when mounting into an enclosure.

Figure 18 Dimension
Measurements of CS10600F070P
The measurement of CS10600F070P -C131 is 206*135*30.1mm.
Mounting of CS10600F070P

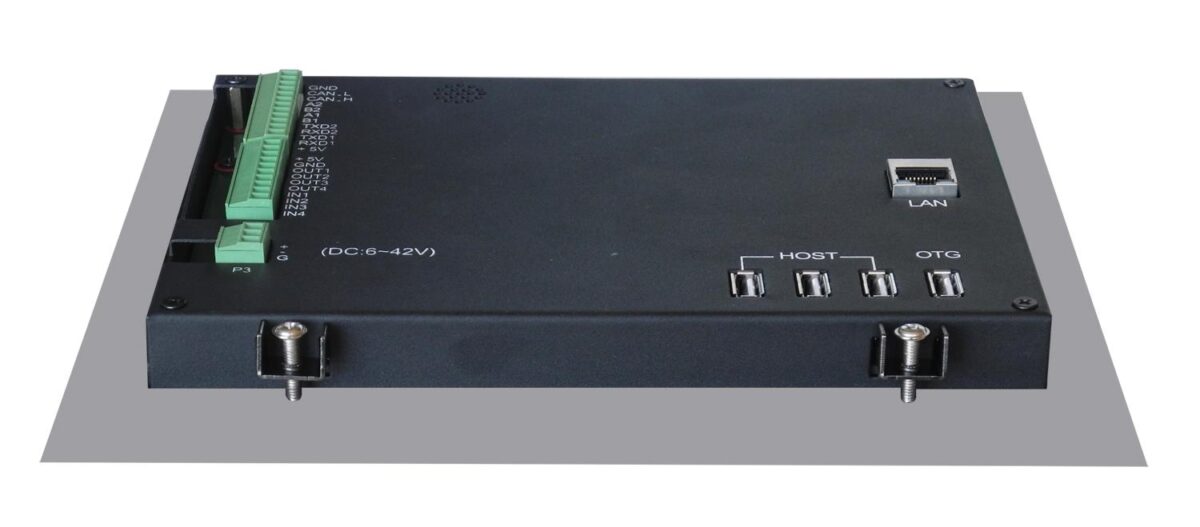

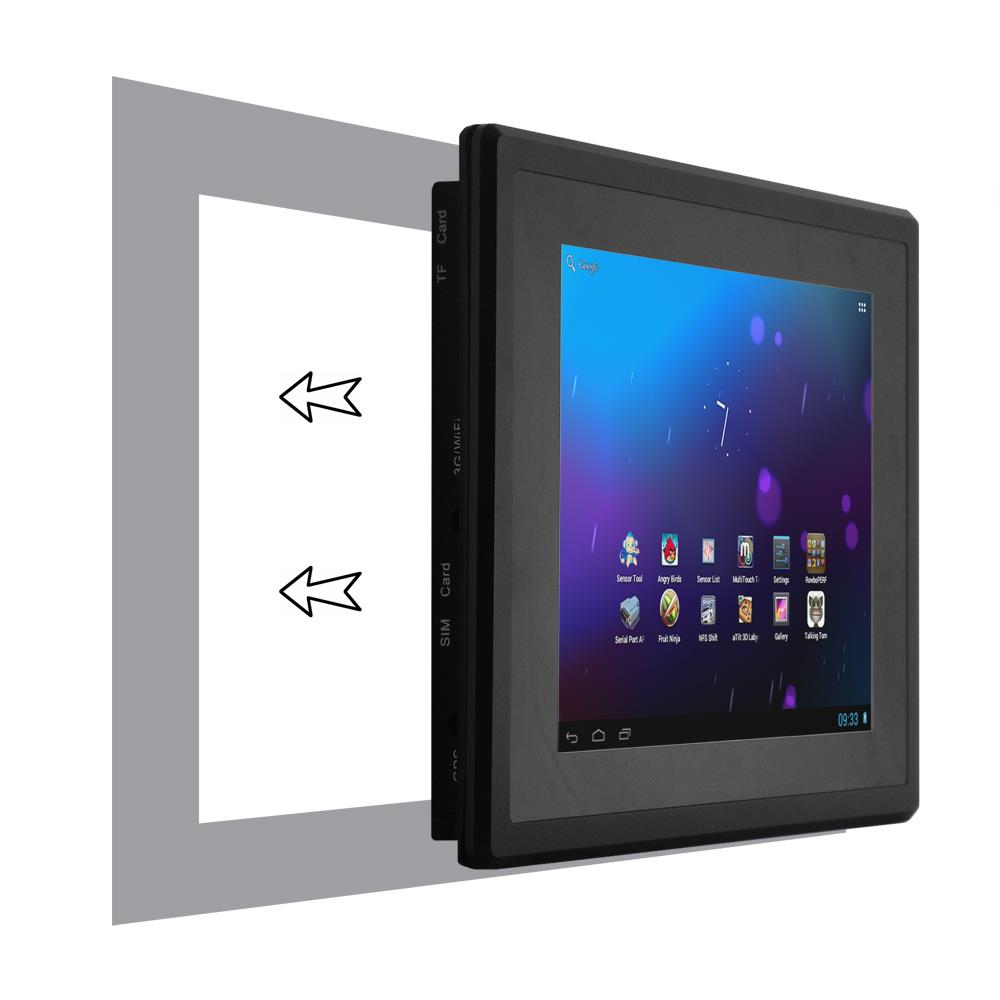

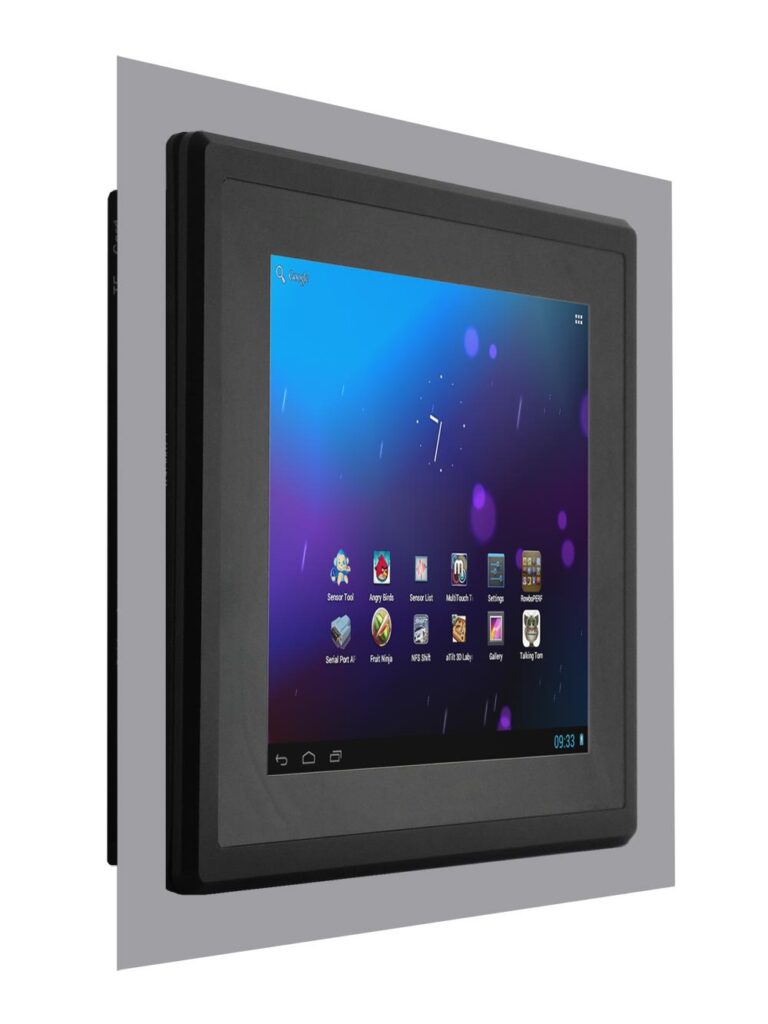

This product CS10600F070P can be mounted using the mounting set, as Figure 20 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure.



Figure 20 Mounting Method
How to Get Support
Chipsee assumes no responsibility for any errors, which may appear in this manual. Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein. Chipsee products are not authorized for use as critical components in life support devices or systems.
