Chipsee Products Naming Rules
|CS||Chipsee Product Abbreviate|
80Means 800 Pixel
10Means 1024 Pixel
12Means 1280 Pixel
14Means 1440 Pixel
19Means 1920 Pixel
480Means 480 Pixel
600Means 600 Pixel
768Means 768 Pixel
800Means 800 Pixel
900Means 900 Pixel
102Means 1024 Pixel
108Means 1080 Pixel
|F(T)||Product based on Freescale (TI) CPU|
050Means 5.0 Inch
070Means 7.0 Inch
080Means 8.0 Inch
097Means 9.7 Inch
101Means 10.1 Inch
104Means 10.4 Inch
120Means 12.0 Inch
150Means 15.0 Inch
170Means 17.0 Inch
190Means 19.0 Inch
215Means 21.5 Inch
|E||Means Embedded PC or Panel PC
E Means Embedded PC without Case
P Means Panel PC with Case
|C||Means Touch Type
R Means Resistive Touch
C Means Capacitive Touch
|1||Means LCD Brightness
1 Means Common Brightness
2 Means High Brightness
Baseboard PCB Version Number
SOM Module PCB Version Number
|Storage||TF card, supports up to 32GB SDHC|
|Display||9.7 Inch LCD,1024*768 Pixel, Brightness:350nit|
|Touch||Ten-Point Capacitive Touch|
|USB||2 x USB 2.0 Host,1 USB OTG|
|LAN||1 Channel 1000M LAN, Support POE（Optional）.
2nd Channel 100M Optional
|Audio||3.5mm Audio In/Out Connector,2W Speaker Internal|
|RS485||3 Channels *|
|WiFi/BT||On Board WIFI/BT|
|SATA II||1 Channel|
|3G/4G||Optional, Not Mount on by default.|
|Power Input||12~36V DC|
|Current @ 15V||600 mA max(No 4G module)|
|Power Consumption||7W Typical|
|Working Temperature||-20°C to +70°C|
|OS||Android, Ubuntu, Linux|
* This product has 5 channels of UART in total. The Bluetooth used one channel UART by default, the default setting is 2*RS232+2*RS485+Bluetooth.The UART can be changed between RS232 and RS485 easily. If you want different RS232 and RS485 setting, please contact us.

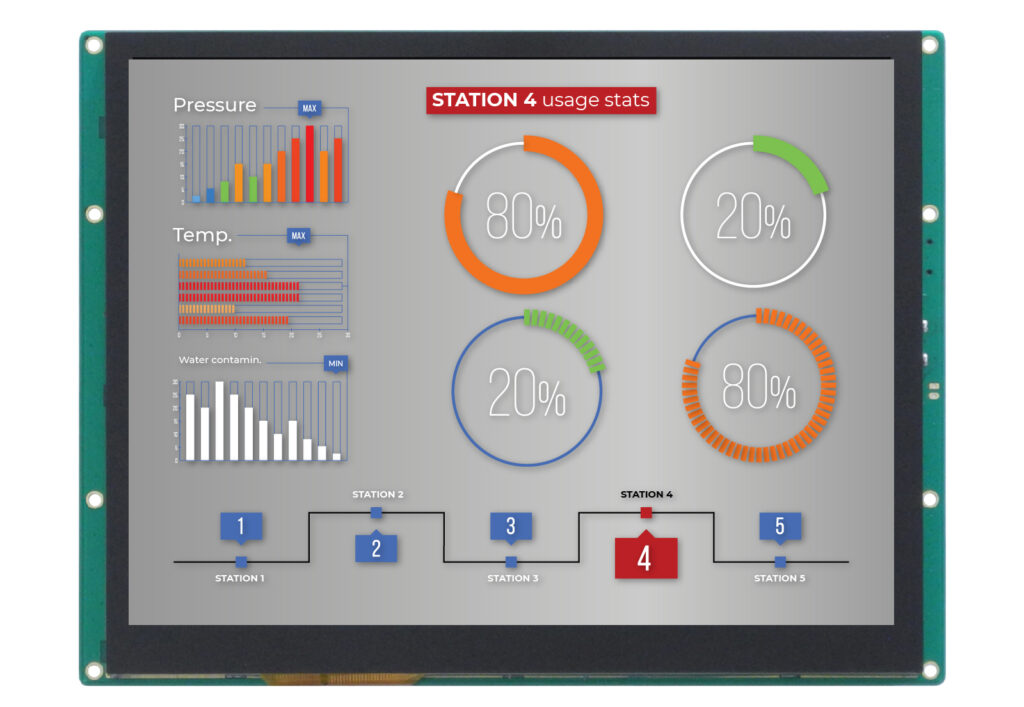

Figure 1 Top View (Android)

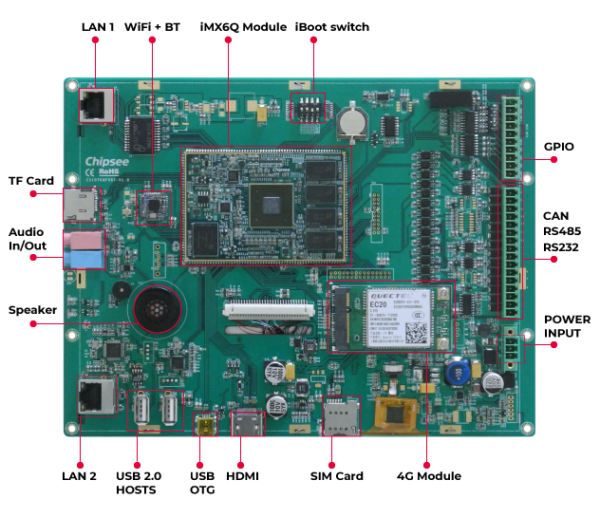

Figure 2 Back View

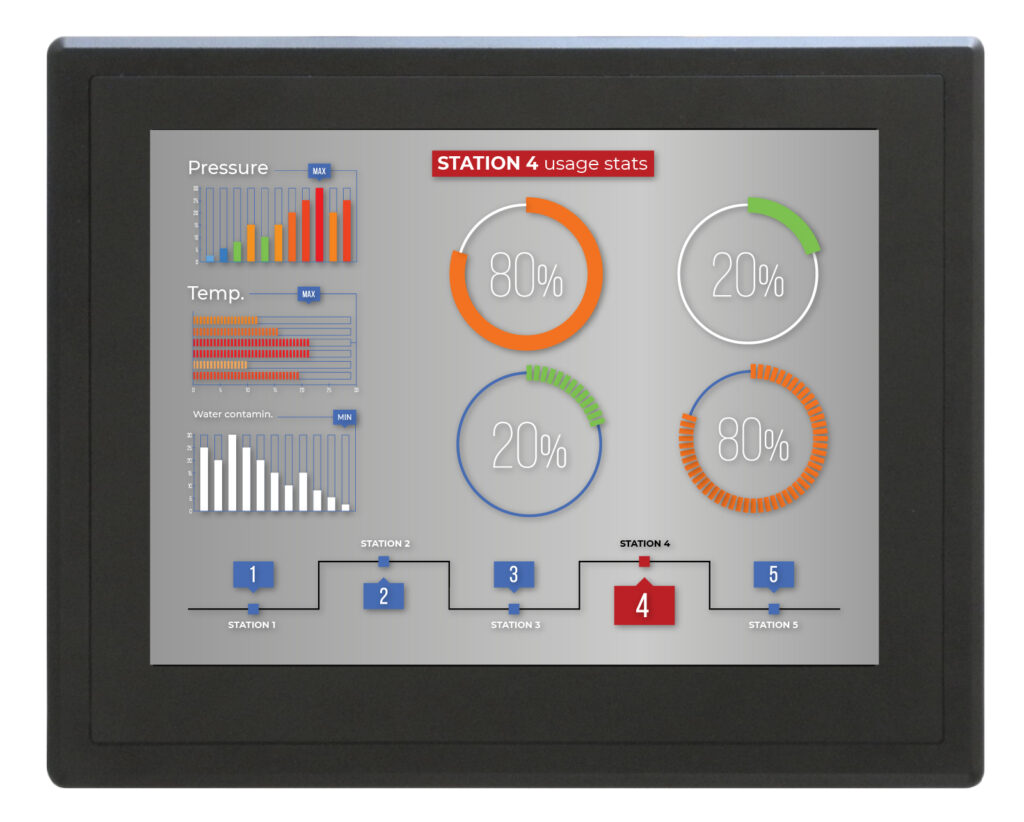

Figure 3 Top View (Android)

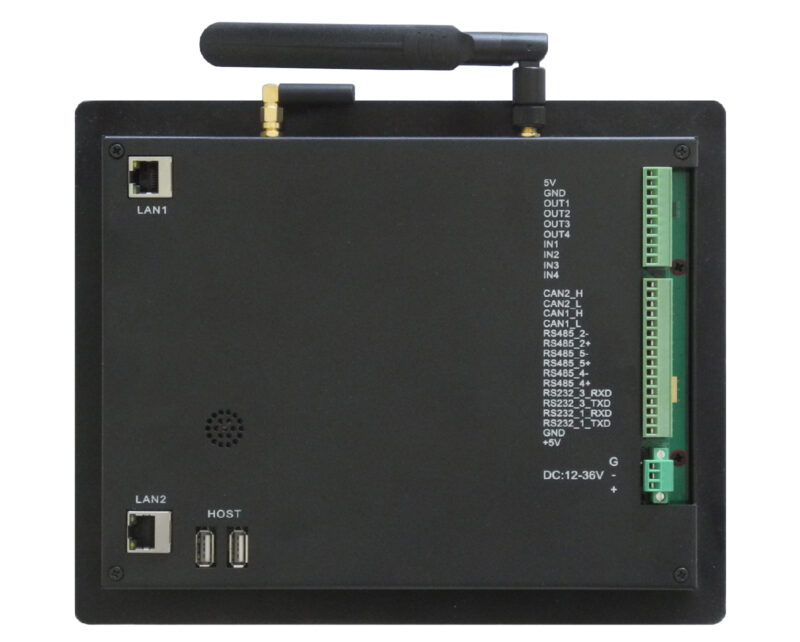

Figure 4 Back View
Power Input Connector
The product CS10768F097E/CS10768F097P uses a wide range power input: DC 12~36V. The total power consumption is normally about 7W. The Power Input Connector is 3 Pin 3.81mm Screw Terminal Connector, as Figure 5 shows. The Character “+” means power Positive input, The Character “–” means power Negative input. The Character “G” means system Ground. Table 1 has detailed descriptions about the connector definition.
Figure 3 Power Input Connector
|Power Input Pin Definition:|
|Pin 1||Positive Input||Connect to DC Power Positive Terminal|
|Pin 2||Negative Input||Connect to DC Power Negative Terminal|
|Pin 3||Ground||Connect to Power System Ground|
The system ground “G” has been connected to power negative “-” on board.
Capacitive touch is very sensitive to power noise. Ripple voltage/current from the power adapter will cause the LCD ripples, and will also cause the capacitive touch malfunction: If you use the APK Multi-Touch under Android to test, you can find the touch point float. There are several ways to solve this problem:
1) Use a high quality power adapter. Or use battery to provide the power like cell phone or tablet PC.
2) If user power adapter can’t be good enough, there’s another effective method to solve this problem: Make sure the power input connector Pin 3 really connect to user “Power System Ground”. This method can eliminate the problem totally. User can also use another method to test this problem: touch the GND of CS10768F097P-C111 by one hand, the other hand operates on the capacitive touch screen. In this case, user’s body acts as the Power System Ground.
The CAN+RS485+RS232 connector is a 16 Pin 3.81mm Screw Terminal Connector, as Figure 6 shows. As for the definition of every pin, please refer to Table 2.This product has 5 channels of UART in total, they can be configured as RS232 or RS485 freely. If you need any other setting different to the default setting, please contact us.
Figure 6 CAN+RS485+RS232 Connector
|RS232 / RS485 / CAN Pin Definition:|
|Pin 1||CAN2_H||CPU CAN Channel 2 H signal|
|Pin 2||CAN2_L||CPU CAN Channel 2 L signal|
|Pin 3||CAN1_H||CPU CAN Channel 1 H signal|
|Pin 4||CAN1_L||CPU CAN Channel 1 L signal|
|Pin 5||RS485_2-||CPU UART2, RS485 -(A) signal|
|Pin 6||RS485_2+||CPU UART2, RS485 +(B) signal|
|Pin 7||RS485_5-||CPU UART5, RS485 -(A) signal|
|Pin 8||RS485_5+||CPU UART5, RS485 +(B) signal|
|Pin 9||RS485_4-||CPU UART4, RS485 -(A) signal|
|Pin 10||RS485_4+||CPU UART4, RS485 +(B) signal|
|Pin 11||RS232_3_RXD||CPU UART3, RS232 RXD signal|
|Pin 12||RS232_3_TXD||CPU UART3, RS232 TXD signal|
|Pin 13||RS232_1_RXD||CPU UART1, RS232 RXD signal|
|Pin 14||RS232_1_TXD||CPU UART1, RS232 TXD signal|
|Pin 15||GND||System Ground|
|Pin 16||+5V||System +5V Power Output, No more than 1A Current output.|
- UART2 signal has been used by Bluetooth signal on board. The RS485_2 function has been disabled by default. If customer needs to use RS485_2 function, please contact us, we will disable the Bluetooth function.
- All the CAN signal and RS485 signal are not mounted on the 120Ohm matched resistance.
USB HOST Connector
The product CS10768F097E/CS10768F097P has two USB connectors as Figure 7 shows. These two USB can provide 500mA current each.
Figure 7 USB HOST Connector
USB OTG Connector
The product CS10768F097E/CS10768F097P has one USB OTG connector as Figure 8 shows. It works as slave by default. User can connect it to host PC by this connector.
Figure 8 USB OTG Connector
The product CS10768F097E/CS10768F097P has one channel 1000Mbit Ethernet Connector (LAN1), as Figure 9 shows. And this port supports POE (Power-On-Ethernet, optional, not supported by default). The other one channel 100Mbit Ethernet Connector is optional.
Figure 9 LAN Connector
The product CS10768F097E/CS10768F097P has one TF (uSD) card connector as Figure 10 shows. This device supports TF (uSD) card up to 32GB.
Figure 10 TF Card Connector
The TF card slot is NOT mounted with any TF card by default.
SIM Card Holder
The product CS10768F097E/CS10768F097P has a mini-PCIe connector inside. The customer can mount on a 4G module to it. Then it will need the SIM card holder, as Figure 12 shows. There is a connector on the backside case which can connect external 4G Antenna, as Figure 13 shows.

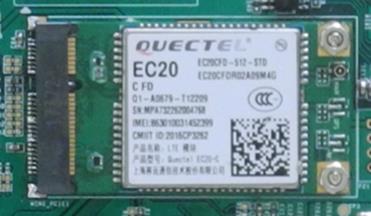

Figure 11mini-PCIe Connector&4G Module
Figure 12 SIM Card Holder
Figure 13 4G Antenna
This product is not mounted on any 4G module by default. The Ubuntu driver for the 4G module is not available right now.
The product CS10768F097E/CS10768F097P has one Audio Input (“Line-in”) and one Audio (“Line-out”) output, as Figure 14 shows. And the product has an internal 2W speaker.
Figure 14 Audio Connector
The product CS10768F097E/CS10768F097P has one WiFi+BT. It uses Realtech RTL8723 which integrates WiFi and BT. There is a connector on the backside case which can connect external WiFi/BT Antenna, as Figure 16 shows.
Figure 15 WiFi+BT Module
Figure 16 WiFi+BT Antenna
The product CS10768F097E/CS10768F097P has one HDMI connector as Figure 17 shows. The HDMI output resolution can be configured by software.
Figure 17 HDMI Connector
The product CS10768F097E/CS10768F097P has a boot switch which can be used to change boot sequence, as Figure 18 shows. It is defined as SW2 on the PCB. As for the details of the boot switch, please refer to Table 3.
Figure 18 Boot Switch
|Boot Config Select:|
The product CS10768F097P-R141 has one GPIO Connector, as Figure 19 shows. This connector is labelled as P28 on the PCB. As for the definition of every Pin, please refer to Table 4.
Figure 19 GPIO Connector
|GPIO Connector Definition|
|Pin 1||VCC, Isolated Power 5VInput|
Measurements and Mounting
Measurements of CS10768F097E
The measurement of CS10768F097E-C111 is 226*172*26mm.
Mounting Method of CS10768F097E
This product CS10768F097E-C111 can be mounted using the 4 screw holes on the PCB. Please make sure the display is not exposed to high pressure when mounting into an enclosure.
Measurements of CS10768F097P
The measurement of CS10768F097P-C111 is 256*207*29mm.
Mounting Method of CS10768F097P
This product CS10768F097P-C111 can be mounted using the mounting set, as Figure 20 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure.
Figure 20 Mounting Method
Precautions for Use
When you use product CS10768F097E, it is forbidden to touch the circuit board on the back of the product when the product is powered on.
When the product is out of power, please also take anti-static measures before touching the circuit board.
