PPC-3855-101-C

User Manual

Release 1.0

Chipsee Products Naming Rules

PPC-3855/7200U-101-C
PPC Product with shell
3855
7200U
Intel CPU model
10.1 The product is 10.1 inches and the display resolution is 1280 x 800 pixels
C C means capacitive touch

Hardware Features

Key Features:
CPU Intel Celeron 3855/ i5-7200U, 1.8GHz, Quad-core
RAM Default 4GB/8GB/16GB (1 x SO-DIMM DDR4 )
Storage 32GB, MSATA SSD support up to 512GB (1 x 2.5 “SATA HDD/SDD, 1 x MSATA)
Display Support HDMI output, Display resolution: 1280*800, Brightness: 250cd/㎡
Touch Capacitive
USB 4 x USB 3.0 HOST
LAN RJ-45 x 2 Intel®I211, 10/100/1000 Base-TX, support Wake on LAN
UART Default 2*RS232 Channel (2*RS485 Optional)
SATA 1 mSATA
WiFi/BT Optional
HDMI 1 Channel
3G/4G Optional
Power Input 12~24V DC
Working Temperature -20°C to +60°C
OS This product comes with a pre-installed Linux operating system. You can also choose to get Windows 7, or Windows 10 operating system installed.
Dimension 250*169*42 mm
Weight 1600 g

​PPC-3855/7200U-101-C

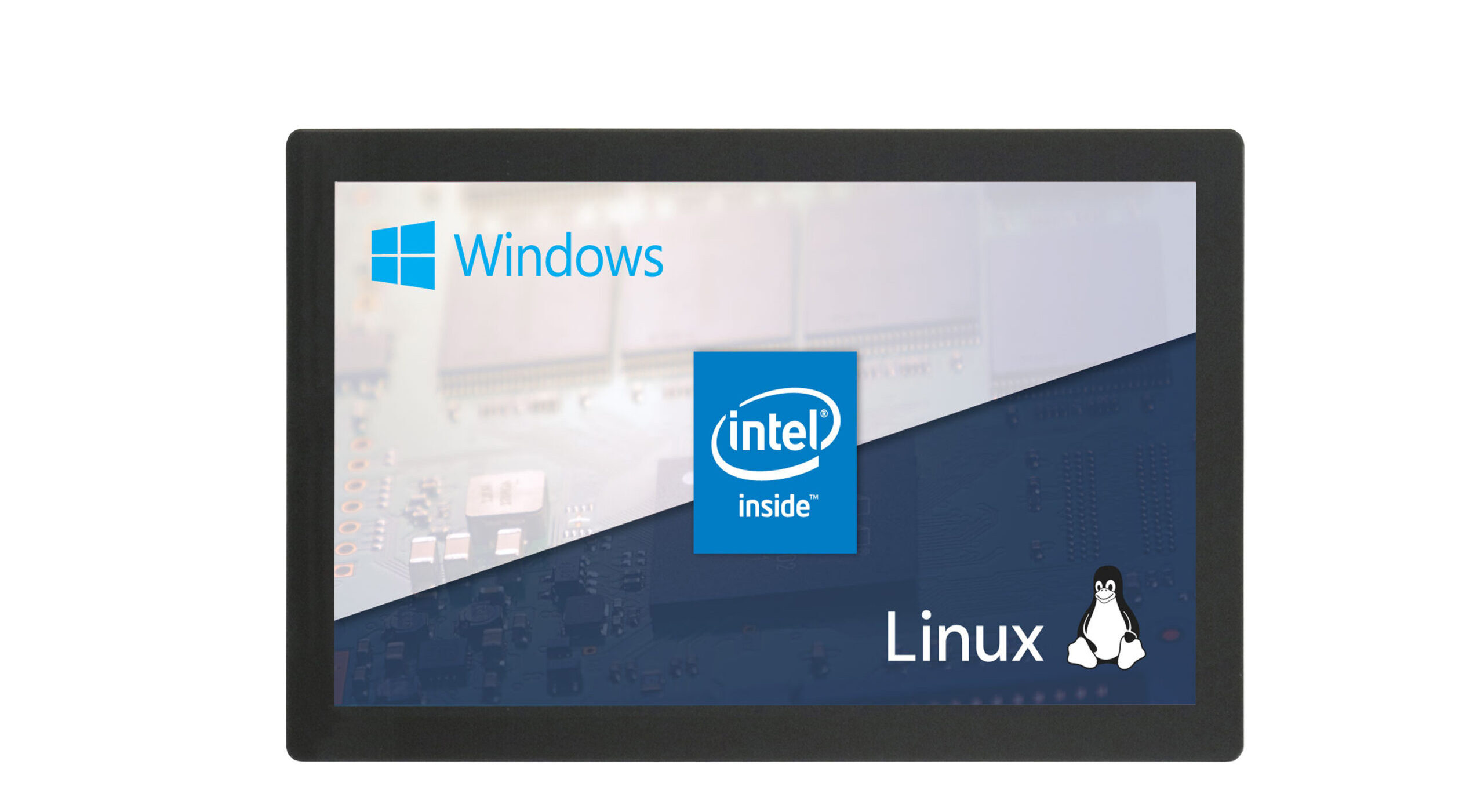

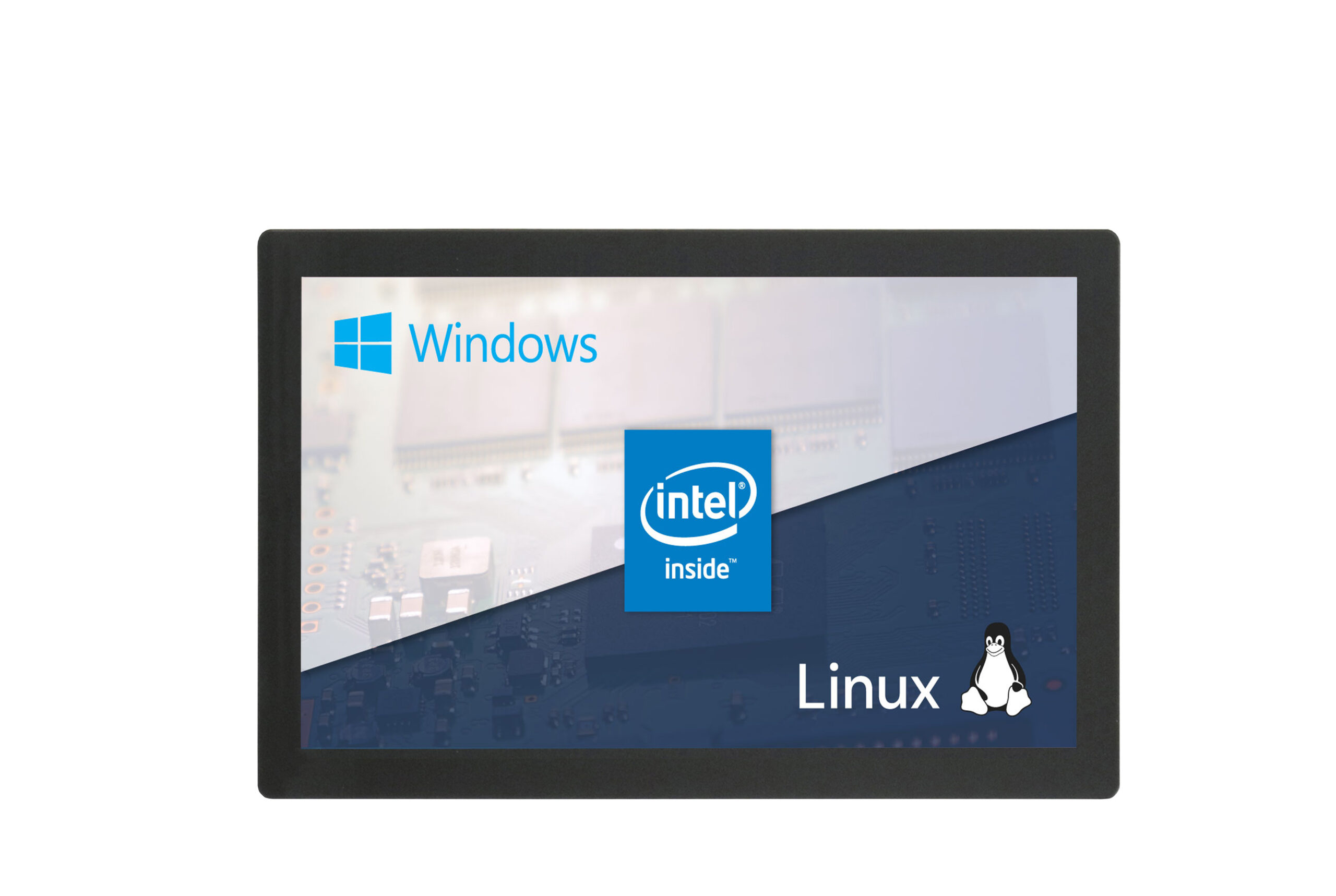

Figure 1: Front View

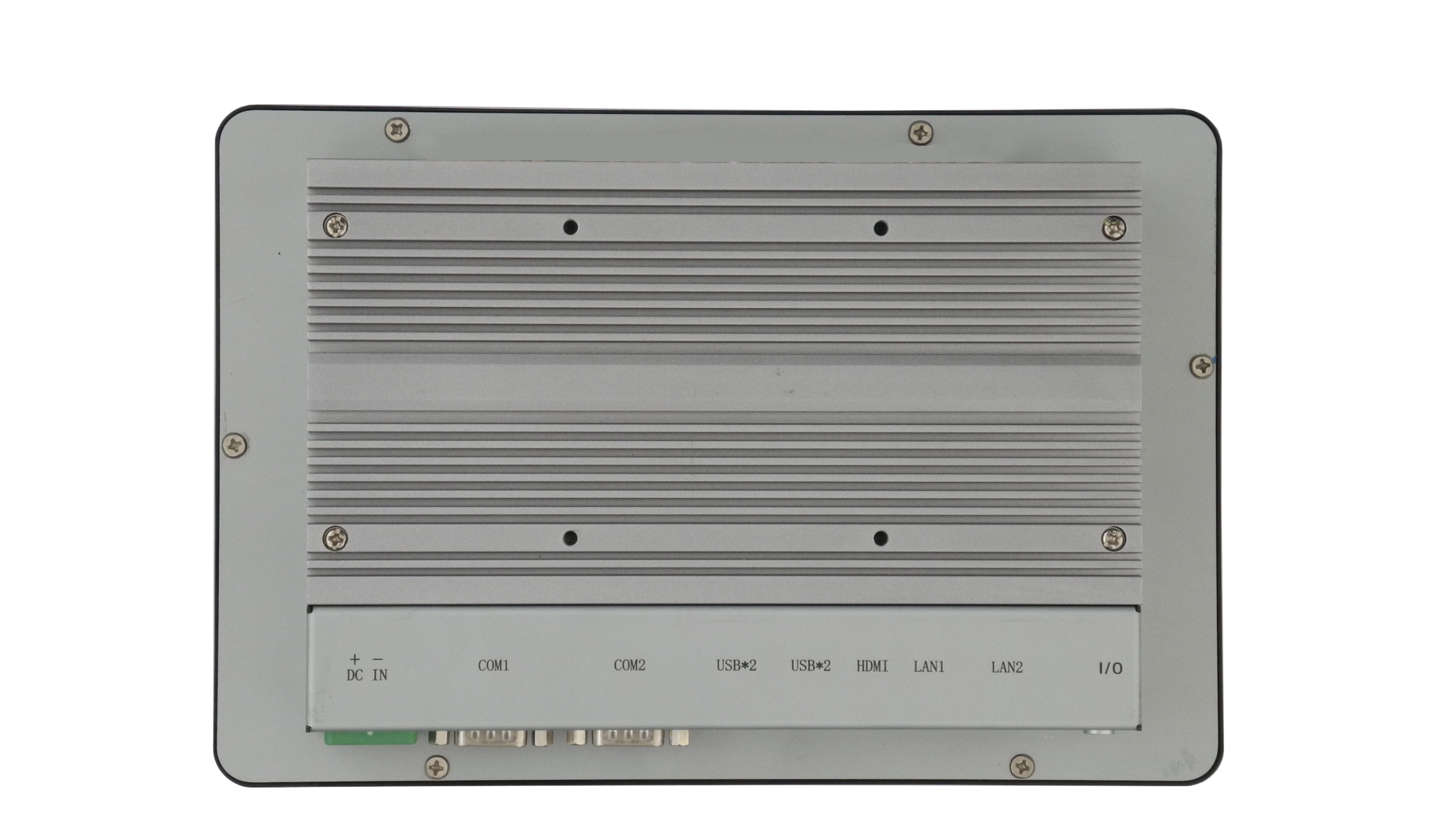

Figure 2: Back View

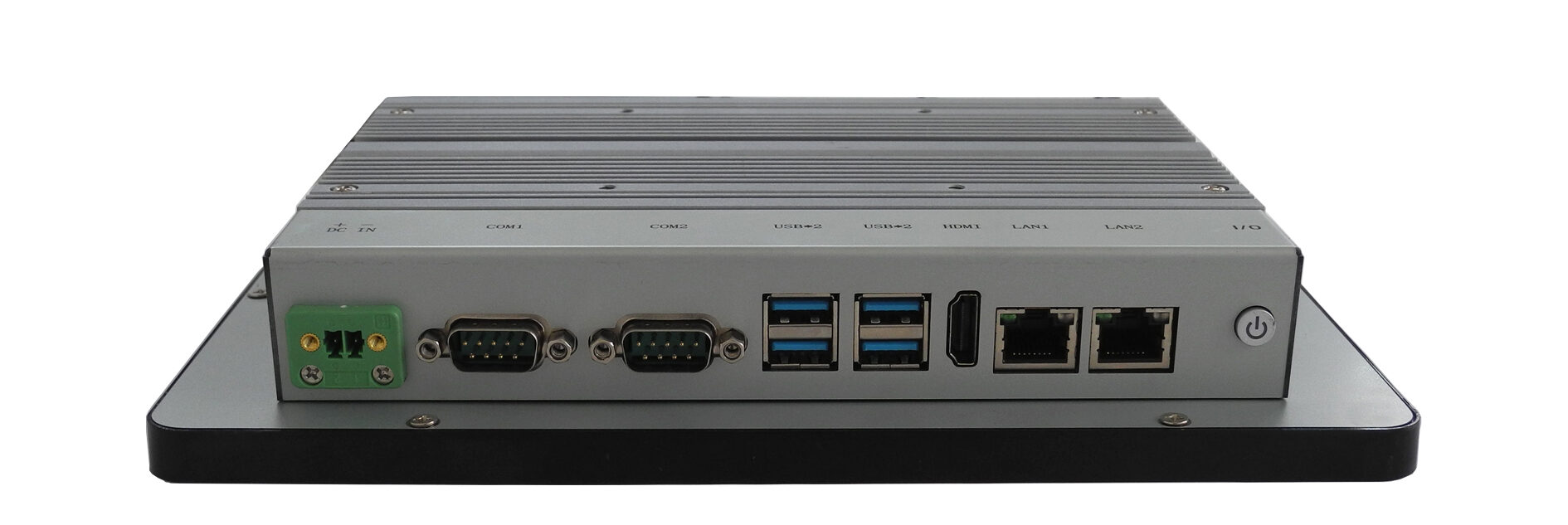

Figure 3: Side View

Power Input Connector

The PPC-3855/7200U-101-C uses a wide-range power input DC 12~24V. The Power Input Connector is one 2 Pin 3.81mm Screw Terminal Connector as Figure 4 shows.

Figure 4: Power Input Connector

RS485+RS232 Connector

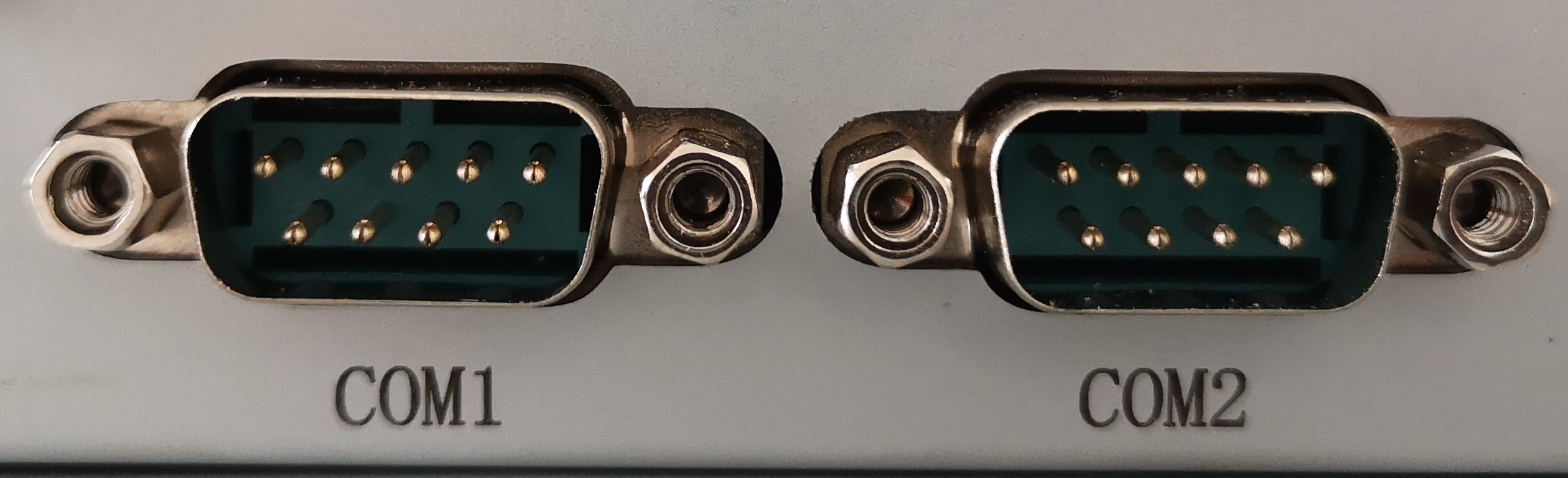

The PPC-3855/7200U-101-C has 2 COM connectors (2 RS232 by default; COM1 and COM2 can be configured as RS232 or RS485).  Please feel free to contact us if you need a different configuration from the default one.

Figure 5: RS485+RS232 Connector

USB HOST Connector

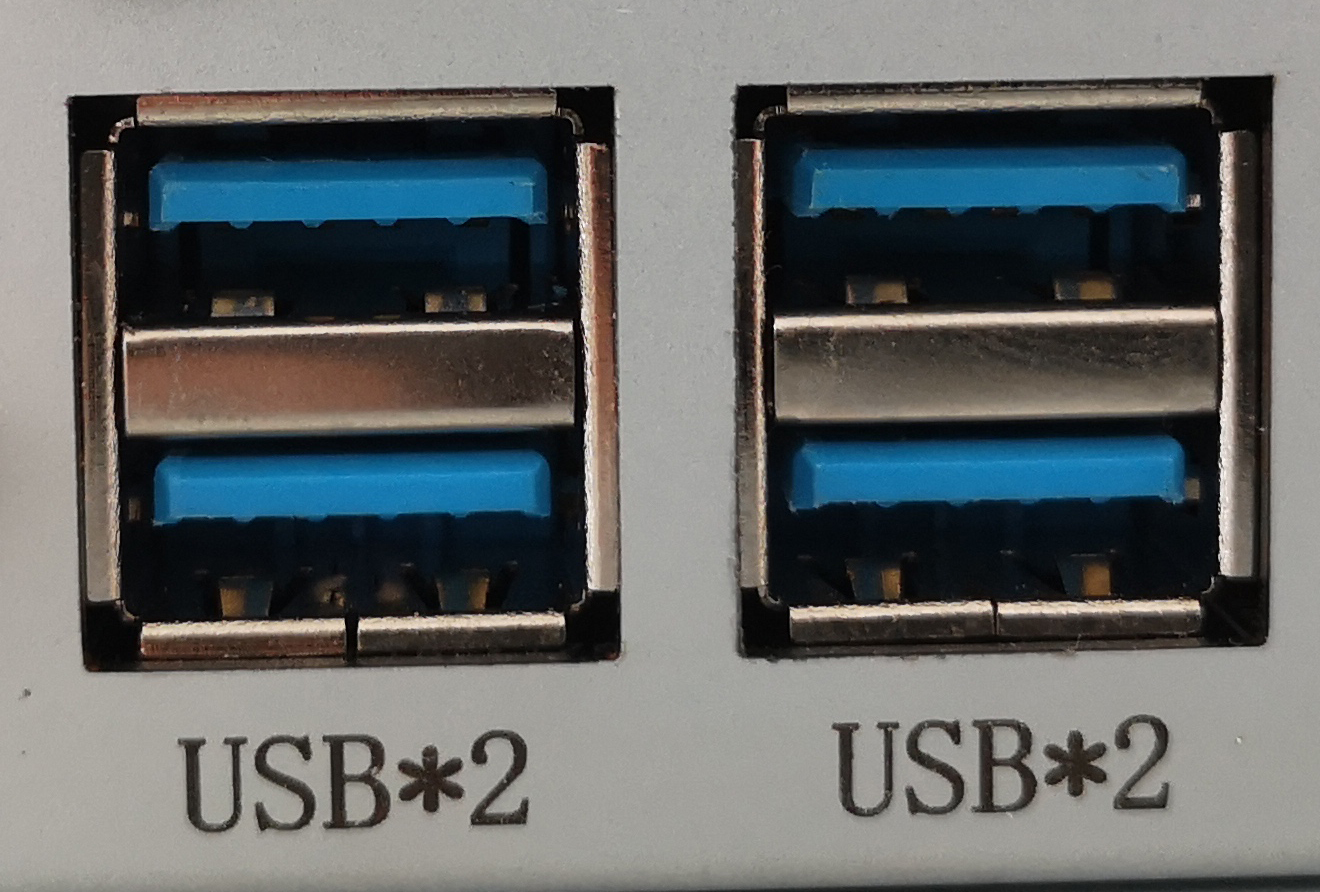

The product PPC-3855/7200U-101-C has four USB 3.0 interfaces, as shown in Figure 6. USB 2.0 transfer speed is 480 megabits per second (Mbps), while the USB 3.0 transfer speed is 4,800 Mbps. This means USB 3.0 is approximately 10 times faster than USB 2.0, and as such, it is more energy-efficient. The port is compatible with USB 2.0 devices.

Figure 6: USB HOST Connector

LAN Connector

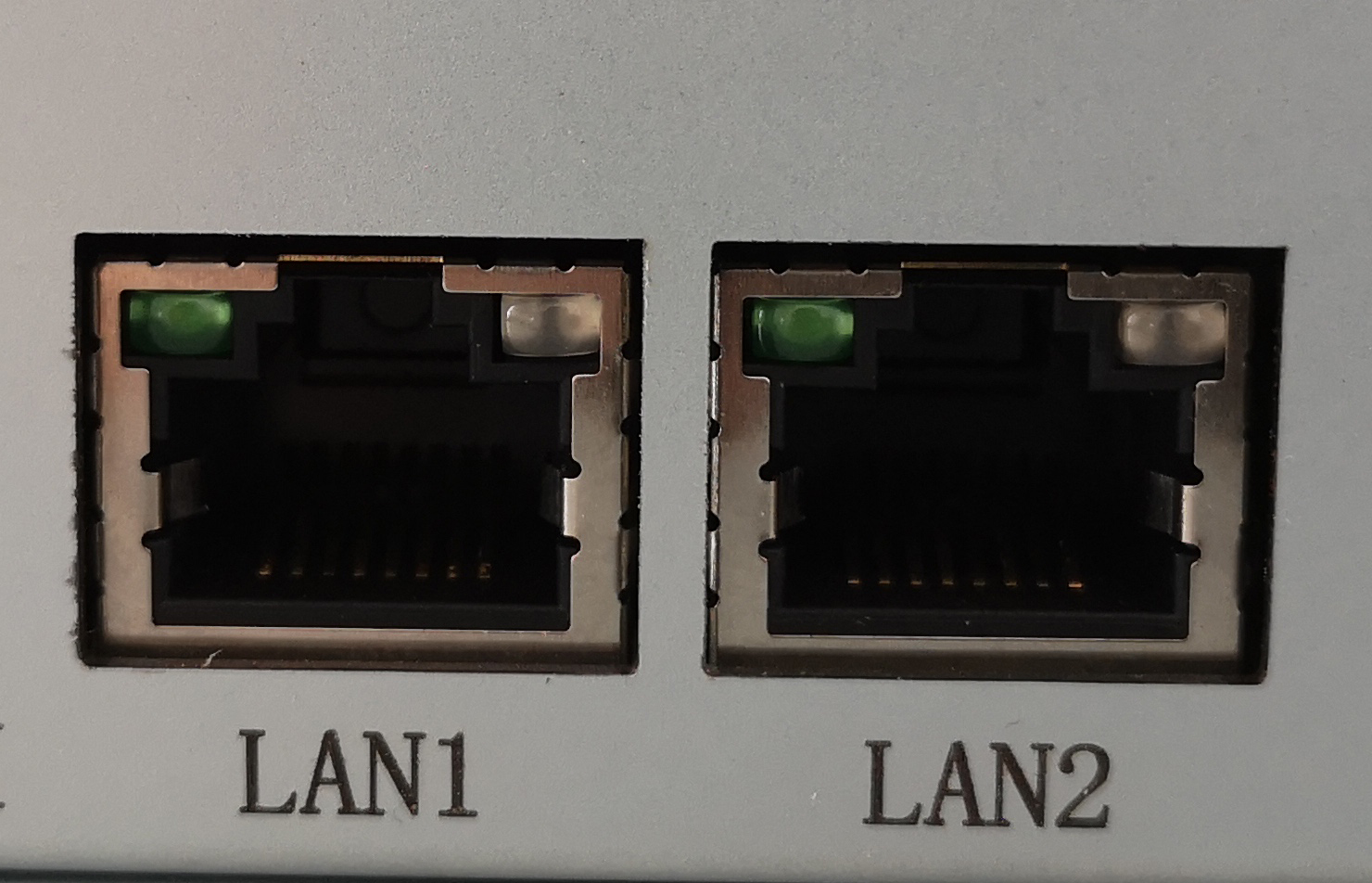

The PPC-3855/7200U-101-C has a two-channel 1000Mbit Ethernet Connector (LAN), as Figure 7 shows.

Figure 7: LAN Connector

HDMI Connector

The PPC-3855/7200U-101-C has one HDMI connector as shown in Figure 8. The HDMI output resolution can be configured by the software.

Figure 8: HDMI Connector

The dimensions of PPC-3855/7200U-101-C

The dimensions of PPC-3855/6200-101-C are 250*169*42 mm

How to Get Support

Please feel free to contact us with any questions, queries or suggestions.

If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution.

If you cannot find the solution you are looking for then please write to service@chipsee.com providing all possible details.
