User Manual

Release 1.0

Chipsee Products Naming Rules

PPC Product with shell
J1900 Intel CPU model
156 The product is 15.6 inches and the resolution is 1920 pixels x 1080 pixels
C C means capacitive touch
R means resistive touch

Hardware Features

Key Features:
CPU Intel®Celeron®J1900 SoC(2GHz, Quad-Core, 2MB Cache, TDP=10W)
GPU Intel HD graphics core graphics card / shared memory 512MB, support dual-screen display HDMI output
RAM Default 4GB, maximum support 8GB storage
Storage Default 64GB, MSATA SSD support up to 512GB
Display 15.6” LCD, 1920*1080Pixel, Brightness: 500cd/㎡
Touch Multi-point capacitive touch
USB 1 x USB 3.0 HOST, 3 x USB 2.0 HOST
LAN RJ-45 x 2 Intel®I211, 10/100/1000 Base-TX, support Wake on LAN
UART Default 4*RS232 (2*RS485 Optional)
GPIO 8 Channels
SATA MSATA SSD electronic disk supports 32/64/128/256/512G; 1*SATA 2.5 “HDD 1T
WiFi/BT Optional
HDMI 1 Channel
4G/LTE Optional
Power Input 9~30V DC
Working Temperature -20°C to +60°C
OS This product comes with a pre-installed Linux operating system. You can also choose to get Windows 7 or Windows 10 system installed.
Dimension 422*271*52.5mm
Weight 4200 g

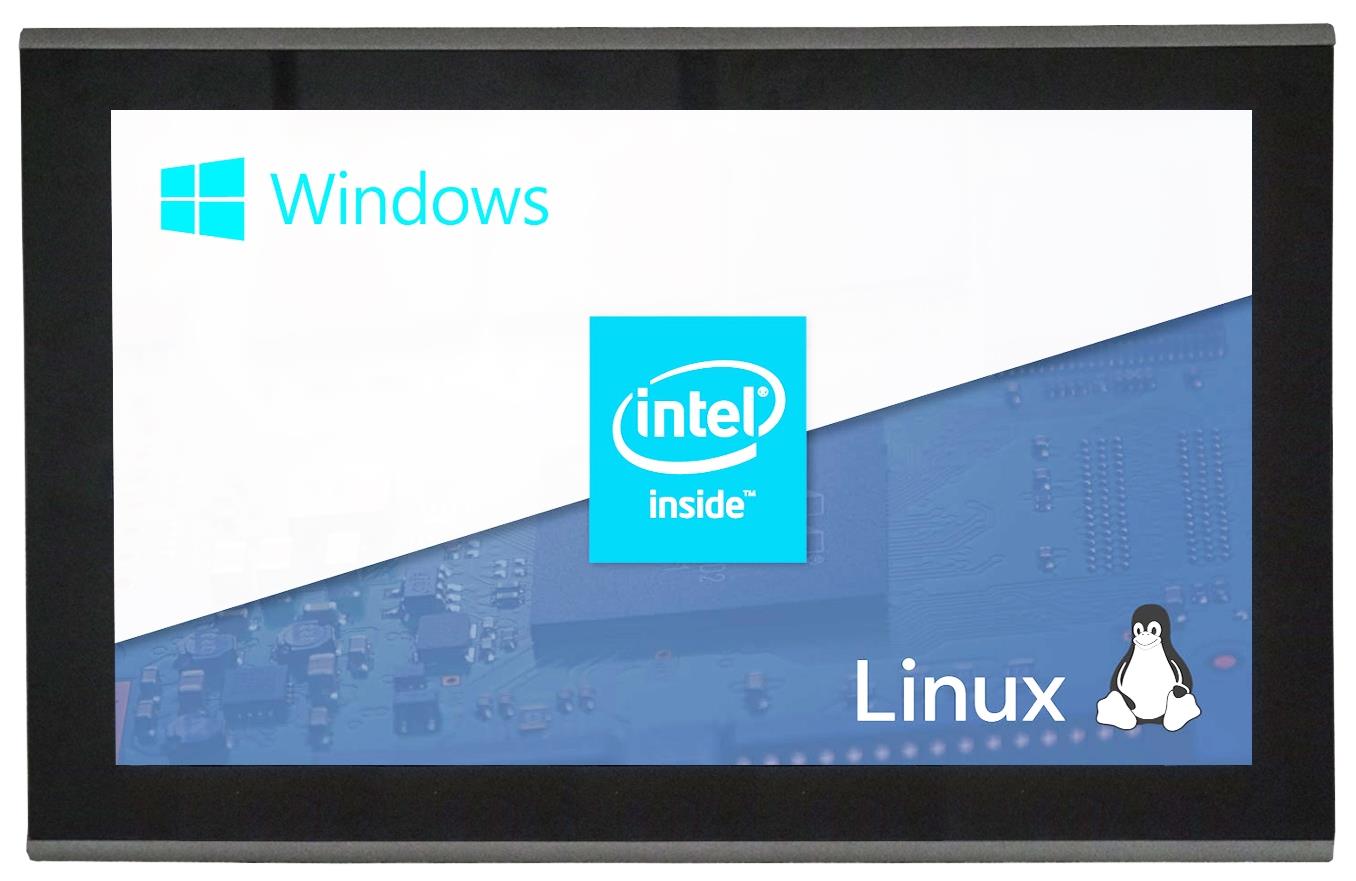

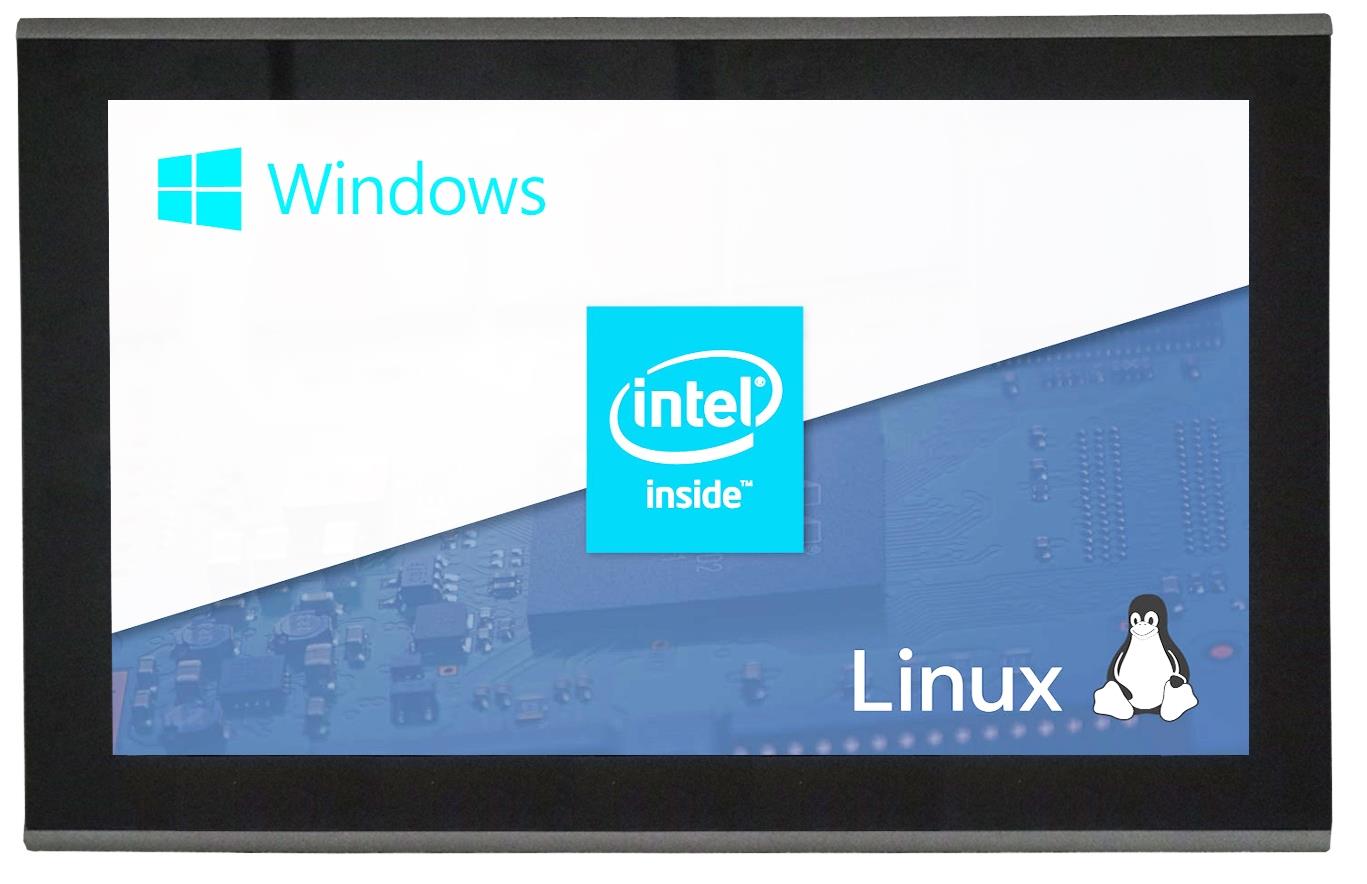

Figure 1: Front View

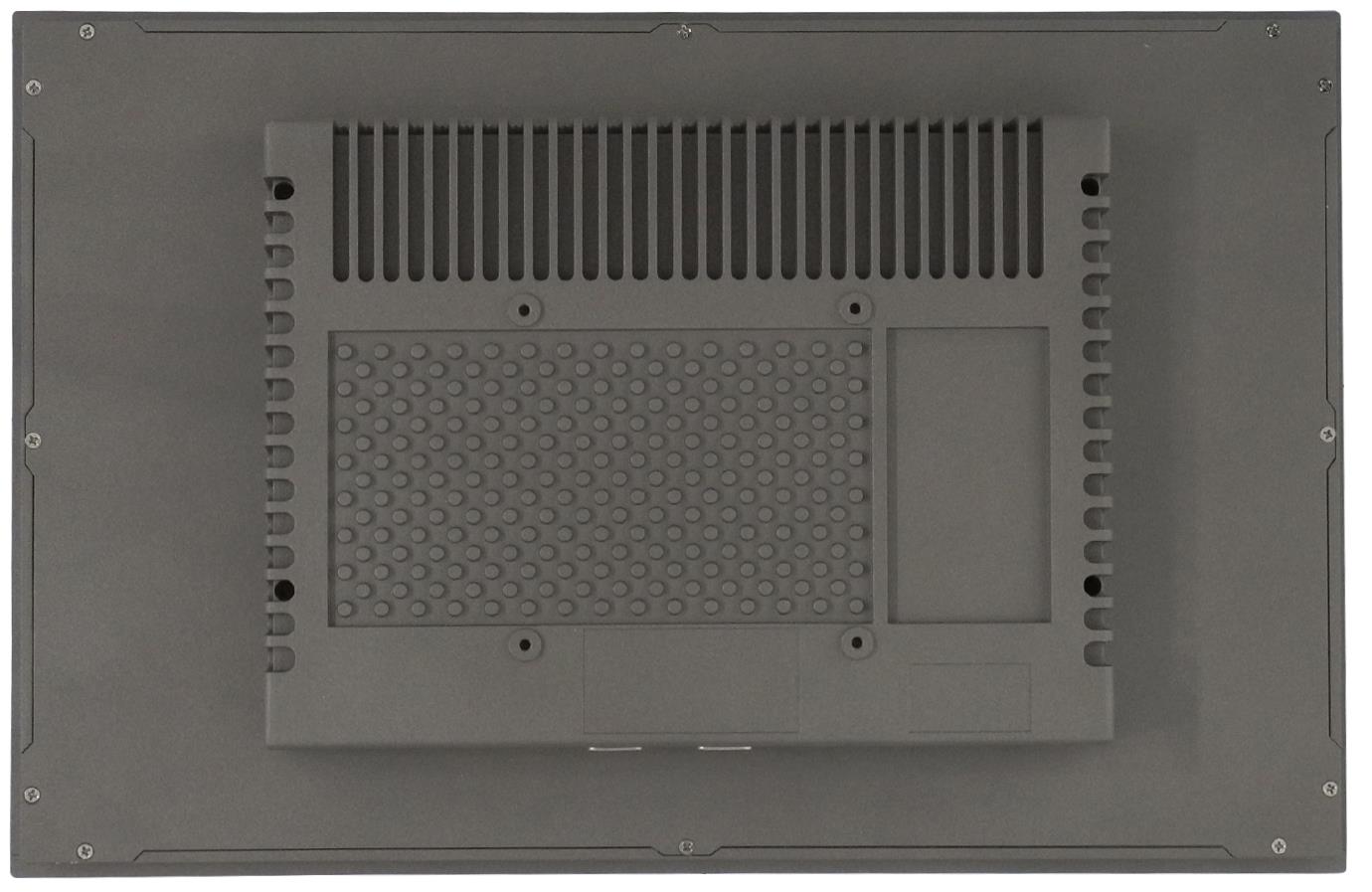

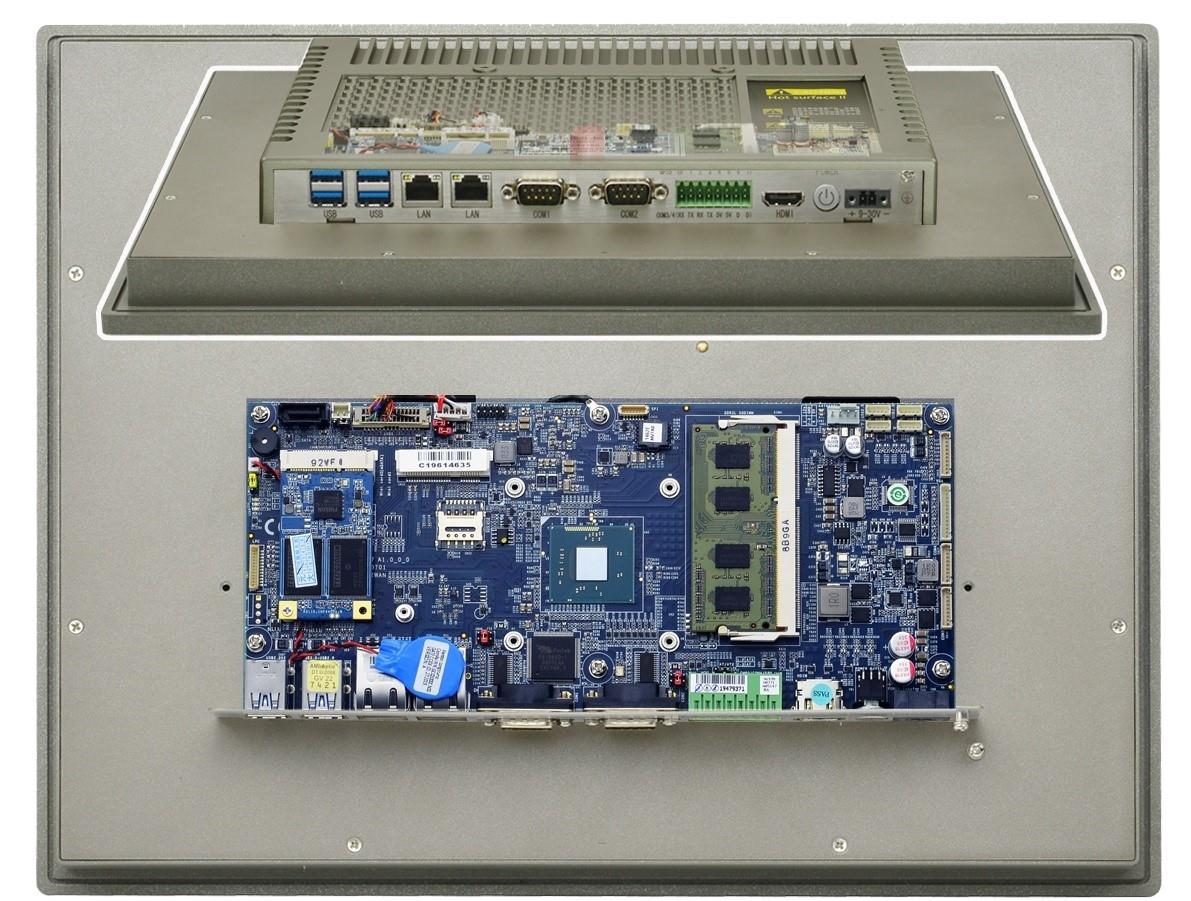

Figure 2: Back View

Figure 3: Side View

Power Input Connector

The product PPC-J1900-156-C uses a wide-range power input DC 9~30V. The Power Input Connector is a two Pin 3.81mm Screw Terminal Connector as Figure 4 shows.

Figure 4: Power Input Connector

Capacitive Touch

The PPC-J1900-156-C features a 15.6’’ display with a 1920×1080 pixel resolution, and a multi-point capacitive touch screen.

  • Size/type: 15.6-inch multi-point capacitive touch screen
  • Surface strength: 7H
  • Service life: 50 million times
  • Light transmittance: >92%

RS485+RS232+GPIO Connector

The PPC-J1900-156-C product has two COM connectors and one 16-pin 3.81mm connector, as shown in Figure 5. The product is set to four RS232 connectors by default, while the two of them can be optionally set to RS485. In other words, COM1 and COM2 can be freely configured as RS232 or RS485, while COM3 and COM4 default is a 2-way RS232. The 16-pin 3.81mm connector has 8 GPIO connections. Please feel free to contact us if you need different settings from default.

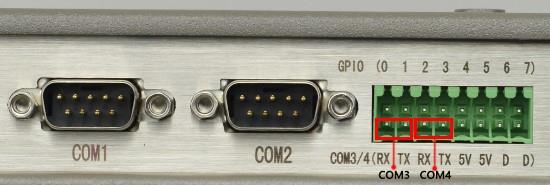

Figure 5: RS485+RS232+GPIO Connector

USB HOST Connector

The product PPC-J1900-156-C has three USB 2.0 interfaces and one USB 3.0 interface, as shown in Figure 6. The transmission rate of USB 2.0 is 480 Mbps, while the USB 3.0 can reach 4.8 Gbps. The USB 3.0 is therefore more energy efficient and supports USB 2.0 devices.

Figure 6: USB HOST Connector

LAN Connector

The product PPC-J1900-156-C has a two-channel 1000 Mbit Ethernet Connector(LAN), as Figure 7 shows. These two ports do not support POE.

Figure 7: LAN Connector


Please note that WiFi/BLE and 4G/LTE modules do not come with the product by default, but can be added. You can buy them along with the product.

HDMI Connector

The product PPC-J1900-156-C has one HDMI connector as shown in Figure 8. The HDMI output resolution can be configured by the software.

Figure 8: HDMI Connector

Dimensions of PPC-J1900-156-C

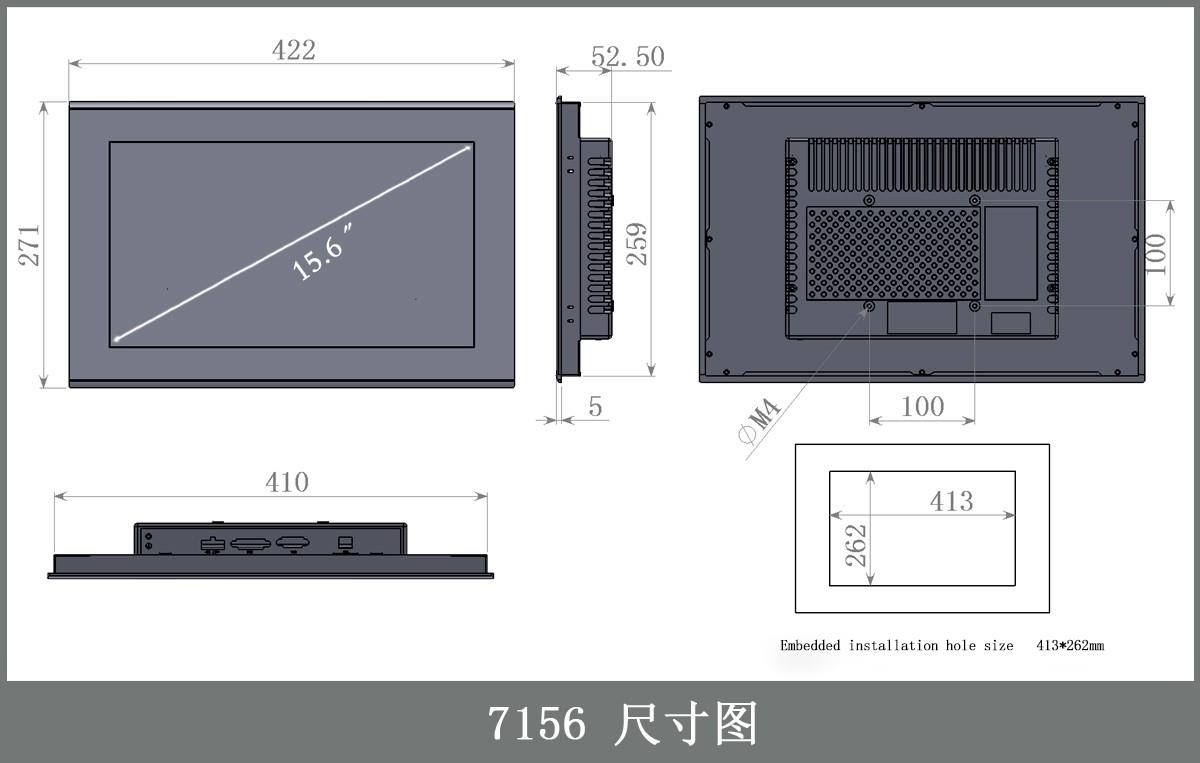

The dimensions of the PPC-J1900-156-C are 422*271*52.5mm.
