User Manual
Release 1.0
Chipsee Products Naming Rules
| PPC-10510U/3855/7200U-150-C | |
| PPC | Product with shell |
| 10510U 3855 7200U |
Intel CPU model |
| 150 | The product is 15 inches and the display resolution is 1024 x 768 pixels |
| C | C means capacitive touch R means resistive touch |
Hardware Features
| Key Features: | |
| CPU | Intel Core i7-10510U / Intel Celeron 3855/ i5-7200U, 1.8GHz, Quad-core |
| RAM | Default 4GB/8GB/16GB (1 x SO-DIMM DDR4 ) |
| Storage | 32GB, MSATA SSD support up to 512GB (1 x 2.5 “SATA HDD/SDD, 1 x MSATA) |
| Display | Intel HD graphics, Support HDMI output, Core graphics card/shared memory, Display resolution: 1024*768, Brightness: 350cd/㎡ |
| Touch | High-temperature resistance touch screen |
| USB | 4x USB 3.0 HOST |
| LAN | RJ-45×2 Intel®I211, 10/100/1000 Base-TX, support Wake on LAN |
| UART | Default 2*RS232/RS485, Optional +2*RS232 |
| SATA | 1 mSATA |
| WiFi/BT | Optional |
| HDMI | 1 Channel |
| 4G/LTE | Optional |
| Power Input | 12~24V DC |
| Working Temperature | -20°C to +60°C |
| OS | This product comes with a pre-installed Linux operating system. You can also choose to get Windows 7, or Windows 10 operating system installed. |
| Dimension | 376*300*61.7mm |
| Weight | 4500g |
PPC-10510U/3855/7200U-150-C

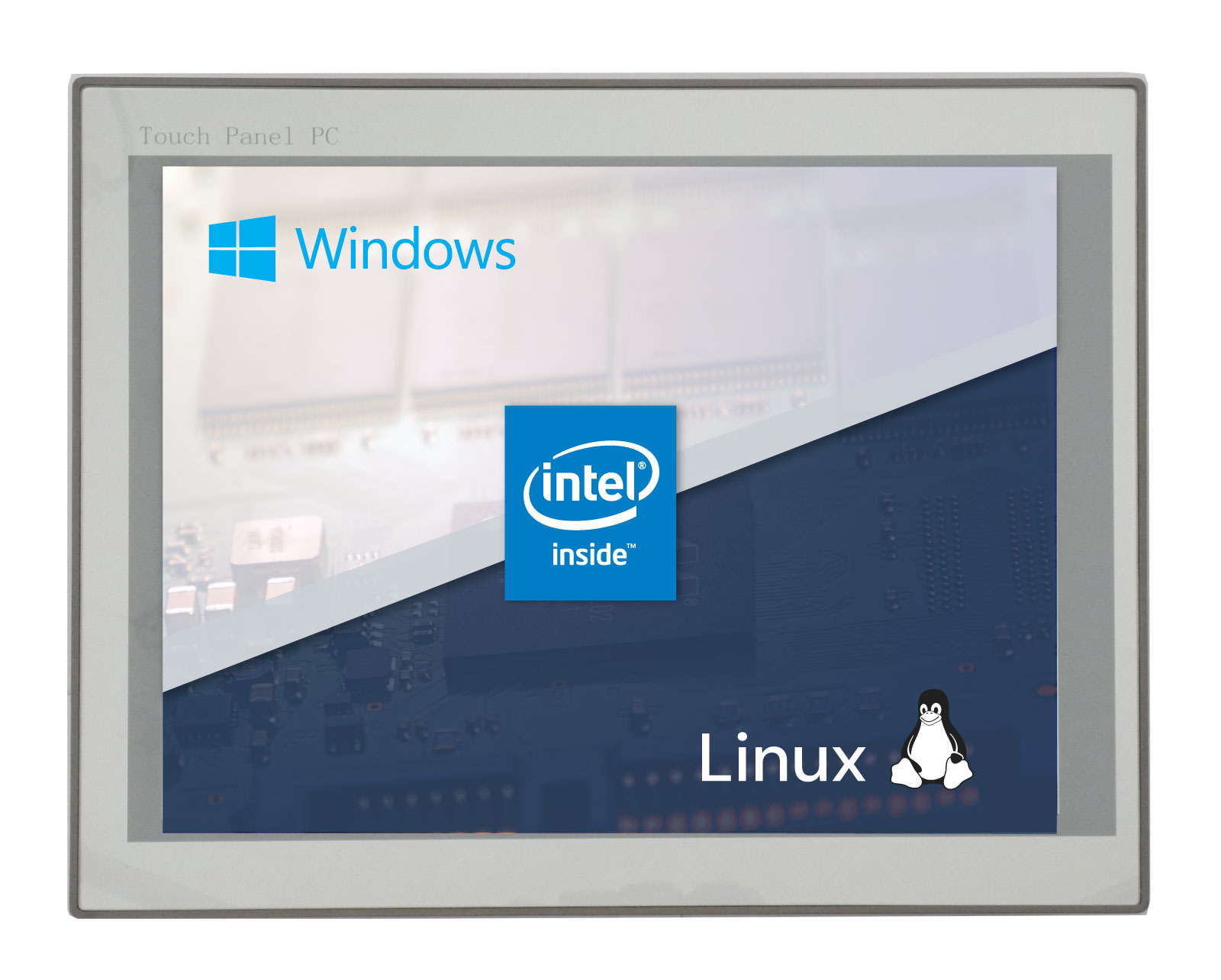

Figure 1: Front View

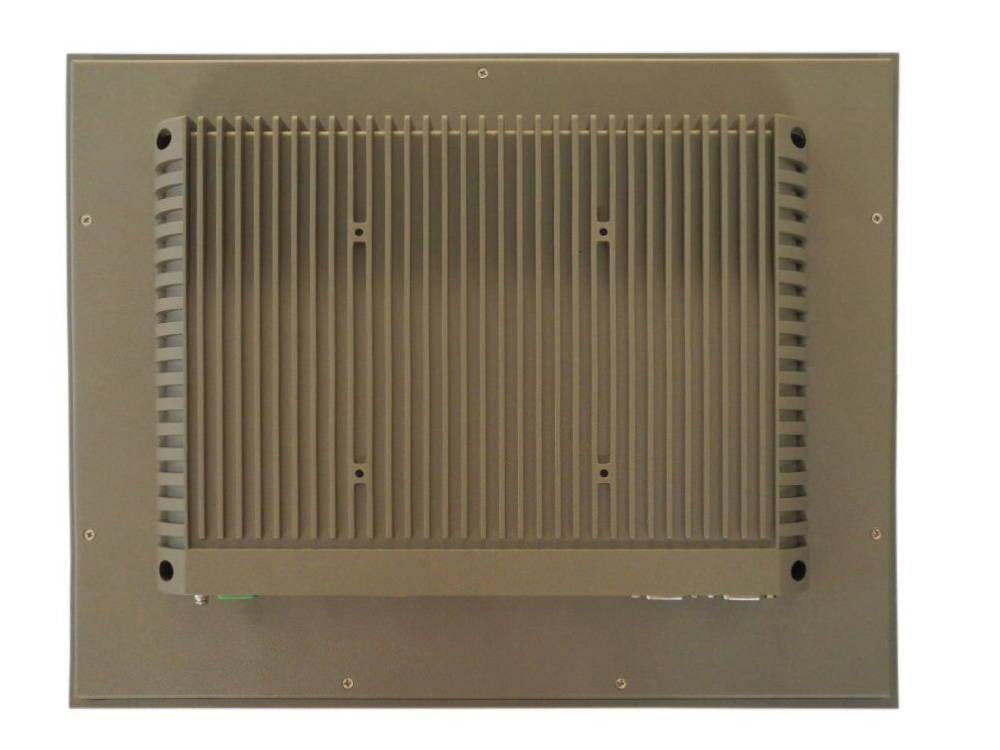

Figure 2: Back View

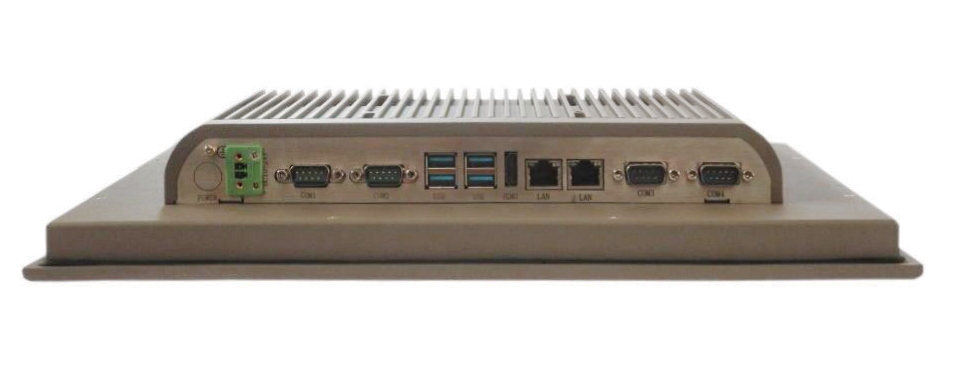

Figure 3: Side View
Power Input Connector
The PPC-10510U/3855/7200U-150-C uses a wide-range power input DC 12~24V. The Power Input Connector is one 2 Pin 3.81mm Screw Terminal Connector as Figure 4 shows.
Figure 4: Power Input Connector
RS485+RS232 Connector
The PPC-10510U/3855/7200U-150-C has 4 COM connectors (4RS232 by default; COM1 and COM2 can be configured as RS232 or RS485). Please feel free to contact us if you need a different configuration from the default one.
Figure 5: RS485+RS232 Connector
USB HOST Connector
The product PPC-10510U/3855/7200U-150-C has four USB 3.0 interfaces, as shown in Figure 6. USB 2.0 transfer speed is 480 megabits per second (Mbps), while the USB 3.0 transfer speed is 4,800 Mbps. This means USB 3.0 is approximately 10 times faster than USB 2.0, and as such, it is more energy-efficient. The port is compatible with USB 2.0 devices.
Figure 6: USB HOST Connector
LAN Connector
The PPC-10510U/3855/7200U-150-C has a two-channel 1000Mbit Ethernet Connector (LAN), as Figure 7 shows.
Figure 7: LAN Connector
HDMI Connector
The PPC-10510U/3855/7200U-150-C has one HDMI connector as shown in Figure 8. The HDMI output resolution can be configured by the software.
Figure 8: HDMI Connector

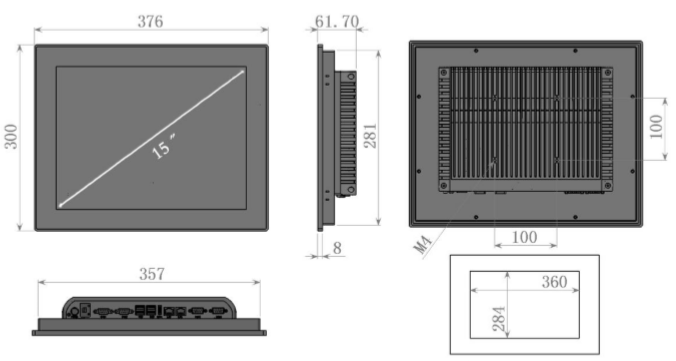

The dimensions of PPC-10510U/3855/7200U-150-C
The dimensions of PPC-10510U/3855/7200U-150-C are 376*300*61.7mm
How to Get Support
Please feel free to contact us with any questions, queries or suggestions.
If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution.
If you cannot find the solution you are looking for then please write to service@chipsee.com providing all possible details.
