EPC-A72-101-C

$319.00

The EPC-A72-101-C (PN CS12800R101E) is a high-quality industrial embedded computer, that features a 10.1 inch LCD with a ten-point capacitive touchscreen, an ARM dual Cortex-A72 (1.8GHz) plus Quad Cortex-A53 (1.4GHz) processor with 4GB DDR3 RAM and 16GB eMMC Flash, 1Gb Ethernet, 2 USB 2.0 ports, 1 USB 3.0 port, 1 Type-C port, 1 LAN port, 5 RS232 connectors, and 2 RS485 connectors, as well as a 3.5mm audio connector.

Need a higher quantity?
Contact us for a quote.
SKU: CS12800R101E Categories: ,

Description

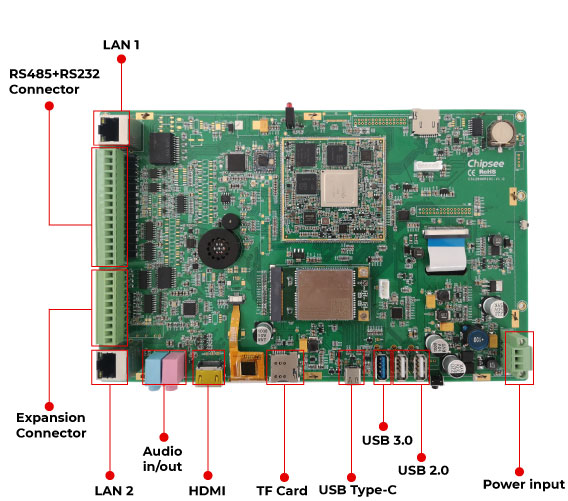

Hardware features

The EPC-A72-101-C has several expansion connectors on the backside – 2 USB 2.0 connectors, 1 USB 3.0 connector, 1 Type-C connector, 1 LAN connector, 5 RS232 connectors, and 2 RS485 connectors. It also features a 3.5mm audio connector and a TF card slot.

The WiFi/Bluetooth module is based on the Realtek RTL8723BU an 802.11bgn 2.4G single-chip that integrates Wireless LAN (WLAN) and a network USB interface (USB 1.0/1.1/2.0 compatible) controller with integrated Bluetooth 2.1/3.0/4.0 controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip.

The RS485 and RS232 connectors are DB9 connectors (as you can see from the image).

The speed of the RS232 and the RS485 port is up to 115200 Baud.

The EPC-A72-101-C has one channel 1Gb Ethernet port and one TF (uSD) card connector. This device supports a TF card up to 32GB.

When it comes to audio capabilities, the EPC-A72-101-C has one 3.5mm Output/Input connector and a 2W internal speaker.

The typical power consumption is 7.5W.

If you need a more customized solution, we can design, manufacture, and deliver you a tailor-made industrial PC.

System-on-Module

This product features the Rockchip RK3399, an ARM dual Cortex-A72 (1.8GHz) plus Quad Cortex-A53 (1.4GHz) high performance and ultra-efficient processor that implements the ARM v8-A architecture. The fast processing of Cortex-A72 is particularly suited to mobile applications.

This processor supports the following features: advanced single instruction multiple data (SIMD) operations, floating-point operations, and optional cryptography extension.

Display and Touchscreen

The EPC-A72-101-C has a 10.1’’ 10-point capacitive touch screen, with a 1200×800 resolution. 10-point capacitive touchscreens offer stable and accurate control over the device.

Capacitive touchscreens offer great image clarity. They are also very durable and resistant to environmental contaminants like dust and water. These types of screens work best with either a finger or a stylus with a conductive tip.

Software and OS

This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.

It supports the following operating systems:

  • Chipsee Linux
  • Android 7.1
  • Debian

* Chipsee Linux is based on NXP Yocto framework that we have integrated with:

  1. A Chipsee Hardware Test Application.
  2. An initialization script for GPIO/Buzzer/Audio.
  3. Multiple libraries, such as the libQt5Sql to develop Qt application with SQL.
  4. Various packages, such as the ntfs-3g to use NTFS.

Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool. If your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.

If you have any doubts, read our Product Selection guide.

Downloads

Additional information

Weight 600 g
Dimensions 245 × 155 × 11 mm
Form-factor

Embedded

Display Size (inch.)

10.1"

CPU

Cortex-A72

RAM

4GB DDR3

External storage

TF (microSD) Card Slot

FLASH

16GB

Resolution

1280*800

Brightness (cd/m²)

250

Touch Screen

10-Point Capacitive

Bluetooth

Onboard Bluetooth

WiFi

Onboard WiFi

4G

Onboard 4G / Optional

HDMI

1x HDMI

Ethernet

1x LAN 1000M

USB

1x USB 3.0 HOST, 1x USB Type-C, 2x USB 2.0 HOST

GPIO

Optional

RS232+RS485

Default 5xRS232 and 2x RS485

Buzzer

Yes

Power Consumption

7.5W

OS

Android 7.1, Debian 9.0, Linux

Power Input

15~36V DC

Working Temperature

-20°C ~ 70°C.

Mounting Method

Embedded Mounting
