PPC-A55-101

High-quality industrial panel PC powered by a quad-core Cortex®-A55 processor, with a 10.1" screen and touch panel. Its form factor and metal enclosure make it ideal for intensive industrial applications.

The PPC-A55-101 (CS12800-RK3568-101P) is a high-quality industrial panel PC based on the Rockchip RK3568 low-power processor that integrates a quad-core Cortex®-A55 processor. It features a 10.1” screen with a ten-point capacitive touch screen with 1280×800 pixel resolution and 400 NIT brightness.

The PPC-A55-101 provides a broad range of connectivity options, such as RS232, RS485, CAN, Ethernet, USB, TF card, onboard audio, RTC with a backup battery, and power management.

Its form factor and metal enclosure with IP65 protection on the front panel make it ideal for intensive industrial applications that require a human-machine interface.



Hardware Features

The PPC-A55-101 is a full-featured, rugged industrial computer designed and certified for industrial usage. It is ready to deploy industrial applications based on the Rockchip RK3568 low-power processor that integrates a quad-core Cortex®-A55 processor.

The PPC-A55-101 has a 10-point capacitive touch screen with a 1280×800 resolution and 400 NIT brightness. The screen offers stable and accurate control over the device and great image clarity.

There are various connectivity options such as USB, LAN, HDMI, RS232, RS485, CAN and GPIO. The PPC-A55-101 has 6 x UART channels in total. The default configuration is 4 x RS232 and 2 x RS485, and 1 debug port. The default settings can be changed. WiFi/BT and 4G/LTE modules are optional.

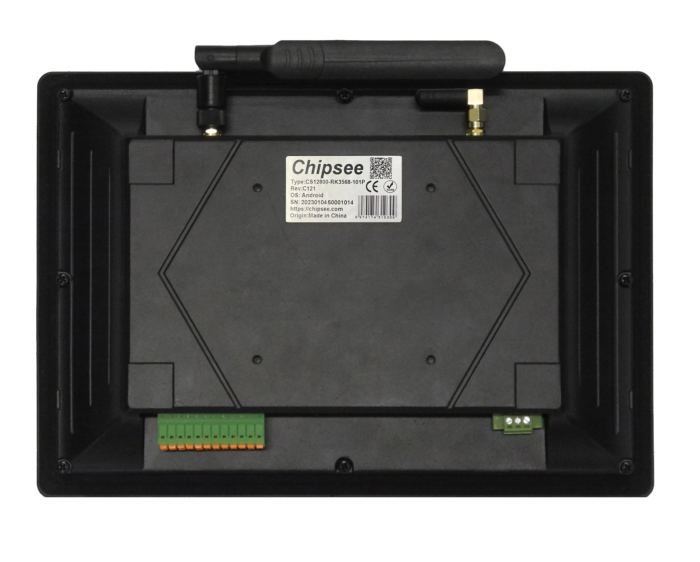

The PPC-A55-101 supports panel and 75mm VESA mounting methods.

The metal enclosure is available in two colours: black and grey.

Performances and reliability

The PPC-A55-101 Industrial Panel PC is based on the powerful Rockchip RK3568 chip – a high-range general-purpose SoC that integrates a quad-core Cortex®-A55 processor.

This chip supports various peripheral interfaces and has a built-in independent NPU. It supports Android 11 and Linux systems and is perfect for industrial customization markets such as IoT gateways, cloud terminals, NVR storage, industrial equipment, industrial control panels, industrial control boxes, etc.

Operating system

The PPC-A55-101 supports Android 11, Debian 11, and Buildroot Linux Qt.

We have developed all the necessary drivers, so every hardware feature is readily available for any standard development tool. If your project requires an OS that is not on the list, please contact us, and we’ll make a customized version for you.

If you need a different OS installed, get in touch with us and we will do it for you.

Technical Features

Weight 1300 g
Dimensions 275.5 × 193.5 × 46 mm
Form-factor

Panel

CPU

ARM: Rockchip RK3568

CPU Frequency

Quad Cortex A55, 2.0GHz

DDR4

2GB

eMMC

16GB

Storage

External TF card slot, and internal M.2 NVMe connector for SSD card

Display Size (inch.)

10.1"

Resolution

1280*800

Brightness (NIT)

400 NIT

Touch Screen

Capacitive

WiFi/BT

Yes

4G

Optional

Ethernet

1x Giga LAN

Audio

3.5mm Audio Out Connector, Internal 2W Speaker

Buzzer

Yes

USB

1x USB Type-C, 1 x USB 3.0 HOST, 1x USB 2.0 HOST

RTC

High Accuracy RTC, can work 1 week after power off

GPIO

8 Channels, 4 Input, 4 Output

RS485

2x RS485

RS232

4x RS232

CAN

2x CAN

OS

Debian 11, Android 11, Buildroot Linux Qt

Power Input

12~36V DC

Power Consumption

9.6W

Current at 12V

800mA Max at 12V

Working Temperature

0°C to +60°C

Mounting Method

Panel Mounting & VESA

Documentation and Downloads

Hardware Documentation

Software Documentation

3D Design File

CE Certification

Order Now

PPC-A55-101

SKU: CS12800-RK3568-101

$293.00
