Hardware features

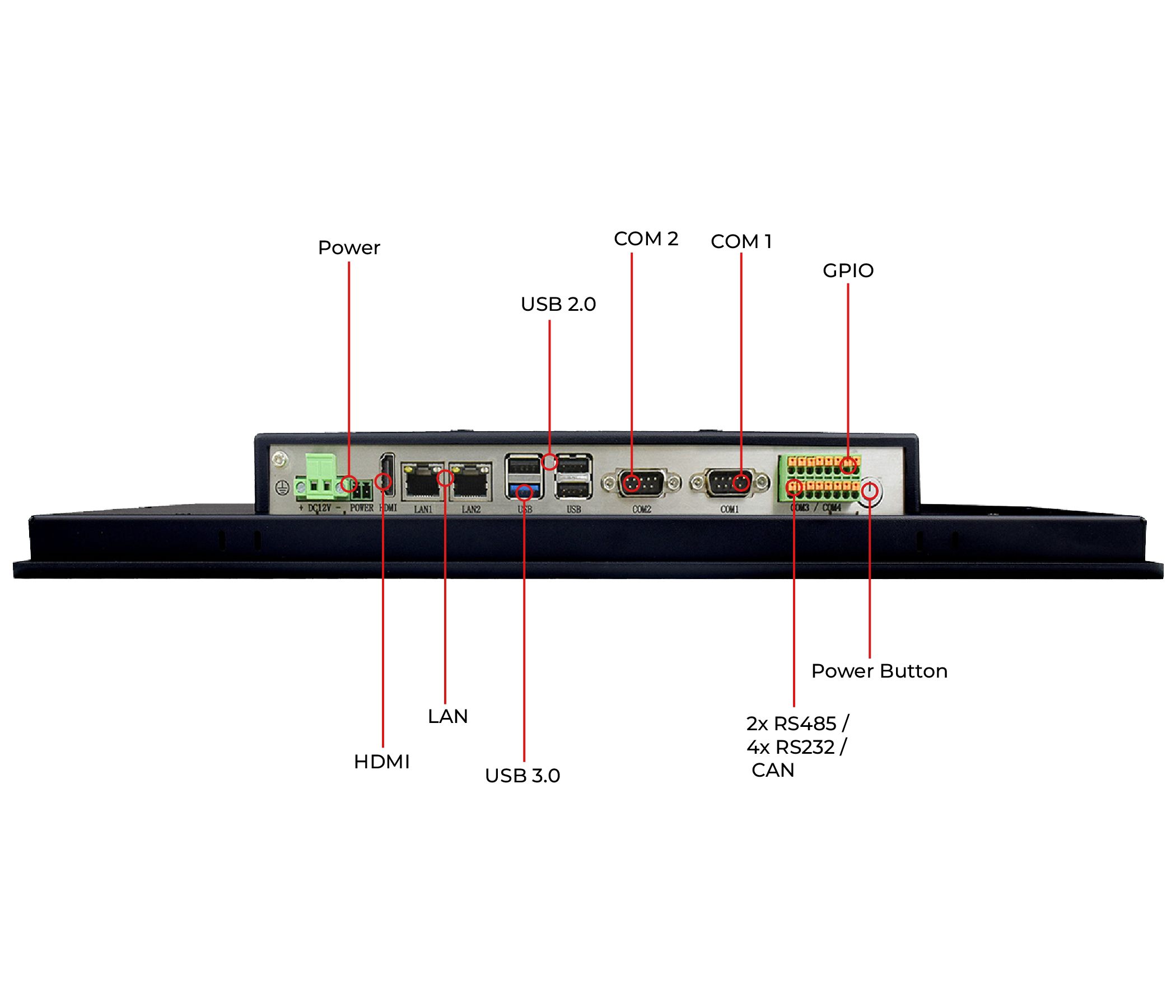

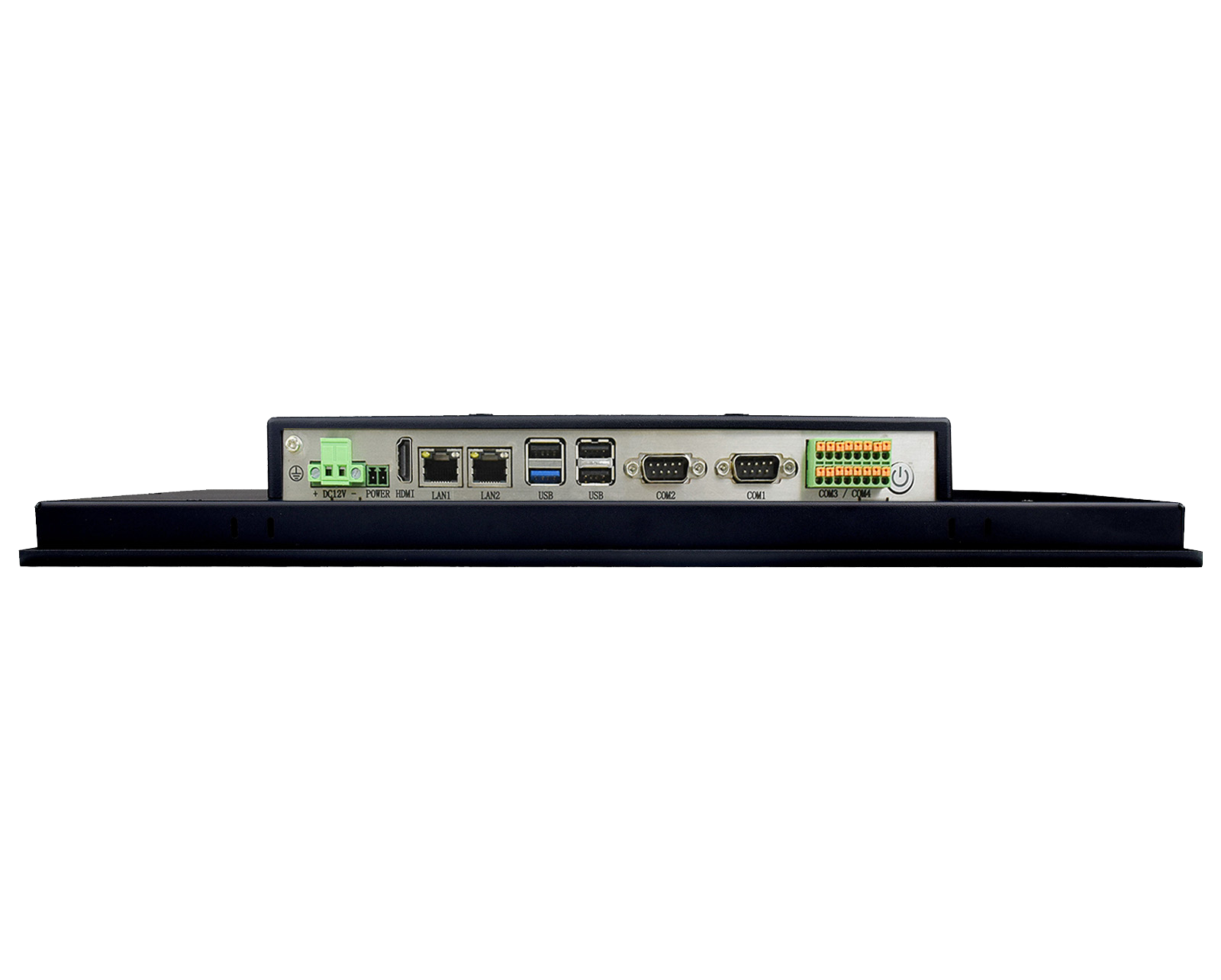

The PPC-J1900-156-C has several expansion connectors on the back side – 3 USB 2.0 connectors, 1 USB 3.0 connector, 2 LAN connectors, 2 COM connectors（2 RS232 by default）and 1*10PIN 3.81mm screw terminal connector ( 4 RS232 and 2 RS485 by default), and 1 HDMI connector.
Please note that a WiFi/BLE module does not come with the product by default, but it can be added. Use the menu in the top right corner of the product page to add it if you need it.
A 4G/LTE module can be added to the product, but we do not currently offer it in our shop. We recommend you to buy it locally, and install it yourself, as it’s quite easy to add.
The RS485, and RS232 connector is a 16 Pin 3.81mm screw terminal connector.
Contact us for more information.
Performances and reliability

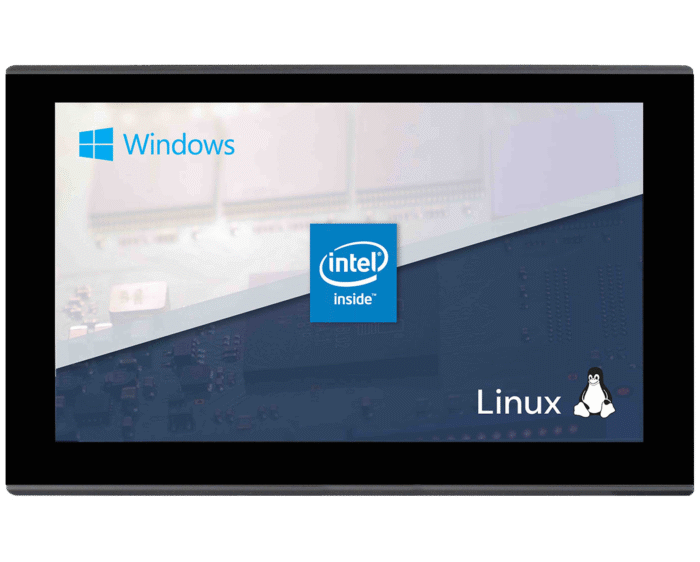

The PPC-J1900-156-C Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

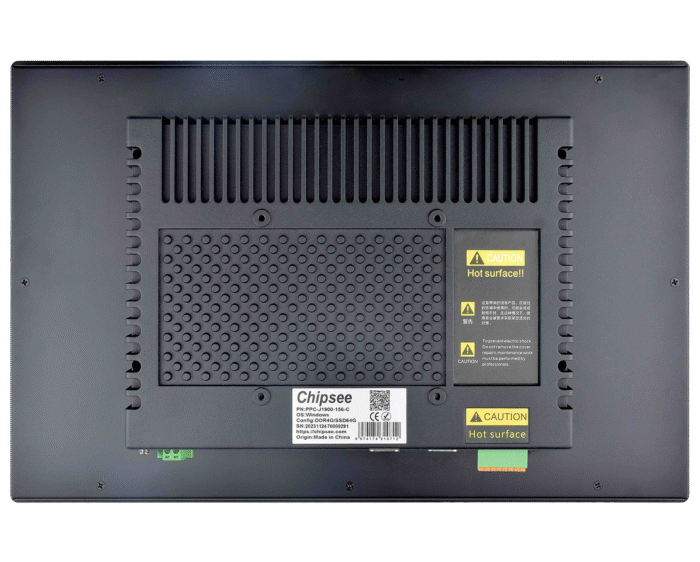

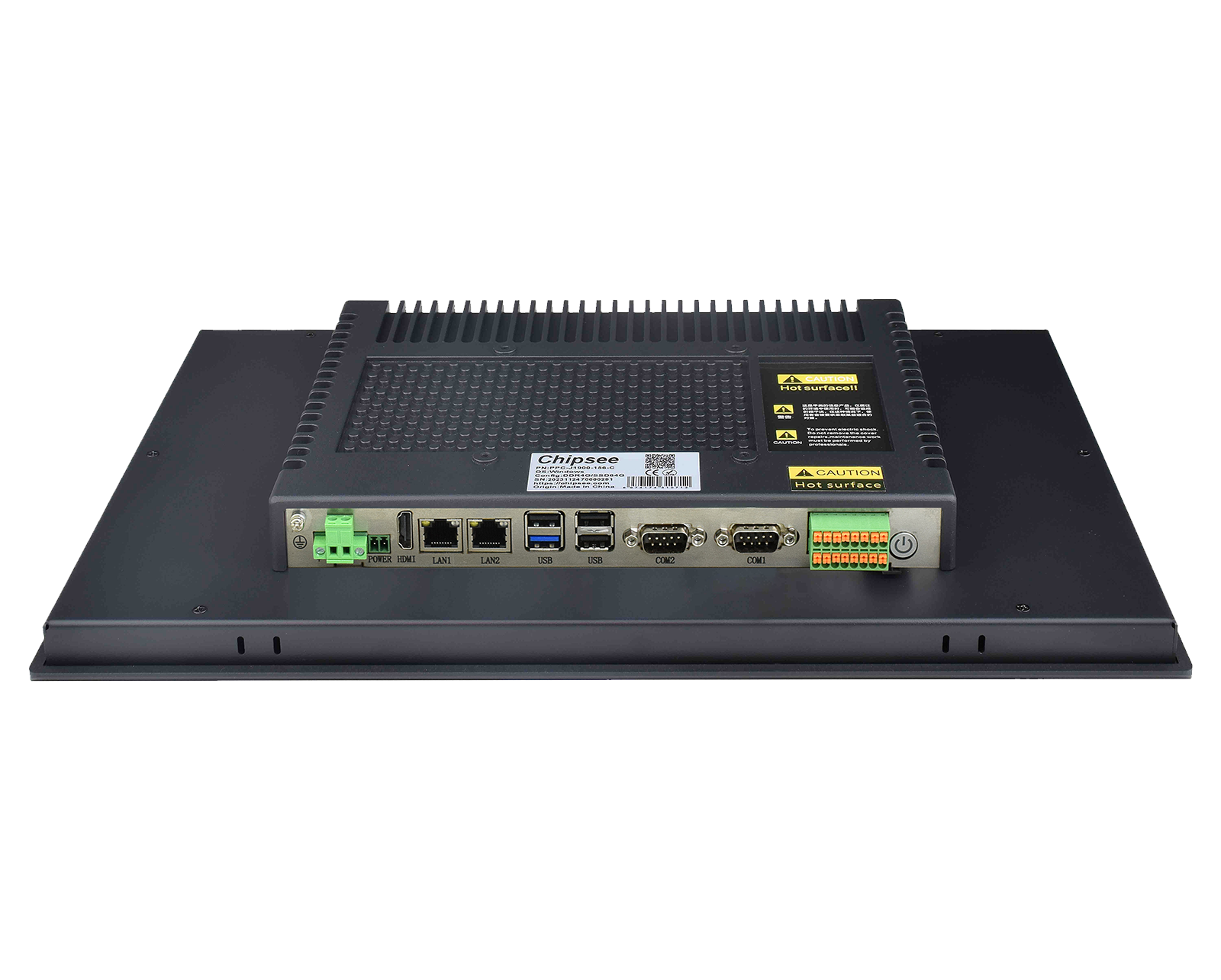

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fan-less design reduces noise, as well as the maintenance costs and efforts, increasing reliability at the same time.
Multiple OS choices
This product comes with a pre-installed Linux operating system. You can also choose to get Windows 7, or Windows 10 operating system installed. Simply go to the top of the page and choose the OS you want from the menu. If you choose Windows 7, an additional $43 will be added to the price of the products, and additional $75 if you choose Windows 10.
Please contact us if you need a different one, and we’ll pre-install it for you.
Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.
Of course, if your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.
If you have any doubts, read our Product Selection guide.
Technical Features
| Weight | 4200 g |
|---|---|
| Dimensions | 422 × 271 × 52.5 mm |
| Form-factor | Panel |
| Display Size (inch.) | 15.6" |
| Resolution | 1366*768 |
| Brightness (NIT) | 500 NIT |
| Touch Screen | Capacitive |
| CPU | Intel Celeron J1900 |
| RAM | 4GB DDR3 |
| Storage | 64 GB mSATA SSD (supports up to 512 GB) + SATA interface |
| OS | Windows |
| Ethernet | RJ-45 x 2, Intel®I211, 10/100/1000Base-TX |
| WiFi | Onboard WiFi optional |
| Bluetooth | Onboard BT optional |
| 4G | Onboard 4G Optional |
| HDMI | 1x HDMI |
| USB | 4x USB (3x USB 2.0, 1x USB 3.0) |
| SATA | mSATA, 1x SATA II |
| COM | 2x COM (4x RS232 by default, optional 2x RS485) |
| Power Consumption | 22W |
| Power Input | 9~30V DC |
| Working Temperature | -20℃ ~ 60℃ |
| Mounting Method | VESA & REAR Mounting |
