PPC-J1900-190-R

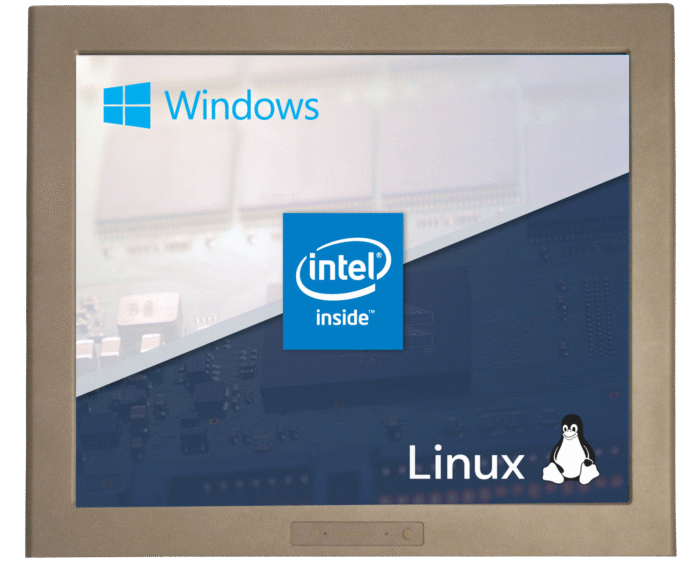

The PPC-J1900-190-R is a high-quality industrial panel computer that features a 19” LCD with resistive touchscreen, a quad-core Intel® Celeron® series SoC processor with 4GB of DDR3 RAM.

Hardware description

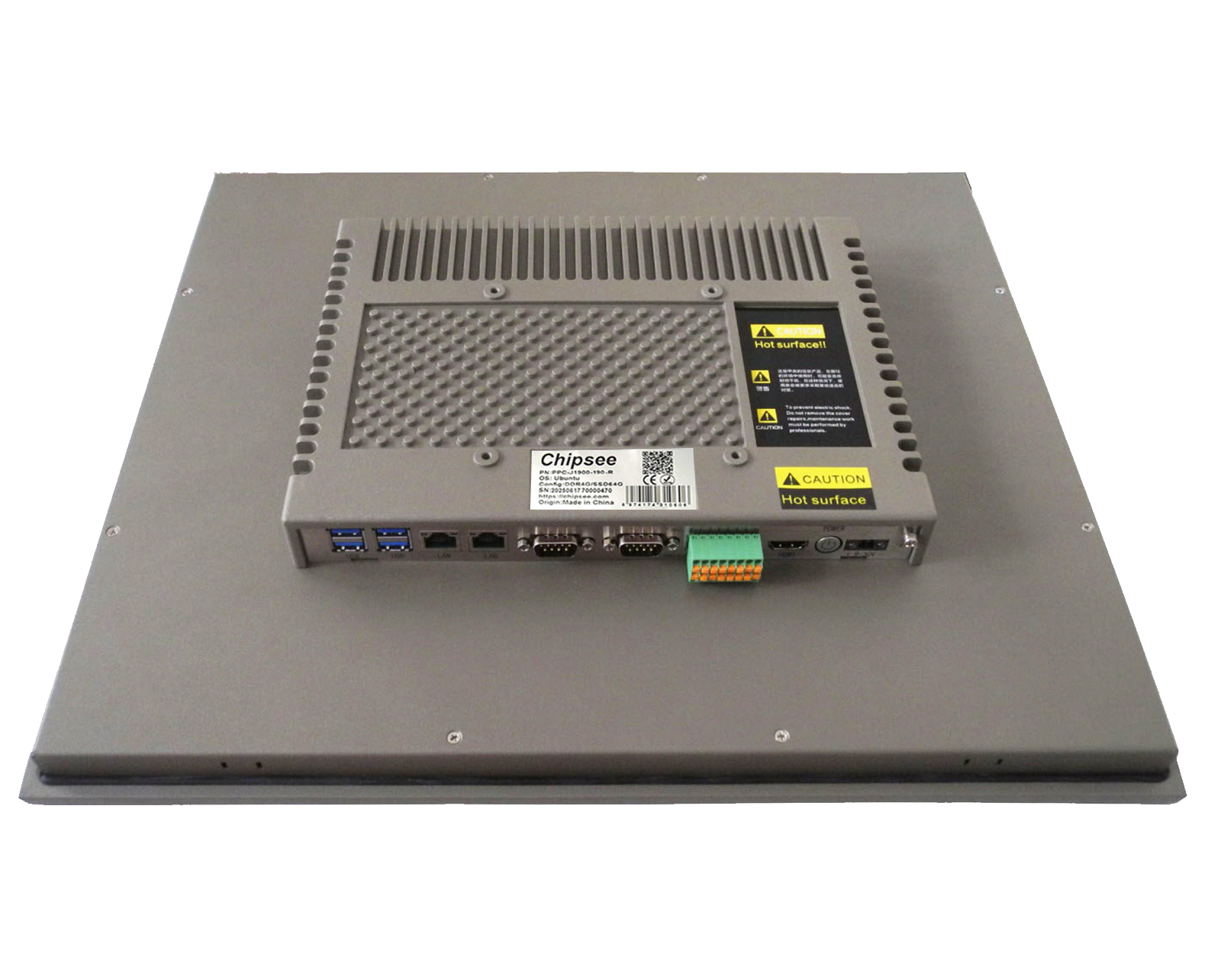

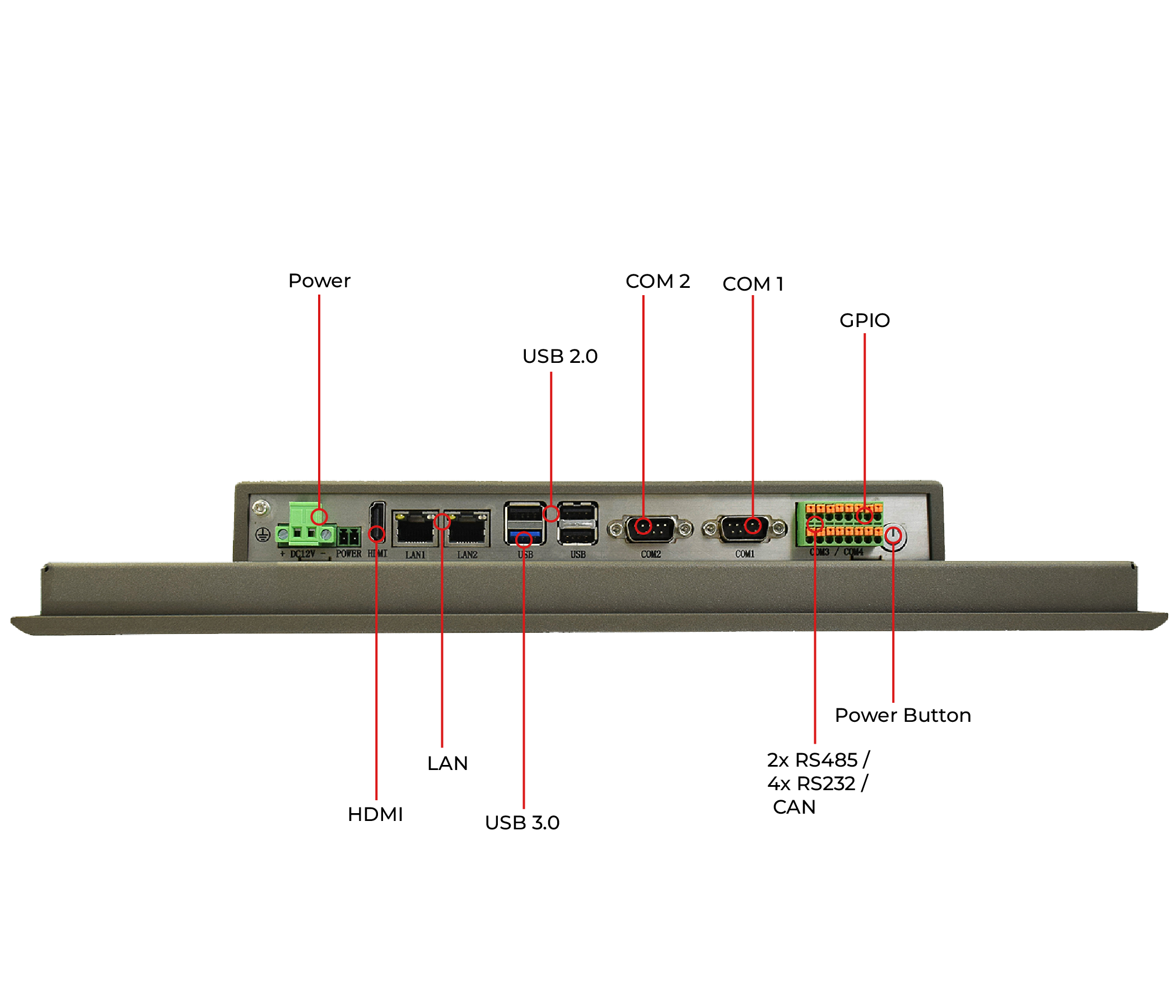

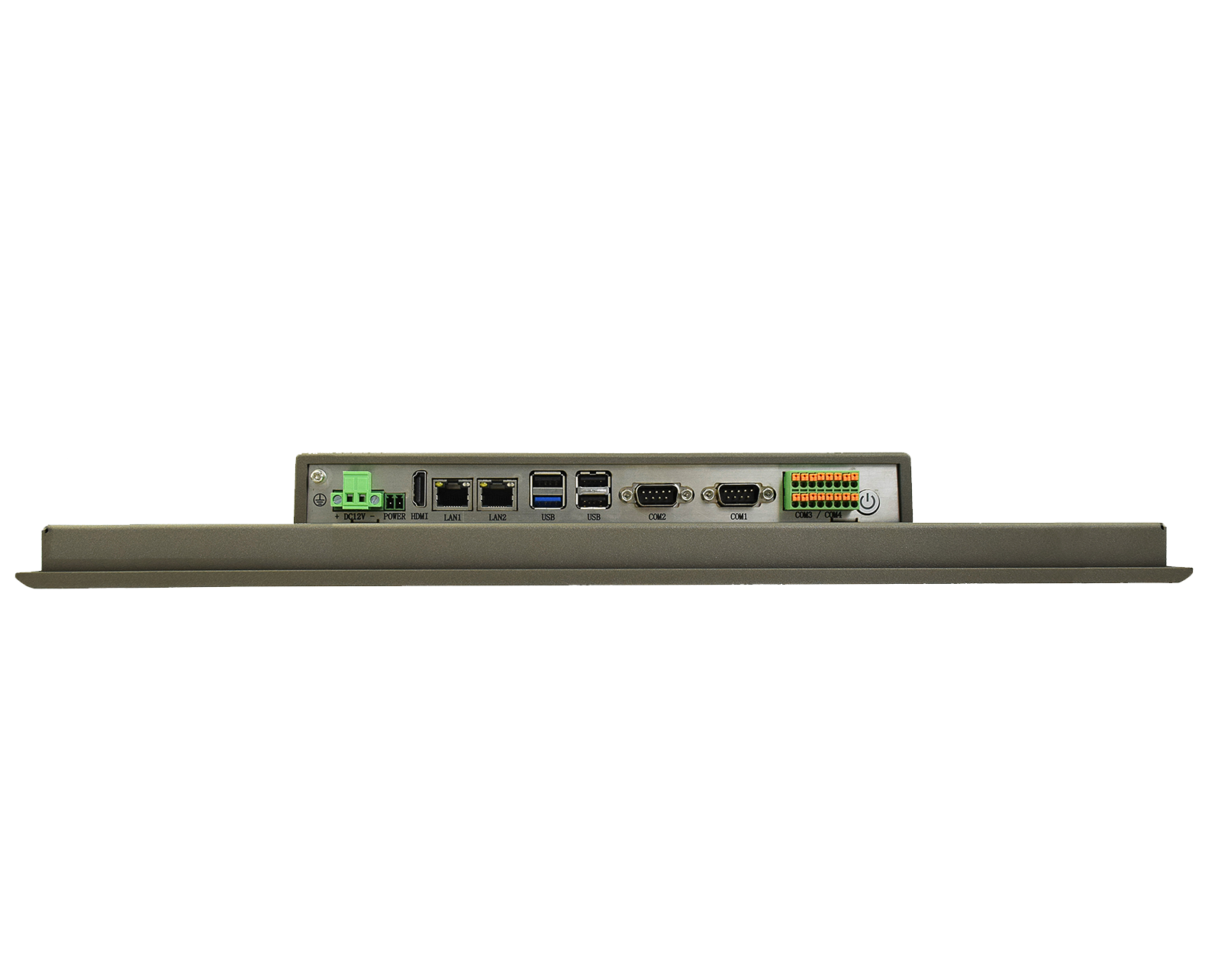

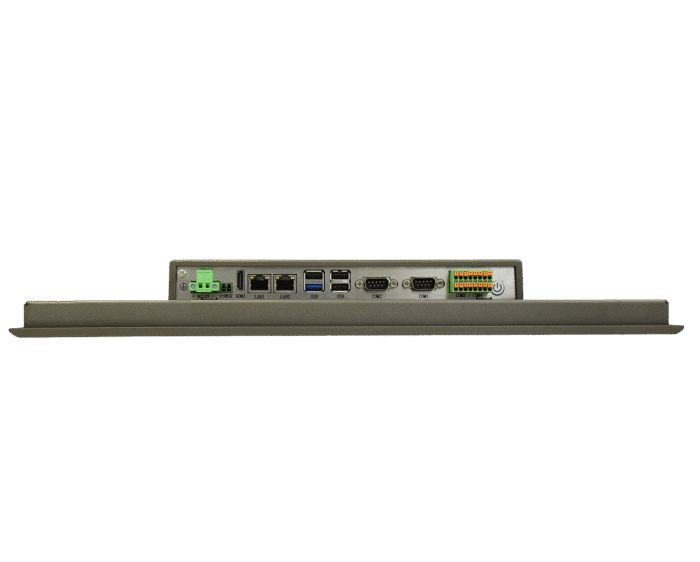

The PPC-J1900-190-R has several expansion connectors on the back side – 3 USB 2.0 connectors, 1 USB 3.0 connector, 2 LAN connectors, and 4 COM connectors (4 RS232 connectors by default; COM1 and COM2 are optional RS485 connectors, which means there are 2 RS485), 1 HDMI connector, and 8 GPIO connectors.

Please note that a WiFi module does not come with the product by default, but it can be added. Use the menu in the top right corner of the product page to add it if you need it.

A 4G/LTE module can be added to the product, but we do not currently offer it in our shop. We recommend you buy it locally, and install it yourself, as it’s quite easy to add.

The 16 Pin 3.81mm screw terminal connector includes 8 GPIO and 2 RS232.

Contact us for more information.

Weight 5200 g
Dimensions 447 × 371 × 55 mm
Form-factor

Panel

Display size

19.0″

Resolution

1280*1024

Brightness (NIT)

400 NIT

Touch Screen

Resistive

CPU

INTEL: Celeron J1900

RAM

4GB DDR3

Storage

64GB Flash/eMMC

Audio

Line-in, line-out – Dual channel HD audio

Ethernet

2xRJ-45, 1 Gbps, support Wake on LAN

WiFi/BT

Optional

4G

Optional

HDMI

1x HDMI

GPIO

8x GPIO

USB

1x USB 3.0 HOST, 3x USB 2.0 HOST

SATA

mSATA, 1x SATA II

RS485

2x RS485

RS232

4x RS232

Power Consumption

35W

Power Input

DC 9-36V

Working Temperature

-20℃ ~ 60℃

OS

Ubuntu 20.04, Windows 7, Windows 10

Mounting Method

Panel/Wall-Mounted/Desktop Type/VESA 100mm

GTIN

6974174310767

Performances and reliability

The PPC-J1900-190-R Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

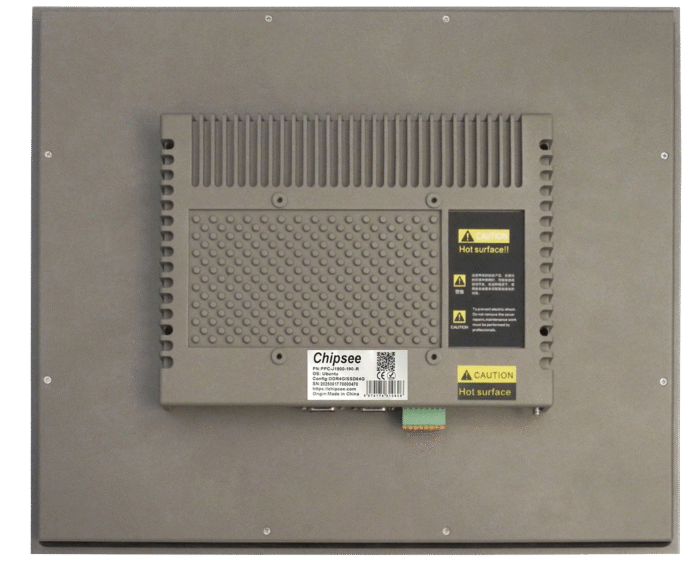

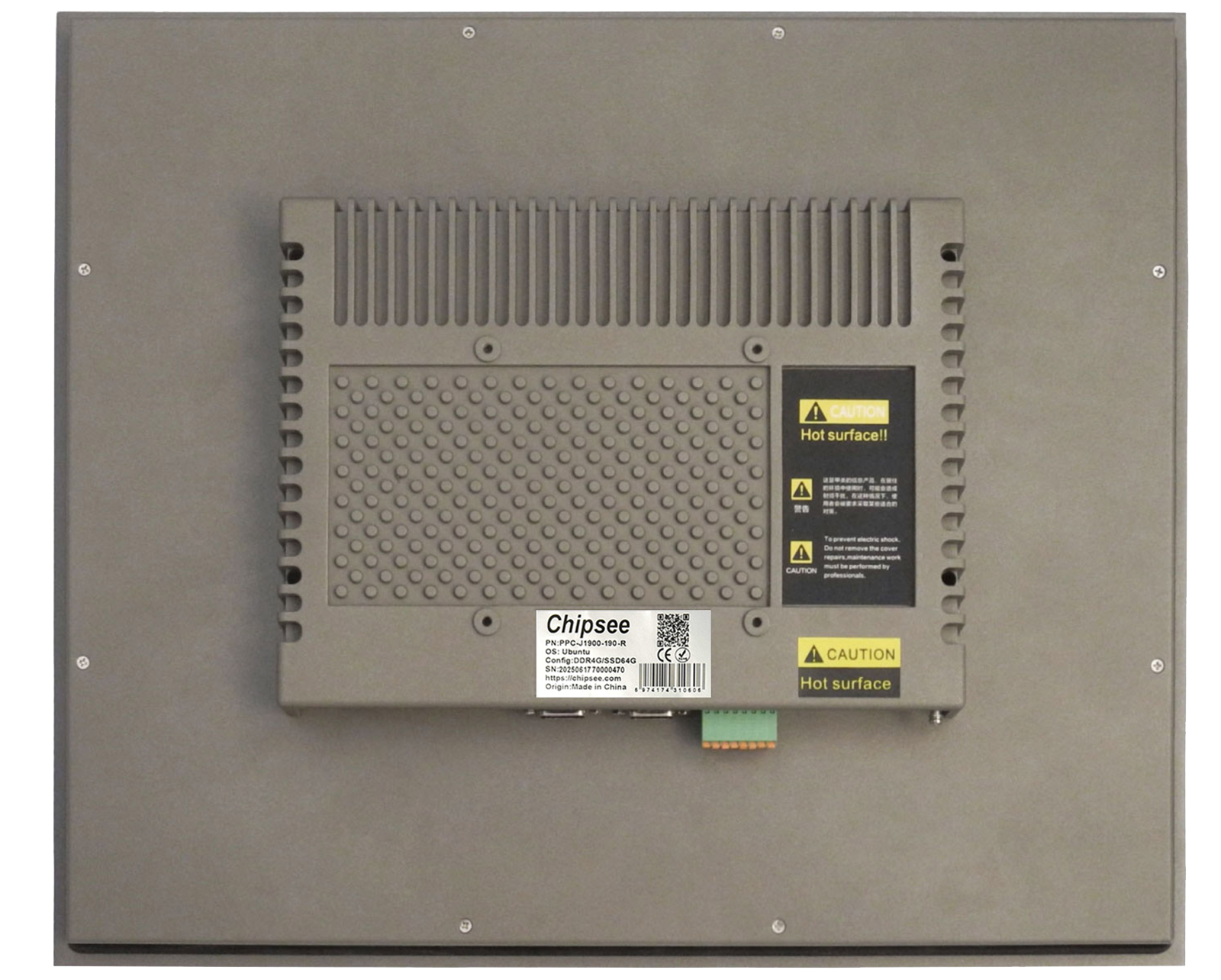

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fan-less design reduces noise, as well as the maintenance costs and efforts, increasing reliability at the same time.

Multiple OS choices

The unit ships with Ubuntu 20.04 pre-installed but offers the flexibility to opt for Windows 7 or Windows 10 through a simple selection in the drop-down menu during purchase. Please note that opting for Windows 7 and Windows 10 will incur an additional charge of $40 and $50 respectively.

Documentation and Downloads

Hardware Documentation
