Hardware features

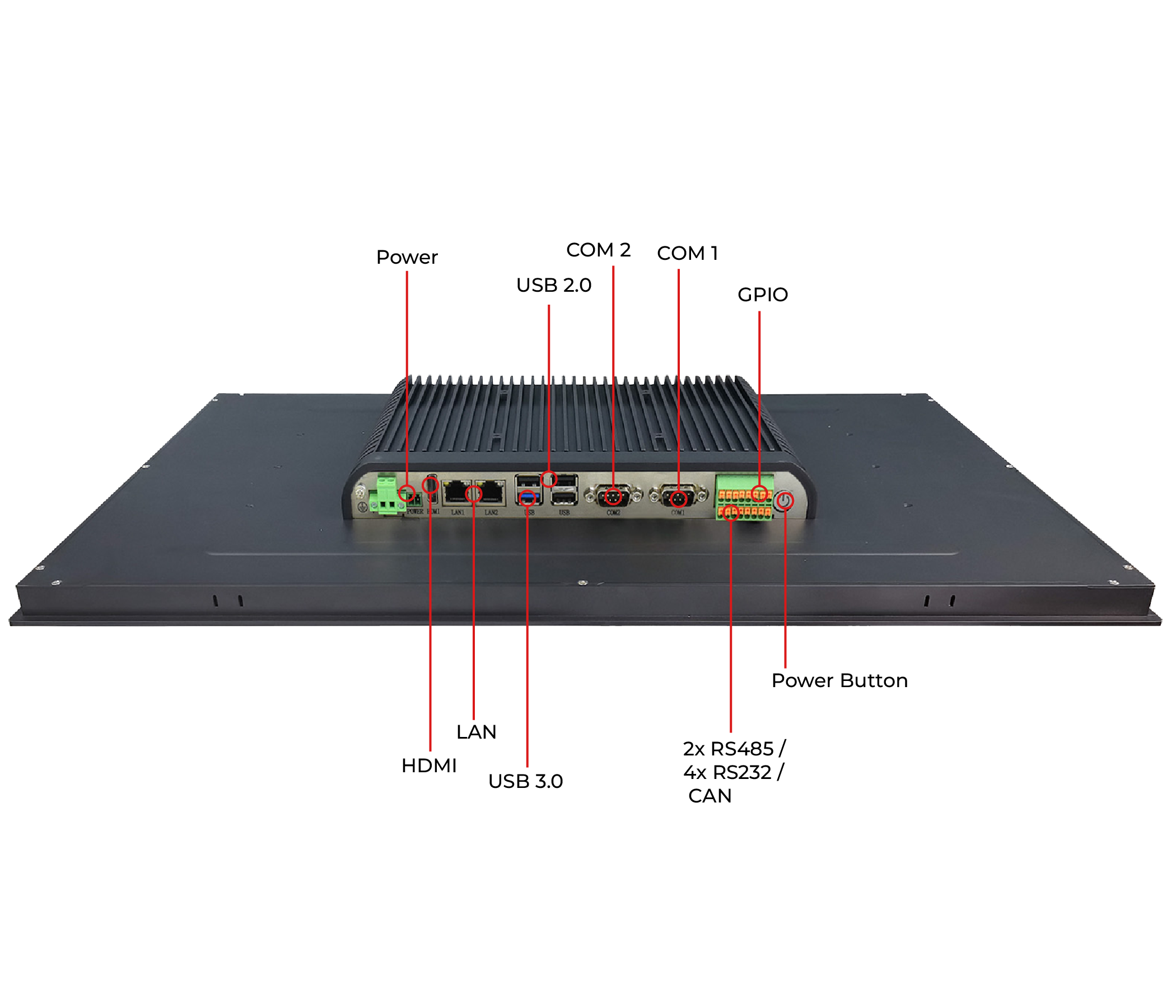

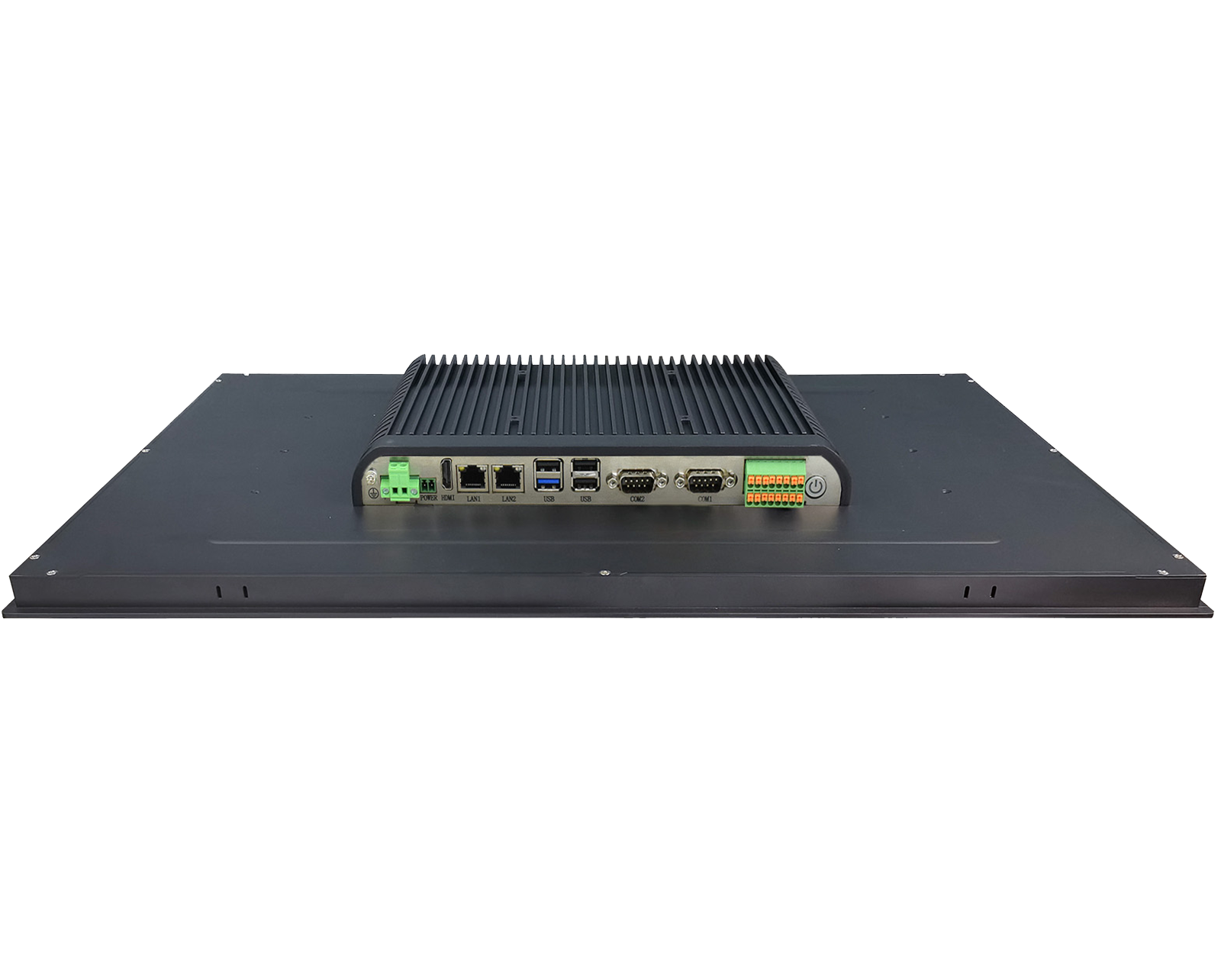

The PPC-J1900-236-C has several expansion connectors on the back side:
- three USB 2.0 connectors
- a USB 3.0 connector
- two LAN connectors
- four COM connectors (the four RS232 connectors by default; on top of which you can add COM1 and COM2 as optional RS485 connectors)
- a HDMI connector, and
- eight GPIO connectors
WiFi/BT module does not come with the product by default. It is an optional module and can be added when ordering.
A 4G/LTE module can be added to the product, but we do not currently offer it in our shop. We recommend you buy it locally, and install it yourself, as it’s quite easy to add.
The 16 Pin 3.81mm screw terminal connector includes 8 GPIO and 2 RS232.
Contact us for more information.
Performances and reliability
The PPC-J1900-236-C Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and is equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

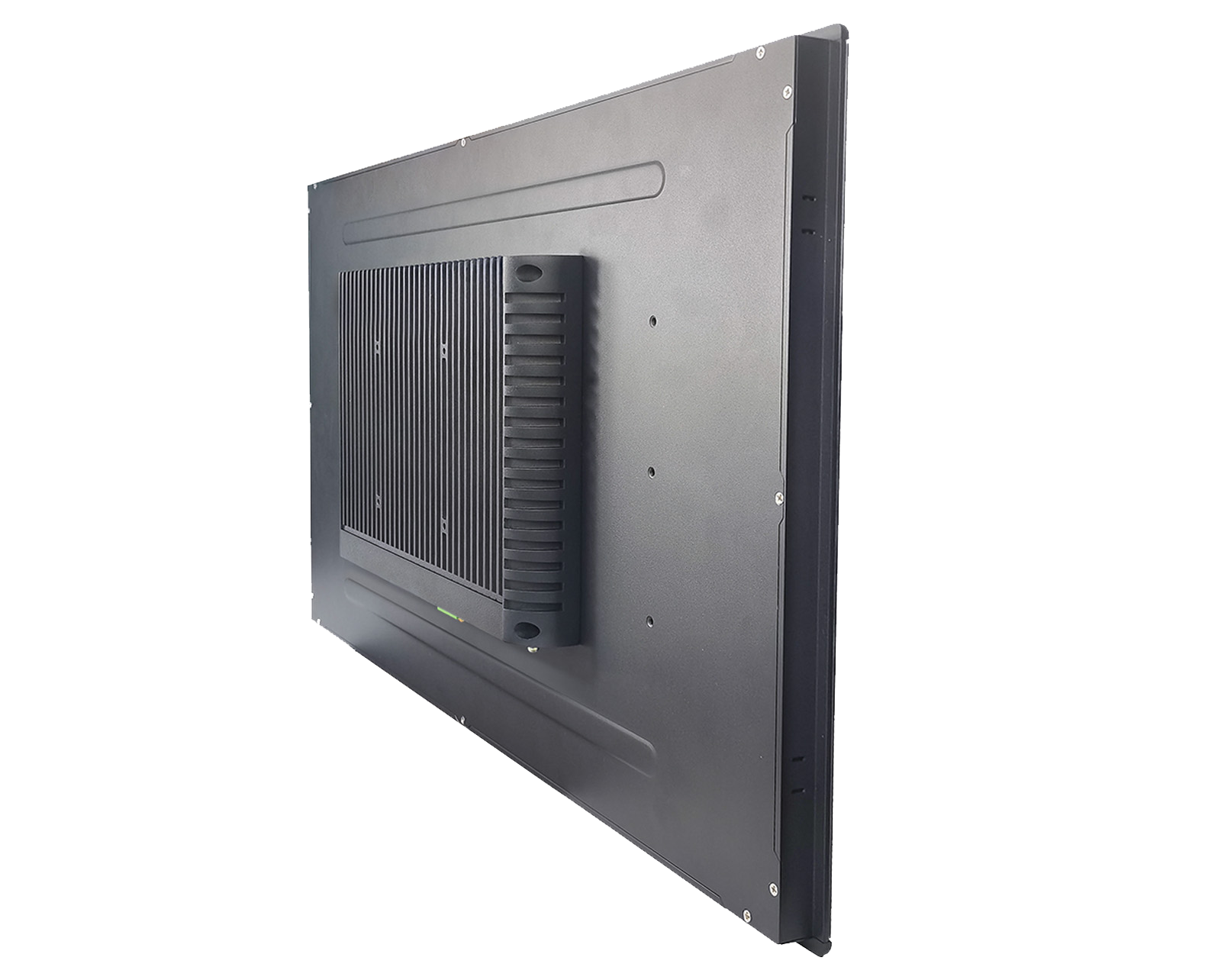

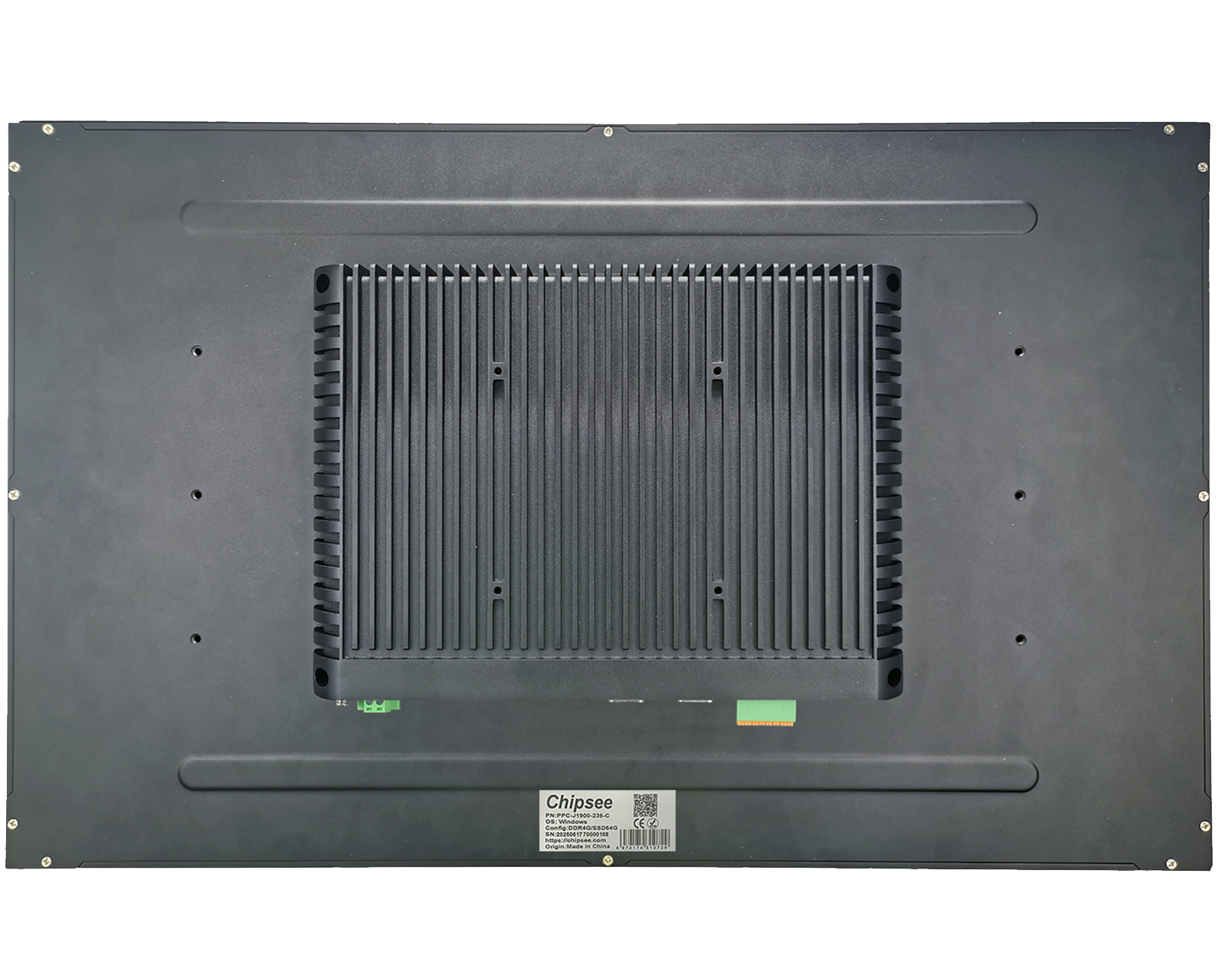

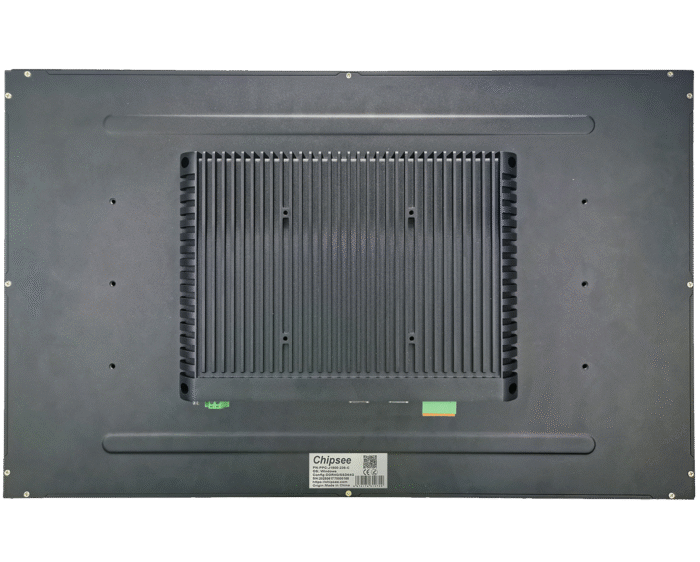

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fan-less design reduces noise, as well as the maintenance costs and efforts, increasing reliability at the same time.
Multiple OS choices
This product comes with a pre-installed Linux operating system. You can also choose to get Windows 7, or Windows 10 operating system installed. Simply go to the top of the page and choose the OS you want from the menu. If you choose Windows 7, an additional $43 will be added to the price of the products, and an additional $75 if you choose Windows 10.
Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.
Of course, if your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.
If you have any doubts, read our Product Selection guide.
Technical Features
| Weight | 7700 g |
|---|---|
| Dimensions | 596 × 375 × 55 mm |
| Form-factor | Panel |
| Display Size (inch.) | 23.6" |
| Resolution | 1920*1080 |
| Brightness (NIT) | 350 NIT |
| Touch Screen | Multi-point capacitive |
| CPU | Intel Celeron J1900 |
| RAM | 4GB DDR3 |
| Storage | 64GB Flash/eMMC |
| Audio | Line-in, line-out – Dual channel HD audio |
| Ethernet | 2xRJ-45, support Wake on LAN |
| WiFi | Optional |
| Bluetooth | Optional |
| 4G | Optional |
| HDMI | 1x HDMI |
| USB | 1x USB 3.0 HOST, 3x USB 2.0 HOST |
| SATA | 1 x mSATA SSD electronic disk supports; 1x SATA 2.5” HDD |
| RS485 | 2 x RS485 |
| RS232 | 4x RS232 |
| GPIO | 8x GPIO |
| Power Consumption | 30W |
| Power Input | 9-30V DC |
| Working Temperature | -20℃ ~ 60℃ |
| OS | Deafult Linux, Windows 7, Windows 10 |
| Mounting Method | VESA 100, Panel mounting with fixtures |
Order Now
PPC-J1900-236-C
SKU:
$952.00 – $1,027.00
