PIM-215-C

Version 1.1

Product Overview

PIM-215-C (PN: CS-D215) is a 21.5” industrial display that features a 10-point capacitive touch screen with a resolution of 1920×1080 (16:9) pixels and brightness of 250 cd/m2. The 3mm tempered glass cover with black silk-screen ensures the screen is water and steam resistant.

The typical power consumption is ≤ 20W, while in standby mode, PIM-215-C uses around ≤ 2W, making it ideal for all kinds of applications.

Ordering Options

Most of the Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Specification section provides information about the product.

Note

You can order PIM-215-C from the official Chipsee Store or from your nearest distributor.

Specification

Table 412 Key Features

PIM-215-C

Backlight

Led

Type of Pen

Fingers, Hands with Gloves, Conductive Stylus

Brightness

250 cd/m2

Waterproof

Touch surfaces will not be affected by water droplets or steam

Contrast Ratio

3000:1

Calibration

No Calibration Tool

Viewing Angle

Horizontal: 178° / Vertical: 178°

Response Time

7ms to 12ms

Response Time

18ms (GTG)

Connect

1 x USB 2.0 (Type-B)

Display Color

16.7M Colors

Multi Touch Protocol Support

Windows

Display Resolution

1920×1080 (16:9)

Operating System

Windows 7/8, Android, Linux

Refresh Frequency

60Hz

Dimensions

532.3 x 323.7 x 42.5mm

Input Resolution

1920×1080 (16:9) @ 60Hz

Packaging Size

680 x 450 x 150mm

Connector

VGA / DVI / HDMI

Weight

5000g / 7000g

Built-in Speaker

N/A

Mounting Methods

VESA, MIS-D, 100, C

OSD Control

Button

Power Input

12V 3A DC

OSD Language

English, Chinese

Power Supply

≤ 20W

Glass

3mm Tempered Glass with Black Silk-screen

Standby Power

≤ 2W

Touch Point

10

Work Environment (temp.)

From 0°C to +40°C, 90% RH

Touch Technology

Projecting Capacitance (G+G)

Storage Environment

From -20°C to +60°C, 90% RH

Accessories

Bracket / Power Line / VGA Line / USB Line / Power Adapter

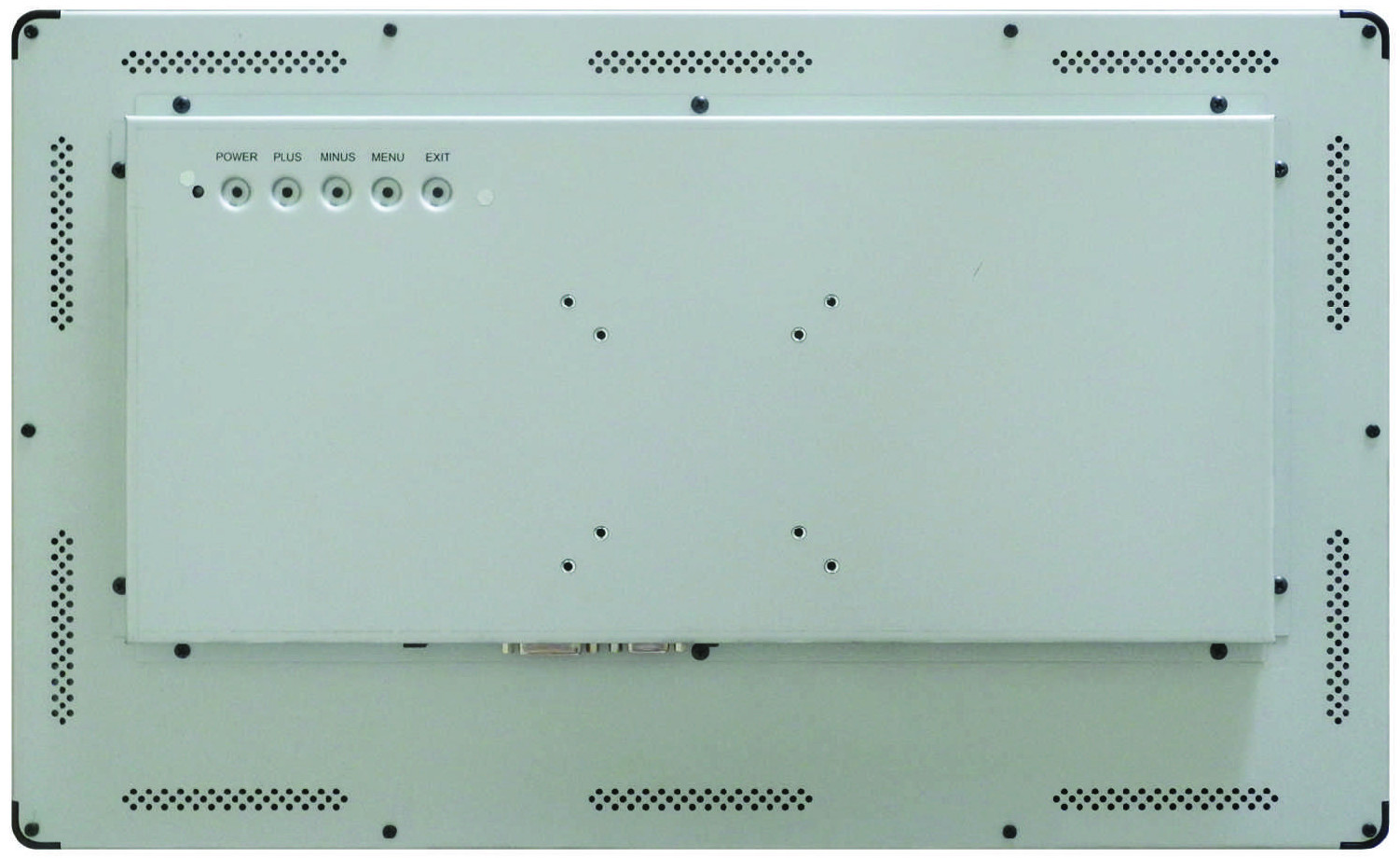

Mounting Procedure

The PIM-215-C industrial display supports VESA 100 x 100 mounting pattern with 4 x M4 screws, enabling simplified installation onto any standard VESA mounting rack. Other mounting options might also be supported according to the table in the Specification section.

You can find detailed information about mounting in the Mount IPC Guide.

Mechanical Specifications

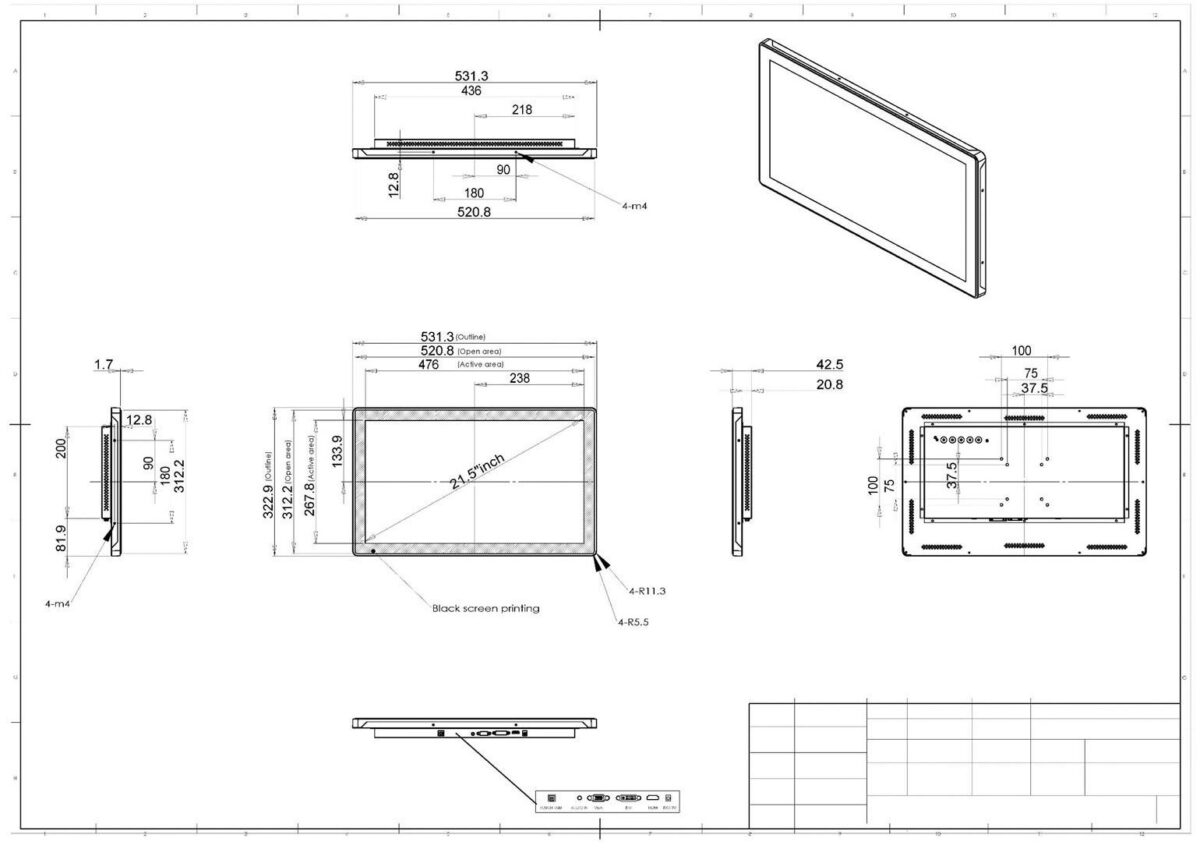

The outer mechanical dimensions of The PIM-215-C industrial display are 532.3 x 323.7 x 42.5mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements.

../_images/pim-215-sd.jpeg

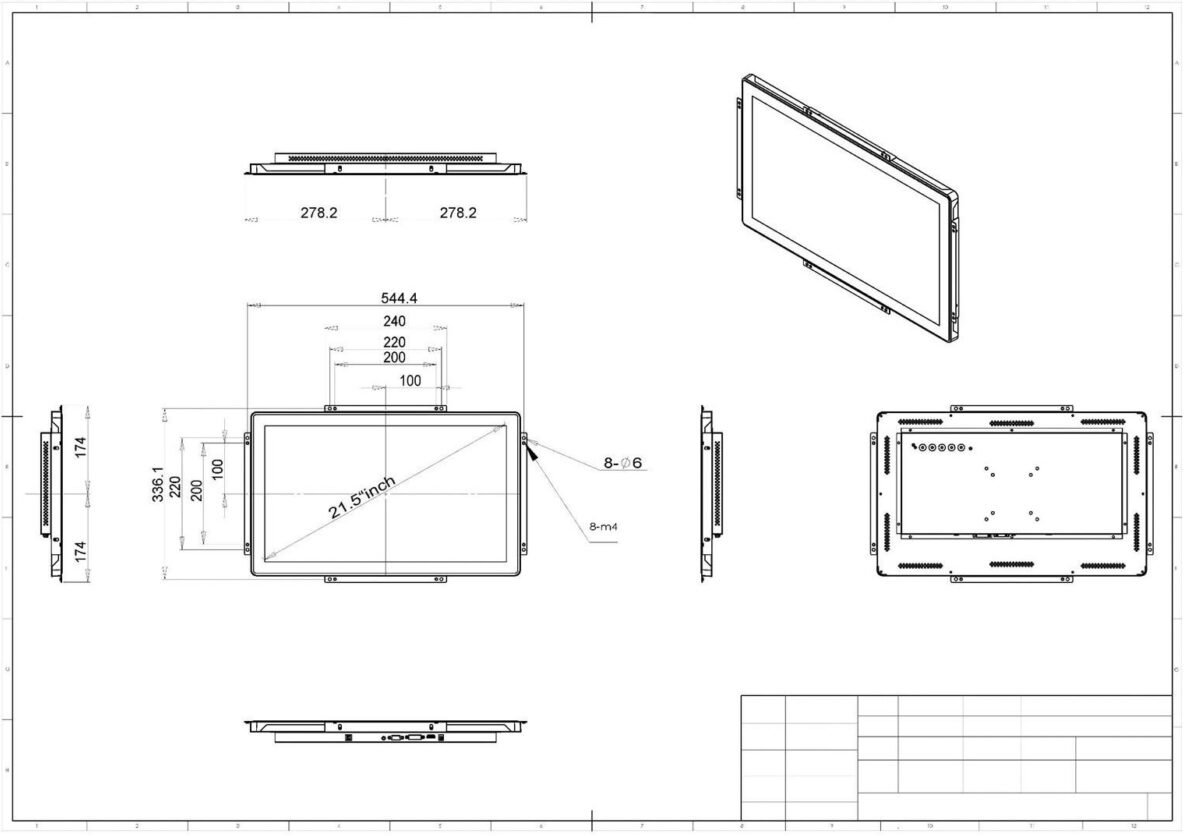

../_images/pim-215-sd-2.jpeg

Figure 1067: Technical Drawing
