Product Overview

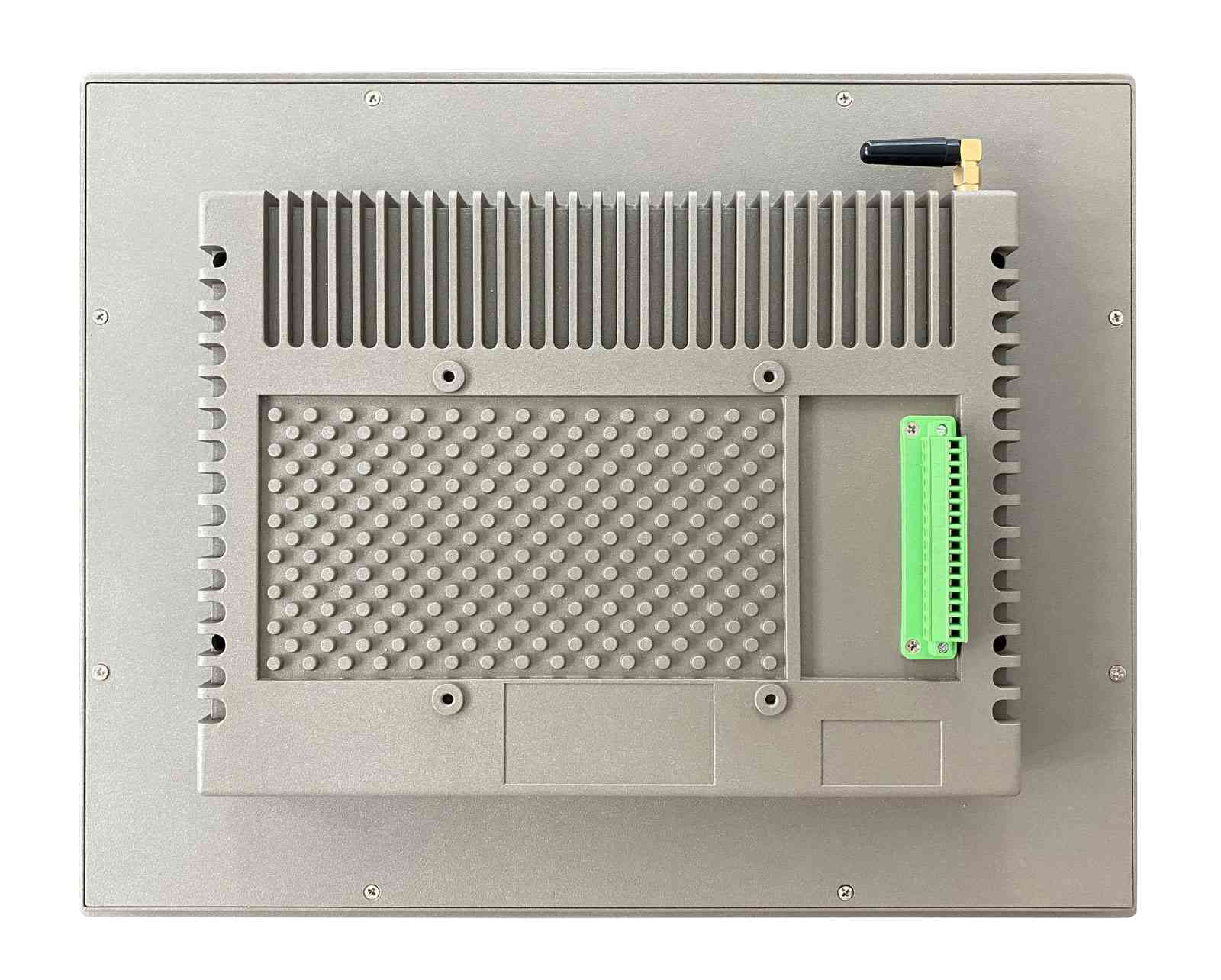

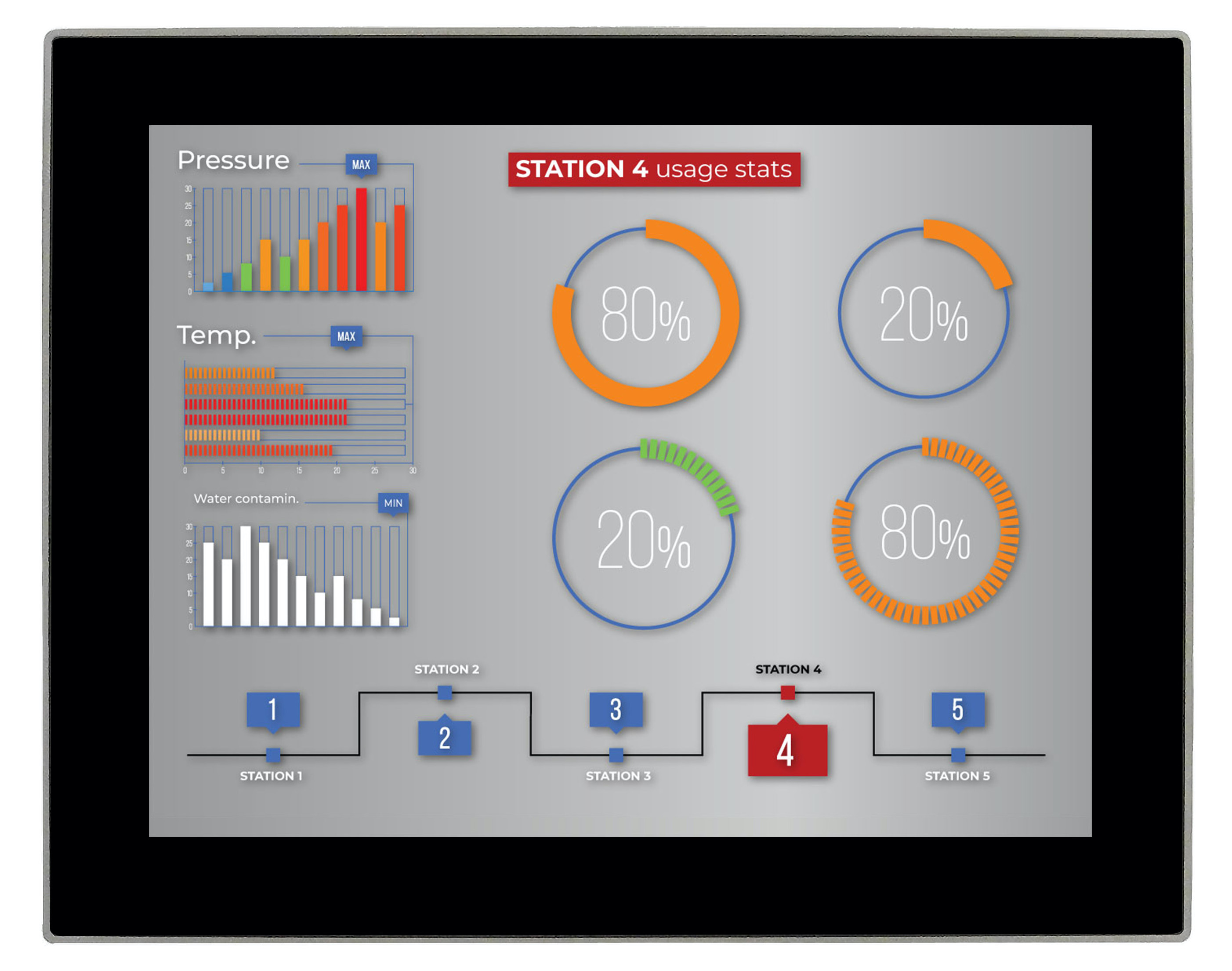

The Cortex®-A72/53 series PPC-A72-150-C (PN: CS10768R150) is a high-quality industrial panel PC. It features a 15” ten-point capacitive touch screen with a resolution of 1024 x 768 pixels and brightness of 350 cd/m2.

It is available both as an embedded solution and as a device hosed in an aluminum casing with bezels, thus facilitating different installation options:

  • Installation on an industrial cabinet

  • Integration with the existing equipment

The PPC-A72-150-C Industrial Panel PC is based around the powerful CS-SOM-RK3399 System on Module (SoM), powered by the Rockchip RK3399 low-power processor which integrates a dual-core Cortex®-A72 and a quad-core Cortex®-A53 with a separate NEON coprocessor.

The RK3399 supports multi-format video decoders and has a high-performance dual-channel external memory interface (DDR3/DDR3L/LPDDR3/LPDDR4) capable of sustaining demanding memory bandwidths. It also provides a complete set of peripheral interfaces.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.


You can order PPC-A72-150-C from the official Chipsee Store or from your nearest distributor.

Operating System

This product comes with a pre-installed OS of your choice. Please see the list below for the supported OSes, which can be also obtained from the Software Documentation section, along with the detailed installation instructions.

  • Buildroot Linux Qt5.14*

  • Android 7.1

  • Debian 10


(Formerly Chipsee Linux) Based on buildroot that has been integrated with:

  1. Chipsee Hardware Test Application

  2. An initialization script for GPIO/Buzzer/Audio

  3. Multiple libraries, such as the libQt5Sql to develop Qt application with SQL

  4. Various packages, such as the ntfs-3g to use NTFS file system


The Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com for further assistance

Optional Features

The PPC-A72-150-C Industrial Panel PC does not include 4G/LTE module by default. The module is optional and can be selected at the Chipsee store during the ordering process.


Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

Hardware Features

The PPC-A72-150-C Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability to meet future needs. Some of the key features are listed in the table below.

Table 137 Key Features



Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz)






TF Card, Supports up to 32GB SDHC


15” LCD, 1024 x 768, High Brightness: 350 cd/m2


10-point capacitive touch screen


4 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C


1 x RJ45, GbE


3.5mm Audio Out Connector, 2W Internal Speaker






6 x RS2321


1 x RS485 (4 at most, 1 debug port)1


8 Channels


Integrated WiFi/BT Module


1 x HDMI


Supported, Optional

Power Input

From 12V to 36V

Current at 15V

1000mA Max

Power Consumption

15W Typical

Working Temperature

From 0°C to +70°C


Android 7.1


377 x 307 x 58mm




VESA & Panel methods


This product has 7 x UART channels in total. The default configuration is 5 x RS232 and 2 x RS485. UART can be swapped between RS232 and RS485 modes easily, so if you need different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com

Power Input

The PPC-A72-150-C Industrial Panel PC can be powered by a wide range of input voltages: From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown on the figure below.


Figure 535: Power Input

Note that the “+” sign represents the positive power input, and it is printed both at the casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to the ground.

Table 138 Power Connector

Power Input Definition

Pin Number



Pin 1

Positive Input

DC Power Positive Terminal

Pin 2

Negative Input

DC Power Negative Terminal

Pin 3


Power System Ground


The system ground “G” is connected to power negative “-” on board.

Touch Screen

The PPC-A72-150-C Industrial Panel PC uses a 10-point capacitive touch screen.


A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch points float erratically across the display. There are several solutions to this problem:

  1. Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.

  2. Make sure that the PPC-A72-150-C Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely.

  3. Bad GND problem can also be confirmed by touching pin 3 of the Power Input connector with one hand while operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power System Ground.


There are many connectivity options available on the PPC-A72-150-C industrial PC. It has 4 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x RJ45, GbE Ethernet connector, 6 x UART terminals (RS232/485), and 1 x DB9 connector.

DB9 Connectors

The PPC-A72-150-C Industrial Panel PC has 1 x DB9 connector that is configured for debugging by default as shown on the figure below.

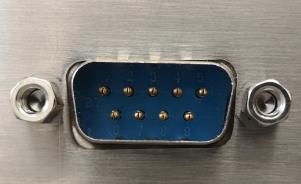

Figure 536: DB9 Connector

RS232+RS485 Connector

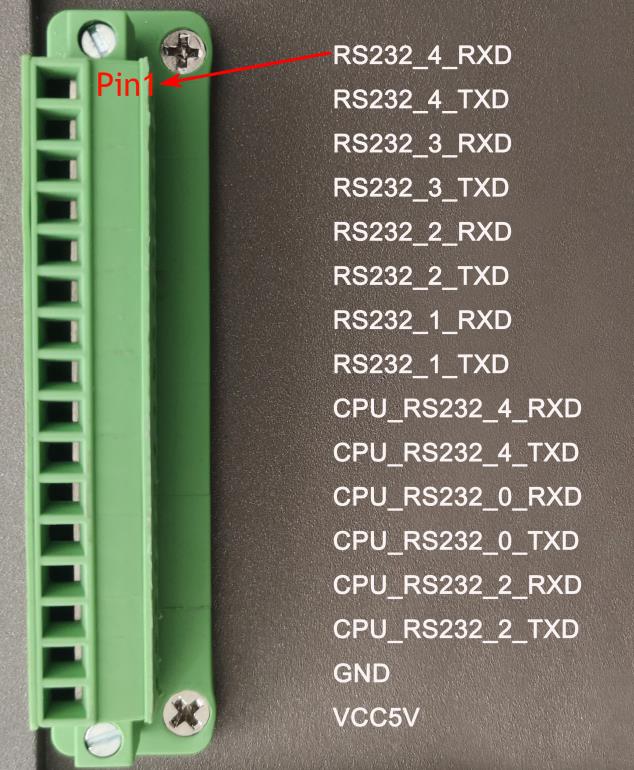

The serial communication interfaces (RS485 and RS232) are routed to a 16-pin 3.81mm terminal, as illustrated in the figure below. Serial communication on both RS485 and RS232 interfaces can reach up to 115200 kbps.


Figure 537: Serial pins connector

The table below offers more detailed description of every pin and its definition:

Table 139 Connectivity Section

RS232 / RS485 / CAN Pin Definition:

Pin Number



Pin 1


USB RS232 4 RXD signal

Pin 2


USB RS232 4 TXD signal

Pin 3


USB RS232 3 RXD signal

Pin 4


USB RS232 3 TXD signal

Pin 5


USB RS232 2 RXD signal

Pin 6


USB RS232 2 TXD signal

Pin 7


USB RS232 1 RXD signal

Pin 8


USB RS232 1 TXD signal

Pin 9


CPU UART4, RS232 RXD signal

Pin 10


CPU UART4, RS232 TXD signal

Pin 11


CPU UART0, RS232 RXD signal

Pin 12


CPU UART0, RS232 TXD signal

Pin 13


CPU UART2, RS232 RXD signal

Pin 14


CPU UART2, RS232 TXD signal

Pin 15


System Ground

Pin 16


System +5V output, up to 1A


If you need different RS232/RS485 configuration, contact the Chipsee Technical Support at support@chipsee.com.

USB Connectors

There are 4 x dual USB 2.0 HOST connectors onboard, as shown on the figure below.


Figure 538: USB 2.0 HOST Connectors

There is also 1 x USB 3.0 HOST connector and 1 x USB Type-C connector, as shown below.


Figure 539: USB 3.0 HOST Connector


Figure 540: USB Type-C Connector

LAN Connectors

LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput.


Figure 541: RJ45 LAN Connector


Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).

WiFi & BT Module

The PPC-A72-150-C Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN).

The product includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below.

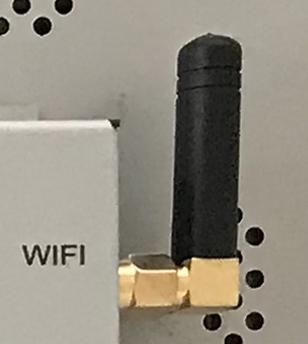

Figure 542: WiFi+BT Antenna

4G/LTE Module

The PPC-A72-150-C Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A72-150-C.


Figure 543: SIM Card Holder


The product does not come shipped with the 4G/LTE module by default.

Expansion Connector

The PPC-A72-150-C Industrial Panel PC has 1 x Expansion Connector (closed by default), as shown on the figure below. This connector has connected to isolated GPIO signals.
The table below gives details about the definition of every Pin.


Figure 544: Expansion Connector


Isolated GPIO reduced schematic

Table 140 Expansion Connector Pinout

Expansion Connector Pinout






VDD, Isolated Power Input (+5V – +24V)




















Since the PCB traces of the port are connected to the processor directly, be careful not to cause electrostatic discharge or over voltage on the pins, as it may damage the processor. Take all the necessary precautions while working with electrostatic-sensitive equipment.

TF Card Slot

The PPC-A72-150-C Industrial Panel PC features 1 x TF Card (micro SD) slot. It can address up to 32GB of memory.


Figure 545: TF (micro SD) Card Slot


The product does not come shipped with the TF Card by default.

Audio Connectors

The PPC-A72-150-C Industrial Panel PC features some audio peripherals, as well. It has 1 x 3.5mm audio output jack.


Figure 546: Audio Out Connector

HDMI Connector

The PPC-A72-150-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software.


Figure 547: HDMI Connector

Power Button

The PPC-A72-150-C Industrial Panel PC has a power button, as shown on the figure below. You can use the button to power ON or OFF the industrial PC.


Figure 548: Power button

Measurements and Mounting Procedure

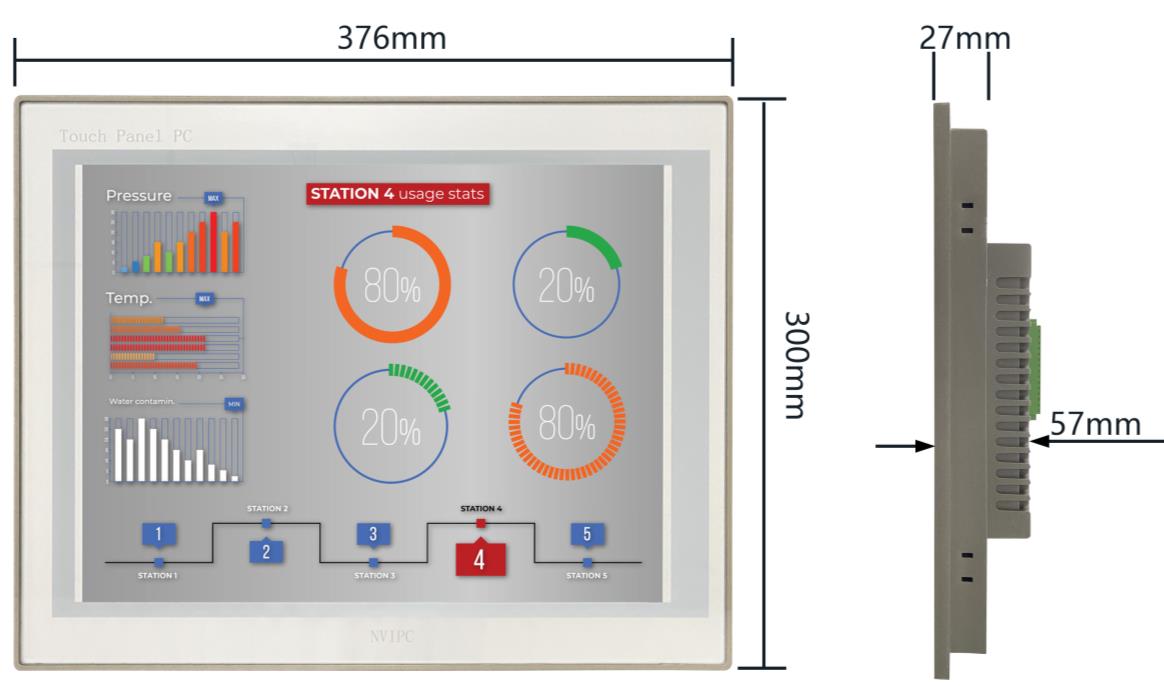

The outer mechanical dimensions of PPC-A72-150-C are 377 x 307 x 58mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements.


Figure 549: PPC-A72-150-C Technical Drawing

The PPC-A72-150-C Industrial Panel PC can be mounted with 8 x M4 screws or 4 x M4 screws using the VESA (100x100cm or 75x75cm) and Panel mounting methods, enabling simplified installation onto any standard mounting fixture.

Panel Mounting

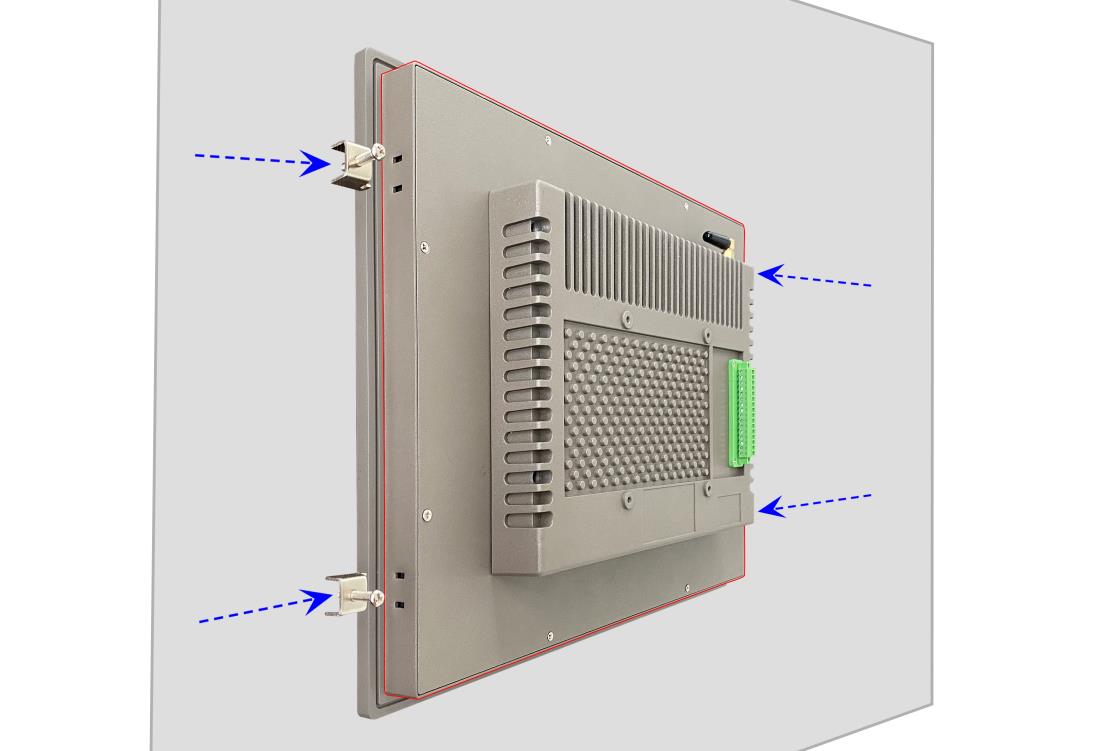

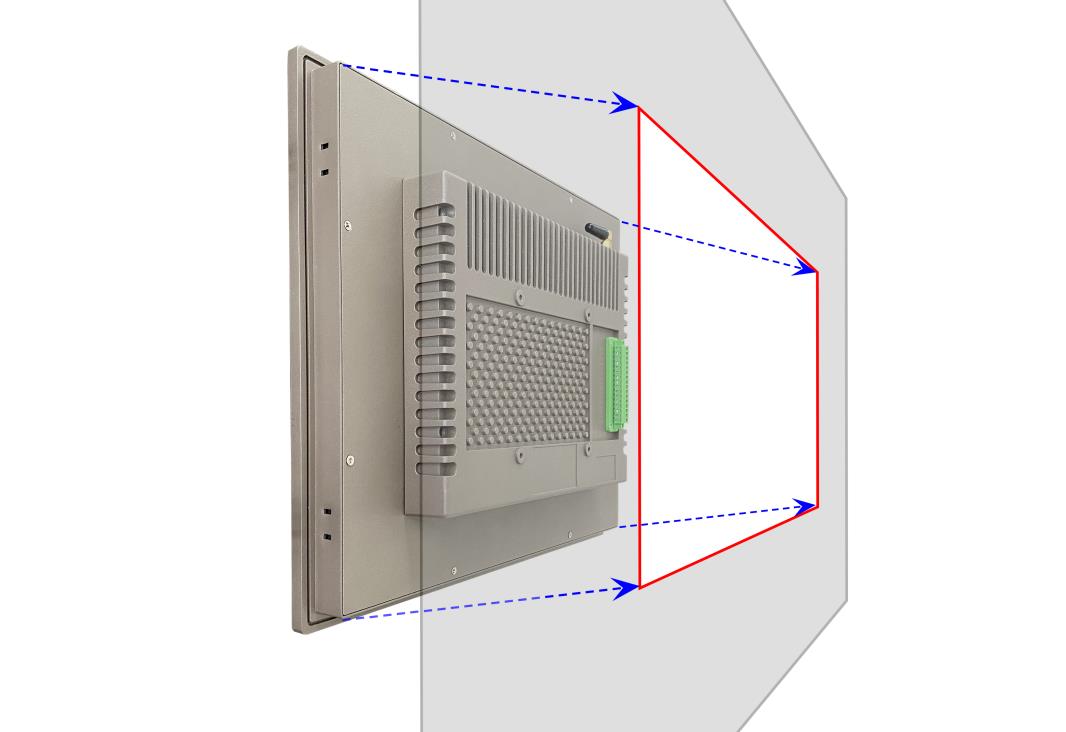

Figure 550: Panel Mounting-1


Figure 551: Panel Mounting-2

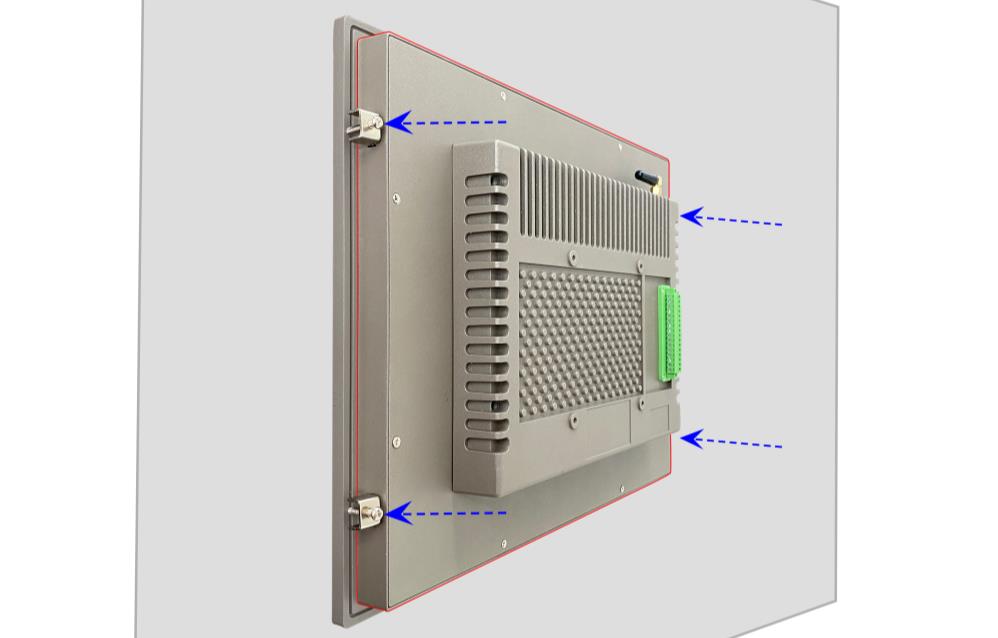

Figure 552: Panel Mounting-3


Figure 553: Panel Mounting-4


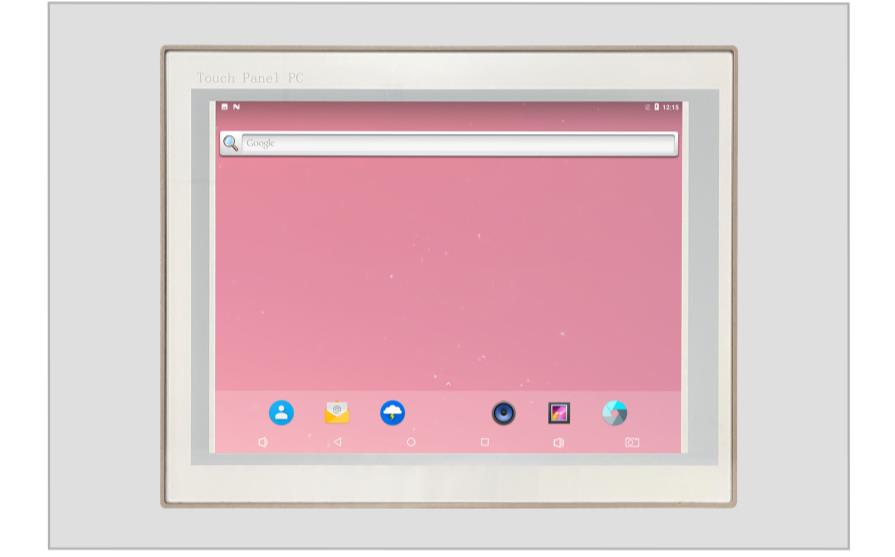

Figure 554: Panel Mounting-5


Please make sure the display is not exposed to high pressure when mounting into an enclosure.

VESA Mounting

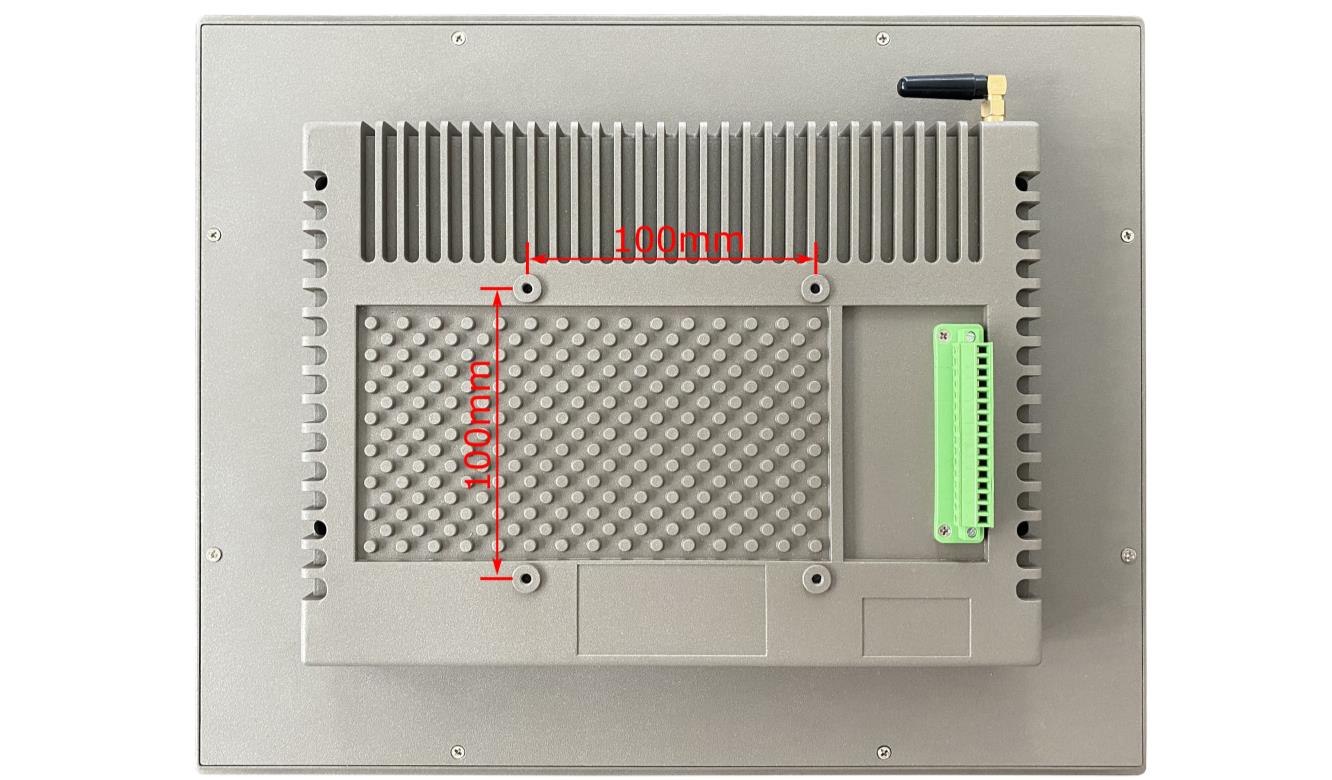

Figure 555: VESA Mounting-1

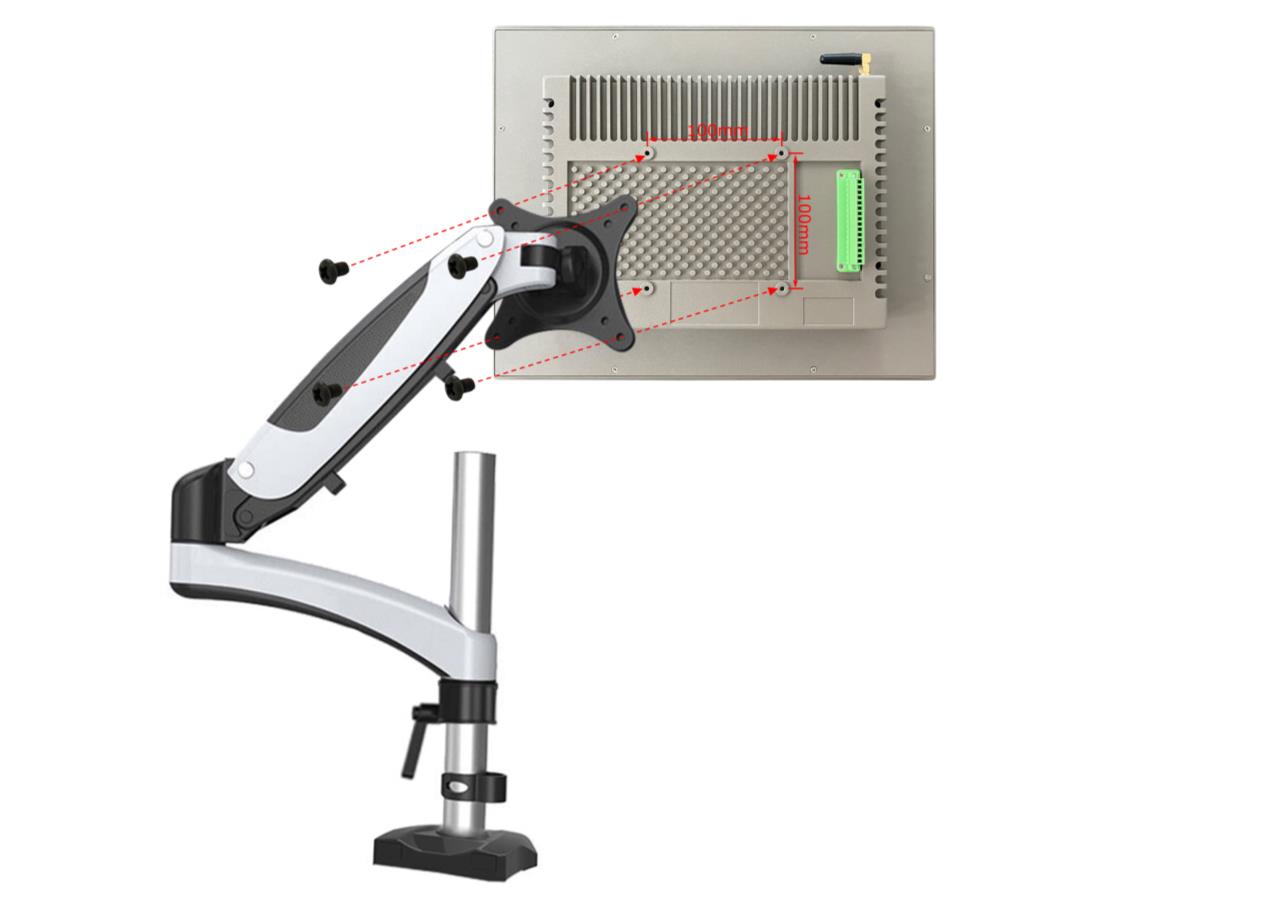

Figure 556: VESA Mounting-2

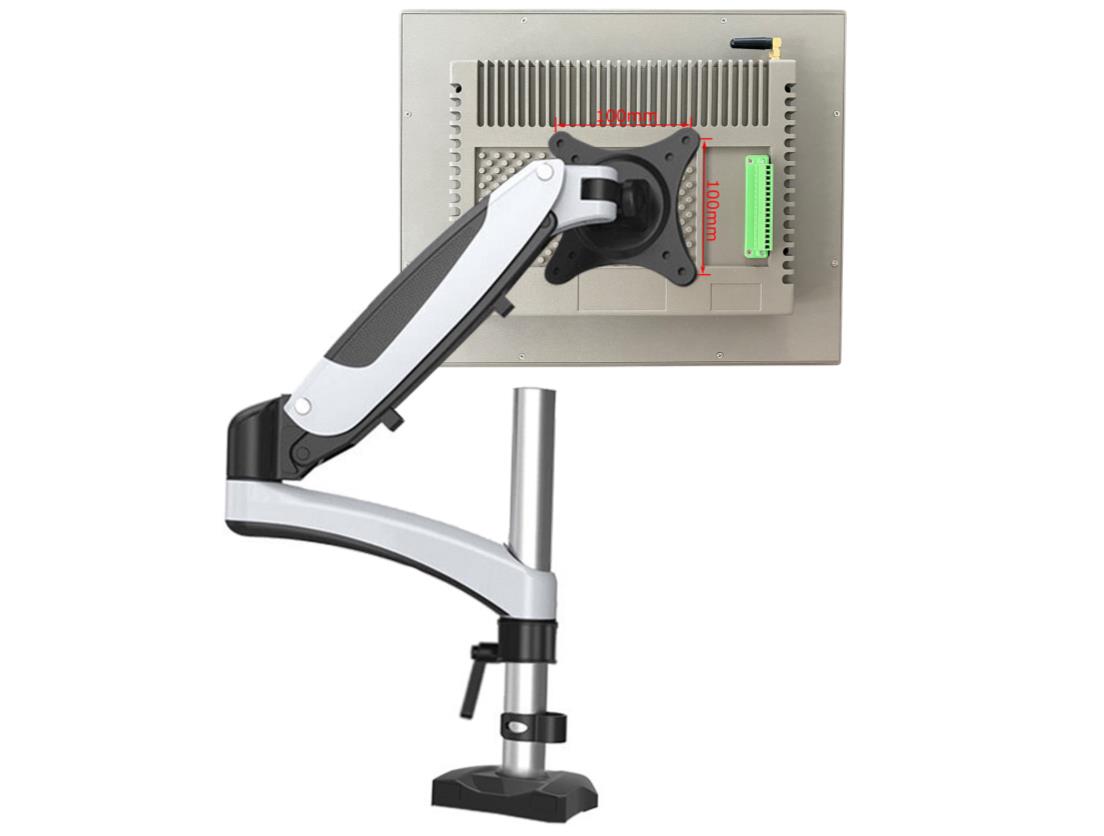

Figure 557: VESA Mounting-3

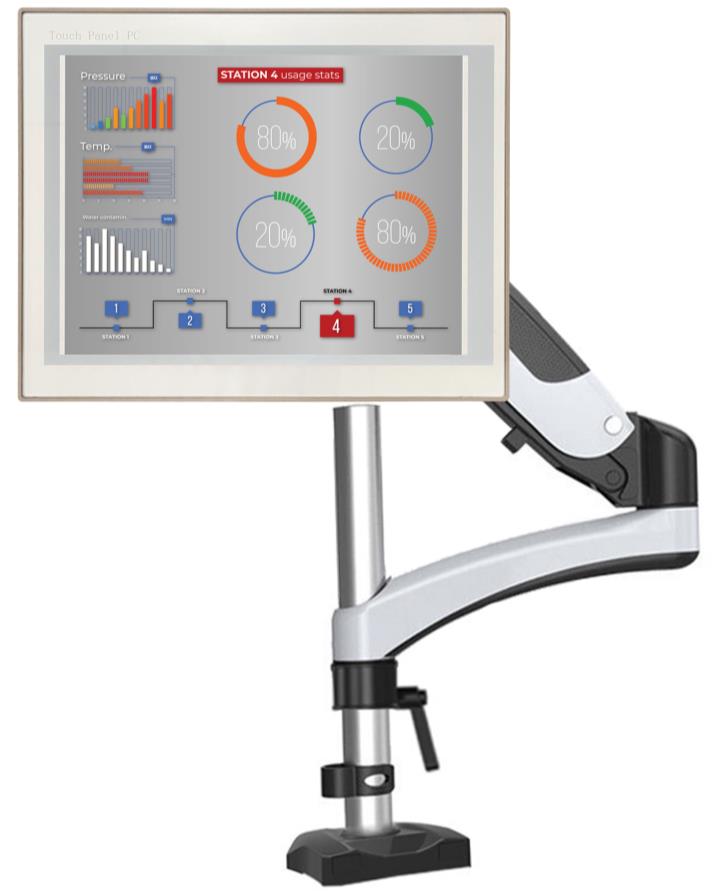

Figure 558: VESA Mounting-4

You can find detailed information about mounting in the Mount IPC Guide.

3D Model

As of Mar 23, 2024, the 3D asset of the product is being actively prepared, and will be available soon.

PPC-A72-150-C 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc PPC-A72-150-C, select hardware documentation, drag the navigation bar to the 3D Model section.
