PPC-A55-215

Version 1.0

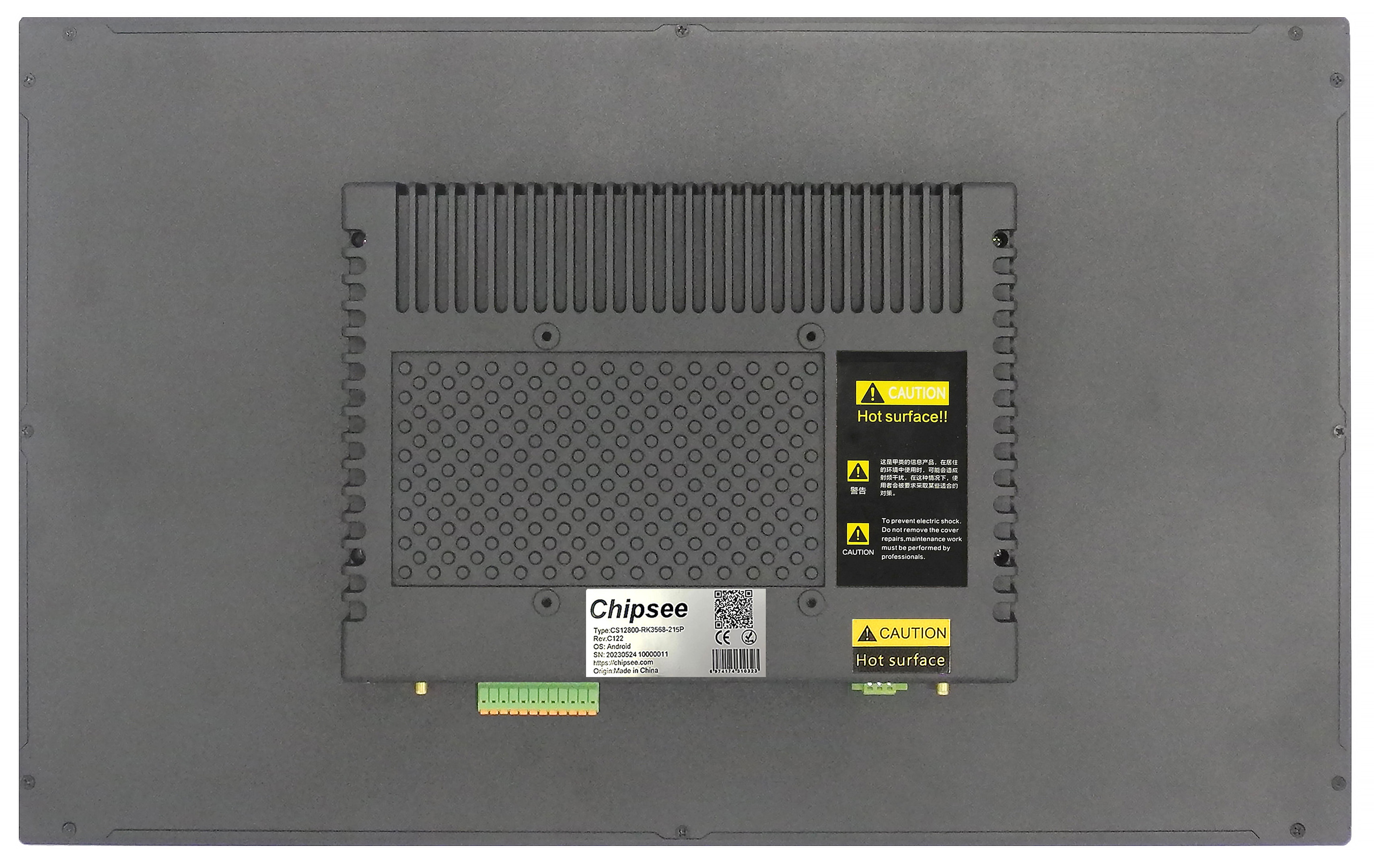

Product Overview

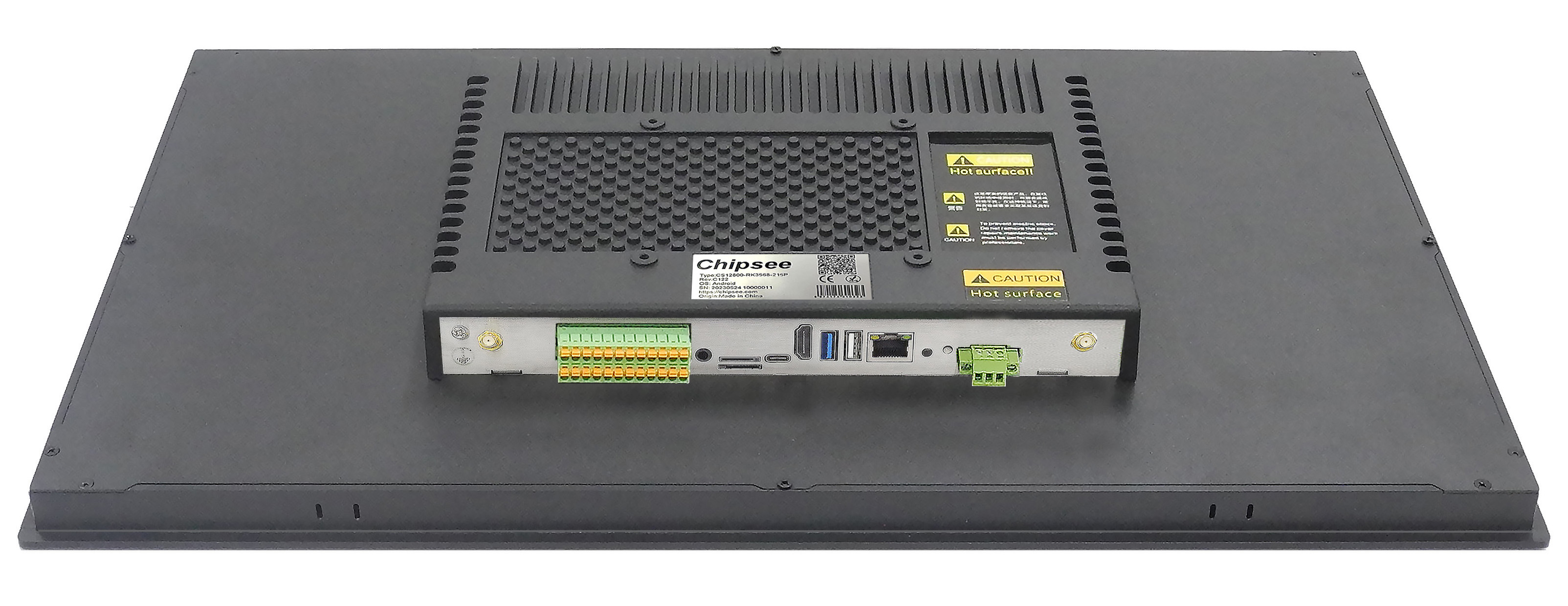

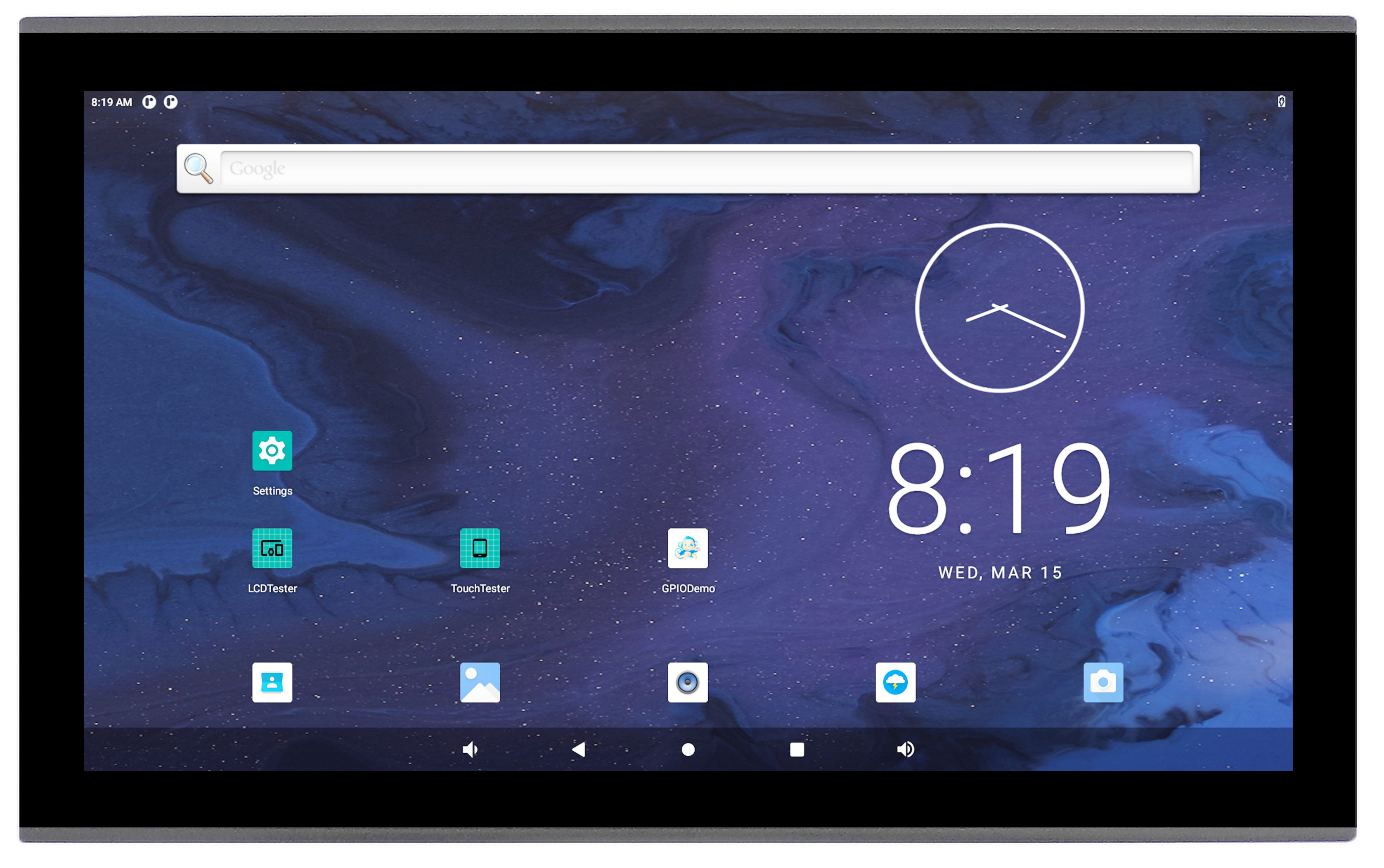

The Cortex®-A55 series PPC-A55-215 (PN: CS19108-RK3568-215P) is a high-quality IP65-compliant industrial panel PC. It features a 21.5” ten-point capacitive touch screen with a resolution of 1920 x 1080 pixels and a brightness of 250 cd/m2.

It is available both as an embedded solution and as a device hosed in an aluminum casing with bezels, thus facilitating different installation options:

  • Installation on an industrial cabinet

  • Integration with the existing equipment

The PPC-A55-215 Industrial Panel PC is based around the powerful RK3568 System on Chip (SoC), powered by the Rockchip RK3568 low-power processor which integrates a quad-core Cortex®-A55 processor.

The RK3568 supports multi-format video decoders and has a high-performance RAM (LPDDR4X) capable of sustaining demanding memory bandwidths. It also provides a complete set of peripheral interfaces.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.

Note

You can order the PPC-A55-215 from the official Chipsee Store or from your nearest distributor.

Operating System

This product comes with a pre-installed OS of your choice. Please see the list below for the supported OSes, which can also be obtained from the Software Documentation section, along with the detailed installation instructions.

  • Debian 11

  • Android 11

  • Buildroot Linux Qt 5.15

Warning

The Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com for further assistance

Optional Features

The PPC-A55-215 Industrial Panel PC does not include 4G/LTE module by default. The module is optional and can be selected at the Chipsee store during the ordering process.

Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

Hardware Features

The PPC-A55-215 Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below.

Table 216 Key Features

PPC-A55-215

CPU

Rockchip RK3568, Quad-core Cortex-A55 (2.0GHz)

RAM

Samsung 2GB LPDDR4X, 4266 Mbps

eMMC

16GB

SSD

Optional, supports M.2 2280 NVME SSD (PCI-E 3.0 x 2)

Storage

TF Card, Supports up to 128GB SDHC

Display

21.5” LCD, 1920 x 1080, High Brightness: 250 cd/m2

HDMI

1 x HDMI OUT

Touch

10-point capacitive touch screen

USB

1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C

LAN

1 x RJ45, GbE

POE

N/A

Audio

3.5mm Audio In/Out Connector, 2W Internal Speaker

Buzzer

Yes

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

RS232

Default to 2 x RS232 (including 1 debug port). Up to 6 x RS232.1

RS485

Default to 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232.1

CAN

Default to 2 x CAN. Optionally, these 2 x CAN can be configured to RS232.

GPIO

8 Channels Isolated IO, 4 x Input and 4 x Output

WiFi/BT

Integrated WiFi/BT Module

4G/LTE

Supported, Optional

Power Input

From 12V to 36V

Current

2A Max at 12V

Power Consumption

9.6W Typical, 24W Max

Working Temperature

From 0°C to +50°C

OS

Android 11, Debian11, Buildroot Linux Qt 5.15

Dimensions

PPC-A55-215 (PN: CS19108-RK3568-215P): 535 x 331 x 52.5mm

Weight

PPC-A55-215 (PN: CS19108-RK3568-215P): 5500g

Mounting

PPC-A55-215 (PN: CS19108-RK3568-215P): Panel, VESA


1(1,2)

This product has 4 x UART by default, 6 x UART channels at most. The default configuration is 2 x RS232 and 2 x RS485, including 1 RS232 debug port. The 2 x CAN can be configured to RS232. UART can be swapped between RS232 and RS485 modes easily, if you need a different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com

Power Input

The PPC-A55-215 Industrial Panel PC can be powered by a wide range of input voltages: From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown in the figure below.

power_img

Power Input

Note that the “+” sign represents the positive power input, it is printed at the casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to the ground.

Table 217 Power Connector

Power Input Definition

Pin Number

Definition

Description

Pin 1

Positive Input

DC Power Positive Terminal

Pin 2

Negative Input

DC Power Negative Terminal

Pin 3

Ground

Power System Ground

Note

The system ground “G” is connected to power negative “-” on board.

Touch Screen

The PPC-A55-215 Industrial Panel PC uses a 10-point capacitive touch screen. However, the Debian OS supports only One-Point touch.
The figure below shows the capacitive touch screen connected to the motherboard via the USB connector.

../../../../../_images/USB_Touch.jpg

Figure 651: Capacitive Touch Connector

Attention

A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch points float erratically across the display. There are several solutions to this problem:

  1. Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.

  2. Make sure that the PPC-A55-215 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely.

  3. Bad GND problem can also be confirmed by touching pin 3 of the Power Input connector with one hand while operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power System Ground.

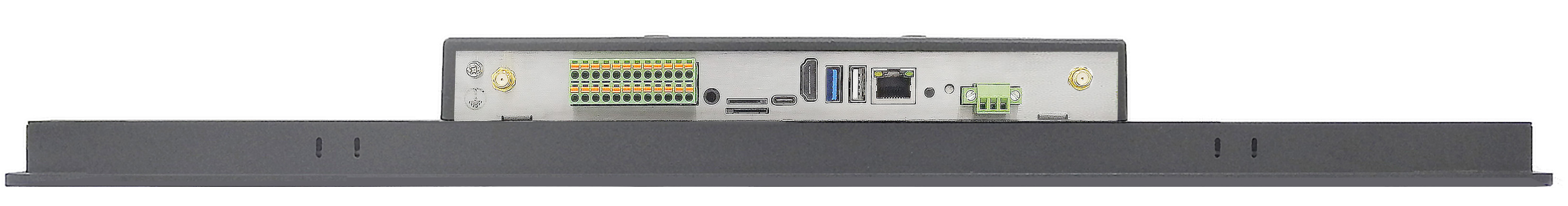

Connectivity

There are many connectivity options available on the PPC-A55-215 industrial PC. It has 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x network connector (RJ45) supporting up to 1 Gbps, 8 x GPIO, 2 x CAN and 4 x UART terminals (RS232/485).

RS232+RS485+CAN+GPIO Connector

The serial communication interfaces (RS485, RS232, and CAN) are routed to a 24-pin 3.81mm terminal, as illustrated in the figure below. Serial communication on both RS485 and RS232 interfaces can reach up to 115200 kbps.

../../../../../_images/GPIO_Schema.png

Isolated GPIO reduced schematic

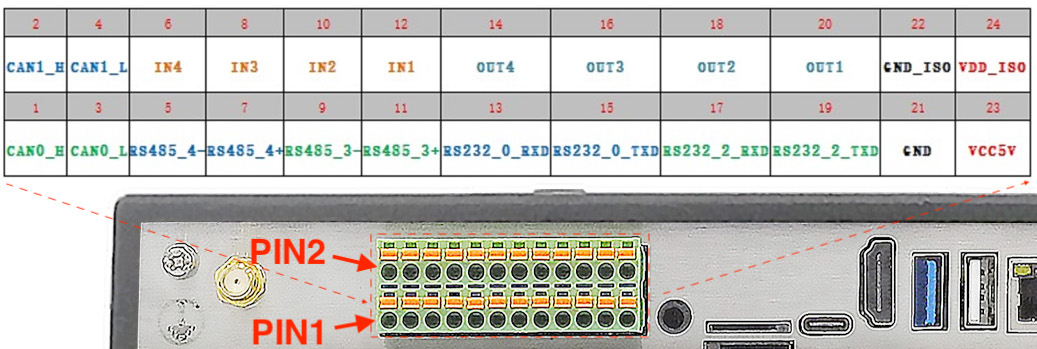

io_pin_img

The table below offers a detailed description of every pin:

Table 218 Connectivity Section

RS232 / RS485 / CAN / GPIO Pin Definition:

Pin Number

Definition

Description

Pin 1

CAN0_H

CAN H signal

Pin 2

CAN1_H

CAN H signal

Pin 3

CAN0_L

CAN L signal

Pin 4

CAN1_L

CAN L signal

Pin 5

RS485_4-

CPU UART4, RS485 -(B) signal

Pin 6

IN4

Isolated Input 4

Pin 7

RS485_4+

CPU UART4, RS485 +(A) signal

Pin 8

IN3

Isolated Input 3

Pin 9

RS485_3-

CPU UART3, RS485 -(B) signal

Pin 10

IN2

Isolated Input 2

Pin 11

RS485_3+

CPU UART3, RS485 +(A) signal

Pin 12

IN1

Isolated Input 1

Pin 13

RS232_0_RXD

CPU UART0, RS232 RXD signal

Pin 14

OUT4

Isolated Output 4

Pin 15

RS232_0_TXD

CPU UART0, RS232 TXD signal

Pin 16

OUT3

Isolated Output 3

Pin 17

RS232_2_RXD

CPU UART2, Debug RXD signal

Pin 18

OUT2

Isolated Output 2

Pin 19

RS232_2_TXD

CPU UART2, Debug TXD signal

Pin 20

OUT1

Isolated Output 1

Pin 21

GND

System Ground

Pin 22

GND_ISO

Isolated Ground

Pin 23

VCC5V

System 5V output, up to 1A

Pin 24

VDD_ISO

Isolated Power Input, supports 5V~24V

Attention

  • The 120Ω match resistor for CAN bus is NOT mounted by default.

  • The 120Ω match resistor for RS485 is already mounted by default.

  • This product supports changing 2 x RS485 to 2 x RS232, supports changing 2 x CAN to 2 x RS232, providing up to 6 x RS232 (including one debug port).

  • The GPIO has been optical isolated and it uses the 24V logic by default. You can use an external isolated power input but the power input range should be from 5V to 24V DC.

  • The 4 GPIO output channels can drive at most 500mA current on each channel.

USB Connectors

There are 2 x USB HOST and 1 x USB DEVICE (for flashing OS) ports onboard: 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C , as shown in the figures below.

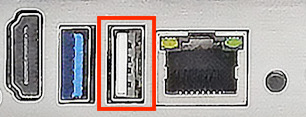

USB2_img

USB 2.0 HOST Port (embedded / enclosed PC version)

USB3_img

USB 3.0 HOST Port (embedded / enclosed PC version)

USBC_img

USB Type-C Port (embedded / enclosed PC version)

Warning

Be careful not to touch surrounding electronic components accidentally while plugging USB devices into the embedded IPC version.

LAN Connectors

LAN (RJ45) connector provides 1 x RJ45 Ethernet connectivity over standardized Ethernet cables as shown in the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput.

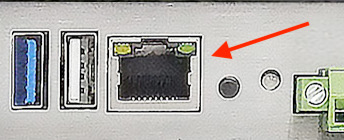

LAN_img

RJ45 LAN Connector

Note

Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).

WiFi & BT Module

The PPC-A55-215 Industrial Panel PC is equipped with the popular Realtek RTL8821CS WiFi/BT module which supports BT/BLE 2.1/3.0/4.2, as well as 802.11ac/abgn 433Mbps 2.4/5.8 GHz Wireless LAN (WLAN).

../../../../../_images/WiFi_BT2.jpeg

Figure 652: RTL8821CS WiFi/BT Module

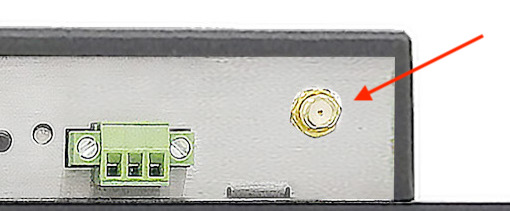

The PPC-A55-215 includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below.

wifi_bt_img

WiFi+BT Antenna SMA

4G/LTE Module

The PPC-A55-215 Industrial Panel PC is equipped with a mini-PCIe connector that can connect a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A55-215. SIM card does NOT support hot plug. Power off before inserting or removing SIM card.

../../../../../_images/4G_module2.jpeg

Figure 653: mini-PCIe Connector & 4G Module

../../../../../_images/4G_com2.jpeg

Figure 654: SIM Card Holder & 4G Antenna

sim_img

SIM Card Direction

Attention

The product does not come shipped with the 4G/LTE module by default. The customer can choose the 4G/LTE module option when placing an order, we will install all the necessary components.

M.2 SSD Slot

There is a M.2 slot on the PPC-A55-215 that allows an optional SSD. The M.2 slot is capable of holding a PCI-E 3.0 x 2, 2280 NVME SSD. The PPC-A55-215 does not come shipped with an SSD by default, if you want a different configuration you can consult us when placing an order.

../../../../../_images/M2_Slot.jpg

M.2 2280 Slot for PCI-E 3.0 x 2 NVME SSD

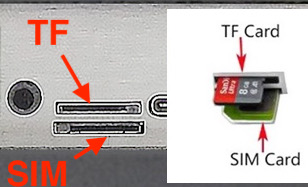

TF Card & SIM Card Slot

The PPC-A55-215 Industrial Panel PC features 1 x TF Card (micro SD) slot and 1 x SIM Card slot. TF Card can address up to 128GB of storage.

TF_SIM_img

TF (micro SD) Card & SIM Card Slot

Note

The product does not come shipped with the TF Card by default.

Audio Connectors

The PPC-A55-215 Industrial Panel PC features some audio peripherals. It has a 3.5mm audio input/output jack, an internal speaker, as well as a small buzzer.

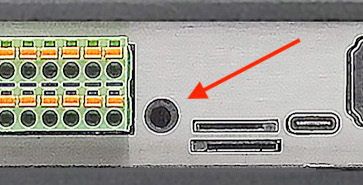

audio_img

Audio Connector (enclosed PC version)

The miniature 2W embedded speaker is handy for audio reproduction, the small buzzer can play alarm/notification sounds.

../../../../../_images/Speaker_Buzzer.jpeg

Figure 655: 2W Micro Speaker and Buzzer

Attention

By plugging in the headphone cable, the internal speaker will be disabled automatically.

HDMI Connector

The PPC-A55-215 Industrial Panel PC is equipped with 1 x HDMI OUT port. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software.

HDMI_img

HDMI Connector

PROG Button

The PPC-A55-215 Industrial Panel PC has one button on the board marked as PROG, as shown in the figure below.
When the button is pressed before powering up, the PPC-A55-215 will enter MASKROM mode. In this mode you can use a USB Type-C cable to upgrade its operating system. You can use this feature to flash another OS to the internal eMMC.

When the button is not pressed before and during power up, the PPC-A55-215 will boot normally.

There is no need to press the button during regular operation. However, if you need to flash the OS in MASKROM mode, the button will be used. Please refer to the software documents for more information.

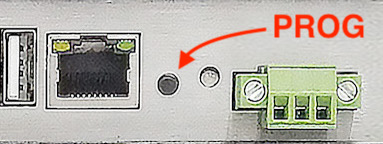

PROG_btn_img

PROG Button

Mounting Procedure

You can mount PPC-A55-215 with VESA mounting: 100 x 100 mm, 4 x M4 (6mm) screws.

You can also mount PPC-A55-215 with panel mounting method.

Attention

Please make sure the display is not exposed to high pressure when mounting into an enclosure.

You can find detailed information about mounting in the Mount IPC Guide.

Mechanical Specifications

For PPC-A55-215, the outer mechanical dimensions are 535 x 331 x 52.5mm (W x L x H).

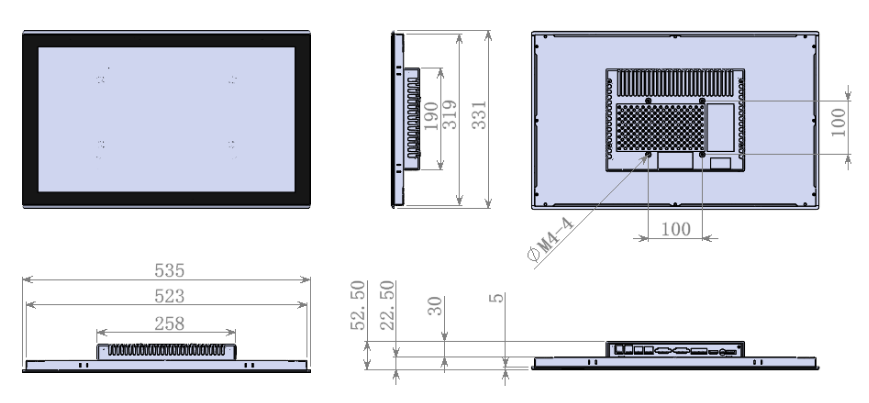

mech_img

Mechanical Drawing (PPC-A55-215)
