PPC-A9-121-U-C

Version 1.1

Product Overview

The Cortex®-A9 series PPC-A9-121-U-C (PN: CS10768F121-U) is a rugged, high-quality industrial panel PC. It features a 12.1” multi-point capacitive touch screen with a resolution of 1024 x 768 pixels.

The PPC-A9-121-U-C Industrial Panel PC is based around the powerful CS-SOM-iMX6Q System on Module (SoM), powered by the i.MX6Q Arm® Cortex®-A9 quad-core Application Processor (APU). The i.MX6Q APU represents the latest achievement in integrated multimedia applications processors, delivering high-performance computing, an abundance of integrated peripherals, and high power efficiency.

This product also features a broad range of connectivity options, providing a high level of scalability for various use cases. It is the perfect solution for power-constrained applications on the Edge, acting as a robust control unit for collecting, processing, and aggregating field data. The i.MX6Q APU is part of NXP’s EdgeVerse™ edge computing platform.

The NXP i.MX6UL APU does not generate extensive heat, so even the thin aluminum housing on PPC version delivers sufficient thermal dissipation. With its junction temperature from -40 to +125°C, the APU itself is well suited for extended temperature range in both automotive and factory environments.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.

Note

You can order PPC-A9-121-U-C from the official Chipsee Store or from your nearest distributor.

Operating System

This product comes with a pre-installed OS of your choice. Please see the list below for the supported OSes, which can be also obtained from the Software Documentation section, along with the detailed installation instructions.

  • Chipsee Linux*

  • Android 4.3

  • Android 6.0

  • Android 8.0

  • Ubuntu 12.04

  • Ubuntu 14.04

  • Debian


*

Chipsee Linux is based on NXP Yocto framework that has been integrated with:

  1. Chipsee Hardware Test Application

  2. An initialization script for GPIO/Buzzer/Audio

  3. Multiple libraries, such as the libQt5Sql to develop Qt application with SQL

  4. Various packages, such as the ntfs-3g to use NTFS file system

Warning

The Software Documentation section provides a detailed instruction how to install different OS on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com for further assistance.

Optional Features

The PPC-A9-121-U-C Industrial Panel PC does not include 4G/LTE module by default. The module is optional and can be selected at the Chipsee store during the ordering process.

Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

Hardware Features

The PPC-A9-121-U-C Industrial Panel PC offers a board range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below.

Table 20 Key Features

PPC-A9-121-U-C

CPU

iMX6Q, Arm® Cortex®-A9, 1GHz

RAM

2GB DDR3

eMMC

8GB

Storage

TF Card, Supports up to 32GB SDHC

Display

12.1” LCD, 1024 x 768, High Brightness: 500|cd|

Touch

Capacitive Multi-Point Touch Screen

USB

2 x USB 2.0 HOST, 1 x USB OTG

LAN

1 x Channel 1000Mbps LAN

Audio

Mic input, 3.5mm Audio Out Connector, 2W Internal Speaker

Buzzer

Yes

Camera

Yes, Front USB -500 ten thousand pixel

Fingerprint

Zaz-070S

RTC

Yes, Powered by CR2032 Button Battery

RS232

4 x RS232

RS485

2 x RS485 (Optional)1

CAN

2 x CAN (Optional)

GPIO

N/A

WiFi/BT

Integrated WiFi/BT Module

HDMI

1 x HDMI

SATA

1 x SATA II

4G/LTE

Optional, Not mounted by default

Power Input

From 15V to 36V

Current at 15V

2000mA Max

Power Consumption

10W Typical

Working Temperature

From -20°C to +70°C

OS

Multiple Choices (Operating System)

Dimensions

359 x 274 x 23mm

Weight

4000g

Mounting

Panel & VESA


1

This product has 5 x UART channels in total. The default configuration is 2 x RS232, 2 x RS485, and 1 x UART for WiFi/BT module. UART can be swapped between RS232 and RS485 modes easily, so if you need different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com

Power Input

The PPC-A9-121-U-C Industrial Panel PC can be powered by a wide range of input voltages: From 15V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown on the figure below.

../../../../../_images/Power4.jpeg

Figure 65: Power Input

Note that the “+” sign represents the positive power input, and it is printed both at the casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to the ground.

Table 21 Power Connector

Power Input Definition

Pin Number

Definition

Description

Pin 1

Positive Input

DC Power Positive Terminal

Pin 2

Negative Input

DC Power Negative Terminal

Pin 3

Ground

Power System Ground

Note

The system ground “G” is connected to power negative “-” on board.

Touch Screen

The PPC-A9-121-U-C Industrial Panel PC uses a 10-point capacitive touch screen.

Attention

A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch points float erratically across the display. There are several solutions to this problem:

  1. Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.

  2. Make sure that the PPC-A9-121-U-C Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely.

  3. Bad GND problem can also be confirmed by touching pin 3 of the Power Input connector with one hand while operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power System Ground.

Connectivity

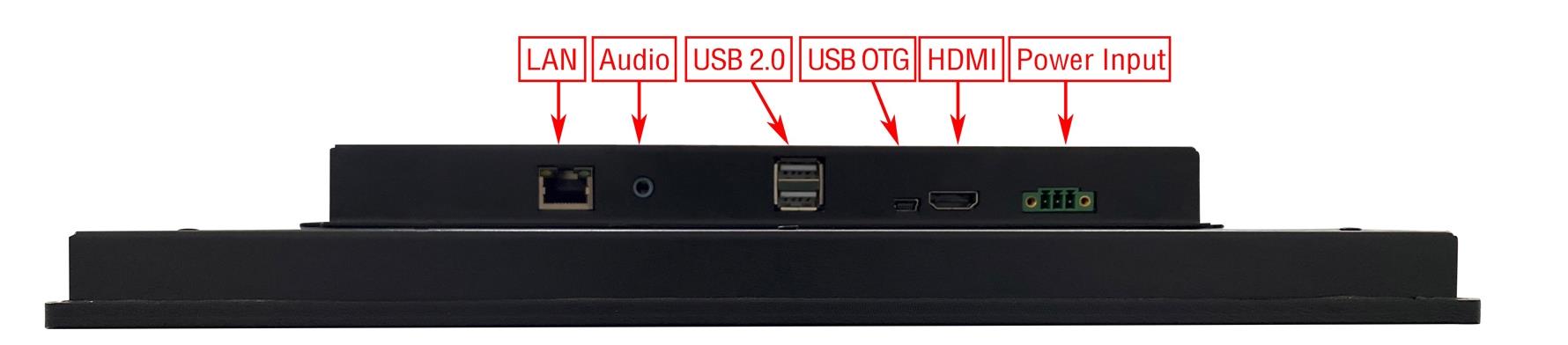

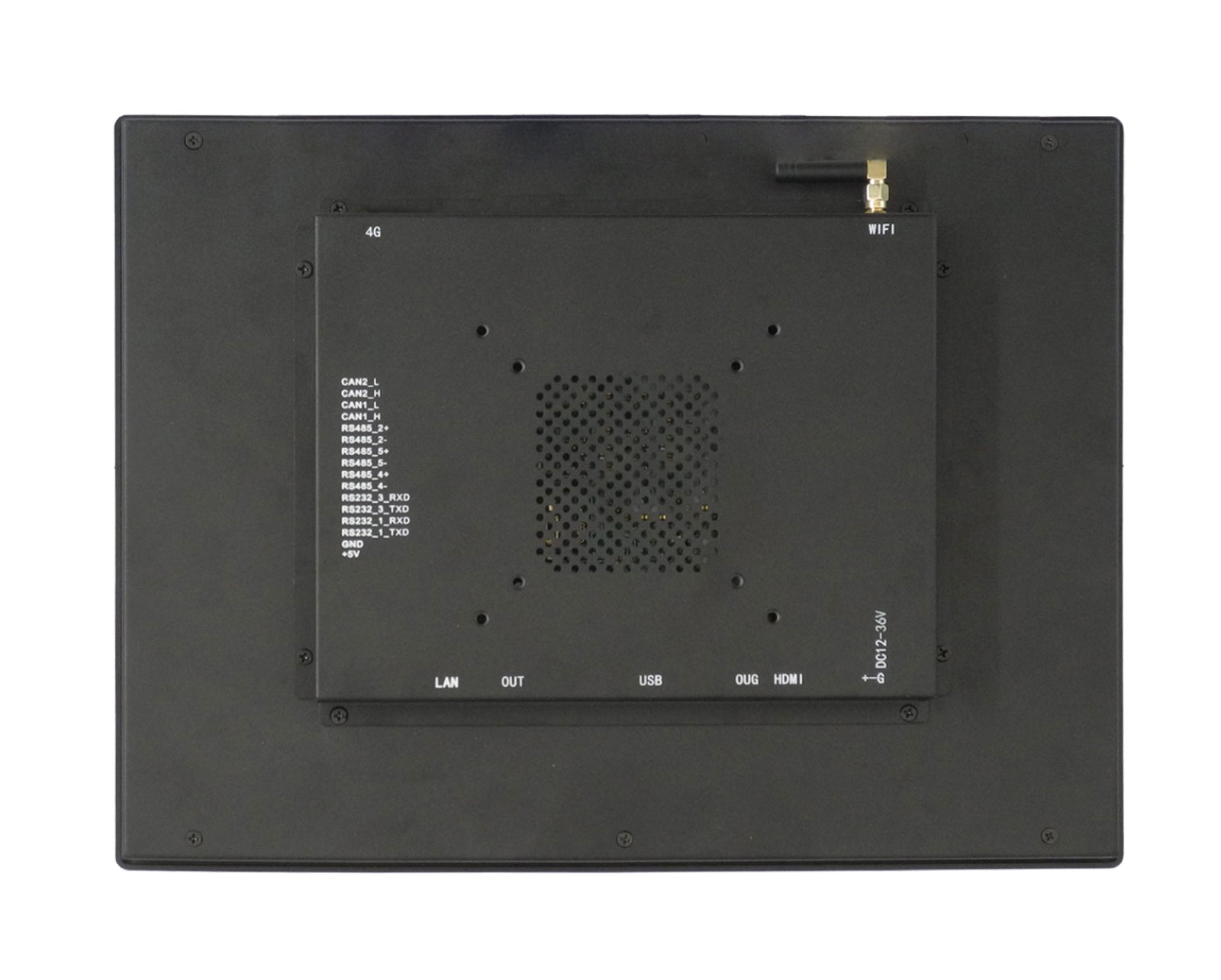

There are many connectivity options available on the PPC-A9-121-U-C industrial PC. It has 2 x HOST USB Type A connectors, 1 x USB OTG Type Mini B, 2 x network connector (RJ45) supporting up to 1 Gbps, and 5 x UART terminals (RS232/485). This device also features two CAN interfaces.

RS232/RS485/CAN

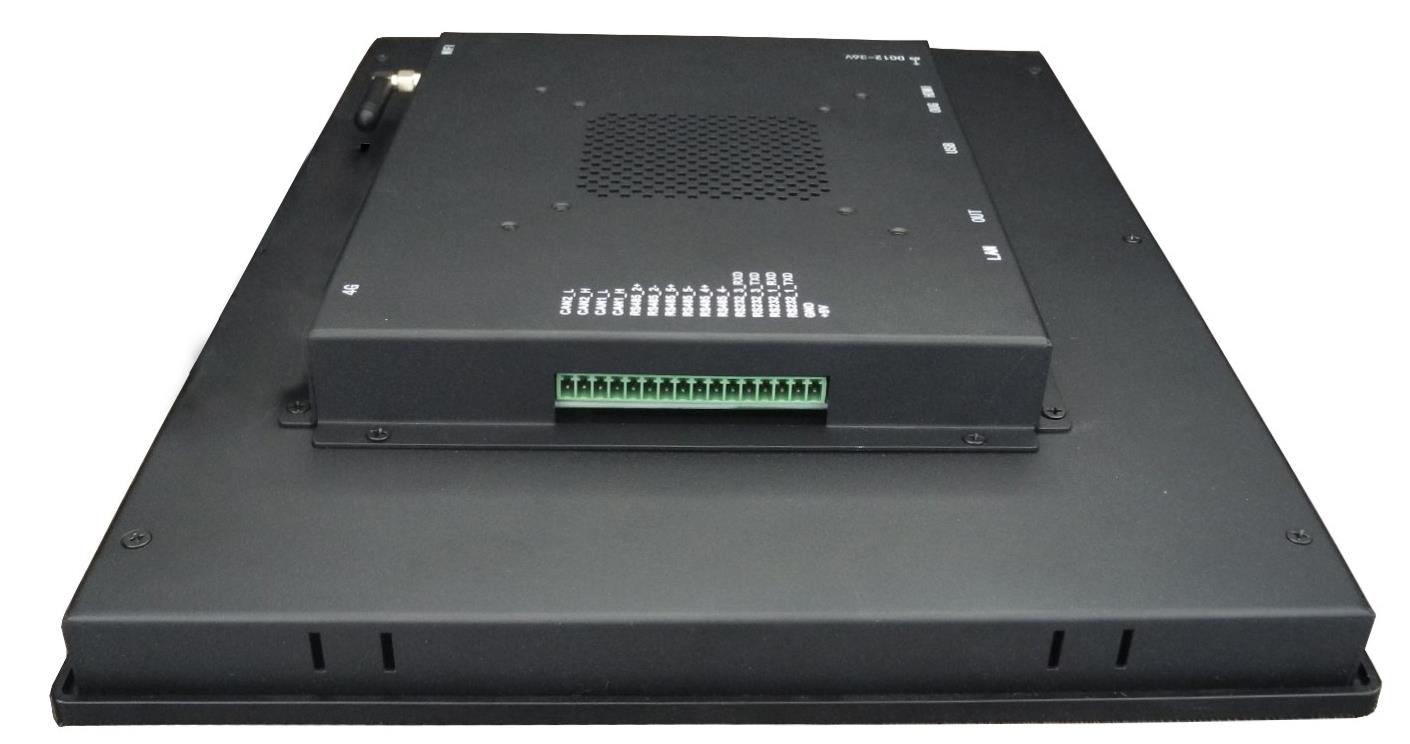

The serial communication interfaces (RS485, RS232, and CAN) are routed to a 16-pin 3.81mm terminal, as illustrated in the figure below. Serial communication on both RS485 and RS232 interfaces can reach up to 115200 kbps.

../../../../../_images/IO-Peripherals.png

Figure 66: Serial pins connector

The table below offers more detailed description of every pin and its definition:

Table 22 Connectivity Section

RS232 / RS485 / CAN Pin Definition:

Pin Number

Definition

Description

Pin 16

CAN2_H

CPU CAN Channel 2 H signal

Pin 15

CAN2_L

CPU CAN Channel 2 L signal

Pin 14

CAN1_H

CPU CAN Channel 1 H signal

Pin 13

CAN1_L

CPU CAN Channel 1 L signal

Pin 12

RS485_2-

CPU UART2, RS485 –(B) signal 2

Pin 11

RS485_2+

CPU UART2, RS485 +(A) signal 2

Pin 10

RS485_5-

CPU UART5, RS485 –(B) signal

Pin 9

RS485_5+

CPU UART5, RS485 +(A) signal

Pin 8

RS485_4-

CPU UART4, RS485 –(B) signal

Pin 7

RS485_4+

CPU UART4, RS485 +(A) signal

Pin 6

RS232_3_RXD

CPU UART3, RS232 RXD signal

Pin 5

RS232_3_TXD

CPU UART3, RS232 TXD signal

Pin 4

RS232_1_RXD

CPU UART1, RS232 RXD signal

Pin 3

RS232_1_TXD

CPU UART1, RS232 TXD signal

Pin 2

GND

System Ground

Pin 1

+5V

System 5V output, up to 1A


2(1,2)

UART2 signal is used by the onboard WiFi/BT module, so the I/O port function is disabled by default. If you need the I/O port function instead, please contact Chipsee Technical Support at support@chipsee.com for assistance.

Note

120Ω termination resistors are not mounted or included with the device.

USB Connectors

There are 2 x Type A USB HOST connectors onboard, as shown on the figure below.

../../../../../_images/USB5.jpeg

Figure 67: USB HOST Connectors

Note

The USB HOST connectors can drive at most 500mA current on each dual port.

There is also 1 x Type Mini B USB OTG connector, configured as slave by default.

../../../../../_images/USB_OTG2.jpeg

Figure 68: USB OTG Connector

LAN Connectors

LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables. The integrated Ethernet interface supports up to 1 Gbps data throughput. Power over Ethernet (PoE) is not supported.

../../../../../_images/LAN4.jpeg

Figure 69: RJ45 LAN Connector

Note

Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).

WiFi & BT Module

The PPC-A9-121-U-C Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN). The product includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below.

../../../../../_images/Antenna5.jpeg

Figure 70: WiFi+BT Antenna

4G/LTE Module

The PPC-A9-121-U-C Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A9-121-U-C. SIM card does NOT support hot plug. Power off before inserting or removing SIM card.

../../../../../_images/SIM.jpeg

Figure 71: SIM Card Holder

../../../../../_images/PPC-A9-121-SIM.jpg

SIM Card Direction

Attention

  1. The product does not come shipped with the 4G/LTE module by default.

  2. Also, there is no software driver for any kind of 4G/LTE module on Chipsee store.

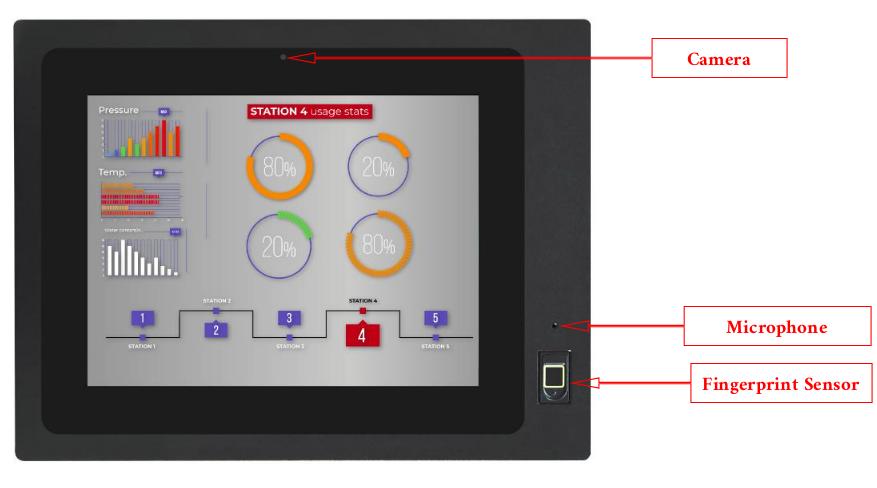

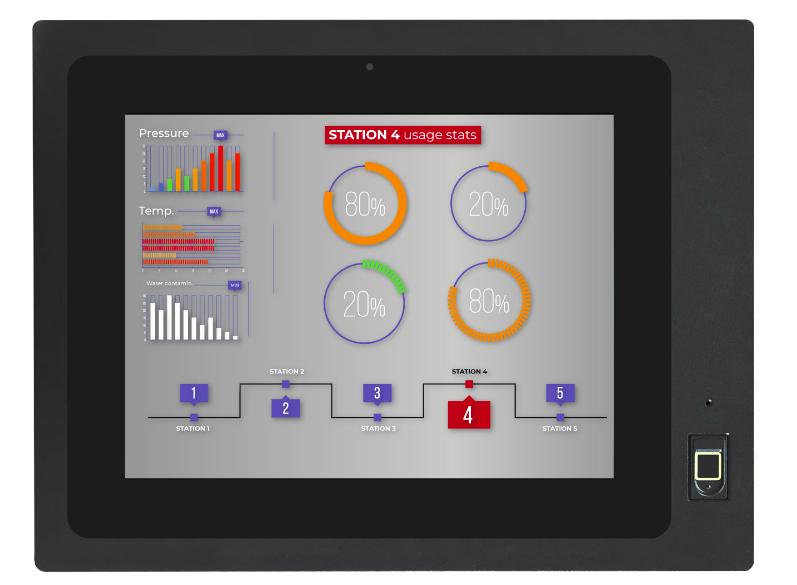

Camera, Microphone, and Fingerprint Module

The PPC-A9-121-U-C Industrial Panel PC supports a camera, a Microphone audio input, and a Zaz-070S fingerprint module as shown on the figure below.

../../../../../_images/Cam_Mic_Finger.jpeg

Figure 72: Camera, Mic, and Fingerprint module

Attention

The camera is not mounted by default.

Audio Connector

The PPC-A9-121-U-C Industrial Panel PC features some audio peripherals, as well. It has 1 x 3.5mm audio output jack.

../../../../../_images/Audio4.jpeg

Figure 73: Audio Out Connector

HDMI Connector

The PPC-A9-121-U-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software.

../../../../../_images/HDMI2.jpeg

Figure 74: HDMI Connector

Boot DIP Switch

The PPC-A9-121-U-C Industrial Panel PC supports boot from SD card. If you want to re-flash the Operating System (OS), you can use the TF card for that purpose, combined with the DIP switch settings as illustrated in the figure below.

There is no need to alter the DIP switch settings during regular operation. However, if you need to reinstall the OS, please refer to the table below. Detailed information on how to re-flash the OS can be found in the Software Documentation.

../../../../../_images/Boot_SW.jpeg

Figure 75: Boot DIP Switch

Table 23 Boot Configuration Selection

Boot Config Select

DIP SW

1

2

3

4

SD

1

0

0

0

eMMC

1

1

0

1

Download

0

1

1

0

Mounting Procedure

The PPC-A9-121-U-C Industrial Panel PC can be mounted using the VESA (100x100mm or 75x75mm) and Panel mounting methods with a 4 x M4 screws, enabling simplified installation onto any standard mounting fixture.

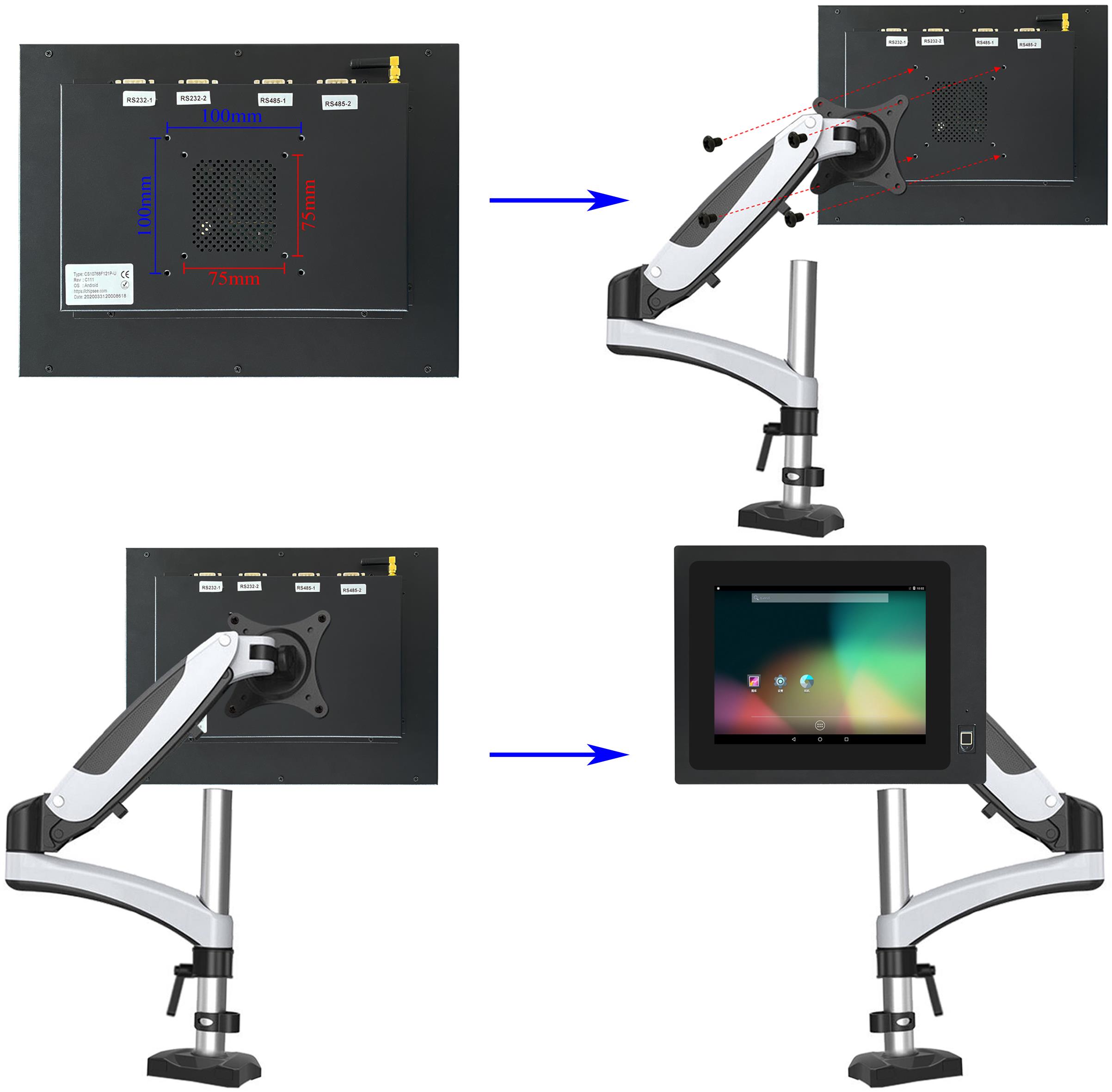

You can mount PPC-A9-121-U-C with the VESA mounting method, as shown on the figure below.

../../../../../_images/VMount.jpeg

Figure 76: VESA mounting

You can mount PPC-A9-121-U-C with the Panel mounting method, as shown on the figure below.

../../../../../_images/PMount.jpeg

Figure 77: Panel mounting

Note

The operator can fix the PC into the panel by pushing it from the front inside the panel as described in the figure above. The recommended maximum thickness of the panel material is 8mm.

  1. Make sure the Panel PC is configured correctly. The Boot Switch is sitting inside the housing. To use it, the Panel PC has to be unmounted from the panel.

  2. Push the Panel PC straight into the Panel Hole until the unit sits flat on the panel as shown in the figure above.

  3. Use the mounting fixtures to lock the Panel PC into it’s place.

Attention

Please make sure the display is not exposed to high pressure when mounting into an enclosure.

You can find detailed information about mounting in the Mount IPC Guide.

Mechanical Specifications

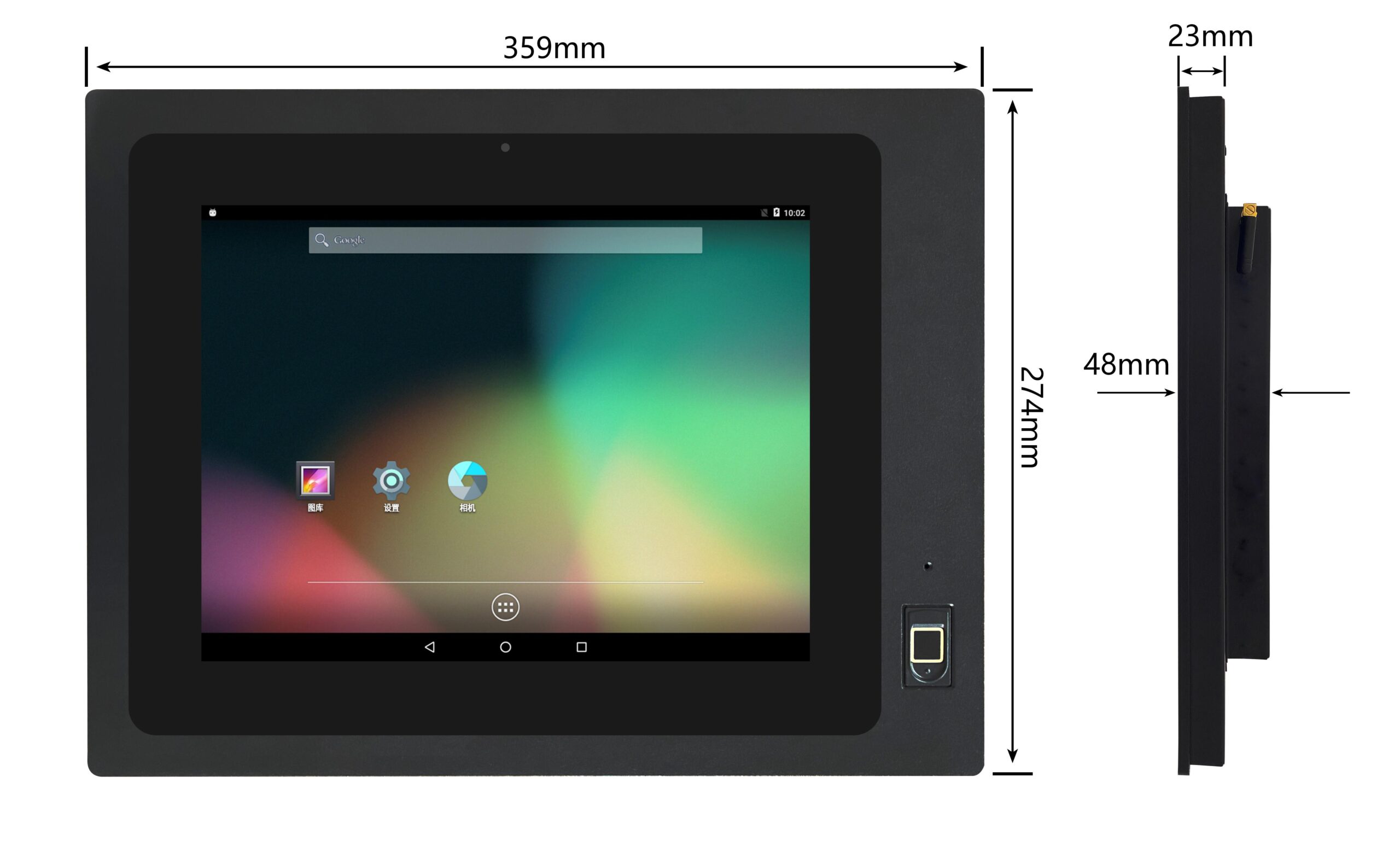

The outer mechanical dimensions of PPC-A9-121-U-C are 359 x 274 x 23mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements.

../../../../../_images/PPC-A9-121-U-C-TD.jpeg

Figure 78: Technical Drawing
