CS86-BOX-J1900

Version 1.0

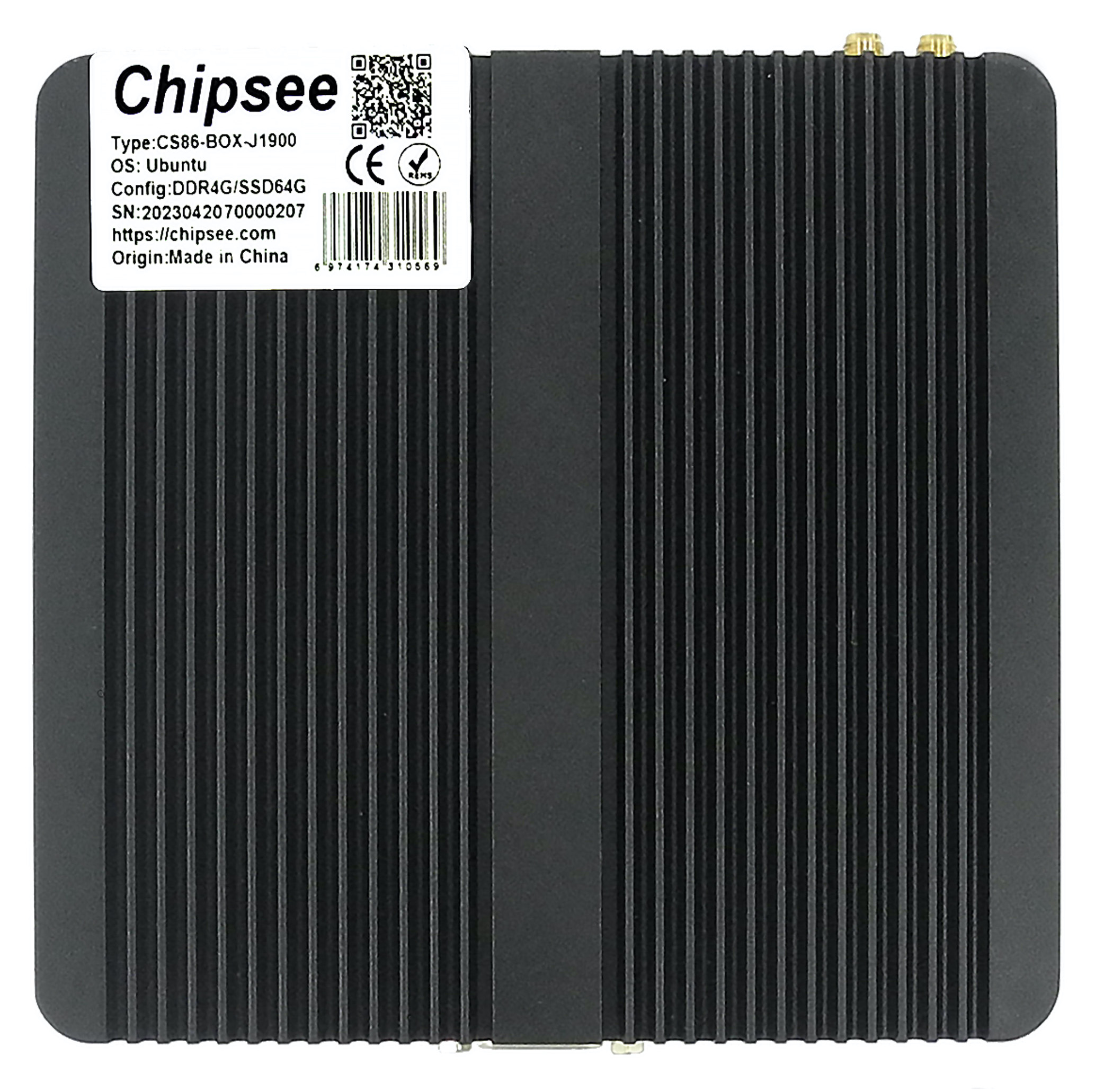

Product Overview

The CS86-BOX-J1900 is a fanless embedded industrial PC with Intel® Celeron® J1900 quad-core (4 threads) to meet a variety of requirements in harsh environments. Thanks to the fanless design, it is stable and reliable in client terminal, multimedia and other industry applications. In addition, its support for 2 x LAN, 2 x COM, 3 x USB2.0, 1 x USB3.0 ports can interconnect devices easily.

The offered CPU consumes very little power: its TDP is only 10W at the base clock frequency. From the ground-up, the CPU is built for low power consumption. As such, it is best suited for mobile and power-constrained industrial or field applications.

A specially designed aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fanless design reduces noise, as well as the maintenance costs and efforts, leading to increased reliability at the same time.

Caution

Be careful when handling the product while it is operating: it might become hot under heavy CPU load.

Ordering Options

Most of the Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.

Note

You can order CS86-BOX-J1900 from the official Chipsee Store or from your nearest distributor.

Operating System

By default, CS86-BOX-J1900 comes with the Ubuntu Linux operating system (OS) pre-installed. A different OS can be selected during the ordering process. In addition to Linux, CS86-BOX-J1900 also supports CentOS, Windows 7, Windows 8 and Windows 10 OS.

Optional Features

The CS86-BOX-J1900 Industrial PC does not include WiFi/BT and/or 3G/4G modules by default. These modules are optional and can be selected at the Chipsee store during the ordering process.

Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

Hardware Features

The CS86-BOX-J1900 Industrial PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below.

Table 254 Table 1: Key Features

CS86-BOX-J1900

CPU

Intel® Celeron® J1900, Quad-Core, 2GHz(Turbo Boost 2.41GHz), 2MB L2 Cache, 10W TDP, AMI BIOS

GPU

Intel® HD Graphics (Bay Trail) integrated GPU, shared memory

RAM

Default 4GB 1600MHz DDR3L, up to 8GB (1 x Single channel SO-DIMM 204-pin slot, supports DDR3L, 1066/1333/1600MHz)

Storage

Default 1 x full size mSATA 64GB SSD, up to 2TB; 1 x 2.5” SATA 2.0

USB

1 x USB 3.0 (Type A), 3 x USB 2.0 (Type A)

LAN

2 x RJ45, 10/100/1000 Mbps (Realtek 8111F), supports Wake on LAN (WoL)

UART

2 x RS232

3G/4G

Optional, USB module available from the manufacturer, no on-board SIM slot

WiFi/BT

Optional, mini PCIe module available from the manufacturer

Audio

Realtek ALC662, two channel, stereo audio, line out

Display

1 x HDMI Out (1920 x 1080 @ 60Hz), 1 x VGA Out (1920 x 1080 @ 60Hz), supports VGA + HDMI synchronous and asynchronous display

Extension

1 x half size mini PCIe

Power IN

12V DC(DC-IN 5.5 x 2.5)

Power Adapter

DC 12V 3A/36W (AC to DC, 100 ~ 240V)

Current max.

1.25A

OS

Default Ubuntu, supports CentOS Linux, Windows 7, Windows 8, Windows 10

Graphic Engine

DirectX 11.1, OpenCL 1.2, OpenGL 3.2; Encoding: H.264, MPEG2/4, VC1, WMV9; Decoding: H.264, MPEG2

Temp.

From -20°C to +69°C (Operational), From +15°C to +35°C (Storage)

Humidity

From 5% to 95% relative humidity (no condensation)

Dimensions

133 x 126.2 x 38 mm

Structure

Aluminium Casing

Mounting

VESA 75 x 75, Wall, Desktop

Weight

0.65 kg

Power Input

The CS86-BOX-J1900 Industrial PC can be powered by 12V DC. The power input connector is a 5.5 x 2.5 mm DC connector (Figure 1).

../../../../../_images/Power1.png

Figure 896: Figure 1: Power Input Section

The POWER button (Figure 1a) is located to the opposite side of the power input connector and can be used to switch the power ON or OFF.

../../../../../_images/Button.png

Figure 897: Figure 1a: Power Button

Note

If the product is used to control key processes, it is highly recommended to use an Uninterruptible Power Supply (UPS) to prevent critical data loss.

Connectivity

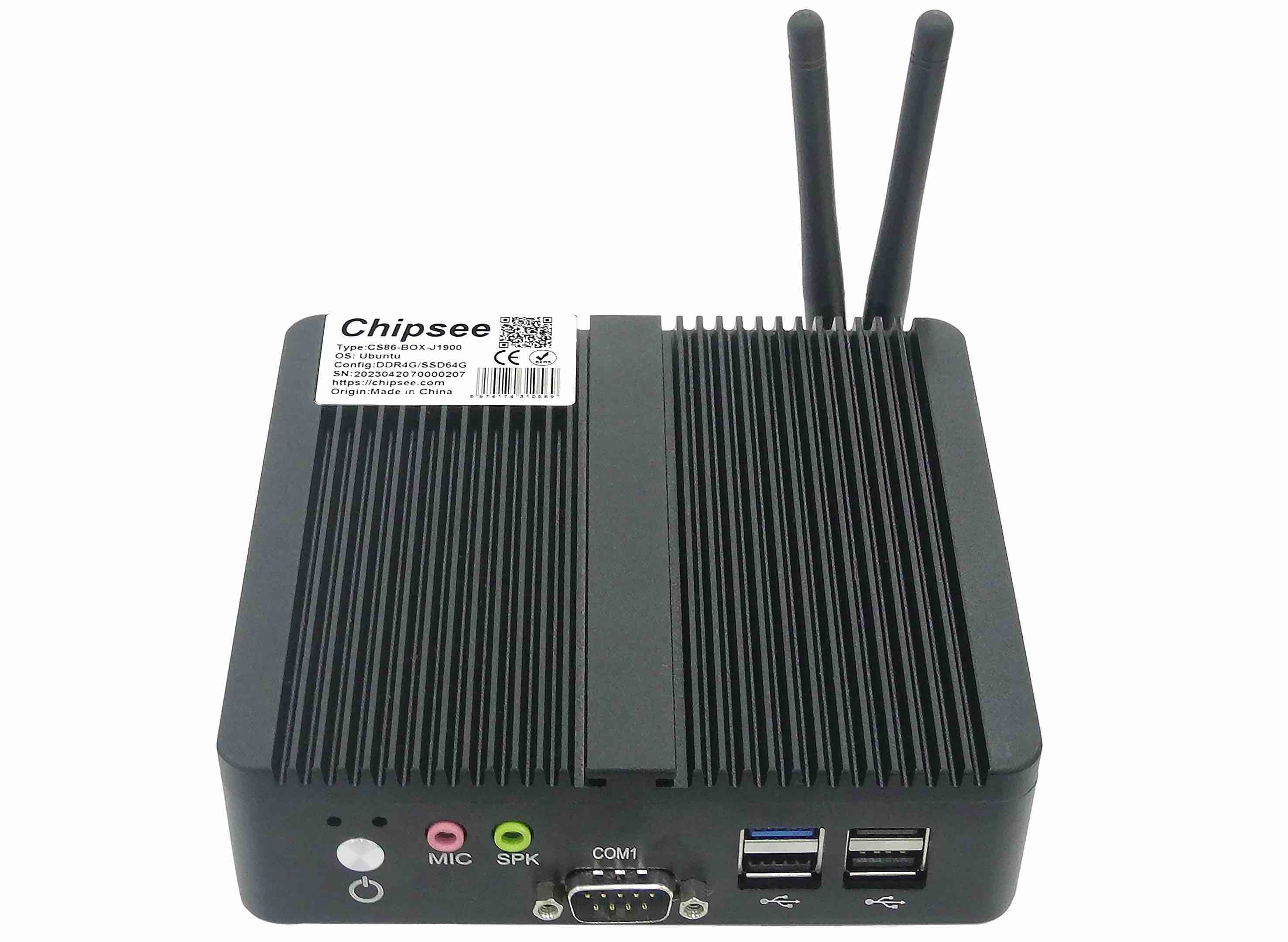

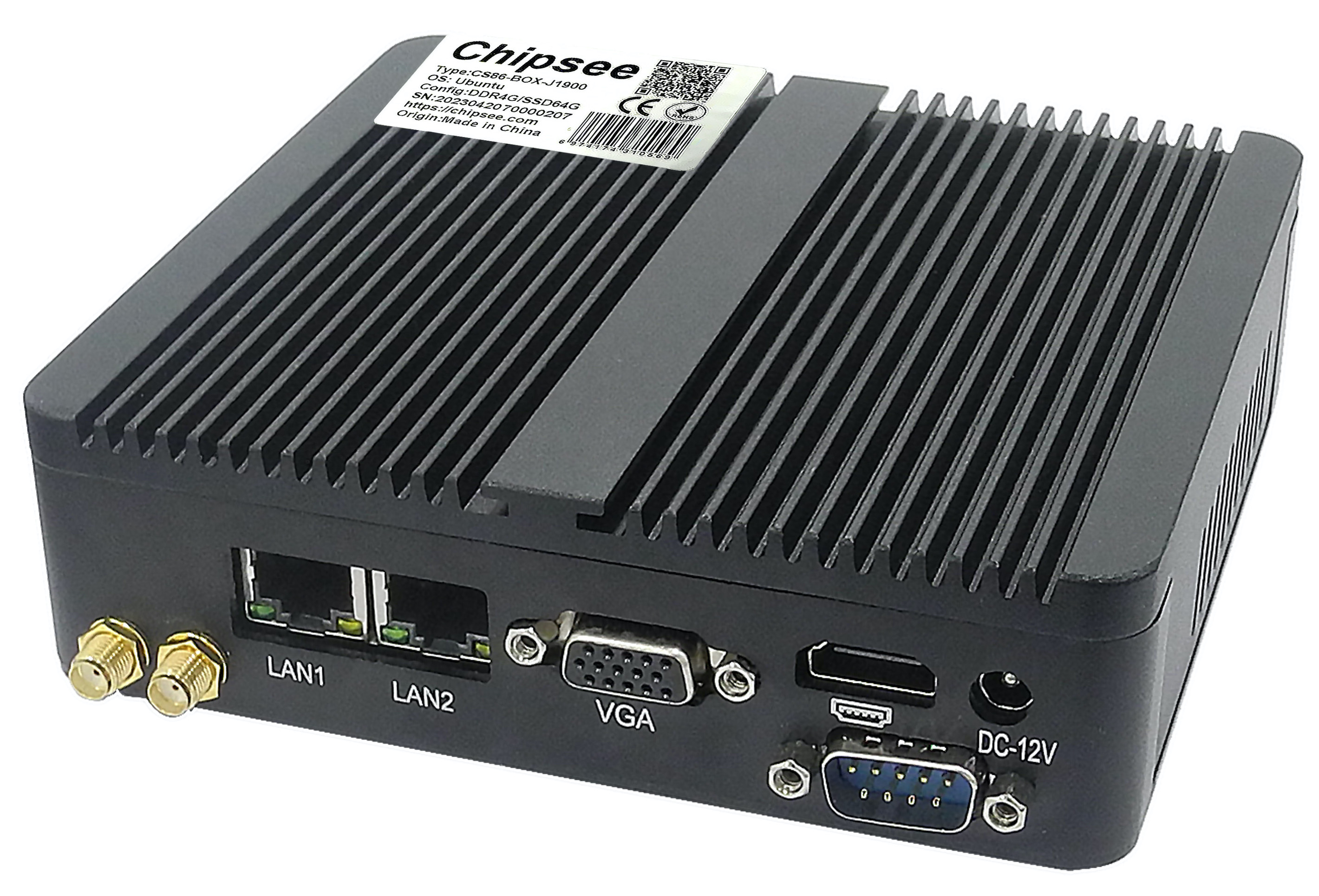

There are many connectivity options available on the CS86-BOX-J1900 industrial PC. It has 1 x USB3.0 and 3 x USB2.0 Type A connectors configured as HOSTS, 1 x HDMI port, 1 x VGA port, 2 x RJ45 connectors supporting 10/100/1000Mbps Ethernet, 2 x RS232 connectors, 1 x audio in connector, 1 x audio out connector, 2 x SMA connectors(for Wi-Fi antenna).

RS232 Connectors

Product has 2 x 9-pin D-Sub connectors which are configured as RS232 interfaces by default. The two connectors are on two different sides: COM1 (Figure 2) and COM2 (Figure 2a).

../../../../../_images/Sub-D%28COM1%29.png

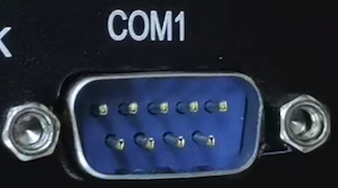

Figure 898: Figure 2: D-Sub (RS232) COM1

../../../../../_images/Sub-D%28COM2%29.png

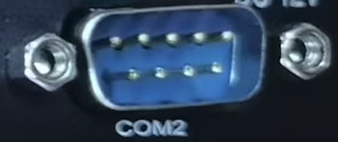

Figure 899: Figure 2a: D-Sub (RS232) COM2

USB HOST Connectors

CS86-BOX-J1900 is equipped with 1 x USB 3.0 and 3 x USB 2.0 HOST connectors (Figure 3). Although fully compatible with USB 2.0 devices, the USB 3.0 interface provides 10 times more data transfer bandwidth than USB 2.0, making it best suited for fast peripherals that can utilize its full potential.

../../../../../_images/USB1.png

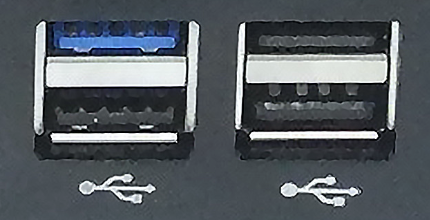

Figure 900: Figure 3: 1 x USB 3.0 and 3 x USB 2.0 HOST Connectors

LAN Connectors

2 x LAN (RJ45) connectors (Figure 4) provide Ethernet connectivity over standardized Ethernet cables. The integrated two-port Ethernet interface supports 10/100/1000BASE-T/TX specifications with automatic speed negotiation and Wake on LAN (WoL) functionality. Power over Ethernet (PoE) is not supported.

../../../../../_images/LAN2.png

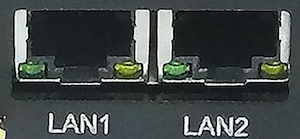

Figure 901: Figure 4: 2 x RJ45 GbE LAN Connectors

Note

Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).

HDMI and VGA Connectors

Although not equipped with the screen on its own, the CS86-BOX-J1900 features 1 x HDMI connector (Figure 5) and 1 x VGA connector (Figure 5a). The two connectors allow connecting two external monitors in synchronous or asynchronous modes. HDMI and VGA output resolution can be configured by the software or the OS, up to 1920 x 1080 at 60Hz.

../../../../../_images/HDMI1.png

Figure 902: Figure 5: HDMI Connector

../../../../../_images/VGA.png

Figure 903: Figure 5a: VGA Connector

Audio In/Out Connectors

The product features audio in and audio out connectors as shown in the Figure 6 below.

../../../../../_images/Audio-Mic-Spk.png

Figure 904: Figure 6: Audio In and Audio Out Connectors

WiFi/BT Module

The default CS86-BOX-J1900 does not include a Wi-Fi module or BT module, but it contains a half size mini PCIe slot that can be expanded with a Wi-Fi module or a BT module.
The product includes two SMA connectors for external Wi-Fi antennas, as illustrated in the Figure 7 below.

../../../../../_images/SMA.png

Figure 905: Figure 7 SMA Connectors for WiFi Antennas

Attention

The product does not come shipped with the Wi-Fi/BT module by default.

Mounting Procedure

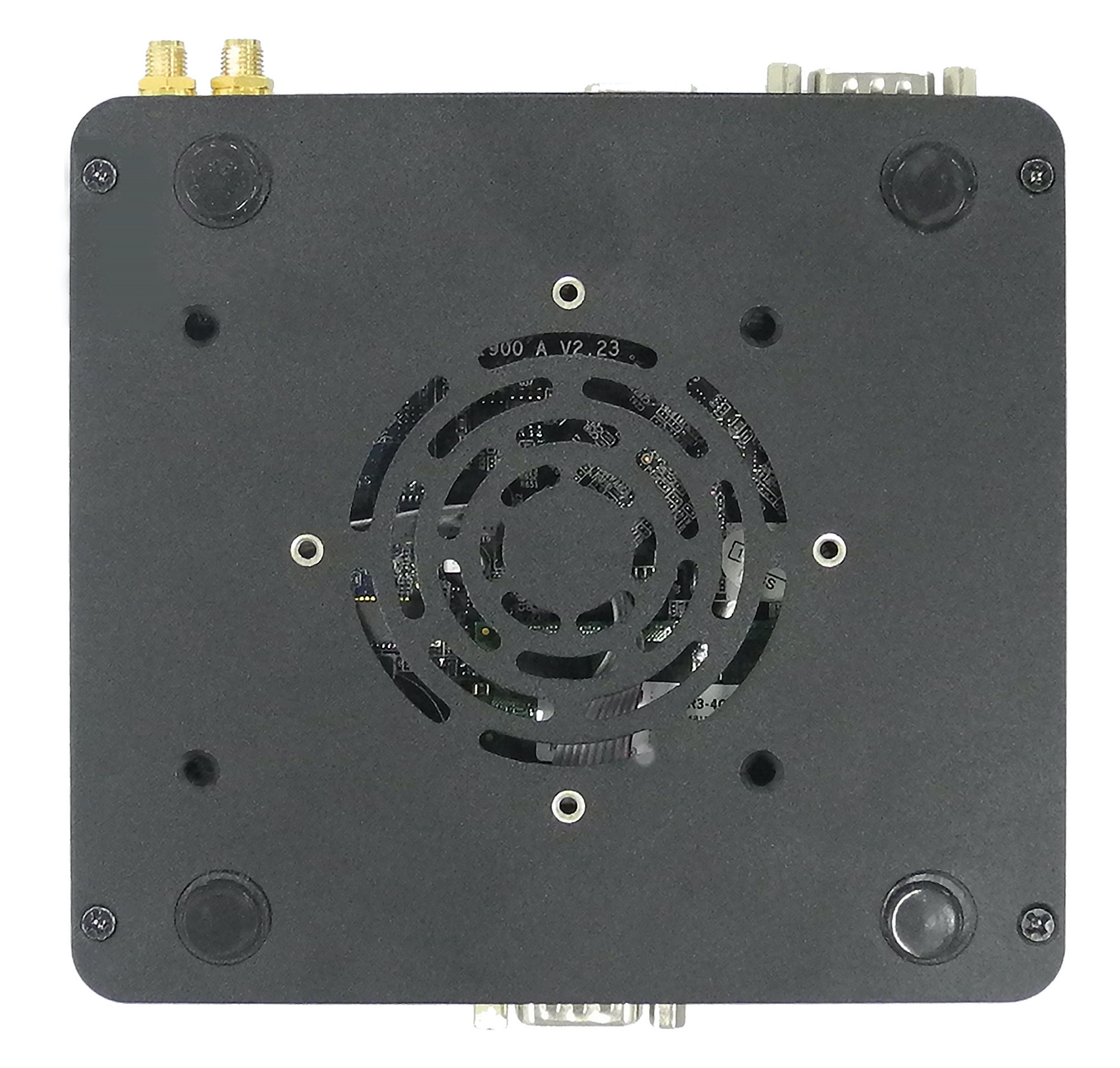

The CS86-BOX-J1900 Industrial PC supports VESA 75 x 75 mounting pattern with 6 x M3 screws, enabling simplified installation onto any standard VESA mounting rack. Other mounting options might also be supported according to the table in the Hardware Features section.

You can find detailed information about mounting in the Mount IPC Guide.

Mechanical Specifications

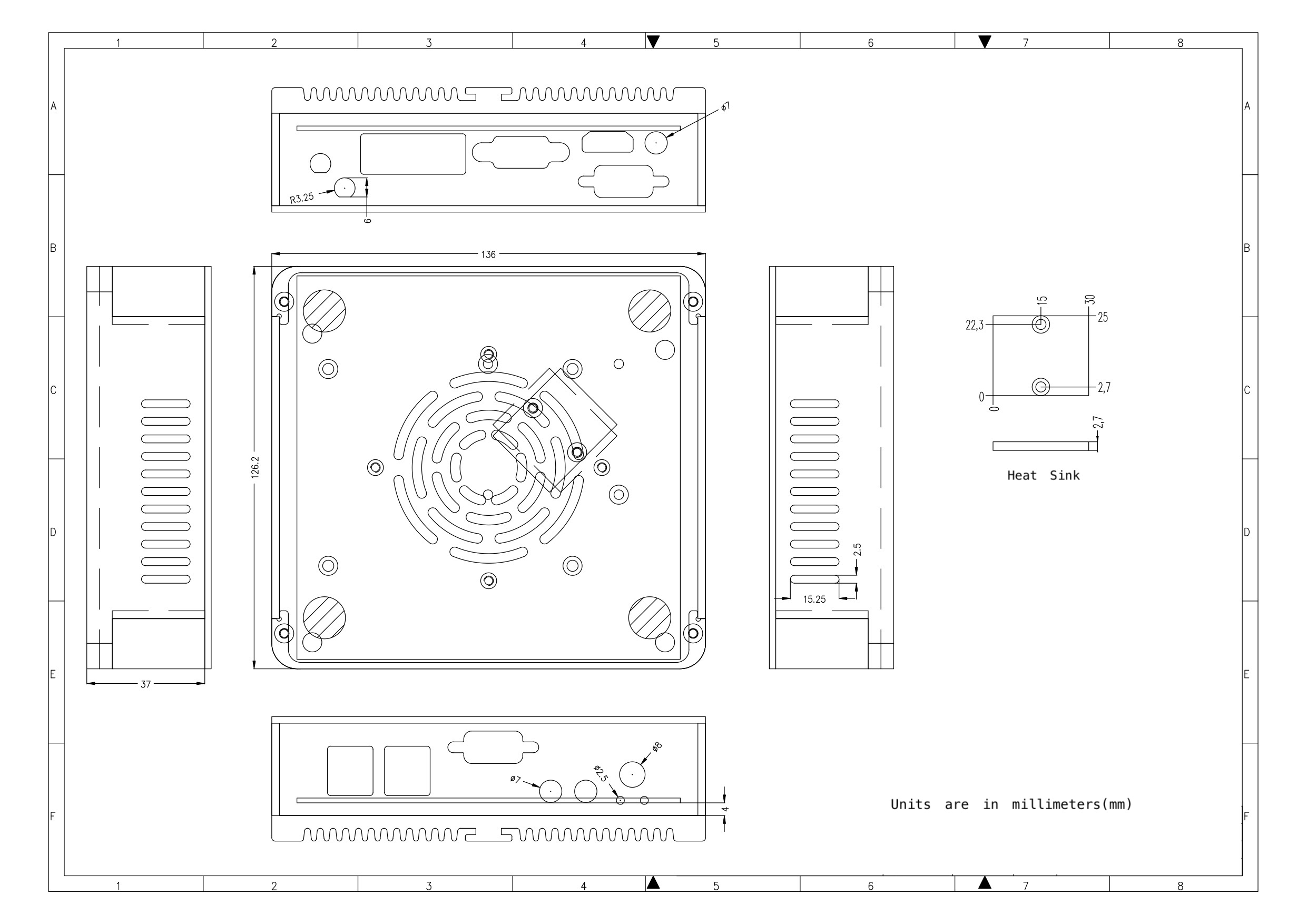

The outer mechanical dimensions of the CS86-BOX-J1900 are 136 x 126.2 x 38mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements.

../../../../../_images/CS86-BOX-J1900-TD.jpg

Figure 906: CS86-BOX-J1900 Technical Drawing
