PPC-J1900-236-C¶
Version 1.1
Product Overview¶

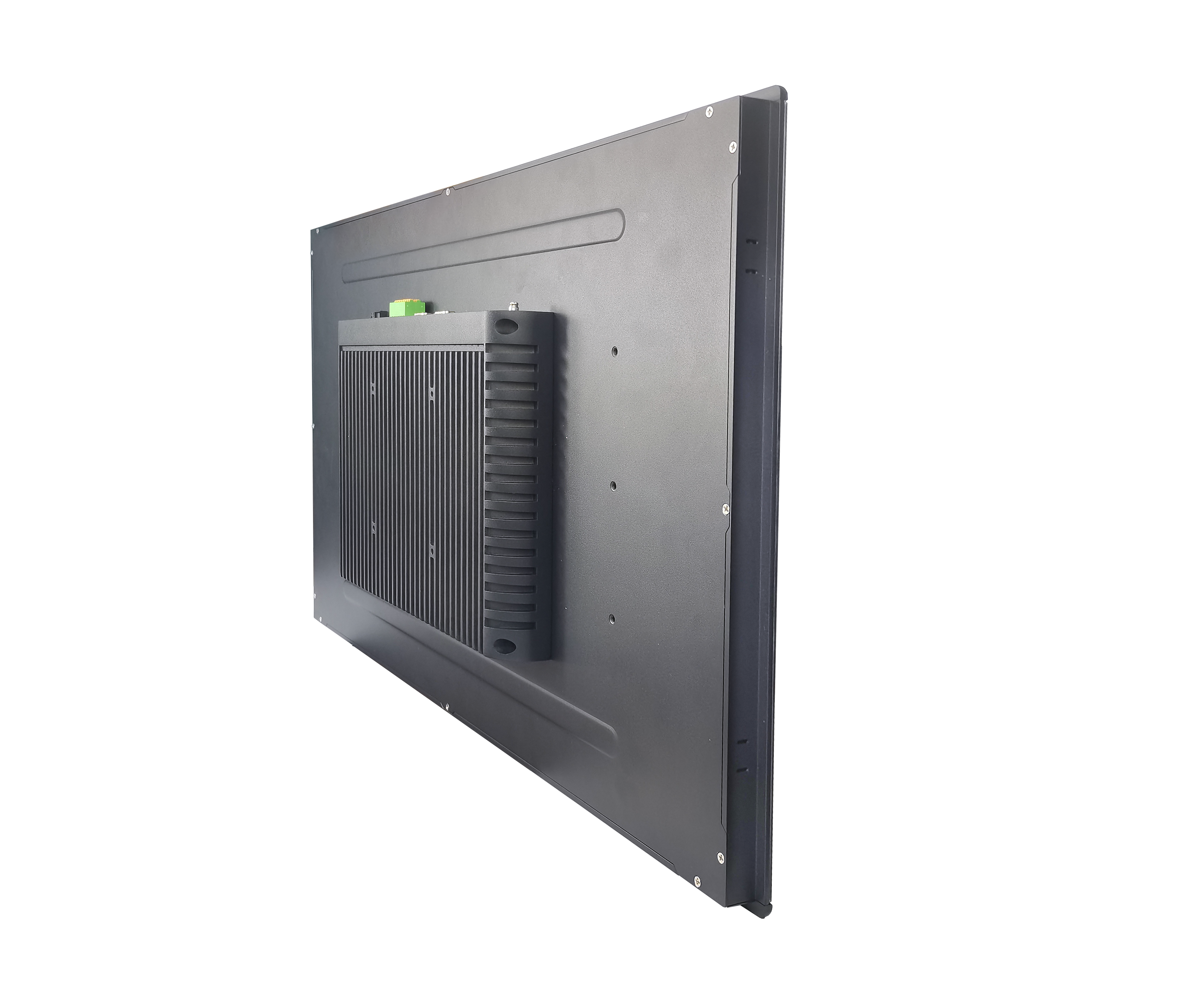

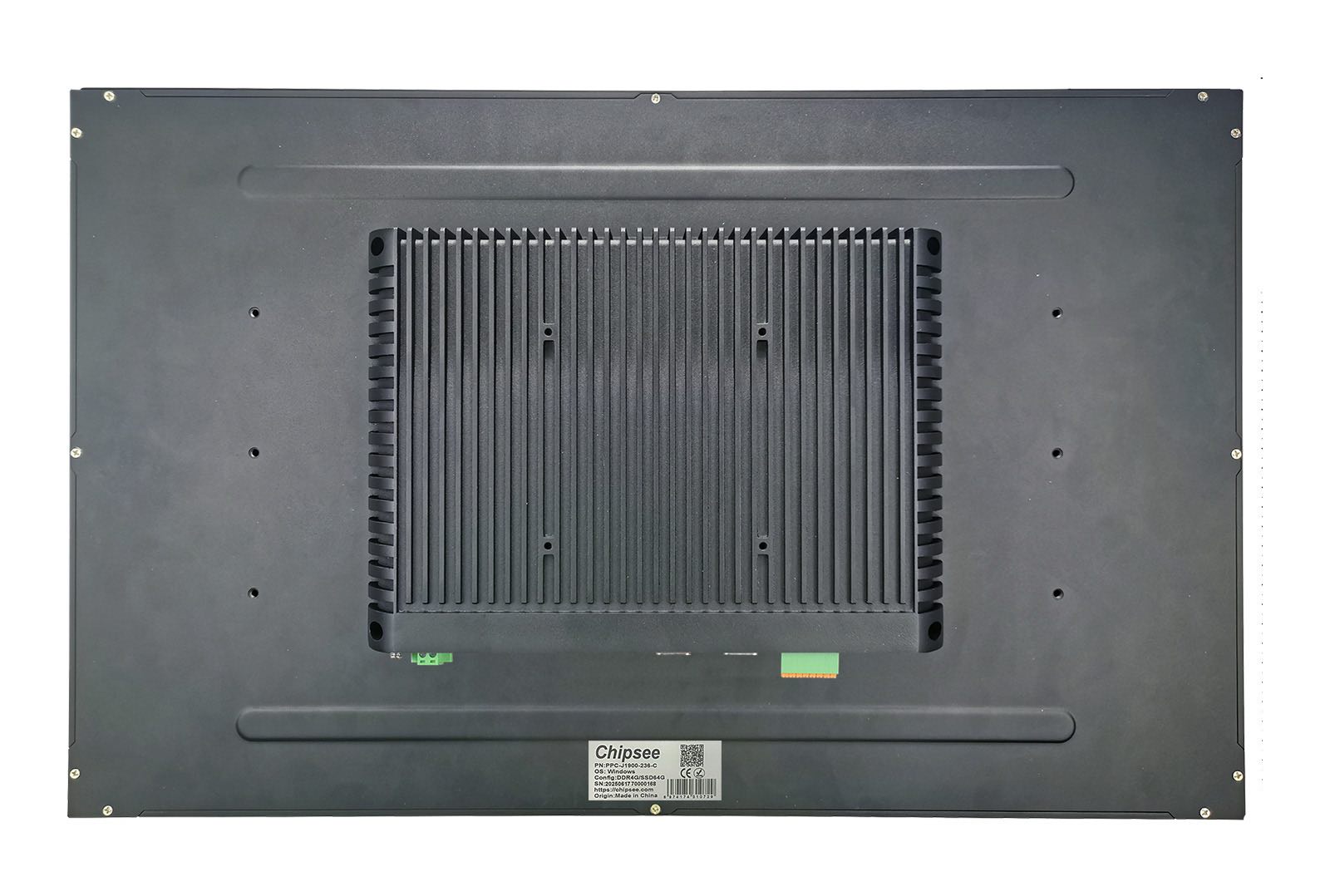

The PPC-j1900 series PPC-J1900-236-C is a rugged, high-quality NEMA 4X/IP65-compliant industrial panel PC. It features a 23.6” multi-point capacitive touch screen with a resolution of 1920 x 1080 pixels.
The PPC-J1900-236-C Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

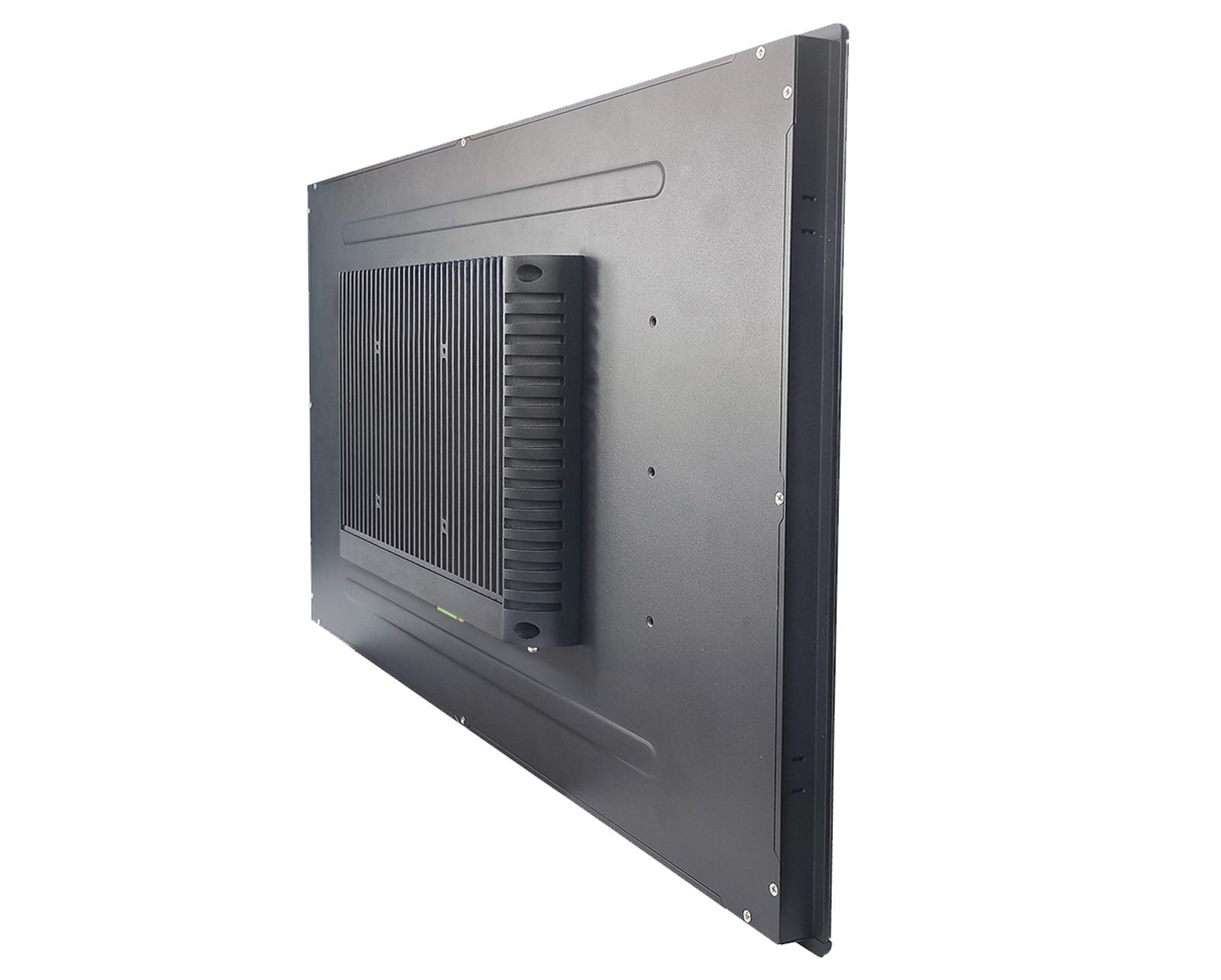

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fan-less design reduces noise, as well as the maintenance costs and efforts, increasing reliability at the same time.
Caution
Be careful when handling the product while it is operating: the back panel might become hot under heavy CPU load.
Ordering Options¶
Most of the Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product.
Note
You can order PPC-J1900-236-C from the official Chipsee Store or from your nearest distributor.
Operating System¶
By default, PPC-J1900-236-C comes with the Linux operating system (OS) pre-installed. A different OS can be selected during the ordering process. In addition to Linux, PPC-J1900-236-C also supports Windows 7 and Windows 10 OS.
Optional Features¶
The PPC-J1900-236-C Industrial Panel PC does not include WiFi/BT and/or 3G/4G modules by default. The Wi-Fi/BT module is optional and can be selected during the ordering process.
A 3G/4G LTE module is not available at the Chipsee store for this product. However, it can be obtained from specialized third-party suppliers.
Warning
Hardware Features¶
The PPC-J1900-236-C Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below.
PPC-J1900-236-C |
|
---|---|
CPU |
Intel® Celeron® J1900, 2GHz, Quad-Core, 2MB Cache, TDP=10W |
GPU |
Intel® HD integrated GPU, 512MB shared memory |
RAM |
Default 4GB, maximum supported 8GB, DDR3L 1333 SO-DIMM |
Display |
23.6” LCD, resolution 1920 x 1080 px, brightness 350 cd/m2 |
Storage |
Default mSATA 64GB SSD, supports up to 512GB |
Touch |
Multi-point capacitive touch screen |
USB |
1 x USB 3.0 HOST, 3 x USB 2.0 HOST ports (Type A) |
LAN |
2 x RJ45, GbE (Intel® I211), Wake on LAN (WoL) support |
UART |
Default 4 x RS232 (2 x RS485 optional) |
GPIO |
8 x General Purpose I/O (GPIO) channels |
3G/4G |
Optional, module available from other manufacturers/stores |
WiFi/BT |
Optional, module available from the Chipsee store |
HDMI |
1 x HDMI out |
SATA |
1 x mSATA SSD electronic disk supports; 1x SATA 2.5” HDD |
Power IN |
From 9V to 30V DC |
Power Consumption |
30W |
OS |
Default Linux, Windows 7, Windows 10 |
Operating Temp. |
From -20°C to +60°C |
Dimensions |
596 x 375 x 55mm |
Mounting |
VESA 100, Panel mounting with fixtures |
Weight |
7700g |
Power Input¶
The PPC-J1900-236-C Industrial Panel PC can be powered by a wide range of input voltages: from 9V to 30V DC. The power input connector is a 2-pin, 3.81mm screw terminal (Figure 1). The polarity of the power connector is clearly labeled on the housing itself: the ‘+’ sign is the positive, while the ‘-’ sign is the negative power supply input.
The POWER button is located next to the power input connector and can be used to switch the power ON or OFF.
The power input section of PPC-J1900-236-C features a range of protection features, including over-current, over-voltage, power surge, and reverse polarity protection, allowing it to meet stringent industrial safety regulations.
Note
If the product is used to control some key processes, it is highly recommended to use an Uninterruptible Power Supply (UPS) to prevent critical data loss.
Touch Screen¶
PPC-J1900-236-C is equipped with a multi-point capacitive touch screen. Its multitouch detection capability enables implementation of some advanced GUI operations, such as two-finger zoom or rotation.
The capacitive touch screen can be operated by fingers, gloves with a special coating, or a conductive stylus.
Size/Type: 23.6” multi-point capacitive touch screen
Touch screen structure: G+F+F
Surface Strength: 7H
Surface Hardness: 50G steel ball 70cm impact drop 3 times not broken
Service Life (MTBF): 50 million touch events
Light Transmittance: > 92%
Connectivity¶
There are many connectivity options available on the PPC-J1900-236-C industrial PC. It has 4 x USB Type A connectors configured as HOSTS, 1 x HDMI port, 2 x RJ45 connectors supporting Gigabit Ethernet (GbE), and up to 4 x RS232 connectors, of which two can be configured in the RS485 mode. There are also 8 x GPIO channels for various user-defined purposes.
RS232/485/GPIO Connectors¶

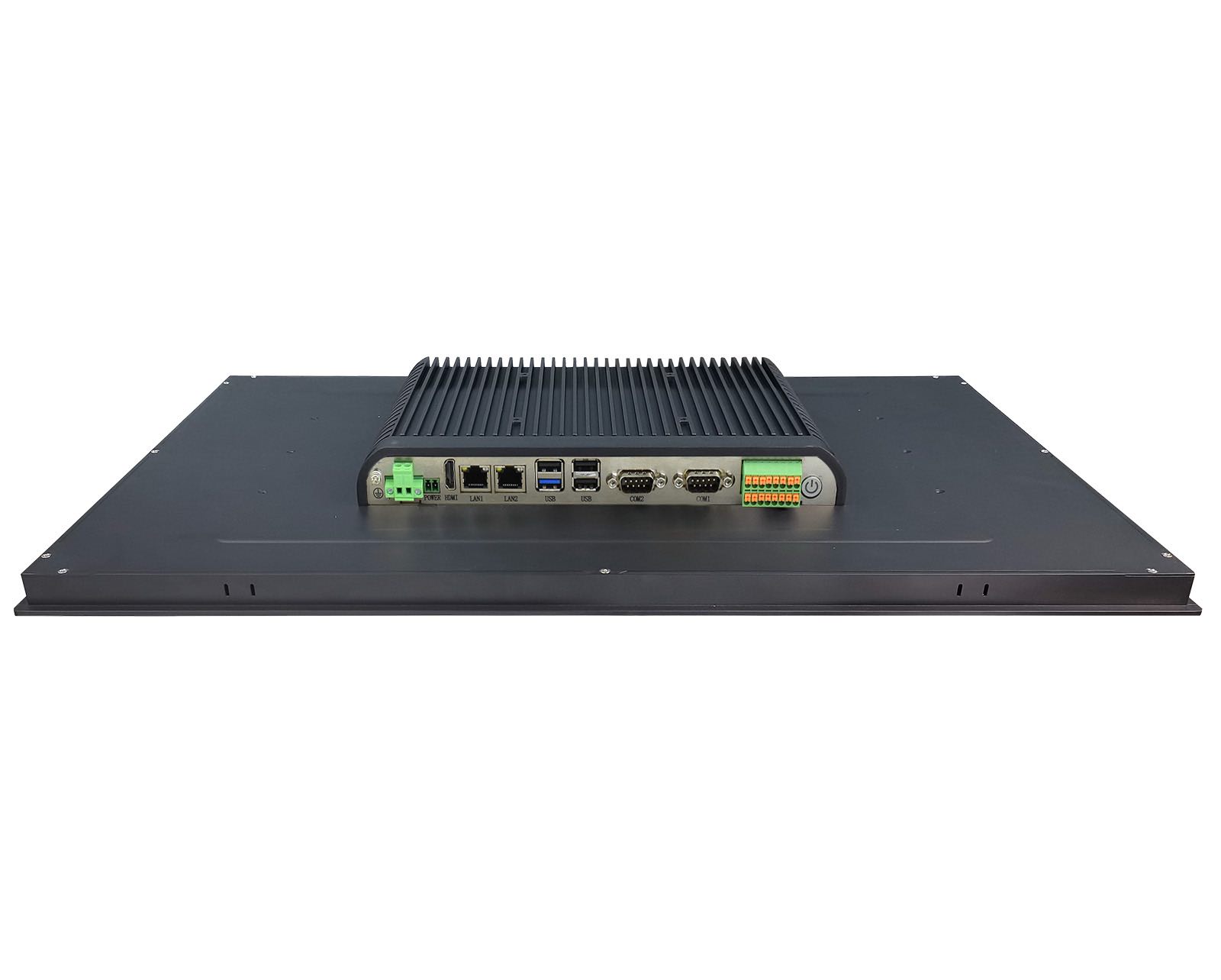

The PPC-J1900-236-C Industrial Panel PC has 2 x 9-pin D-sub connectors and 1 x 16-pin 3.81mm connector with pluggable terminal block (Figure 2). Two 9-pin D-sub connectors labeled as COM1 and COM2 can be configured either as RS232 or RS485 communication interfaces.
The bottom row of terminals on the terminal block is labeled as COM3/4. These terminals are configured as two additional RS232 interfaces by default. The upper row of terminals on the terminal block represents eight GPIO channels, labeled as GPIO (0 … 7).
Note
The default configuration of the PPC-J1900-236-C industrial PC is 4 x RS232 interfaces and 8 x GPIO channels. If you need different configuration, please contact Chipsee Technical Support at support@chipsee.com
USB HOST Connectors¶
PPC-J1900-236-C is equipped with 3 x USB 2.0 connectors and 1 x USB 3.0 HOST connector. The USB connectors are configured as shown in Figure 3. The data throughput of the USB 3.0 interface can reach up to 4.8 Gbps, while the USB 2.0 interfaces are limited to 480 Mbps.
Although fully compatible with USB 2.0 devices, the USB 3.0 interface provides 10 times more data transfer bandwidth than USB 2.0, making it best suited for fast peripherals that can utilize its full potential.
LAN Connectors¶
2 x LAN (RJ45) connectors (Figure 4) provide Ethernet connectivity over standardized Ethernet cables. The integrated two-port Ethernet interface supports 10/100/1000BASE-T/TX specifications with automatic speed negotiation and Wake on LAN (WoL) functionality. Power over Ethernet (PoE) is not supported.
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m).
HDMI Connector¶
The PPC-J1900-236-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector (Figure 5) allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software.
Mounting Procedure¶
The PPC-J1900-236-C Industrial Panel PC supports VESA 100 x 100 mounting pattern with 4 x M4 screws, enabling simplified installation onto any standard VESA mounting rack. Other mounting options might also be supported according to the table in the Hardware Features section.
You can find detailed information about mounting in the Mount IPC Guide.

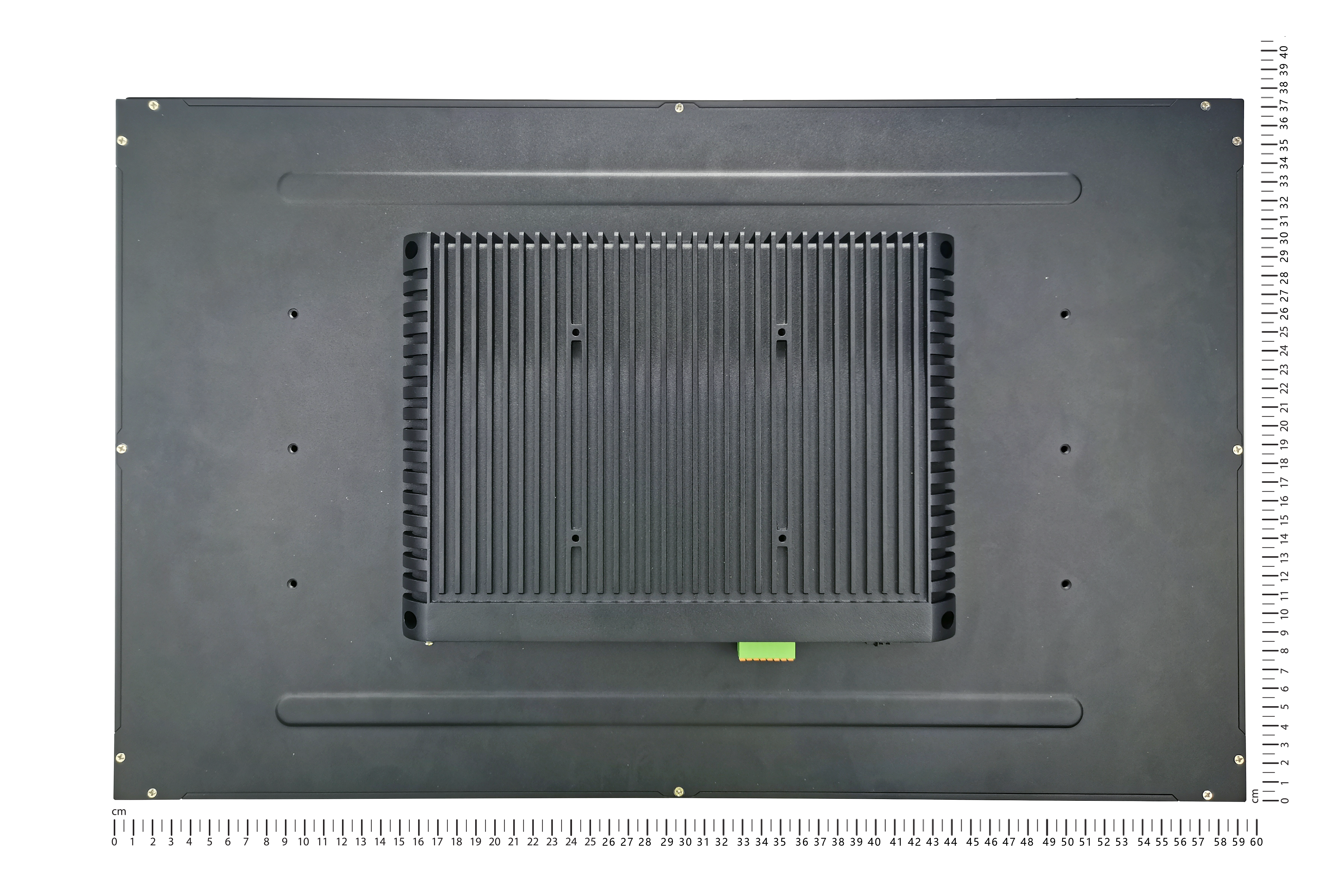

Mechanical Specifications¶

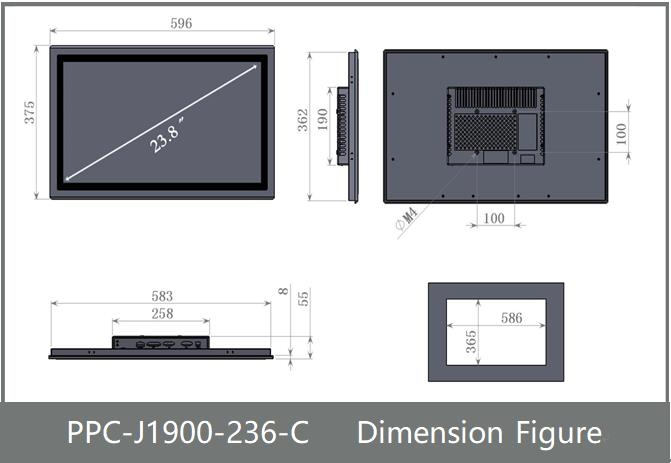

The outer mechanical dimensions of The PPC-J1900-236-C Industrial Panel PC are 596 x 375 x 55mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements.
