Hardware description
The AIO-CM5-156 combines powerful hardware with an all-in-one form factor, making it ideal for demanding tasks and versatile applications—including use as a desktop computer and for software and hardware development. Powered by the Raspberry Pi Compute Module 5 (CM5), it offers flexible performance with a quad-core Cortex-A76 CPU running at 2.4 GHz and up to 8 GB of SDRAM.
The 15.6″ IPS display supports full HD resolution (1920 × 1080) with a brightness of 350 cd/m², ensuring clarity in various lighting conditions. The touchscreen supports 10-point capacitive touch, enhancing interactivity for applications like Human-Machine Interface (HMI) and Industrial IoT (IIoT) projects.
Expandability is a key feature, with an M.2 2280 M-Key slot (PCIe 2.0 × 1, experimental PCIe 3.0 × 1) that supports the Hailo-8 AI module. This enables edge AI capabilities with up to 26 TOPS of performance, allowing real-time data processing and machine learning applications directly on the device. Additional USB 3.0 ports and a 40-pin Raspberry Pi GPIO connector provide access to a wide range of peripherals, making it suitable for hardware development and prototyping.
Designed for reliability, the AIO-CM5-156 includes high-accuracy RTC options and armoured glass protection for durability. Whether for industrial control, process monitoring, home automation, or as a desktop computing solution, its all-in-one design simplifies deployment while offering customization and scalability.
With its powerful performance, edge AI capabilities, and integration into the vast Raspberry Pi ecosystem, the AIO-CM5-156 is a versatile computing solution that meets the needs of engineers and developers across various industries.
| Weight | 4290 g |
|---|---|
| Dimensions | N/A |
| Net weight | 1600 g |
| Dimensions (mm) | 374 x 238 x 33mm |
| Form-factor | All-In-One |
| CPU | ARM: Raspberry Pi CM5 |
| CPU Frequency | Quad(4) Core Cortex-A76 at 2.4GHz |
| RAM | Based on CM5 |
| eMMC | Based on CM5 |
| Storage | 1 x TF card slot for boot |
| PCIe | M.2 M Key Connector, support NVMe SSD, support Hailo-8 M.2 M |
| Display size | 15.6" |
| Display resolution | 1920*1080 |
| Brightness | 350 NIT |
| Touch Screen | Capacitive + Armored Glass |
| USB | 2x USB 3.0 HOST, 1 x Type-C USB (Slave) |
| GPIO | 40-pin GPIO connector |
| HDMI | HDMI 2.0 connector, can be driven up to 4K 60FPS |
| Buzzer | Onboard, driven by GPIO |
| Ethernet | 1 x Giga LAN |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| HAT connector | Standard Raspberry Pi 40-way HAT connector |
| Micro SD card socket | For use only with CM5 Lite modules |
| WiFi/BT | Depends on CM5 |
| 4G | Not supported |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| RS232 | N/A |
| RS485 | N/A |
| Relay | N/A |
| ZigBee | N/A |
| Power Input | 12V DC |
| Power Consumption | 12W |
| Current at 12V | 1A Max |
| Working Temperature | 0℃~50℃ |
| OS | Raspberry Pi OS |
Integration with BeagleBone Black

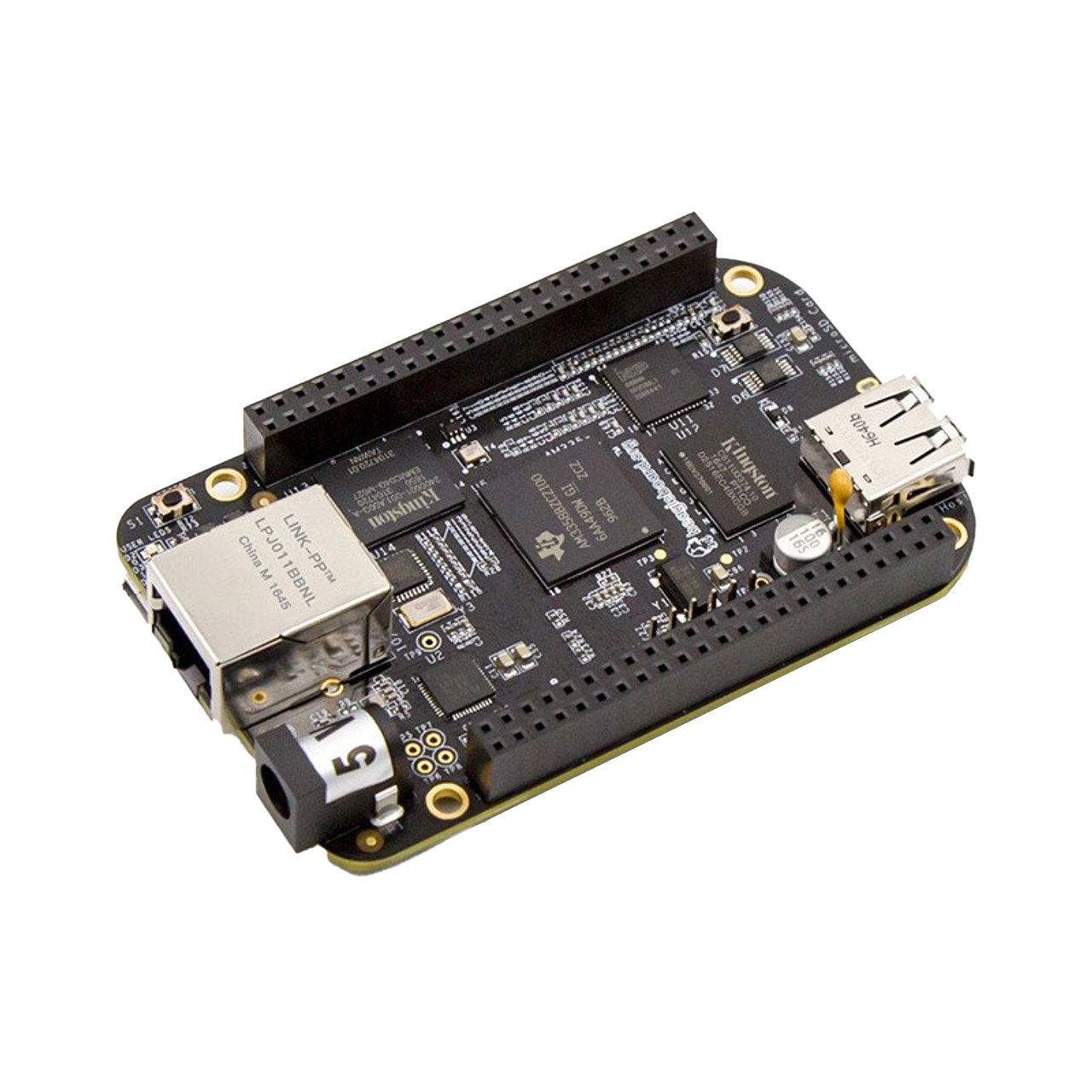

The CS-BBB-EXP50 is designed to connect directly to the BeagleBone Black via its expansion headers, ensuring straightforward physical and electrical integration. To prevent damage, users must follow the orientation markings on the silkscreen carefully, as incorrect installation can permanently harm both the BBB and the expansion board.
Once connected, the board draws power directly from the BeagleBone Black, eliminating the need for an external power adapter—though it’s essential to use a 5V adapter capable of supplying at least 1A to the BBB, as USB OTG power is insufficient.
The board includes a boot switch that allows users to toggle between booting from the microSD card or eMMC memory—an especially helpful feature since the BBB’s onboard boot button becomes inaccessible after installation. Additional features like EEPROM address configuration and expansion connectors help ensure full compatibility and flexibility with various BeagleBone Black-based setups.
Unmatched Expansion Possibilities
The AIO-CM5-156 is designed with expandability in mind, making it a developer’s dream for hardware and software projects. Fully compatible with the Raspberry Pi 40-pin I/O connector, this device seamlessly integrates with a wide range of Raspberry Pi accessories and HATs, offering nearly limitless customization options. From sensor integration and motor control to custom peripheral development, the GPIO interface allows engineers to create tailored solutions for industrial automation, home automation, and prototyping needs. Whether connecting legacy devices or building new systems, the AIO-CM5-156 provides the flexibility and scalability to meet your project’s demands.
Raspberry Pi OS
All products based on Raspberry Pi come with the latest version of Raspberry Pi OS pre-installed. We have also included all the necessary drivers, allowing you to easily access every hardware feature using any standard development tool. If your project requires an operating system not on our list, please feel free to contact us, and we will create a customised version tailored to your specific needs.
Order Now
AIO-CM5-156
SKU:
Price: $303.00 – $323.00
