PPC-J1900-104-R

The PPC-J1900-104-R is a rugged, high-quality 10.4” industrial panel PC designed for demanding applications in industrial automation, machine control, HMI, and more. Built with a durable magnesium-aluminum alloy housing and a resistive touch screen, this panel PC offers long-term reliability in harsh environments, including dusty or high-temperature settings.

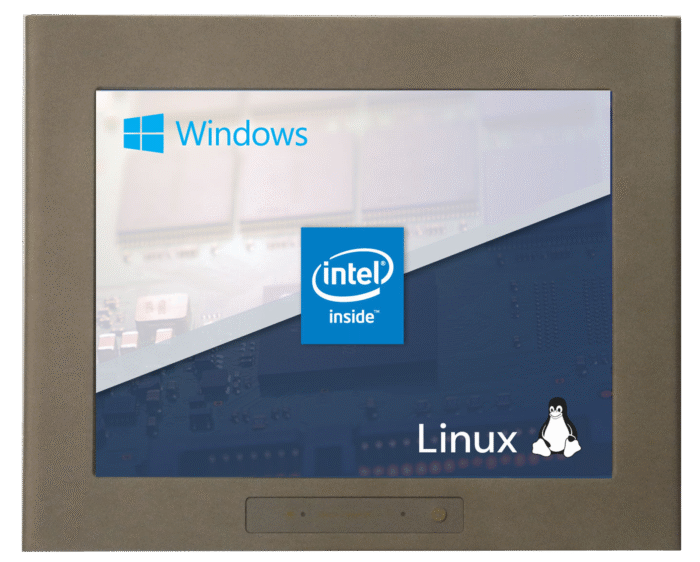

At the core of the system is the Intel® Celeron® J1900 quad-core processor, delivering stable computing power with low power consumption. The 10.4” display features a resolution of 1024 x 768, while the resistive touchscreen enables flexible operation using gloves or styluses, making it ideal for environments where precision and durability matter.

This fanless, IP65-compliant panel PC is a robust and flexible solution for system integrators and industrial environments where uptime, reliability, and expandability are essential.

Hardware description

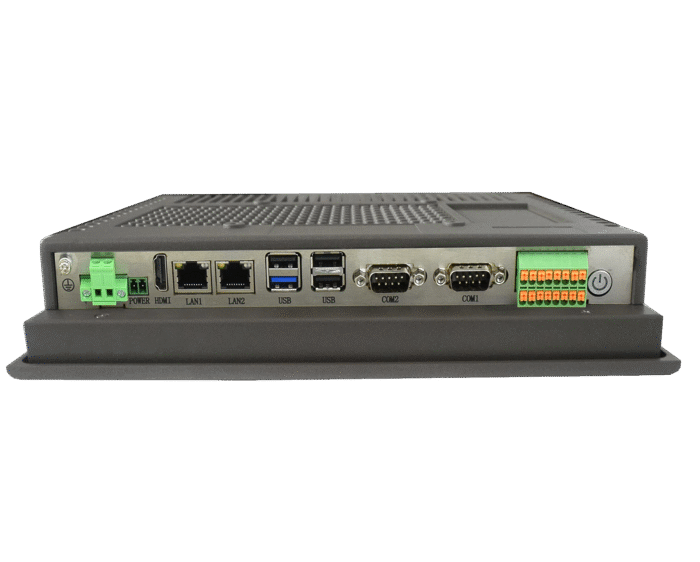

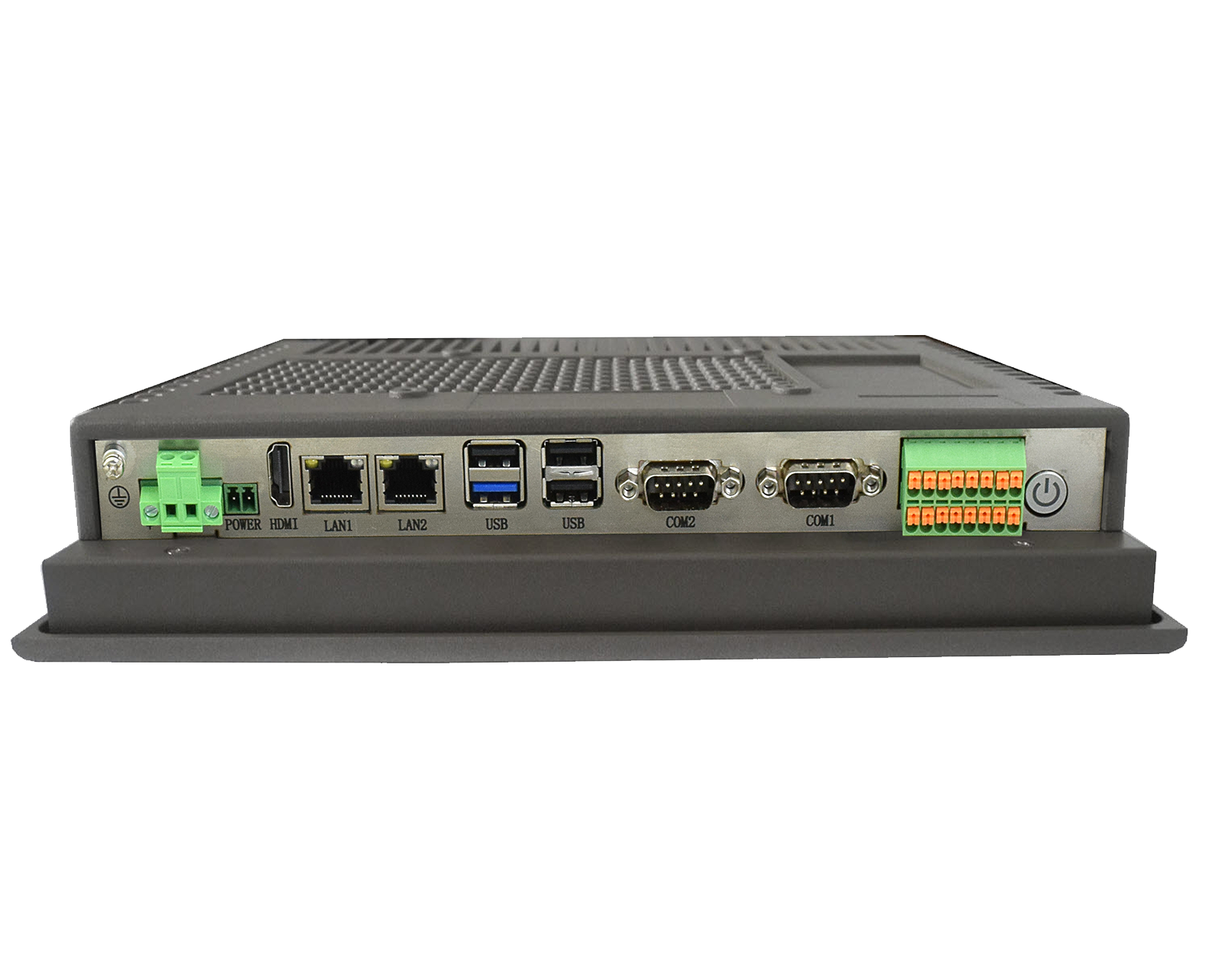

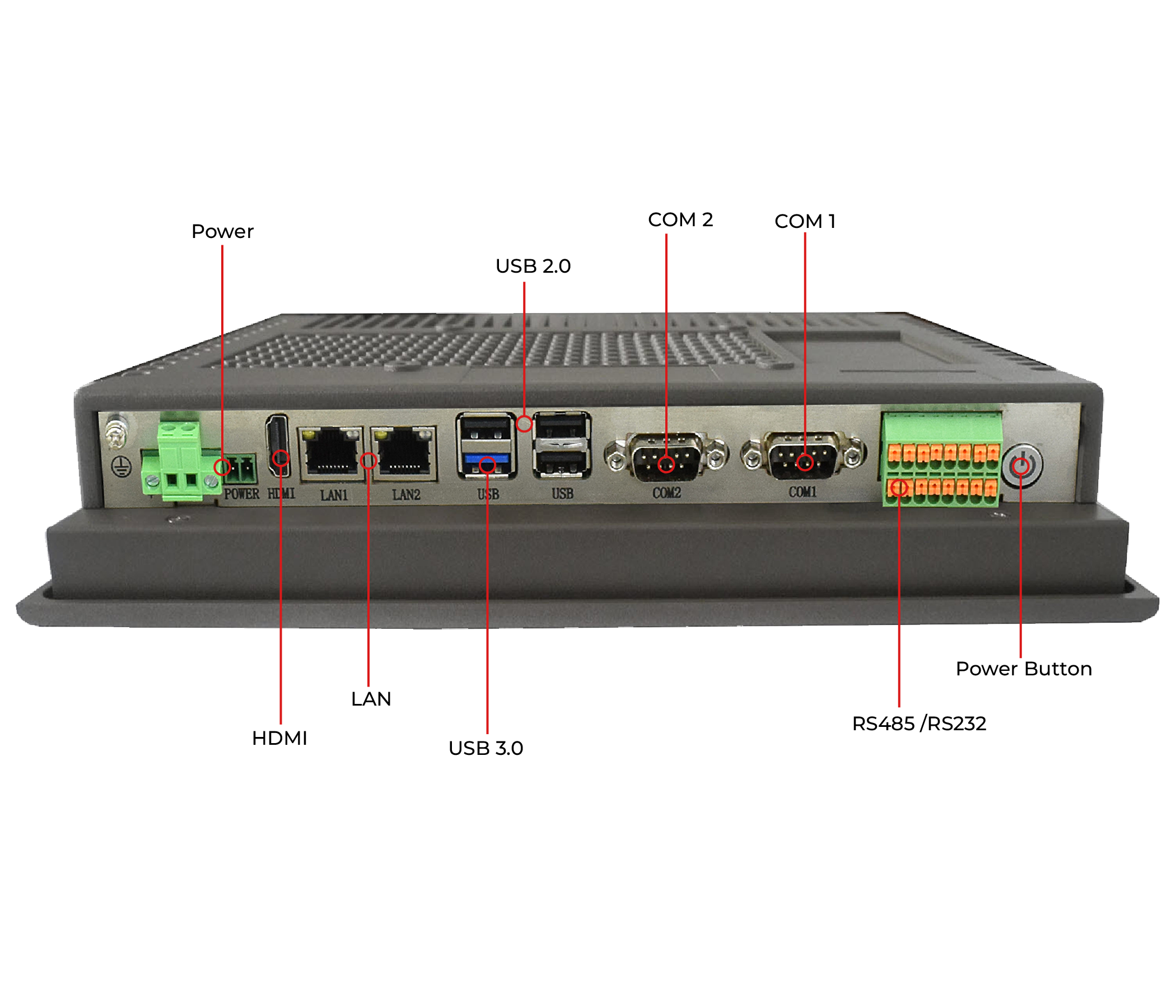

PPC-J1900-104-R features multiple expansion connectors on the backside including:

  • 3 x USB 2.0 connectors;
  • 1 x USB 3.0 connector;
  • 2 x LAN connector and
  • 6 x COM connectors (4 x RS232 and 2 x RS485).

GPIO and VGA connectors are not supported.
The default RAM is 4GB, expandable up to 8GB using DDR3L 1333 SO-DIMM.

WiFi/BT and 4G/LTE modules are optional and can be added during the ordering process. The device has one mini PCIe slot which can be used for either a WiFi or  a 4G module. If both are required, a 4G module will be installed in the mini PCIe slot and a WiFi module will be provided via USB.

Weight 4900 g
Dimensions 272 × 221 × 53 mm
Net weight

2300 g

Form-factor

Panel

CPU

INTEL: Celeron J1900

GPU

Intel HD Integrated Graphics, 512MB shared memory

RAM

4GB DDR3

Storage

Default mSATA 128GB SSD, supports 256/512GB

Display size

10.4"

Display resolution

1024*768

Brightness

400 NIT

Touch Screen

Resistive

WiFi/BT

Optional

4G

Optional

Ethernet

2 x RJ45, 1Gbps

USB

1x USB 3.0 HOST, 3x USB 2.0 HOST

RS232

4x RS232

RS485

2x RS485

GPIO

Not supported

HDMI

1x HDMI

VGA

Not supported

Power Input

12V DC

Power Consumption

17.4W

Working Temperature

0°C to +60°C, (No condensation)

Storage Temperature

-20°C to 75°C, (No condensation)

Operating System

Ubuntu, Windows 7, Windows 8, Windows 10

Mounting Method

VESA, PANEL

Performances and reliability

The PPC-J1900-104-R Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

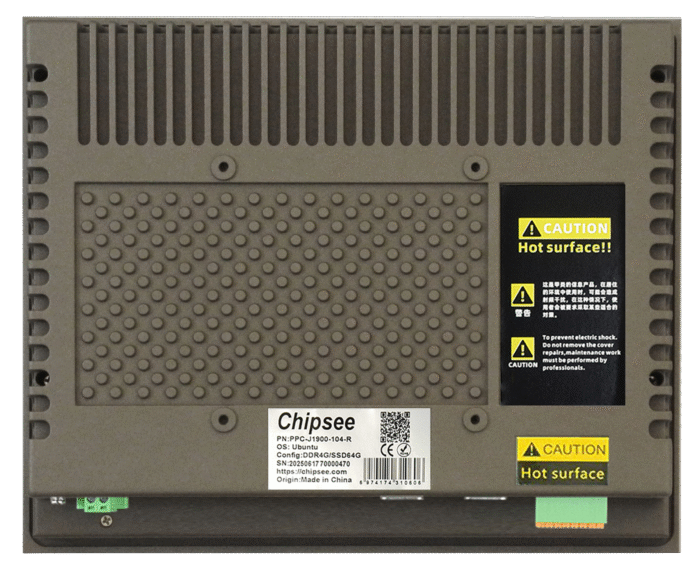

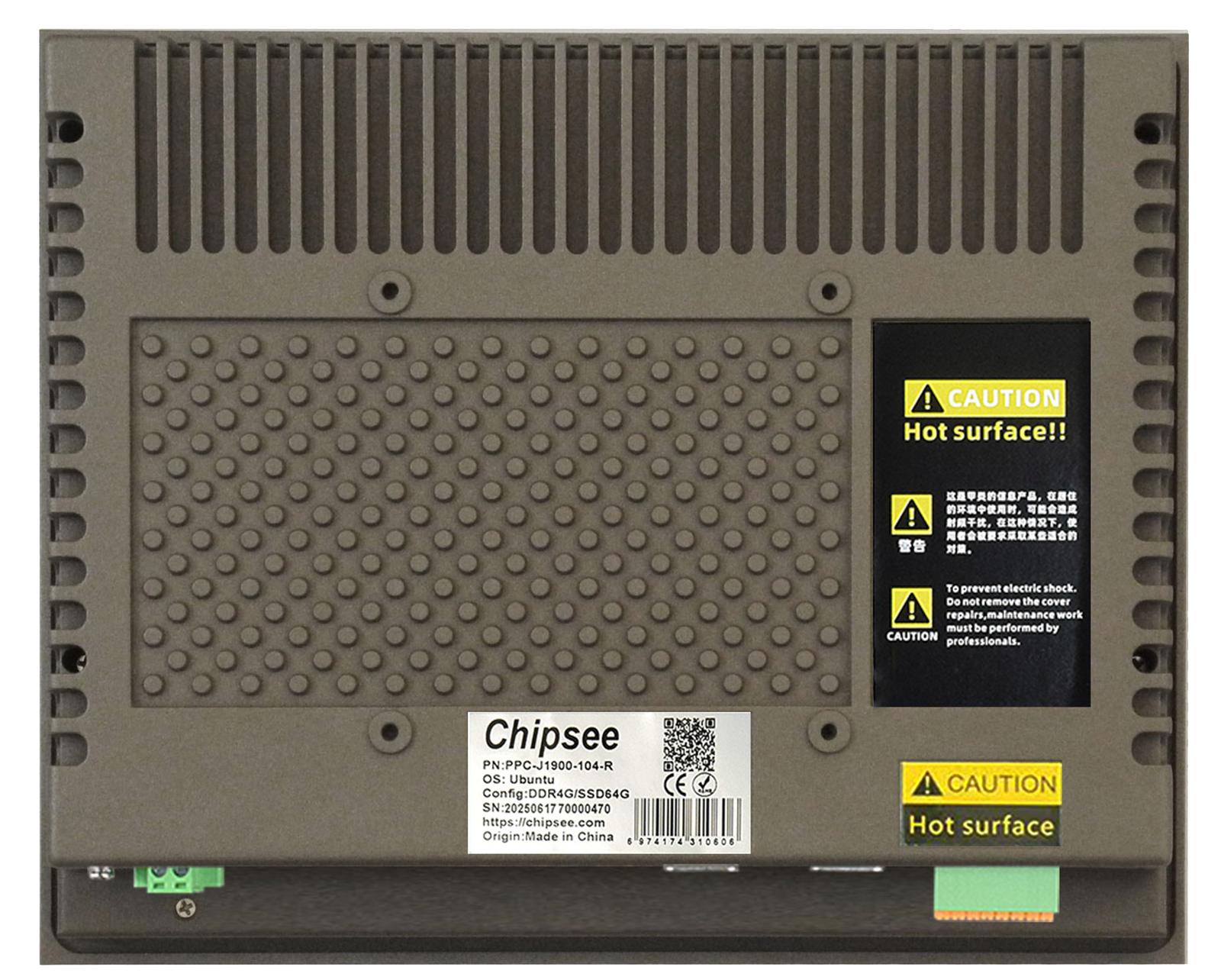

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fan-less design reduces noise, as well as the maintenance costs and efforts, increasing reliability at the same time.

Multiple Operating Systems Support

The unit comes with Ubuntu pre-installed, catering to users who prefer an open-source environment. However, for those requiring a Windows operating system, there is an option to select Windows 7, Windows 8 or Windows 10 at the time of purchase. Choosing Windows 7 and Windows 8 will incur an additional cost of $40 while Windows 10 adds $50 to the total price. Our dedicated team of software engineers has expertly crafted all necessary drivers to ensure seamless hardware compatibility across widely-used development tools.

Tailored OS Solutions
Our team is ready to assist with custom pre-installation services for projects with specific operating system requirements. Please contact us to discuss your unique needs, and we will work closely with you to provide a tailored solution that aligns perfectly with your project’s specifications.

Documentation and Downloads

Hardware Documentation

Order Now

PPC-J1900-104-R

SKU: PPC-J1900-104-R

Price: Price range: $597.00 through $647.00
