Hardware description

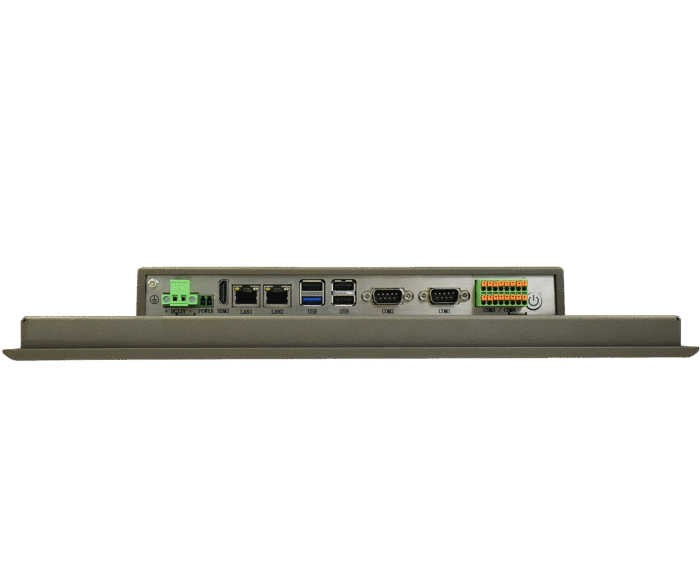

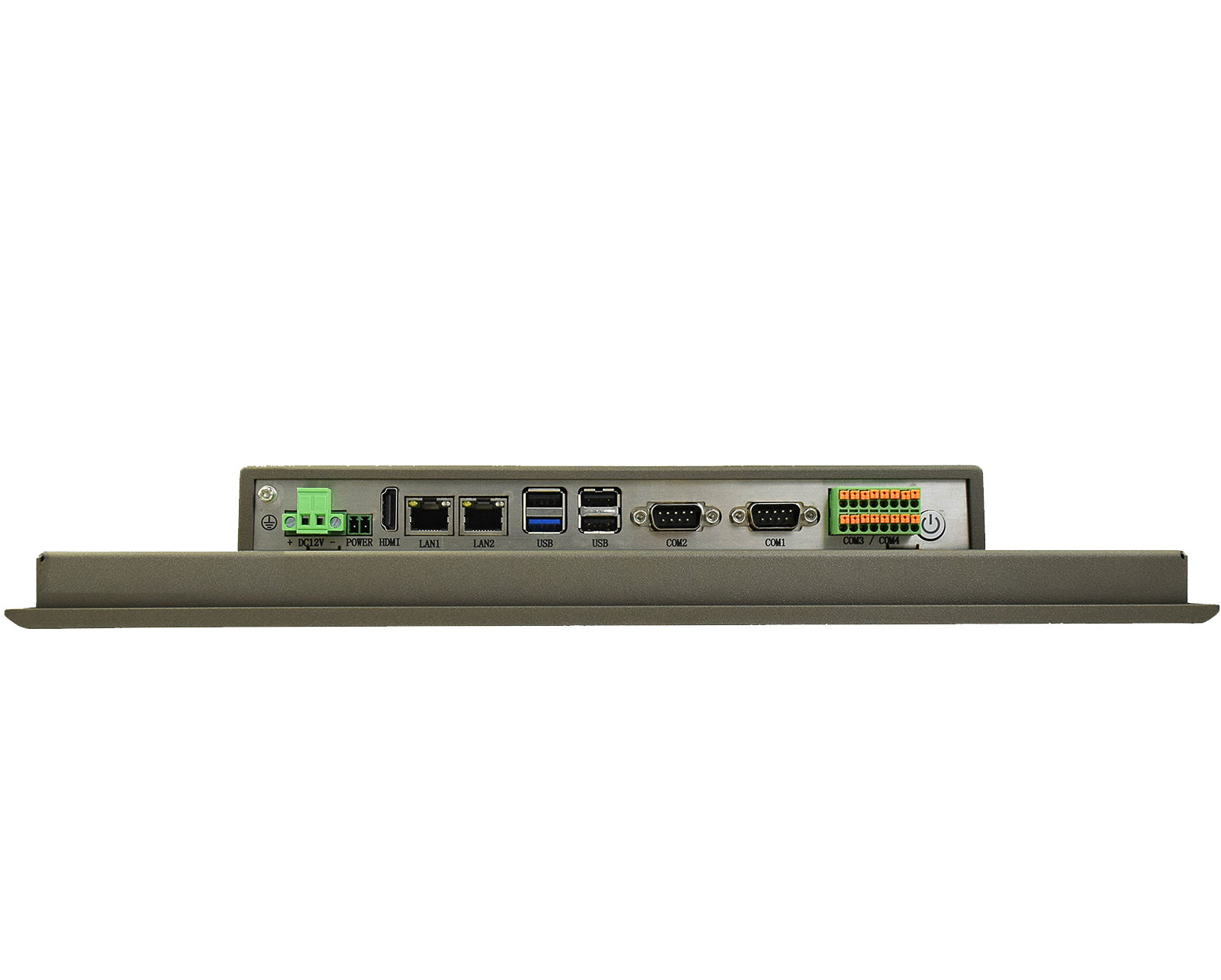

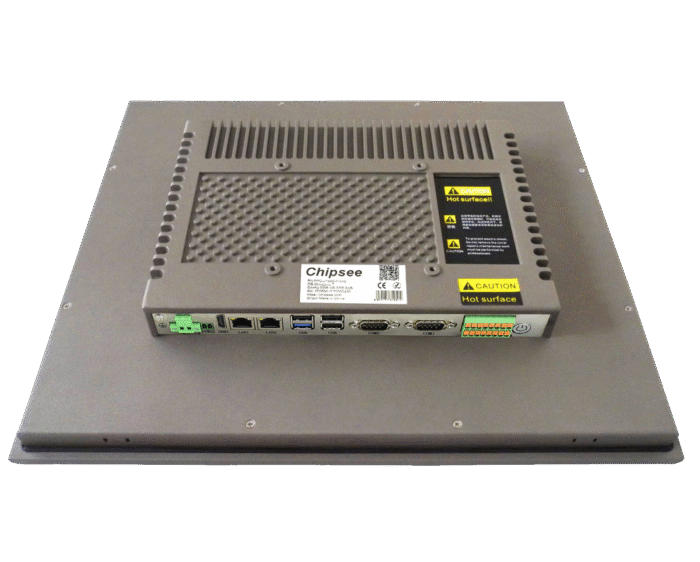

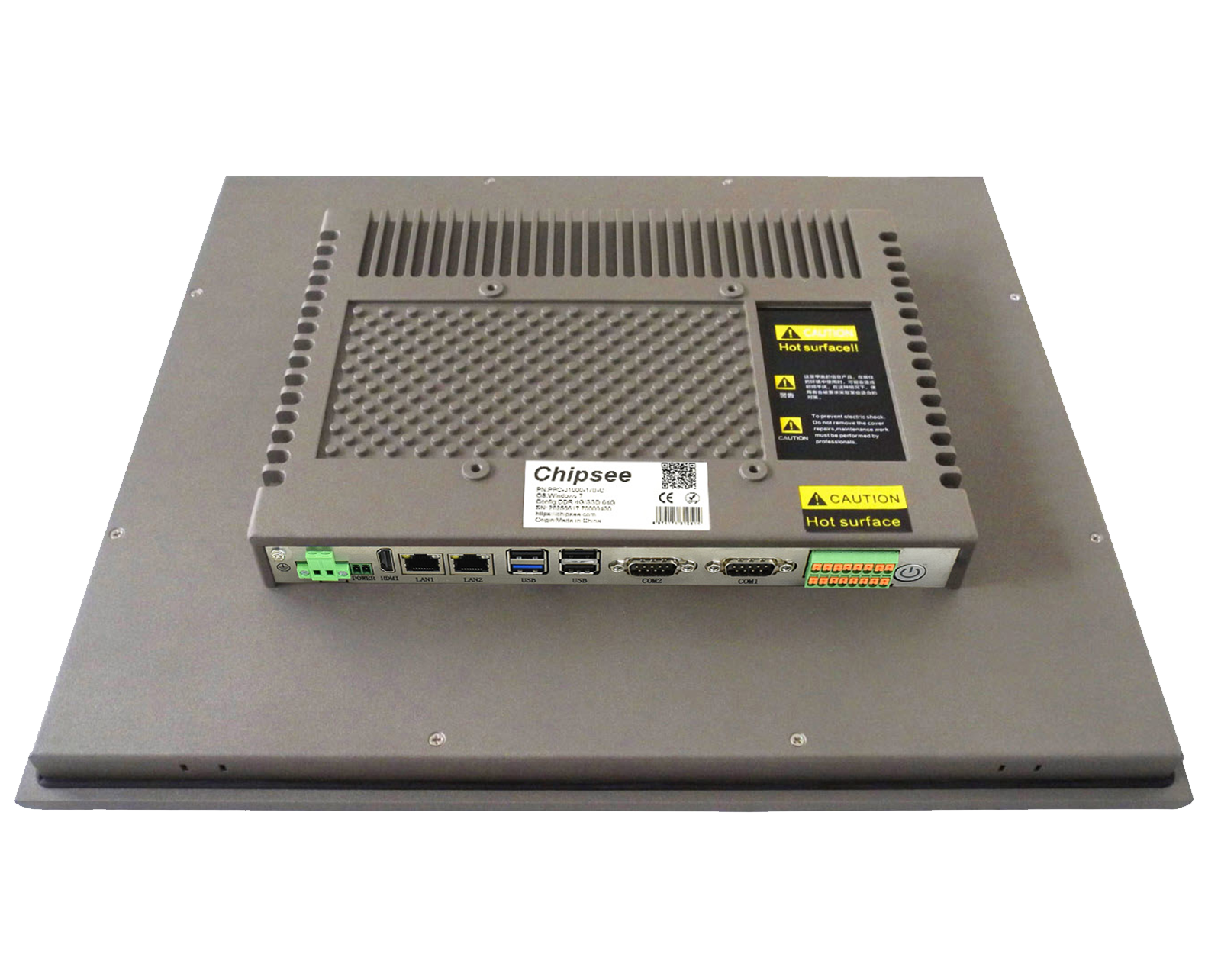

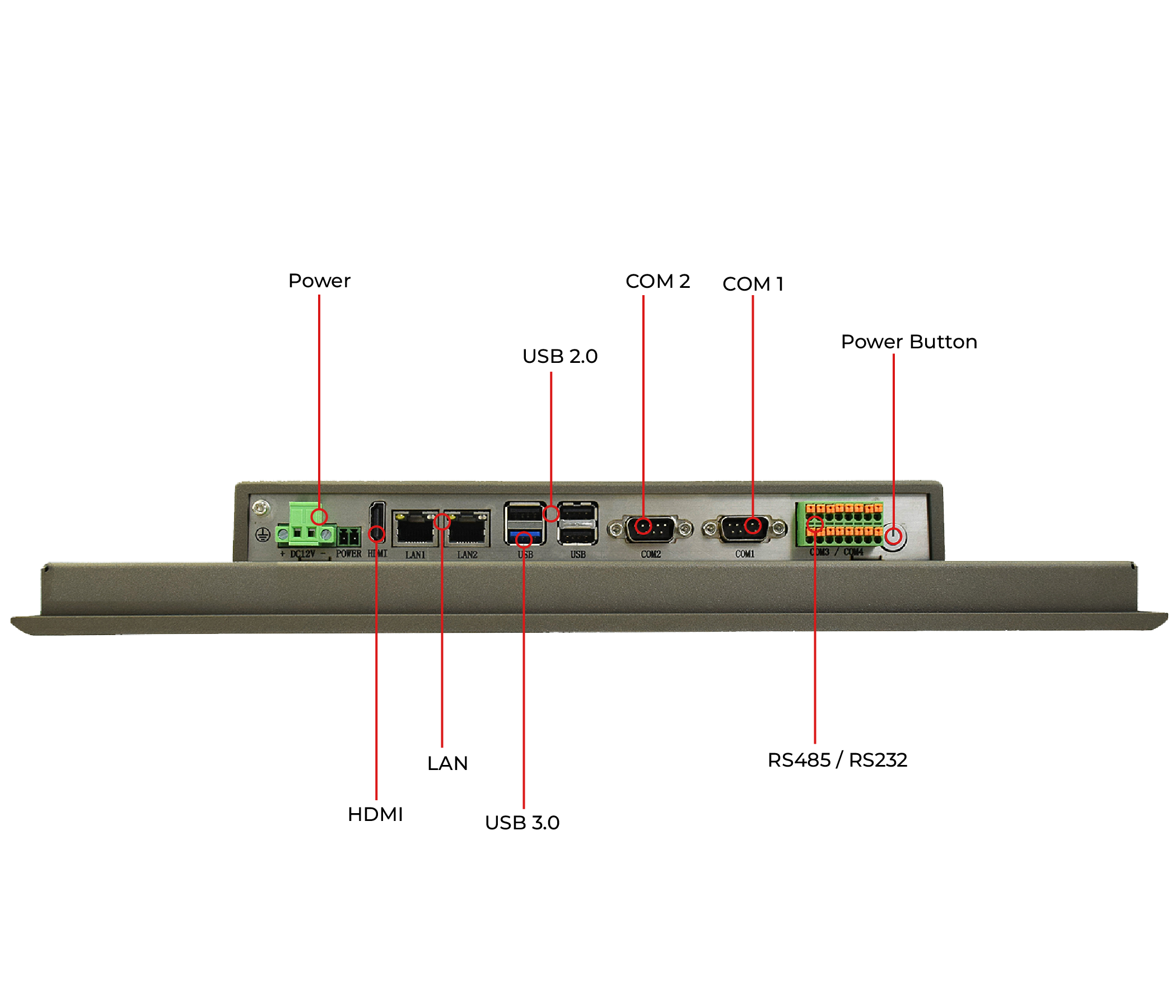

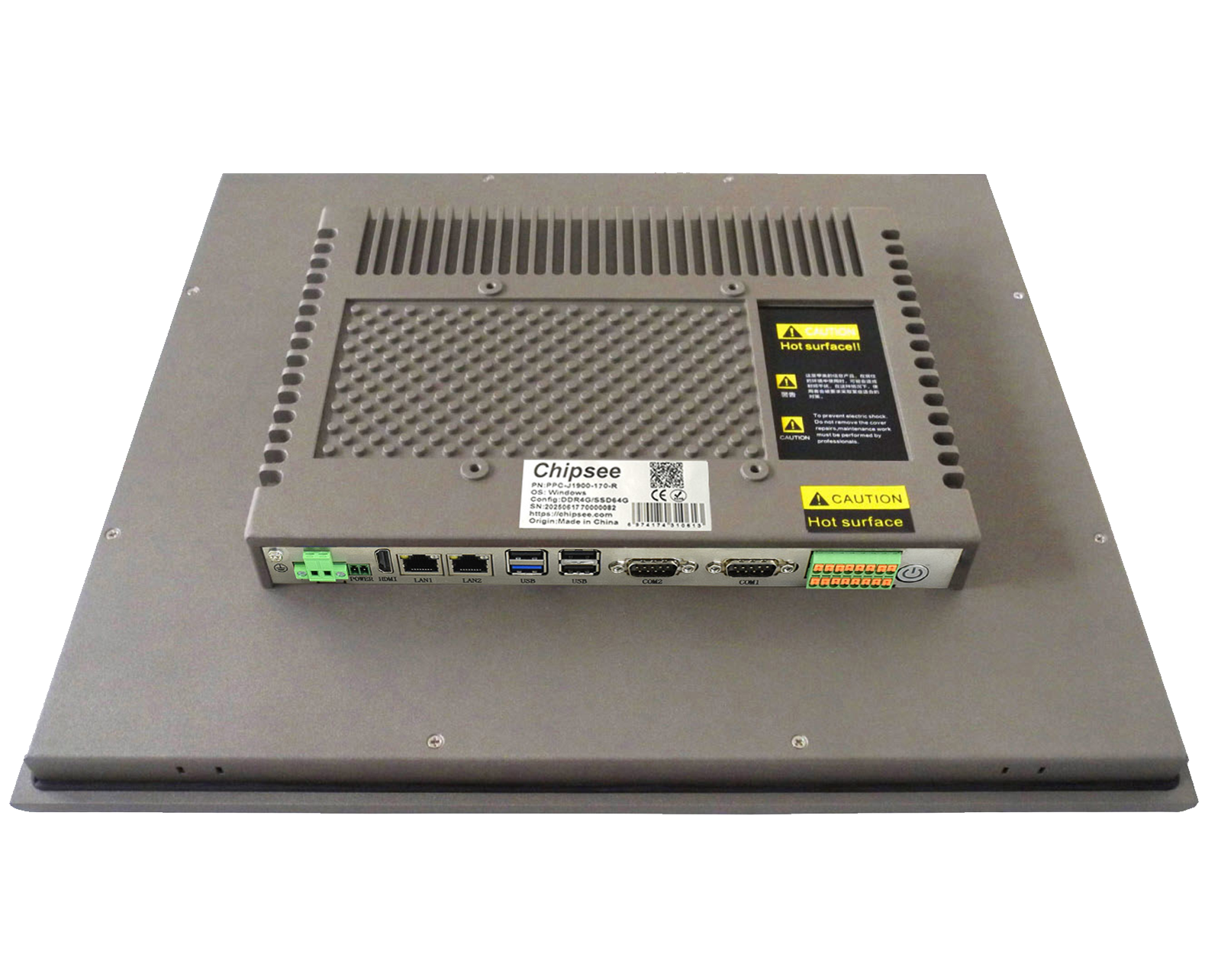

PPC-J1900-170-R features multiple expansion connectors on the backside including:
- 3 x USB 2.0 connectors;
- 1 x USB 3.0 connector;
- 2 x LAN connector and
- 6 x COM connectors (4 x RS232 and 2 x RS485).
GPIO and VGA connectors are not supported.
The default RAM is 4GB, expandable up to 8GB using DDR3L 1333 SO-DIMM.
WiFi/BT and 4G/LTE modules are optional and can be added during the ordering process. The device has one mini PCIe slot which can be used for either a WiFi or a 4G module. If both are required, a 4G module will be installed in the mini PCIe slot and a WiFi module will be provided via USB.
| Weight | 9100 g |
|---|---|
| Dimensions | 409 × 344 × 55 mm |
| Net weight | 4800 g |
| Form-factor | Panel |
| CPU | INTEL: Celeron J1900 |
| GPU | Intel HD Integrated Graphics, 512MB shared memory |
| RAM | 4GB DDR3 |
| Storage | Default mSATA 128GB SSD, supports 256/512GB |
| Display size | 17.0″ |
| Display resolution | 1280*1024 |
| Brightness | 400 NIT |
| Touch Screen | Resistive |
| WiFi/BT | Optional |
| 4G | Optional, the module can be purchased from other manufacturers or retailers |
| Ethernet | 2 x RJ45, 1Gbps |
| mini-PCIe | 1 x mini PCIe |
| USB | 1x USB 3.0 HOST, 3x USB 2.0 HOST |
| RS232 | 4 x RS232 |
| RS485 | 2x RS485 |
| HDMI | 1x HDMI |
| GPIO | Not supported |
| VGA | Not supported |
| Power Consumption | 26W |
| Power Input | 12V DC |
| Working Temperature | 0°C to +60°C, (No condensation) |
| Storage Temperature | -20°C to 75°C, (No condensation) |
| Operating System | Ubuntu, Windows 7, Windows 8, Windows 10 |
| Mounting Method | VESA, PANEL |
Performances and reliability
The PPC-J1900-170-R Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

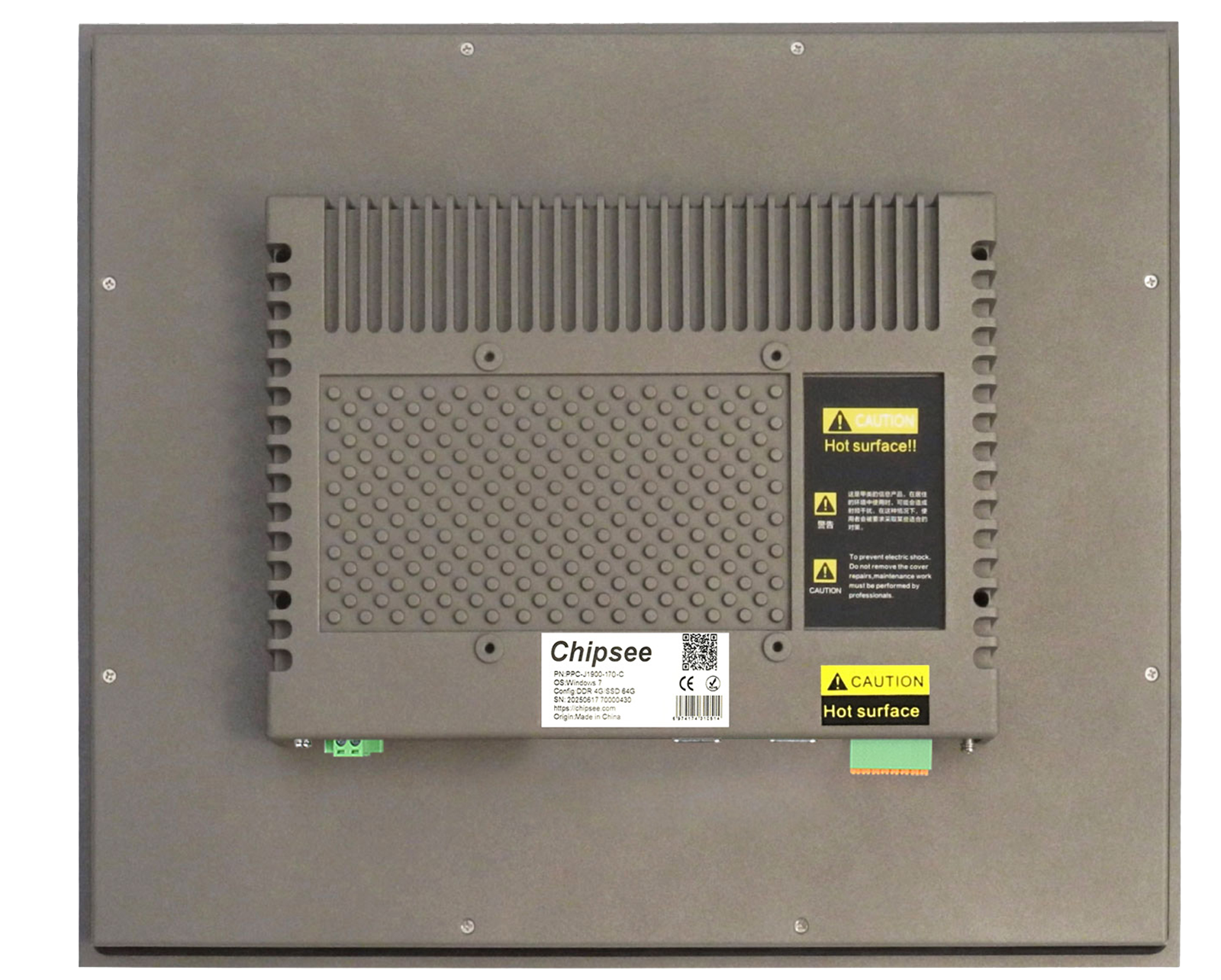

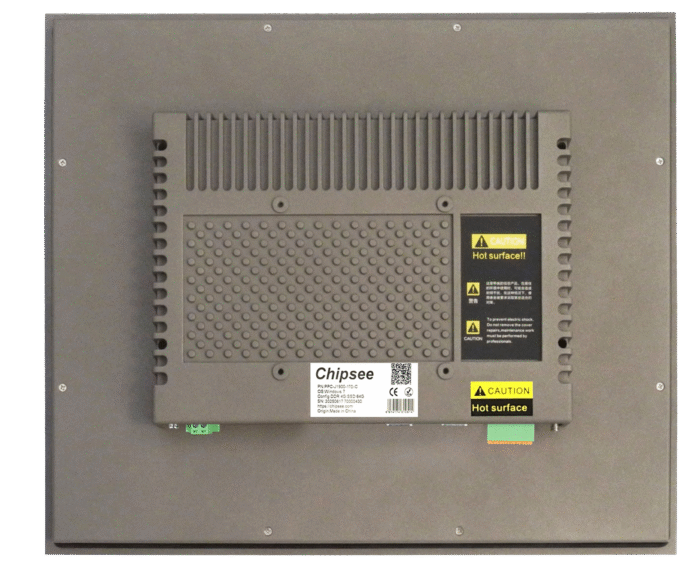

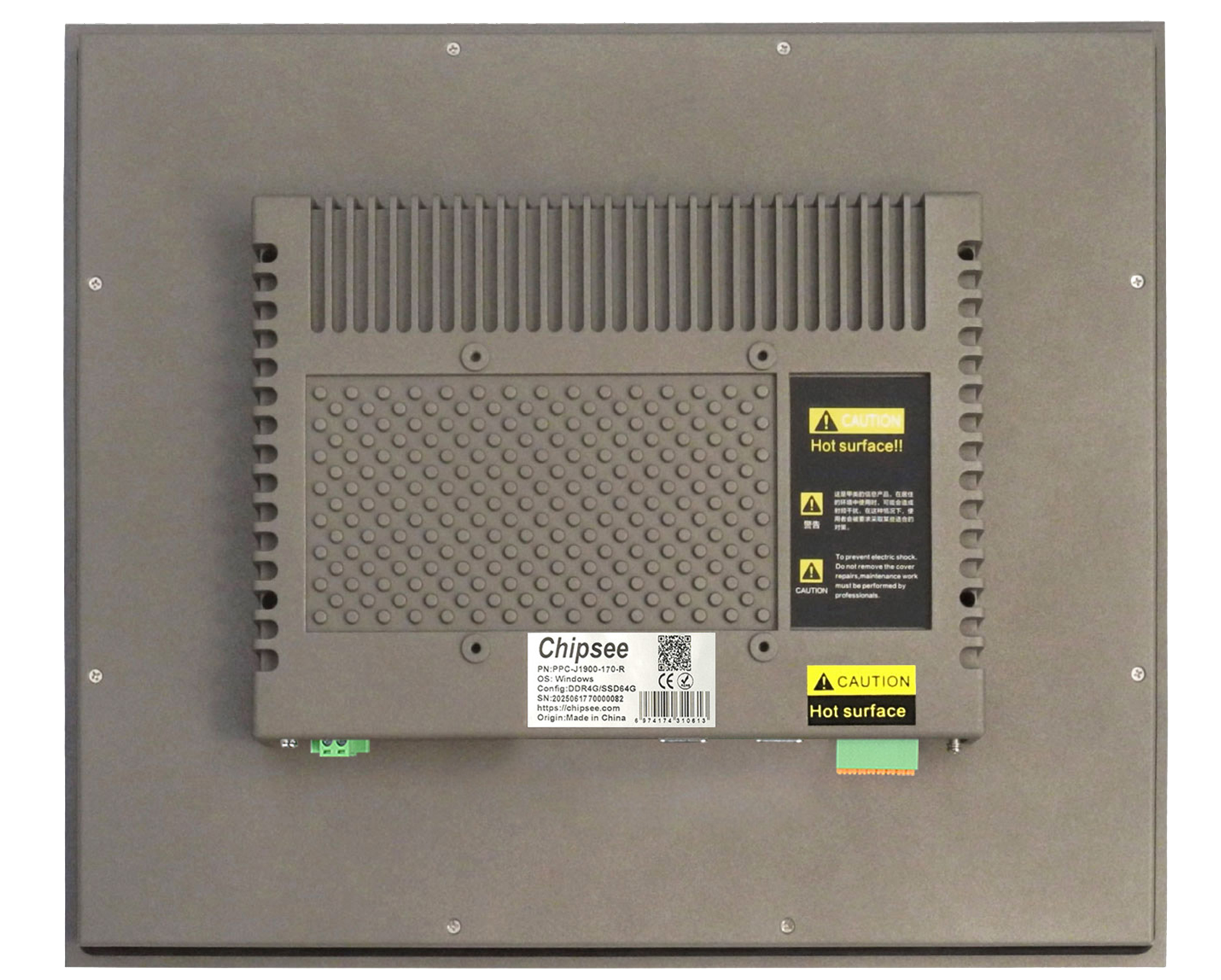

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fan-less design reduces noise, as well as the maintenance costs and efforts, increasing reliability at the same time.

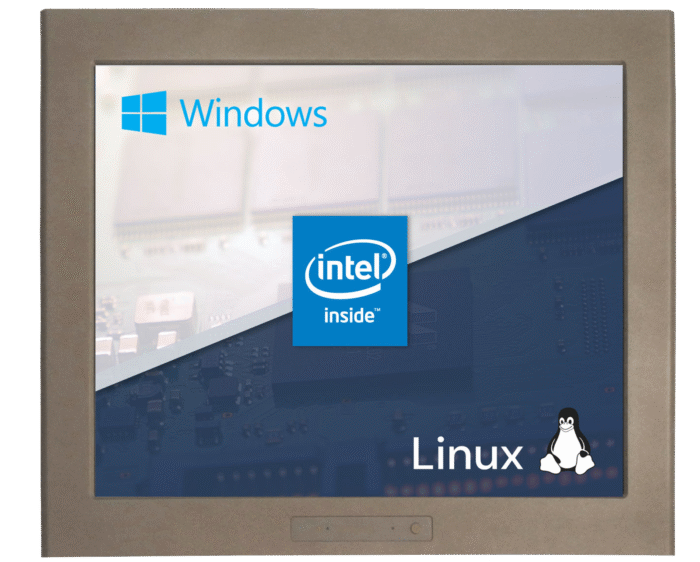

Multiple Operating Systems Support
The unit comes with Ubuntu pre-installed, catering to users who prefer an open-source environment. However, for those requiring a Windows operating system, there is an option to select Windows 7, Windows 8 or Windows 10 at the time of purchase. Choosing Windows 7 and Windows 8 will incur an additional cost of $40 while Windows 10 adds $50 to the total price. Our dedicated team of software engineers has expertly crafted all necessary drivers to ensure seamless hardware compatibility across widely-used development tools.
Tailored OS Solutions
Our team is ready to assist with custom pre-installation services for projects with specific operating system requirements. Please contact us to discuss your unique needs, and we will work closely with you to provide a tailored solution that aligns perfectly with your project’s specifications.
