AIO-CM5-101

The AIO-CM5-101 is a compact all-in-one desktop computer based on the Raspberry Pi® Compute Module 5 (CM5). Designed for both industrial and personal use, it’s ideal for applications like HMI, smart home control, IIoT, and edge AI.

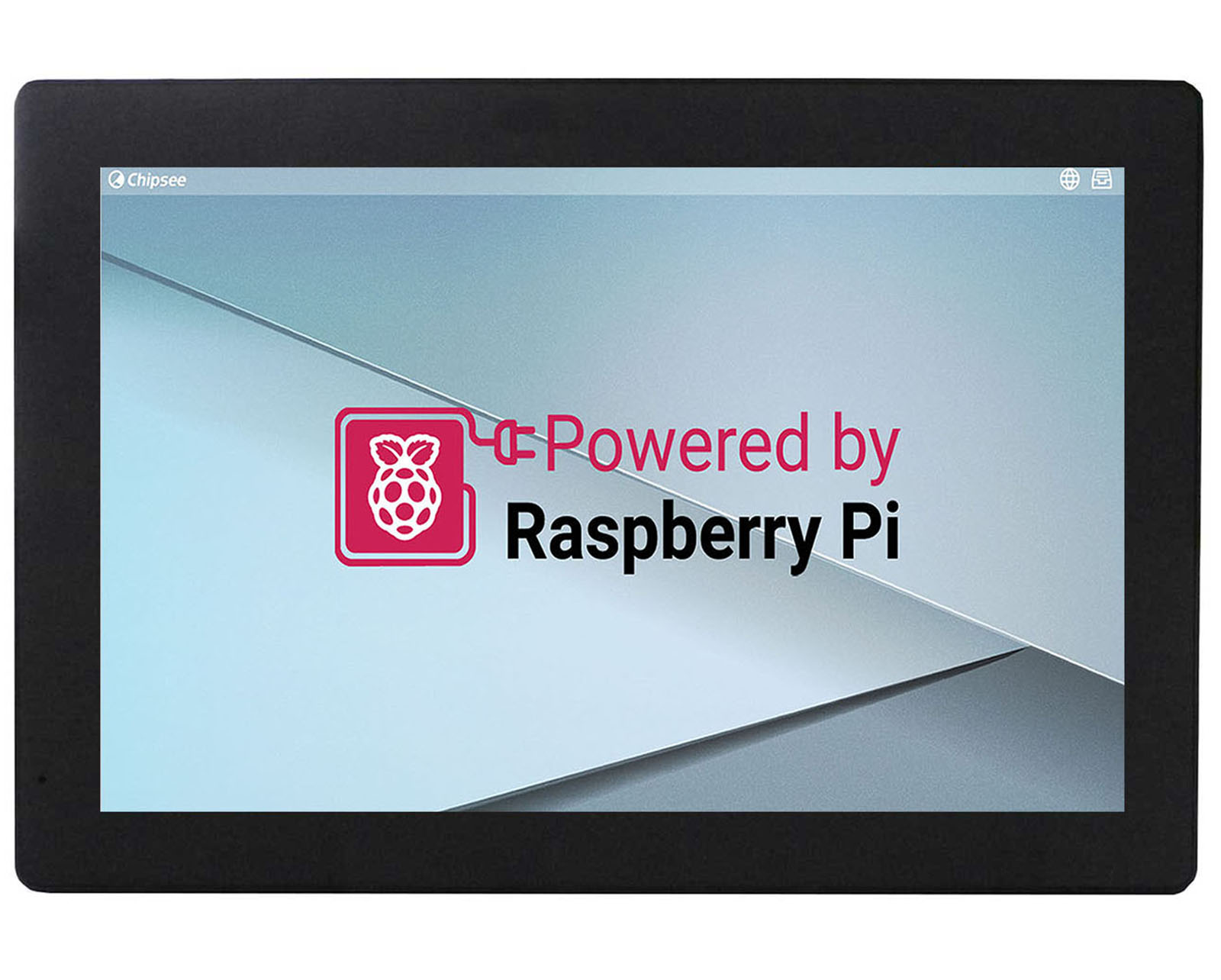

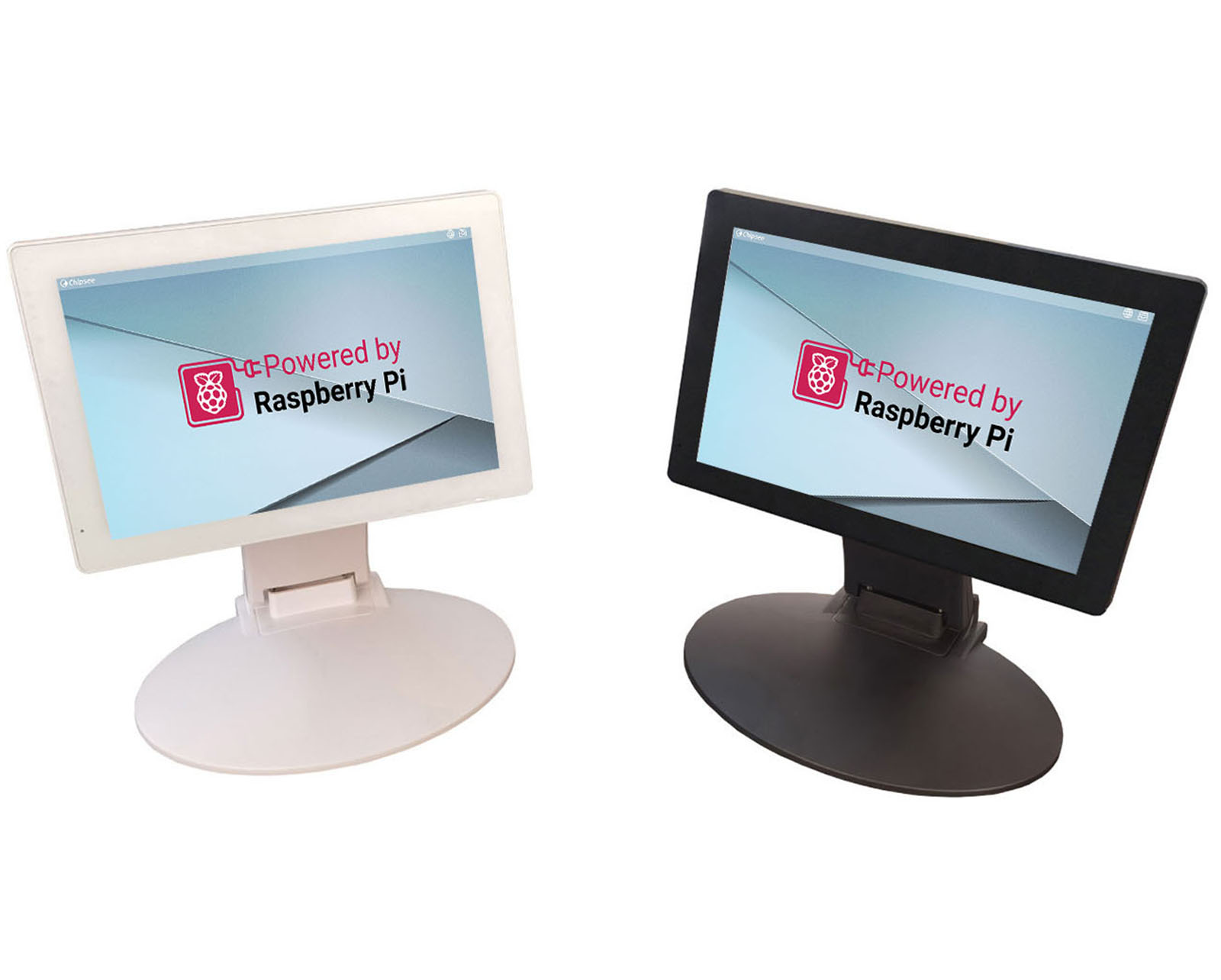

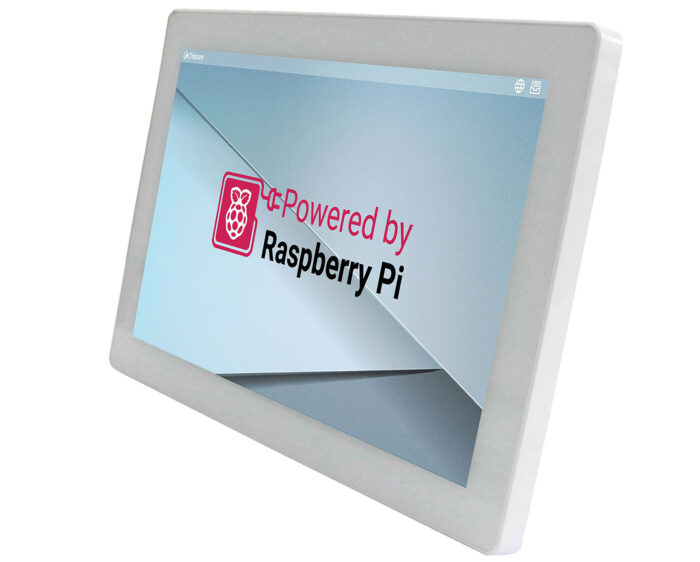

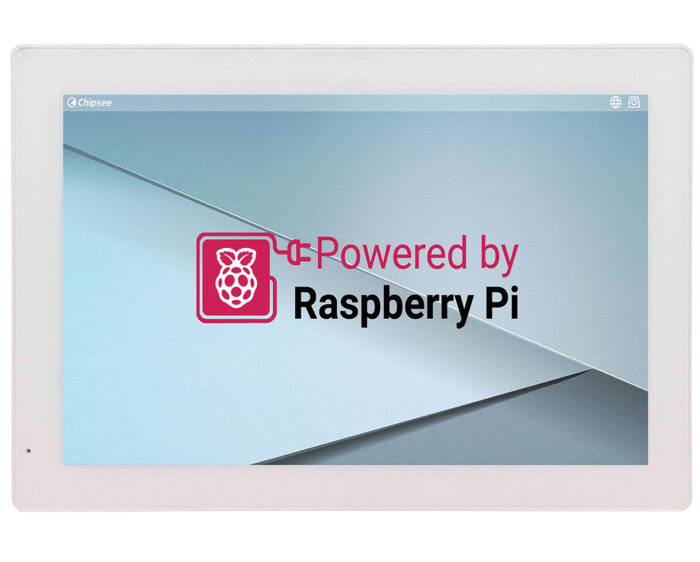

Housed in a sleek plastic case (available in Black or White), the AIO-CM5-101 integrates a vibrant 10.1” IPS display with a 10-point capacitive touchscreen protected by armored glass.

Pre-installed with Raspberry Pi OS, it’s plug-and-play ready and handles everything from 1080p to 4K video.

Raspberry Pi® Compute Module 5 (CM5) is available in multiple configurations. With the AIO-CM5-101, you can choose the CM5 module that best meets your requirements during the ordering process.

The AIO-CM5-101 is powered by the Raspberry Pi Compute Module 5 (CM5), which features a quad-core Cortex-A76 processor operating at 2.4 GHz. It supports up to 8GB of RAM and 64GB of eMMC storage, depending on the CM5 variant.

It includes a 10.1” IPS LCD with 1280×800 resolution, 400 cd/m² brightness, and a responsive 10-point capacitive touchscreen protected by 1.0mm armored glass. Audio output is available via a 3.5mm jack and a built-in 2W speaker, with an onboard buzzer for alerts.

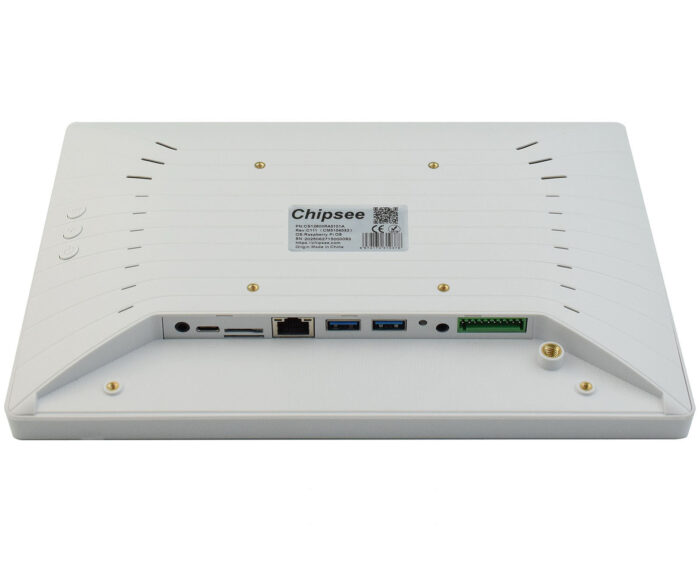

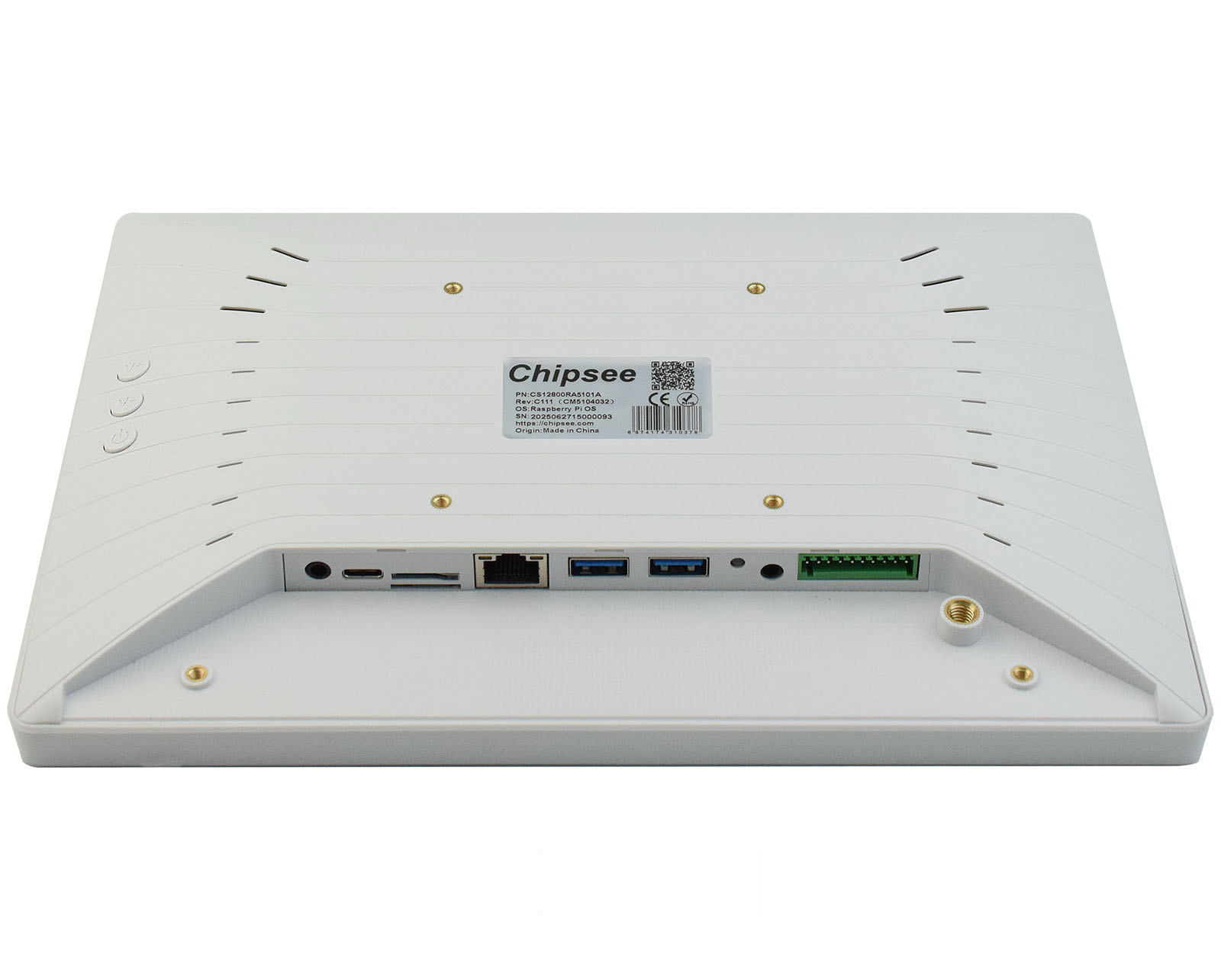

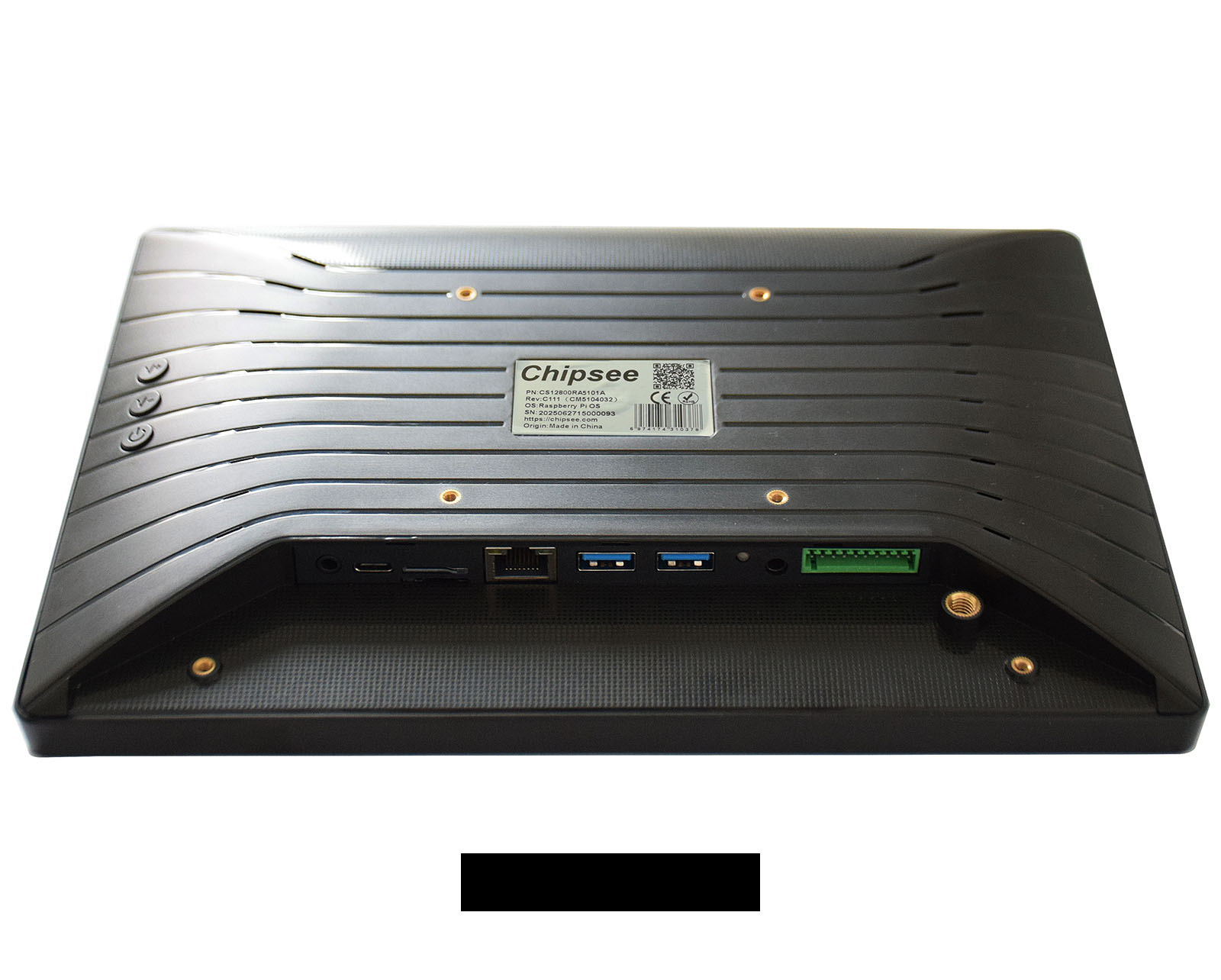

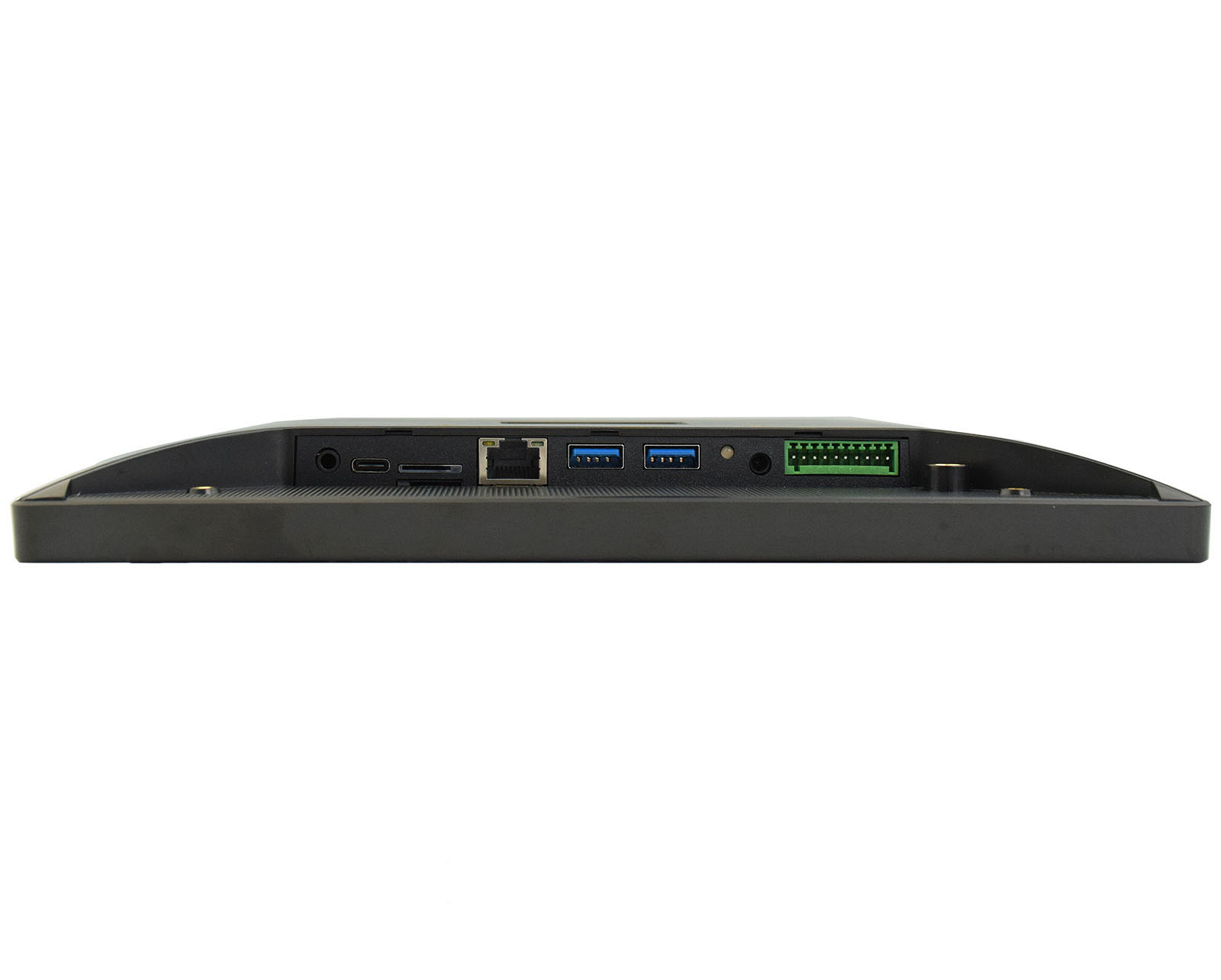

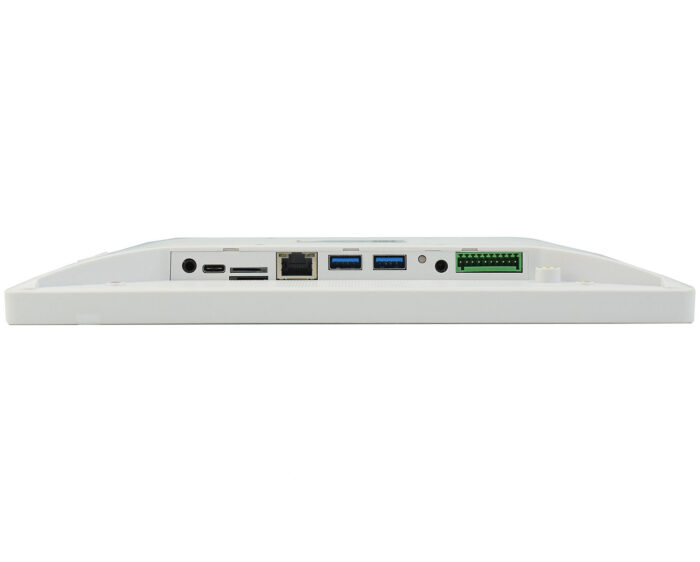

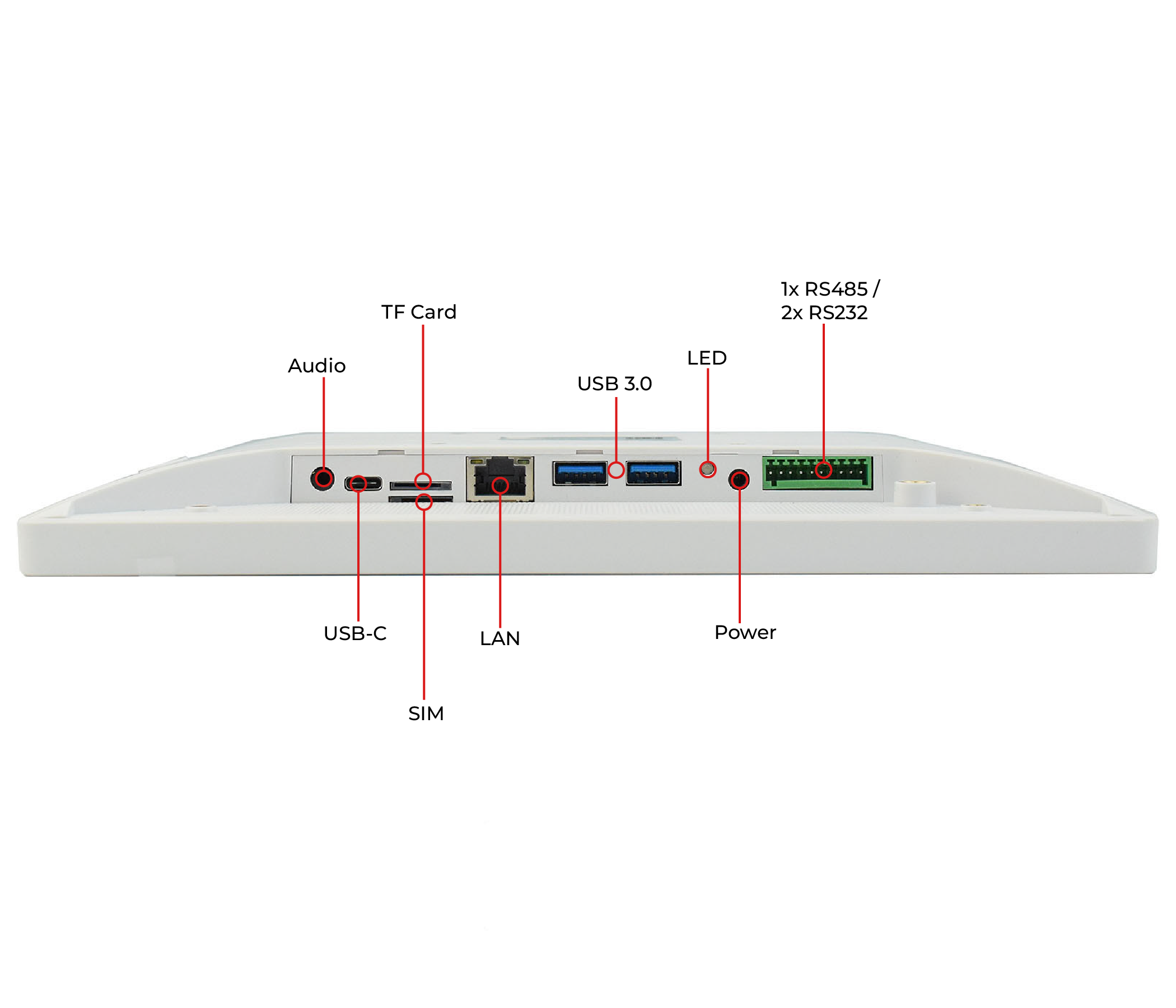

For connectivity, the AIO-CM5-101 offers 2 x USB 3.0, 1 x USB-C OTG, and Gigabit Ethernet. Serial communication is handled through configurable RS232, RS485, CAN, and Relay ports, with optional GPIO/Wiegand outputs. The device also includes a PCIe M.2 slot for NVMe SSDs or AI modules, and a TF card slot for CM5 Lite modules.

The AIO-CM5-101 all-in-one Raspberry Pi PC features an optional mini-PCIe connector, providing support for 3G/4G/LTE modules. If you choose to include the optional 4G/LTE module with your order, we will also provide a SIM card holder and a 3G/4G/LTE antenna to ensure full connectivity and functionality.

Note that the USB-C port shares its signal with the 4G module and should remain disconnected when cellular features are active.

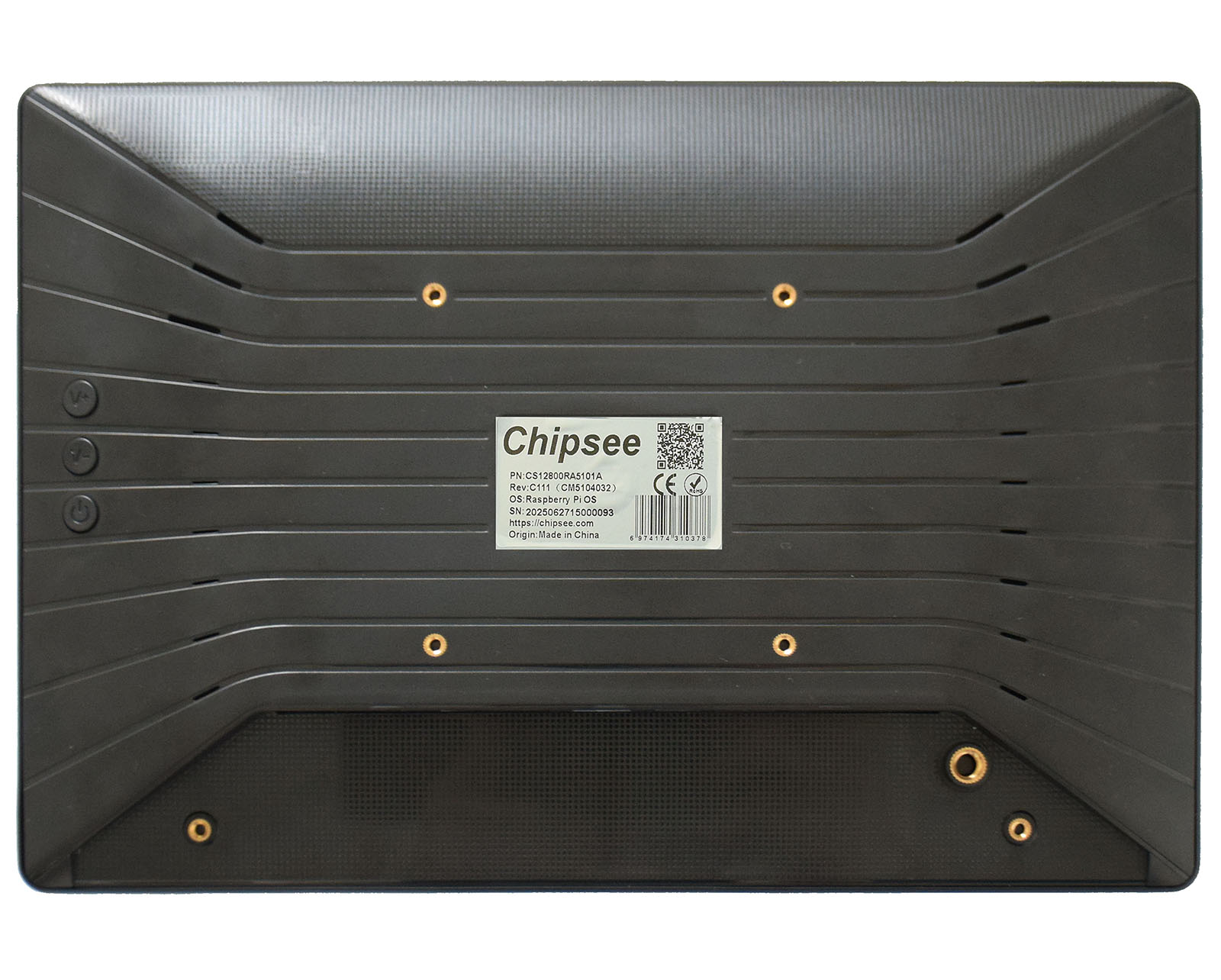

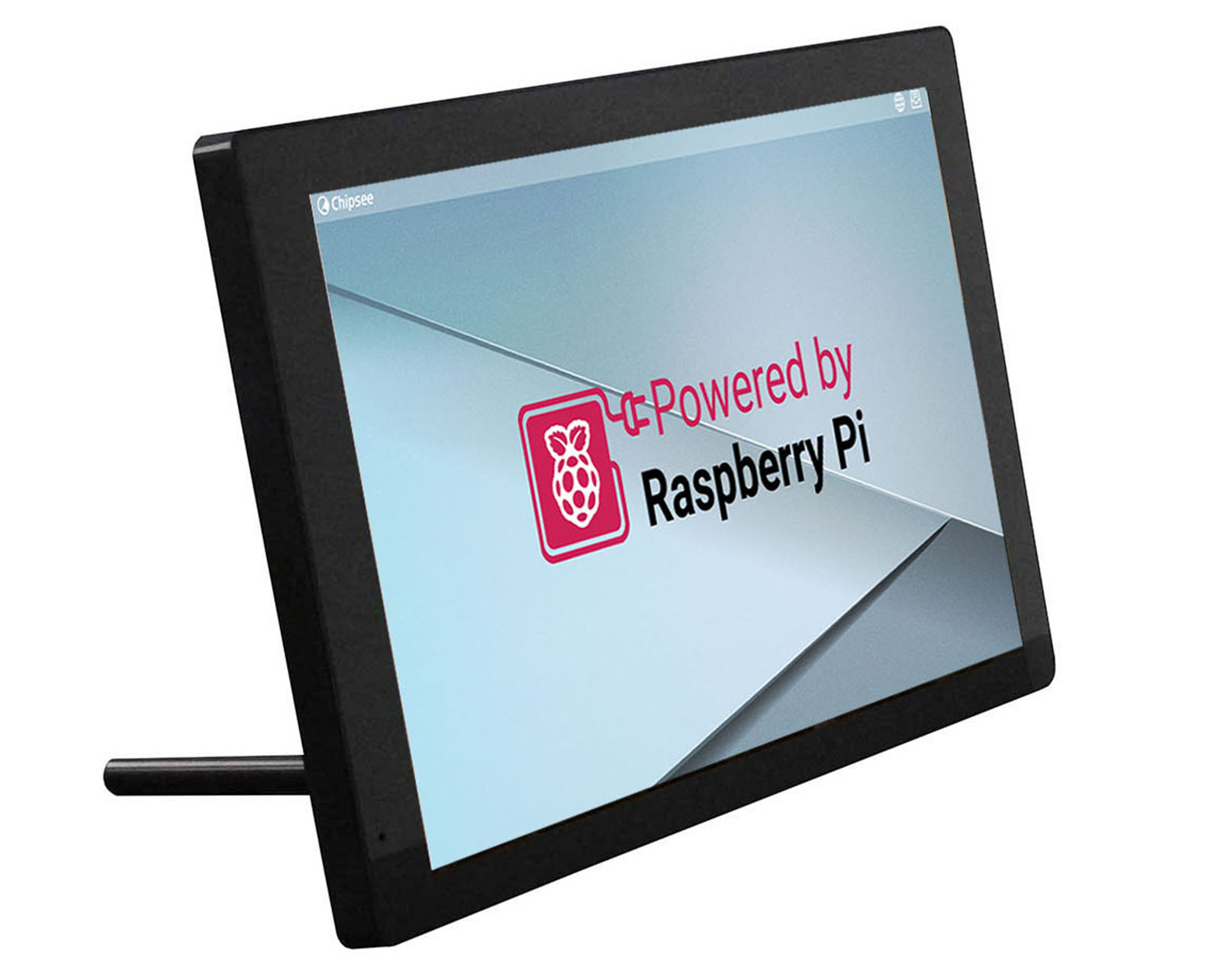

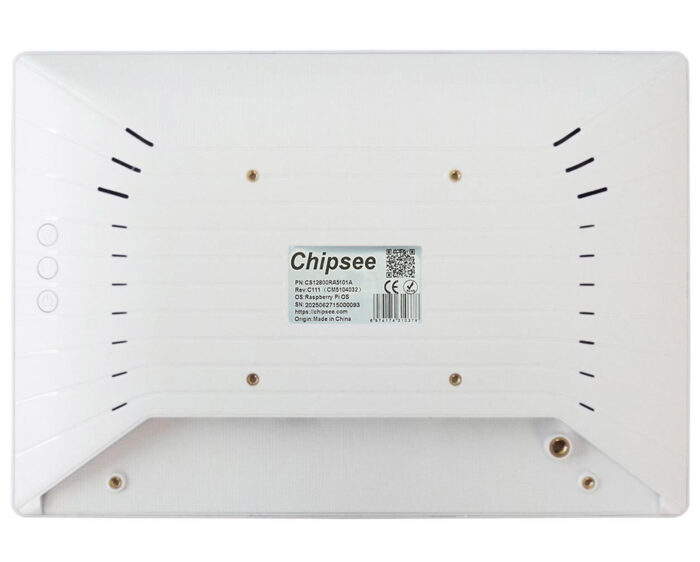

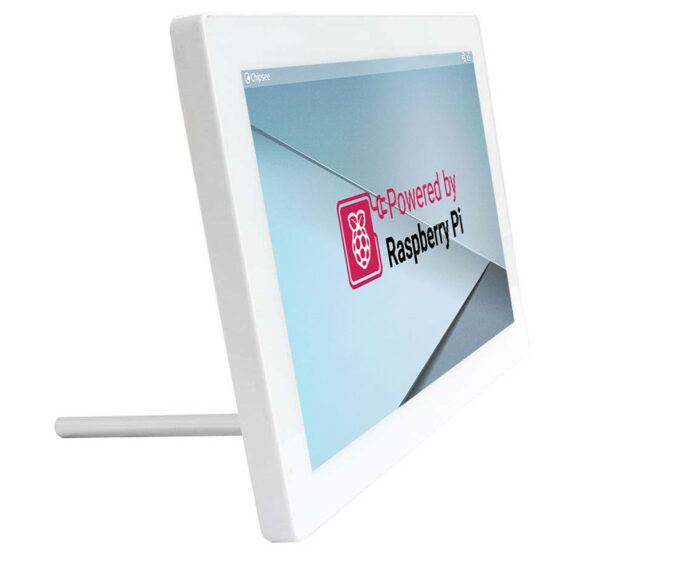

The device operates on 15–30V DC input, with a typical power draw of 7.5W. A built-in RTC provides power-off time tracking, with optional battery backup. The unit measures 260.54 x 178.54 x 26.9 mm, weighs 620g, and supports VESA or stand mounting. The plastic enclosure is available in black or white, and features power/volume buttons and a programmable status LED.

Weight 2700 g
Dimensions 260.54 × 178.54 × 26.9 mm
Net weight

620 g

Form-factor

All-In-One

CPU

ARM: Raspberry Pi CM5

CPU Frequency

Quad(4) Core Cortex-A76 at 2.4GHz

RAM

Based on CM5

eMMC

Based on CM5

Storage

Internal M.2 NVMe connector for SSD card (optional)

Display size

10.1"

Display resolution

1280*800

Brightness

400 NIT

Touch Screen

Capacitive

PCIe

M.2 2230/2242 M-key, PCIe Gen 2.0 x 1(5Gbps) (PCIe Gen 3.0 x1 is compatible but experimental)(Optional)

USB

1 x USB Type-C OTG, 2 x USB 3.0 type-A Host

CAN

0 x CAN by default; 1 x CAN FD BUS is optional. Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps.

GPIO

Optional

HDMI

Not supported

RS232

2 x RS232

RS485

1 x RS485 by default, up to 2 x RS485 (optional)

Ethernet

1 x Giga LAN

WiFi/BT

Depends on CM5

4G

Optional

Audio

3.5mm Audio Out Connector, Internal 2W Speaker

Buzzer

Onboard, driven by GPIO

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

Power Input

15-30V DC

Power Consumption

12W max, 7.5W typical

Working Temperature

-20°C ~ 70°C.

Operating System

Raspberry Pi OS

Relay

1 x relay with “Normally Connected” and “Normally Open” output

Micro SD card socket

1 x TF(micro SD) card slot, only for CM5 Lite module to boot from TF

HAT connector

N/A

Raspberry Pi OS

All products based on Raspberry Pi come with the latest version of Raspberry Pi OS pre-installed. We have also included all the necessary drivers, allowing you to easily access every hardware feature using any standard development tool. If your project requires an operating system not on our list, please feel free to contact us, and we will create a customised version tailored to your specific needs.

Raspberry Pi Compute Module 5

Compute Module 5 is a powerful and scalable system on module with a 64-bit Arm processor @ 2.4GHz, an I/O controller, video and PCIe interfaces, and a range of wireless, SDRAM and eMMC options.

Documentation and Downloads

Hardware Documentation

Software Documentation

Order Now

AIO-CM5-101

SKU: CS12800RA5101A

Price: Price range: $279.00 through $299.00
