Hardware description

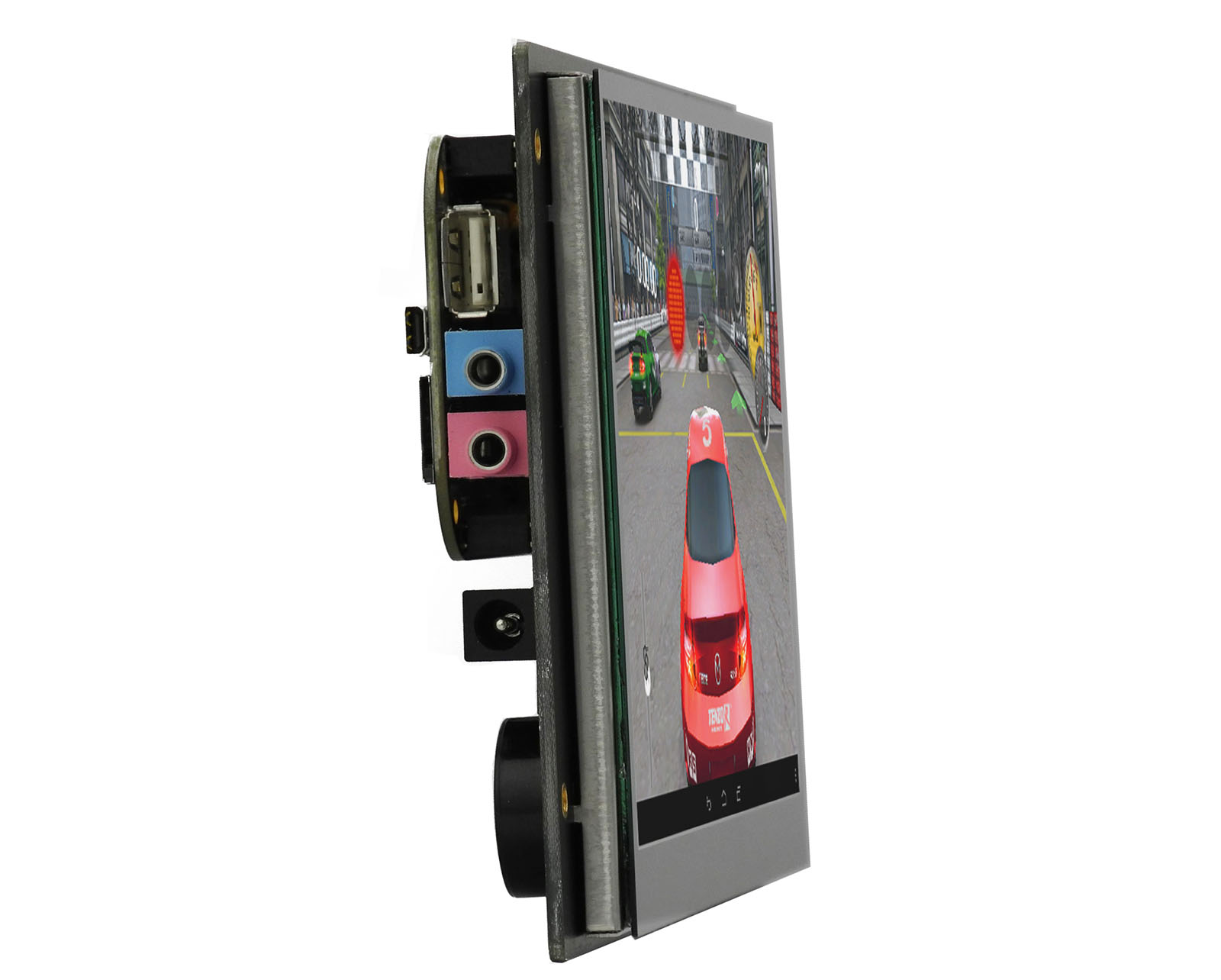

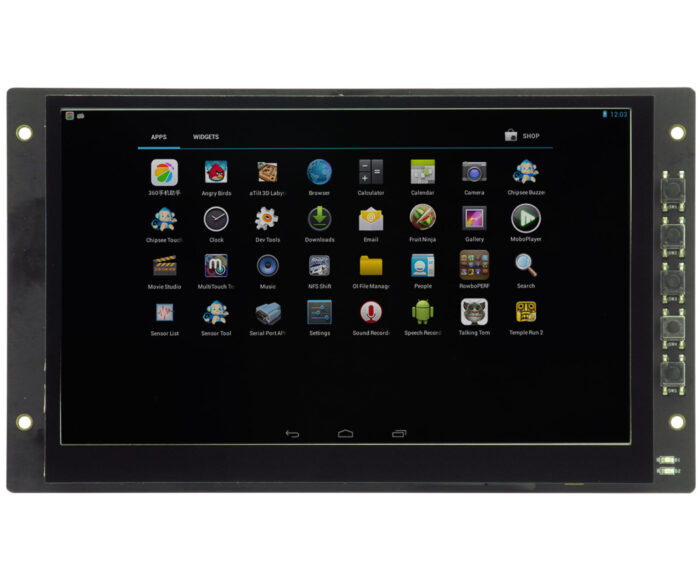

BBB-EXP7H is available in two touchscreen versions—capacitive and resistive—with a 1024×600 resolution panel that ensures crisp visuals and smooth touch interaction. It includes integrated audio with a 1W speaker, microphone input, and standard 3.5mm jacks for both input and output. The hardware also supports multiple communication protocols, including RS232, RS485, and CAN, making it suitable for a wide range of industrial devices. Additional features such as user-defined buttons and LEDs, a buzzer, a three-axis accelerometer, and RTC support (via optional battery) enhance the versatility of the board. The BBB-EXP7H is powered by a 5V DC input and consumes approximately 3W, making it energy-efficient for continuous operation.
| Weight | 400 g |
|---|---|
| Dimensions | 190 × 28 × 112 mm |
| Display size | 7.0″ |
| Display resolution | 1024*600 |
| Brightness | 400 NIT |
| Touch Screen | Capacitive + Armored Glass |
| RS232 | 2x – COM0 and COM1 |
| RS485 | 2x – COM2 and COM4 |
| CAN | 1x CAN |
| Audio | On board Speaker(1W),and 1 Audio out and 1 Mic In Connector(Can change to Line in by change resistor) |
| Key | 5 Use define keys,1 Reset Key,1 Power Key |
| Buzzer | 1x |
| LED | 2 User define LEDs |
| Sensor | Three-Axis Digital Accelerometer |
| Power Consumption | 5V, 3W |
| Preinstalled OS | Debian, Linux, Android, Angstrom v2012.12 |
| Dimensions (mm) | 190 x 112 x 28 mm |
| Weight (g) | 400 |
| CPU | ARM: BeagleBone Black |
| Form-factor | Embedded |
| OS | Linux, Android, Debian |
Integration with BeagleBone Black

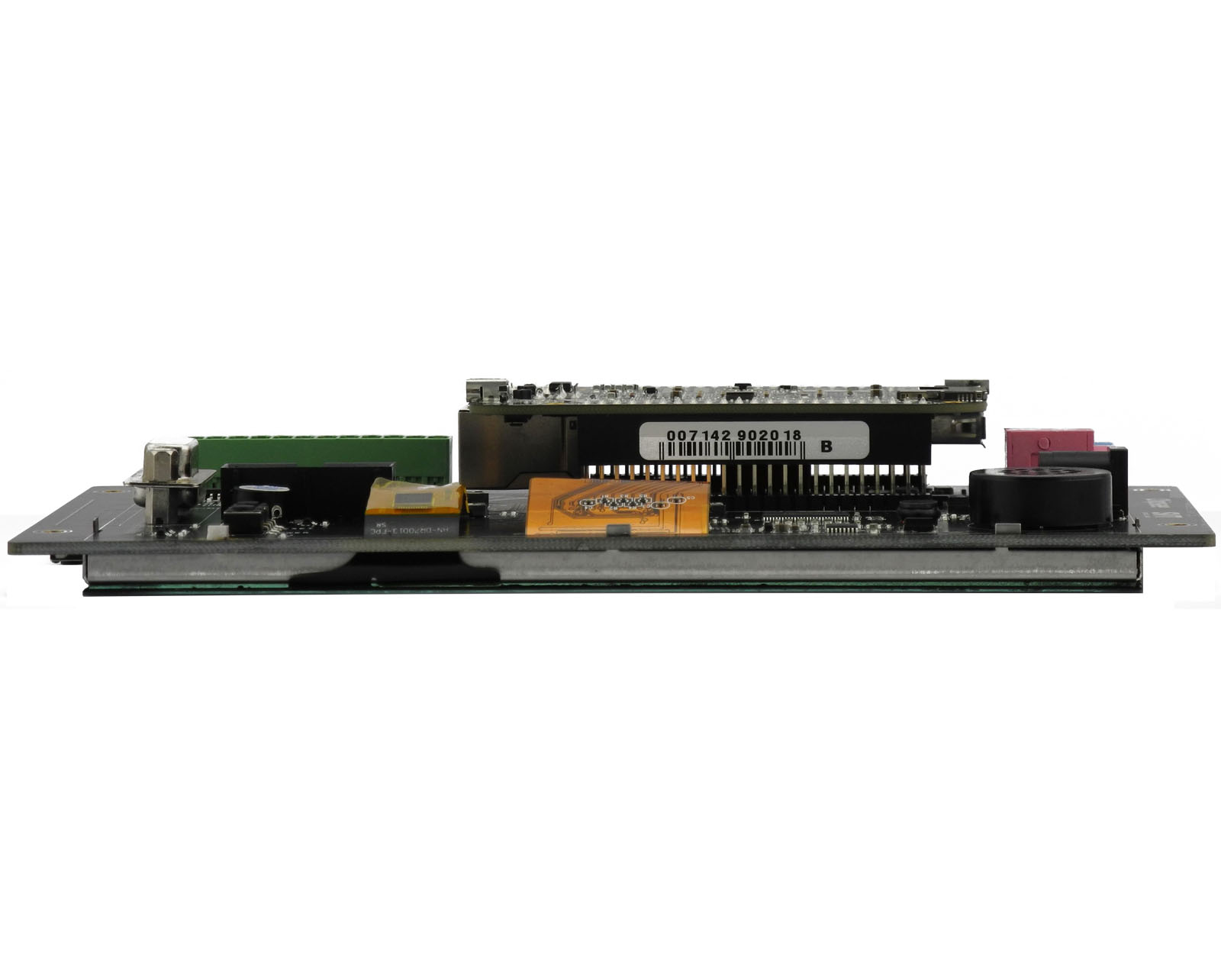

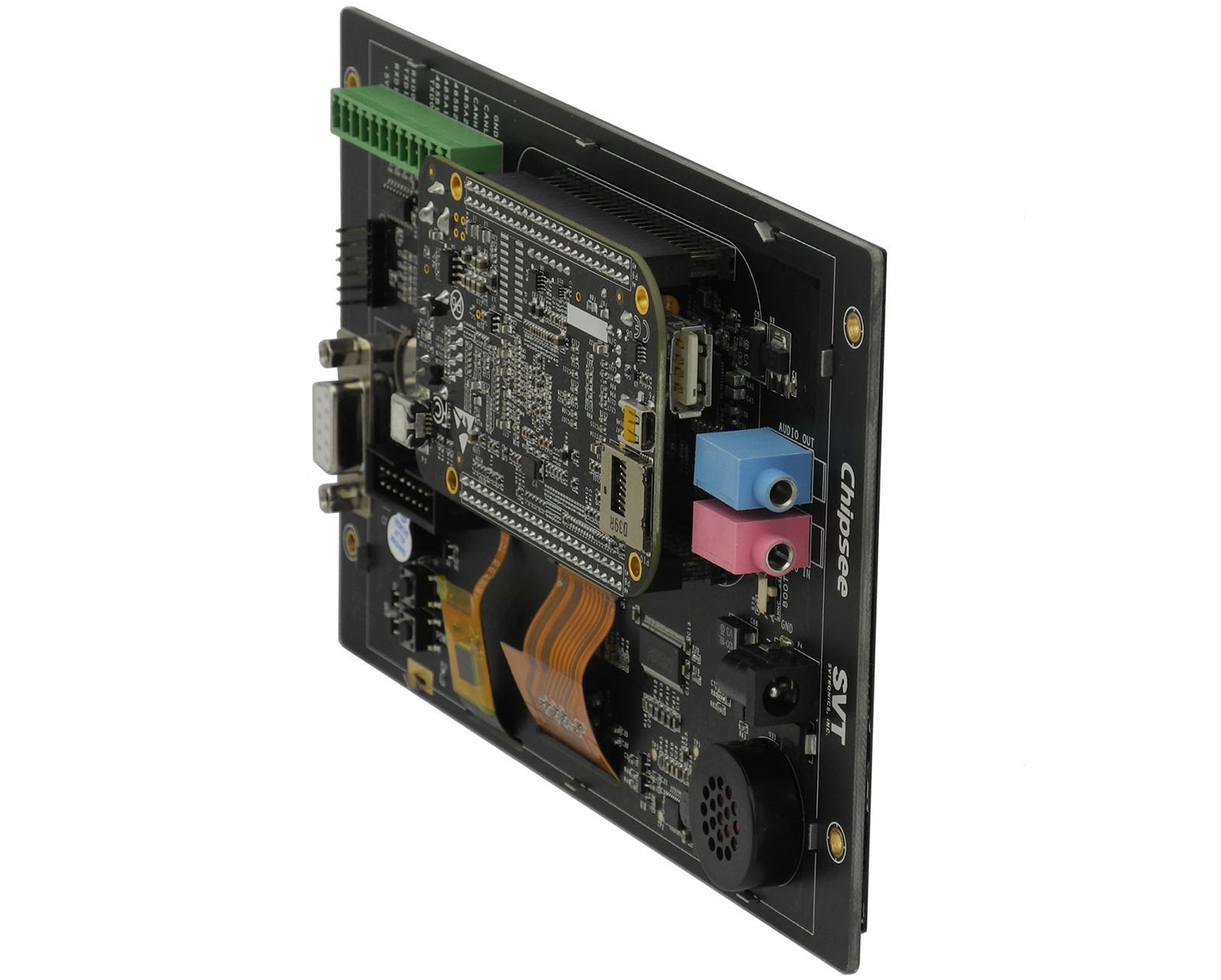

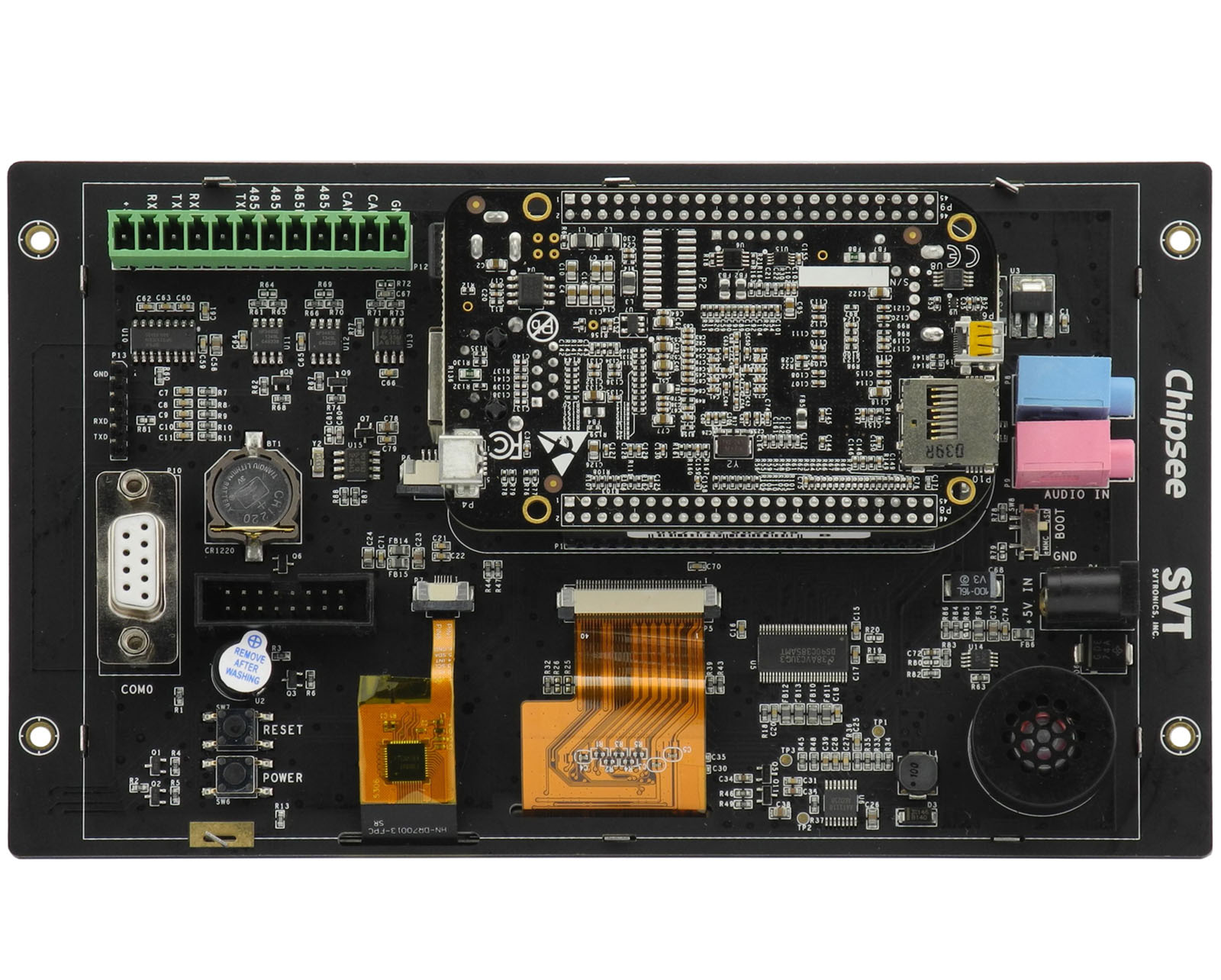

The CS-BBB-EXP50 is designed to connect directly to the BeagleBone Black via its expansion headers, ensuring straightforward physical and electrical integration. To prevent damage, users must follow the orientation markings on the silkscreen carefully, as incorrect installation can permanently harm both the BBB and the expansion board.
Once connected, the board draws power directly from the BeagleBone Black, eliminating the need for an external power adapter—though it’s essential to use a 5V adapter capable of supplying at least 1A to the BBB, as USB OTG power is insufficient.
The board includes a boot switch that allows users to toggle between booting from the microSD card or eMMC memory—an especially helpful feature since the BBB’s onboard boot button becomes inaccessible after installation. Additional features like EEPROM address configuration and expansion connectors help ensure full compatibility and flexibility with various BeagleBone Black-based setups.
Multiple Operating Systems Support
The unit comes preinstalled with one of the following operating systems: Android 4.2, Debian 8.4, Linux 4.8, or Ångström 2012. You can specify your preferred operating system in the order notes during the checkout process. Our software engineering team has ensured that all necessary drivers are fully integrated to support seamless hardware compatibility with commonly used development tools.
Tailored OS Solutions
We also offer custom pre-installation services for projects requiring specific operating system configurations. Please contact us to discuss your unique requirements, and our team will work with you to deliver a solution that aligns with your project’s needs.
