CS86-BOX-7500T

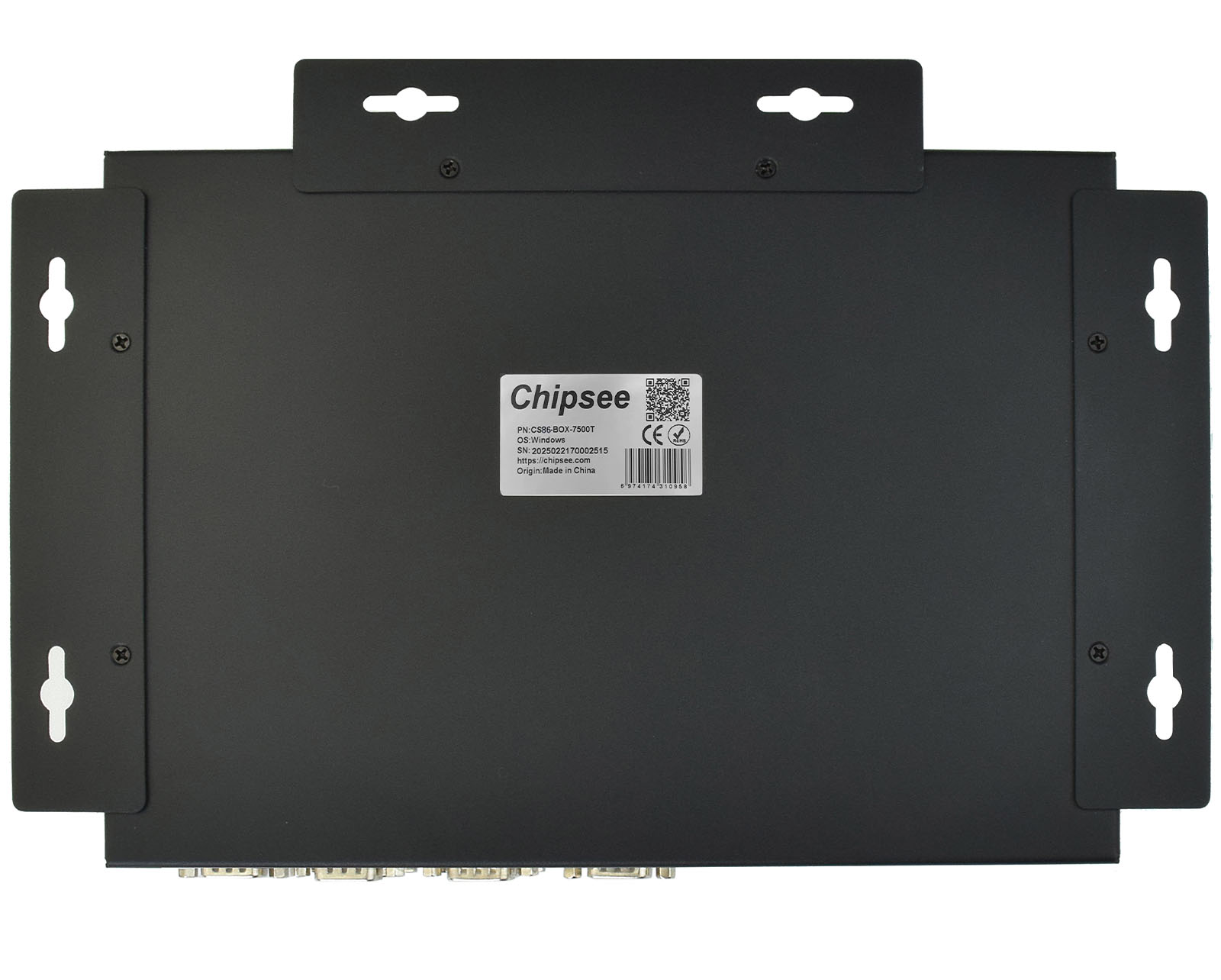

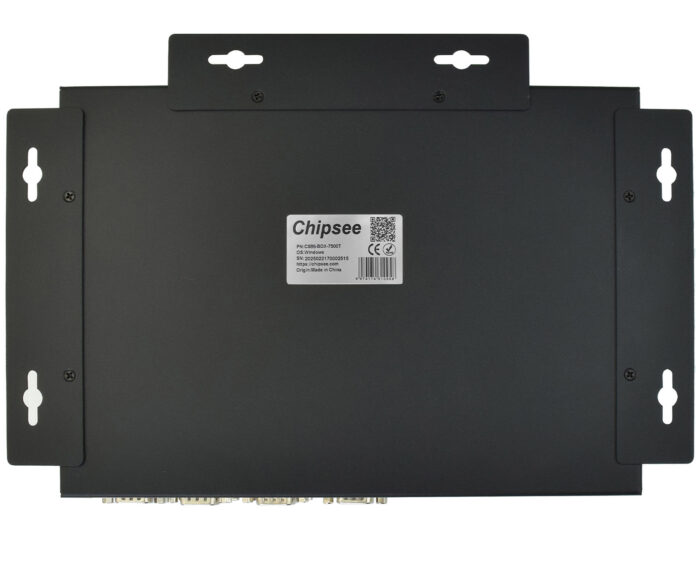

The CS86-BOX-7500T is a rugged, high quality, mountable industrial BOX PC powered by the high-performance and energy efficient Intel® Core™ i5 7500T CPU. This processor delivers exceptional performance while maintaining low power consumption, making it ideal for demanding industrial applications. The CS86-BOX-7500T features integrated mounting brackets for secure installation on flat surfaces such as industrial cabinets and walls.

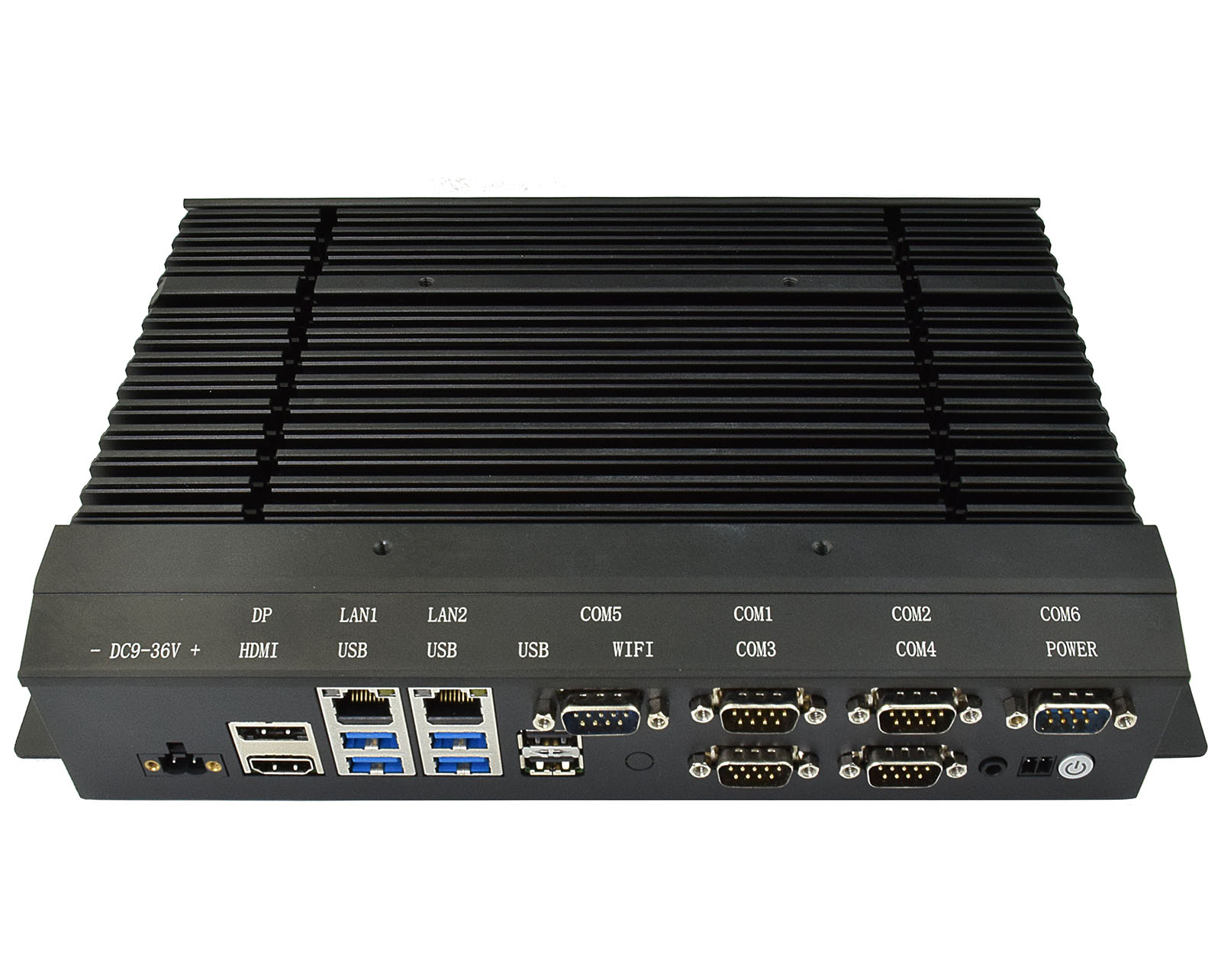

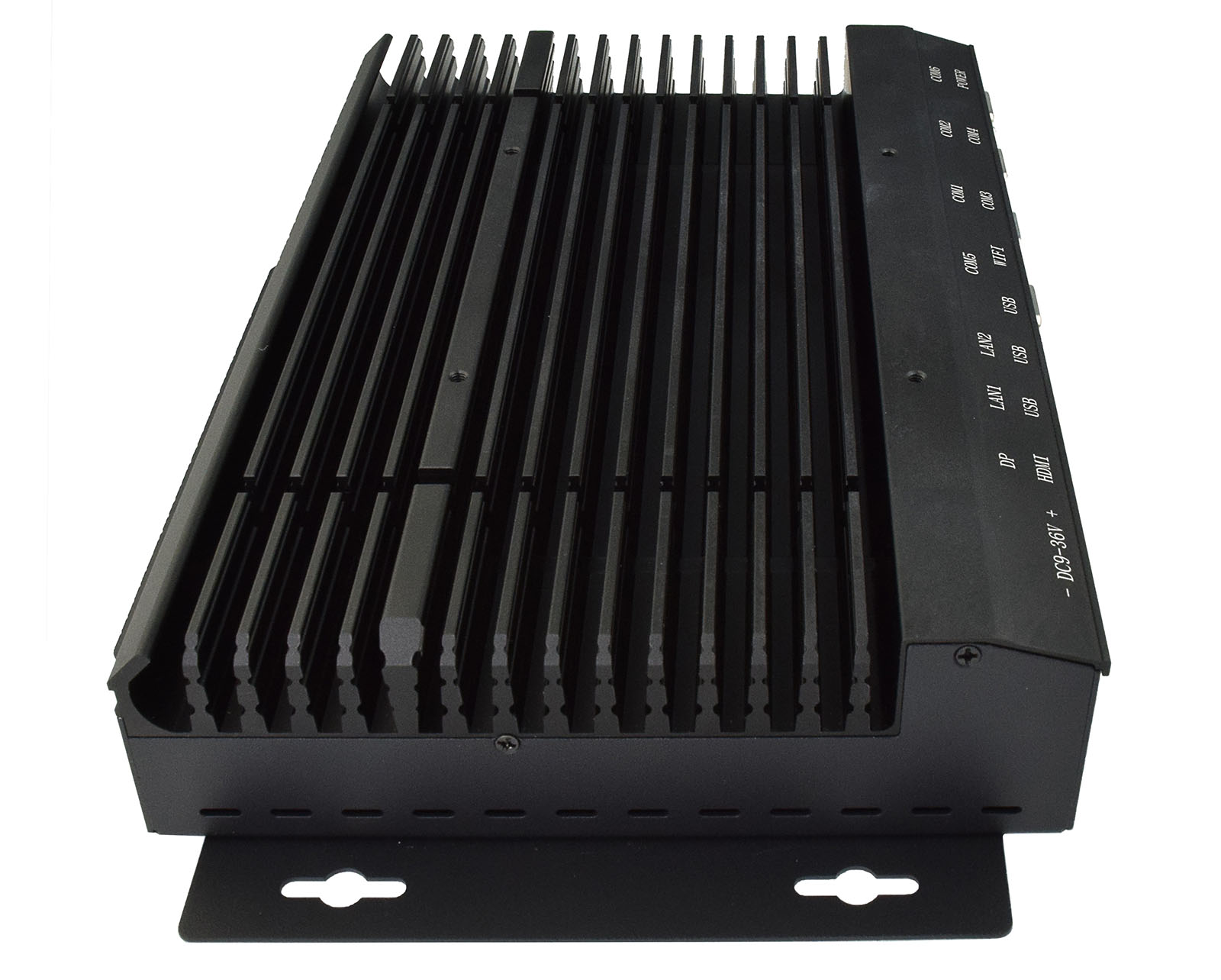

The unit is housed in specially engineered aluminum enclosures with integrated cooling fins, enabling efficient passive cooling. This fanless design ensures silent operation, reduces maintenance costs and efforts, making it an ideal solution for environments where quiet operation and low maintenance are priorities.

Hardware description

The CS86-BOX-7500T is powered by the high-performance Intel® Core™ i5 7500T CPU delivering reliable processing power for industrial applications.

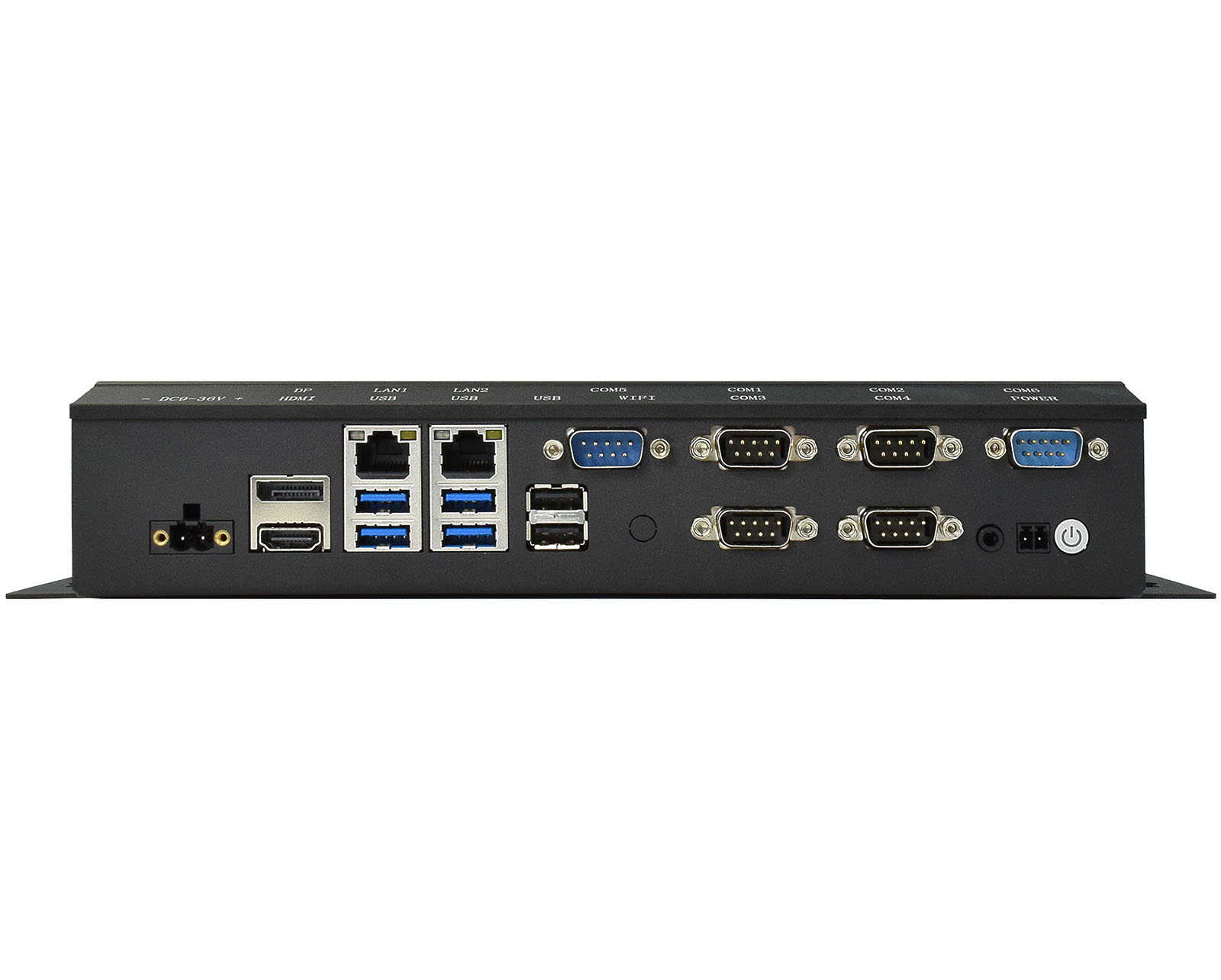

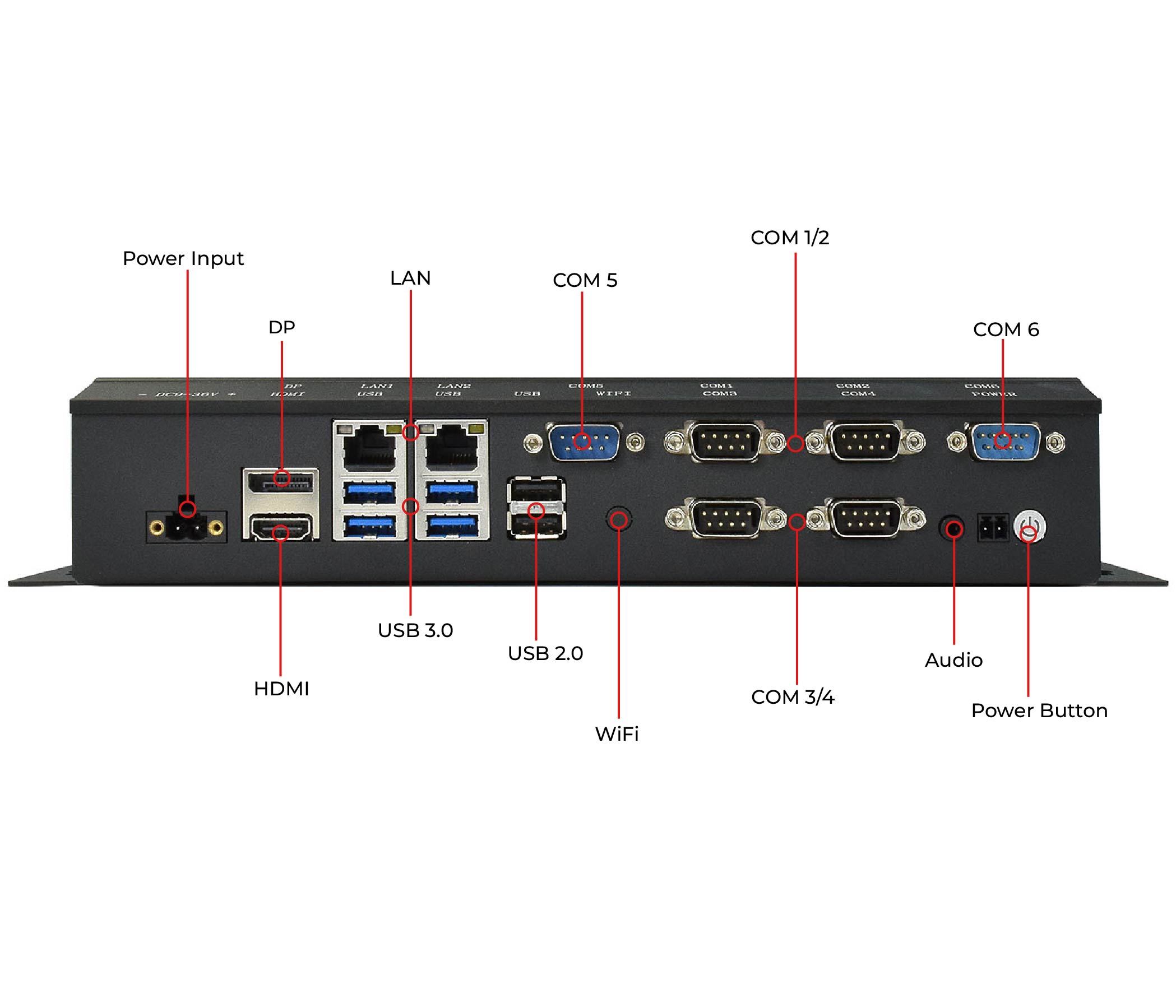

It offers a wide range of interfaces including USB ports, dual LAN ports, UART, and HDMI output. For wireless communication, WiFi/Bluetooth module and 4G/LTE modules are optional and can be added during the ordering process. Each module comes with its own antenna to ensure optimal signal strength and connectivity. Both modules share the same mini PCIe slot and cannot be used in that slot simultaneously.

The power supply has multiple protection mechanisms against over-current, over-voltage, surges, and reverse polarity, ensuring industrial safety and reliability.

Weight 2940 g
Dimensions 260 × 187 × 52 mm
Net weight

2850 g

CPU

Intel: i5 7500T

GPU

Intel® HD Graphics 630 integrated GPU, shared memory, supports dual HDMI display

RAM

4GB by default (1 x single channel SO-DIMM 2133/2400/2666). Optionally up to 64GB(2 x SO-DIMM)

Storage

128GB by default, 1 x SATA3.0 7P Connector, 1 x M.2 M-KEY (SATA SSD)

USB

4 x USB 3.0 (Type A)

HDMI

1 x DP Out, 1 x HDMI OUT

Ethernet

2 x RJ45, 10/100/1000 Mbps (Intel i210)

PCIe

1 x Mini-PCIe (WIFI/BT/4G)

WiFi/BT

Optional

4G

Optional

Motherboard

Intel H110 Chipset

Power Input

9-36V DC

Power Consumption

40W

Working Temperature

-20℃ ~ 60℃

Humidity

From 5% to 95% at 40°C relative humidity (no condensation)

OS

Ubuntu, Windows 7, Windows 8, Windows 10, Windows 11

Mounting Method

Desktop, Embedded, VESA, Wall

Documentation and Downloads

Hardware Documentation

Order Now

CS86-BOX-7500T

SKU: CS86-BOX-7500T

Price: $523.00
