Hardware description

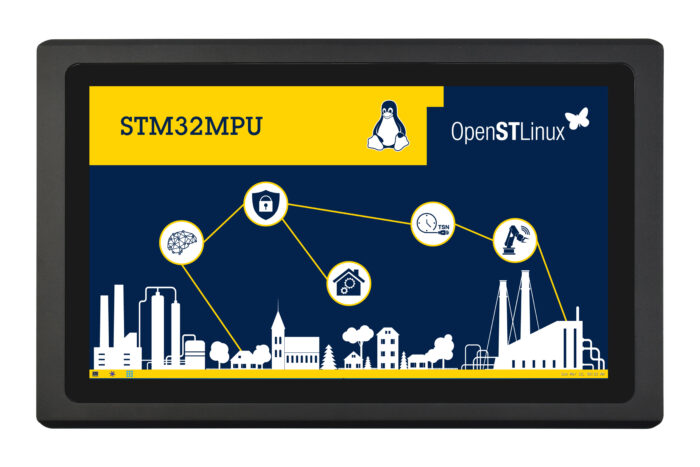

The PPC-A35-133 integrates a dual(2)-core Cortex®-A35 1.5GHz processor and features a 13.3” display with a 10-point capacitive touch screen, resolution of 1920 x 1080 pixels, brightness of 400 NIT, and IP65 protection on the front panel.
The product comes with a fanless metal housing and default settings provided in the Hardware Features table on the right. The default settings can be changed quickly to meet customers’ specific demands.
| Weight | 4490 g |
|---|---|
| Dimensions | 355 × 225 × 55 mm |
| Net weight | 3000 g |
| CPU | ARM: STM32MP257F |
| CPU Frequency | Dual(2)-core Cortex®-A35 1.5GHz processor |
| RAM | 4GB DDR4 |
| eMMC | 32GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| GPU | VeriSilicon GC8000UL – Open GL ES 3.2.8 – Vulkan 1.2, 900 MHz, up to 150 Mtriangle/s or 900 Mpixel/s |
| NPU | VeriSilicon GC8000UL – TensorFlowLite – ONNX – Linux NN, 900 MHz, 1.35 TOPS |
| Display size | 13.3″ |
| Display resolution | 1920*1080 |
| Brightness | 400 NIT |
| Touch Screen | Capacitive |

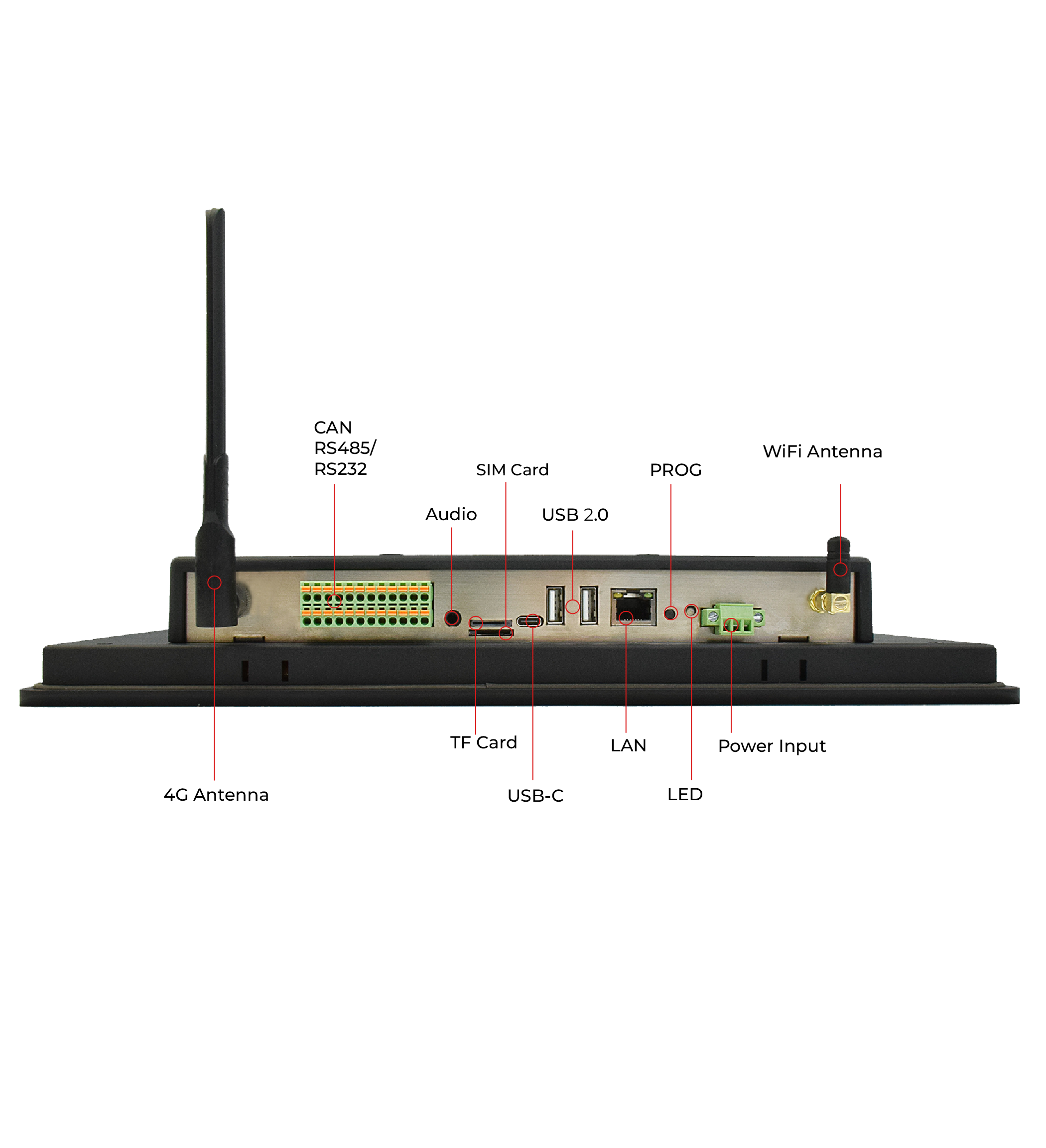

| USB | 1x USB Type-C, 2x USB 2.0 HOST |
| CAN | (optionally 2 x CAN FD can be configured to RS232 or 1 x CAN FD can be configured to RS485), 2 x CAN FD by default |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | 2 x RS485 by default (Optionally 3 x RS485 at most) |
| GPIO | 8 Channels, 4 Input, 4 Output |
| Ethernet | 1 x RJ45, GbE (default), Power over Ethernet(PoE) (optional) |
| WiFi/BT | YES |
| 4G | Optional |
| Audio | 3.5mm Audio In/Out Connector, Internal 1W Speaker |
| Buzzer | Onboard, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Power Input | (supports optional 24V ignition signal), 15-30V DC |
| Power Consumption | 10.5W typical, 12W max |
| Working Temperature | 0°C to +80°C |
| Current at 15V | 700mA typical, 880mA max |
| OS | Yocto |
| Mounting Method | VESA, PANEL |
