PPC-A55-133

The PPC-A55-133 (CS19108-RK3568-133P) is a high-quality industrial panel PC based on the Rockchip RK3568 low-power processor that integrates a quad-core Cortex®-A55 processor. It features a 13.3” screen with a ten-point capacitive touch screen with 1920 x 1080 pixel resolution and 400 NIT brightness.

The PPC-A55-133 provides a broad range of connectivity options, such as RS232, RS485, CAN, Ethernet, USB, and GPIO.

Its form factor and metal enclosure with IP65 protection on the front panel make it ideal for intensive industrial applications that require a human-machine interface.



Hardware description

The PPC-A55-133 is a full-featured, rugged industrial computer designed and certified for industrial usage. It is ready to deploy industrial applications based on the Rockchip RK3568 low-power processor that integrates a quad-core Cortex®-A55 processor.

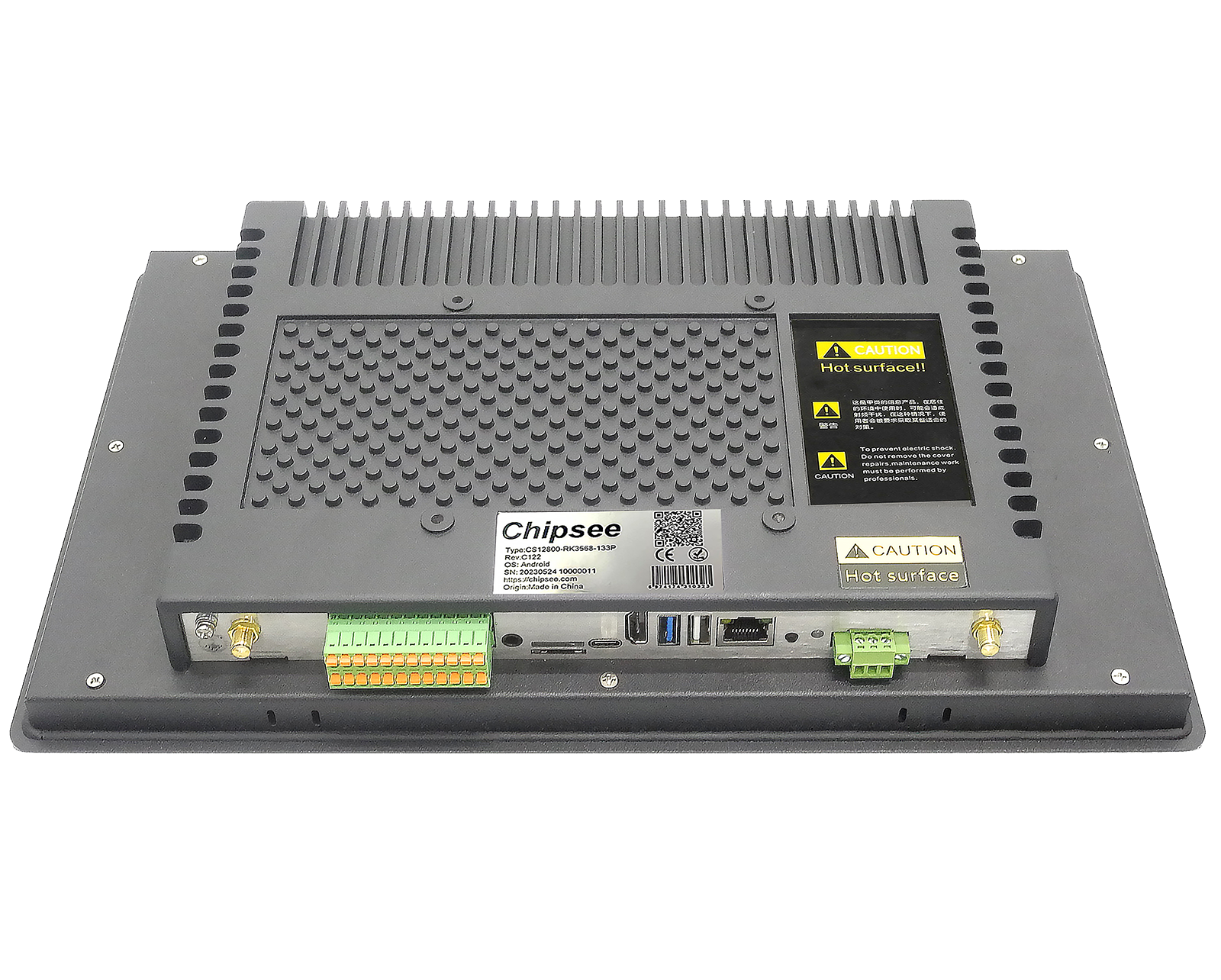

Various connectivity options include USB, LAN, HDMI, RS232, RS485, CAN, and GPIO.

The PPC-A55-133 has 4 x UART by default, and 6 x UART channels at most. The default configuration is 2 x RS232 and 2 x RS485, including 1 RS232 debug port. The 2 x CAN can be configured to RS232. UART can be swapped between RS232 and RS485 modes easily. The default settings can be changed. The WiFi/BT module is integrated while the 4G/LTE module is optional.

The PPC-A55-133 supports panel and 75mm VESA mounting methods.

Weight 3000 g
Dimensions 355 × 225 × 55 mm
Form-factor

Panel

CPU

ARM: Rockchip RK3568

CPU Frequency

Quad Cortex A55, 2.0GHz

DDR4

2GB

eMMC

16GB

Storage

External TF card slot, and internal M.2 NVMe connector for SSD card

Display Size (inch.)

13.3"

Resolution

1920*1080

Brightness (NIT)

400 NIT

Touch Screen

Capacitive

WiFi/BT

Onboard

4G

Optional

Ethernet

2 x RJ45, GbE

HDMI

1 x HDMI OUT

GPIO

8 Channels, 4 Input, 4 Output

RS232

Default 2 x RS232 (including 1 debug port). Up to 6 x RS232.

RS485

Default to 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232.

USB

1x USB Type-C, 1 x USB 3.0 HOST, 1x USB 2.0 HOST

CAN

2 x CAN by default. Optionally, these 2 x CAN can be configured to RS232.

PoE

Optional

RTC

Yes

Audio

3.5mm Audio In/Out Connector, Internal 2W Speaker

Buzzer

Onboard, driven by GPIO

OS

Android 11, Debian 11, Buildroot Linux Qt 5.15

Power Input

12~36V DC

Power Consumption

9.6W Typical, 15W Max

Current at 12V

1.25A Max at 12V

Working Temperature

0°C to +60°C

Mounting Method

Panel Mounting & VESA

GTIN

6974174310897

Performances and reliability

The PPC-A55-133 Industrial Panel PC is based on the powerful Rockchip RK3568 chip – a high-range general-purpose SoC that integrates a quad-core Cortex®-A55 processor.

This chip supports various peripheral interfaces and has a built-in independent NPU. It supports Android 11 and Linux systems and is perfect for industrial customization markets such as IoT gateways, cloud terminals, NVR storage, industrial equipment, industrial control panels, industrial control boxes, etc.

Multiple Operating Systems Support

The unit comes preinstalled with Debian 11, Buildroot Linux Qt 5.15 or Android 11. Our dedicated team of software engineers has expertly crafted all necessary drivers to ensure seamless hardware compatibility across widely-used development tools.

Tailored OS Solutions
Our team is ready to assist with custom pre-installation services for projects with specific operating system requirements. Please contact us to discuss your unique needs, and we will work closely with you to provide a tailored solution that aligns perfectly with your project’s specifications.

Documentation and Downloads

Hardware Documentation

Software Documentation

CE Certification

Order Now

PPC-A55-133

SKU: CS19108-RK3568-133P

Price: $398.00
