PPC-J1900-133-C

The PPC-J1900-133-C Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments. A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans.

The PPC-J1900-133-C is a high-quality industrial panel computer that features a 13.3” LCD with a capacitive touchscreen, a quad-core Intel® Celeron® series SoC processor with 4GB of DDR3 RAM.

Order Now
Documentation

Hardware features

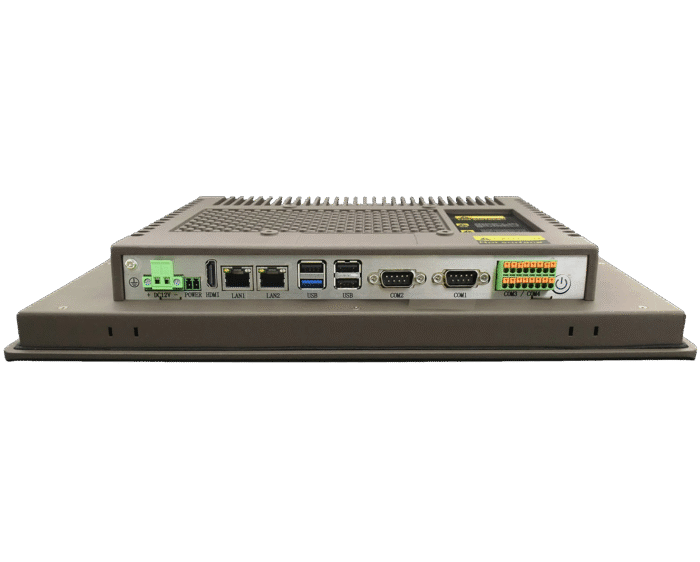

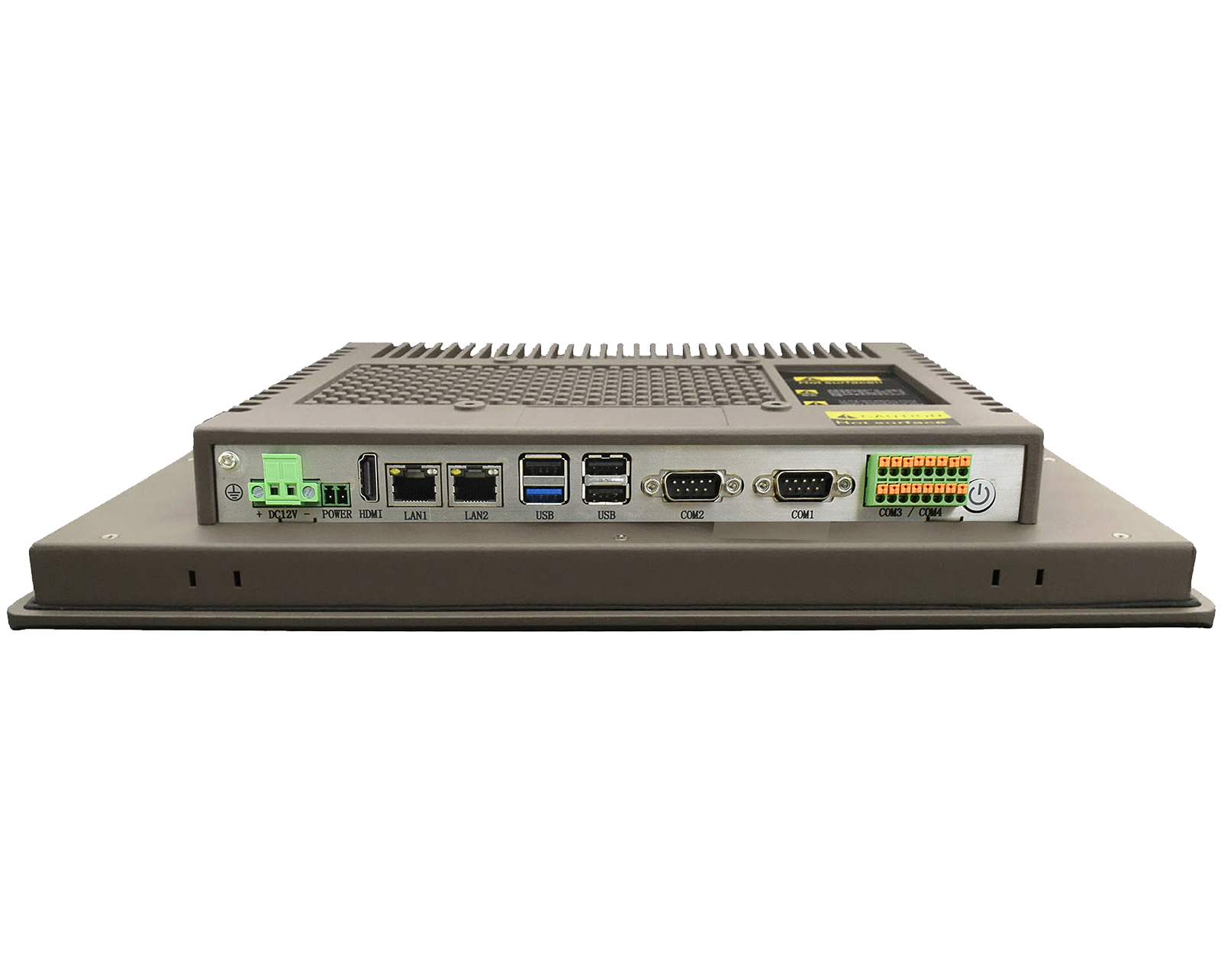

The PPC-J1900-133-C has several expansion connectors on the back side – 3 x USB 2.0 connector1 x USB 3.0 connector, 2 LAN connectors2 COM connectors (4x RS232 by default, COM 2/4 is optional RS485), and 1 HDMI connector.

Please note that WiFi/BLE and 4G/LTE modules do not come with the product by default, but can be added. Use the menu in the top right corner of the product page to add these modules if you need them.

Contact us for more information.

Performances and reliability

The PPC-J1900-133-C Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

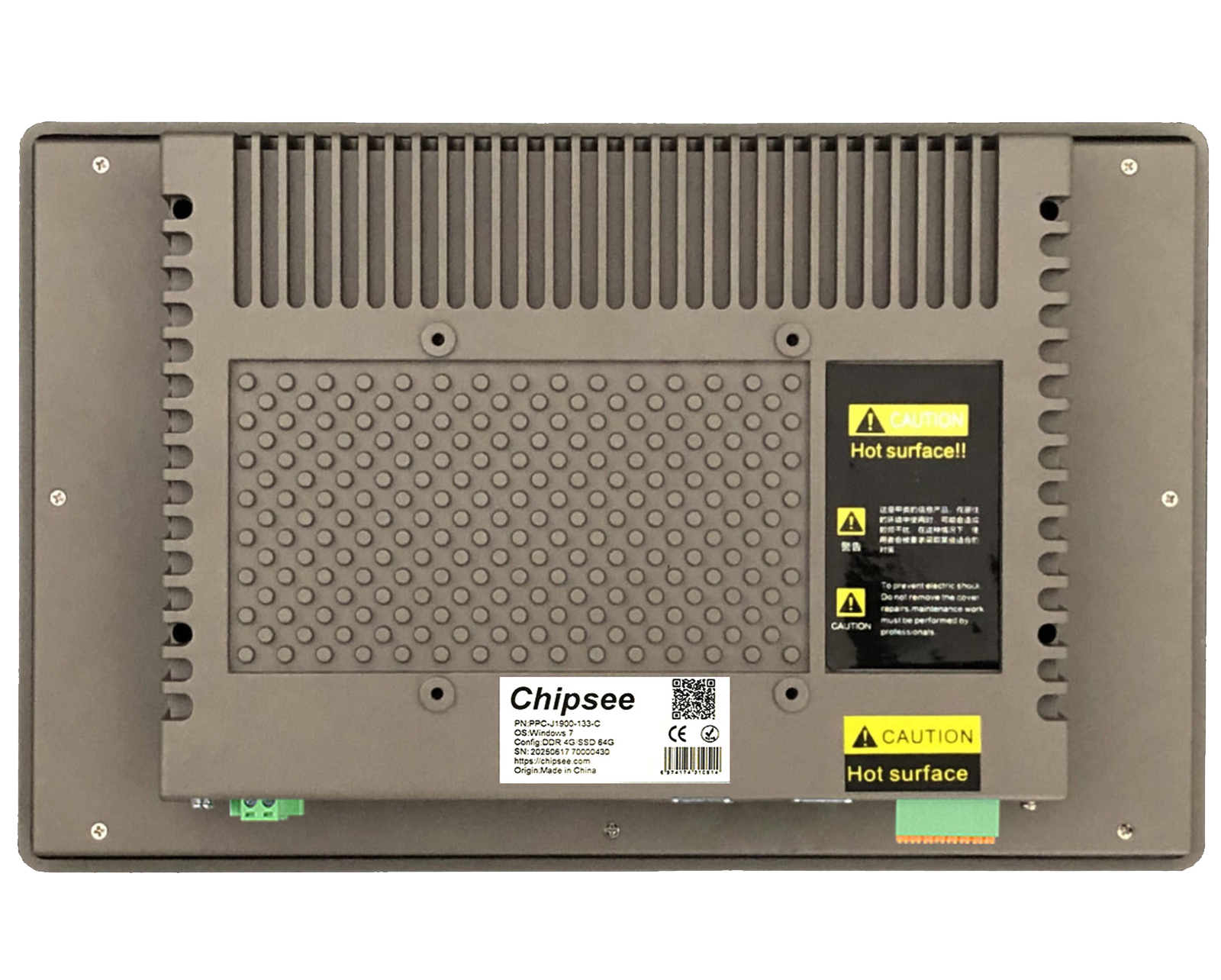

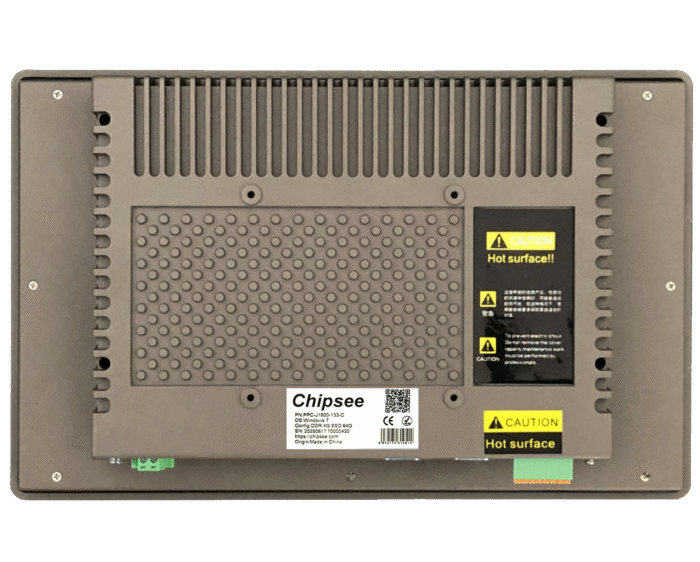

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fan-less design reduces noise, as well as the maintenance costs and efforts, increasing reliability at the same time.

Multiple OS choices

This product comes with a pre-installed Linux operating system. You can also choose to get Windows 7, or Windows 10 operating system installed. Simply go to the top of the page and choose the OS you want from the menu. If you choose Windows 7, an additional $43 will be added to the price of the products, and additional $75 if you choose Windows 10.

Please contact us if you need a different one, and we’ll pre-install it for you.

Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.

Of course, if your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.

If you have any doubts, read our Product Selection guide.

Technical Features

Weight 3000 g
Dimensions 355 × 225 × 55 mm
Form-factor

Panel

Display Size (inch.)

13.3"

Resolution

1920*1080

Brightness (NIT)

300 NIT

Touch Screen

Capacitive

CPU

Intel Celeron J1900

GPU

Intel HD Integrated Graphics

RAM

4GB DDR3

Storage

64 GB mSATA SSD (supports up to 512 GB) + SATA interface

Bluetooth

Optional

WiFi

Optional

Ethernet

RJ-45x2Intel®I211,10/100/1000Base-TX,support Wake on LAN

USB

1x USB 3.0 HOST, 3x USB 2.0 HOST

HDMI

1x HDMI

SATA

mSATA

COM

2x COM (2x RS232 by default, COM 2/4 is optional RS485)

Power Input

9~30V DC

Working Temperature

-20℃ ~ 60℃

OS

Windows

Mounting Method

VESA

Documentation and Downloads

Hardware Documentation

Order Now

PPC-J1900-133-C

SKU: PPC-J1900-133-C

$788.00$863.00
