PPC-J1900-215-C

The PPC-J1900-215-C Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

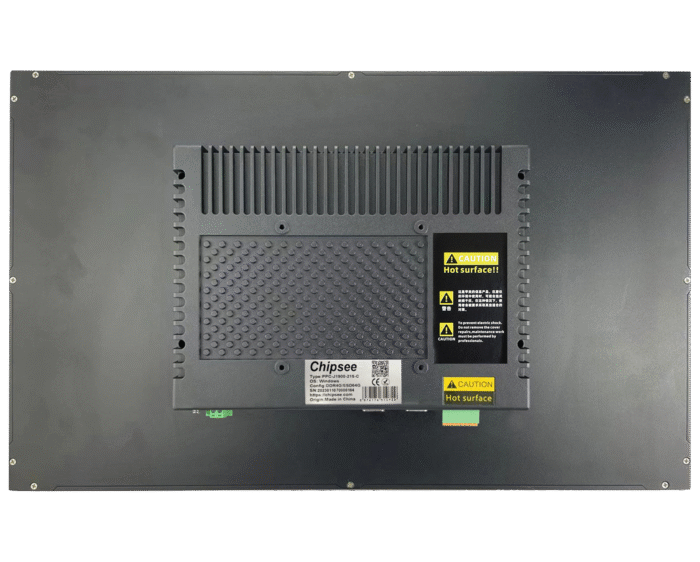

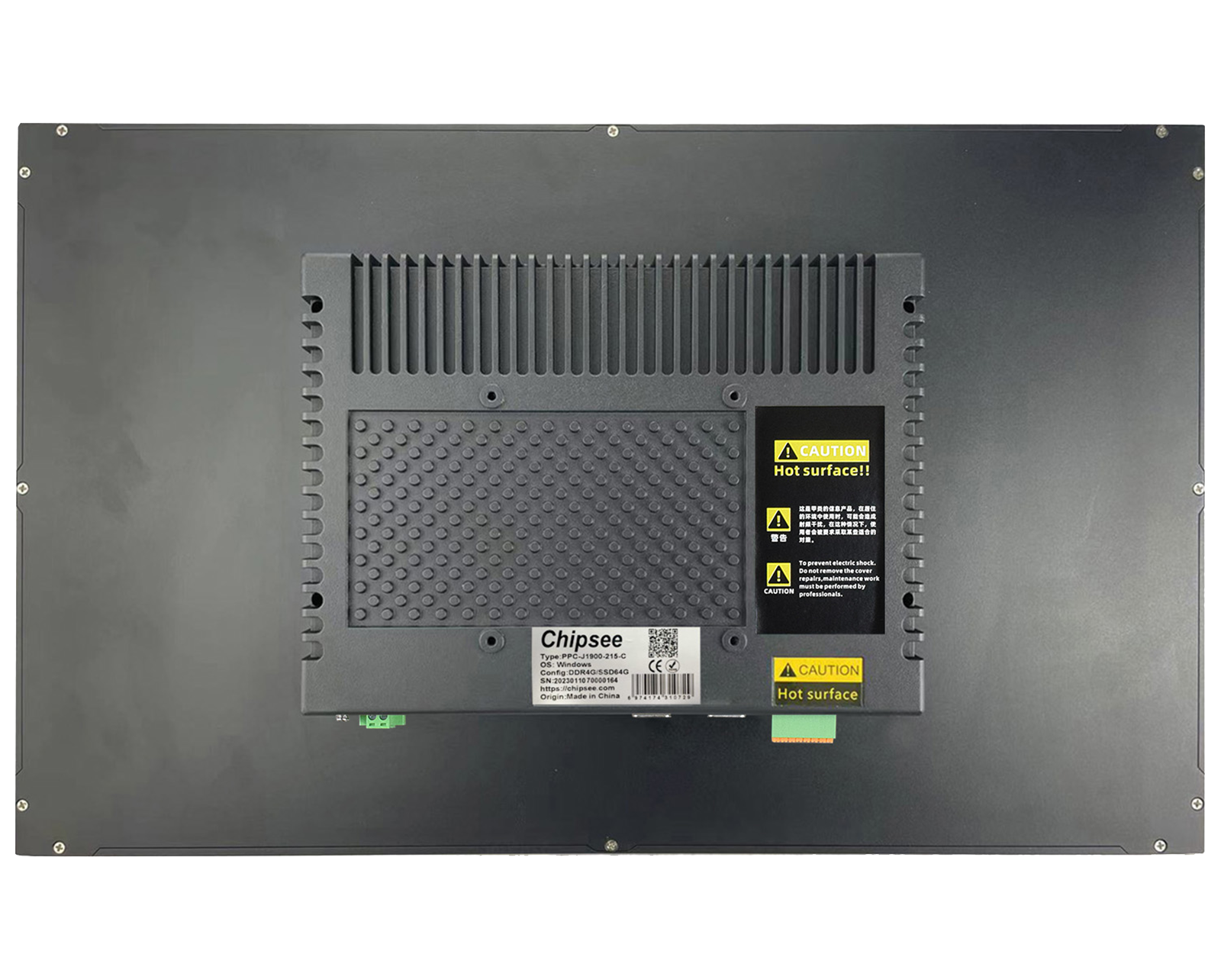

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans.

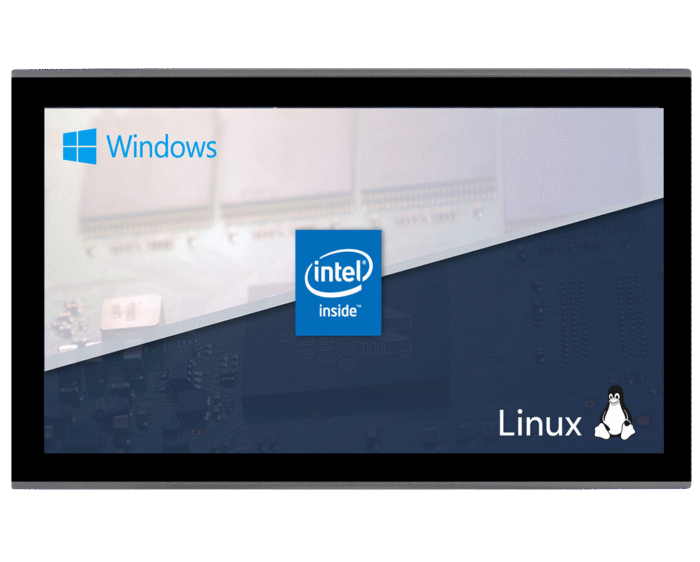

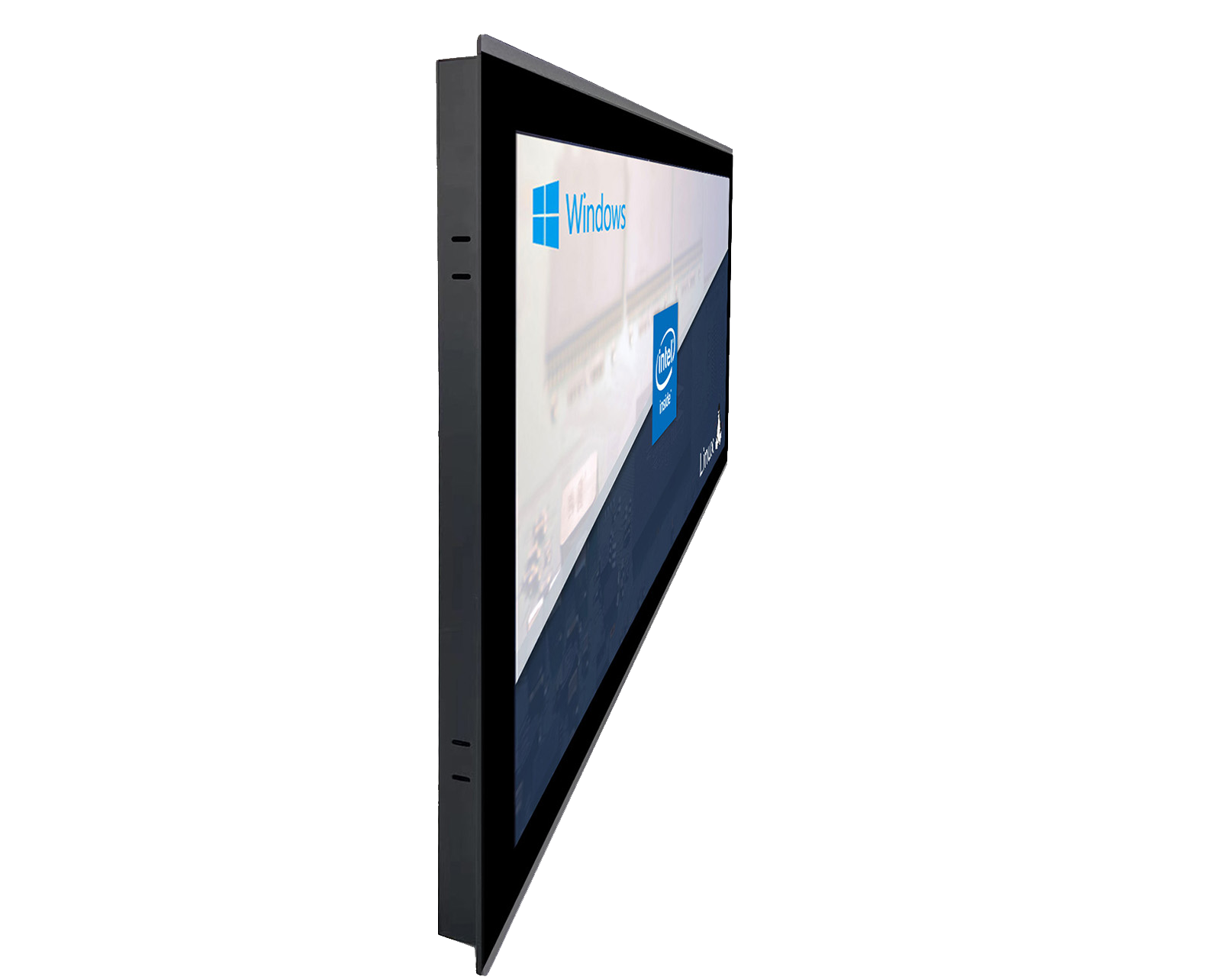

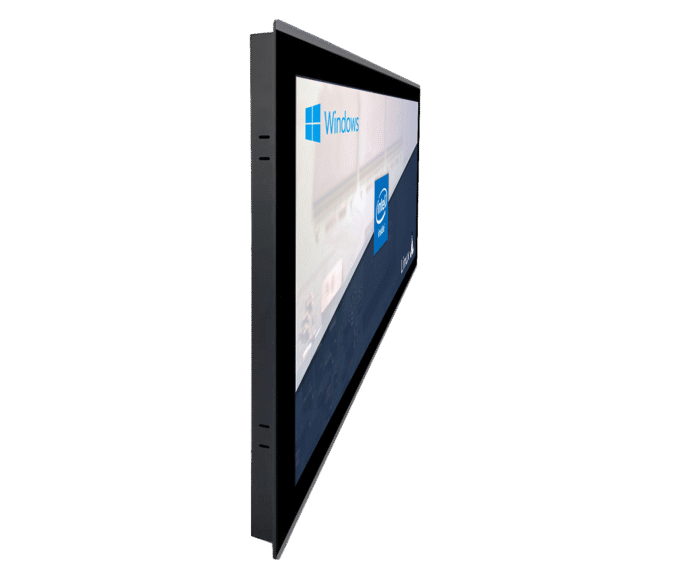

The PPC-J1900-215-C is a high-quality industrial panel computer that features a 21.5” LCD with capacitive touchscreen, a quad-core Intel® Celeron® series SoC processor with 4GB of DDR3 RAM.

Order Now
Documentation

Hardware features

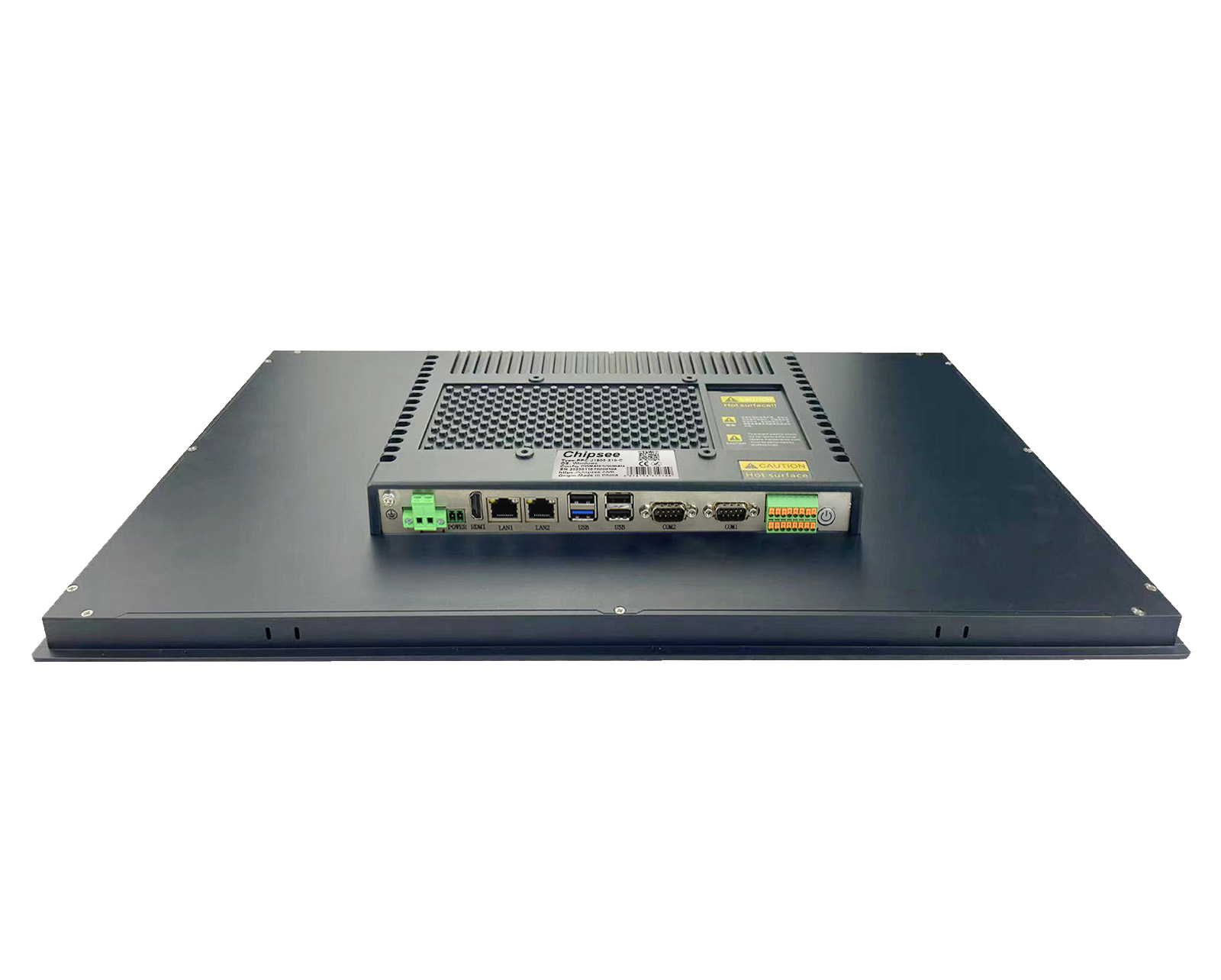

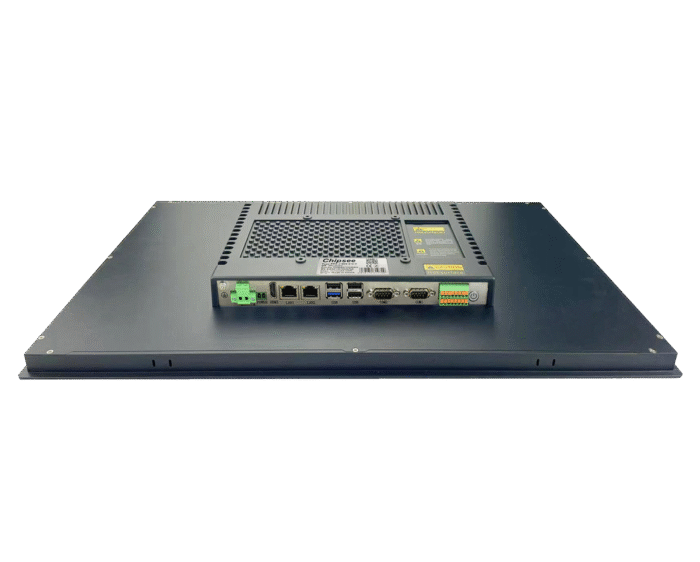

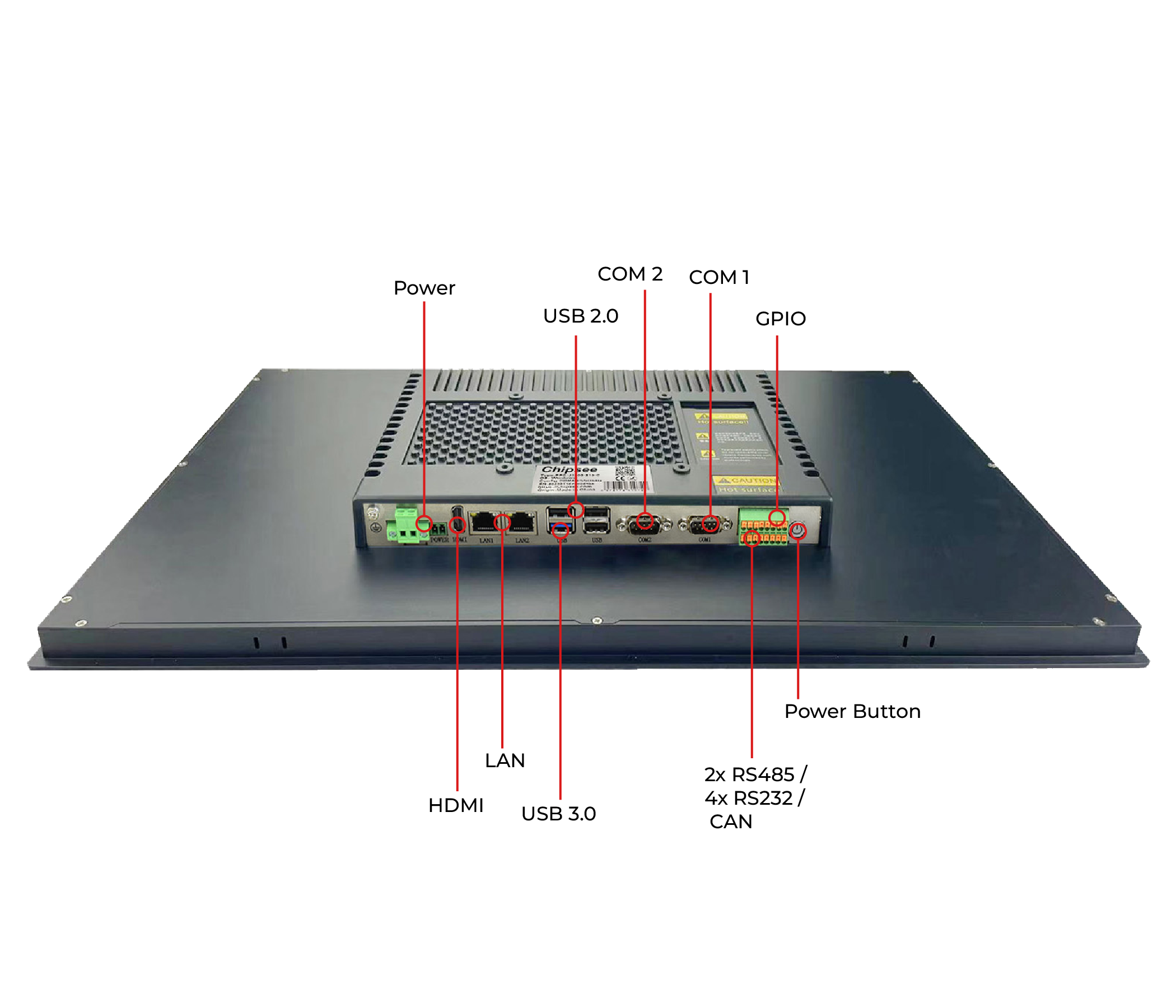

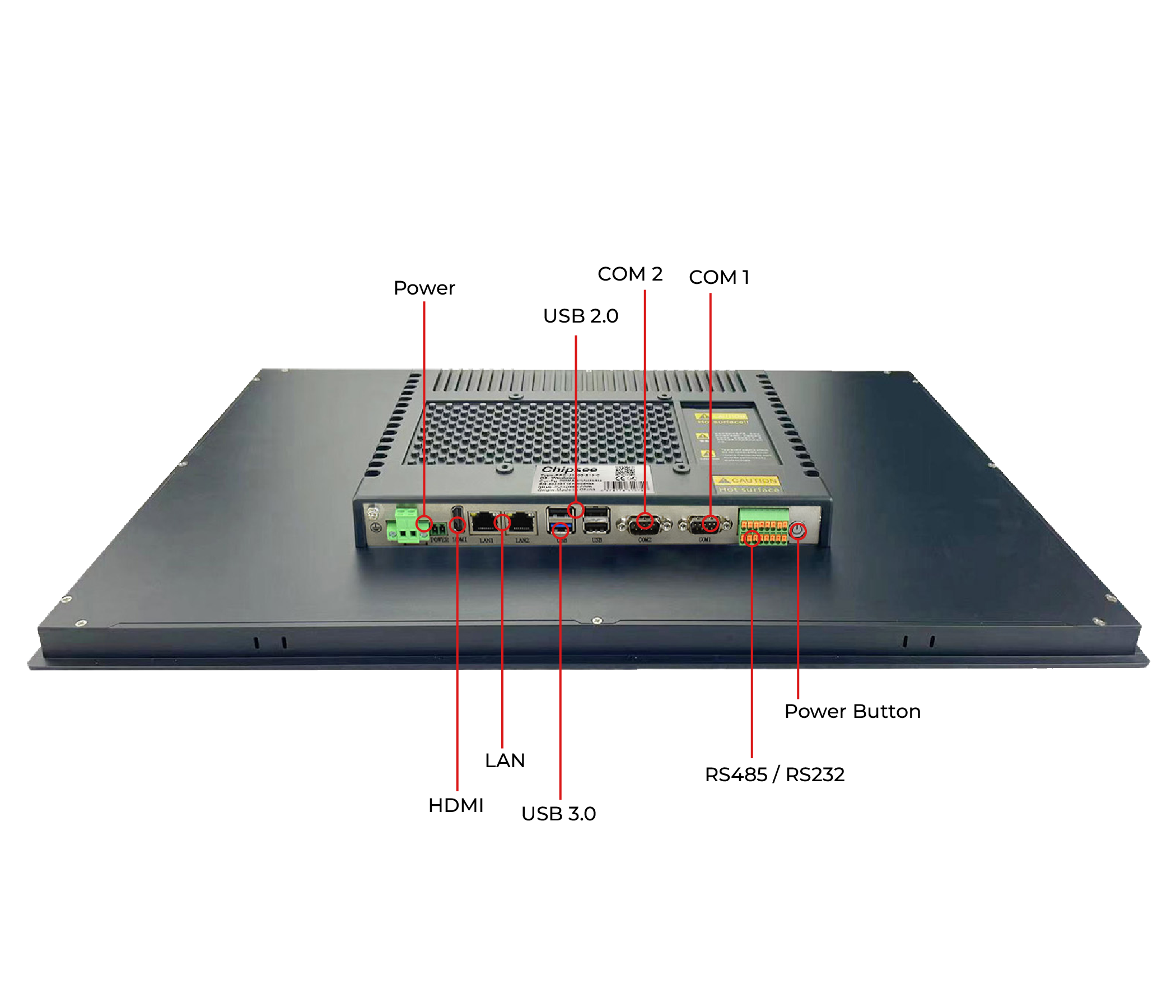

The PPC-J1900-215-C has several expansion connectors on the back side – 3 USB 2.0 connectors, 1 USB 3.0 connector, 2 LAN connectors, 4 COM connectors (4 RS232 connectors by default; COM1 and COM2 are optional RS485 connector, means there are 2 RS485), 1 HDMI connector, and 8 GPIO connectors.

Please note that a WiFi/BLE module does not come with the product by default, but it can be added. Use the menu in the top right corner of the product page to add it if you need it.

A 4G/LTE module can be added to the product, but we do not currently offer it in our shop. We recommend you to buy it locally, and install it yourself, as it’s quite easy to add.

The 16 Pin 3.81mm screw terminal connector include 8 GPIO and 2 RS232.

Contact us for more information.

Performances and reliability

The PPC-J1900-215-C Industrial Panel PC is powered by Intel® Celeron® J1900 quad-core CPU and equipped with a broad range of connectivity options, allowing it to meet highly demanding application requirements in harsh industrial or outdoor environments.

A specially designed magnesium-aluminum alloy housing with fins for increased heat dissipation serves as a passive cooler, eliminating the need for built-in fans. The fan-less design reduces noise, as well as the maintenance costs and efforts, increasing reliability at the same time.

Multiple OS choices

This product comes with a pre-installed Linux operating system. You can also choose to get Windows 7, or Windows 10 operating system installed. Simply go to the top of the page and choose the OS you want from the menu. If you choose Windows 7, an additional $43 will be added to the price of the products, and additional $75 if you choose Windows 10.

Please contact us if you need a different one, and we’ll pre-install it for you.

Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.

Of course, if your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.

If you have any doubts, read our Product Selection guide.

Technical Features

Weight 5200 g
Dimensions 535 × 331 × 52.5 mm
Form-factor

Panel

Display Size (inch.)

21.5"

Resolution

1920*1080

Brightness (NIT)

250 NIT

Touch Screen

Capacitive

CPU

Intel Celeron J1900

RAM

4GB DDR3

Storage

64 GB mSATA SSD (supports up to 512 GB) + SATA interface

OS

Windows

Audio

Line-in, line-out – Dual channel HD audio

Ethernet

RJ-45 x 2, Intel®I211, 10/100/1000Base-TX, support Wake on LAN

WiFi

Onboard WiFi optional

Bluetooth

Onboard BT optional

4G

Onboard 4G Optional

HDMI

1x HDMI

USB

1x USB 3.0 HOST, 3x USB 2.0 HOST

SATA

mSATA, 1x SATA II

RS485

2x RS485

RS232

4x RS232

GPIO

8x GPIO

Power Consumption

30W

Power Input

DC 9-36V

Working Temperature

-20℃ ~ 60℃

Mounting Method

Panel/Wall-Mounted/Desktop Type/VESA 100mm

Documentation and Downloads

Hardware Documentation

Order Now

PPC-J1900-215-C

SKU: PPC-J1900-215-C

$967.00$1,042.00
