Hardware description
The PPC-J6412-101-C boasts a versatile backplane, equipped with:
- 4 USB 3.0 ports
- Dual Ethernet LAN ports
- 6 UART interfaces, including configurable RS232/RS485 options
- HDMI Output
- Modular Wireless Connectivity
While the unit ships without a WiFi module by default, this can be integrated upon request at the time of purchase. For 4G/LTE support, a dedicated slot is available, though the module must be sourced separately.
Versatile Communication Interfaces

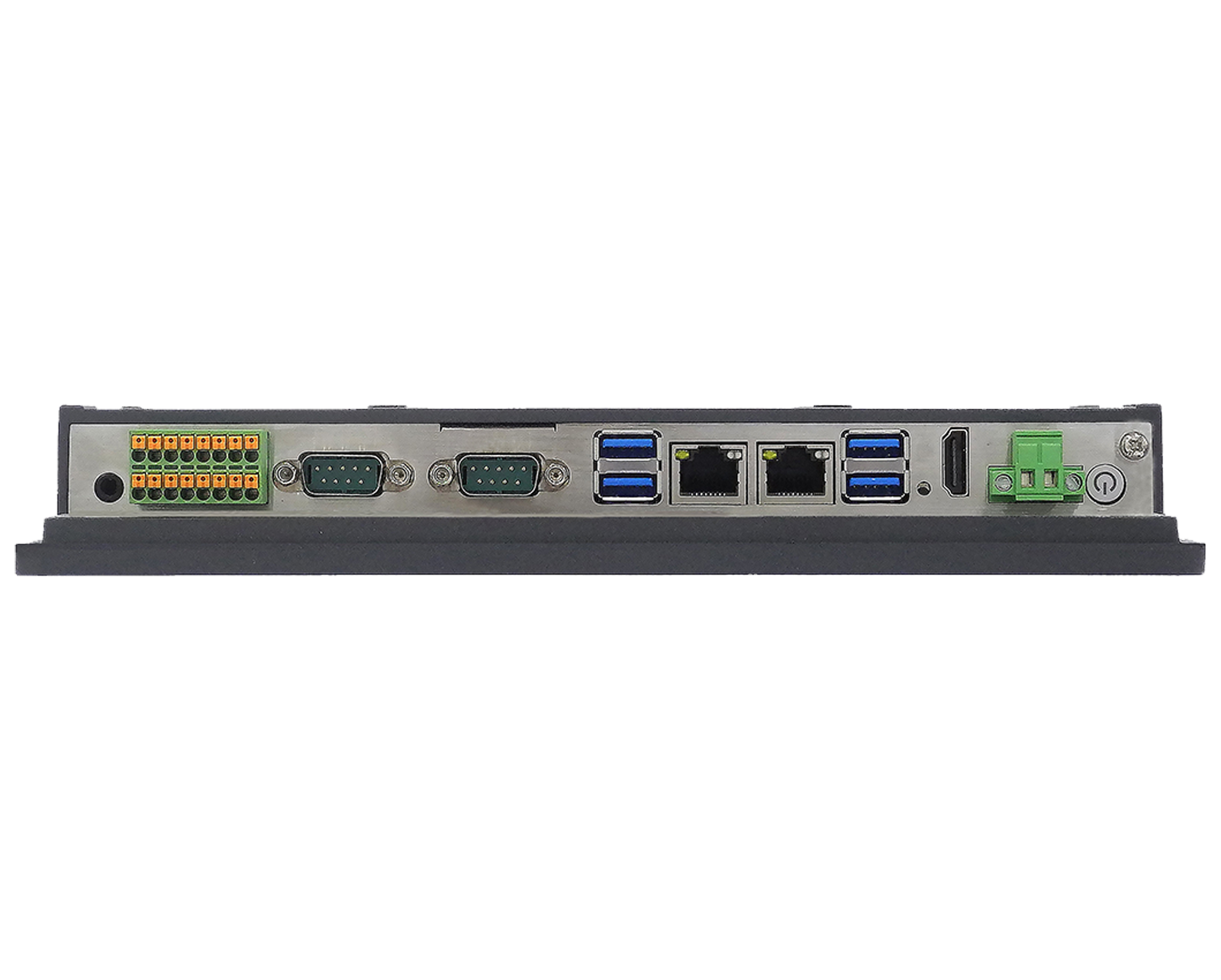

The PPC-J6412-101-C also offers versatile communication interfaces. It includes two 9-pin D-sub connectors (COM1 and COM2) as well as a 16-pin 3.81mm connector with a pluggable terminal block for easy installation and maintenance. The 16-pin are COM ports (COM3, COM4, COM5 and COM6). COM1, COM2, COM3, and COM4 are RS232 ports while COM5 and COM6 are configured as RS485 by default but can be set up for RS232 protocols if needed.
| Weight | 2900 g |
|---|---|
| Dimensions | 253.20 × 171.83 × 36 mm |
| Net weight | 1200 g |
| Form-factor | Panel |
| Display size | 10.1" |
| Resolution | 1280*800 |
| Brightness (NIT) | 350 NIT |
| Touch Screen | Capacitive |
| CPU | INTEL: Celeron J6412 |
| GPU | Intel HD Integrated Graphics, 512MB shared memory |
| RAM | Default 4GB, maximum 32GB, 1 x DDR4 3200 SO-DIMM |
| Storage | Default mSATA 64GB SSD; 1 x SATA2.5 HDD 1T; 1 x M.2 2280 NVMe PCI-E 3.0 x 2 Slot |
| Ethernet | 2 x RJ45, 1Gbps (Intel) |
| HDMI | 1x HDMI |
| USB | 4 x USB 3.0 Type A HOST |
| UART | 4 x RS232 and 2 x RS485 by default (2 x RS485 can be configured as RS232) |
| GPIO | Not supported. |
| 4G | Optional, module available from other manufacturers/stores |
| WiFi | Optional |
| Expandability | 2 x Mini-PCIe (One for optional WiFi/BT/3G/4G/5G, one for mSATA) |
| Audio | Realtek High Definition Audio Codec, MIC/Line-Out, Amplifier |
| Power Input | 9-30V DC |
| Power Consumption | 16W |
| Working Temperature | From -20°C to +60°C (with SSD) |
| Storage Temperature | From -30°C to +80°C |
| Humidity | From 5% to 95% relative humidity (no condensation) |
| OS | Ubuntu 20.04, Windows 7, Windows 10 |
| Mounting Method | VESA 100mm, Panel mounting with fixtures, Wall, Desktop |
| EMC | CE/FCC/ROHS/ISO-9001 |
| GTIN | 6974174310910 |
Performance and Scalability
Intel® Celeron® J6412 Quad-Core CPU
Designed for industrial-grade applications, the processor features a base clock speed of 2.00 GHz, scaling up to 2.60 GHz. It achieves a single-core benchmark score of 589 and supports up to 32 GB of quad-channel memory with a peak bandwidth of 59.7 GB/s, all within a 10W Thermal Design Power (TDP) envelope.
Graphical Capabilities
The integrated Intel UHD Graphics with 16 Execution Units ensures capable graphics performance for HMI and visualization tasks.
Software Ecosystem
Multiple OS Support
The unit ships with Ubuntu 20.04 pre-installed but offers the flexibility to opt for Windows 7 or Windows 10 through a simple selection in the drop-down menu during purchase. Please note that opting for Windows 7 and Windows 10 will incur an additional charge of $40 and $50 respectively.
Driver Support
Our in-house software engineers have meticulously developed all necessary drivers, ensuring full hardware compatibility with mainstream development tools.
Custom OS Options
Should your project requirements dictate a specialized OS, please get in touch with us for custom pre-installation services.
Order Now
PPC-J6412-101-C
SKU:
Price: $548.00 – $598.00
