EPC-CM4-070

The EPC-CM4-070 (CS10600RA4070E) is an industrial computer for the Raspberry Pi® Compute Module 4. Available in embedded form-factor, the Industrial Pi features a 7-inch IPS display (1024×600 pixels and 500 nits of brightness) with a 5-point capacitive touch panel, and RS232 and RS485 ports, multiple opto-isolated I/O, HDMI connector, Ethernet, double USB, 4G/LTE (optional), ZigBee (optional), double TF card, on-board audio, etc.

You can add a 4G/LTE module to the product, by choosing it in the optional modules section.

The product is delivered with the CM4 Raspberry Pi® module you choose when ordering. Please contact us if you would like to purchase the product without the CM4 module.

Hardware description

The EPC-CM4-070 is full-featured, rugged, designed, and certified for industrial usage, ready to deploy industrial applications based around the Raspberry Pi® Compute Module 4.

The Compute Module 4 appears in different versions depending on the size of the DDR4 and eMMC.
By default, a Compute Module 4 is not included in the product. If you would like to purchase it with a CM4, please choose one from the drop-down menu.

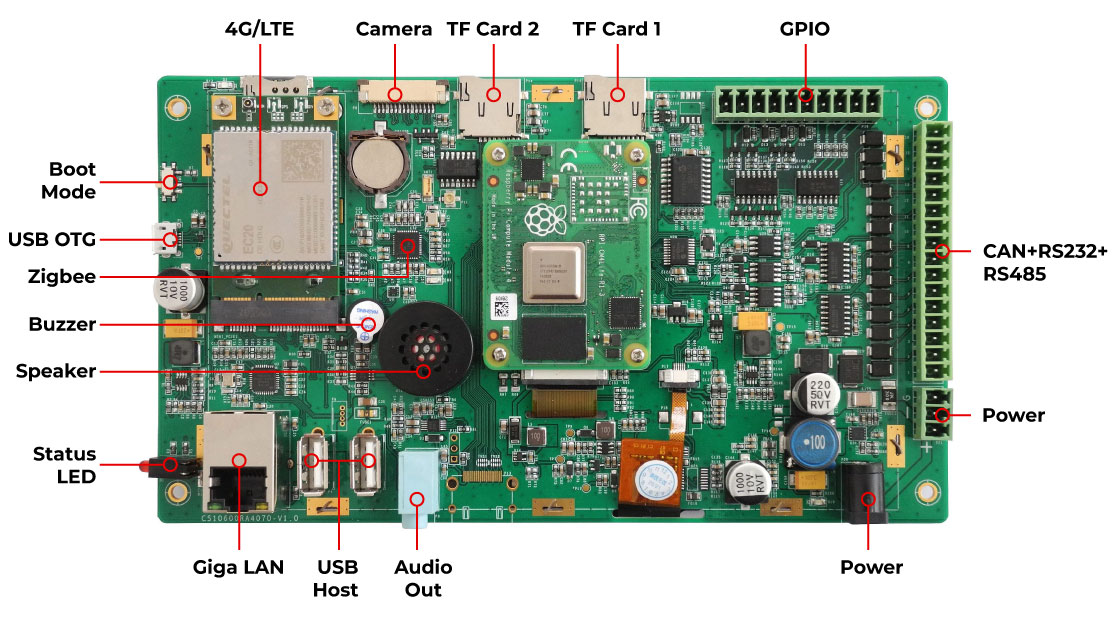

The EPC-CM4-070 features two TF card interfaces, two USB connectors, and one HDMI and LAN connector. It also has two RS232 channels, two RS485 channel, and eight Opto-Isolated GPIOs.

Concerning audio, it has one 3.5mm audio connector, one 2W internal speaker, and one Buzzer.

Please note that the 4G/LTE module does not come with the product by default, but can be added. Use the menu in the top right corner of the product page to add this module if you need it.

The Industrial Pi has a 5-point capacitive touch screen, with a 1024×600 resolution, that offers stable and accurate control over the device and great image clarity. They are also very durable and resistant to environmental contaminants like dust and water. These types of screens work best with either a finger or a stylus with a conductive tip.

Weight 400 g
Dimensions 190 × 107.8 × 27.7 mm
Form-factor

Embedded

CPU

ARM: Raspberry Pi® CM4

Display Size (inch.)

7.0"

Resolution

1024*600

Brightness (NIT)

500 NIT

Touch Screen

Capacitive

FLASH

16GB

External storage

2 TF card slots. One is designed for Lite version that has no eMMC. The other one is designed for storage expansion.

WiFi/BT

Depends on the Compute Module 4 selected.

ZIGBEE

Optional

4G

Support miniPCIe slot for 4G/LTE module (neither miniPCIe Slot nor 4G LTE module is mounted by default.)

Ethernet

1x Giga LAN

Camera

There is a camera connector compatible with the Raspberry Pi Camera connector (the camera is NOT mounted by default).

Audio

3.5mm Audio Out Connector, Internal 2W Speaker

Buzzer

Yes

HDMI

Yes

USB

1x miniUSB OTG, 2x USB 2.0 HOST

RTC

High Accuracy RTC with Lithium Button Coin battery (Lithium Battery not included)

GPIO

Opto-Isolated GPIO, 4 Input, 4 Output, can drive up to 500mA current every Channel at most (external power source needed)

RS485

2 Channels at most. The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software.

RS232

4 Channels at most

CAN

1x CAN

OS

Raspberry Pi OS

Power Input

9-36V DC

Power Consumption

5W

Current @ 12V

420 mA max

Working Temperature

0°C to +60°C

Mounting Method

Embedded Mounting

GTIN

6974174310002

Raspberry Pi Compute Module 4

This IPC core is the Raspberry Pi CM4, powered by a high-performance Broadcom BCM2711 (RPi 4) application processor.

The BCM2711 has the quad-core CPU design of the BCM2837 but uses the more powerful ARM A72 core. It has a greatly improved GPU feature set with much faster input/output. It is also capable of addressing more memory.

The BCM2711 chip continues to use the heat-spreading technology that started with the BCM2837B0, which provides better thermal management.

Raspberry Pi OS

All Raspberry Pi-based products come with the latest version of Raspberry Pi OS already installed. For specific models, such as the AIO-CM4-101 and the AIO-CM4-156, it is also possible to choose Android 13 or Ubuntu 20.04 as preinstalled OS.

We’ve taken care of all the necessary drivers, so you can easily access every hardware feature using any standard development tool. In the event that your project requires an OS that is not on the list, feel free to reach out to us, and we’ll create a customized version that meets your specific needs.

Documentation and Downloads

Hardware Documentation

Software Documentation

3D Design File

CE Certification

EU Certification

Powered By Raspberry Pi Official Certificate

EPC-CM4-070 Brochure
