PPC-CM4-215

The PPC-CM4-215 (PN: CS19108RA4215) is a high-quality industrial PC powered by the Raspberry Pi Compute Module 4 (Quad Cortex®-A72 processor at 1.5GHz clock). It comes with a Raspberry Pi Compute Module 4 of your choice.

Its form factor and metal enclosure with IP65 protection on the front panel make it ideal for intensive industrial applications that require a human-machine interface.

The PPC-CM4-215 features a 21.5” screen with a ten-point capacitive touch panel and offers extensive connectivity options such as USB, RS232 and RS485 ports, Ethernet, and multiple optoisolated I/O.  The WiFi/BT module depends on the CM4 version, while the 4G and ZigBee modules are optional and can be added to the product in the optional modules section. HDMI and SATA II are not supported.



Hardware description

The PPC-CM4-215 is designed for industrial usage, ready to deploy applications based on the Raspberry Pi Compute Module 4 (Quad Cortex®-A72 processor at 1.5GHz clock).

The 21.5” screen with a ten-point capacitive touch and 1920 x 1080 pixel resolution at 250 NIT brightness make this interaction stable with excellent image clarity. It is durable and resistant to environmental contaminants like dust and water.

Wireless connectivity is a must nowadays. Besides the integrated Ethernet connector supporting up to 1000Mbps and WiFi + BLE wireless module, optional 4G/LTE and ZigBee modules are available.

Wired connectivity also includes two USB 3.0, a USB-C connector OTG port, a Giga-Ethernet, and an extension connector (featuring RS232, RS485, CAN, GPIO). The audio section also has a front panel microphone, a 3.5mm audio connector, two 2W internal stereo speakers, and one internal Buzzer.

The PPC-CM4-215 supports a wide range of input voltages from 12V to 36V DC with a typical power consumption of 18W, featuring a wide range of protection features, allowing it to meet stringent industrial safety regulations.

Refer to the Technical Features table below for a detailed description of the available features.

Weight 5500 g
Dimensions 535 × 331 × 52.5 mm
Form-factor

Panel

CPU

ARM: Raspberry Pi® CM4

FLASH

16GB

External storage

TF (microSD) Card Slot

Display size

21.5″

Resolution

1920*1080

Brightness (NIT)

250 NIT

Touch Screen

Capacitive

WiFi/BT

Depends on the Compute Module 4 selected.

4G/LTE

Optional

ZIGBEE

Optional

Buzzer

Onboard, driven by GPIO

Ethernet

1x Giga LAN

Audio

3.5mm Audio In/Out Connector, Internal 2W Speaker

RTC

Yes, High Accuracy RTC with Lithium Button Coin battery (lithium battery not included)

USB

2 x USB 3.0 Host, 1 x USB OTG

RS485

2x RS485

RS232

2x RS232

CAN

1x CAN

GPIO

8 Channels, 4 Input, 4 Output

Power Input

12~36V DC

Power Consumption

18W Typical

Current at 12V

1500mA Max

Working Temperature

0℃~50℃

OS

Raspberry Pi OS

Mounting Method

Panel Mounting & VESA

GTIN

6974174310781

Raspberry Pi Compute Module 4

This IPC core is the Raspberry Pi CM4, powered by a high-performance Broadcom BCM2711 (RPi 4) application processor.

The BCM2711 has the quad-core CPU design of the BCM2837 but uses the more powerful ARM A72 core. It has a greatly improved GPU feature set with much faster input/output. It is also capable of addressing more memory.

The BCM2711 chip continues to use the heat-spreading technology that started with the BCM2837B0, which provides better thermal management.

Raspberry Pi OS

All Raspberry Pi-based products come with the latest version of Raspberry Pi OS already installed. For specific models, such as the AIO-CM4-101 and the AIO-CM4-156, it is also possible to choose Android 13 or Ubuntu 20.04 as preinstalled OS.

We’ve taken care of all the necessary drivers, so you can easily access every hardware feature using any standard development tool. In the event that your project requires an OS that is not on the list, feel free to reach out to us, and we’ll create a customized version that meets your specific needs.

Documentation and Downloads

Hardware Documentation

Software Documentation

Powered By Raspberry Pi Official Certificate

Order Now

PPC-CM4-215

SKU: CS19108RA4215

Price: $458.00$508.00

Related Products

  • PPC-A55-215

    $508.00

  • PPC-A72-215-C

    $529.00

  • PPC-A9-215-C

    $572.00

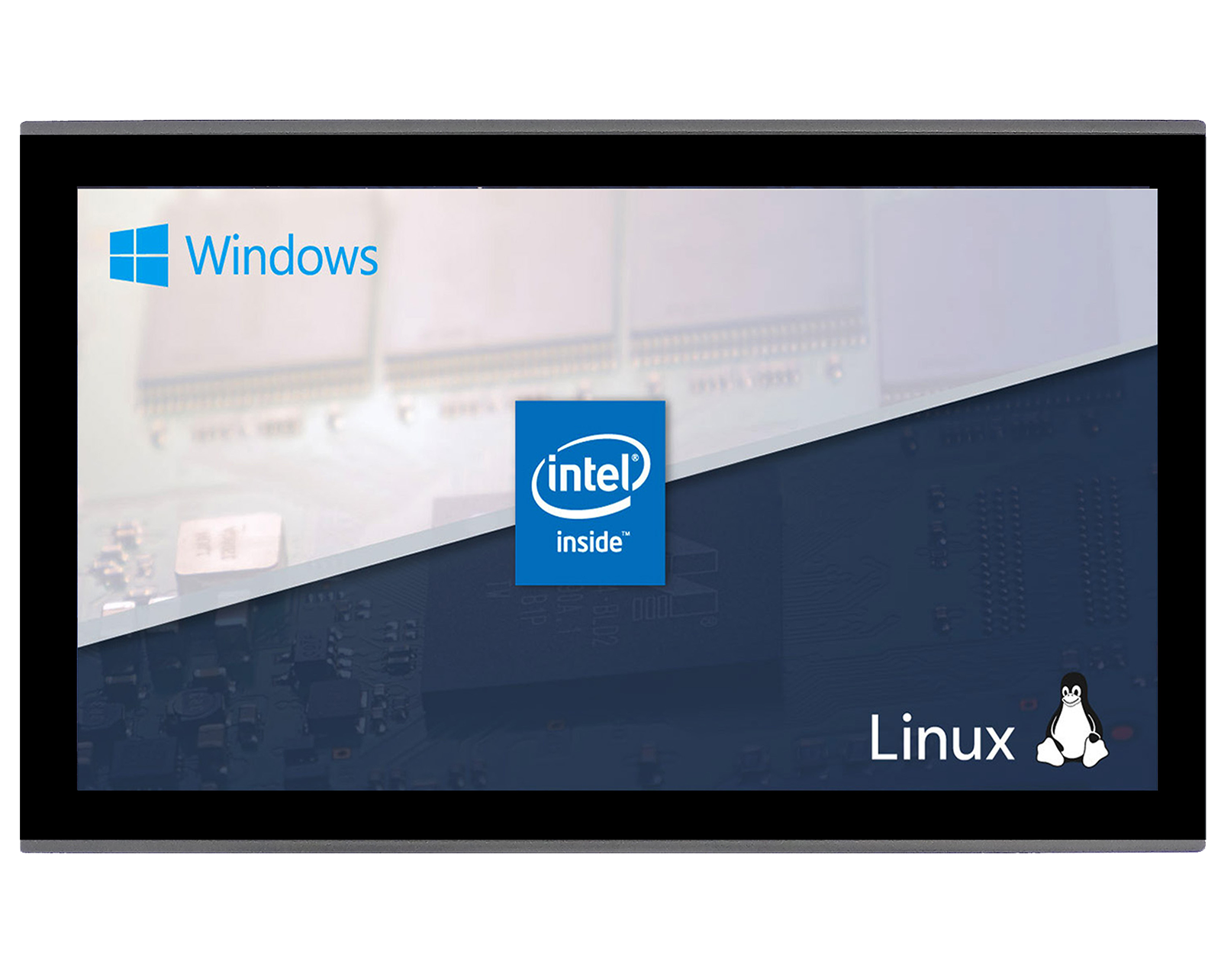

  • PPC-J1900-215-C
