PPC-CM4-050

The PPC-CM4-050 is Chipsee’s tiniest display-size industrial computer. It is full-featured, rugged, designed, and certified for industrial usage – and with its 5” display, it fits the industrial applications requiring compact space. It is ready to deploy industrial applications based around the Raspberry Pi® Compute Module 4.

The PPC-CM4-050 (CS12720RA4050P) is an industrial computer for the Raspberry Pi® Compute Module 4. Available in panel form-factor, the Industrial Pi features a 5-inch IPS display with a 5-point capacitive touch panel, RS232, RS485, and CAN ports, Ethernet, double USB, TF card, on-board audio, RTC with a backup battery, and power management.

The CM4 Raspberry Pi® module is not included in the product by default. If you need the CM4 module, please choose one when ordering.

Order Now
Documentation

Hardware Features

The PPC-CM4-050 is a full-featured, rugged, designed, and certified for industrial usage industrial computer. It is ready to deploy industrial applications based around the Raspberry Pi® Compute Module 4.

The PPC-CM4-050 has a 5-point capacitive touch screen, with a 1280×720 resolution which offers stable and accurate control over the device and great image clarity.

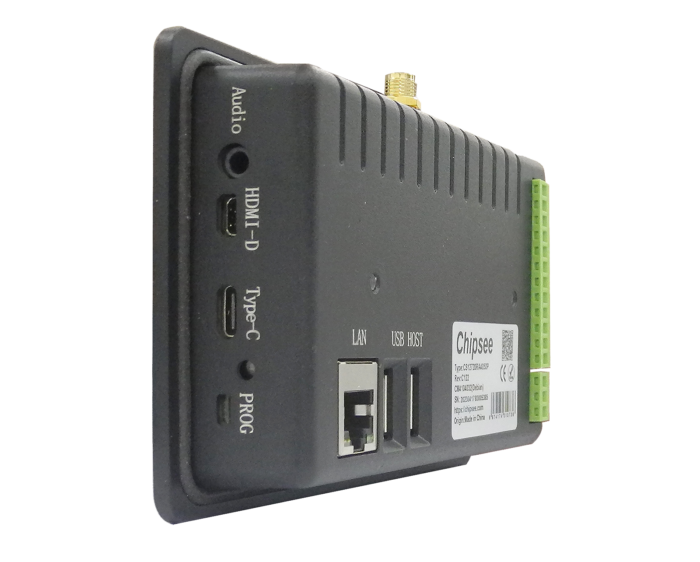

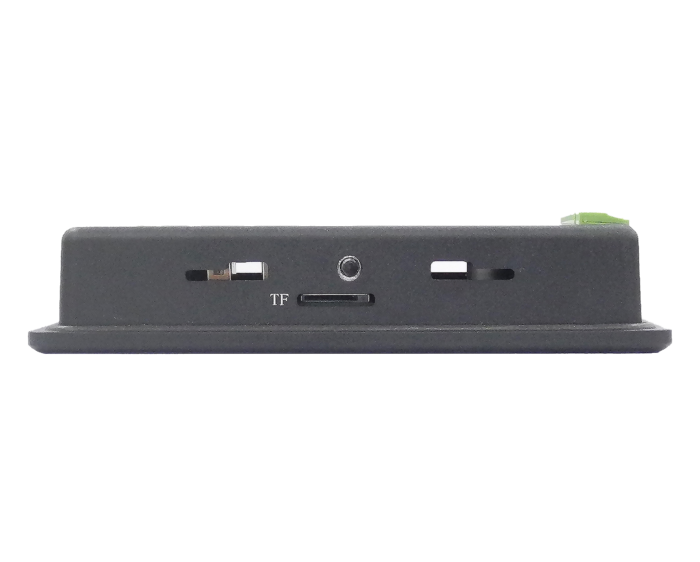

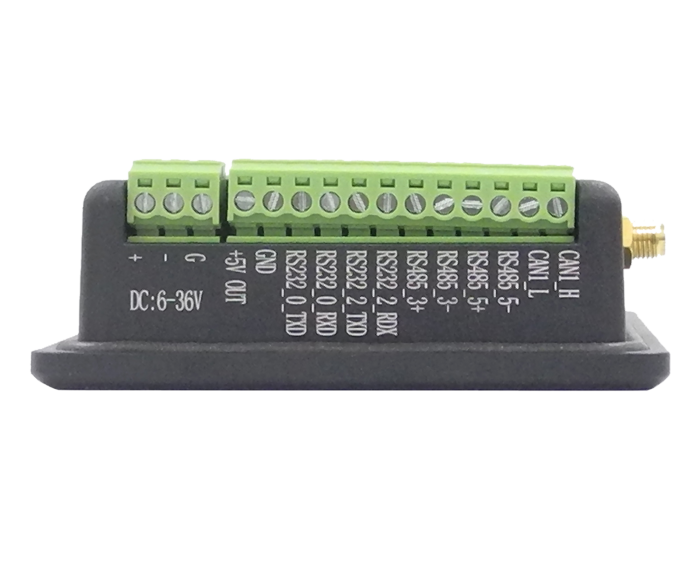

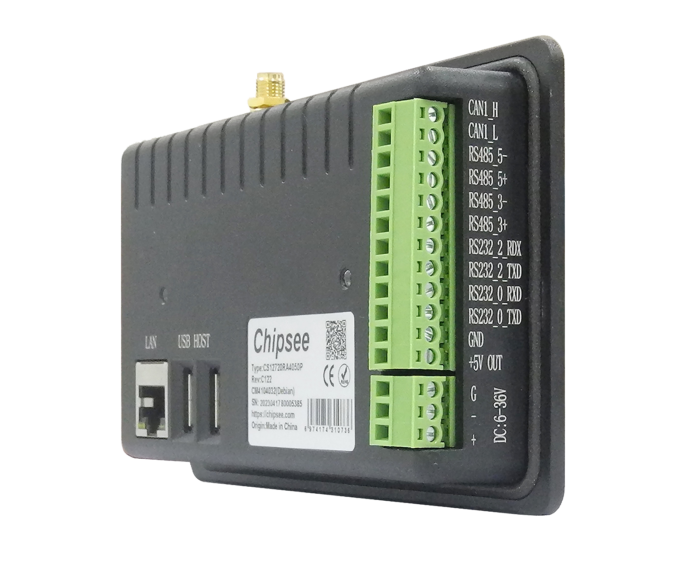

It features one TF card interface designed for storage expansion, two USB connectors, and one LAN connector. It also has two RS232, two RS485 channels and one CAN port. GPIO, HDMI, and the 4G/LTE module are not supported.

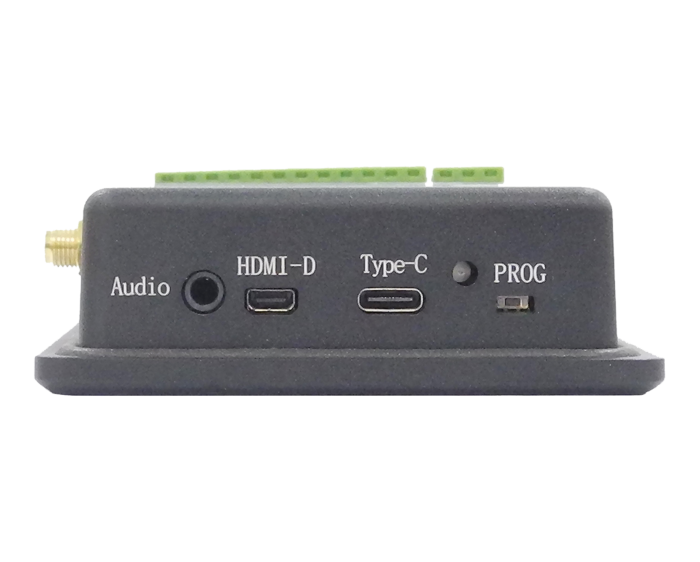

The PPC-CM4-050 has a power input of 9~36V DC and includes both panel mounting & VESA. Concerning audio, it has one 3.5mm audio connector, one 2W internal speaker, and one buzzer.

Performances and reliability

The PPC-CM4-050 is powered by the Raspberry Pi CPU, a high-performance Broadcom BCM2711 (RPi 4) application processor.

The Compute Module 4 appears in different versions depending on the size of the DDR4 and eMMC. Compute Module 4 is not included in the product by default. If you want to purchase it with a CM4, please choose one from the drop-down menu.

This industrial computer is heavy-duty – resistant to environmental contaminants like dust and water. It works best with a finger or a stylus with a conductive tip.

Operating System

The Industrial Pi, like other Raspberry Pi®-based products, supports the Debian operating system.

We have developed all the necessary drivers, so every hardware feature is readily available for any standard development tool. If your project requires an OS that is not on the list, please contact us, and we’ll make a customized version for you.

Technical Features

Weight 400 g
Dimensions 157.1 × 98.1 × 27.7 mm
Form-factor

Panel

CPU

Broadcom BCM2711 (RPi 4)

Display Size (inch.)

5.0"

Resolution

1280 x 720

Brightness (NIT)

400 NIT

Touch Screen

Capacitive

FLASH

Based on CM4

External storage

TF (microSD) Card Slot

WiFi/BT

Depends on the Compute Module 4 selected.

ZIGBEE

Not supported.

4G

Not supported.

Ethernet

1x Giga LAN

Camera

Supported. Not mounted by default.

Audio

3.5mm Audio Out Connector, Internal 2W Speaker

Buzzer

Not supported.

USB

1 x Type-C OTG, 2x USB 2.0 HOST

RTC

Yes. High Accuracy RTC with Lithium Button Coin battery (Lithium Battery not included)

GPIO

Not supported.

RS485

2 x RS485

RS232

2x RS232

CAN

1 x CAN-BUS

OS

Debian

Power Input

9V~36V DC

Power Consumption

6W

Current @ 12V

500 mA max

Working Temperature

0°C to +60°C

Mounting Method

Panel Mounting & VESA

Documentation and Downloads

Hardware Documentation

Software Documentation

Order Now

PPC-CM4-050

SKU: CS12720RA4050P

$118.00$258.00
